Halley - Weather Station Waldbeck - Free user manual and instructions

Brand	Waldbeck
Model	Halley
Product type	Professional weather station
Base station power supply	5V DC power adapter
Indoor sensor power supply	2 AA batteries (not included)
Outdoor sensor power supply	2 AA batteries (not included)
Max. transmission distance (outdoor)	100 m (open field), approx. 30 m with obstacles
Outdoor temperature range	-40 °C to 60 °C (±1 °C)
Relative humidity range	10-99% (±5%)
Precipitation range	0-6000 mm (±10%)
Wind speed range	0-50 m/s (±1 m/s)
Illuminance range	0-400 kLux (±15%)
Atmospheric pressure range (indoor)	700-1100 hPa (±3 hPa)
Main functions	Temperature, humidity, pressure, wind, rain, UV, brightness, wind direction
Connectivity	Wi-Fi 2.4 GHz, Internet publication (Ecowitt, Wunderground, WeatherCloud, WOW)
Package contents	1 receiver, 1 outdoor sensor Y, 1 wind vane, 1 funnel, 1 5V adapter, 1 instruction manual
Mounting	U-bolts, spirit level, mast mounting bracket
Cleaning	Rain gauge and solar sensor every 3 months
Battery replacement	Outdoor sensor every 1-2 years
Safety	Do not install during thunderstorms; risk of lightning

Frequently Asked Questions - Halley Waldbeck

How to connect the weather station to Wi-Fi?

Download the WS View PLUS app on your smartphone. Ensure your router broadcasts on 2.4 GHz. Open the app, select your device, follow the instructions to connect the console to your Wi-Fi network. The Wi-Fi indicator should stay on once connected.

What to do if the outdoor sensor does not connect to the console?

Check that the sensor LED flashes every 16 seconds. If not, insert the batteries correctly (respect polarity) or replace them. On the console, go to Sensor ID and press Re-register to synchronize.

How to replace the batteries of the outdoor sensor?

Remove the battery compartment cover. Insert two AA batteries respecting polarity (+/-). Use lithium batteries for cold climates. Avoid rechargeable batteries. Replace every 1 to 2 years.

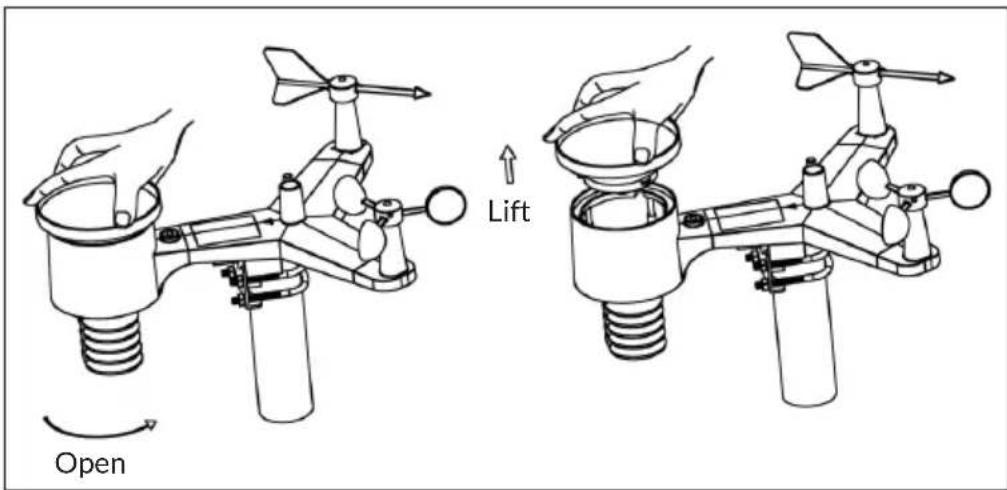

How to clean the rain gauge?

Turn the funnel counterclockwise and lift it. Clean with a damp cloth to remove dirt and insects. Spray insecticide if necessary. Perform this operation every 3 months.

Why do indoor and outdoor temperatures differ when testing indoors?

Let the sensors stabilize for up to one hour in the same room. A difference of 2°C is normal (accuracy ±1°C). If the discrepancy persists, use the calibration offsets in the settings.

How to publish weather data on the Internet?

Connect the console to Wi-Fi, then open the WS View PLUS app. Configure a weather service (e.g., Ecowitt.net or Wunderground.com) by enabling the Upload option and entering your ID and password. You can then view real-time data on the service's website.

What to do if the displayed time is incorrect?

Check the time zone and the daylight saving time setting in the console settings. Even when connected to the Internet, these settings must be correct. Restart the console after correction.

How to calibrate the atmospheric pressure?

Compare the relative pressure (corrected to sea level) with an official station. If there is a difference, use the calibration offsets in the app or console. Absolute pressure depends on altitude and is not calibrated in the same way.

The station does not transmit data to Wunderground.com, what to do?

Check that the station ID (uppercase) and password (key) entered in the app are correct. The ID contains letters O and digits 0 – do not confuse them. Make sure the date/time/timezone are accurate and that port 80 is not blocked by the firewall.

How to correctly install the wind vane?

Push the wind vane onto the shaft and tighten the screw. Check that it rotates freely. Orient the wind direction sensor so that the letters N, E, S, W correspond to the actual cardinal directions of the installation site. Misalignment will give erroneous directions.

USER MANUAL Halley Waldbeck

Professional Weather Station

INHALTSVERZEICHNIS

Technische Daten 4

Lieferumfang 4

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

Technical line drawing of a mechanical component with a red arrow indicating direction (no text or symbols)

Empfänger (Receiver)

Hardwareanforderungen:

Abbildung 13

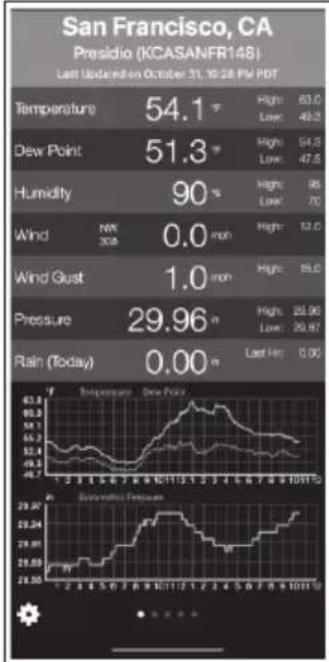

ECOWITT WEATHER

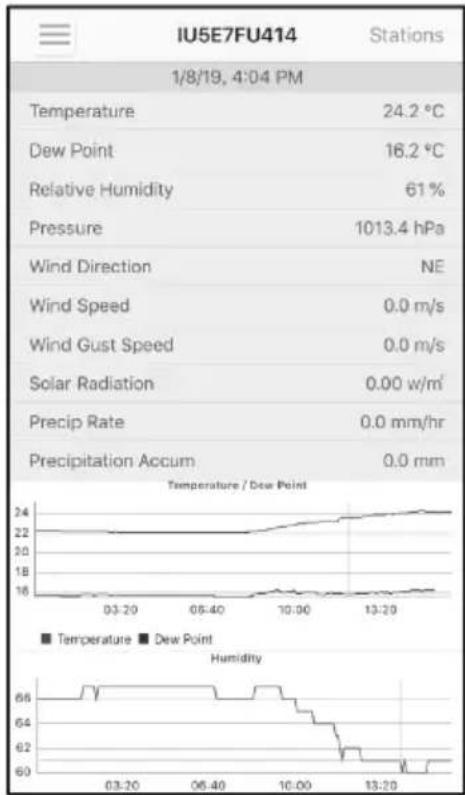

WEATHER UNDERGROUND

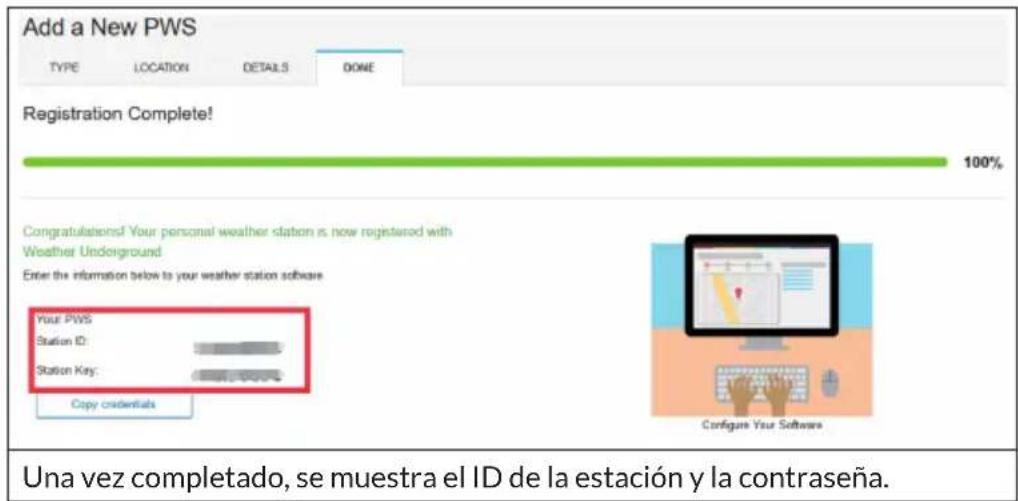

http://www.wunderground.com/personal-weather-station/dashboard?ID=STATIONID

https://itunes.apple.com/us/app/wunderstation-weather-from-your-neighborhood/id906099986

https://itunes.apple.com/us/app/weather-underground-forecast/id486154808

https://play.google.com/store/apps/details?id=com.wunderground.android.weather&hl=en

https://itunes.apple.com/us/app/pws-weather-station-monitor/id713705929

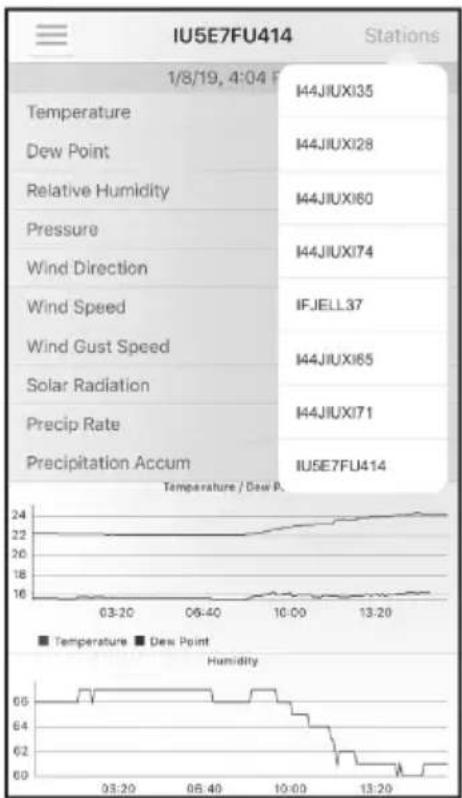

WU Stations	Add
I44JIUXI35	Delete
I44JIUXI28	Delete
I44JIUXI60	Delete
I44JIUXI74	Delete
IFJELL37	Delete
I44JIUXI65	Delete
I44JIUXI71	Delete
IU5E7FU414	Delete
KCAMOUNT191	Delete
I44JIUXI36	Delete
IU5E7FU429	Delete

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Technical Data 48

Packing Content 48

Safety Instructions 49

Quick Start 49

Product Overview and Button Functions 50

Installation 51

Getting Started 56

Live Internet Publishing 60

Ecowitt Weather 66

Weather Underground 70

Manage Devices and Settings 77

Cleaning and Care 80

Troubleshooting 81

Glossary of Terms 84

Disposal Considerations 86

Declaration of Conformity 86

TECHNICAL DATA

Item number 10032926
Power supply base station 5 V DC Adapter
Power supply indoor sensor 2 AA batteries	(not included in the scope of delivery)
Power supply outdoor sensor 2 AA batteries	(not included in the scope of delivery)
Max. Transmission distance (outdoor) 100 m
Measuring range temperature (outdoor) -40 °C to 60 °C (+/- 1 °C)
Measuring range rel. humidity (outdoor) 10-99 % (+/- 5 %)
Measuring range rain volume 0-6000 mm (+/- 10 %)
Measuring range wind speed 0-50 m/s (+/- 1 m/s)
Measuring range light 0-400 kLux (+/- 15 %)
Measuring range ir pressure (indoor) 700-1	100 hPa (+/- 3 hPa)

PACKING CONTENT

Qty Item
1 Receiver
1 Thermo-hygrometer-barometer transmitter
1 Y shape outdoor sensor(including 1xThermo-hygrometer / 1xRain Gauge / 1xTransmitter / 1x pole mounting clamp / 2xU-bolt / 4x srews, assembled)
1 Wind Vane
1 Wind speed sensor
1 Rain hopper
1 5V DC Adaptor
1 User manual

SAFETY INSTRUCTIONS

Any metal object may attract a lightning strike, including your weather station mounting pole. Never install the weather station in a storm.

WARNING

Risk of injury! Installing your weather station in a high location may result in injury or death. Perform as much of the initial check out and operation on the ground and inside a building or home. Only install the weather station on a clear, dry day.

QUICK START

Although the manual is comprehensive, much of the information contained may be intuitive. In addition, the manual does not flow properly because the sections are organized by components. The following Quick Start Guide provides only the necessary steps to install, operate the weather station, and upload to the internet.

Required

1 Assemble and power up the Y shape sensor

2 Power up the display console and synchronize with Y shape sensor

3 Mount the sensor array

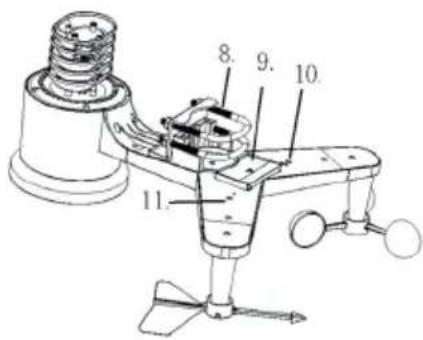

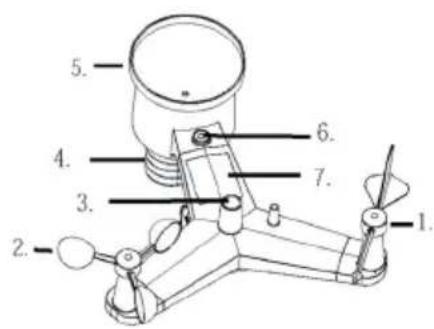

PRODUCT OVERVIEW AND BUTTON FUNCTIONS

1 Wind Vane 7 Solar panel
2 Wind Speed Sensor 8 U-Bolt
3 UV sensor/ Light sensor 9 Battery compartment
4 Thermo-hygro sensor 10 Reset button
5 Rain collector 11 LED Indicator: light on for		4s if the unit power up. Then the LED will lash once every 16 seconds (the sensor transmission update period).
6 Bubble level

INSTALLATION

Pre Installation Checkout

Before installing your weather station in the permanent location, we recommend operating the weather station for one week in a temporary location with easy access. This will allow you to check out all of the functions, insure proper operation, and familiarize you with the weather station and calibration procedures. This will also allow you to test the wireless range of the weather station.

Site Survey

Perform a site survey before installing the weather station. Consider the following:

1. You must clean the rain gauge every few months and change the batteries every 2-3 years. Provide easy access to the weather station.
2. Avoid radiant heat transfer from buildings and structures. In general, install the sensor array at least 1.5 m from any building, structure, ground, or roof top.
3. Avoid wind and rain obstructions. The rule of thumb is to install the sensor array at least four times the distance of the height of the tallest obstruction. For example, if the building is 6 m tall, and the mounting pole is 1.8 m tall, install 4 x (6 - 1.8) m = 17 m away.
4. Wireless Range. The radio communication between receiver and transmitter in an open field can reach a distance of up to 100 meter, providing there are no interfering obstacles such as buildings, trees, vehicles, high voltage lines. Wireless signals will not penetrate metal buildings. Under most conditions, the maximum wireless range is 30 m.
5. Radio interference such as PCs, radios or TV sets can, in the worst case, entirely cut off radio communication. Please take this into consideration when choosing console or mounting locations. Make sure your display console is at least five feet away from any electronic device to avoid interference.

Install wind vane

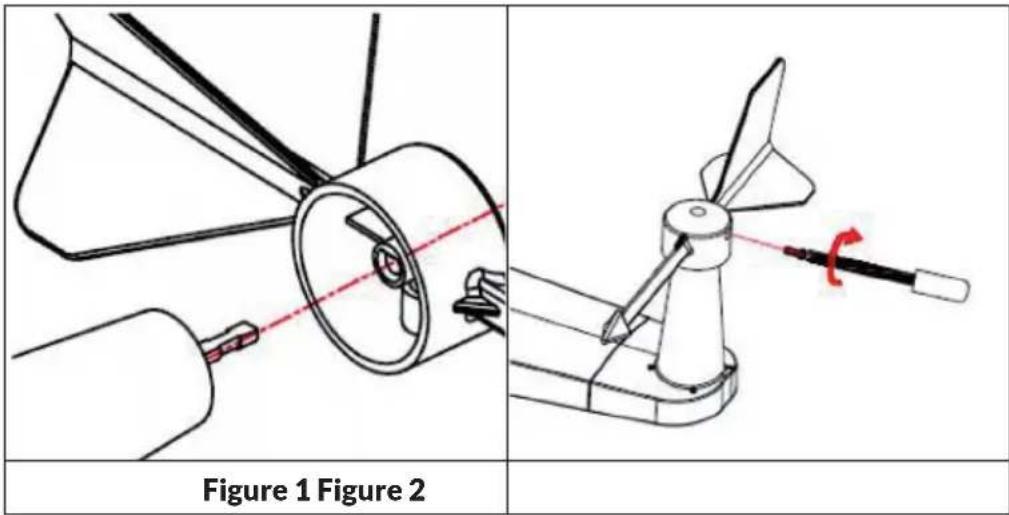

Push the wind vane into the shaft. as shown in figure 1. Tighten the set screw with as shown in figure 2. Make sure the wind vane spin freely.

There are four alphabet letters of "N", "E", "S" and "W" around the wind direction, representing for the direction of North, East, South and West. Wind direction sensor has to be adjusted so that the directions on the sensor are matching with your real location. Permanent wind direction error will be introduced when the wind direction sensor is not positioned correctly during installation.

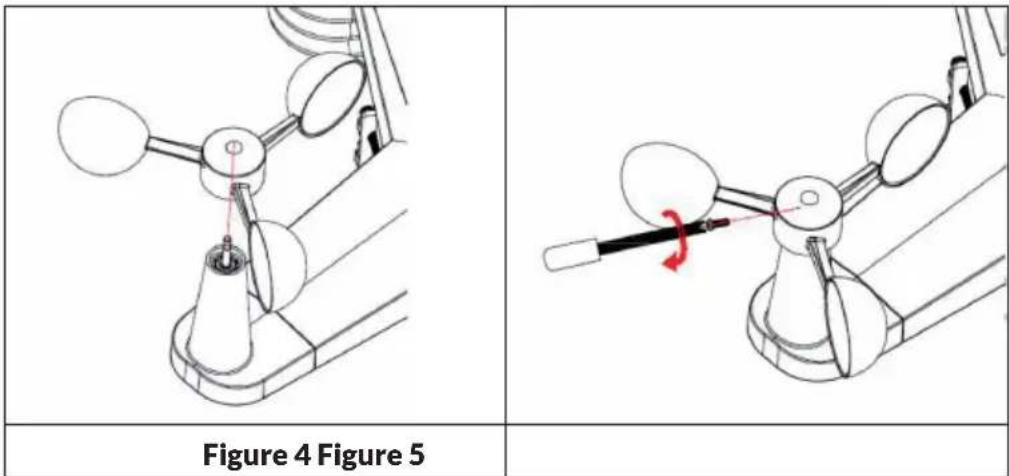

Install wind speed

Push the wind speed into the shaft. as shown in figure 4.

Tighten the set screw with as shown in figure 5. Make sure the wind speed spin freely.

Install Batteries

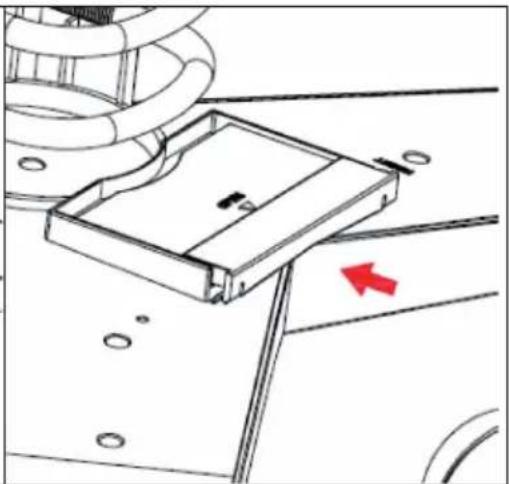

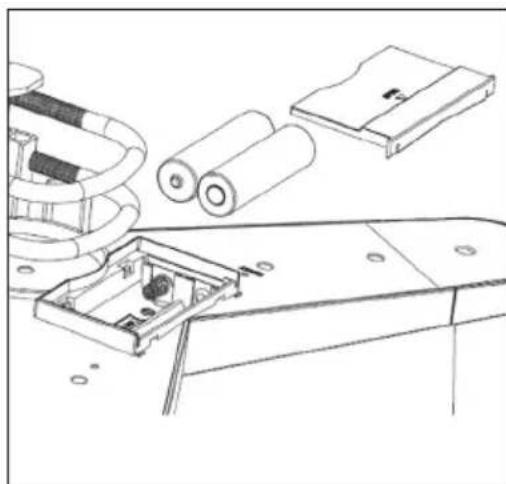

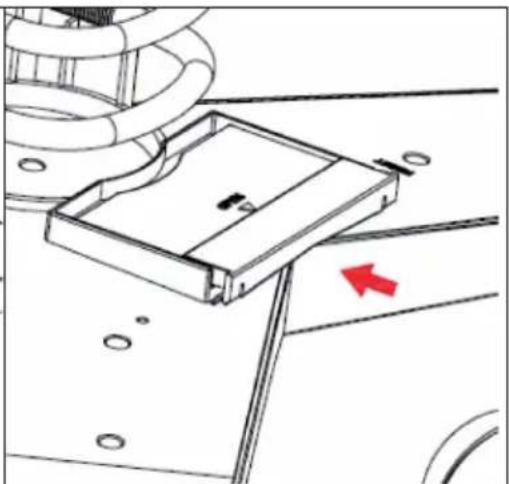

Insert 2XAA batteries in the battery compartment. The LED indicator on the back of the transmitter will turn on for four seconds and normally flash once every 16 seconds (the sensor transmission update period).

Technical line drawing of a mechanical assembly with rollers and a component housing (no text or symbols)

Figure 6 Figure 7

Technical line drawing of a mechanical component with a red arrow indicating direction (no text or symbols)

If no LED light up or is lighted permanently, make sure the battery is inserted the correct way or a proper reset is happened. Do not install the batteries backwards. You can permanently damage the outdoor sensor

Note: We recommend lithium batteries for cold weather climates, but alkaline batteries are sufficient for most climates.

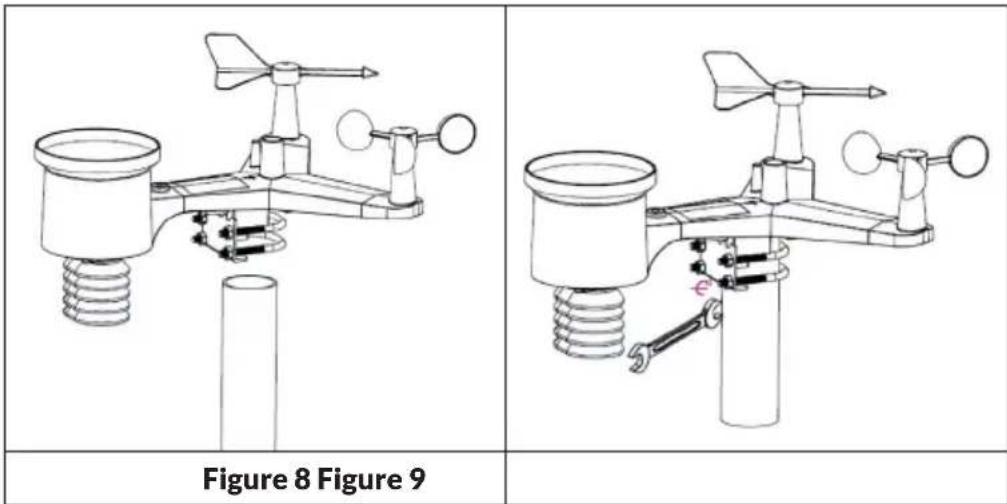

Mount outdoor sensor

Mounting outdoor sensor to your mounting pole (purchased separately) with the U-bolts as shown in Figure 8.

Use the bubble level beside the rain sensor as a guide to verify that sensors are level.

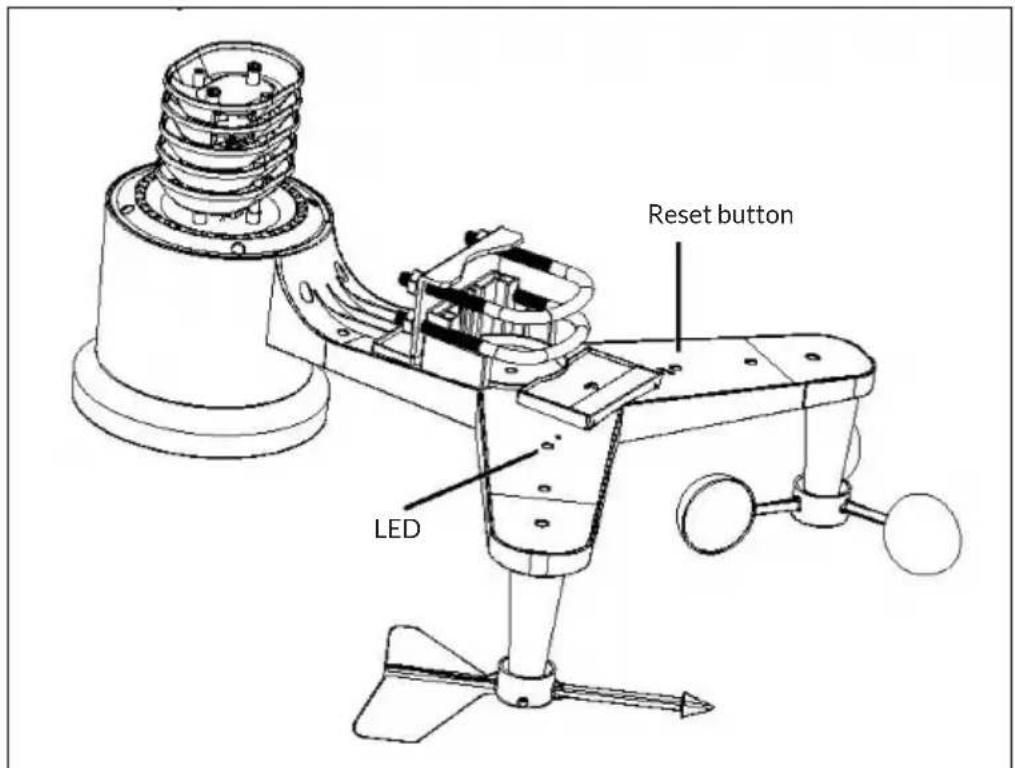

Reset Button and Transmitter LED

In the event the sensor array is not transmitting, reset the sensor array.

• With an open ended paperclip, press and hold the RESET BUTTON for three seconds to completely discharge the voltage.
• Take out the batteries and wait one minute, while covering the solar panel to drain the voltage.
• Put batteries back in and resynchronize with console by powering down and up the console with the sensor array about 10 feet away.

Figure 10

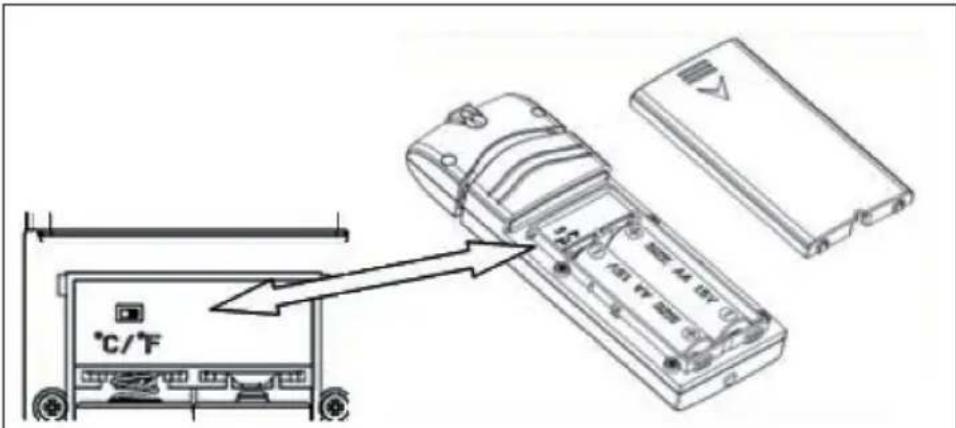

Indoor Thermo-Hygrometer-Barometer Transmitter

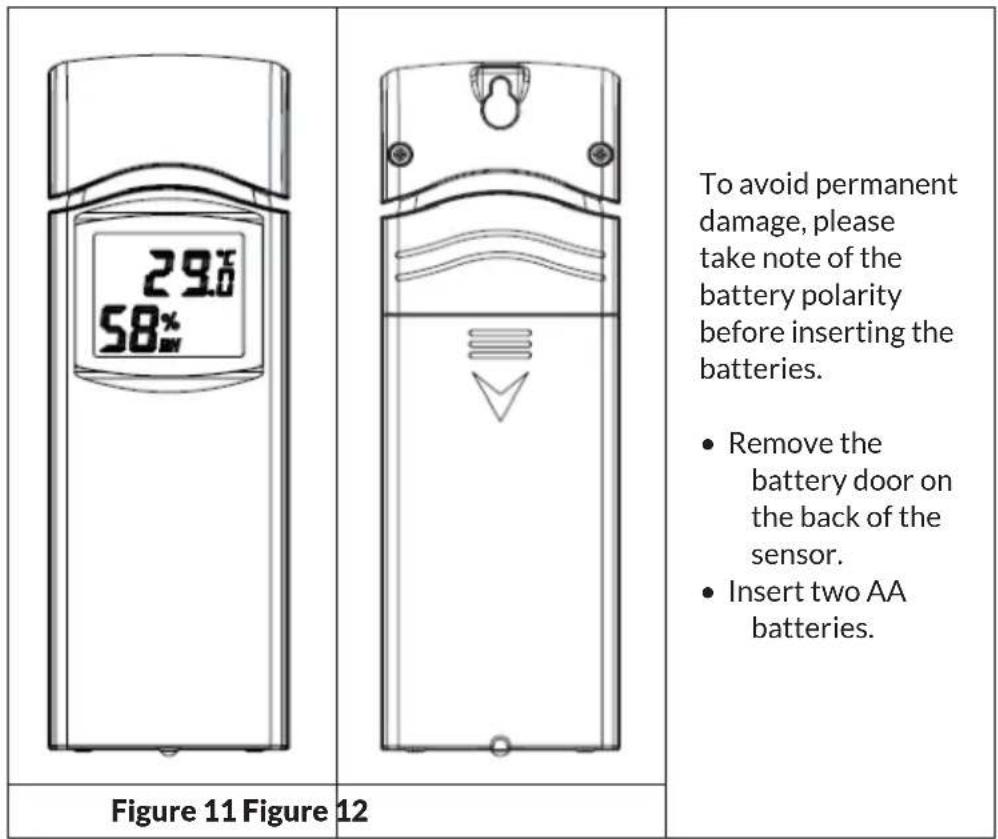

1 Remove the battery cover on the back of the remote control.
2 Insert 2 AA batteries.
3 Select the desired unit (°C or °F) on the temperature switch.

• We recommend lithium batteries for cold weather climates, but alkaline batteries are sufficient for most climates.
• We do not recommend rechargeable batteries. They have lower voltages, do not operate well at wide temperature ranges, and do not last as long, resulting in poorer reception.
• Note that the temperature and humidity will be displayed on the LCD display. Looking at the back of the unit from left to right, the polarity is (-) (+) for the top battery and (+) (-) for the bottom battery.

GETTING STARTED

Best Practices for Wireless Communication

Note: To insure proper communication, mount the remote sensor(s) upright on a vertical surface, such as a wall. Do not lay the sensor flat.

Wireless communication is susceptible to interference, distance, walls and metal barriers. We recommend the following best practices for trouble free wireless communication.

1. Electro-Magnetic Interference (EMI). Keep the console several feet away from computer monitors and TVs.
2. Radio Frequency Interference (RFI). If you have other 868 MHz devices and communication is intermittent, try turning off these other devices for troubleshooting purposes. You may need to relocate the transmitters or receivers to avoid intermittent communication.
3. Line of Sight Rating. This device is rated at 300 feet line of sight (no interference, barriers or walls) but typically you will get 100 feet maximum under most real-world installations, which include passing through barriers or walls.
4. Metal Barriers. Radio frequency will not pass through metal barriers such as aluminum siding. If you have metal siding, align the remote and console through a window to get a clear line of sight.

The following is a table of reception loss vs. the transmission medium. Each “wall” or obstruction decreases the transmission range by the factor shown below.

Medium RF Signal Strength Reduction
Glass (untreated) 5-15%
Plastics 10-15%
Wood 10-40%
Brick 10-40%
Concrete 40-80%
Metal 90-100%

Receiver

Hardware Requirements:

• Broadbandrouter
• An “always-on” connection to the Internet. A high speed DSL or cable internet connection that maintains constant connection to the internet.

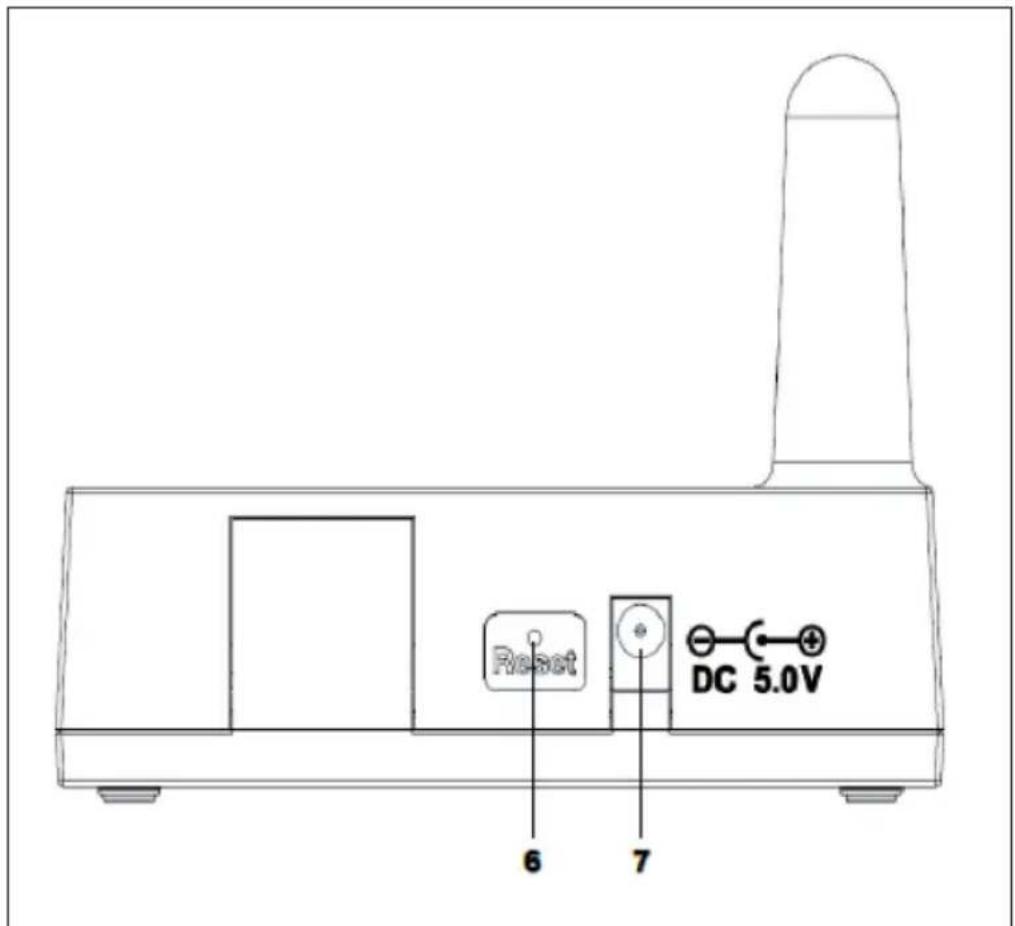

Figure 13

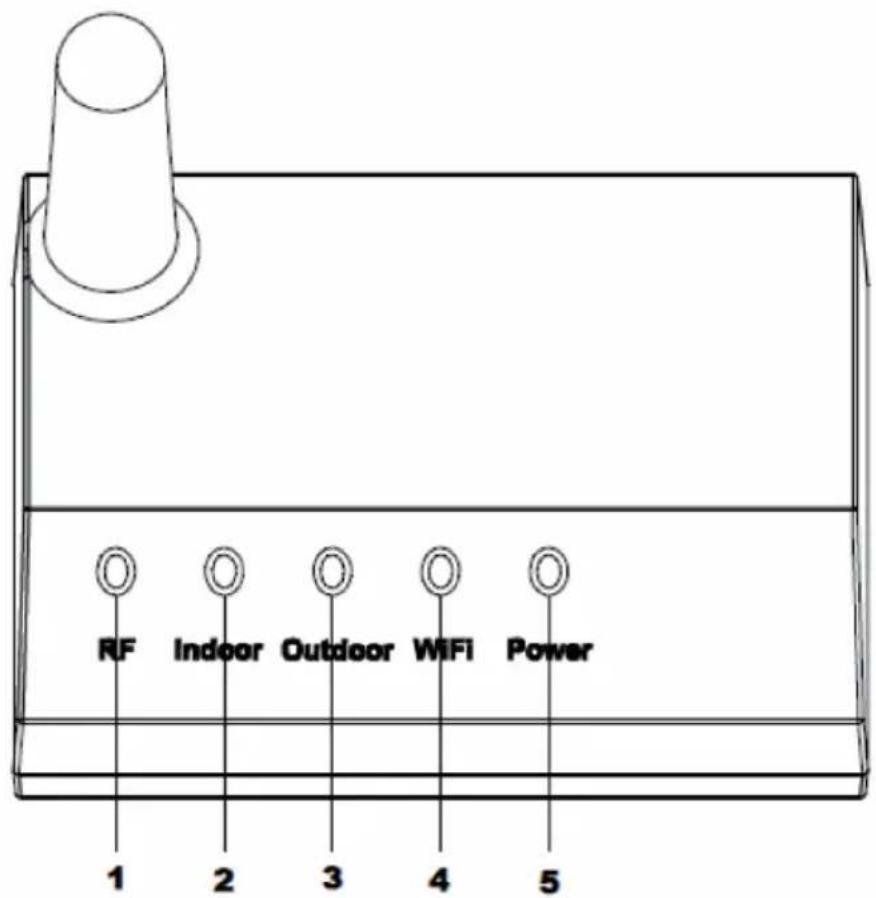

Ref. LED Description
1 RF On when radio frequency receiver is operating properly
2 Indoor On when indoor sensor received
3 Outdoor On when outdoor sensor array received
4 WIFI On when connect to WIFI router via APPs. On when connected to internet hosting service
5 Power AC Power connected

Figure 14

Your console is capable of sending your sensor data to select internet-based weather services. The supported services are shown in the table below:

Hosting Service Website Description
Ecowitt Weather	https://www.ecowitt.net Ecowitt	is a new weather server that can host a bunch of sensors that other services don't support.
Weather Underground	https://www.wunderground.com	Weather Underground is a free weather hosting service that allows you to send and view your weather station data real-time, view graphs and gauges, import text data for more detailed analysis and use iPhone, iPad and Android applications available at Wunderground.com. Weather Underground is a subsidiary of The Weather Channel and IBM.

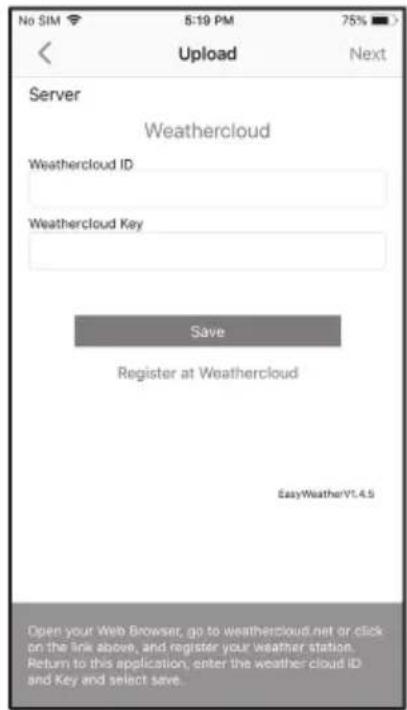

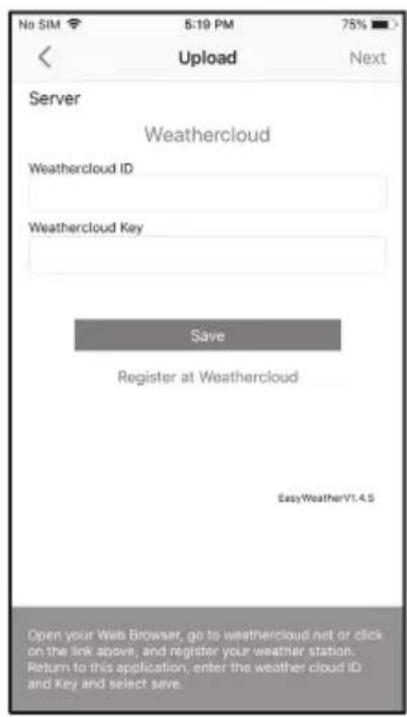

Weather Cloud	https://weathercloud.net Weathercloud is a real-time weather so-cial network formed by observers from around the world.

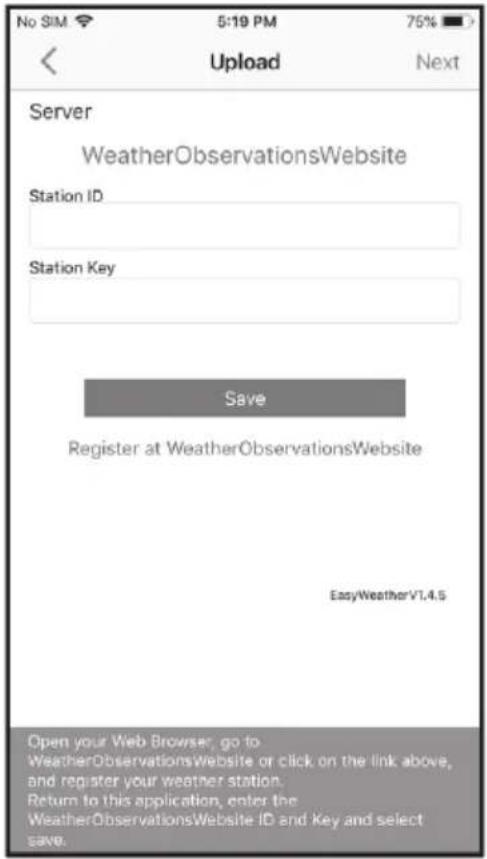

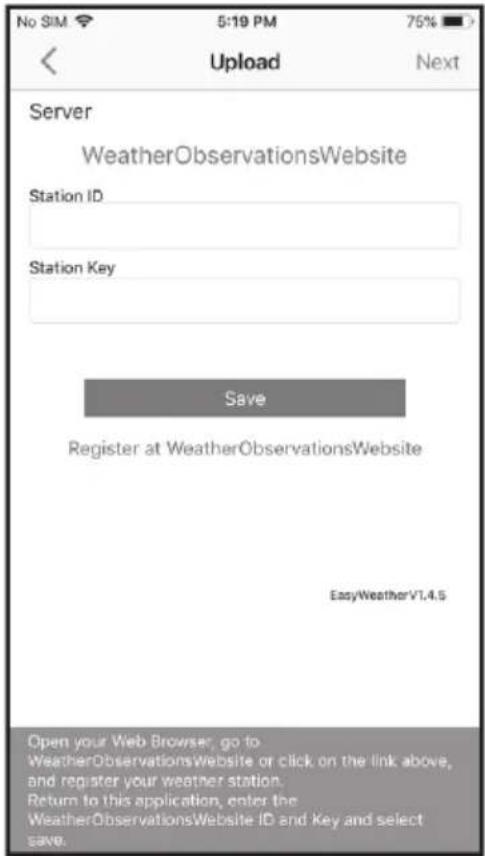

Weather Observations Website (WOW)	http://wow.metoffice.gov.uk/	WOW is a UK based weather observation website. WOW allows anyone to submit their own weather data, anywhere in the world.

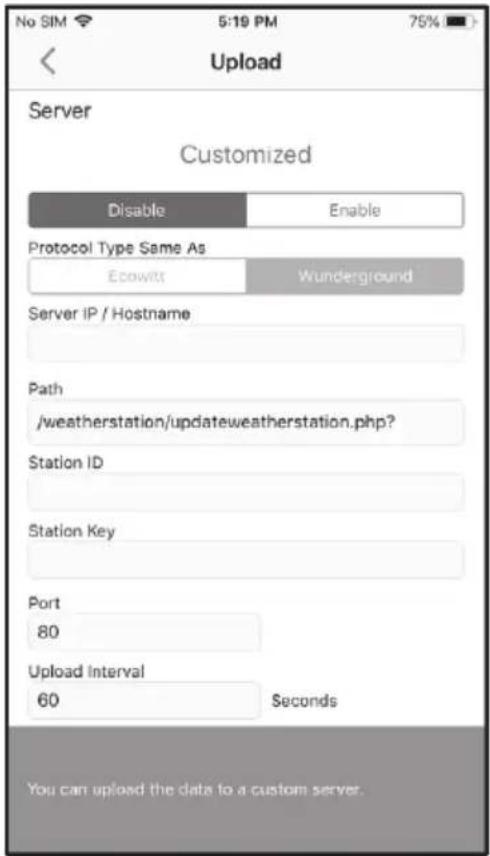

Customized Website		Supports uploading to your customized website, if the website has the same protocol with Wunderground or Ecowitt

Connecting the Weather Station Console to WiFi

To send weather data to these services you must connect your console to the internet via Wi-Fi. The console can only operate using Wi-Fi when the external power adapter is connected and plugged in!

Note: If you are testing the setup with the outdoor sensor package nearby and indoor, you may want to consider connecting to Wi-Fi, but not yet configuring any of the weather services. The reason is that while indoor the temperatures and humidity recorded by the outdoor sensor, and as reported to the weather service(s) will reflect indoor conditions, and not outdoor conditions. Therefore, they will be incorrect. Furthermore, the rainfall bucket may be tripped during handling, causing rain to register while it may not actually have been raining. One way to prevent this is to follow all instructions, except to use an incorrect password, on purpose! Then, after final outdoor installation, come back and change the password after clearing console history. That will start uploading to the services with a clean slate.

Download mobile application

Wi-Fi configuration is done using your mobile device, either iOS or Android. Start by downloading the "WS View PLUS" application from the Apple App Store or Google Play store, as appropriate for your device.

Connect the console to Wi-Fi

Now activate the application you have downloaded on your mobile device. The following instructions will generally show screen shots for the Android/iOs application side by side.

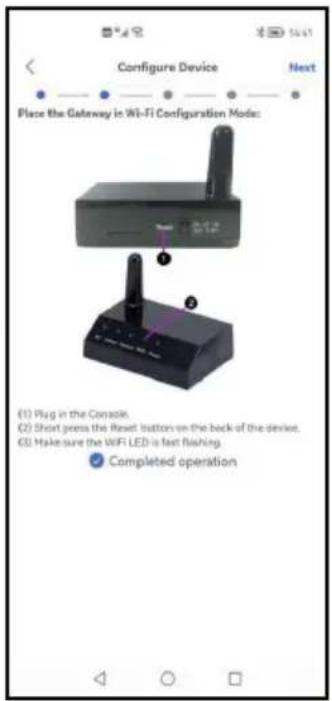

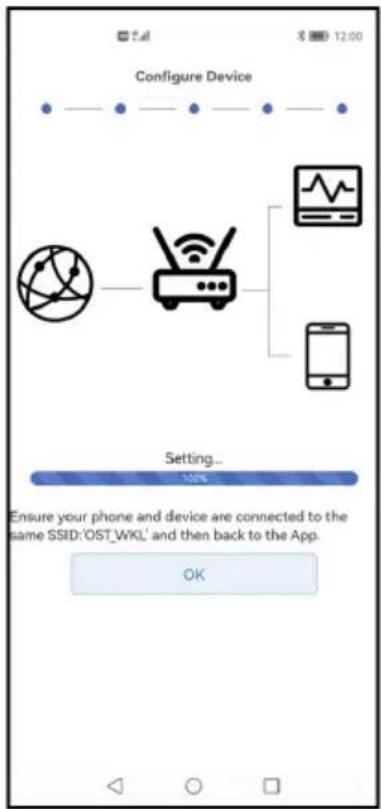

Configure Device

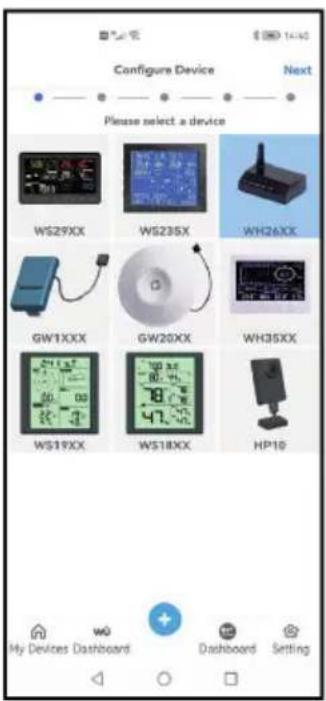

Select the device you have from the device list, then press Next

Operate as per the information, tick the box to confirm Completed operation, press Next.

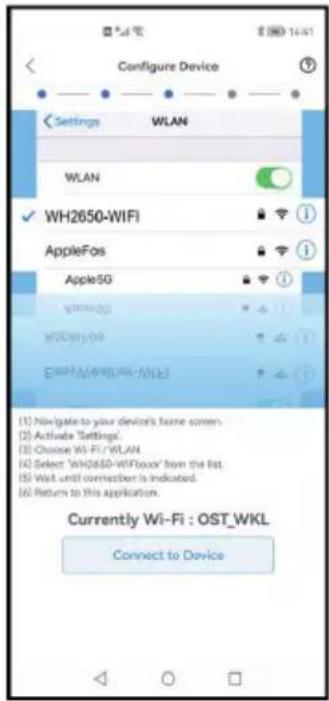

Choose the device named EasyWeather-WIFI.

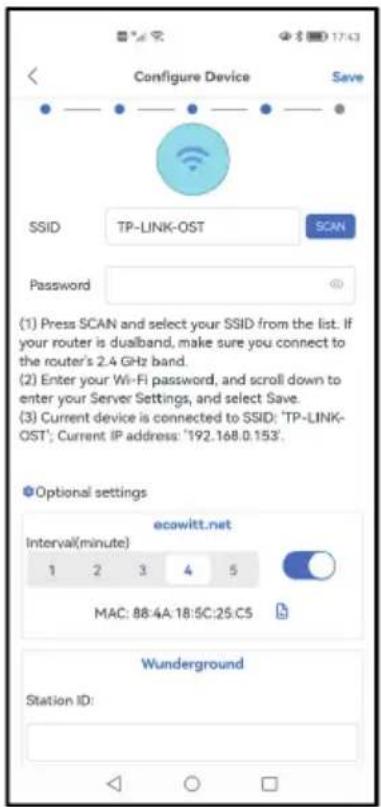

Press Scan and select you SSID from the list, then enter your WiFi password and press Next.

If you own a dual band router (2.4 GHz and 5.0 GHz), make sure you connect to the 2.4 GHz band, otherwise it will fail to connect the weather station to WiFi.

Connect the EasyWeather-WIFI weather station to your router via your mobile device. If the connection was established successfully, the upload settings will be displayed automatically.

Upload settings

Your device can be used to send data from your sensor to selected internet-based weather services, such as ecowitt.net, wunderground.com, weathercloud.net, wow.metoffice.gov.uk, and your self-created website. Users must register on the appropriate website to receive a station ID (or MAC address) for your weather station and a password.

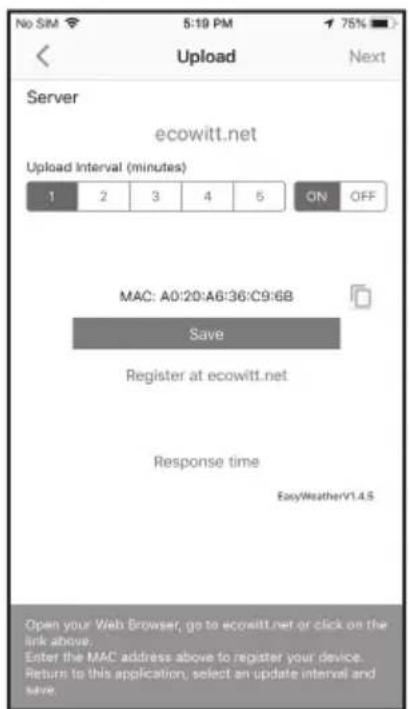

Adding weather services

You may have already configured the weather services during the initial configuration, or you can do it later. To do this, open the mobile application and select your device in the device list. This will display the screen for the device.

Navigate to the weather service you want to configure by pressing Next, and then enter the appropriate data.

ECOWITT WEATHER

It is recommended to use Ecowitt Weather Server to monitor and record data from your sensors. Configure it as follows:

• On the ecowitt.net Upload page, enable the ON button and set the upload interval time.
• Press Save on the page.
• Click Register at ecowitt.net and complete the registration on the page.

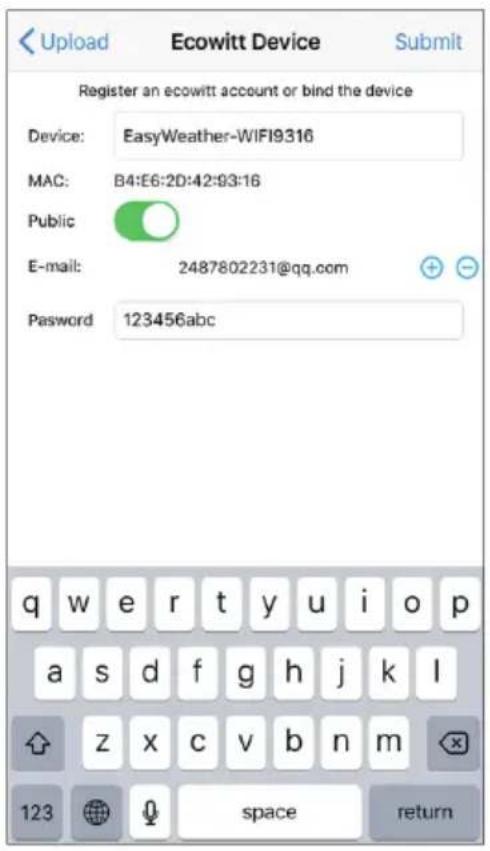

• Press the (+) button and select your email address.
• Set a password for your ecowitt account.
• Press Submit.

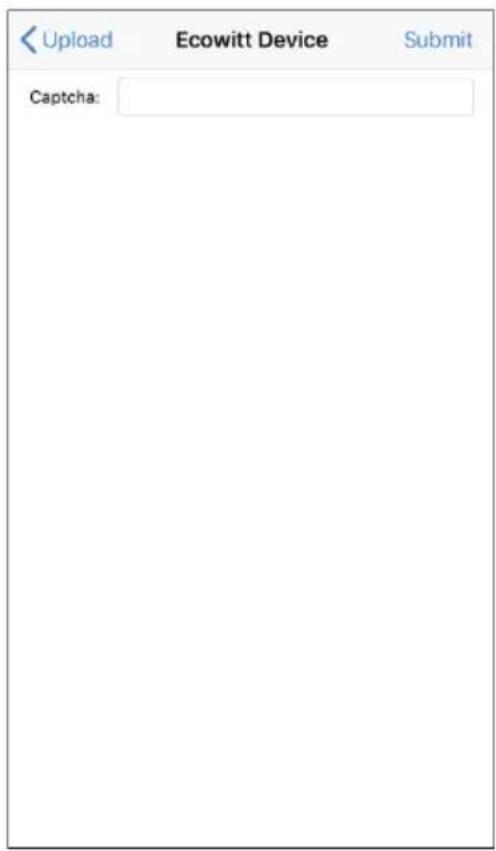

• Enter the captcha sent to their email inbox and press Submit.

Note: If you did not receive the captcha in your email inbox, please check the spam folder.

The WS View Plus app only supports setting the units. To make all settings complete, visit the ecowitt website in your browser or on a computer. If you could not register in WS View Plus App, please go to ecowitt website to register and add the unit.

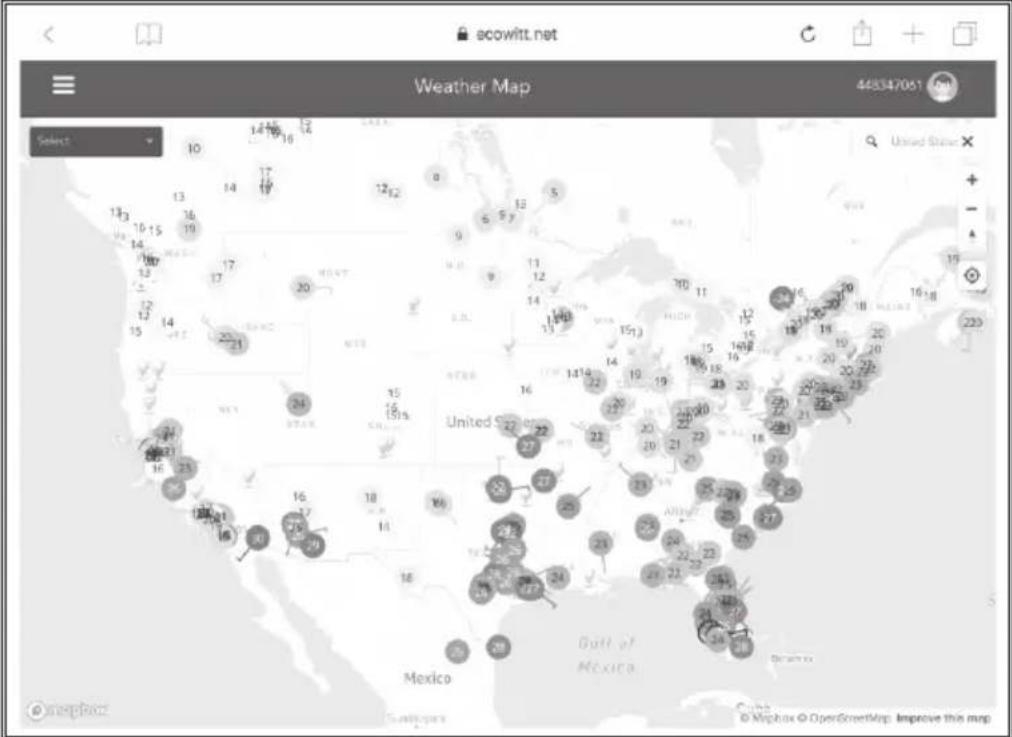

Indication of data on ecowitt.net

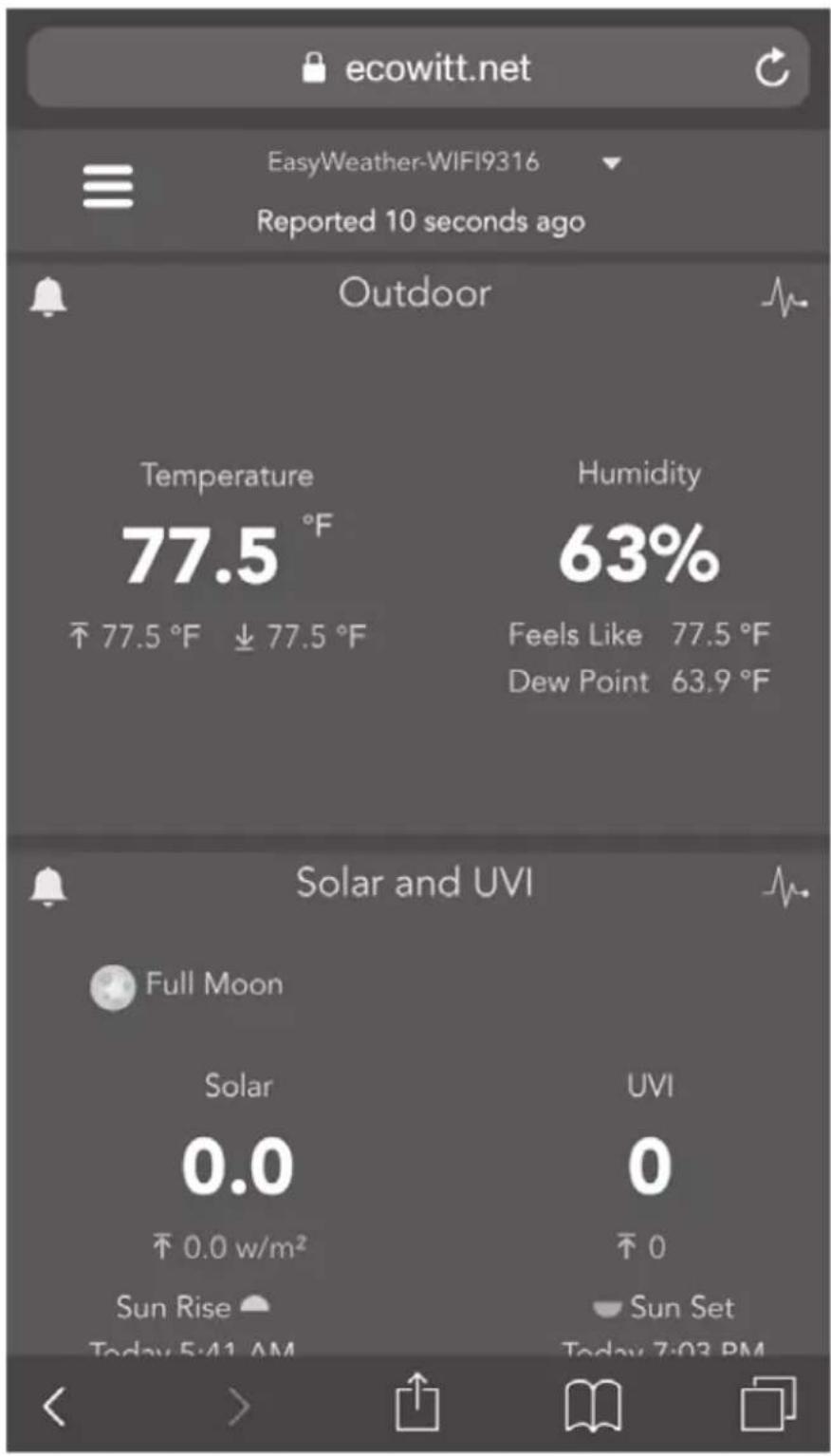

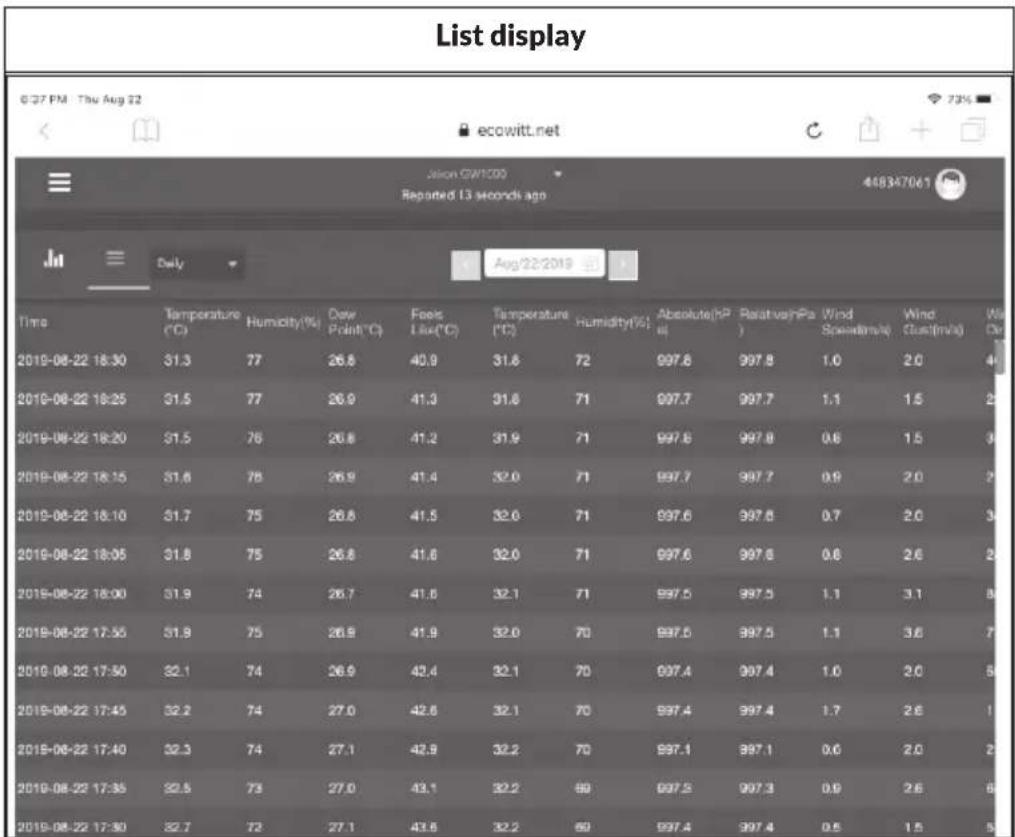

You can view your sensor's data through the ecowitt.net website. Use this URL with your station ID replacing the text STATIONID.

https://www.ecowitt.net/home/index?id=STATIONID

If you want to share your station data with other users, you can use the Share option in the menu to create a link to share.

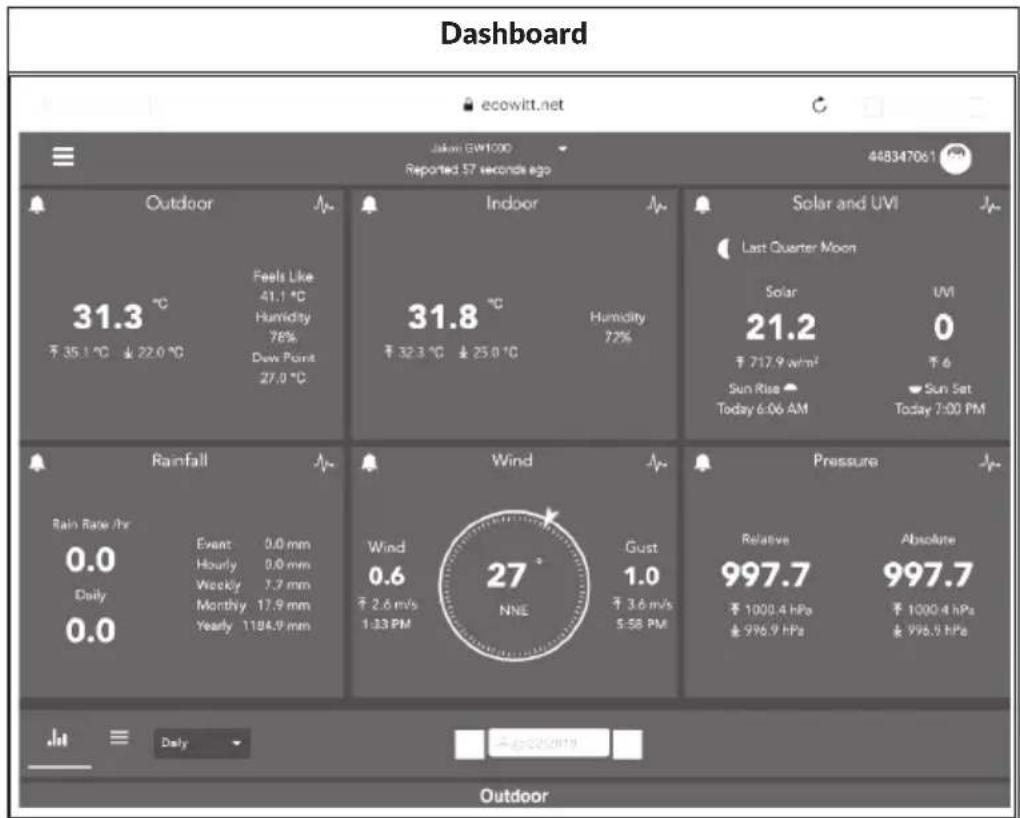

A page like this will be indicated where you can view the current data and also the historical data.

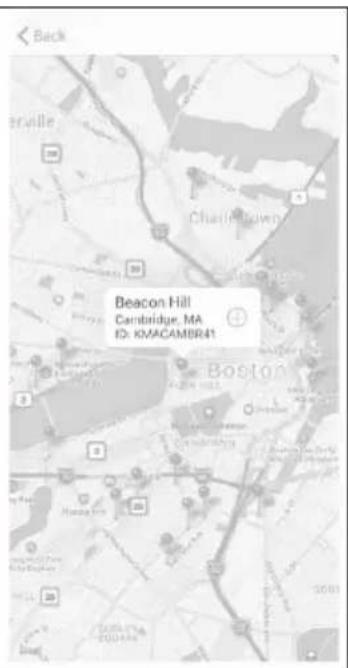

Weather Map

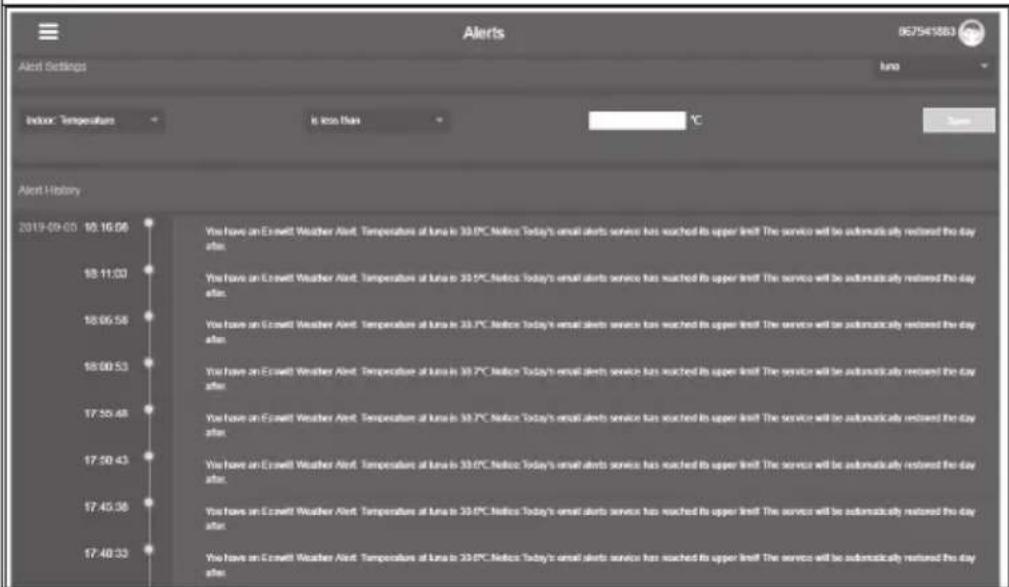

Email Alerts

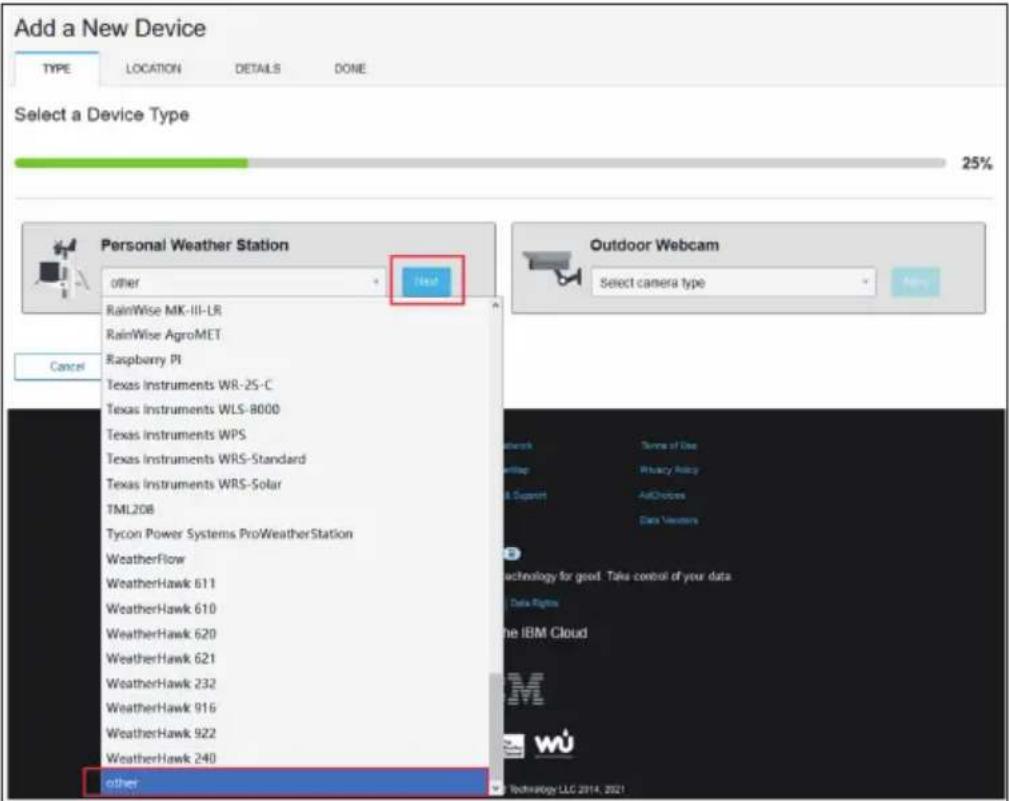

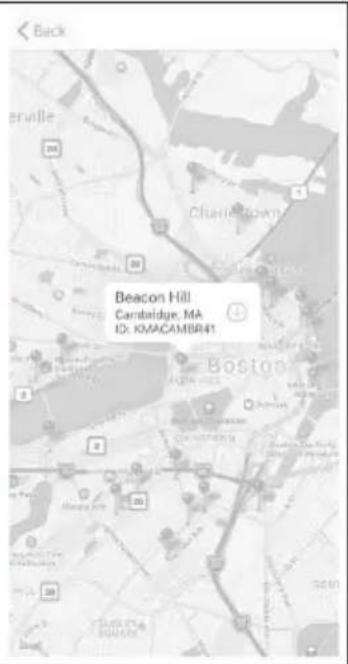

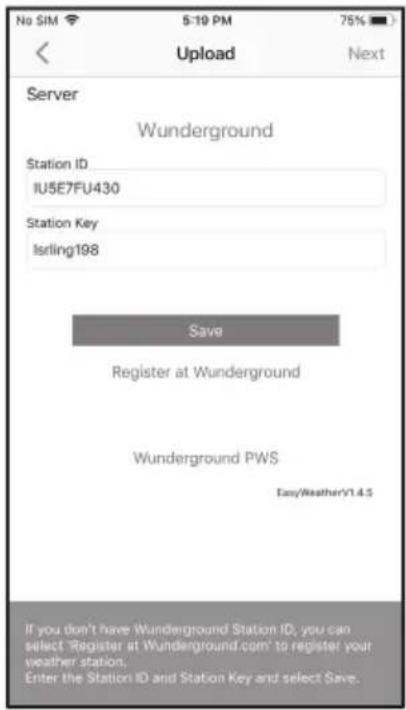

WEATHER UNDERGROUND

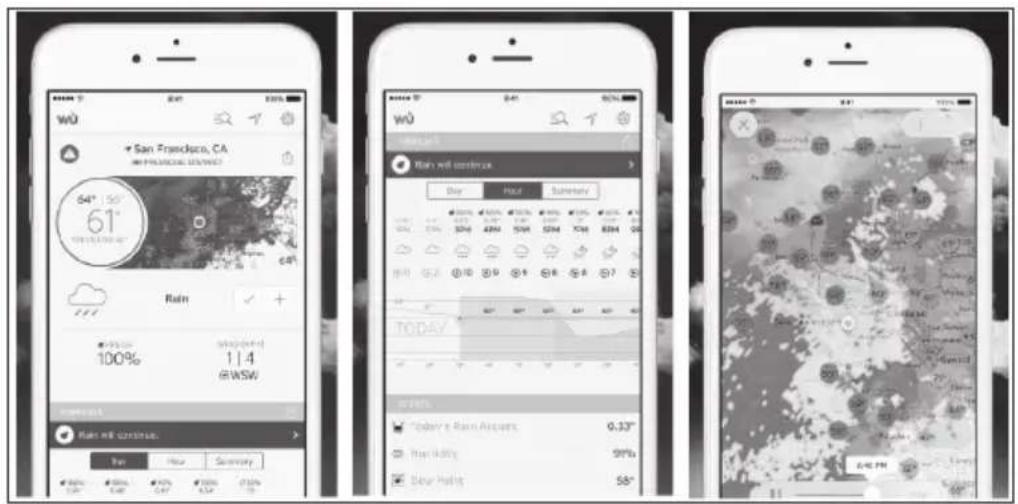

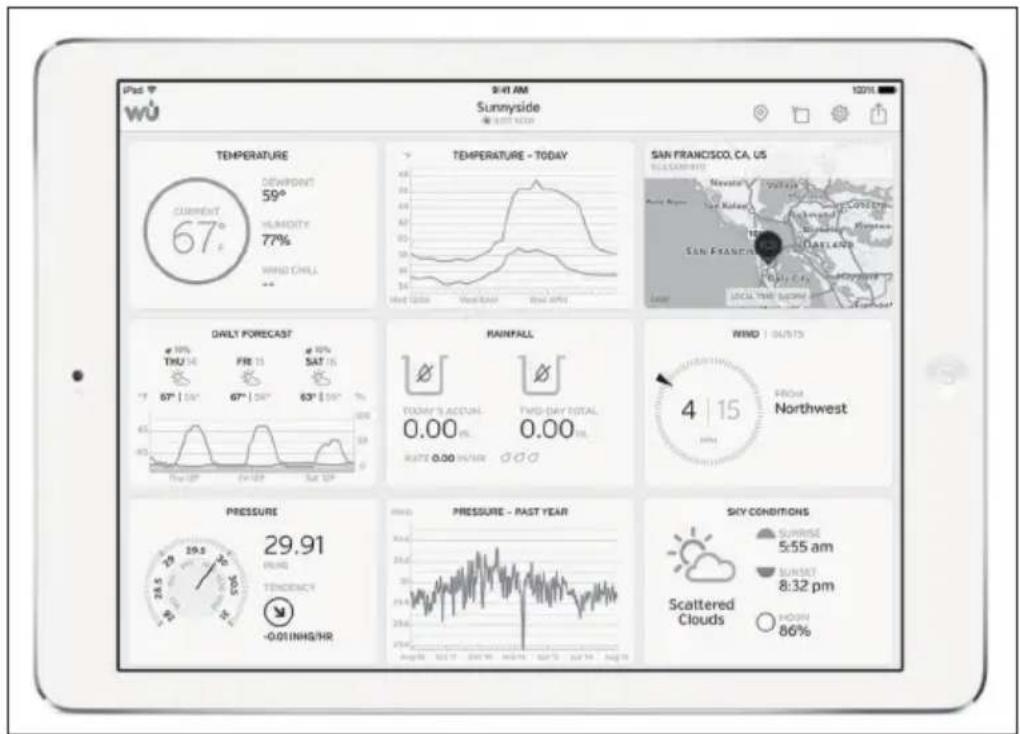

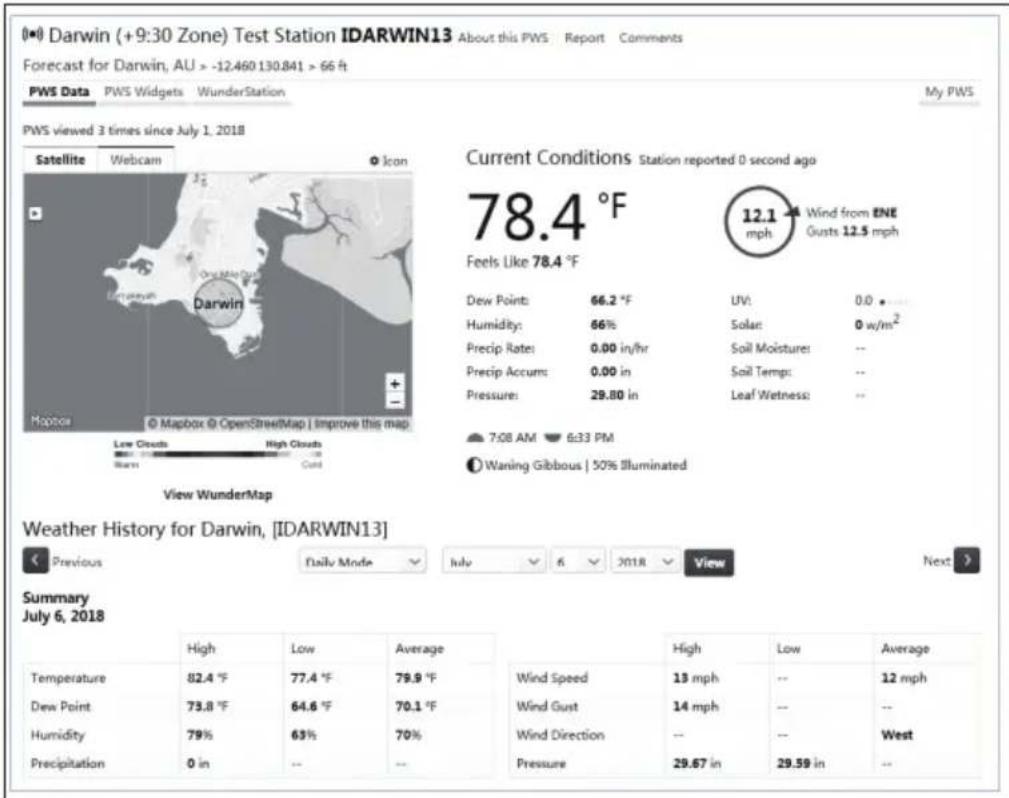

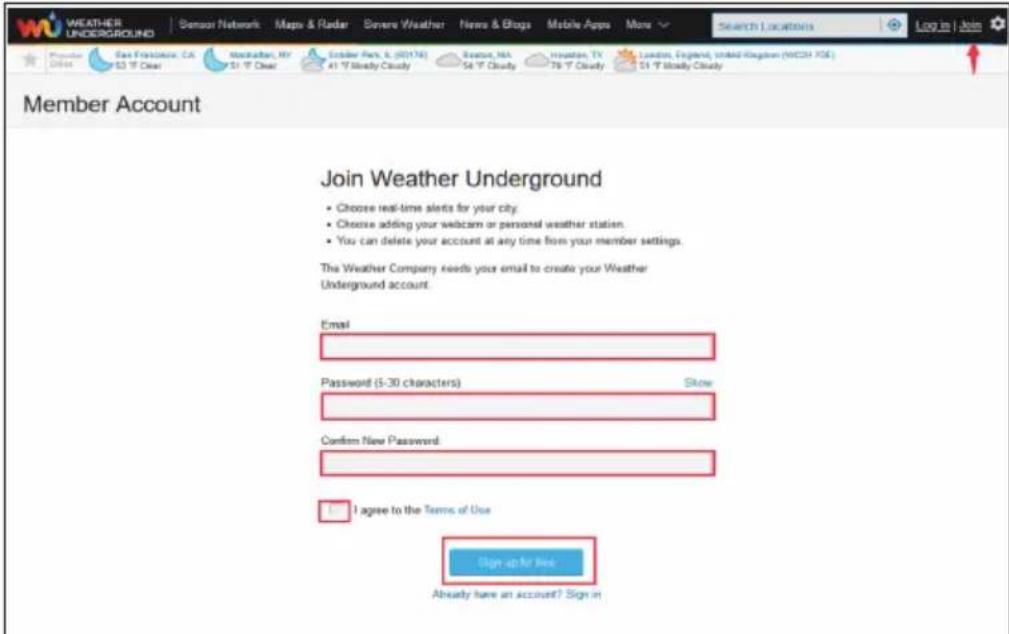

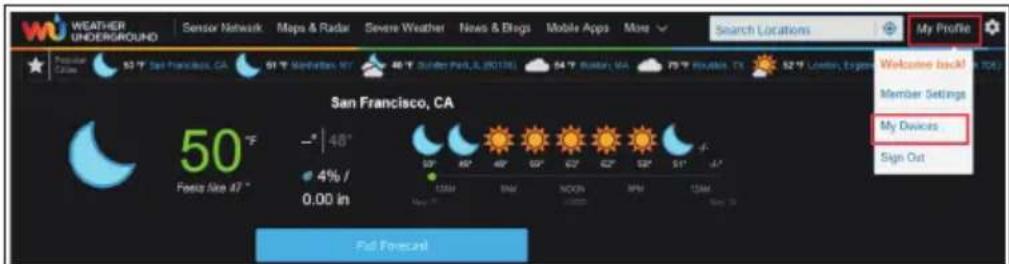

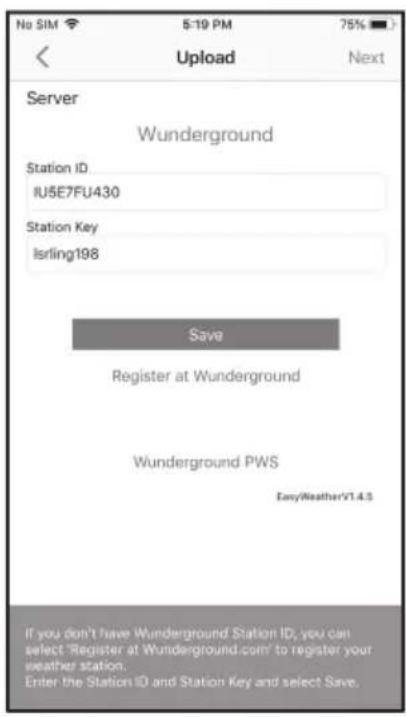

If you want to use wunderground.com, you must have an account and register your new weather station. You can do this on the Wunderground Upload page in the WS View Plus application:

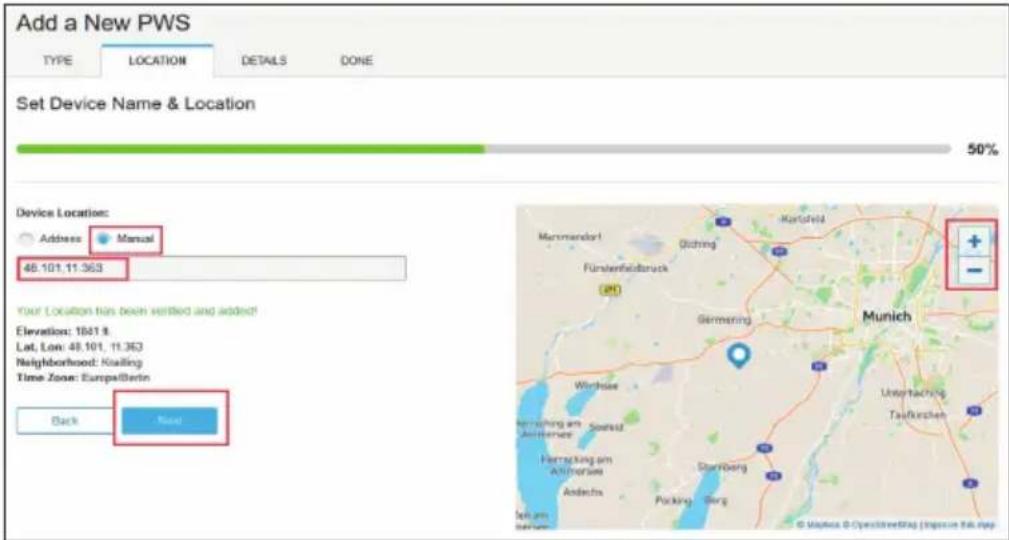

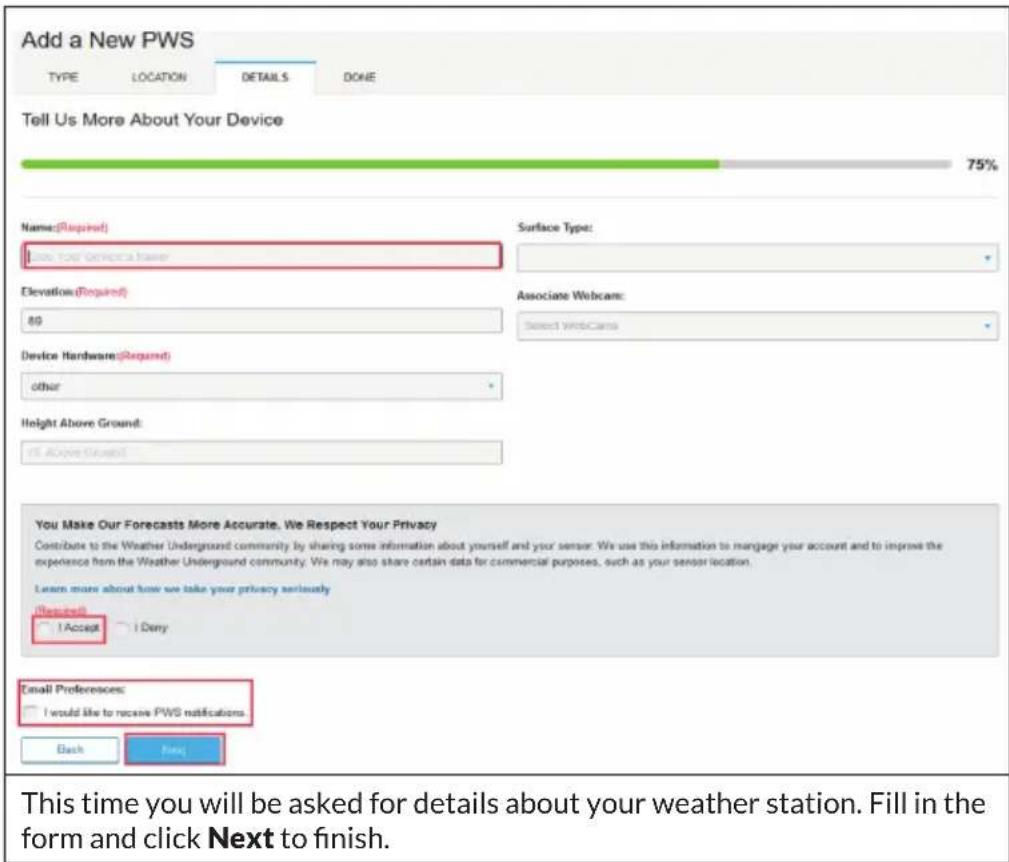

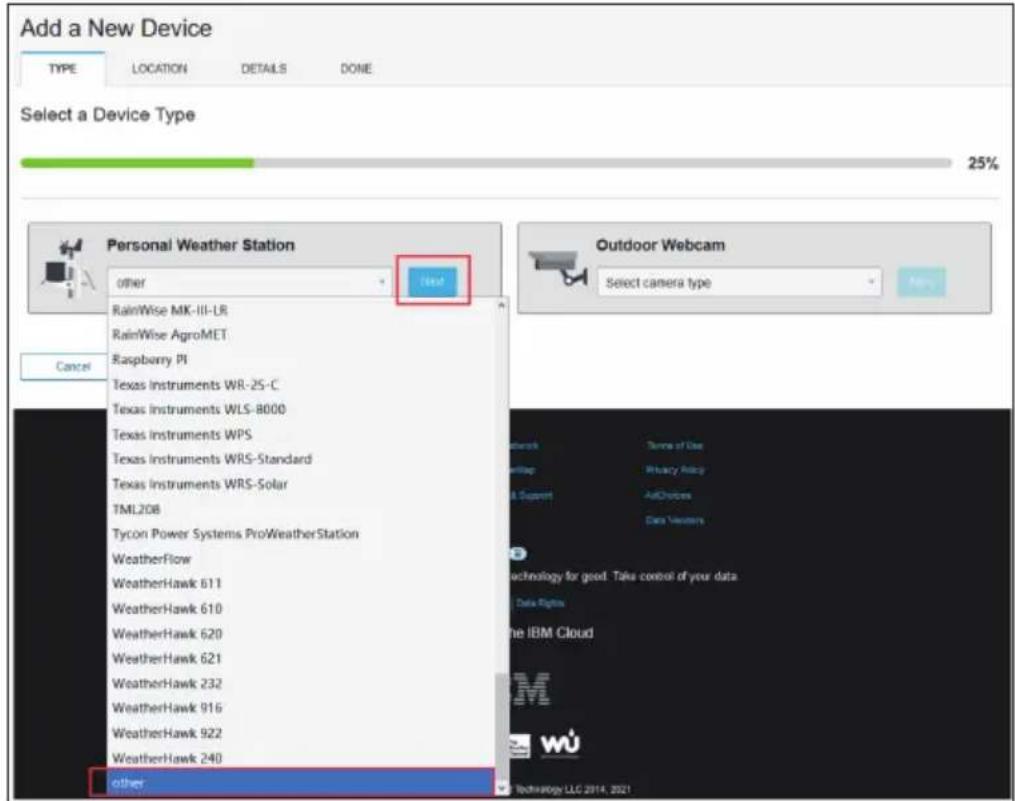

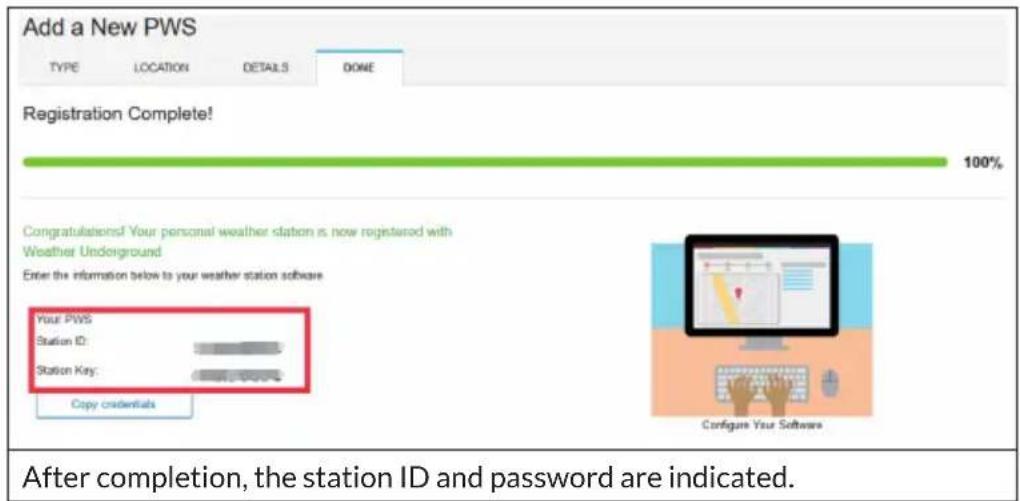

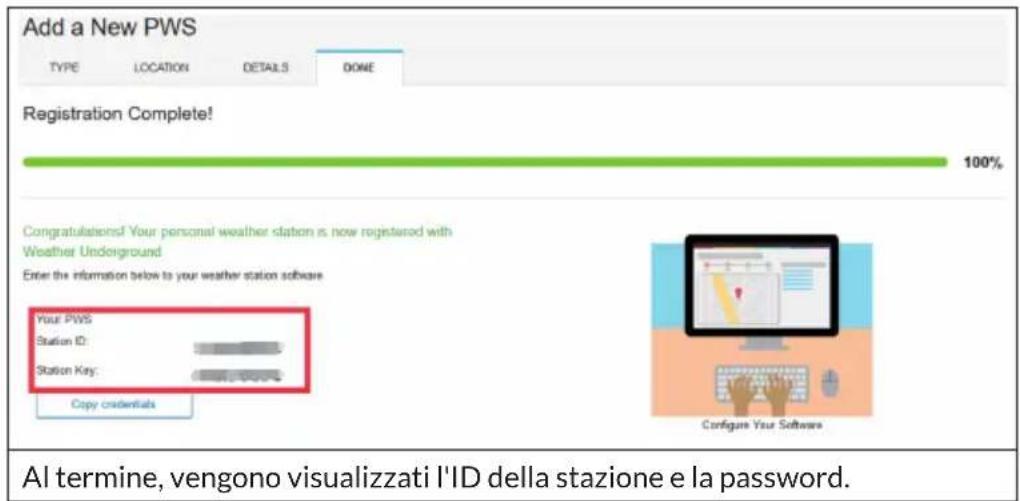

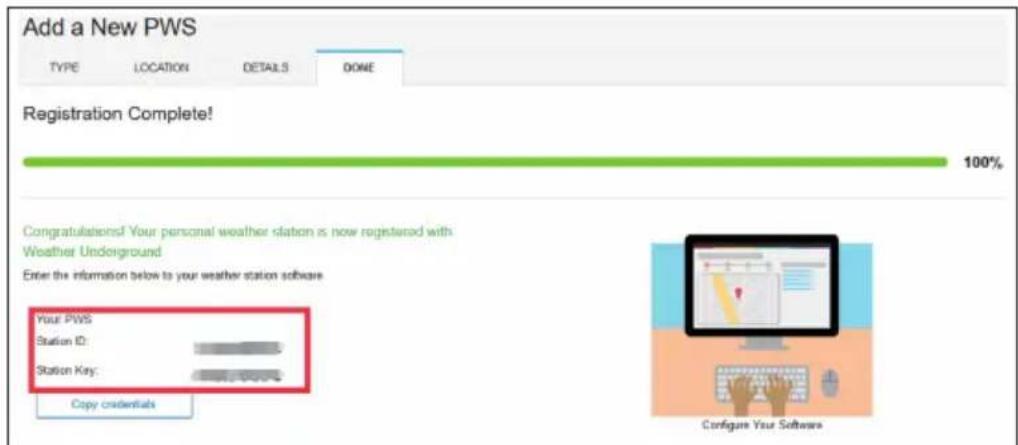

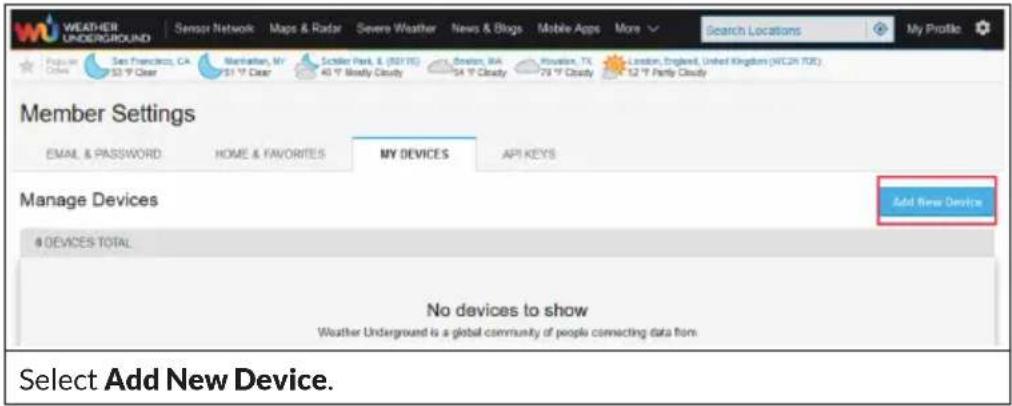

Press Register at Wunderground.com and complete the registration on the page.

Visit Wunderground.com and click Join, as indicated by the arrow in the upper right corner, and select the Sign up for free option.

Click My Profile and select My Devices to register your transmitter.

Select your weather station from the list or select other and click Next.

Select the Address or Manual option and find your location. Then press Next.

• Make a note of the station ID and password that was generated for you.
• Go back to the app and enter the station ID and password.
• Press Save.
• Go back to the menu page and select WU Dashboard (for the Android version) or select your station under Stations (for the iOS version). You will see the current WU data, including graphs, on the screen within a few hours.

Note: The WU

Dashboard indicates the data received from the WU server. This assumes that your mobile device is connected to the Internet. Therefore, it is possible to receive data even if you are not on your home Wi-Fi network but are using mobile data on your smartphone instead.

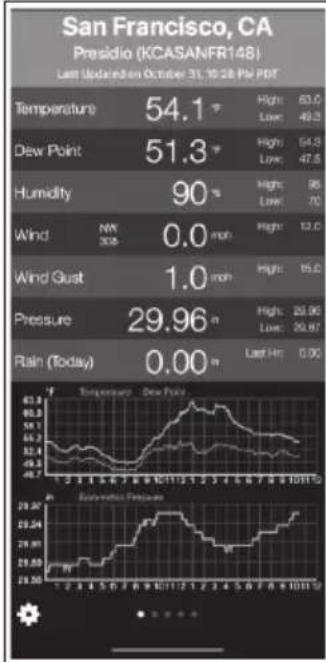

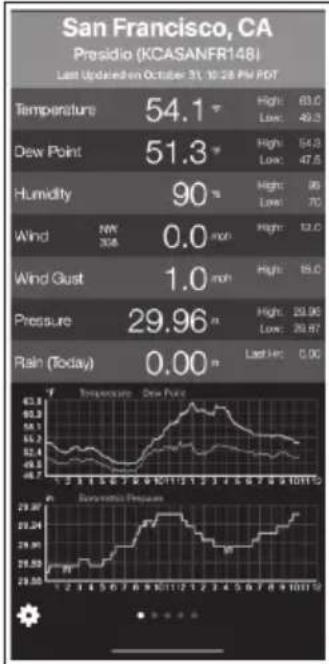

Indication of the data on wunderground.com

You can also view your weather station data on the wunderground.com website. You use a URL like this, with your station ID replacing the text STATIONID.

http://www.wunderground.com/personal-weather-station/dashboard?ID=STATIONID

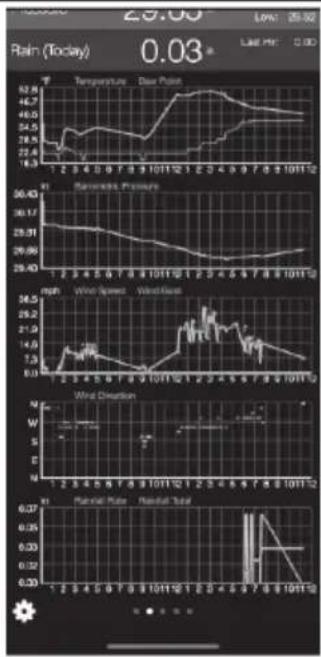

A page like this is indicated, where you can view the current data and also the historical data.

There are also some very useful apps. The URLs given here lead to the web versions of the application pages. But you can also find them directly in the iOS App Store or Google Play stores.

WunderStation: iPad application for indication of your station's data and graphics:

https://itunes.apple.com/us/app/wunderstation-weather-from-your-neighborhood/id906099986

Weather Underground Forecast: iOS and Android application for weather forecasts:

https://itunes.apple.com/us/app/weather-underground-forecast/id486154808

https://play.google.com/store/apps/details?id=com.wunderground.android.weather&hl=en

PWS Weather Station Monitor: Indicate weather conditions in your neighborhood or even in your own backyard. Connects to wunderground.com:

https://itunes.apple.com/us/app/pws-weather-station-monitor/id713705929

MANAGE DEVICES AND SETTINGS

Device List
EasyWeather-WIFID05E
IP: 10.0.1.27	>
MAC: A0:20:A6:35:D0:5E
WH2650A-WIFIBA3B
IP: 10.0.1.6	>
MAC: 5C:CF:7F:23:BA:3B
WH2650A-WIFIBB00
IP: 10.0.1.4	>
MAC: 5C:CF:7F:23:BB:00
GW1000-WIFI885C
IP: 10.0.1.18	>
MAC: 84:F3:EB:21:88:5C
GW1000A-WIFI2612
IP: 10.0.1.7	>
MAC: 84:F3:EB:25:26:12
EasyWeather-WIFID235
IP: 10.0.1.5	>
MAC: EC:FA:BC:15:D2:35
GW1000-WIFI8C73

When you are on the WU Dashboard screen, you can press the Menu button (top right) and select Device List to view all your devices.

You can press on your device to view or change its settings.

Note: This feature requires that your smartphone and console are on the same network.

Manage Wunderground

WU Stations	Add
I44JIUXI35	Delete
I44JIUXI28	Delete
I44JIUXI60	Delete
I44JIUXI74	Delete
IFJELL37	Delete
I44JIUXI65	Delete
I44JIUXI71	Delete
IU5E7FU414	Delete
KCAMOUNT191	Delete
I44JIUXI36	Delete
IU5E7FU429	Delete

You can add or delete the WU Station IDs by selecting Manage Wunderground from the submenu.

Settings

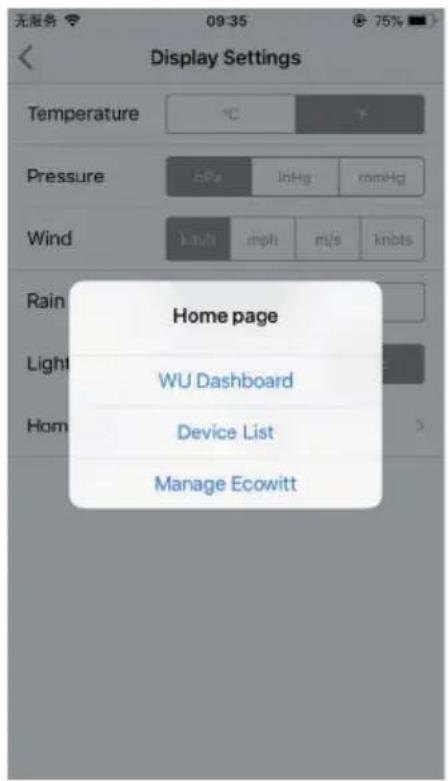

You can set the desired display units or default home page for the app by selecting Settings in the submenu.

Once you have successfully created your Ecowitt account in the WS View Plus app, you can select Manage Ecowitt in the submenu to manage your device.

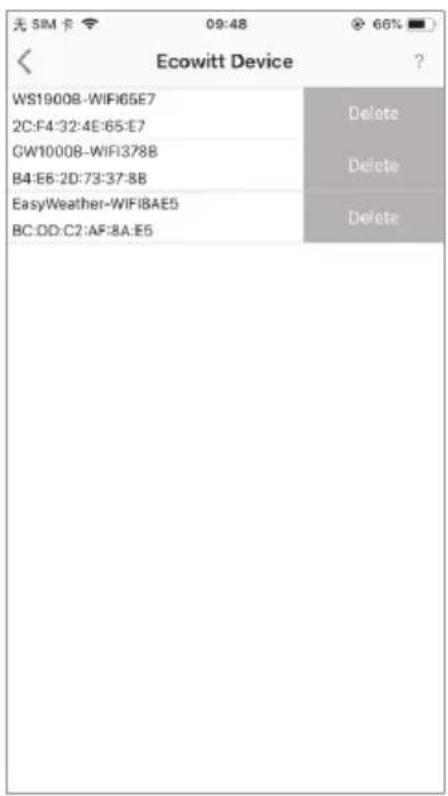

Manage Ecowitt

You can view your weather station data by pressing on your device on this screen.

CLEANING AND CARE

The following steps should be taken for proper maintenance of your station:

Clean Rain Gauge

Check the rain gauge every 3 months. Rotate the funnel counter-clockwise and lift it up. Clean the funnel and bucket with a damp cloth to remove any dirt, debris and insects. Spray the array lightly with insecticide, if there's a bug infestation.

Clean Solar Radiation Sensor and Solar Panel

The solar radiation sensor and solar panel of the outdoor sensor array need to be cleaned with a non-abrasive slightly damp cloth every 3 months.

Replacing Batteries Regularly

Batteries of the outdoor sensor array need to be replaced every 1-2 years for environmental friendly. In serious environments, check the batteries every 3 months and apply a corrosion preventing compound (not included) on the battery terminals for protection.

To Prevent Snow build up

In snowy days, use anti-icing silicon spray on the top of the weather station to prevent snow build up.

TROUBLESHOOTING

Problem Solution
Outdoor sensor is not reporting to base unit (gateway).Dashes (--) on the app or website.	Check that the outdoor transmission LED is flashing normally (according to the sensor reporting interval).If the batteries were recently (re)placed, check correct polarity was used and/or reseat the batteries. If the batteries are old, replace them.If the LED is now flashing normally, proceed to the next step. If it is not flashing and you have repeated battery checks and placement, you may have a defective unit.
	Make sure the gateway is powered and the WiFi LED lights on steady. Go to the “Sensor ID” page, find the offline sensor picture and press “Re-register” to register.
Indoor and Outdoor Temperature do not agree during indoor testing.	During installation testing it is useful to test with both indoor sensor and outdoor unit in the same room. Allow up to one hour for the sensors to stabilize and adjust to room temperature. The indoor and outdoor temperature sensors should agree within 2 °C (the sensor accuracy is ±1°C).If these values still disagree, use calibration offsets for one or both sensors to adjust to a known good reference temperature.
Indoor and Outdoor Humidity do not agree during indoor testing.	The procedure here is that same as for outdoor/ indoor temperature. The sensors should agree within 10 % (the sensor accuracy is ± 5%).If these values still disagree, use calibration offsets for one or both sensors to adjust to a known good reference humidity.
Relative pressure does not agree with official reporting station.	Relative pressure refers to sea-level equivalent temperature and should generally agree closely with the official station. If there is a disagreement, make sure you are not looking at absolute pressure, in particular if your station is not near sea level. Also check at different times due to occasional delays in updates to the official station.The barometer is only accurate to ±0.09 inHg (3 hPa) within the following relative pressure range: 20.67 to 32.50 inHg (700 - 1,100 hPa), which corresponds to an altitude of 9,000 ft. (2,750 m) down to 2,500 ft. (750 m) below sea level. At higher altitudes, you should expect a possible lesser accuracy and non-linearity effects in the error (the calibration offset only allows for a partially linear correction).
Time is incorrect. Make	sure your time zone and daylight savings time setting is correct (even when connected to the Internet via Wi-Fi this is needed).
Data not reporting to Wunderground.com	Confirm your station ID is correct. The station ID is all caps, and the most common issue is substituting a capital letter O for a 0 (zero) or vice versa. Please note the digit 0 can only occur in the last part of the station ID (which is a station number in a city). Example, KAZPHOEN11, not KAZPHOEN11.
	Confirm that your password (also called: key) is correct. It is the password wunderground.com generated for your station ID. You can also verify it by logging in to wunderground.com and looking it up under “My PWS.”
	Make sure the date, time and time zone is correct on the WS View app. If it is not incorrect, you may be reporting data for a point in the past or future and you may not see it where you expect it. Check your router firewall settings. The gateway sends data via port 80. If you can access other web sites using “http” (not to be confused with “https”) this setting will be OK.
No Wi-Fi connection/ Gateway configured failed.	Check for Wi-Fi light on the gateway. If wireless connectivity is operational, the Wi-Fi light will be steady.If you have never been able to configure Wi-Fi to a working state, make sure your Wi-Fi supports 2.4 GHz signals (801 type B or G, or N). The gateway does not support Wi-Fi that uses the 5 GHz spectrum.
	Make sure you configured the correct SSID and password. Repeat the procedure if necessary to verify.
	The gateway does not support so-called “captive Wi-Fi” networks. These are typically “guest” type networks where users have to agree to terms and conditions before being connected.
	You can also try the following methods to configure the gateway:Method one:1. Power off the gateway and wait for several minutes.2. 2. Power on the gateway and hold the black button for 5s till the red LED flash fast.3. Open the WIFI network on your phone and connect to the hotspot of WH2650-WIFIXXXX.4. Open the WS View app and click “Configure New Device” — select WH2650 — click “Next”.5. Follow the instructions on the app.Method two:Use one phone (A) as a hotspot, find another phone (B) to run WS View app to start the WIFI configuration process(ensure the wifi light is fast flashing) to see whether the configuration can be completed or not

GLOSSARY OF TERMS

Term Definition
Absolute Barometric Pressure	Absolute pressure is the measured atmospheric pressure and is a function of altitude, and to a lesser extent, changes in weather conditions. Absolute pressure is not corrected to sea-level conditions. Refer to Relative Barometric Pressure.
Accuracy Accuracy is defined as the ability of a measurement to match the actual value of the quantity being measured.
Barometer A barometer	is an instrument used to measure atmospheric pressure.
Calibration Calibration is a comparison between measurements – one of known magnitude or correctness of one device (standard) and another measurement made in as similar a way as possible with a second device (instrument).
Dew Point The dew point is the temperature at which a given parcel of humid air must be cooled, at constant barometric pressure, for water vapor to condense into water. The condensed water is called dew. The dew point is a saturation temperature. The dew point is associated with relative humidity. A high relative humidity indicates that the dew point is closer to the current air temperature. Relative humidity of 100% indicates the dew point is equal to the current temperature and the air is maximally saturated with water. When the dew point remains constant and temperature increases, relative humidity will decrease.
HectoPascals (hPa) Pressure units in SI (international system) units of measurement. Same as millibars (1 hPa = 1 mbar)
Hygrometer A hygrometer	is a device that measures relative humidity. Relative humidity is a term used to describe the amount or percentage of water vapor that exists in air.
Inches of Mercury (inHg)	Pressure in Imperial units of measure. 1 inch of mercury = 33.86 millibars
Rain Gauge A rain gauge	is a device that measures liquid precipitation (rain), as opposed to solid precipitation (snow gauge) over a set period of time. All digital rain gauges are self emptying or self dumping (also referred to as tipping rain gauge). The precision of the rain gauge is based on the volume of rain per emptying cycle.
Range Range is defined as	the amount or extent a value can be measured.
Relative Barometric Pressure	Measured barometric pressure relative to your location or ambient conditions.
Resolution Resolution is	defined as the number of significant digits (decimal places) to which a value is being reliably measured.
Solar Radiation A solar r	radiation sensor measures solar energy from the sun. Solar radiation is radiant energy emitted by the sun from a nuclear fusion reaction that creates electromagnetic energy. The spectrum of solar radiation is close to that of a black body with a temperature of about 5800 K. About half of the radiation is in the visible short-wave part of the electromagnetic spectrum. The other half is mostly in the near-infrared part, with some in the ultraviolet part of the spectrum.
Thermometer A thermometer	meter is a device that measures temperature. Most digital thermometers are resistive thermal devices (RTD). RTDs predict change in temperature as a function of electrical resistance.
Wind Vane A wind vane	is a device that measures the direction of the wind. The wind vane is usually combined with the anemometer. Wind direction is the direction from which the wind is blowing.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Halley is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10032926

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Halley is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10032926

Estimado cliente:

ÍNDICE

Datos técnicos 88

Technical line drawing of a mechanical assembly with rollers and components (no text or symbols)

Figura 6 Figura 7

Technical line drawing of a mechanical component with a red arrow indicating direction (no text or symbols)

Figura 13

ECOWITT WEATHER

WEATHER UNDERGROUND

http://www.wunderground.com/personal-weather-station/dashboard?ID=STATIONID

https://itunes.apple.com/us/app/wunderstation-weather-from-your-neighborhood/id906099986

https://itunes.apple.com/us/app/weather-underground-forecast/id486154808

https://play.google.com/store/apps/details?id=com.wunderground.android.weather&hl=en

https://itunes.apple.com/us/app/pws-weather-station-monitor/id713705929

GESTIONAR LOS DISPOSITIVOS Y AJUSTES

Device List
EasyWeather-WIFID05E
IP: 10.0.1.27	>
MAC: A0:20:A6:35:D0:5E
WH2650A-WIFIBA3B
IP: 10.0.1.6	>
MAC: 5C:CF:7F:23:BA:3B
WH2650A-WIFIBB00
IP: 10.0.1.4	>
MAC: 5C:CF:7F:23:BB:00
GW1000-WIFI885C
IP: 10.0.1.18	>
MAC: 84:F3:EB:21:88:5C
GW1000A-WIFI2612
IP: 10.0.1.7	>
MAC: 84:F3:EB:25:26:12
EasyWeather-WIFID235
IP: 10.0.1.5	>
MAC: EC:FA:BC:15:D2:35
GW1000-WIFI8C73

Gestionar Wunderground

WU Stations	Add
I44JIUXI35	Delete
I44JIUXI28	Delete
I44JIUXI60	Delete
I44JIUXI74	Delete
IFJELL37	Delete
I44JIUXI65	Delete
I44JIUXI71	Delete
IU5E7FU414	Delete
KCAMOUNT191	Delete
I44JIUXI36	Delete
IU5E7FU429	Delete

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Cher client, chère cliente,

SOMMAIRE

Fiche technique 130

Installation des piles

Figure 13

ECOWITT WEATHER

WEATHER UNDERGROUND

http://www.wunderground.com/personal-weather-station/dashboard?ID=STATIONID

https://itunes.apple.com/us/app/wunderstation-weather-from-your-neighborhood/id906099986

https://itunes.apple.com/us/app/weather-underground-forecast/id486154808

https://play.google.com/store/apps/details?id=com.wunderground.android.weather&hl=en

https://itunes.apple.com/us/app/pws-weather-station-monitor/id713705929

GESTION DES APPAREILS ET PARAMÈTRES

Device List
EasyWeather-WIFID05E
IP: 10.0.1.27	>
MAC: A0:20:A6:35:D0:5E
WH2650A-WIFIBA3B
IP: 10.0.1.6	>
MAC: 5C:CF:7F:23:BA:3B
WH2650A-WIFIBB00
IP: 10.0.1.4	>
MAC: 5C:CF:7F:23:BB:00
GW1000-WIFI885C
IP: 10.0.1.18	>
MAC: 84:F3:EB:21:88:5C
GW1000A-WIFI2612
IP: 10.0.1.7	>
MAC: 84:F3:EB:25:26:12
EasyWeather-WIFID235
IP: 10.0.1.5	>
MAC: EC:FA:BC:15:D2:35
GW1000-WIFI8C73

WU Stations	Add
I44JIUXI35	Delete
I44JIUXI28	Delete
I44JIUXI60	Delete
I44JIUXI74	Delete
IFJELL37	Delete
I44JIUXI65	Delete
I44JIUXI71	Delete
IU5E7FU414	Delete
KCAMOUNT191	Delete
I44JIUXI36	Delete
IU5E7FU429	Delete

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DÉCLARATION DE CONFORMITÉ

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

Berlin Brands Group UK Limited PO Box 42

272 Kensington High Street London, W8 6ND

United Kingdom

INDICE

Dati tecnici 172

Immagine 13

ECOWITT WEATHER

WEATHER UNDERGROUND

http://www.wunderground.com/personal-weather-station/dashboard?ID=STATIONID

https://itunes.apple.com/us/app/wunderstation-weather-from-your-neighborhood/id906099986

https://itunes.apple.com/us/app/weather-underground-forecast/id486154808

https://play.google.com/store/apps/details?id=com.wunderground.android.weather&hl=en

https://itunes.apple.com/us/app/pws-weather-station-monitor/id713705929

Gestire Wunderground

WU Stations	Add
I44JIUXI35	Delete
I44JIUXI28	Delete
I44JIUXI60	Delete
I44JIUXI74	Delete
IFJELL37	Delete
I44JIUXI65	Delete
I44JIUXI71	Delete
IU5E7FU414	Delete
KCAMOUNT191	Delete
I44JIUXI36	Delete
IU5E7FU429	Delete

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
