USER MANUAL Clearflow 35 Waldbeck

Aquarium Outdoor Filter

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Technische Daten 4

Exploded view diagram of a water purifier system with numbered components and labeled parts

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear customer,

Congratulations on the purchase of your appliance. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Information 14

Safety Instructions 15

Individual parts 16

Disposal Considerations 19

Manufacturer & Importer (UK) 19

TECHNICAL INFORMATION

Article number 10031069
Operating voltage 220-240 V ~ 50/60 Hz
Electrical power 18 W
Maximum height 1.4 m
Throughput	1000 L/h
Dimensions	232 x 232 x 395 mm

Article number 10031070
Operating voltage 220-240 V ~ 50/60 Hz
Electrical power 35 W
Maximum height 2.0 m
Throughput	1400 L/h
Dimensions	258 x 258 x 430 mm

Article number 10031072
Operating voltage 220-240 V ~ 50/60 Hz
Electrical power 55 W
Maximum height 2.5 m
Throughput	2000 L/h
Dimensions	290 x 290 x 485 mm

SAFETY INSTRUCTIONS

- To reduce the risk of electric shock, do not remove any of the covers. This device contains parts that are not accessible to the user.

- The device identification is provided on the back of the device.

- Do not place vessels filled with liquids, such as vases or watering cans, on the device.

- Do not drop metal objects on this device.

- Do not place any heavy objects on the device.

- Only use accessories and add-on parts that have been approved by the manufacturer.

- Pull the plug out of the socket if there is a thunderstorm, a storm or if you are not going to use the device for a long period of time. This way, you can prevent damage.

- Have repairs carried out by qualified specialists only.

- Repair is required if the device has been damaged in any way, i.e. if objects have fallen on it, if it is not working properly or if it has been dropped. Do not try to repair the device yourself. Opening the cover exposes you to the risk of electric shock and other personal injury.

- Do not pull, bend or place heavy objects on the cord.

- Do not touch the plug with wet hands.

- Do not place open flames, such as burning candles, on the device.

- Never let the pump run empty.

- Only operate the pump in aquariums and only at temperatures up to a maximum of 50 °C.

Setting up

- Do not place the solar panel in hollows or holes where water is likely to accumulate. Please ensure that you select a level setup location with a firm base. You can place the filter pump in the aquarium cabinet or next to the aquarium, for example. Raise the position of the pump if the aquarium wall exceeds the maximum height.

- Do not place the device on other devices that may become hot. This heat could damage the device.

Transporting the unit

Please keep the original packaging. To achieve sufficient protection when transporting the unit, pack the unit in the original packaging.

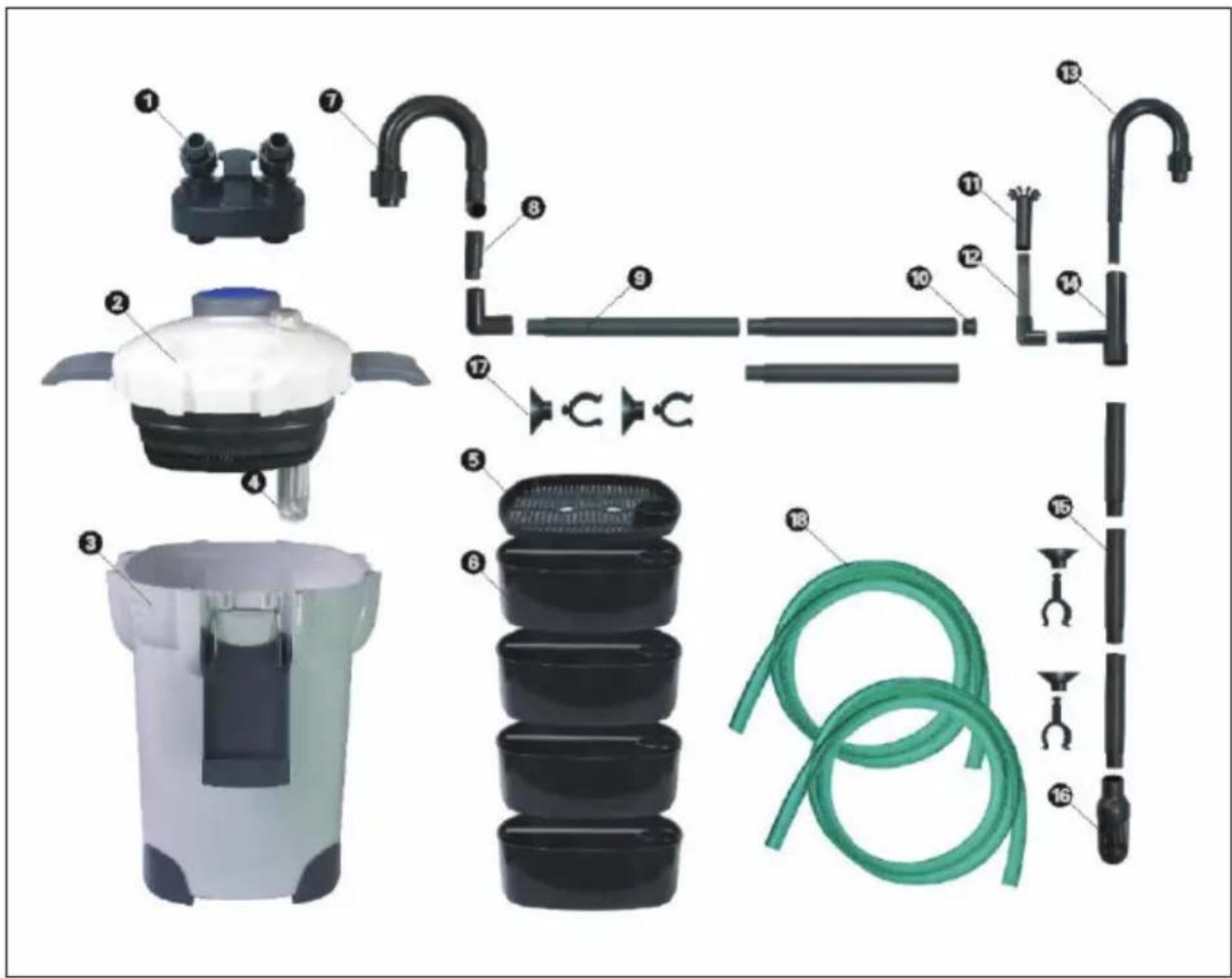

INDIVIDUAL PARTS

Exploded view diagram of a water purifier system with numbered components and labeled parts

1 Input and output 10 Spray pipe cover
2 Cover 11 Skimmer
3 Main unit 12 Coupler
4 Lamp 13 Curved pipe (inlet)
5 Drainage basket cover 14 Skimmer connector
6 Drainage basket 15 Entrance pipe
7 Curved pipe (outlet) 16 Entrance cover
8 Coupler 17 Suction cup
9 Spray pipe 18 Hoses

Ceramic rings (optional) Activated carbon (optional)
Biochemically reactive cotton Organic balls (optional)

Getting Started

1	2	3
1	As shown in figure 1, the locking buckles (1 and 2) should first be unfolded,releasing the lid from the body.
2	Insert the drainage basket into the housing after inserting the appropriate filtermedium. Put the lid back on and close with the two closing flaps (1 and 2).
3	Pull the safety cap to remove the spigots. First bring the hoses and theaquarium-side parts together and finally connect the hoses to the pumpnozzles. Finally, put the nozzle part back in place.
4		5	6
4	Install the unit as shown in figure 4. Attention: The curved tube (7) with the spray tube (9) is intended for the filter outlet! The other curved pipe (13) is intended for the filter inlet together with the skimmer.
5	Press the blue button down firmly and release it again immediately. When it comes back, it draws water into the pump (if all hoses and parts are properly and tightly connected). As soon as the water level in the outlet pipe/hose corresponds to that of the aquarium, you can connect the unit to your house electricity.
6	Under the transparent cover you will find the on/off switch.

Change the illuminant

• Carefully lift the lid and place it upside down.
• Loosen the screw and remove the frame of the quartz cylinder.
• Slowly and carefully turn the cylinder anticlockwise and carefully remove it.
• Pull out the old fluorescent tube and replace it with a new one.
• Be sure to use an identical model.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
