USER MANUAL CMT11 CMT Orange Tools

Exterior view of a CMT11 orange tools (no text or symbols on the tool body)

CMT11

300W Oscillating Multi-tool

OPERATING INSTRUCTIONS MANUAL DE INSTRUCCIONES INSTRUCTIONS D'EMPLOI ISTRUZIONI D'USO BEDIENUNGSANLEITUNG INSTRUKCJA OBSŁUGI ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ

FIG. A

FIG. A 1 4 5 3 A B 10 6 7 98

FIG. 1

FIG. 2
ON OFF

Close-up of a mechanical component with metallic parts and a black handle (no visible text or symbols)

FIG. 3

3 6

1 APPLICATION ....7
2 DESCRIPTION (FIG.A)....7
3 PACKAGE CONTENT LIST....7
4 SYMBOLS 7
5 GENERAL POWER TOOL SAFETY WARNINGS ....8

5.1 Working area 8
5.2 Electrical safety 8
5.3 Personal safety 8
5.4 Power tool use and care ....8
5.5 Service 9

6 MACHINE-SPECIFIC SAFETY WARNINGS ....9
7 ASSEMBLY 9

7.1 Mounting sanding plate saw blade/ spatula (Fig. 1) .....9
7.2 Mounting/changing the sand paper 10
7.3 Mounting dust extraction hose 10

8 OPERATION ....10

8.1 Switching ON/OFF (Fig. 2) ......10
8.2 Speed adjusting (Fig. 3) ......10
8.3 Application tips ....10

8.3.1 Selecting the Application Tool/Accessory ....10
8.3.2 Sawing ....10
8.3.3 Sanding ....10
8.3.4 Scraping ....11

9 CLEANING AND MAINTENANCE ....11

10 TECHNICAL DETAILS 11
11 NOISE ....11
12 WARRANTY....11
13 ENVIRONMENT 11
14 DECLARATION OF CONFORMITY ....12

1. APPLICATION

Depending on which accessory mounted this power tool is intended for dry sanding small areas and for sawing, scraping polishing, rasping, cutting and separating.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

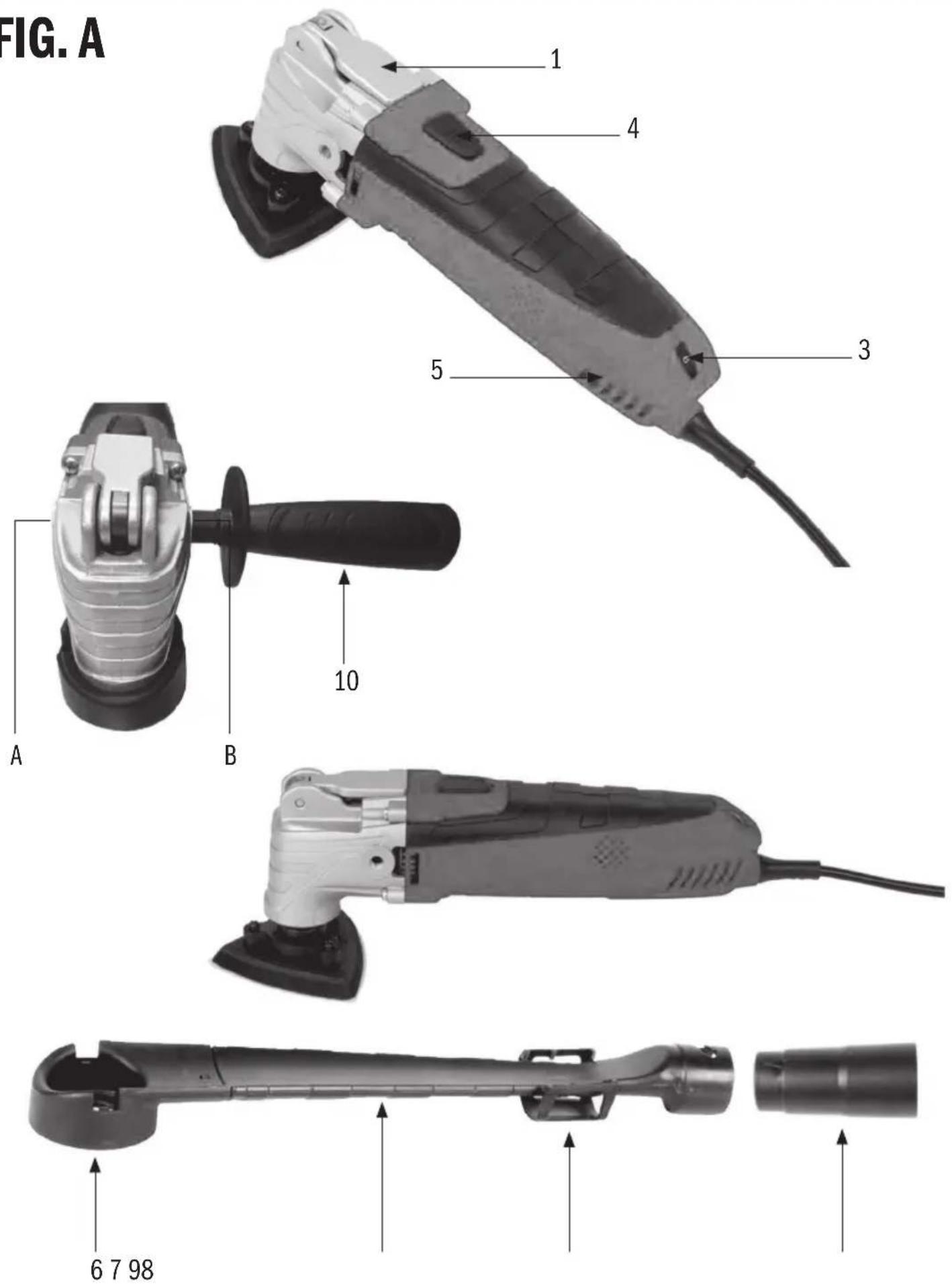

2. DESCRIPTION (FIG. A)

1. Quick release lever
2. Quick release clamp
3. Oscillation frequency controller
4. On/Off switch
5. Vent holes
   6, 7, 8, 9. Dust extraction hose & holder
6. Handle (it can be installed into A or B)

3. PACKAGE CONTENT LIST

1 x Multi-use tool

1 x Handle
1 x Vacum hose
1 x Manual
1 x Carry Case

• Remove all packaging materials.
• Remove remaining packing and package inserts (if included).
• Check that the package contents are complete.
• Check the appliance, the power cord, the power plug and all accessories for transportation damage.
• Keep the packing materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING: Packaging materials are not toys! Children must not play with plastic bags! Danger of suffocation!

If any parts are missing or damaged, please contact your dealer.

4. SYMBOLS

In this manual and/or on the machine the following symbols are used:

Denotes risk of personal injury or damage to the tool.

Read manual before use

Wear noise protection

Wear eye protection

In accordance with essential requirements of the European directive(s)

Wear a mask In dusty conditions

« Class II - The machine is double insulated; Earthing wire is therefore not necessary. »

5. GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and instructions. Failure to heed warnings and follow the instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference! The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

5.1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control of it.

5.2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Using of an RCD reduces the risk of electric shock.

5.3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance firmly at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

5.4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5.5) Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

6. MACHINE-SPECIFIC SAFETY WARNINGS

- Use the machine only for dry sanding. Penetration of water into the machine increases the risk of an electric shock.

- Keep hands away from the sawing range. Do not reach under the workpiece. Contact with the saw blade can lead to injuries.

• Use suitable detectors to determine if utility lines

are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.

• When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.
• Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
• Keep your workplace clean. Blends of materials are particularly dangerous. Dust from light alloys can burn or explode.
• Wear protective gloves when changing application tools/accessories.
• Application tools/ accessories become hot after prolonged usage.
• Do not scrape wetted materials (e. g. wallpaper) or on moist surfaces. Penetration of water into the machine increases the risk of an electric shock.
• Do not treat the surface to be worked with solvent-containing fluids. Materials being warmed up by the scraping can cause toxic vapours to develop.
• Exercise extreme caution when handling the scraper. The accessory is very sharp; danger of injury.

7. ASSEMBLY

WARNING: Always check that the power supply corresponds to the voltage on the rating name-plate. Remove the power tool from the packaging. Do not plug it into the electrical grid before assembly.

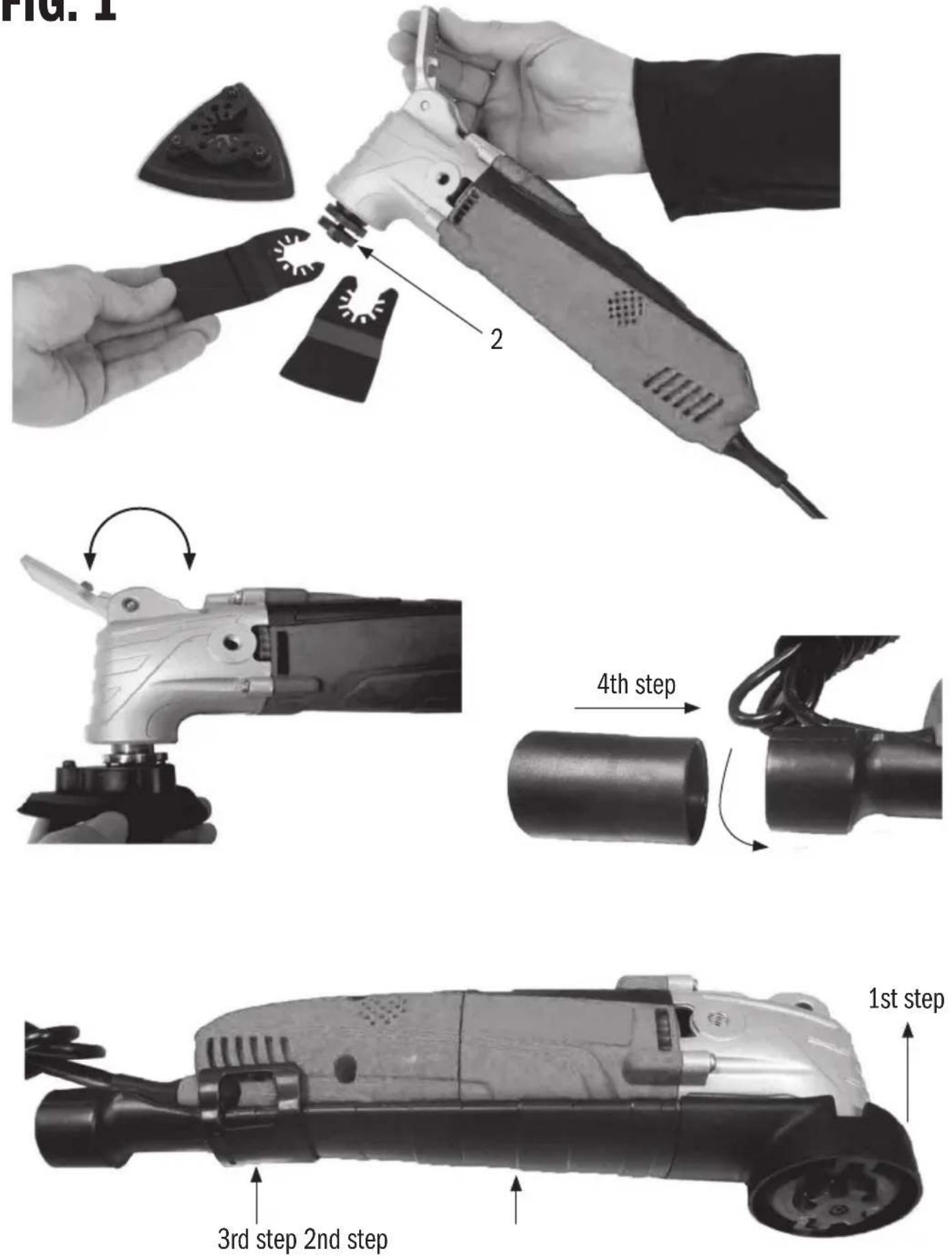

7.1) Mounting sanding plate/ saw blade/ spatula (Fig. 1) (Not Included)

WARNING: Prior to assembly and adjustment always pull out the power plug from the mains socket.

Take care with sharp tools such as spatulas, saw blades or cutting blades.

• Loosen the clamping plate (2) by pulling the quick-release lever (1) completely open.
• Hold the opening of the quick-install saw blade, sanding plate or spatula toward the output spindle which between cover clamp and clamping plate, push the accessory in and place it firmly onto the locating pins.
• Fasten using the quick-release lever (1) at the lock position as shown in the Fig. 1.
• Remove the accessory in the apposite way.

WARNING: Do not use any unmatched accessories.

WARNING: Check the tight seating of the application tool/accessory.

Incorrect or not securely fastened application tools/accessories can come loose during operation and pose a hazard.

7.2) Mounting/changing the sand paper (Not Included)

With fast hook and loop fixation.

• Position the sand paper and press by hand.
• Press on the sand paper by giving it a short, firm push against the flat surface of sanding plate (8) and switch on the power tool.
  This ensures good adhesion and prevents premature wear.
• If the point has become worn, pull off the sand paper, turn it through 120^ and place it on again, or change the sanding paper.

7.3) Mounting dust extraction hose

As shown in the Fig. 1.

8. OPERATION

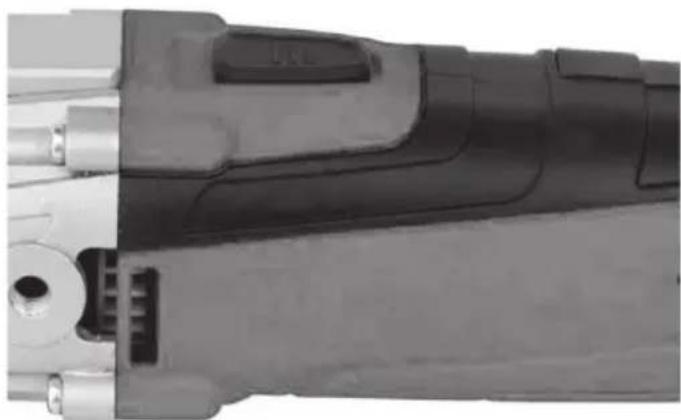

8.1) Switching ON/OFF (Fig.2)

First check that the cable and plug are not damaged.

• Connect the plug to the power supply.
• Switching the power tool ON: slide ON/OFF switch button (4) forward onto position (I).
• Switching the power tool OFF: slide ON/OFF switch button (4) backward onto position (0).

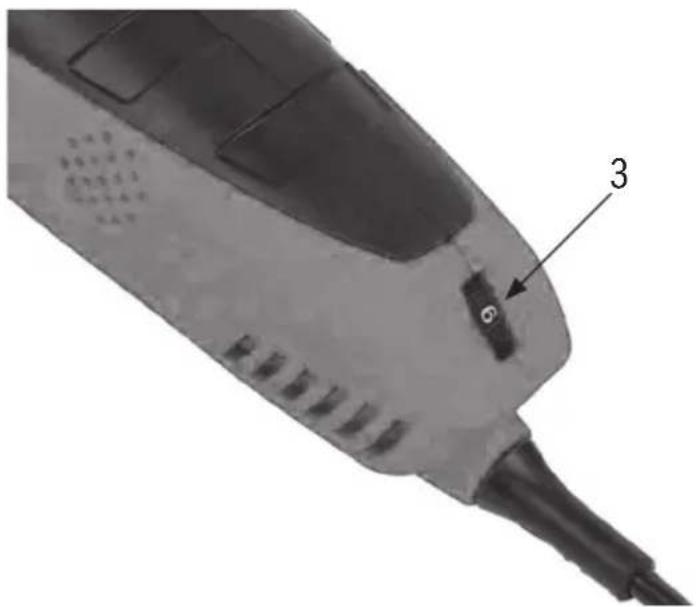

8.2) Speed adjusting (Fig. 3)

The tool can be set at 6-speed adjustment positions. The "1" position indicates the lowest and the "6" position indicates the highest speed, you can adjust different speed by turning the speed control dial (3) from "1" to "6" position. The operator may have to vary the speed to optimize working efficiency.

8.3) Applicationtips

8.3.1) Selecting the Application Tool/Accessory

Accessory Material
Plunge cut saw blade wood	Wooden materials, plastic, gypsum and other soft materials.
Shovel blade	Wood, paint, carpet adhesive, silicone and other elastic materials.
Base plate for sanding	Depends on sanding sheet.

8.3.2) Sawing

Use undamaged faultless saw blades only. Deformed, blunt saw blades or saw blades that are otherwise damaged can break.

Plunge cuts may only be applied to soft materials, such as wood, gypsum plaster boards, etc.!

Before sawing with saw blades in wood, particle board, building materials, etc., check these for foreign objects such as nails, screws, or similar. If required, remove foreign objects or use saw blades for metal.

8.3.3) Sanding

The removal rate and the sanding pattern are primarily determined by the choice of sanding sheet, the pre-set oscillation rate and the applied pressure.

Only flawless sanding sheets achieve good sanding capacity and extend the service life of the machine.

Pay attention to apply uniform sanding pressure; this increases the working life of the sanding sheets.

Intensifying the sanding pressure does not lead to an increase of the sanding capacity, but to increased wear of the machine and the sanding sheet.

For precise on-the-spot sanding of edges, corners and hard to reach areas, it is also possible to work only with the tip or an edge of the sanding plate.

When selectively sanding on the spot, the sanding sheet can heat up considerably. Reduce the orbital stroke rate and allow the sanding sheet to cool down regularly.

A sanding sheet that has been used for metal should not be used for other materials.

8.3.4) Scraping

For scraping, select a high oscillation rate.

Work on a soft surface (e.g. wood) at a flat angle and apply only light pressure. Otherwise the scraper can cut into the surface.

Before performing any work on the equipment, pull the power plug.

- Keep the ventilation slots of the machine clean to prevent overheating of the engine.

- Regularly clean the machine housing with a soft cloth, preferably after each use.

- Keep the ventilation slots free from dust and dirt.

- If the dirt does not come off use a soft cloth moistened with soapy water.

- Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Make sure no water can reach the inside of the power tool!

1. TECHNICAL DETAILS

Model nr. CMT11
Voltage 220/240V
Mains frequency 50/60Hz
Power 300W
No load speed	15000-21000 min ^-1
Tool weight	1,5 kg

11. NOISE

Noise emission values measured according to relevant standard. (K=3)

Acoustic pressure level LpA	82 dB(A)
Acoustic power level LwA	93 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration)

19,7 m/s2

K = 1,5 m/s2

12. WARRANTY

CMT warrants to the purchaser of this product that if any part proves to be defective due to faulty materials or workmanship within 1 YEAR from the date of original purchase, CMT will repair, or at its discretion replace, the faulty part free of charge.

This warranty does not apply to commercial use nor does it extend to normal wear and tear or damage as a result of accident, abuse or misuse.

If the product is faulty or requires service please refer to your nearest authorised CMT Repair Centre.

Warranty does not include any freight to and from the user.

13. ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way.

Waste produced by electrical machine items should not be handled like normal

household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

14. DECLARATION OF CONFORMITY

The undersigned:

CMT Utensili S.p.A.

With address at:

Via della Meccanica

Products: MULTI-USE TOOL

Model: CMT11

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2011/65/EU

2006/42/EC

2004/108/EC

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60745-1: 2009

EN607 45-2-4: 2009

EN55014-1: 2006

EN55014-2: 1997

EN61000-3-2: 2006

EN61000-3-3: 2013

Keeper of the Technical Documentation:

CMT Utensili S.p.A.

The undersigned acts on behalf of the company CEO,

Signed: Marcello Tommassini

Chairman

Date: 17/03/2016
