USER MANUAL Alore Joie

Line drawing of a baby stroller with car seats and seatbelt (no text or symbols)

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Stroller Assembly

11 CLICK

12 1 1 2

Stroller Operation

Line drawing of a baby stroller with orange circular badge showing number 13 (no text or symbols on the device itself)

14 2

Line drawing of a person wearing a helmet and holding an object, with an orange arrow indicating direction (no text or symbols)

16

17 1 2 3 CLICK

18 A 1 2 3 19

20

21 3 2

22 CLICK

23 1 2

Illustration of a folding notebook with a pen and paper, no text or symbols present

29 1 2 1

24

25 CLICK

Line drawing of a mechanical device with a fan-like structure and an arrow indicating direction (no text or symbols)

31 2 3

26 CLICK

27

Diagram of a mechanical device with directional arrows and a numbered label '32' (no readable text or symbols)

33

34 ×

35 ×

40

Line drawing of a stroller with wheels and a handle, no text or symbols present

36 2 1 3

37 CLICK

Illustration of a baby stroller with a highlighted arm and seat, no text or symbols present

43 X

38 CLICK

Line drawing of a stroller with a curved handle and arrow indicating rotation (no text or symbols)

Accessories (May not be included in purchase) Accessories may be sold separately or may not be available depending on region.

Line drawing of a baby stroller with wheels and seat cover, no text or symbols present

45 CLICK

Line drawing of a helmet with a seatbelt, shown in profile view (no text or symbols)

47 2 1

Illustration of a helmet with red adjustment arrows indicating movement (no text or symbols)

Line drawing of a baby seat with a labeled button 'CLICK' (no text or symbols on the diagram itself)

48 ↓ 2

53 2 1

54 CLICK

49 2 1

50 CLICK

Top-down diagram of a car interior with highlighted structural elements (no text or symbols)

Line drawing of a baby car hood with two arrows indicating downward motion (no text or symbols)

Line drawing of a baby car seat with a labeled button 'CLICK' (no text or symbols on the diagram itself)

Detach & Assemble Soft Goods

57 2 3

59

58

Diagram of a person inside a vehicle seatbelt with an upward arrow indicating motion (no text or symbols)

61

Diagram of a medical device with a highlighted internal structure and orange arrow, no text or symbols present

Care and Maintenance

63 1 2 3

64 NOISEND

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joie Alore, you are using a high quality, fully certified stroller, approved to European safety standards EN 1888-2:2018+A1:2022. This product is suitable for children up to 22kg or 4 years whichever comes first. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Visit us at joiebaby.com to download manuals and see more exciting Joie products!

For warranty information, please visit our website at joiebaby.com

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

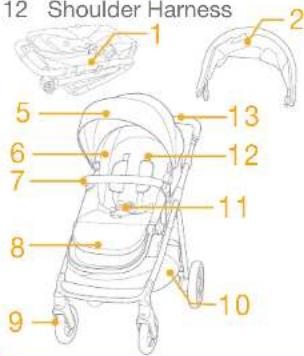

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Stroller Frame
2 Canopy
3 Front Wheel
4 Rear Wheel
5 Canopy
6 Seat Pad
7 Armbar
8 Calf Support
9 Front Wheel
10 Storage Basket
11 Buckle
12 Shoulder Harness

12 Shoulder Harness 1 2 5 13 6 12 7 11 8 9 10

13 Handle
14 Canopy Window
15 Folding Button
16 Seat Release Button
17 Swivel Lock
18 Rear Wheel
19 Brake Lever
20 Storage Bag
21 Storage Latch
22 Handle Adjustment Button

14 15 16 22 17 21 20 19 18

Accessories

(May not be included)

1 Adapter (on certain models)
2 Rain cover (on certain models)

Accessories may be sold separately or may not be available depending on region.

WARNING

! Always use the restraint system. Safety belts and restraint systems must be used correctly.
! Ensure that all the locking devices are engaged before use.
! Do not let the child play with this product.
! Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
! Adult assembly required.
! This product is suitable for children up to 22kg or 4 years whichever comes first.
! To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket.
! Never leave the child unattended. Always keep child in view while in stroller.
! Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or canopy.
! Accessories which are not approved by the manufacturer shall not be used. Only replacement parts supplied or recommended by the manufacturer shall be used.
! Overloading, folding incorrectly, or using component parts from other manufacturers may cause the stroller to be damaged, broken or unsafe. Please read the instruction manual carefully.
! Please read all the instructions in the manual before using the product. Please save instruction manual for future use. Failure to follow these warnings and instructions may result in serious injury or death.
! To avoid serious injury from falling or sliding out, always use seat belt.
! Make sure your child's body is clear from the moving parts when adjusting the stroller.

! Be sure the stroller is fully open or folded before allowing child near the stroller.
! Child may slip into leg openings and be strangled if the harness is not used.
! Never use stroller on stairs or escalators.
! Keep away from high temperature objects, liquids, and electronics.
! Never allow your child to stand on the stroller or sit in the stroller with head toward front of stroller.
! Never place the stroller on roads, slopes or dangerous areas.
! To avoid strangulation, DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
! Any load attached to the handle and/or on the back of the backrest and/or on the sides of the stroller will affect the stability of the stroller.
! DO NOT lift stroller while child is in stroller.
! DO NOT use storage basket as a child carrier.
! To prevent tipping, never let child climb the stroller. Always lift the child in and out of the stroller.
! To avoid finger entrapment, use care when folding and unfolding the stroller.
! To avoid injury ensure that the child is kept away when unfolding and folding this product.
! To ensure your child's safety, please make sure all parts are assembled and fastened properly before using the stroller.
! To avoid strangulation, do make sure your child is clear from the canopy.
! Always engage the brakes when parking the stroller.
! Discontinue using stroller if it is damaged or broken.

! Stroller to be used only at walking speed. This product is not intended for use while jogging.
! To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.
! This product is not suitable for running or skating.
! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
The parking device shall be engaged when placing and removing children.
! For infant child restraints used in conjunction with a chassis, this stroller does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
! Carry cot shall not be used, as soon as the child is able to sit by himself, roll over and can push itself up on its hands and knees. Maximum weight of the child: 9kg.
! DO NOT use or add any mattress other than the one supplied with the carry cot.
! Do not attach items to the handle, seat back or sides of the stroller. Any additional load will affect the stability of the stroller and could cause the stroller to tip.
! No additional mattress shall be added unless recommended by the manufacturer.
! Please do not fold the frame when the seat is facing rearwards.

Stroller Assembly

(Please refer to figures on page 1-12)

Please read all the instructions in this manual before assembling and using this product.

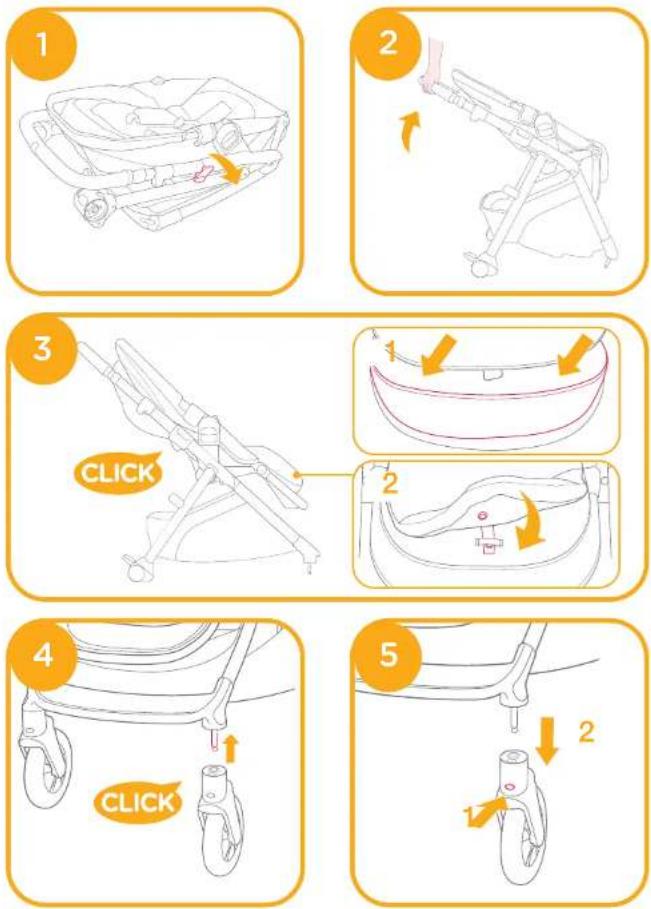

Open Stroller

see Images 1

Separate storage latch from storage mount, and then lift the handle upwards, a click sound means the stroller is open completely.

Press the footrest down and reset it. Ⓗ - 1
Please attach the button under the calf support. Ⓔ - 2
Check that the stroller is completely latched before continuing to use.

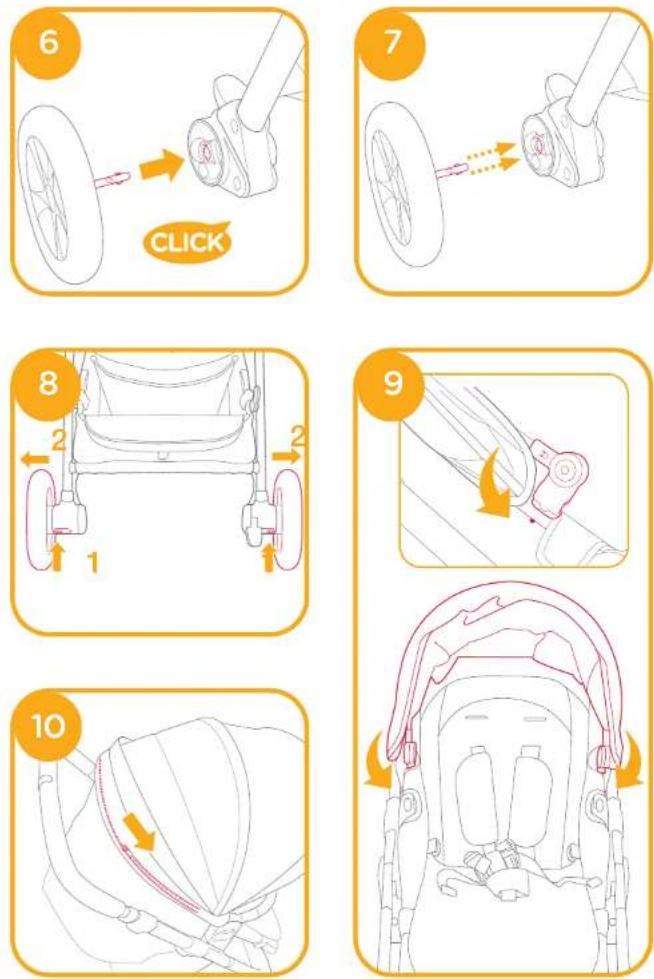

Assemble & Detach Front Wheel

see Images 6 - 5

Assemble & Detach Rear Wheel

see Images ③ - ④

Assemble Canopy

ee images

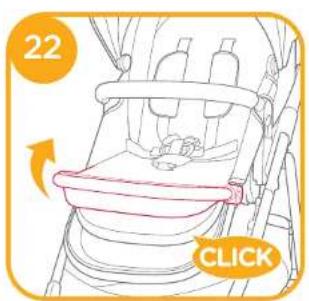

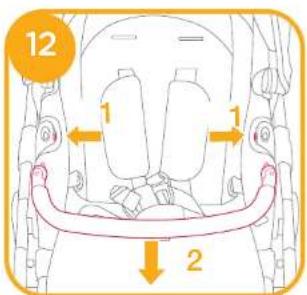

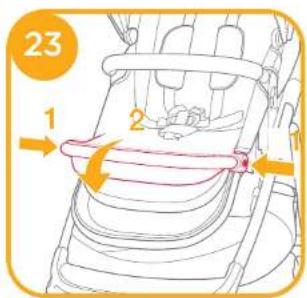

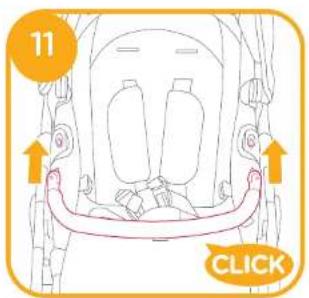

Assemble & Detach Armbar

ee images 📁 - 📁

The completely assembled stroller is shown as

Stroller Operation

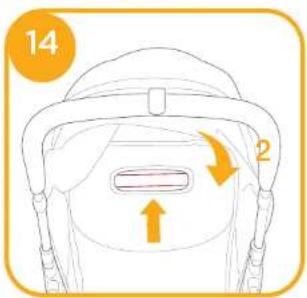

Adjust Backrest

see images

There are 5 recline angles for the backrest.

Recline Backrest

To recline the backrest, squeeze the recline handle on the back of the seat, pull down on the backrest.

Raise Backrest

To raise the backrest, push up.

Make sure the recline is set properly for use.

The maximum load of storage pocket on the back of backrest is 0.45kg.

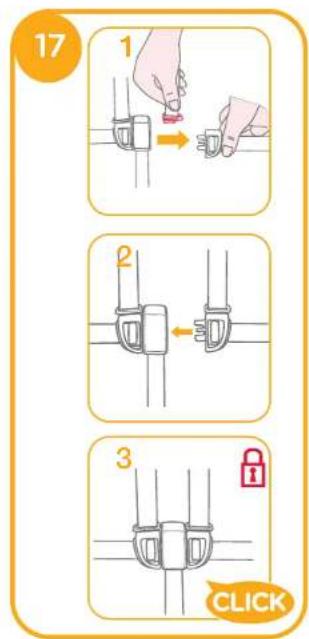

Use Buckle

see images: -

Release Buckle

Press the center button to release the buckle.

Lock Buckle

Match the waist belt buckle with the shoulder buckle 1. and click into the center buckle. 2 A "click"

sound means the buckle is locked completely.

To avoid serious injury from falling or sliding out, always secure your child with harness.

Make sure your child is snugly secured. The space between the child and the shoulder harness is about the

thickness of one hand,

Do not cross the shoulder belts. This will cause pressure on a child's neck.

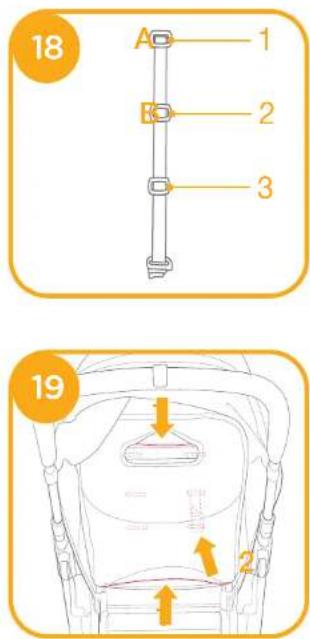

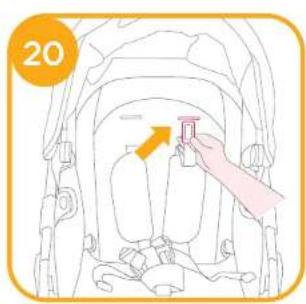

Use Shoulder & Waist Harnesses

see images

In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

-1 Shoulder harness anchor A

-2 Shoulder harness anchor B

-3 Slide adjuster

For larger child, use shoulder harness anchor A and the highest shoulder slots. For smaller child, use shoulder harness anchor B and the lowest shoulder slots.

The position of the shoulder belt anchor can be adjusted from above opening which closed by fasteners or below pocket.

To adjust the position of the shoulder harness anchor, turn the anchor to be level with the side facing forward. Thread it through the shoulder harness slot from back to front. Retread it through the slot that is closest to child's shoulder height.

Use slide adjuster to change the harness length.

Press the button ① - 2, while pulling the waist harness to proper length. ② - 3

Adjust Calf Support

see images

The calf support has 2 positions.

To raise the calf support, push it upwards. A 'click' sound means the calf is locked completely.

To lower calf support, press the adjustment buttons on both sides of the calf support 😊 - 1, and rotate the calf support downwards. 😊 - 2

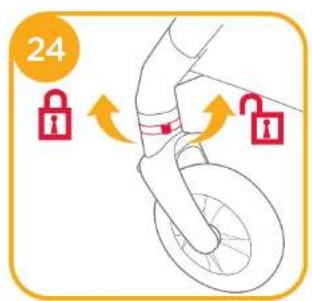

Use Front Swivel Lock

see image

Front wheel locked or unlocked status as 2.

Tip It is recommended to use swivel locks on uneven surfaces.

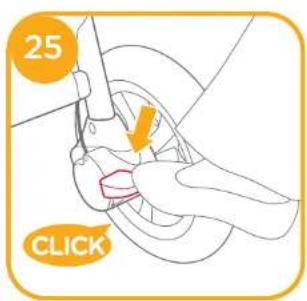

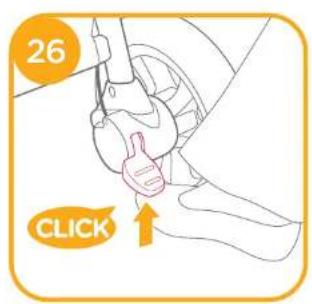

Use Brake

see images

To lock wheels, step the brake lever downwards.

To release wheels, just lift the brake lever upwards.

Tip: Always set the parking brake when stroller is not moving.

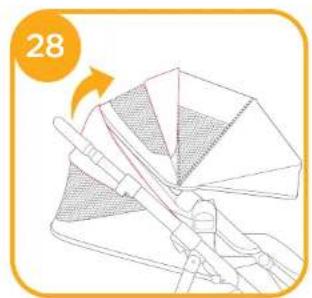

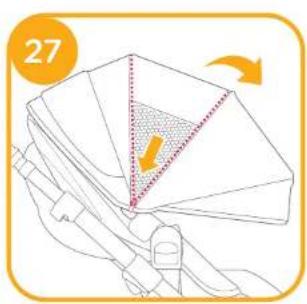

Use Canopy

see images

The canopy can be opened or folded, pull it toward front or back.

The canopy can be opened completely to protect your child from the sun uttermostly, just unzip the zip 🔒, and then pull the canopy toward front.

There is a window on the canopy, through which you can view your baby.

Adjust Handle

see image

The handle has 3 positions.

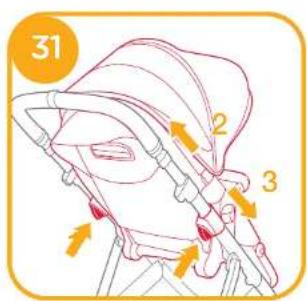

Adjust Seat Height

see images ① - ②

The seat has 3 positions.

Pull up the seat to increase the seat height.

Press the seat height adjustment buttons and pull up, then push down to decrease the seat height.

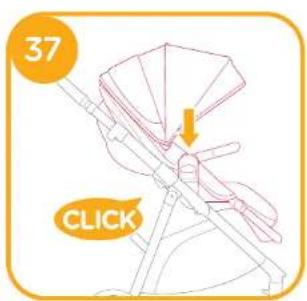

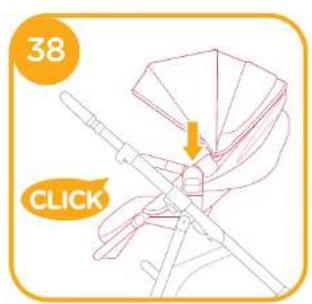

Switch Seat

see images

The seat can be switched which makes mother and child can face to face with each.

Squeeze the seat release buttons while lifting the seat. Turn the seat to reverse direction and then insert the seat to seat mounts.

Both seat mounts need to be level shown as ☐, if the situations shown as ⚙ & ☑ happen, please press the seat height adjustment button and pull up, then push down to decrease the seat height to make sure the both seat mounts to be level.

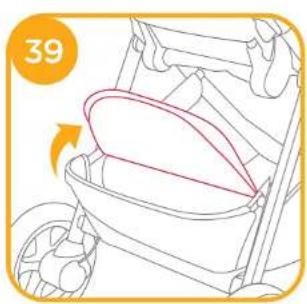

Use Storage Basket

see Image

To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket and storage bag.

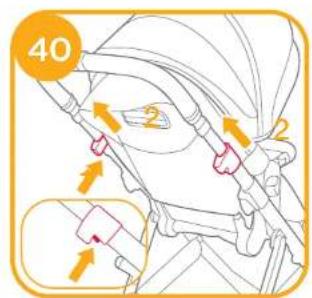

Fold Stroller

see Images

Please fold the canopy before folding the stroller.

Press the folding button and pull up, then rotate the handle downwards, the fold latch can lock automatically.

If the seat is on the lower position, it can slide down while folding the stroller to make sure fold latch lock automatically.

Please do not fold the frame when the seat is facing rearwards.

Please do not fold the frame when front wheel swivel lock is locked.

The stroller with forward-facing seat can stand when the handle is in the highest position.

Use Accessories

Accessories may be sold separately or may not be available depending on region.

Use Rain Cover

see Image

To assemble the rain cover, place it over the seat.

When using the rain cover, please always check its ventilation.

When not in use, please check that the rain cover has been cleaned and dried before folding.

Do not fold the stroller after assembling the rain cover.

Do not place your child into the stroller assembled with rain cover during hot weather.

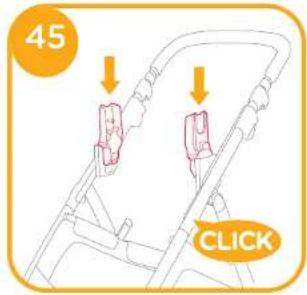

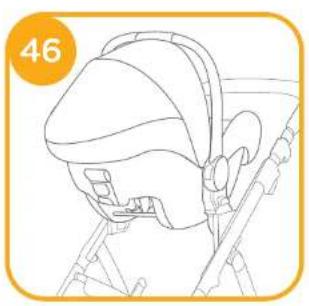

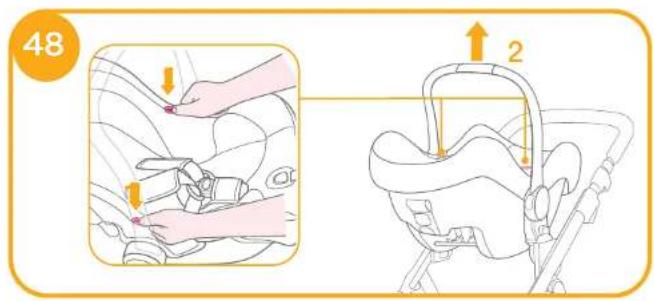

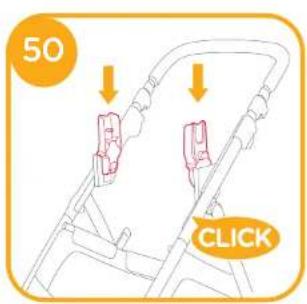

Use with Infant Child Restraint

see images

When using with Jolie infant child restraint i-Snug 2 & i-Gemm 3 & i-Level Recline & i-Jemini & Gemm, please refer to the following instructions.

A "click" sound means the adapter is locked completely.

The infant child restraint angle can be adjusted with our adjustable adaptors.

The adapter has 3 positions. Please do not use the product when the baby's head is lower than feet after attached infant child restraint.

If you have any problems about using the infant child restraint, please refer to their own instruction manuals.

Please do not fold the stroller when the infant child restraint is still attached.

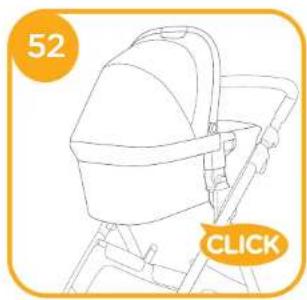

Use with Joie Ramble, Ramble XL Carry Cot

see images 51 - 53

When using with Joie carry cot ramble, ramble xl, please refer to the following instructions.

If you have any problems about using the carry cot, please refer to their own instruction manuals.

! Please do not use the product when the baby's head is lower than feet after attached carry cot.

! Always use the mattress when using the carry cot.

! Please don't fold stroller when attaching the carry cot.

Use with Joie Calmi Carry Cot

see images ③ - ⑤

When using with Joie Calmi carry cot, please refer to the following instructions.

! A "click" sound means the adapter is locked completely.

! Always use the mattress when using the carry cot.

! Please check that the mesh at the bottom of the carry cot is properly fixed before installing carry cot

! If you have any problems about using the carry cot, please refer to their own instruction manuals.

! Please do not fold the stroller when the carry cot is still attached.

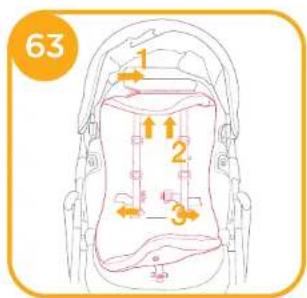

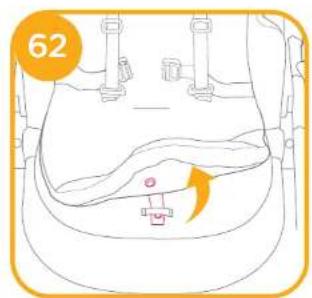

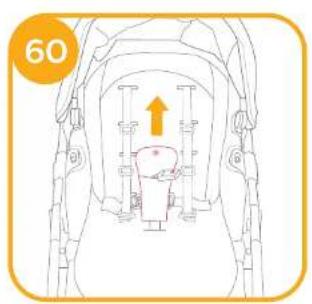

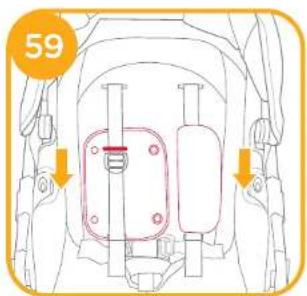

Detach & Assemble Soft Goods

see images -

1. Remove armbar shown as 1:

2. Open the buckle which is on the bottom of seat.

To re-assemble seat soft goods, follow the steps above in reverse 🎨 - 🏠

Cleaning and Maintenance

see image

! To clean stroller frame, use only household soap and warm water. No bleach or detergent. Please refer to the care label for instructions on cleaning the fabric parts of the stroller.

! Removable soft goods can be washed by machine. No bleach. Do not twist the seat cover and inner padding to dry with great force. It may leave the seat cover and inner padding with wrinkles.

! From time to time, check your stroller for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. Periodically wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water.

! Excessive exposure to sun or heat could cause fading or warping of parts.

! If stroller becomes wet, open canopy and allow to dry thoroughly before storing.

! If wheels squeak, use a light oil (e.g., Silicon Spray, antirust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly.

! When using your stroller at the beach or other sandy/dusty environments, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies.

Bem-vindo à Joie™

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Boumanweg 178 C, 2352 JD Leiderdorp, The Netherlands
