Air Fresh 6

Air freshener User Manual

Line drawing of a smart air conditioner with a fan and mounted base (no text or symbols)

INDEX

1 Safety instructions....47
2 Technical characteristics.... 48
3 Parts list / assembly.... 49
4 Operation....51
5 Cleaning and storage 52
6 Maintenance .... 53
7 Warranty / Disposal / Technical change 54

1 Safety instructions

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

• When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.
• Use this fan only as described in this manual. Any other use that is not recommended may cause fire, electric shock or personal injury.
• This product is intended for household use only and not for commercial, industrial or outdoor use.
• To protect against electric shock: Do not place the fan on window sills, immerse the unit, plug or cord in water or spray it with liquids.
• To reduce the risk of shock, this plug must properly fit the outlet. If the plug does not fully fit into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

• To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

• Children should be supervised to ensure that they do not play with the appliance.

• Turn the fan OFF and unplug the fan from the outlet when not in use, when moving the fan from one location to another and before cleaning.
• To disconnect the fan, first turn the unit OFF, grip the plug and pull it from the wall outlet. Never pull the cord to remove the plug.
• Do not operate the fan in the presence of explosive and/or flammable fumes.
• Do not place the fan or any parts near an open flame, cooking or other heating appliance.
• Do not operate the fan with a damaged cord or plug, if the product malfunctions or has been dropped or damaged in any way.
• Avoid contact with moving fan parts.
• The use of attachments not recommended by the manufacturer may be hazardous.
• Place the fan on a dry level surface.
• Do not hang or mount the fan on a wall or ceiling.
• Do not operate if the fan housing is damaged.
• If the plug only loosely fits into the AC outlet (receptacle), it may cause overheating and a distortion of the plug. Contact a qualified electrician to replace a loose or worn outlet.
• Only use a power supply that matches the one indicate on the rating label of the unit.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2 Technical characteristics

Model No.: Air Fresh 6

Rated Voltage: 220 V - 240 V

Rated Frequency: 50 Hz

Power Input: 100 W

Max. Mist Capacity: 200 ml/hr

Blade size: 400 mm

Water Tank Capawcity: 1200 ml

3 Parts list/assembly

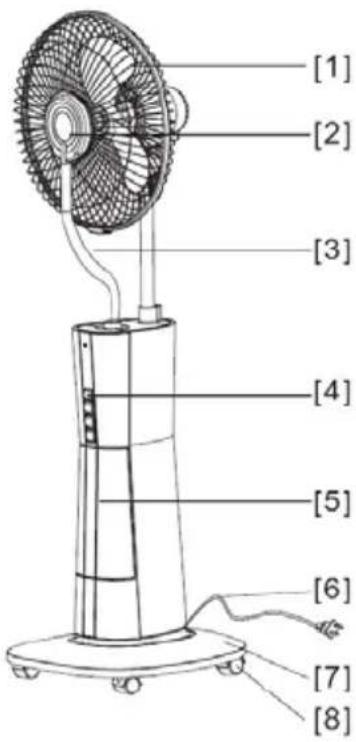

Parts list

1. Fan grille
2. Water spray set
3. Water tube
4. Control panel
5. Water tank storage
6. Power cord
7. Base
8. Wheel(s)

[1] [2] [3] [4] [5] [6] [7] [8]

GB

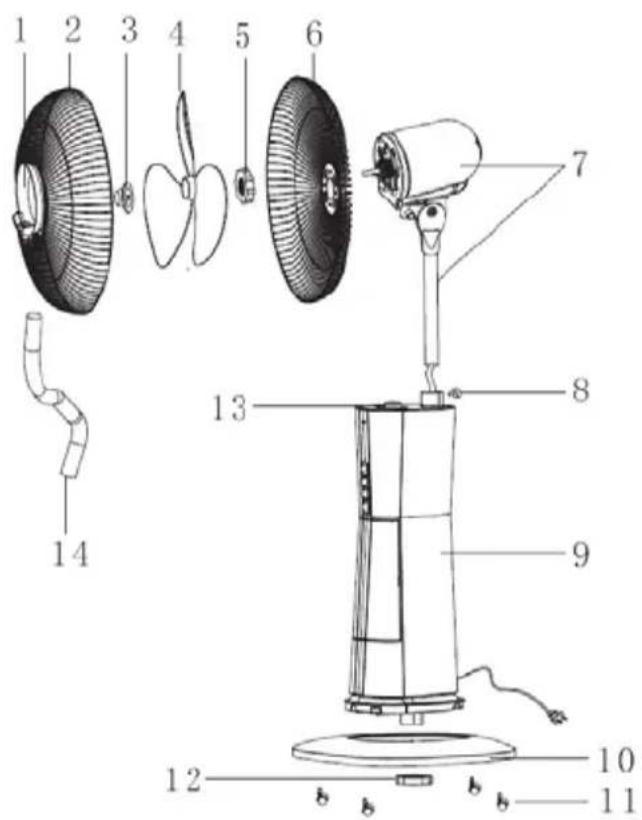

Fan assembly

1. Water spray set
2. Front fan grille
3. Blade cap
4. Fan blade
5. Grille mounting nut
6. Rear fan grille
7. Motor set
8. Fixation screw
9. Fan body
10. Base
11. Wheel(s)
12. Base nut
13. Water tube fixer
14. Water tube

1 2 3 4 5 6 7 8 9 10 11 12 b b b b b 13 14

GB

How to assemble:

1. Fix the four wheels [11] onto the base [10].
2. Install the fan body [9] on the base [10] and fasten the base nut [12].
3. Fasten the motor set [7] with the fixation screw [8]
4. Put the rear fan grille [6] onto the motor set [7] and fasten the grille mounting nut [5].
5. Install the blade [4] onto the motor shaft, then fasten the blade cap [3] with a twist anti-clockwise.
6. Loose the screw on the rear-mounted ventilation grille. Now fasten the front ventilation grille and tighten it.
7. Close the vent pipe (14) to the ejection of the front ventilation grille (2).

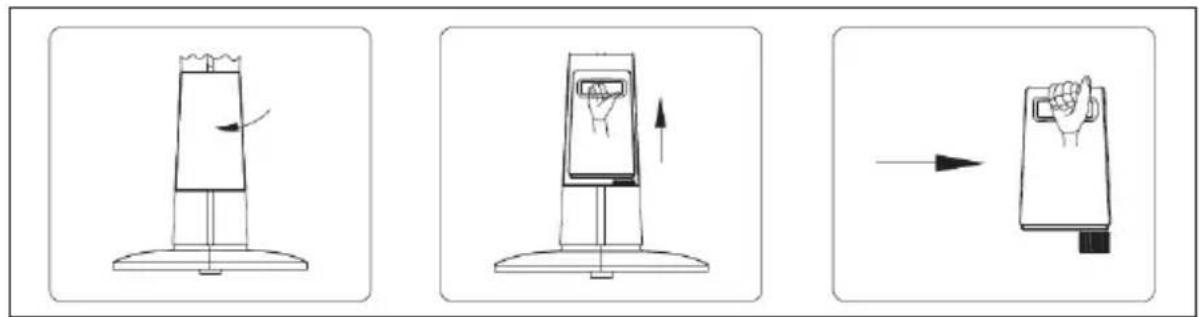

Tank assembly

Diagram illustrating three-step process of a device with rotation, lifting, and clamping steps

1. Open the water tank cover.
2. Lift the water tank evenly.
3. Take out the water tank evenly.

Three-step diagram showing a device with an upward arrow, a circular component with a handle, and a downward arrow (no text or symbols)

1. Make sure the tank stands in the correct position.
2. Open the lid of the tank and put water inside.
3. Place the lid back on tightly, re-install the tank into the fan and close the cover.

4 Operation

Please ensure the unit is in the OFF-position before plugging it into the power outlet.

• Place the unit on a firm level surface.
• Avoid overloading the circuit by not plugging other high wattage products into the same power outlet.

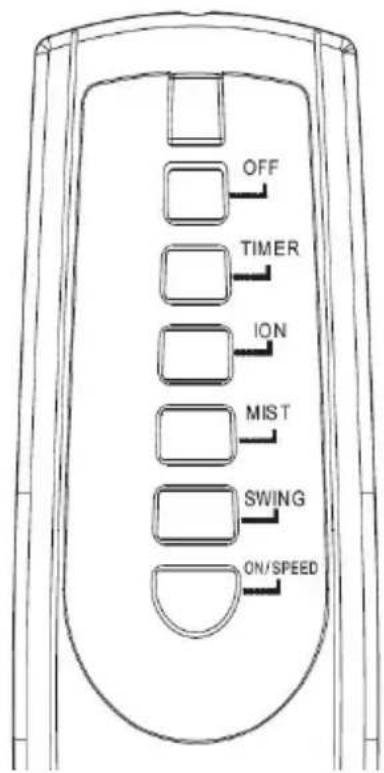

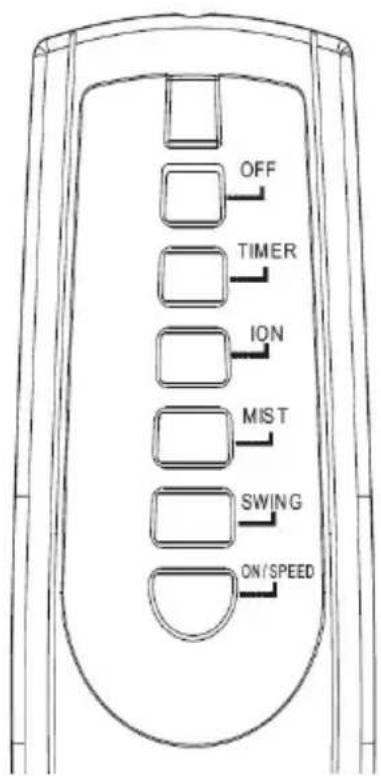

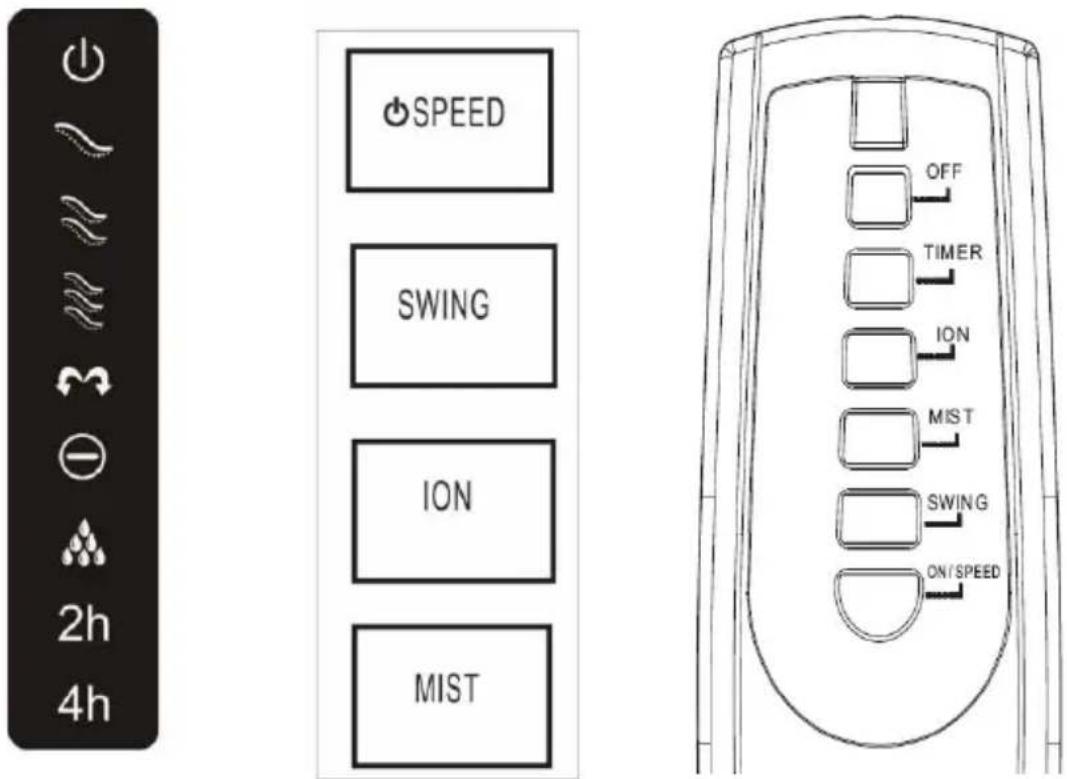

Display screen and control panel

SPEED SWING ION MIST OFF TIMER ION MIST SWING ON/SPEED

Display screen Control panel Remote control

OFF: Press this button to turn off the fan.

TIMER: When the unit is in use, you can set the Timer to turn off the fan after the specified time. Press this button repeatedly to increase the Timer setting in 2-hour increments (up to a maximum of 6 hours) as indicated on the LED Display. After 5 seconds, the Timer starts. Once the Timer has run out, the unit will turn off.

ION: Press this button to turn the ionizer feature on/off (the fan must be in operation to make the ionizer work). When the ionizer is turned on, it will assist in purifying the room air.

MIST: Press this button to turn on/off the ultrasonic humidifier.

SWING: Press to start/stop Fan Oscillation.

ON/SPEED: Press this button to start the fan at Speed 1, in normal mode. Press again to switch the fan speed from 1-2-3.

GB

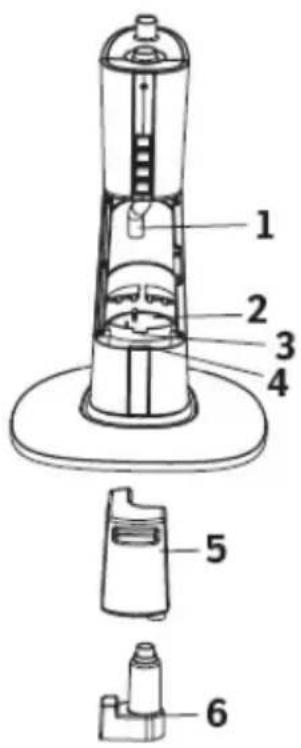

5 Cleaning and storage

• Before cleaning, turn the unit off, unplug it from the power supply and wait for the unit to cool down.
  • To clean the unit, use a soft cloth to wipe off any dust.
• Please clean the water tank every two or three weeks and clean the water tube every week.

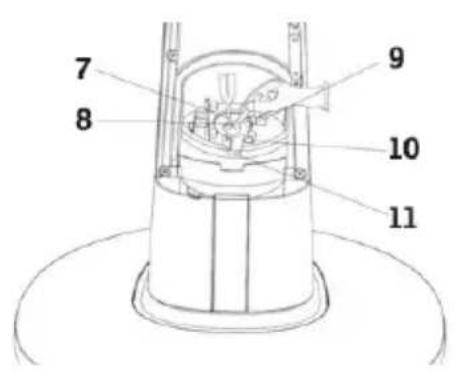

• Please take out the water tank and pull the plastic tube out properly. Then slowly remove the water spray set and the water tank.
• Use a dry cloth to clean the water spray set or use a mild detergent to clean it if it has lime scales.
• Keep the unit in a cool and dry place when not in use for a long time.

Technical diagram of a portable device with numbered parts for identification and assembly reference.

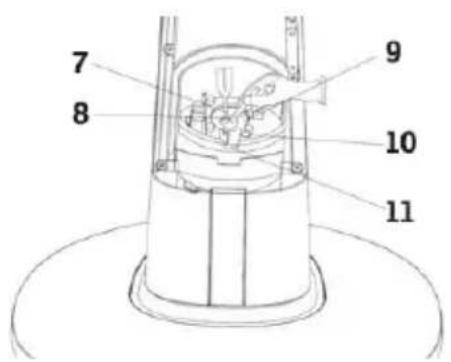

7 8 9 10 11

1. Plastic tube
2. Water drain
3. Mist plate
4. Water overflow hole
5. Water tank
6. Mist blower
7. Cleaning detergent
8. Brush
9. Mist plate
10. Flap
11. Water overflow hole

Special detergent for the ultrasonic air humidifier function (Zitronensäure): Function: Use this special detergent to clean the ultrasonic converter in the outlet channel. It removes encrustation to ensure the air humidifier has better performance and longer life.

Ultrasonic transducer Bobber Overflow hole

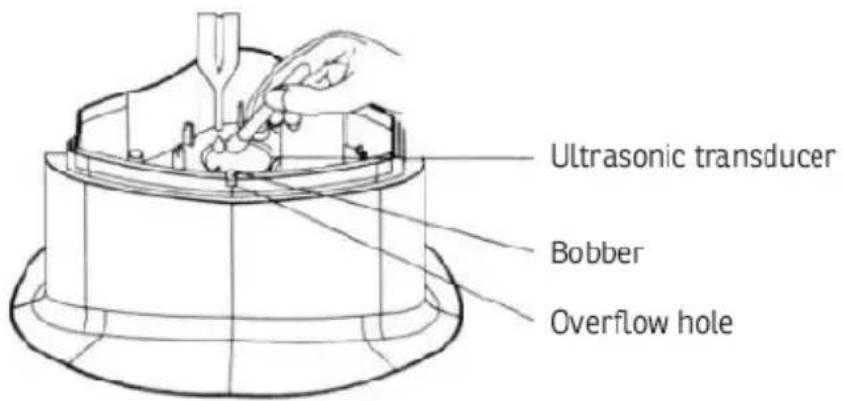

Figure of cleaning ultrasonic transducer

Application: Apply 2-3 drops to the ultrasonic converter. Wait 1 minute. Carefully rinse with clean water and then dry with a clean soft cloth.

Caution: Do not allow the detergent to contact your skin, clothing, mouth or eyes. If this happens, immediately rinse and flush with clean water. Store the detergent in a place protected from direct sunlight and heat sources and out of the reach of children.

6 Maintenance

Have your product repaired by a qualified person.

This electric product is in accordance with the relevant safety requirements.

Repairs should only be carried out by qualified persons using original spare parts. Otherwise, it may lead to considerable danger for the user.

If necessary, please contact the store where you bought the product for after-sale service.

7 Warranty / Disposal / Technical change

GB

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

Reserving technical changes in technology and design

Please save the packaging materials of the unit.

CE Declaration of Conformity

This device complies with the following standards

EN 55011:2009+A1:2010

EN 55014-1-2006+A1:2009+A2:2011

EN 55014-2:1997+A1:2001+A2:2008

EN 61000-3-2:2014

EN 61000-3-3:2013

Notizen

Firma

Armin Schmid

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel. Nat. 0848870850

www.sonnenkoenig.ch

Firma

Armin Schmid

Landline 14 Cent/Minute

Mobile network 42 Cent/Minute
