Product type	Floor fan
Brand	Sonnenkönig
Model	Windmaschine 20
Propeller diameter	20 inches (approx. 50 cm)
Power supply	220-240 V, 50 Hz
Power consumption	120 W
Number of speeds	3 (low, medium, high)
Adjustable tilt	Yes
Mounting options	Floor, desk, wall
Thermal protection	Yes (overheat protection)
Motor	Powerful and energy-efficient
Pole material	Chrome
Cleaning	Soft cloth and soap, no abrasive cleaner
Warranty	24 months
Disposal	WEEE – do not dispose with household waste

Frequently Asked Questions - Windmaschine 20 Sonnenkönig

How to clean the Windmaschine 20 fan?

Unplug the device, carefully remove the protective grille and propeller. Clean the blades with a soft cloth and soap, then dry. Never use abrasive products. Replace the grille before reusing.

How to adjust the speed?

Use the regulator on the control box: position 0 to turn off, 1 for low speed, 2 for medium, 3 for high.

Can I mount this fan on the wall?

Yes, the Windmaschine 20 can be mounted on the wall. Use sturdy screws suitable for the fan's weight and make sure the wall is properly drilled.

What is the power of this fan?

The power consumption is 120 W at 220-240 V and 50 Hz.

Does the fan make noise?

The precision blades ensure powerful and quiet operation. The noise level is not specified, but it is designed to be discreet.

How to install the fan?

Assemble the parts according to the diagrams in the manual: attach the rear grille, the propeller with the nut, then the front grille. Plug in and use the speed regulator.

What to do in case of overheating?

The fan is equipped with thermal protection that automatically cuts off the power in case of overheating. Let the device cool down before using it again.

What are the dimensions of the fan?

The propeller diameter is 20 inches (approx. 50 cm). The total height is not specified, but it is typical for a floor fan (about 50-60 cm).

How to benefit from the warranty?

The warranty is 24 months from the date of purchase. Keep the proof of purchase and contact your dealer in case of defect.

Can I use the fan in a bathroom?

No, this device is not designed for use in humid environments. Use it in a dry area away from water splashes.

USER MANUAL Windmaschine 20 Sonnenkönig

Technical diagram of a mechanical assembly with numbered components for identification

Festnetz 14 Cent/Minute

Black-and-white photo of a Siemens airship fan with three blades and radial blades, mounted on a stand (no text or symbols visible)

Article-nr. WINDMASCHINE 14": 10540081

Artikelnr. WINDMASCHINE 20": 10540381

SOMMAIRE

Technical diagram of a fan assembly with numbered components for identification

Modifications techniques

Festnetz 14 Cent/Minute

Black and white photo of a Siemens 40-inch fan with visible blades and mounting base (no text or symbols on the fan itself)

Nr. articolo WINDMASCHINE 14": 10540081

Nr. articolo WINDMASCHINE 20": 10540381

IT

INDICE

Technical diagram of a mechanical assembly with numbered components for identification

FLOOR FAN User manual

Black and white photo of a Siemens 495 electric fan with three blades, mounted on a stand (no text or symbols visible)

1 Safety Instructions....27
2 Characteristics.... 28
3 Operation instructions.... 29
4 Technical informations.... 29
5 Warranty / Disposal / Technical change 30

1 Safety instructions

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

2 Characteristics

EN

The modern floor fan ensures a strong wind. It sucks in the air from below and circulates it through the entire room, keeping it cool and airy. Place the unit near a window, this will allow it to attract fresh air from outside.

• Energy-saving and powerful motor
- Tilt-adjustment for flexible use
- Triple speed selection
- Precision fan blades for powerful wind but low noise
- Chrome stand, solid construction with thermal protection to prevent the motor from overheating
- Versatile use, can be put on the floor, the desk or mounted on a wall

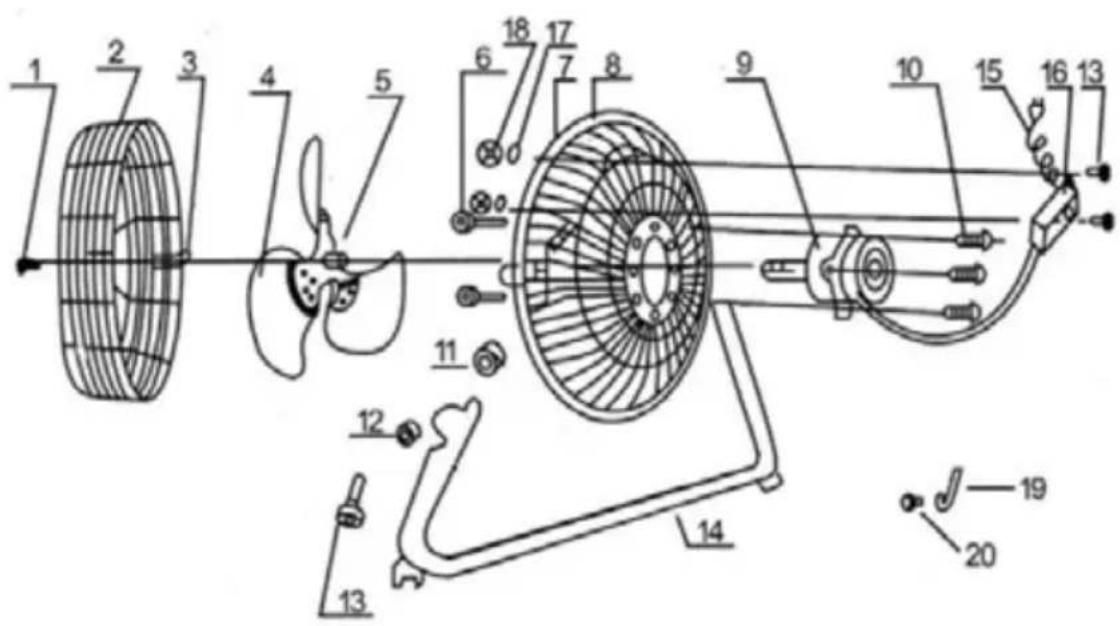

Technical diagram of a mechanical assembly with numbered components for identification

1. Screw
2. Front guard
3. Guard clips
4. Blade
5. Set screw
6. Nut
7. Square bolt
8. Rearguard

9. Motor

10. Screw

11. Plastic bearer
12. Locknut
13. Screw
14. Tube base
15. Power cord
16. Control box
17. Washer
18. Nuts

3 Operation instructions

• Ensure that the voltage used corresponds with the voltage indicated.
• Turn the speed control to select the speed: 0 (off) and speeds 1, 2, 3 mean slow, medium, fast.
• Tilting angle: By pushing the tilt guard you can adjust the fan to the elevation preferred.
• Never touch the blades with your hands or any object!
• Do not pull the cord too hard. If is damaged after extensive use, get it repaired by an authorized electrician.
• To clean it: Disconnect the power cord from the mains. Remove the guard and the blades carefully. Do not drop the blades! First use a soft cloth with a little bit of soap to clean off oil stains. Then wipe and polish with a dry cloth. Never use a cleaning agent or any corrosive liquid that will damage the paint, metal or plastic! Put back the blades and lock the guard securely before use.
• To mount on it walls, ensure that strong, durable tools are used. Make sure holes are properly drilled and the fan is firmly fixed to the wall to support the weight of the fan.

No exchange will be made if the above instructions are not followed. Always test the product first before purchase.

4 Technical informations

WINDMASCHINE 14"

Rated Voltage: 220–240 V

Rated Frequency: 50 Hz

Power Consumption: 70 W

WINDMASCHINE 20"

Rated Voltage: 220–240 V

Rated Frequency: 50 Hz

Power Consumption: 120 W

5 Warranty / Disposal / Technical change

EN

Warranty

All products are checked from our company before the delivery. In case that there is a lack on your product, please contact the vendor. Please bring your proof of purchase for guarantees.

Disposal

Please remove the device properly. You can bring the product to any specialist dealer for the removal.

Technical changes

Technical changes in technique and design are possible.

Please save the packaging materials of the unit.

CE declaration of Conformity

This device complies with the following standards

EN 55014-1:2017

EN 55014-2:2015

EN 60335-1:2012/AC:2014

EN 60335-2-80:2003+A1:2004+A2:2009

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 62233:2008

2015/863

2014/30/EU

2014/35/EU

206/2012/EU

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 4 March 2014 implementing Directive 2011/65/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.

Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected.

The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.
