DYNAMIC FAN Instruction manual

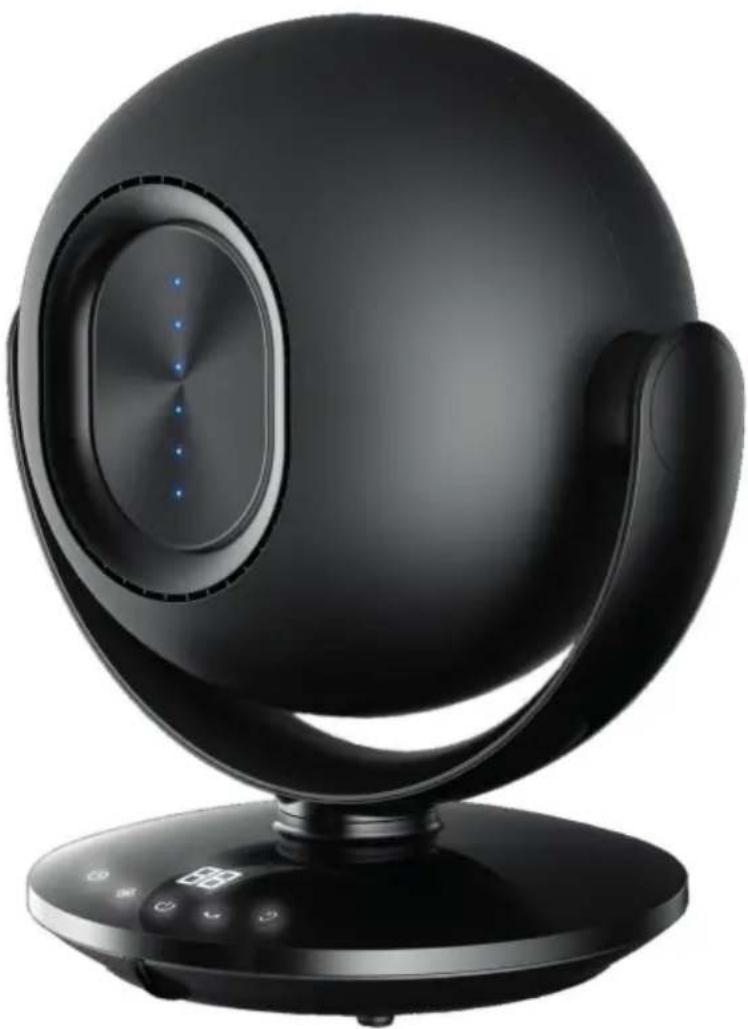

Black spherical digital camera with a curved screen and control panel (no visible text or symbols)

EN

INDEX

1 Safety instructions.... 33
2 Components.... 35
3 How to use 36
4 Remote control....37
5 Maintenance 37
6 Warranty / Disposal / Technical change 38

1 Safety instructions

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.

EN

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

• Read all instructions carefully before using the FAN, and keep this instruction for furture reference when necessary.
• Read all instructions carefully before using the Fan.
• Use this Fan only as described in this manual. Any other use not recommended by the manufacturer may casue fire, electrical shock or injury to persons.
• Open the package and ensure that the Fan is undamaged. In case of doubt do not use the FAN Cooler and contact your supplier.
• Do not let children play parts of package.
• Before using the Fan, check if the voltage marked on the rating label corresponds to the mains at your harne.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

EN

• Avoid using extension cord as it may overheat and cause fire.
• Do not pull the power cord to disconnect from power source. Always grasp the plug to pull out.

- Do not insert any objects into the Fan as it may cause an electric shock or damage. Do not block or tamper with the Fan in any manner while it is in operation.

- Do not leave the Fan unattended. Always unplug the Fan Cooler when not in use.

- WARNING: The On/Off switch should not be used as the sole means of disconnecting power. Always unplug the power cord before servicing or moving the unit.

• This Fan is intended for household use ONLY and not for industrial or outdoor use.

- Always disconnected the Fan from the power supply when moving it from one location to another.

- This product contains recyclable Amaterials. Do not dispose this - product as unsorted municipal waste. Please contact your local municipality for the nearest collection.

- The Fan is not intended for use in wet or damp locations. Never locate the Fan where it may fall into a bathtub or other water container.

- Do not place the Fan near a source of heat or fire.

- Keep the Fan clean to maintain in good condition (refer to maintenance section).

- WARNING: To avoid danger of electric shock, unplug from outlet when not in use and before cleaning. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

Model Number VIENTO
Power Supply 220-240V 50 Hz / DC 24V
Rated Power 26 W
Package Dimension 358 x 285 x 382 mm

2 Components

EN

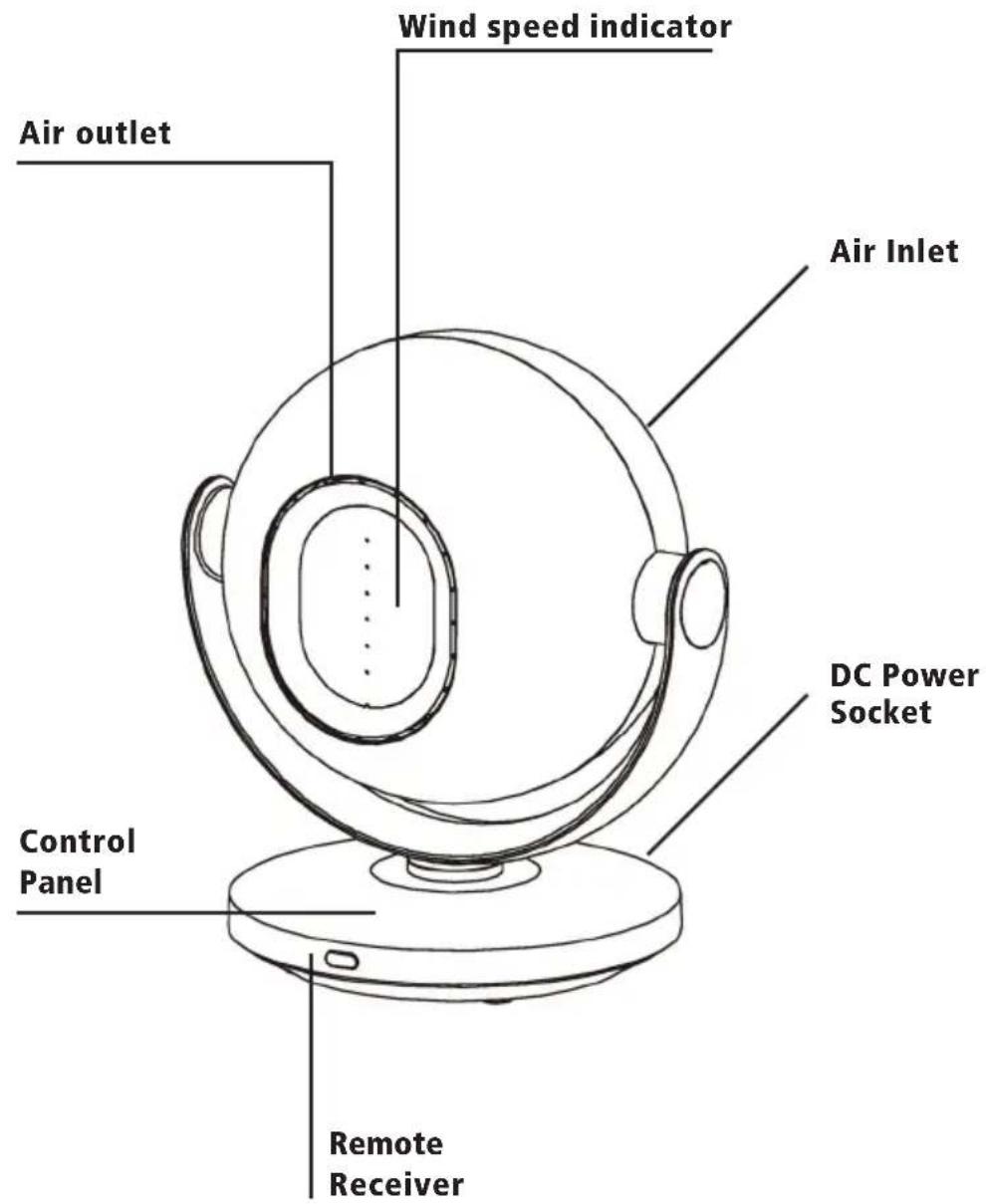

Wind speed indicator Air outlet Air Inlet DC Power Socket Control Panel Remote Receiver

3 How to use

EN

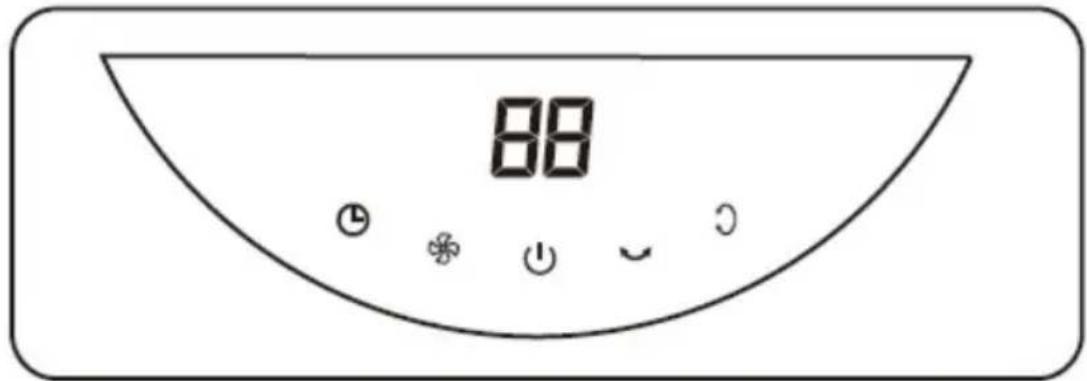

The Fan may be operated by the control panel (as shown) or by your remote control.

1. Place the Fan on a stable and flat surface. Plug the DC power jack of AC/DC adaptor to the DC power socket and turn 90 degree. Then plug the power cord into an a.c. 220-240V electrical outlet. The LED screen will display "00".

2. POWER: Turn the Fan ON by pressing the ⏻ key, the Fan starts at speed level 3.

88

1. SPEED: Press the ✗ key to adjust the Fan speed to desired level (1 to 6 level). The speed setting is displayed on the LED light.

2. OSC(UP/DOWN): Press the ) key to allow the Fan to UP/DOWN oscillate the wind direction. To stop the oscillation, press the key again.

3. OSC(LEFT /RIGHT): Press the ⬤ key to allow the Fan to LEFT /RIGHT oscillate the wind direction. To stop the oscillation, press the key again.

4. TIMER: Press the ⏻ key to set desired auto power off time, There are 8 time intervals, from 1 to 8 hour.

*** Remarks: After settings, the LED light and display will light off automatically after 10 to 20 seconds.

4 Remote control

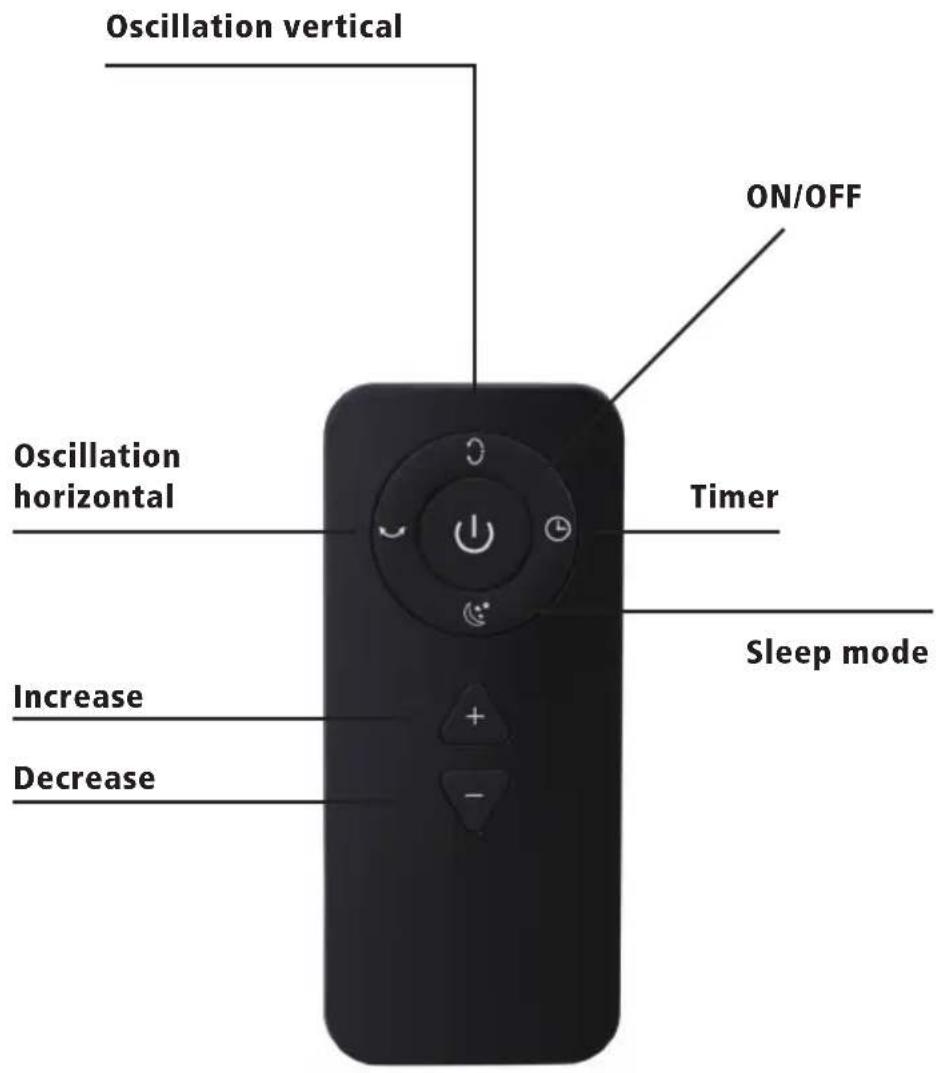

Oscillation vertical ON/OFF Oscillation horizontal Timer Sleep mode Increase Decrease

EN

5 Maintenance

WARNING: ALWAYS UNPLUG THE POWER CORD BEFORE MOVING OR SERVICING. DO NOT IMMERSE THE FAN IN WATER! BEFORE CLEANING, MAKE SURE THAT THE UNIT HAS BEEN SWITCHED OFF AND IT 15 UNPLUGGED FROM THE MAIN OUTLET.

Housing: Clean the outside of the Fan with a soft cloth. To remove presistent dirt, wipe down with a cloth that has been dampened with warm soapy water.

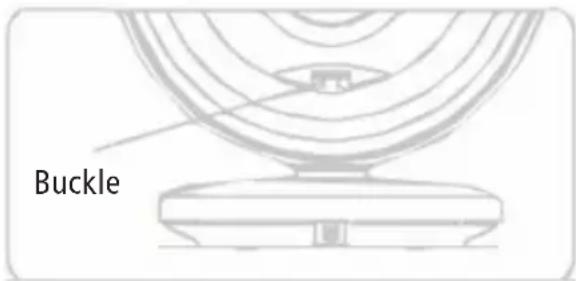

Air Filter Net: Unclick the buckle of the air filter net cover and pull the air filter net out. Wash the net with a soft water or soft damp cloth, and then place back to the fan after drying.

CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc., as they will damage the Fan. NEVER use ALCOHOL or any other SOLVENTS.

Buckle

STORAGE: Store the Fan with these instructions in the original box in a cool and dry place.

6 Warranty / Disposal / Technical change

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

Reserving technical changes in technology and design

CE Declaration of Conformity

This device complies with the following standards

EN 55014-1:2017

EN 55014-2:2015

EN 60335-1:2012/AC:2014

EN 60335-2-80:2003 + A1:2004 + A2:2009

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 62233:2008

2014/35/EU

2014/30/EU

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 4 March 2014 implementing Directive 2011/65/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

EN

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.

Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.

Company

Armin Schmid

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel. Nat. 0848870850

www.sonnenkoenig.ch

Company

Armin Schmid

Landline 14 Cent/Minute

Mobile network 42 Cent/Minute
