Product type	Closed circumaural studio headphone
Brand	Beyerdynamic
Model	DT 770 PRO X Limited Edition
Transducer principle	Dynamic
Frequency response	5 - 40,000 Hz
Nominal impedance	48 Ω
Sound pressure level	98 dB (at 1 mW / 500 Hz), 112 dB (at 1 V / 500 Hz)
Harmonic distortion factor	< 0.05 % (@ 500 Hz)
Maximum short-term load	210 mW
Ambient noise isolation	16 dBA
Nominal headband pressure	5.5 N
Weight (without cable)	305 g
Cable length and type	3 m, smooth pluggable mini-XLR cable, single-sided
Connector	3.5 mm gold-plated stereo jack plug with screw-on adapter for 6.35 mm socket
Package contents	Headphone, connection cable, jack adapter, drawstring bag
Materials	Spring steel headband, replaceable ear pads and headband padding
Care and cleaning	Clean with a soft cloth dampened with water; do not use solvents or vacuum cleaner
Safety	Prolonged listening at excessive volume can cause hearing damage; do not use in traffic
Spare parts and repairability	Ear pads and headband padding user-replaceable; other repairs by authorized technician
Warranty	2-year limited (see beyerdynamic website)
Standard	Compliant with EN 60 268-7

Frequently Asked Questions - DT 770 PRO X Limited Edition BEYERDYNAMIC

How to connect the cable?

The cable connects to the headphone via a lockable 3-pole mini-XLR socket. Make sure the release button is facing outward from the headphone and click the socket into the housing. Only plug the jack into a headphone output.

How to replace the ear pads?

Gently remove the used ear pad from the housing with your fingers. Insert the plastic tab of the new ear pad into the notch on the housing, then turn it clockwise until it is securely fastened. Turn it several times in the direction of the arrow for a perfect fit.

How to clean the headphone?

Clean the padding and ear pads with a slightly damp soft cloth (water only). Avoid water entering the housings. For a deep clean, remove the ear pads and padding and wash them in slightly soapy water, then let them dry completely before reassembling. Never use solvents or vacuum cleaner.

What are the risks of prolonged use?

Prolonged listening at high volume can cause hearing damage and permanent deafness. Follow recommended listening times (e.g., max 8h at 85 dB). If you experience tinnitus, reduce volume or stop use.

Can I use this headphone on the street?

It is not recommended to use headphones on public roads as they reduce perception of ambient noise, posing a risk to road safety. Do not use them near dangerous machinery or level crossings either.

What accessories are included with the headphone?

The DT 770 PRO X Limited Edition comes with: a 3 m mini-XLR connection cable, a 3.5 mm to 6.35 mm screw-on adapter, and a drawstring bag.

How to replace the headband padding?

Carefully unbutton the used padding and remove it. Place the new padding over the headband and connection cable, then fasten it in place.

What is the headphone's impedance and why is it important?

The nominal impedance is 48 Ω, which is relatively low. This allows the headphone to be easily driven by portable devices like smartphones or audio interfaces, while offering reference sound quality.

How to get spare parts or repair?

Spare parts (ear pads, padding, cable) are available on the beyerdynamic website. For repairs, contact an authorized technician or customer service at [e-mail]. Never open the headphone yourself, as this will void the warranty.

What is the warranty period for the DT 770 PRO X Limited Edition?

Beyerdynamic offers a limited 2-year warranty from the date of purchase. Detailed conditions are available at https://www.beyerdynamic.com/service/warranty. Keep your proof of purchase.

USER MANUAL DT 770 PRO X Limited Edition BEYERDYNAMIC

Safety instructions 3

Application....4

Maintenance....4

How to connect the cable....4

How to change the ear pads.... 5

How to change the headband pad 5

Version....6

Supplied accessories 6

Accessories and replacement parts 6

Service 6

Disposal....6

Technical specifications 6

Warranty....6

Thank you for purchasing the

DT 770 PRO X Limited Edition

dynamic studio headphones with

STELLAR.45 drivers from beyerdynamic.

Please take some time and read this information

carefully before using the product.

SAFETY INSTRUCTIONS

Risk of injury

We would like to point out that an excess of high volumes and long periods of listening may cause hearing damage. Hearing defects always constitute an irreversible impairment of hearing ability.
▶ If you suffer from tinnitus, do not use headphones, or reduce the volume.
According to regulations to protect employees against damages caused by noise and vibrations, please follow these instructions:

Sound pressure level	Period of listening
85 dB max. 8 hours
88 dB max. 4 hours
91 dB max. 2 hours
94 dB max. 1 hour
97 dB max. 30 minutes
100 dB max. 15 minutes

When connecting the headphones, please ensure that the volume is turned down to minimum. Adjust the volume after putting on the headphones.

Danger to life

- Headphones drastically reduce perception of external sounds. Using headphones in road traffic can be potentially dangerous. The user's hearing must not be impaired to the extent that it causes road safety risks. Please also make sure that you do not use the headphones in traffic or within an area of potentially dangerous machines and tools. - Furthermore, avoid using the headphones in situations where hearing must not be affected, especially when crossing a railway crossing or at a construction site.

Liability / intended use

▶ Do not use the headphones for any application which is not described in this product information.
The company beyerdynamic GmbH & Co. KG accepts no liability for damage to the headphones or injury to persons caused by careless, improper or incorrect use of the headphones, or by use for purposes not specified by the manufacturer.

APPLICATION

The DT 770 PRO X Limited Edition is a closed studio headphone suitable for professional recording and monitoring in the studio as well as on the move.
Due to the low-impedance STELLAR.45 driver, the DT 770 PRO X Limited Edition delivers studio reference sound on a wide range of end devices.
The detachable, single-sided mini XLR cable makes it easier to handle the DT 770 PRO X Limited Edition when it has to be used frequently.
The rugged headband made of spring steel gives the DT 770 PRO X Limited Edition a secure fit and the mechanical reliability needed for daily use.
▶ Soft ear and headband pads contribute to a high long-term comfort when wearing. If necessary, headband and ear pads can be replaced.
The connection cable is provided with a gold-plated mini stereo jack plug (3.5 mm) with a 1/4" adapter (6.35 mm) and can be connected to all common headphone outputs.

MAINTENANCE

As with any equipment which will be used near sensitive areas of the body, it is essential that the ear pads and headband are kept clean. Use a soft cloth moistened with water for cleaning. Make sure that no water drops into the ear cups or transducers.
If necessary, you can carefully remove the ear pads and headband pad and clean them with mild soapy water.

Never use any solvent cleaning agents! Furthermore, the pads must be completely dry before they are re-attached to the DT 770 PRO X Limited Edition.

Never use a vaccum cleaner for cleaning the DT 770 PRO X Limited Edition, as this may cause irreparable damage.

Should it become necessary to replace the ear pads or the headband pad, refer to "Replacement parts and Accessories". You can easily do this yourself.
If other components must be replaced, please contact your local beyerdynamic representative.

HOW TO CONNECT THE CABLE

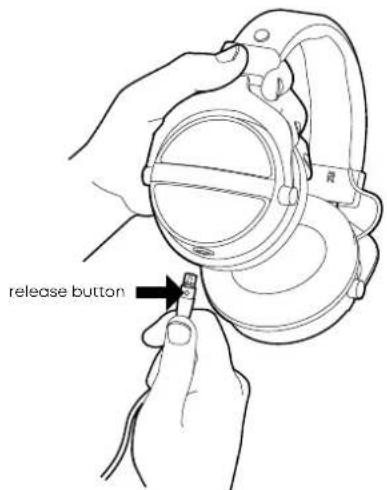

The lockable cable is fitted with a 3-pin mini XLR cable connector at the end that connects to the headphone.
To attach the cable correctly, the small release button of the cable must face outward.
When connecting the cable, make sure that the cable connector locks in place under the ear cup of the DT 770 PRO X Limited Edition.

release button

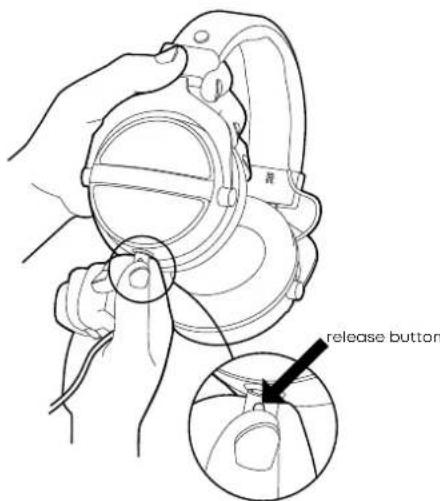

When you want to change the cable, please press the small release button, and simultaneously pull the cable connector from the DT 770 PRO X Limited Edition.

release button

Connect the stereo jack plug of the cable to a headphone output only! If you connect the DT 770 PRO X Limited Edition to any other jack socket, it could be damaged.

HOW TO CHANGE THE EAR PADS

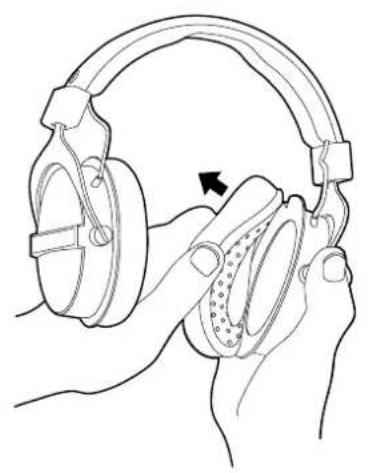

▶ Use your fingertips to carefully pull the ear pad away from the housing.

Line drawing of a person using a headset to adjust the head (no text or symbols present)

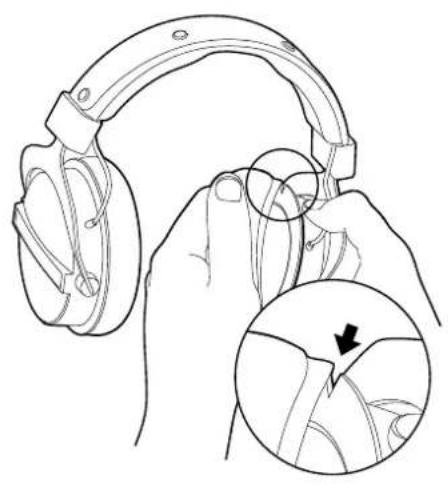

Insert the plastic lip of the ear pad into the groove of the housing and turn the ear pad clockwise until it is fully attached.

Line drawing of hands holding an ear with a magnified inset showing a mechanical joint detail (no text or symbols)

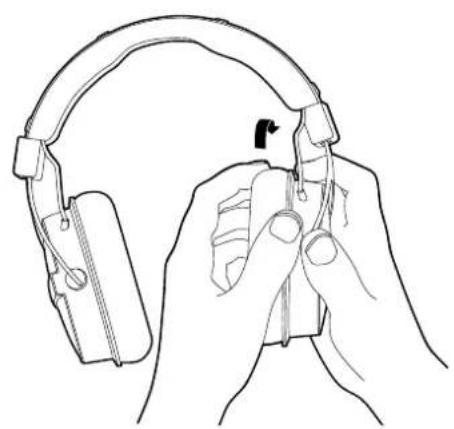

▶ Turn the attached ear pad a few times, as indicated by the arrow.

Line drawing of hands holding a headset with a clip, showing the adjustment of the clip's size (no text or symbols present)

HOW TO CHANGE THE HEADBAND PAD

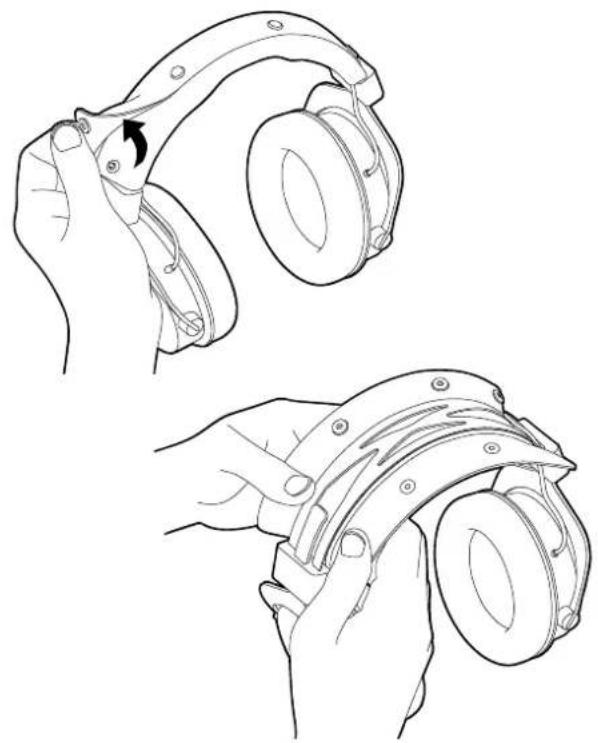

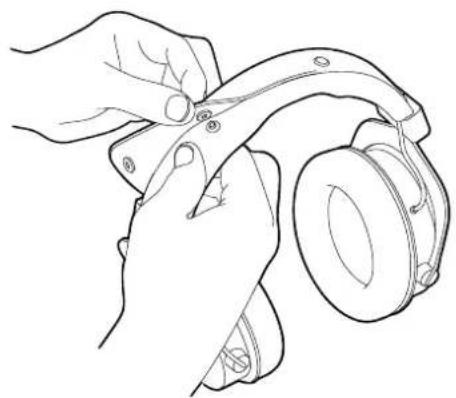

Carefully unbutton the headband pad and remove it.

Line drawings of hands adjusting a hard hat device, showing two sequential steps (no text or symbols)

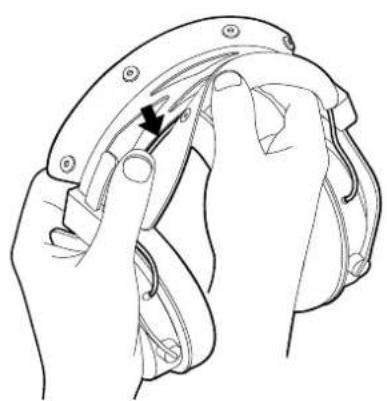

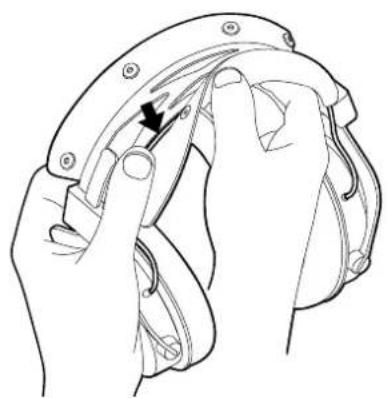

Place the new headband pad around the headband and connecting cable.

Line drawing of hands holding a helmet with a black arrow indicating the grip (no text or symbols present)

▶ Fasten the buttons.

Line drawing of hands adjusting a hard hat (no text or symbols)

VERSION

DT 770 PRO X Limited Edition Dynamic studio headphones, closed, 48 Ω ........ Order # 1000381

SUPPLIED ACCESSORIES

1x Straight connection cable, 3-pin mini XLR and mini stereo jack plug (3.5 mm), length 3 m
1 x Screw-type adapter mini jack (3.5 mm) to 1/4" jack (6.35 mm)
1x Drawstring bag

ACCESSORIES AND REPLACEMENT PARTS

Accessories and replacement parts can be found on the internet at: https://www.beyerdynamic.com
If you have technical problems while using the DT 770 PRO X Limited Edition or need further guidance, please visit our FAQ website at: https://support.beyerdynamic.com

SERVICE

If you require service, please contact qualified service personnel or directly:

beyerdynamic service and logistics centre E-mail: [e-mail]

Dismantling the DT 770 PRO X Limited Edition yourself will invalidate the guarantee.

DISPOSAL

This symbol on the product, in the operating instructions or on the packaging means that electrical and electronic devices must be disposed of separately from household waste at the end of their life cycle.

- Always dispose of used equipment in accordance with applicable regulations.

For sale within the EU only:

For the return of old equipment, there are free collection points or a free return to beyerdynamic, as well as other acceptance points for reuse. The addresses are available at the local city or municipal administration.
Dealers for electronic equipment are generally obliged to take back waste electrical/electronic equipment free of charge. This obligation also applies to sales via remote communication.
For further information, please contact the local authorities or the dealer from whom the product was purchased.

TECHNICAL SPECIFICATIONS

Transducer type dynamic
Operating principle closed
Wearing type over-ear
Frequency response 5 - 40,000 Hz
Nominal impedance 48 Ω
Sound pressure level @ 1 mW/500 Hz	98 dB
Sound pressure level @ 1 V/500 Hz	112 dB
T.H.D. @ 500 Hz < 0.05 %
Maximum short-term power handling capacity	210 mW
Ambient noise attenuation 16 dBA
Nominal headband pressure	5.5 N
Weight (without cable) 305 g
Length and type of cable	3 m / straight connection cable, detachable, single-sided
Connection gold-plated mini stereo
	jack plug (3.5 mm) and 1/4" adapter (6.35 mm)

(all specifications acc. to EN 60 268-7)

WARRANTY

The company beyerdynamic GmbH & Co. KG offers a limited warranty of 2 years on the purchased beyerdynamic product. The exact warranty conditions can be found on our website at

https://www.beyerdynamic.com/service/warranty
