USER MANUAL H-FS 900 Herkules

GB Original operating instructions Tile Cutting Machine

Labeled diagram of a machine tool with numbered parts, showing internal components and part numbers.

2 1 2 3 15 200M-80T 4x2.8mm MAX, TEODRPM 5

3 10 21 20 a 19 9 11 18b14

-2-

Close-up of a hand using a screwdriver to adjust or install a component on a device (no visible text or symbols)

5 Model way ZY-92 20 16 15 d 21

6 11 14

7 14 19

8 9 18 3

3D printer or scanner device with labeled parts and a 5 mm scale indicator (no readable text beyond labels)

10 10 102 b a a b

Mechanical device with labeled components and directional arrows, no readable text or symbols

Two views of a black plastic object: top shows a flat, elongated part with measurement markings, bottom shows a rectangular block with an arrow and label '5' (no text or symbols on the object itself)

Close-up of hands using a sewing machine to print or print on a flat surface (no visible text or symbols)

Person pressing a wooden block on a machine, no visible text or symbols

-4-

DE

Danger! - Read the operating instructions to reduce the risk of injury

Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.

Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!

Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

Danger! Risk of injury through cutting

Caution! Segmented diamond cutting wheels must not be used

GB

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Warning!

Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fi re and/or serious injury.

Keep all the safety information and instructions in a safe place for future use.

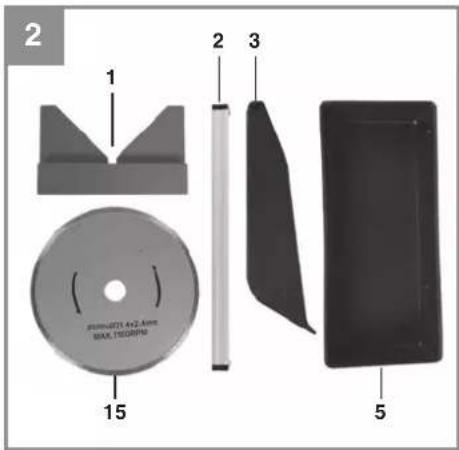

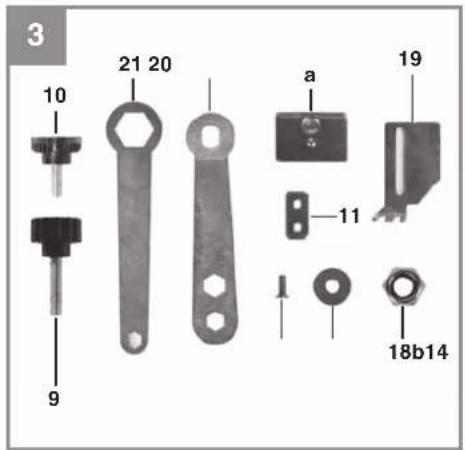

2. Layout and items supplied

2.1 Layout

1. Miter stop
2. Parallel stop
3. Wheel guard
4. Cutting table
5. Water trough
6. Housing
7. Knurled screw for setting the angle
8. Scale for miter cut
9. Knurled screw for wheel guard
10. Knurled screw for parallel stop
11. Holder for splitter
12. On/Off switch
13. Switch housing
14. Fastening screws for splitter holder
15. Diamond cutting wheel
16. Outer fl ange
17. Side cover
18. Nut for wheel guard
19. Splitter
20. Counterholder
21. Ring spanner

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Original operating instructions
• Safetyinstructions

3. Technical data

Motor rating 900 W S2 10 min

Motor speed 2950 rpm

AC motor 230 V\~50 Hz

Insulation material class .... Class B

Protection type IPX4

Protection class ....I

Cut length .... Unlimited

Jolly length: .... Unlimited

Cutting height 90° 39 mm

Cutting height 45° 19 mm

Cutting table-Dimensions ..... 500 mm x 400 mm

Diamond cutting wheel ..... 0 200 x 0 25.4 mm

Weight approx. 11.9 kg

GB

A load factor of S2 10 min (intermittent periodic duty) means that you may operate the motor continuously at its nominal power level (900 W) for no longer than the time stipulated on the specifications label (10 minutes ON period). If you fail to observe this time limit the motor will overheat. During the OFF period the motor will cool again to its starting temperature.

Danger!

Noise

The noise emission values were measured in accordance with EN 62841.

Operation

L_pA sound pressure level 92 dB(A)

K_nA^m uncertainty 3 dB(A)

L_WA sound power level .... 105 dB(A)

K_WA uncertainty 3 dB(A)

Wear ear-muff s.

The impact of noise can cause damage to hearing.

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
  • Switch the appliance off when it is not in use.
  • Wear protective gloves.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following

hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

4. Important information

Please read the operating instructions carefully and observe the information provided. It is important to consult these instructions in order to acquaint yourself with the equipment, its proper use and safety regulations.

Danger!

For safety reasons, the tile cutting machine is not to be used by children, young people under 16 years of age, or any other persons who are not acquainted with these operating instructions.

• Portable tile cutting machine for medium-sized tiles.
  • Cutting with the diamond cutting wheel.
• Making jolly cuts with the tiltable work surface (max. 45 degrees).
  • Wheel cooling with water.
• Stop rail and angle stop.

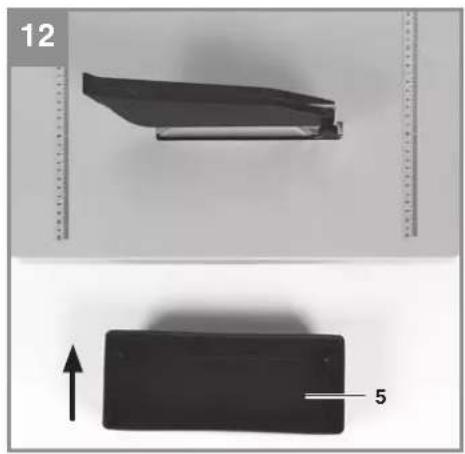

• Removable trough as cooling water tank. (The machine must be lifted off in order to remove the trough.
• If the cutting wheel becomes jammed, switch off the equipment and disconnect it from the power supply; only then are you to remove the workpiece

5. Intended use

The tile cutting machine is designed for the standard cutting of small and medium-size tiles (glazed tiles, ceramic tiles or similar) which can be accommodated by the size of the machine. It should never be used for cutting wood or metal. The machine should be used exclusively for its intended purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be held liable for damage and/or injuries of any kind that result from such misuse. The machine is to be operated

GB

only with suitable cutting-off wheels. Saw blades should never be used. Compliance with the safety instructions, the assembly instructions, and advice and instructions on operation contained in the operating instructions also falls under the terms of intended use. All persons who use and service the equipment have to be acquainted with this manual and must be informed about the machine's potential hazards. In addition, strict compliance with the accident prevention regulations in force in your area, as well as all other general rules of health and safety at work, is imperative. The manufacturer's liability shall be deemed void if the machine is modified in any way and the manufacturer shall therefore accept no liability for any damages arising as a result of modifications. Even when the equipment is used as prescribed it is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the machine's construction and design:

• Contact with the diamond cutting wheel where it is not covered.
• Contact with the diamond cutting wheel while it is turning.
• Defective diamond tips flying off the cutting wheel.
• Kick-back of workpieces and parts of workpieces due to improper handling.
• Damage to hearing if ear-muffs are not used as necessary.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

6. Before starting the equipment

• The machine has to be set up where it can stand firmly, e.g. on a work bench, or it must be bolted to a strong base.
• All covers and safety devices have to be properly fitted before the machine is switched on.
• It must be possible for the diamond wheel to run freely.
• Before you actuate the ON/OFF switch, make sure that the diamond wheel is correctly fitted and that the machine's moving parts run smoothly.
• Before you connect the machine to the power supply, make sure the data on the rating plate

is the same as that for your mains.
- Before using the machine, check all of the parts for damage and replace any parts that are damaged. When replacing any parts or accessories, always carefully follow the instructions in this manual.
- For optimum performance and maximum safety, keep the machine clean at all times.
- Check the machine cable at regular intervals.
- While the machine is running, check the wearing parts and the fastenings of parts which may have become loose and check that all accessories are correctly fitted.
- Notice! The tile cutting machine is designed for use with water.
- Check that the water level is high enough to cover the diamond part of the wheel each time before you start a cutting operation and keep checking it during cutting as well. Fill/refill the cooling water directly into the trough.

6.1 Assembly

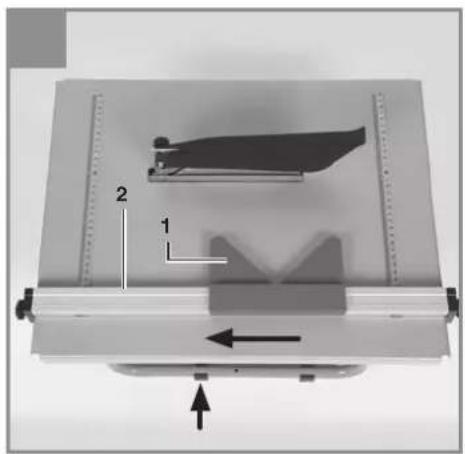

Assemble the equipment as shown in Figures 2-12.

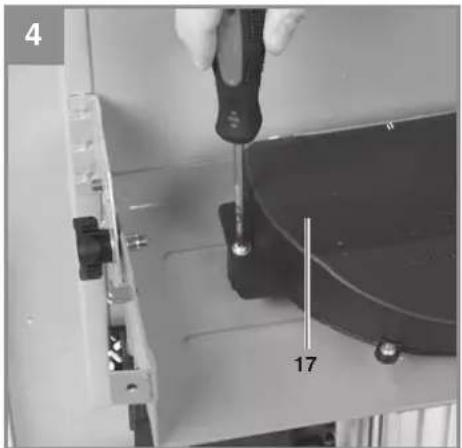

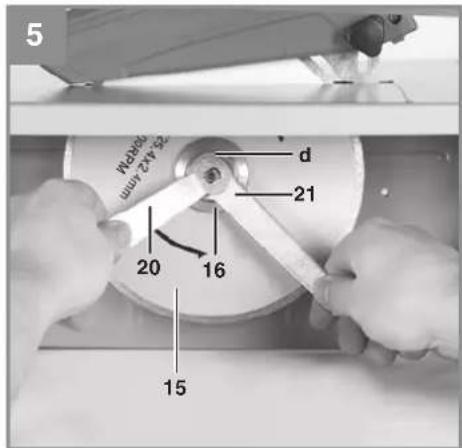

6.1.1 Fitting the diamond cutting wheel (Fig. 4, 5)

To fit the wheel, proceed as follows:
- Remove the side cover (17).
- Unscrew the nut (d) from the motor shaft and remove the outer flange (16).
- Fit the cutting wheel (15) to the flange, fit the outer flange (16) again and screw the nut (d) onto the thread by hand.
- Place the ring wrench (21) on the nut (d), use the counterholder (20) to block the motor shaft and tighten using the ring wrench (21).
- Fasten the side cover again. Important! Check that the cutting wheel rotates in the correct direction!

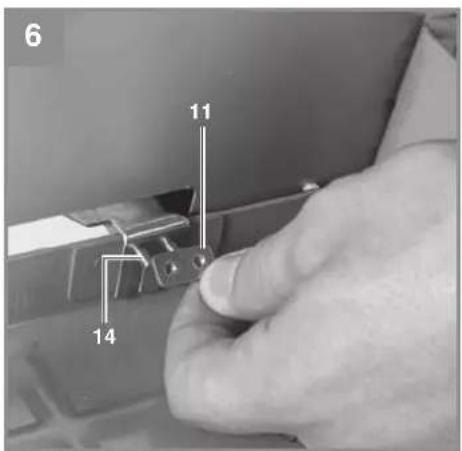

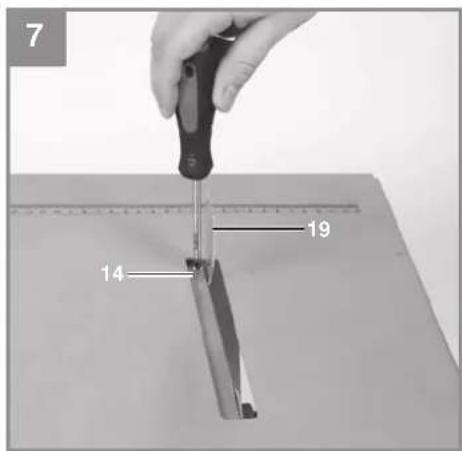

6.1.2 Fitting the splitter (Fig. 6, 7)

• Unscrew the screws (14) on the table top to undo the holder for the splitter (11).
• Insert the splitter (19) through the table top from above.
• Fasten the holder for the splitter (11) to the splitter using the screws (14).
• The splitter must be positioned in the center along an imaginary line extending behind the cutting wheel (15), so that it is not possible for the material to get jammed.

GB

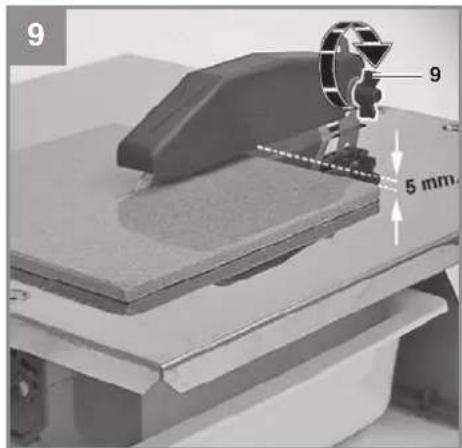

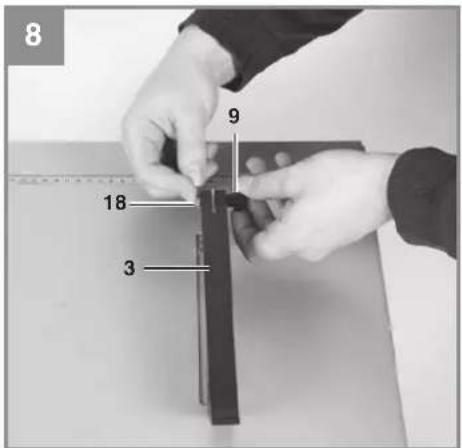

6.1.3 Fitting the saw table (Fig. 8, 9)

• Now mount the wheel guard (3) on the splitter (19).
• Turn the knurled screw (9) into the self-locking nut (18) until the wheel guard can only just move freely.
• Move the wheel guard to approximately 5 mm above the tile you wish to cut and secure it with the knurled screw (9).

6.2 Changing the diamond cutting wheel (Fig. 4, 5)

To replace the wheel when worn, proceed as follows:

• Pull out the power plug first.
• Take out the water trough (5).
- Remove the side cover (17).
- Apply the counterholder (20) to block the motor shaft.
• Use the ring wrench (21) to unscrew the lock nut (d) on the outer flange (16).
- Clean the wheel flange thoroughly once the wheel has been removed.
Take out the worn diamond cutting wheel (15) and fit the new one to the flange, then fit the outer flange (16) and tighten with the nut (d).
• Fasten the side cover (17) again.
- Check that the diamond wheel rotates in the correct direction!

7. Operation

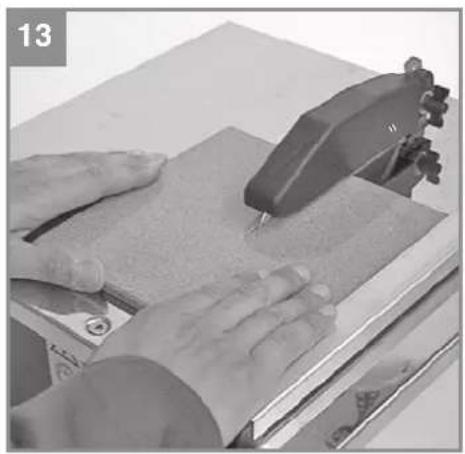

7.1 Even cutting (Fig. 13)

• Set the cutting width with the parallel stop (2) and lock in position with the knurled screws (10). The width of the workpiece can be read on the scale.
• Fig. 13 shows the correct position for your hands during even cutting. The rate of advance must not exceed the cutting capacity of the wheel. This is to make sure that no material comes off, as this may cause accidents or injuries.

Notice! Keep a constant check on the water level

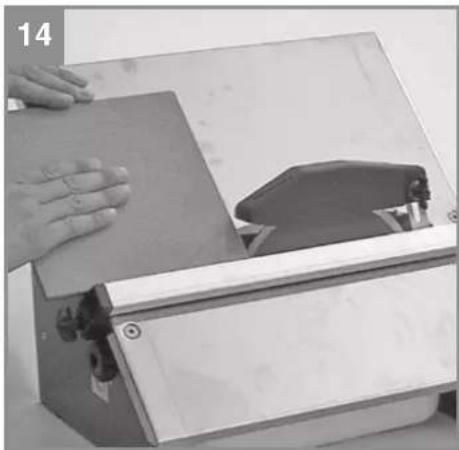

7.2 Making 45° miter cuts (jolly cuts) (Fig. 14)

- Position the table as shown in Fig. 14 and lock in position with the knurled screw (7). Position the tile with the glazed side on the work surface and make sure that the diamond

wheel does not touch the glaze on the tile. Correct the cutting guiding position if necessary.

- Fig. 14 shows the correct position for your hands during miter cutting to 45^ . The right hand holds the workpiece in contact with the diamond wheel while the left hand pushes the workpiece forward. The rate of advance must not exceed the cutting capacity of the wheel. This is to make sure that no material comes off, as this may cause accidents or injuries.

7.3 On/Off switch (Fig. 1)

• To switch on, press the „I“ on the On/Off switch (12).
• To switch off, press the „0“ on the On/Off switch (12).

8. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

9. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

9.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

9.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

9.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine

• Article number of the machine

• Identification number of the machine

- Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

10. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

11. Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.

12. Transport

If you want to move the equipment to a different place, disconnect the equipment from the power supply and set it up in the new position you want to use it in.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

The instructions and spare parts documentation are available in a larger format at: http://help.isc-gmbh.info

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts*
Consumables* Cutting wheels
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 60 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

FR

Negotovost K_pA .....3 dB

Nivo zvočne moči L _WA 105 dB (A)

Negotovost K_WA .....3 dB

□2000/14/EC_2005/88/EC □Annex V

Annex VI

Noise: measured L_WA = dB (A); guaranteed L_WA = dB (A) P = KW; L/∅ = cm Notified Body:

2012/46/EU_(EU)2016/1628 Emission No.:

Standard references: EN 62841-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Subject to change without notice

Archive-File/Record: NAPR021849

Documents registrar: Felix Hofner

Wiesenweg 22, D-94405 Landau/Isar

EH 04/2020 (01)
