USER MANUAL PO-110 LANAFORM

Thank you for choosing the pulse oximeter by LANAFORM.

The Pulse Oximeter is a non-invasive method used to measure blood oxygen saturation (Sp02) by checking the percentage of oxygen-saturated haemoglobin and measuring pulse rate. This process has been in regular use now for twenty years and is proving to be an essential control in medical practice for maintaining oxygen levels and preventing respiratory problems. The value of the oxygen saturation may be regarded as dangerous if it is below 90% for arterial blood. Normal value is 100% under normal atmospheric conditions.

Please read all the instructions before using your product, particularly these basic safety instructions.

The photographs and other images of the product in this manual and on the packaging are as accurate as possible, but do not claim to be a perfect reproduction of the product.

Contents

01 Unpacking
02 Contents of the package
03 Symbols
04 Safety precautions
05 Product description
06 Product structure
07 Description of the screen
08 Settings
09 Instructions for use
10 About the display
11 Reading the measurements
12 Replacing the batteries
13 Fixing the strap
14 Cleaning and disinfecting routine

15 Maintenance
16 Technical specifications
17 Safety category
18 Storage and transport
19 Manufacturer's guidelines and statement - Electromagnetic emissions
20 Warranty
21 Waste disposal
22 After-sales service

1. Unpacking

Please open the packaging carefully before use. Check whether all the accessories are present and whether any components have been damaged during transport and follow the installation and operating instructions in this manual. In the event of any damage or malfunction, please contact the reseller or Lanaform directly. In the event of any complaint, you will need

the model of the device, serial number, date of purchase, your details and your address.

2. Contents of the package

• 1 pulse oximeter
• 2 AAA batteries (supplied)
• 1 set of instructions for use
- 1 carrying cord

3. Symbols

The following marks and symbols may appear in the instructions for use, on the pulse oximeter and its accessories.

SYMBOL DESCRIPTION

	Type BF applied part.
	Due attention required.
	Action that is prohibited.
	Information about the manufacturer.
	Date of manufacture.
	Consult the instructions for use.

SYMBOL DESCRIPTION

€0123	This product also complies with the requirements of directive MDD93/42/EEC.
	Electrical waste must be sent to a specialist collection point for recycling.
IP22	Level of protection against water penetration.
Warning	Misuse of the device can damage the oximeter or cause physical injury.
Please note	Misuse of the device can damage the oximeter or cause inaccurate readings.
%SpO _2	Symbol of oxygen saturation
bpmPR	Symbol of pulse rate
	No SpO _2 alarms.

4. Safety precautions

Read the following precautions carefully before using the thermometer.

▲ Please note

• Do not try to maintain the oximeter unless you are a qualified professional. Only qualified maintenance professionals are authorised to carry out internal maintenance if necessary.

• Do NOT use it

• If you have allergic reactions to rubber products,

• if the device or your finger to be used is damp,
  · on young children or infants
  · during an MRI or CT scan,
• when transporting a patient outside a medical establishment,
• when taking blood pressure with a sleeve on the arm,
  · on fingers that have nail varnish on them, are dirty or have plasters on them,
  · on very thick fingers that cannot be inserted into the device without

forcing them (finger end: width approx. > 20mm, thickness > 15mm).

· on fingers with anatomical changes, oedema, scarring or burns,

- on fingers that are too thin or narrow, for example on young children (approx. <10mm wide, <5mm thick),

· on patients agitated at the point of use (e.g. trembling),

- close to highly inflammable gas or explosive mixtures.

- Prolonged use of the pulse oximeter may cause pain in people with circulation problems. Do not use the pulse oximeter for more than 30 minutes on one finger. This is the only way you will ensure the correct orientation of the probe and the skin's integrity.

- The pulse oximeter indicates a momentary measurement but cannot be used for continuous monitoring.

- The pulse oximeter does not have an Upozornění function and is therefore not suitable for assessing medical results.

- You should not practise self-diagnosis or self-medication on the basis of the measurement results without having discussed it with your doctor. Do not take a new drug on your own, or change the type or dosage of an existing treatment.

- When taking the measurements, do not look directly inside the case. Red light and invisible infrared light from the pulse oximeter are harmful to the eyes.

- Portable RF communication equipment (including peripherals such as antenna cables and external antennae) should not be used within 30 cm of any part of the pulse oximeter. Otherwise, it could affect the performance of this equipment.

- The pulse oximeter equipment is calibrated to display operational oxygen saturation.

- This device is not designed to be used by anyone (including children) whose physical, sensory or intellectual abilities are limited, or who does not have the necessary experience and/or knowledge. Where applicable, this person must, for his or her own safety, be supervised by a competent person or must receive your recommendations on how to use the device. Keep an eye on children to prevent them playing with the device.

- Displaying the wave and pulse bar means that you cannot assess the intensity of the pulse and blood circulation at the measuring point. They represent only the real-time variations of the signal at the measuring point; they do not have a reliable diagnostic value.

- Failure to follow these instructions can cause incorrect measurements or faulty measurements.

• There should be no nail varnish, false nails or other cosmetics on your measuring finger.
• Make sure that the nail is short enough on the measuring finger so that the digital pulp covers the sensor's elements in the case.
• If people move during the measuring process. Keep your hand, finger and body still during the measuring process.
• With people who have cardiac rhythm disorders, pulsed blood oxygen saturation (SpO2) and pulse rate measurements can be distorted or it may be completely impossible to measure them.
• When using electrosurgery devices or defibrillators, the operation of the pulse oximeter may be affected.

• In the event of carbon monoxide poisoning, the pulse oximeter shows measurement values that are too high.

• In order not to distort the result, no powerful light source (e.g. fluorescent lamp or direct sunlight) should be in the immediate vicinity of the pulse oximeter.

• Measurements can be wrong or distorted in people with too low blood pressure, jaundice or taking medication for vascular contraction.
• Distorted measurements are to be expected in patients to whom clinical dyes have been administered in the past and in those with abnormal haemoglobin levels. This applies in particular in the case of carbon monoxide and methaemoglobin poisoning, caused e.g. by the administration of local anaesthetics or in the event of methaemoglobin reductase deficiency.
  · In patients who wear an arterial catheter, who have hypotonia, acute vessel disease, anaemia or

hypothermia, there may be failures during measurement.

- Protect the pulse oximeter from dust, shaking, humidity, extreme temperatures and explosive substances.

• Seek prompt medical treatment if the value measured is beyond the normal range and you are sure that the instrument is not malfunctioning.
• Do not expose your eyes directly to the electroluminescent components of the oximeter because this might cause damage.
• For further details on clinical limits and contraindications, please read the relevant medical documentation carefully.
• Take care of the measuring probe lens, which is fragile.

• Remove used batteries with care. In order to protect the environment, used batteries should be sent to a collection point provided for this purpose.

• Remove the batteries when the oximeter is not in use for more than two months.

• Do not immerse the oximeter in water or expose it directly to sunlight.
• Do not expose the oximeter to vibrations or shocks.
• Clean the oximeter probe after each time it is used.
• Do not use the oximeter for purposes not specified in this manual. Follow the instructions in the chapter "Measuring process" and use the oximeter with care.
• The oximeter is not watertight so do no immerse it in water or any other liquid. Clean and disinfect the oximeter as described in the "Cleaning and disinfecting routine" chapter.
• Do not touch the tip of the measuring probe.
• Keep the measuring probe clean to maintain the accuracy of the readings.
• Do not use the oximeter at an ambient temperature above 40°C (104°F) or below

5°C (41°F). These temperatures are beyond the oximeter's operating range.

- Risk of pollution! The recommendation is that the used oximeter should be deposited in a recycling centre.

- 2 x 1.5V AAA batteries (supplied) are the only replaceable accessories of the oximeter. Do not use batteries of other voltages or specifications.

Warning

• Do not use the oximeter in an environment containing flammable gases, flammable anaesthetic or other flammable substances.
• Do not use the oximeter when it is humid with overflow or water vapour condensation. Do not move the oximeter from an excessively cold environment to a high-temperature humid environment.

• Keep the oximeter out of the reach of children.

• Use of a used oximeter could cause inaccurate readings.

• The oximeter is designed to diagnose or treat a health problem or illness. The results of measurements are provided for information only.
• Self-diagnostics or self-medication based on the results obtained are dangerous. Please consult a doctor.
• Do not try to charge dry-cell alkaline batteries and do not throw them onto a fire. They could explode.
• Do not dismantle the oximeter and do not try to repair it. It could be permanently damaged.
• During the measuring process, do not use a mobile phone or any other device likely to cause electromagnetic interference.

5. Product description

Based on entirely digital technology, the finger pulse oximeter measures in a non-invasive manner the actual content (oxygen saturation) of oxyhaemoglobin (HbO2) in arterial blood by using the optical transmission method.

The finger pulse oximeter measures the blood's oxygen saturation and the pulse of a human body via the finger's artery. Use this instrument for measuring before or after sport. Use of this instrument is not recommended during sports activities. Do not use it for the continuous treatment of patients.

1. Product structure


LAUVORN 98% 51 01 02 03 CE0123-3

01 OLED screen

02 Power button

03 Battery cover

1. Description of


the screen 84 81 SpO2 bpmPR 82 98 51 86 87 03

01 Battery level indicator
02 Pulse symbol
03 Pulse rate value
04 Oxygen saturation symbol
05 Oxygen saturation value
06 Bar graph
07 Plethysmograph

8. Settings

After turning on the oximeter, hold the power button down for about three seconds. The oximeter displays a configuration interface. Press the button or hold it down to carry out the corresponding operations: hold it down to define a part or press it once to change option or display mode.

Adjusting its Alert

Settings
Alm setup	*
Alm	off
Beep	off
Demo	off
Restore	ok
Brightness	3
Exit
Settings
System setup	*
SpO2 Alm Hi	99
SpO2 Alm Lo	85
PR Alm Hi	130
PR Alm Lo	50
+/-	+
Exit

Hold the power button down for 3 seconds while the oximeter is on. The configuration interface 1 is displayed, as the following illustration shows.

Move “*” to the corresponding option by continually pressing the power button. Hold the power button down for 3 seconds to activate/deactivate the Alert: when Alm is activated and the measured values of the oxygen saturation of the blood and pulse exceed the top or bottom limit, the oximeter emits a sound alert. Hold the power button down for 3 seconds to activate/deactivate the beep: when the beep is activated, a tick-tack will be heard with the pulse beats when the pulse rate is being measured.

Restoring the settings

While the “*” remains on the Restore option, hold down the power button for 3 seconds to restore the factory settings.

Brightness settings

Press the power button on the settings 1 interface to select the Brightness option, then hold the button down to adjust the brightness on a value between 1 and 5. The higher the value, the higher the screen's brightness.

Adjusting the Alert range

On settings interface 2 (hold the power button down for 1 second when you are in the settings 1 interface and the “*” symbol is displayed on Alert Setup), press the power button to switch between options. You can define the upper and lower limits of the “Sp02” oxygenation rate Alert on this interface as well as the upper and lower limits of the “PR” pulse rate Alert. While the “*” symbol remains on option +/-, hold the power button down for 3 seconds to adjust the option to + or -. In + mode, select the corresponding option and hold the power button down to increase the upper or lower limit. In - mode, hold down the power button to reduce the upper or lower limit. Move “*” to the Leave option and hold the power button down to return to the monitoring interface.

9. Instructions for use

Close-up of hands holding a small electronic device (no visible text or symbols)

Insert a finger fully into the oximeter's measuring sections. Keep the surface of the nail pointing upwards and release the clip. Press the power button to switch on the oximeter.

▲ Warning

If you do not insert your finger fully into the cavity again, the measuring result may be inaccurate.

▲ Warning

Do not allow your finger to vibrate during the measuring process. Preferably, make sure your body does not move. Once the readings have become stable, read the measured values of oxygen saturation and pulse on the screen.

Comment: the oximeter will switch off automatically 10 seconds later after removing your finger.

10. Reading the measurements

Evaluate the pulsed oxygen saturation index

▲ Warning

The table below for evaluating your results does NOT apply to people with certain pre-existing conditions (for example, asthma, heart failure, respiratory tract diseases) and in the event time is spent at

altitudes higher than 1,500 metres. If you already have an illness, always consult your doctor for an evaluation of your results.

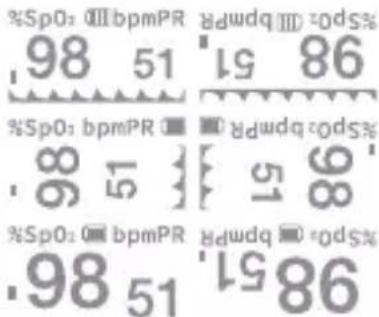

11. About the display

%SpO: ⅢbpmPR 98 51 86 %SpO: bpmPR ■ ■ bpmPR %SpO: Ⅳ bpm PR 8 51 86 %SpO: Ⅴ bpm PR 98 51 86

Press the power button continuously during the monitoring process. The data monitored and display method will be displayed cyclically on the OLED screen in two different ways (text & graph) and in four directions, as shown in the illustration below.

1. Replacing the batteries


Close-up of a white electronic device with a black rectangular body and a small display showing 'CE0123' (no readable text or symbols beyond the label)

Replace the batteries when low and when the symbol flashes on the screen. Install two AAA dry-cell batteries in the battery compartment according to the polarity indicated and replace the battery cover.

1. Fixing the strap


Close-up of hands holding a small electronic device (no visible text or symbols)

You can fix a strap to the device to make it easier to carry the pulse oximeter. Slide the thin end of the strap through the holder as illustrated. Firmly pull the other end of the strap through the holder of the narrow end.

14. Cleaning and disinfecting routine

Cleaning

Turn off the instrument and remove the batteries before cleaning. Make sure the instrument looks clean, is free of dust and dirt. Clean the instrument's outer surface

(including the OLED screen) with 75% medical spirit and a piece of soft, dry cloth.

▲ Make sure the liquid does not run into the instrument when cleaning.
▲ Do not immerse any part of the instrument in any liquid.

Disinfection

Before measuring with the instrument, clean the rubber pad with a piece of soft, dry cloth soaked in 75% medical spirit. Clean the finger to be measured with medical spirit for the purposes of disinfection before and after use.

▲ Warning

Do not disinfect the instrument by disinfecting at a high temperature/high pressure or with gas.

15. Maintenance

• Remove the batteries from their casing and store them properly if you do not intend to use the oximeter for a lengthy period.
• Store the oximeter between 14°F and 104°F (-10°C to +40°C) and at levels of humidity of between 10% and 95%.
• Check the oximeter regularly for damage.
• Do not use the oximeter in an environment containing flammable gases or use it in an environment where the temperature or humidity is excessively high or low.
• Check the accuracy of the oxygen saturation and pulse rate measurements using an appropriate calibration device.

16. Technical specifications

01 Dimensions: 62.0 mm (Width) × 37.0 mm (Depth) × 32.0 mm (size) Weight: 42.5 g (including two AAA dry-cell batteries)

02 Peak wavelength range of light emitted by the probe: red light 660 nm ± 5; 940 nm ± 10 infrared light.
03 Maximum optical output power of the probe: 1.2 mw for infrared light (940 nm).
04 Date of manufacture: see label
05 Normal working condition

Operating temperature	5°C to 40°C(41°F to 104°F)
Relative humidity	15% to 80%,no condensation
Atmospheric pressure	70 kPa to 106 kPa
Voltage rating DC 3.0 V

06 Technical settings

SETTING VALUE

DISPLAY RANGE	Oxygen saturation	70% to 100%
	Pulse rate 30 bpm to 254 bpm

SETTING VALUE

RESOLUTION	Oxygen saturation	1%
	Pulse rate	1 bpm
ACCURACY OF MEASUREMENT	Oxygen saturation	±3% (70% to 79%) ±2% (80% to 100%) No requirement (≤70%)
	Pulse rate	±1 bpm (≤100bpm) ±2 bpm (>100bpm)

17. Safety category

• Type of protection against electric shocks: internally powered equipment.
• Level of protection against electric shocks: type BF applied part.
• Level of protection against water penetration. IP22
• Safety level for use in flammable anaesthetic mixtures with air, oxygen or nitrous oxide: non-AP/APG

• No part of the oximeter's application impedes the defibrillation load effect.

• No part of the oximeter's application impedes the output signal.

• The oximeter is not a permanently installed device.

18. Storage and transport

The thermometer can be transported using general transport tools. Avoid vibrations, shocks or rain during transport.

The thermometer must be packed and stored on well-ventilated premises with no corrosive gas. The ambient temperature must be between -10^ et +40^ , the relative humidity must be between 15% and 80% (with no condensation) and the atmospheric pressure must be between 70 and 106 kPa.

19. Manufacturer's guidelines and statement · Electromagnetic emissions

Manufacturer's guidelines and statement · Electromagnetic emissions · for all equipment and systems

Manufacturer's guidelines and statement · Electromagnetic emissions

The PO-110 pulse oximeter is designed to be used in the electromagnetic environment specified below. The customer or user of the PO-110 pulse oximeter must make sure that he or she uses it in this type of environment.

Emission test

Compliance

Electromagnetic environment · Guidelines

Manufacturer's guidelines and statement · Electromagnetic emissions

RF emissions, CISPR 11	Group 1	The PO-110 pulse oximeter only uses RF energy for its internal operation. The RF emissions are therefore very weak and should not cause any interference with the electronic devices nearby.
RF emissions, CISPR 11	Category B	The PO-110 pulse oximeter can be used in any establishment, including domestic settings and those directly connected to the low-voltage public distribution network supplying electricity to buildings used for domestic purposes.

20 Limited warranty

LANAFORM guarantees this product against any material or manufacturing defect for a period of two years from the date of purchase, except in the circumstances described below.

The LANAFORM guarantee does not cover damage caused as a result of normal wear to this product. In addition, the guarantee covering this LANAFORM product does not cover damage caused by abusive or inappropriate or incorrect use, accidents, the use of unauthorized accessories, changes made to the product or any other circumstance, of whatever sort, that is outside LANAFORM's control.

LANAFORM may not be held liable for any type of circumstantial, indirect or specific damage.

All implicit guarantees relating to the suitability of the product are limited to a period of two years from the initial date of purchase as long as a copy of the proof of purchase can be supplied.

On receipt, LANAFORM will repair or replace your appliance at its discretion and will return it to you. The guarantee is only valid through LANAFORM's Service Centre.

Any attempt to maintain this product by a person other than LANAFORM's Service Centre will render this guarantee void.

21 Advice regarding the disposal of waste

All the packaging is composed of materials that pose no hazard for the environment and which can be disposed of at your local sorting centre to be used as secondary raw materials. The cardboard may be disposed of in a paper recycling bin. The packaging film must be taken to your local sorting and recycling centre.

When you have finished using the device, please dispose of it in an environmentally friendly way and in accordance with the law.

Prior to disposal, please remove the battery and dispose of it at a collection point so that it can be recycled.

Under no circumstances should spent batteries be disposed of with household waste.

22. After-sales service

	Xuzhou Yongkang Electronic Science Technology Co., Ltd 1st&2nd Floor,6#01,6#02,No.6 Building 1st Phase Economic Development Manufacturing Zone, LIANDO U Valley, No.6 Leye Road ,Xuzhou ETDZ,221000 Xuzhou,PEOPLE'S REPUBLIC OF CHINA
	Prolinx GmbH Brehmstr. 56, 40239 Düsseldorf Germany
	Lanaform SA Rue de la Légende 55, 4141 Louveigné, Belgique Tel: [phone]

FRANÇAIS

Présentation

Close-up of hands holding a blue blood pressure meter (no text or symbols visible)

Two white electronic devices with visible internal components and a price tag (€0123) on the front panel.

Close-up of hands holding a small electronic device with a display (no visible text or symbols)

Xuzhou Yongkang Electronic Science Technology Co., Ltd 1st&2nd Floor,6#01,6#02,No.6 Building 1st Phase Economic Development Manufacturing Zone, LIANDO U Valley, No.6 Leye Road ,Xuzhou ETDZ,221000 Xuzhou,PEOPLE'S REPUBLIC OF CHINA

Prolinx GmbH

Brehmstr. 56, 40239 Düsseldorf Germany

Lanaform SA

Settings
Alm setup	*
Alm	off
Beep	off
Demo	off
Restore	ok
Brightness	3
Exit
Settings
System setup	*
SpO2 Alm Hi	99
SpO2 Alm Lo	85
PR Alm Hi	130
PR Alm Lo	50
+/-	+
Exit

Close-up of hands holding a digital blood pressure meter (no visible text or symbols)

White electronic device with a display showing price and certification (no readable text or symbols beyond the label)

Close-up of hands holding a small electronic device (no visible text or symbols)

Xuzhou Yongkang Electronic Science Technology Co., Ltd 1st&2nd Floor,6#01,6#02,No.6 Building 1st Phase Economic Development Manufacturing Zone, LIANDO U Valley, No.6 Leye Road ,Xuzhou ETDZ,221000 Xuzhou,PEOPLE'S REPUBLIC OF CHINA Prolinx GmbH Brehmstr. 56, 40239 Düsseldorf Germany

Lanaform SA

Settings
Alm setup	*
Alm	off
Beep	off
Demo	off
Restore	ok
Brightness	3
Exit
Settings
System setup	*
SpO2 Alm Hi	99
SpO2 Alm Lo	85
PR Alm Hi	130
PR Alm Lo	50
+/-	+
Exit

Close-up of hands holding a blue and cyan digital device (no visible text or symbols)

White electronic device with two cylindrical batteries and a visible label (no readable text or symbols)

Close-up of hands holding a digital thermometer (no visible text or symbols)

Xuzhou Yongkang Electronic Science Technology Co., Ltd 1st&2nd Floor,6#01,6#02,No.6 Building 1st Phase Economic Development Manufacturing Zone, LIANDO U Valley, No.6 Leye Road ,Xuzhou ETDZ,221000 Xuzhou,PEOPLE'S REPUBLIC OF CHINA

Prolinx GmbH Brehmstr. 56, 40239 Düsseldorf Germany

Lanaform SA Rue de la Légende 55, 4141 Louveigné, Belgique Tel: [phone]

ČESKY

Prezentace

Settings
Alm setup	*
Alm	off
Beep	off
Demo	off
Restore	ok
Brightness	3
Exit
Settings
System setup	*
SpO2 Alm Hi	99
SpO2 Alm Lo	85
PR Alm Hi	130
PR Alm Lo	50
+/-	+
Exit

Close-up of hands holding a digital pressure meter (no visible text or symbols)

Two white electronic devices with black and brown buttons, one displaying a visible label (no readable text or symbols)

Close-up of hands holding a small electronic device (no visible text or symbols)

Settings
Alm setup	*
Alm	off
Beep	off
Demo	off
Restore	ok
Brightness	3
Exit
Settings
System setup	*
SpO2 Alm Hi	99
SpO2 Alm Lo	85
PR Alm Hi	130
PR Alm Lo	50
+/-	+
Exit

Close-up of hands holding a digital pressure meter (no visible text or symbols)

Vložte jeden prst úplne do meracích častí oxymetra. Držte povrch nechtu hore a uvoľnite klip. Stlačením tlačidla tlačidlo napájania sa oxymeter rozsvieti.

Varovanie

Close-up of a white electronic device with two black buttons and a display showing 'CE0123' (no readable text or symbols beyond branding)

Batérie vymeňte, ak ich kapacita nie je dostatočná a na obrazovke symbol bliká. Inštalujte dva suché články AAA do puzdra batérie podľa indikácie polarity a namon-tujte kryt batérie.

13. Pripojenie popruhu

Close-up of hands holding a small electronic device with a blue LCD display (no visible text or symbols)

Science Technology Co. Ltd.

EC REP Prolinx GmbH

Brehmstr. 56, 40239 Düsseldorf

Germany

IP22 C€0123

Four black-and-white recycling symbols: person reading, person walking, recycling cycle, and circular arrow (no text or labels)

5 410984 110834

Barcode image containing machine-readable data, no human-readable text visible

202304LA090404002
