USER MANUAL TK 305 Holzmann

12.2 Technical details 33

13 SAFETY 34

13.1 Intended Use 34
13.2Security instructions 35
13.3Remaining risk factors 36

14 ASSEMBLY 38

14.1 Delivery content 38
14.2Assembly 38

14.2.1 Mounting rip fence 38

15 OPERATION 39

15.1 Operation instructions 39
15.2Operation 40

15.2.1 Table saw level cutting 40
15.2.2 Table saw angle cutting 40

15.3 Use as a litre saw 41

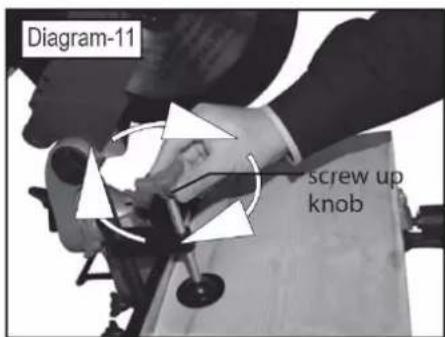

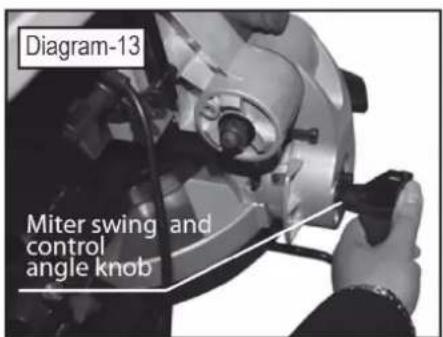

15.3.1 Adjusting the sawing angle 42
15.3.2 Mitre saw angle cutting 43

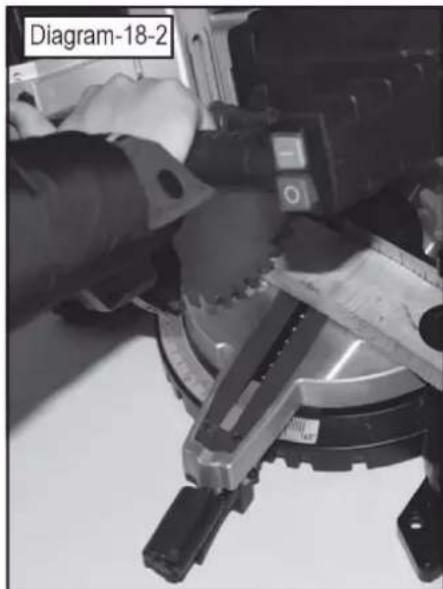

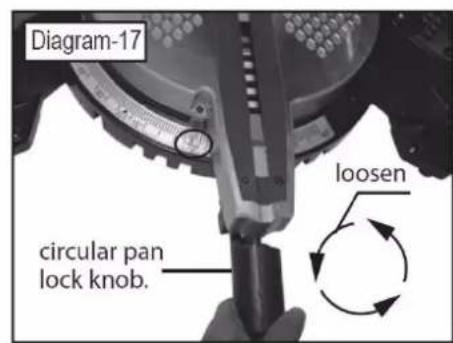

15.3.3 Adjusting the base level angle 43

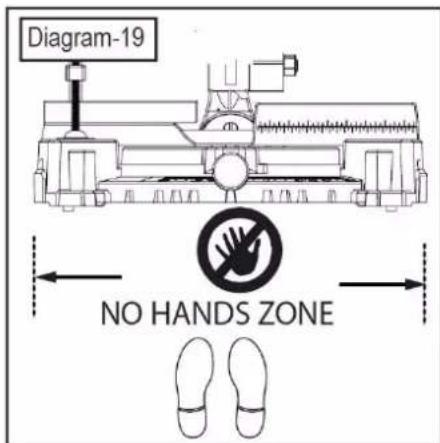

15.3.4 Hands and body position 44

16 MAINTENANCE 45

16.1 Maintenance plan 45
16.2 Install the dust bag 45
16.3 Changing the saw blade 46
16.4 Cleaning 46
16.5 Disposal 46

17 TROUBLE SHOOTING 47
18 PREFACIO (ES) 48
19 CHARACTERISTICAS TECNICAS 49

19.1 Components 49
19.2Datos先进技术 51

20 SEGURIDAD 52

EN EC-CONFORM: This product complies with EC-directives

EN READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.

EN ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

EN Protective clothing!

EN Stop and pull out the power plug before any break and engine maintenance!

EN Operation with gloves forbidden!

EN Operation with jewelry forbidden!

EN Operation with tie forbidden!

EN Operation with long hair forbidden!

EN Warning about cut injuries!

EN Warning of rotating parts!

EN Warning against thrown-off items!

EN Protect from moisture!

EN Protection class II!

This manual contains information and important instructions for the installation and correct use of the compound table/mitre saw TK 305.

Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".

This manual is part of the product and shall not be stored separately from the product. Save it for later reference and if you let other people use the product, add this instruction manual to the product.

Please read and obey the security instructions!

Before first use read this manual carefully. It eases the correct use of the product and prevents misunderstanding and damages of product and the user's health.

Due to constant advancements in product design, construction pictures and content may diverse slightly. However, if you discover any errors, inform us please.

Technical specifications are subject to changes!

Please check the product contents immediately after receipt for any eventual transport damage or missing parts.

Claims from transport damage or missing parts must be placed immediately after initial product receipt and unpacking before putting the product into operation.

Please understand that later claims cannot be accepted anymore.

Copyright

© 2016

This document is protected by international copyright law. Any unauthorized duplication,

translation or use of pictures, illustrations or text of this manual will be pursued by law.

Court of jurisdiction is the Landesgericht Linz or the competent court for 4170 Haslach, Austria!

Customer service contact

Table saw
6	Table orientation plate	11	Upper blade guard	21	Mitre control angle knob
7	Rip fence	12	Lower blade guard	22	U-shape support pole
8	Safety push stick	13	Blade guard support	23	Blade key
9	Dust bag	14	Safety bolt	24	6mm hex key
10	Upper lock knob 2	16	Clamp groupware	25	5mm hex key

12.2 Technical details

TK 305
Voltage	230V / 50Hz
Motor power	2000W
No load speed	4200min-1
Blade dimension	Ø 305mm
Blade bore	Ø 30mm
Kerf thikness	2.5mm
Max. cutting capacity (mitre)	90°: 85x180mm
	45°: 55x145mm
	45° und li 45°: 55x80mm
	45° und re 45°: 55x150mm
Max. cutting capacity (table)	50mm
Sound pressure level LPA	99.1 dB(A) K: 3dB(A)
Sound power level LWA	112.1 dB(A) K: 3dB(A)
Vibration level	ah=7.07m/s2 K: 1,5m/s2

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another.

The declared vibration total value may also be used in a preliminary assessment of exposure. The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is use!

13 SAFETY

13.1 Intended Use

The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse.

To use the machine properly you must also observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions lay down in this manual.

All people who use and service the machine have to be acquainted with this manual and must be informed about the machine's potential hazards.

It is also imperative to observe the accident prevention regulations in force in your area.

The same applies for the general rules of occupational health and safety.

The machine is used for:

Sawing in wood or woodlike materials (plastic).

Any manipulation of the machine or its parts is a misuse, in this case HOLZMANN-Machines and its sales partners cannot be made liable for ANY direct or indirect damage.

Even when the machine is used as prescribed it is still impossible to eliminate certain residual risk factors.

WARNING

• Use only blades allowable for this machine!
• Never use a damaged blade!
• Use the machine never with defective or without mounted guard HIGHEST RISK OF INJURY!

Ambient conditions

The machine may be operated:

humidity

max. 70%

temperature

+5°C to +40°C (+41°F to +104°F)

The machine shall not be operated in areas exposed to increased fire or explosion hazard.

Prohibited use

• The operation of the machine outside the stated technical limits described in this manual is forbidden.
  Operation of the machine function without emergency stop button or impeller box with open doors is prohibited.
  The use of the machine not according with the required dimensions is forbidden.
• The use of the machine not being suitable for the use of the machine and not being certified is forbidden.
• Any manipulation of the machine and parts is forbidden.
• The use of the machine for any purposes other than described in this user-manual is forbidden.
  The unattended operation on the machine during the working process is forbidden!
  It is not allowed to leave the immediate work area during the work is being performed.
• The machine has not be used for slotting, rabbeting or groovy!

13.2 Security instructions

Missing or non-readable security stickers have to be replaced immediately!

To avoid malfunction, machine defects and injuries, read the following security instructions!

The locally applicable laws and regulations may specify the minimum age of the operator and limit the use of this machine!

• Keep your work area dry and tidy! An untidy work area may cause accidents. Avoid slippery floor.
• Make sure the work area is lighted sufficiently
• Do not overload the machine
• Provide good stability and keep balance all times
• Avoid abnormal working postures! Make sure you stand squarely and keep balance at all times.
• Keep away from the running blade!
• Always stay focused when working. Reduce distortion sources in your working environment. The operation of the machine when being tired, as well as under the influence of alcohol, drugs or concentration influencing medicaments is forbidden.
• Respectively trained people only and only one person shall operate the machine.
• Do not allow other people, particularly children, to touch the machine or the cable. Keep them away from your work area.
  Make your workshop childproof.
• Make sure there is nobody present in the dangerous area. The minimum safety distance is 2m

• Wear suitable work clothes! Do not wear loose clothing or jewelry as they might get caught in moving parts and cause severe accidents! Wear a hair net if you have long hair.

• Use personal safety equipment: ear protectors, safety goggles and dust mask when working with the machine.

• Never leave the machine running unattended! Before leaving the working area switch the machine off and wait until the machine stops.
• Always disconnect the machine prior to any actions performed at the machine.
• Avoid unintentional starting
• Do not use the machine with damaged switch

• The plug of an electrical tool must strictly correspond to the socket. Do not use any adapters together with earthed electric tools
  Each time you work with an electrically operated machine, caution is advised! There is a risk of electric shock, fire, cutting injury;
• Protect the machine from dampness (causing a short circuit)
• Use power tools and machines never in the vicinity of flammable liquids and gases (danger of explosion)
• Check the cable regularly for damage
• When working with the machine outdoors, use extension cables suitable for outdoor use
• Do not use the cable to carry the machine or to fix the work piece
• Protect the cable from heat, oil and sharp edges
• Avoid body contact with earthed

Before starting the machine remove any adjusting wrenches and crewdrivers
- Use a clip or clamping jaws to secure the workpiece
- If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Rotating parts can cause severe cut injuries
- Keep the blades sharp and clean, so they get stuck less often and are easier to guide
- Keep any machine that is not being used out of reach of children

13.3 Remaining risk factors

WA RNI NG

It is important to ensure that each machine has remaining risks.

In the execution of all work (even the simplest) greatest attention is required. A safe working depends on you!

Even if the machine is used as required it is still impossible to eliminate certain residual risk factors totally. The following hazards may arise in connection with the machine's construction and design: Despite of correct and proper use and maintenance there remain some residual risk factors:

• Hazard of injury or machine damage due to undetected machine defect

To minimize this risk, check the machine prior to every operation for loose screws and connections. Check the motor noise, the spindle, the drill chuck, etc. for eventual damage. Damaged parts have to be replaced immediately, no operation of the machine in the meantime!

• Hazard of electric shock

Undetected malfunctions in the power supply and/or the connected wood working machine might result in electric shock when touching the machine. Ensure proper electric installation, and let it check periodically by a trained electrician.

• Danger due to unintended machine start-up

Eliminate this risk by disconnecting the machine before you perform any checks or activities on the machine.

• Hazard of inhaling toxic dust

Especially wood dust arising from chemically treated wood and/or lacquer/paint are harmful when inhaled. Therefore wear a suitable breathing mask if required.

- Hazard of kickback:

Pay particular attention to instructions for reducing risk of kickback. Kickback is a sudden reaction to a pinched, bound or misaligned saw blade. Kickback causes the ejection of the workpiece from the machine back towards the operator.

These risk factors can be minimized through obeying all security and operation instructions, proper machine maintenance, proficient and appropriate operation by persons with technical knowledge and experience.

WARNING

This machine produces an electromagnetic field during operation. The field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine!

14 ASSEMBLY

14.1 Delivery content

Please check the product contents immediately after receipt for any eventual transport damage or missing parts. Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation. Please understand that later claims cannot be accepted anymore.

14.2 Assembly

The machine is delivered pre-assembled.

For transport reasons, some parts of the machine can be assembled by the customer.

You can place the machine in the desired location either on a workbench or other recommended leg set. The base of the saw has four holes to mount the table saw. If the saw is to be used in on location, permanently fasten it to the workbench or leg set using appropriate bolts with lock washers and nuts.

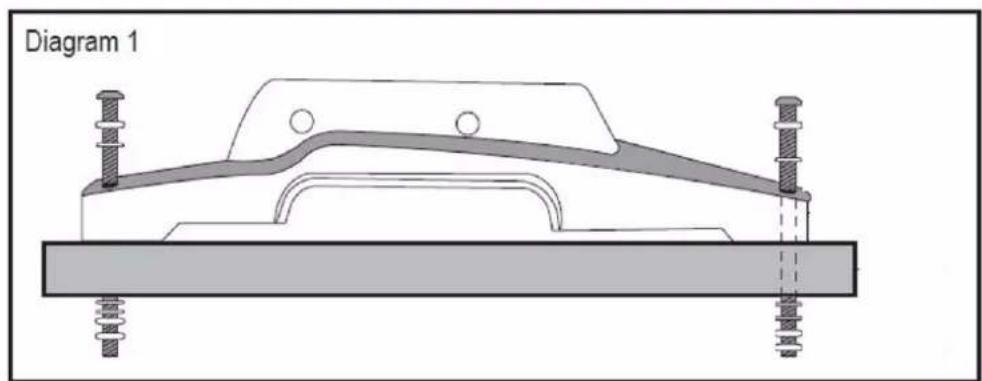

When permanently mounting the machine we recommend that the four rubber feet located underneath each of the mounting holes are removed and stored safely for possible future use.

14.2.1 Mounting rip fence

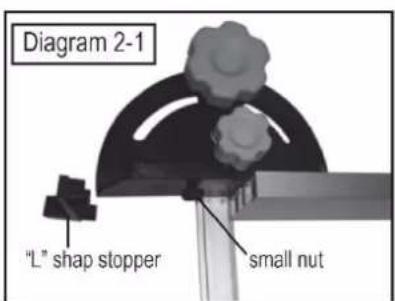

1. Pull out the "L" shape and black color stopper of rip fence.

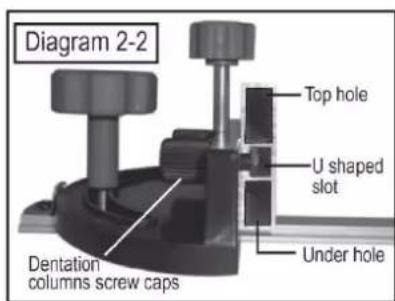

2. Screw off these two of dentation columns screw caps.
3. Hold the "Rip fence"; When the fence "U-shaped slot" with the small nut of the "Table orientation plate groupware" in a straight line, Please insert

the small nut along the U-shaped slot to "rip fence". ATTENTION: The top hole is wider than the under hole.

1. Tighten up the dentation columns screw.
2. Resetting the "L" shape and black color stopper.

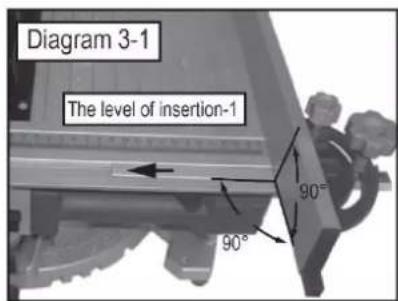

3. Insert the assemblies into the "U shape of the working table face.
4. Adjust 90^

15 OPERATION

Device to be operated in a perfect state only. Inspect the device visually every time it is to be used. Check in particular the safety equipment, electrical controls, electric cables and screwed connection for damage and if tightened properly. Replace any damaged parts before operating the device.

15.1 Operation instructions

WARNING

Perform all machine settings with the machine being disconnected from the power supply!

ATTENTI ON

• Never switch the machine on while pressing the blade against the material!
• Start cutting only when the saw blade has reached the appropriate speed!
• Keep an eye on vibrations, unusual noises and movements. Stop operation when abnormalities immediately!
• Never remove debris and other parts of the workpiece during saw blade is running

NOTICE

Mitre saw:

• The workpiece must be pressed firmly against the circular pan and the litre gauge in all operations.
• Do not hold the workpiece with your hands near the blade.
• The circular pan must be properly secured and must not move during operation.
• The locking knob must be tightened during metre cuts. Always check before starting the cut!
• Handle securely hold! The handle moves when starting up slightly up or down.

Table saw:

• Guide the workpiece always on the rip fence.
• Check always the fixation of the work table before starting.
• Use to protect hands and fingers always the safety push stick during cuts less than 300mm .
• Check the right setting and the kerf thickness before starting.
• Slide the workpiece never jerky or too fast.
• Do not twist or bend the workpiece.
• If the saw blade jams in the workpiece, turn off the machine immediately, disconnect it from the power supply and rid the saw blade

15.2 Operation

NOTICE

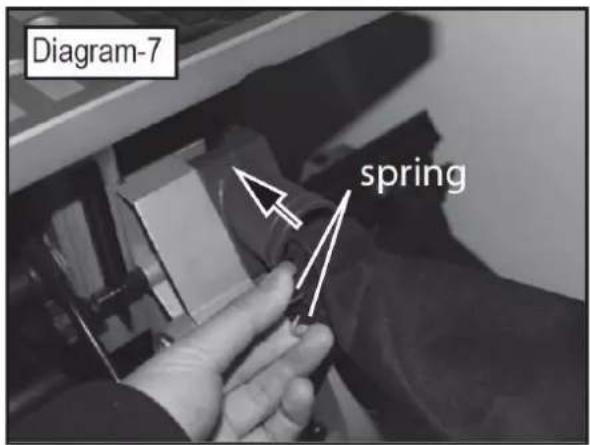

Please install the dust bag when you use this machine. Then connect the power.

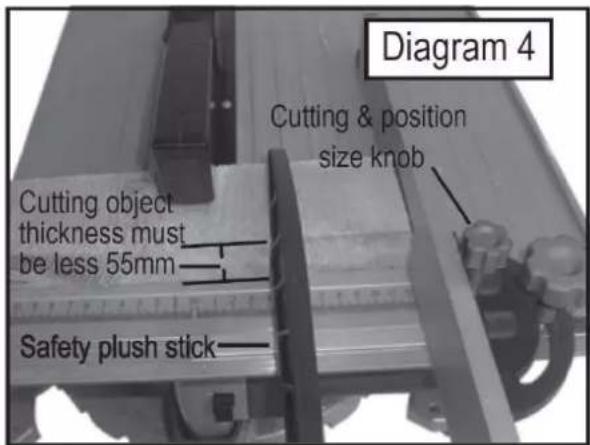

15.2.1 Table saw level cutting

Install all accessories and connect the power. By pressing the ON/OFF-button the machine will be start.

1. Select and cut objects thickness cannot overstep 55mm of the table mode cutting size.
2. According to your actual required of cutting length to adjust the "table orientation plate groupware" location.

a. Put the cutting objects on the table working face.
b. Select the cutting data of yours requirement.
c. When the cutting size was determined, Please position the "Cutting & position size knob".

1. Hold the "Safety plush stick" and plush the cutting object forward until it to sever.

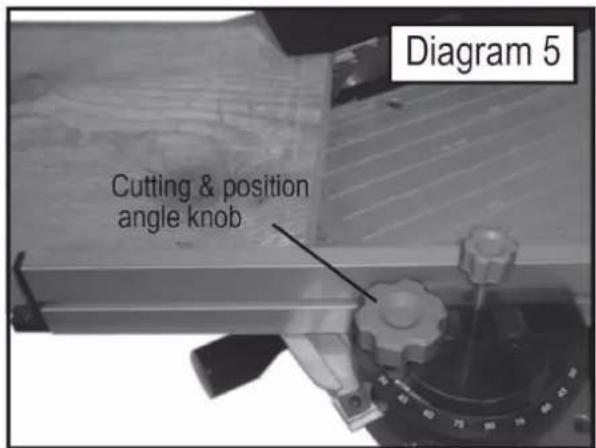

15.2.2 Table saw angle cutting

1. Install and position the "table orientation plate groupware".
2. According to your actual required of cutting angle to adjust the "table orientation plate groupware" location.

a. Put the cutting objects on the table working face.
b. Select the cutting angle data:

Select and cut objects angle between: - 30^ 90^ 30^ . Then screw up the "cutting & position angle knob" with your hand.

1. Hold the "Safety plush stick" and push the cutting object forward until it to sever.

ON/OFF SWITCH

The "ON/OFF switch" control the "Table Saw cutting mode" ON/OFF positions. The "ON/OFF SWITCH" buttons are located on the right side of the "mitre handle". Two kinds colour switch button: The green button represents ON. Press the "ON" button down when you connect up the power, the machine will be enter to working position now. The red button represents "OFF". Press the "OFF" button down when you connect up the power, the machine will be stop working.

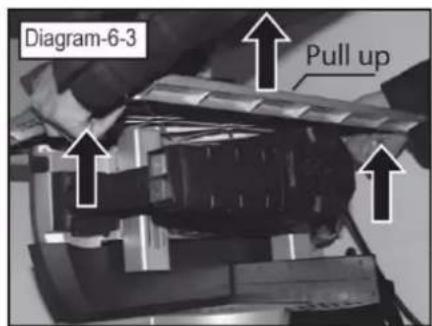

15.3 Use as a litre saw

Fixing knob 1 loosen up (6-1)

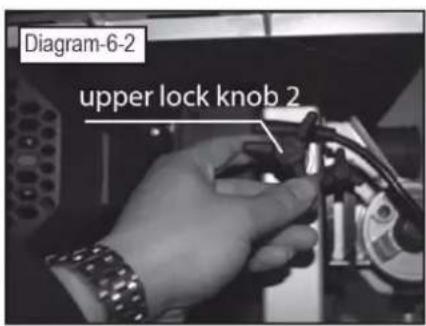

Fixing knob 2 loosen up (6-2)

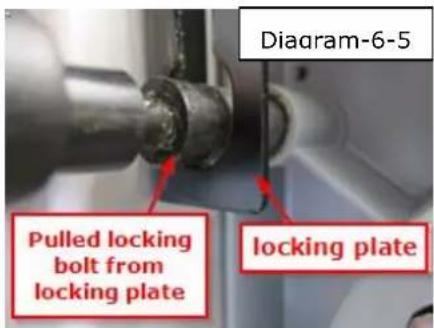

Pull worktable -with locking plate- all the way up and back positioning with 1 and 2 clamp top. (6-3)

ATTENTION!

press the operating handle light down

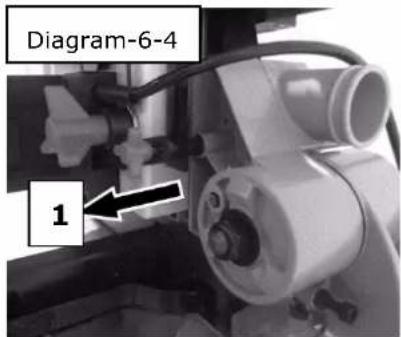

so this allows the locking bolt (1) easily pull out of the hole and the crosscut saw swings upward. (6-4)

Locking bolt completely pulled out of locking plate. (6-5)
IMPORTANT: worktable must be clamped on the top!

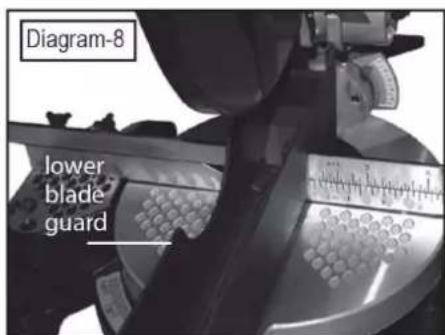

Remove the "lower blade guard".
Insert the lower blade guard after the end of the work.

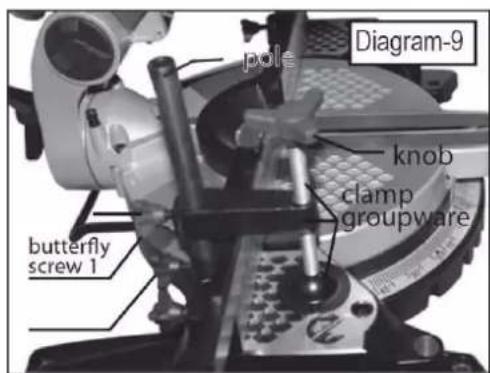

Install the clamp groupware:

a) Hold the "clamp groupware" pole, insert it to the hole in the "location plate" left side.
b) fix with the "butterfly screw" 1

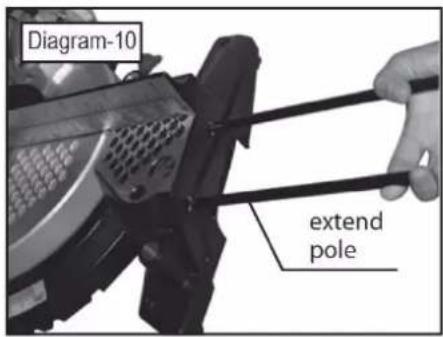

1. Install the extend pole

Hold the "extend pole" with your hand. Then insert it to the hole of the base side until it to go on; when the pole and hole are in a straight line.

As same as the other side.

1. Use the clamp groupware to work.

a) Put the board on the "circular pan";
b) Reference "location ruler" to select a cutting length, then screw up the "clamp groupware" knob until it to clamp the board.

Use the litre saw

c) Hold the handle and trigger switch;

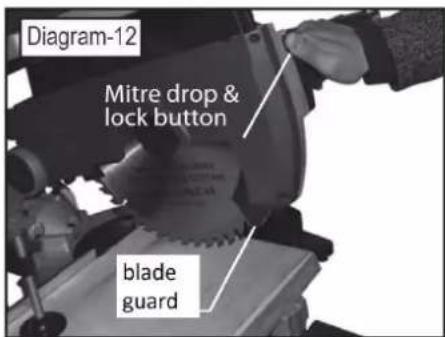

d) Press the "mitre drop & lock button" down;
e) Push down the mitre head to cut the board.
f) If the cutting board too short. So you must use the "safety push stick".
g) Cutting the board until it to server.
h) Loosen the trigger of the litre, until it rise slowly.

i) Release your hand

j)

15.3.1 Adjusting the sawing angle

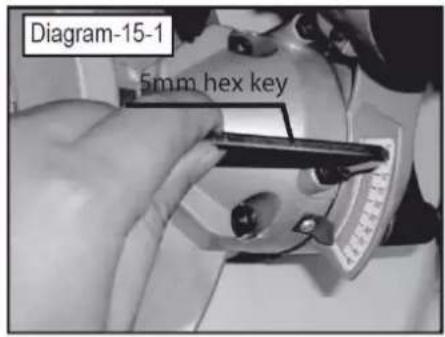

The default angle between the saw blade and the circular pan is 90^ . Use a 5mm hex key to check the angle between the saw blade and the circular pan.

1. Loose the "Mitre swing and control angle knob"

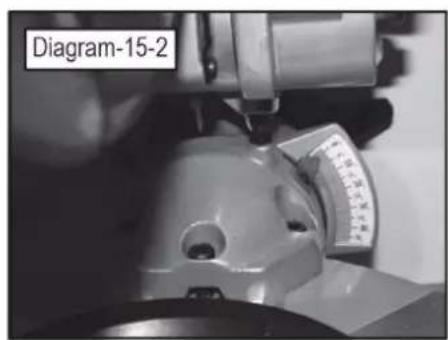

2. Loose the "verticalis lock screw, Then swing the mitre handle when the indicator stay a 0^

1. Use a 5mm hex key to check the "verticalis lock screw": Loose the lock screw and lock screw adjusting screw in or out to achieve a 0^ angle. Retighten the lock nut.

Tighten the "mitre swing and control angle knob". Reset the cutting head. It will be used to bevel cutting now. Cutting head designed and provide to bevel cutting angle are between 0^ 45^ at left side.

15.3.2 Mitre saw angle cutting

1. Location the cutting object by "clamp groupware";
2. According to your actual required of cutting angle to select and locate it.

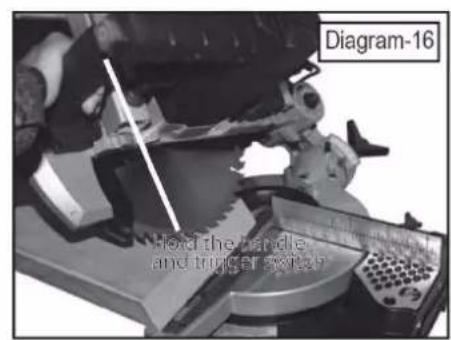

3. Hold the handle and trigger switch with your hand;
4. To the left side of the swing cutting head;
5. Press the "cutting head" until it to server. Release and reset the cutting head.

15.3.3 Adjusting the base level angle

1. Hold the "circular pan lock knob" and loosen it. Then trigger the spring pin always.

1. Put the board on the "circular pan";
2. Reference "location ruler" to select a cutting length, then screw up the "clamp groupware" knob until it to clamp the board
3. Rotate and locate the "circular pan" by "circular pan lock knob.
4. According to your actual required of cutting angle to select and locate it.

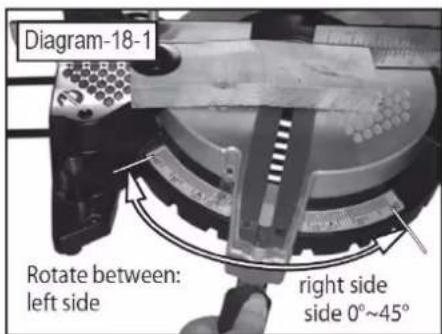

Remark: The "circular pan" rotate angle are between to left / right sides of 45^ 0^ -45^ .

1. Press the "cutting head".
2. Cutting the board until it to separate
3. Loosen the trigger of the litre, until it slowly to rise.
4. Release your hand.

15.3.4 Hands and body position

Never place hands within the "NO HANDS ZONE" (at least 140mm away from each side of the blade). Pictograms on the machines rotary table are provided as an aid to safe working practices.

Keep hands away from the path of the blade. Hold the workpiece firmly to the fence to prevent any movement. Use a "Hold down Clamp" if possible but check that it is positioned that it does not interfere with the path of the blade or other moving machine parts.

NOTICE

Always the saw to do the cutting; never force the saw as this could result in damage to the saw and / or injury to the operator or those in the area.

16 MAINTENANCE

ATTENTI ON

Don't clean or do maintenance on the machine while it is still connected to the power supply:

Damages to machine and injuries might occur due to unintended switching on of the machine!

Therefore: Switch the machine off and disconnect it from the power supply before any maintenance works or cleaning is carried out

The machine does not require extensive maintenance. If malfunctions and defects occur, let it be serviced by trained persons only.

Before first operation as well as later on every 100 operation hours you should lubricate all connecting parts (if required, remove beforehand with a brush all swarfs and dust).

Check regularly the condition of the security stickers. Replace them if required.

Check regularly the condition of the machine.

The good condition and perfect adjustment of the guiding rollers is essential for a smooth band guidance and a clean cut.

Store the machine in a closed, dry location.

NOTICE

Clean your machine regularly after every usage - it prolongs the machines lifespan and is a pre-requisite for a safe working environment.

Repair jobs shall be performed by respectively trained professionals only!

16.1 Maintenance plan

After each workshift:

• Apply a thin layer of oil on sliding parts
• Remove dust and wood chips from the device

16.2 Install the dust bag

1. Squeeze the spring with your thumb and forefinger.
2. Aligned dust hole, then insert it to the dust hole annular groove; Release your fingers.

16.3 Changing the saw blade

NOTICE

• Never wear gloves during operation
• Except for replacing saw blades or handling rough material before operation.

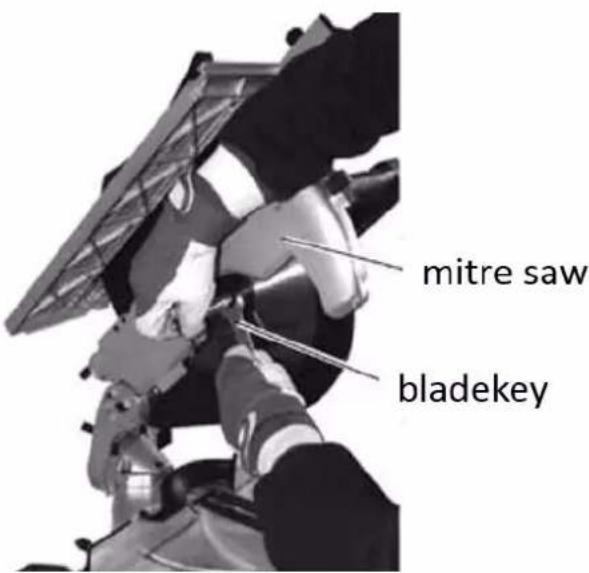

1 Fix the litre saw in the uppermost position
2 Loosen with the blade key the fastening nut of the saw blade
3 Replace the saw blade
4 Attach the new blade again with the fastening nut

16.4 Cleaning

After each workshift the machine has to be cleaned. Remove chips etc. with a suitable tool. Do not remove them by hand (cutting injury!). Remove dust as well.

NOTICE

The usage of certain solutions containing ingredients damaging metal surfaces as well as the use of scrubbing agents will damage the machin surface!

Clean the machine surface with a wet cloth soaked in a mild solution

16.5 Disposal

Do not dispose the machine in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

17 TROUBLE SHOOTING

BEFORE YOU START WORKING FOR THE ELIMINATION OF DEFECTS, DISCONNECT THE MACHINE FROM THE POWER SUPPLY.

Trouble	Possible cause	Solution
Motor does not run	·Incorrect power supply	·Check or let check by a trained person
	·Fuse or protection defect	·Change fuse ·Activate protection
	·Extention cord damaged	·Change
Blade does not reach the necessary speed	·Extention cord to long	·Change
	·Weak power grid	·Contact power suppliers
Machine vibrates heavily	·Uneven surface	·Reconstitute
	·Motor mount loose	·Fix motor mount

MANY POTENTIAL SOURCES OF ERROR CAN BE CLEARED BY THE EXPERTLY CONNECTION TO THE ELECTRICITY GRID.

NOTICE

Should you in necessary repairs not able to properly to perform or you have not the prescribed training for it always attract a workshop to fix the problem

18 PREFACIO (ES)

Estimado cliente,

• iUse sólo disco de sierra adecuados para laquina!
• iNunca use discos de sierra dañados!
• No utilise nunca laquina con defectos o sin la proteccion montada.
• La eliminación o modificación de los componentes de seguridadSEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO

With original HOLZMANN spare parts you use parts that are attuned to each other shorten the installation time and elongate your products lifespan.

IMP OR TAN T

The installation of other than original spare parts voids the warranty!

So you always have to use original spare parts

When you place a spare parts order please use the service formular you can find in the last chapter of this manual. Always take a note of the machine type, spare parts number and partname. We recommend to copy the spare parts diagram and mark the spare part you need.

You find the order address in the preface of this operation manual.

Hereby we declare that the above mentioned machines meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Please consult our troubleshooting section for initial problem solving. Feel free to contact your HOLZMANN reseller or us for Customer Support!

Warranty claims based on your sales contract with your HOLZMANN retailer, including your statutory rights, shall not be affected by this guarantee declaration. HOLZMANN-MASCHINEN grants guarantee according to following conditions:

A) The guarantee covers the correction of deficiencies to the tool/product, at no charge, if it can be verified adequately that the deficiencies were caused by a material or manufacturing fault.
B) The guarantee period lasts 12 months, and is reduced to 6 months for tools in commercial use. The guarantee period begins from the time the new tool is purchased from the first end user. The starting date is the date on the original delivery receipt, or the sales receipt in the case of pickup by the customer.
C) Please lodge your guarantee claims to your HOLZMANN reseller you acquired the claimed tool from with following information:

Original Sales receipt and/or delivery receipt
Service form (see next page) filed, with a sufficient deficiency report
for spare part claims: a copy of the respective exploded drawing with the required spare parts being marked clear and unmistakable.
D) The Guarantee handling procedure and place of fulfillment is determined according to HOLZMANNs sole discretion in accordance with the HOLZMANN retail partner. If there is no additional Service contract made including on-site service, the place of fulfillment is principally the HOLZMANN Service Center in Haslach, Austria.

Transport charges for sending to and from our Service Center are not covered in this guarantee.

E) The Guarantee does not cover:

• Wear and tear parts like belts, provided tools etc., except to initial damage which has to be claimed immediately after receipt and initial check of the product.
  Defects in the tool caused by non-compliance with the operating instructions, improper assembly, insufficient power supply, improper use, abnormal environmental conditions, inappropriate operating conditions, overload or insufficient servicing or maintenance.
• Damages being the causal effect of performed manipulations, changes, additions made to the product.
  Defects caused by using accessories, components or spare parts other than original HOLZMANN spare parts.
  Slight deviations from the specified quality or slight appearance changes that do not affect functionality or value of the tool.
• Defects resulting from a commercial use of tools that - based on their construction and power output - are not designed and built to be used within the frame of industrial/commercial continuous load.

F) Claims other than the right to correction of faults in the tool named in these guarantee conditions are not covered by our guarantee.
G) This guarantee is voluntary. Therefore Services provided under guarantee do not lengthen or renew the guarantee period for the tool or the replaced part.

SERVICE

After Guarantee and warranty expiration specialist repair shops can perform maintenance and repair jobs. But we are still at your service as well with spare parts and/or product service. Place your spare part / repair service cost inquiry by filing the SERVICE form on the following page and send it:

via Mail to [e-mail]

or via Fax to: [phone]

We observe the quality of our delivered products in the frame of a Quality Management policy.

Your opinion is essential for further product development and product choice. Please let us know about your:

• Impressions and suggestions for improvement.
• experiences that may be useful for other users and for product design
• Experiences with malfunctions that occur in specific operation modes

We would like to ask you to note down your experiences and observations and send them to us via FAX, E-Mail or by post:

service inquiry spare part inquiry guarantee claim

1. Daten Antragsteller ( sind Pflichtfelder) / senders information ( required)

2. Vorname, Nachname / first name, family name
   * StraBe, Hausnummer / street, house number

3. PLZ, Ort / ZIP code, place
4. Staat / country
   * (Mobil)telefon / (mobile) phone International numbers with country code
   *E-Mail Fax

2. Geräteinformationen / tool information

Seriennummer/serial number:*Maschinentype/machine type:

Please describe amongst others in the problem: What has caused the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked you electric supply and the machine already by a certified electrician?

3. Bite beachten

Additional information

INCOMPLETELY FILLED SERVICE FORMS CANNOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES / DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED. FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE. THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCELERATES THE HANDLING OF YOUR INQUIRY.
