TV 950 - Measuring equipment Testboy - Free user manual and instructions

Product Type	EVSE tester for charging stations
Brand	Testboy
Model	TV 950
Dimensions (L x W x H)	165 x 58 x 51 mm
Weight	330 g
Power Supply	EVSE charging station (mains voltage)
Display	3 LEDs for phases L1, L2, L3
Main Function	Socket lock test, simulation of a charging vehicle, indication of active phases
Operation	Connect to EVSE socket, hold down the unlock button, then press the charging button to check phases
CP (Control Pilot) States	State A: not connected; State B: connected but no power; State C: connected and ready to charge (without fan)
Cleaning	Damp cloth and mild detergent; avoid moisture inside
Maintenance	No special maintenance required if used as directed
Electrical Safety	Observe the 5 safety rules: disconnection, protection against re-energization, verification of absence of voltage, grounding, cover adjacent parts
General Safety	Do not use near electric welders or electromagnetic fields; stabilize after temperature change
Compliance	CE certification according to European directives
Repairability	Repair only by the manufacturer; modification prohibited
Warranty	Warranty according to commercial terms; failure to follow instructions voids warranty
Disposal	Recycling according to WEEE directive; do not dispose of with household waste

Frequently Asked Questions - TV 950 Testboy

How to turn on the Testboy TV 950?

Hold down the unlock button while connecting the device to the EVSE charging station. Release the button once properly connected.

What does CP State A mean on the tester?

CP State A indicates that the tester is in standby and the charging station is not supplying power. The simulated vehicle is not connected.

How to check active phases on the station?

Connect the TV 950, then press and hold the charging button. The L1, L2, and L3 LEDs light up to indicate the present phases.

What to do if the station does not unlock the tester?

Make sure the station is activated and ready to charge. If the automatic lock does not engage, unlock manually via the station's user interface.

How to safely remove the TV 950?

Press and hold the unlock button while disconnecting the device from the station. Release the button after removal.

Can I use the tester on all types of EVSE stations?

The TV 950 is designed to test EVSE charging stations that comply with standards. It simulates a vehicle and checks locking and phases.

How to clean the Testboy TV 950?

Use a damp cloth with a little mild detergent. Never use solvents or allow moisture to enter the housing.

What to do if no LED lights up after connection?

Check that the station is activated and that the unlock button was held during connection. Try restarting the station or contact technical support.

Does the tester require special maintenance?

No, if used according to the instructions, the device requires no special maintenance. Avoid dusty and humid environments.

What to do in case of device malfunction?

Do not attempt to repair the device yourself. Contact Testboy manufacturer or an authorized service. Any modification voids the warranty.

USER MANUAL TV 950 Testboy

An additional source of danger is posed my mechanical parts which can cause severe personal injury.

Objects can also be damaged (e.g., the instrument itself can be damaged).

WARNING

An electric shock can result in death or severe injury. It can also lead to property damage and damage to this instrument.

WARNING

Never point the laser beam directly or indirectly (on reflective surfaces) towards the eyes. Laser radiation can cause irreparable damage to the eyes. You must first deactivate the laser beam when measuring close to people.

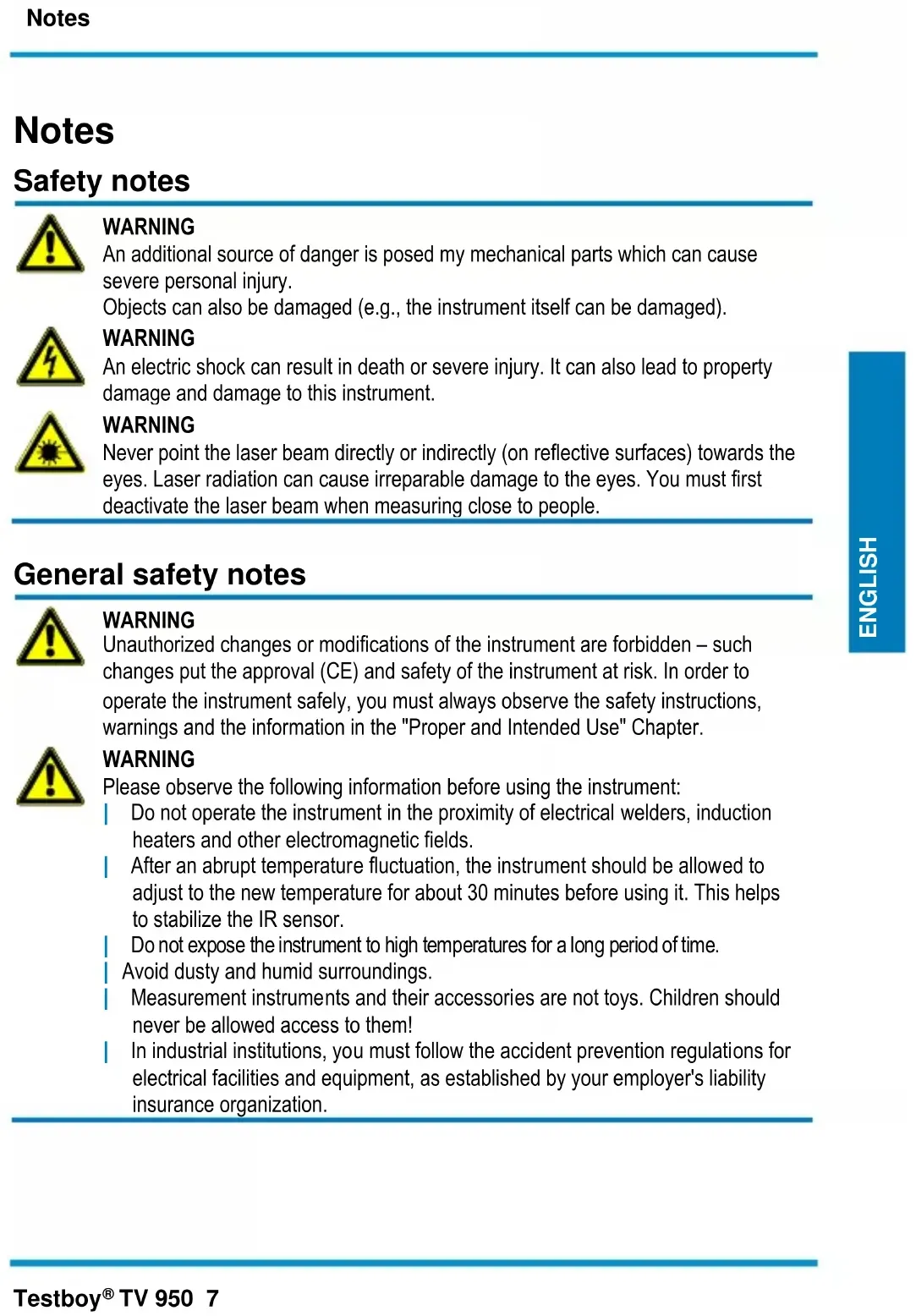

General safety notes

WARNING

Unauthorized changes or modifications of the instrument are forbidden – such changes put the approval (CE) and safety of the instrument at risk. In order to operate the instrument safely, you must always observe the safety instructions, warnings and the information in the "Proper and Intended Use" Chapter.

WARNING

Please observe the following information before using the instrument:

Do not operate the instrument in the proximity of electrical welders, induction heaters and other electromagnetic fields.
After an abrupt temperature fluctuation, the instrument should be allowed to adjust to the new temperature for about 30 minutes before using it. This helps to stabilize the IR sensor.
Do not expose the instrument to high temperatures for a long period of time.
Avoid dusty and humid surroundings.
Measurement instruments and their accessories are not toys. Children should never be allowed access to them!
In industrial institutions, you must follow the accident prevention regulations for electrical facilities and equipment, as established by your employer's liability insurance organization.

Please observe the following five safety rules:

1 Disconnect.
2 Ensure that the instrument cannot be turned back on again.
3 Ensure isolation from the main supply voltage (check that there is no voltage on both poles).
4 Earth and short-circuit.
5 Cover neighbouring parts that are under live electrical load.

Proper and intended use

This instrument is intended for use in applications described in the operation manual only. Any other usage is considered improper and non-approved us-age and can result in accidents or the destruction of the instrument. Any misuse will result in the expiry of all guarantee and warranty claims on the part of the operator against the manufacturer.

Remove the batteries during longer periods of inactivity in order to avoid damaging the instrument.

We assume no liability for damages to property or personal injury caused by improper handling or failure to observe safety instructions. Any warranty claim expires in such cases. An exclamation mark in a triangle indicates safety notices in the operating instructions. Read the instructions completely before beginning the initial commissioning. This instrument is CE approved and thus fulfils the required guidelines.

All rights reserved to alter specifications without prior notice © Testboy GmbH, Germany.

Disclaimer and exclusion of liability

The warranty claim expires in cases of damages caused by failure to observe the instruction! We assume no liability for any resulting damage!

Testboy is not responsible for damage resulting from:

failure to observe the instructions,
changes in the product that have not been approved by Testboy,
the use of replacement parts that have not been approved or manufactured by Testboy,

the use of alcohol, drugs or medication.

Correctness of the operating instructions

These operating instructions have been created with due care and attention. No claim is made nor guarantee given that the data, illustrations and drawings are complete or correct. All rights are reserved in regards to changes, print failures and errors.

Disposal

For Testboy customers: Purchasing our product gives you the opportunity to return the instrument to collection points for waste electrical equipment at the end of its lifespan.

The WEEE directive regulates the return and recycling of electrical appliances. Manufacturers of electrical appliances are obliged to take back and recycle all electrical appliances free of charge. Electrical devices may then no longer be disposed of through conventional waste disposal channels. Electrical appliances must be recycled and disposed of separately. All equipment subject to this directive is marked with this logo.

Certificate of quality

All aspects of the activities carried out by Testboy GmbH relating to quality during the manufacturing process are monitored permanently within the framework of a Quality Management System. Furthermore, Testboy GmbH confirms that the testing equipment and instruments used during the calibration process are subject to a permanent inspection process.

Declaration of Conformity

The product conforms to the present directives. For more detailed information, go to www.testboy.de

Function

Thank you for choosing the Testboy® TV 950, an EVSE tester with LED display. This device can be used to test the function of EVSE charging posts. The LEDs indicate which and how many phases are present at the charging socket. In addition, the plug interlock can be tested, if this is given.

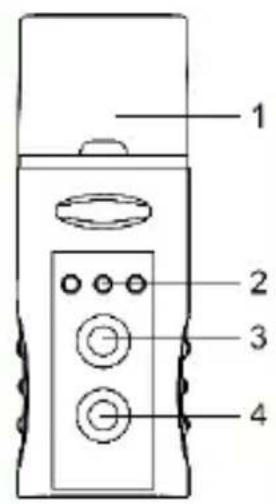

Legend for the instrument

1. EVSE-Plug
2. Phase Indicating LEDs L1, L2, L3
3. Unlock Button
4. Loading Button

Function

The Testboy TV 950 is an EVSE charging pole tester that checks the most important charging pole functions in no time at all to ensure safe charging. The device simulates a vehicle ready for charging, checks the plug interlock and shows the applied phases via LED display.

Preparation

To switch on the device, hold the unlock button and connect it to your EVSE charging pole. Release the unlock button as soon as the TV 950 is fully plugged in. It is possible that the charging pole will unlock automatically, otherwise it is necessary to unlock the charging pole via user interface. To test the charging pole, it must be unlocked. Before the test procedure, make sure that any required documents, such as an activation code, are available.

Checking the plug locking

When the charging pole has been unlocked and is ready for charging, the TV 950 can be plugged into the EVSE charging pole. As soon as the tester has been plugged in, the automatic locking of the charging pole should arrest the TV 950 (CP state B).

Phase display

If the EVSE charging station has been enabled and the TV 950 is plugged into the charging station, the charge key can be pressed and held (CP state C). When the charge button is pressed, the device indicates which phases are present (e.g. L1, L2, L3). When the load key is released, the simulated load process is completed.

Unlocking the plug / removing the device

To remove the device from the charging pole, press and hold the unlock button and disconnect the device at the same time (CP-State A).

CP-State explanation

Position	Simulation	Description
A	Charge equipment/column is not connected	TV 950 is idle, charge equipment/column does not supply energy
B	Charge equipment/column is connected	TV 950 has been detected, charge equipment/column does not supply energy
C	Charge equipment/column is active without fan	Charge equipment/column is ready for charging, TV 950 starts the charge process and does not require ventilation, energy supply only if there is no ventilation.

Cleaning

Use a damp cloth and mild household detergent to clean the instrument should it become soiled through daily use. Never use aggressive cleaning agents or solvents to clean the instrument.

To avoid electric shocks, do not allow moisture to penetrate the housing.

Maintenance

The instrument does not require special maintenance when used as specified in this operating manual.

Technical data

Display	3 LEDs for Phase indication
Voltage supply	EVSE charging pole, charging voltage
Dimensions	165 x 58 x 51 mm
Weight	330 g
