Product type	Cordless grass and brush shear
Brand	Pattfield
Model	PE-AGS 18 Li Basic
Rated voltage	18 V
No-load speed	1200 min⁻¹
Cutting width (grass cutter)	100 mm
Cutting length (hedge trimmer)	200 mm
Max branch thickness	8 mm
Net weight	0.66 kg
Sound pressure level	63.4 dB(A)
Guaranteed sound power level	86 dB(A)
Vibration (hand-arm)	≤2.5 m/s² (K=1.5 m/s²)
Power supply	18 V lithium-ion battery (not included)
Functions	Grass cutter and hedge trimmer with interchangeable blades
Protection class	III
Warranty	3 years
Maintenance	Clean with soft cloth, oil blades, avoid contact with water
Safety	Safety lock, blade guards, automatic stop
Spare parts	Replacement blades available (ref. on rating plate)
Use	Private garden, domestic use
Set contents	Grass shear, grass cutter with guard, hedge trimmer with guard

Frequently Asked Questions - PE-AGS 18 Li Basic Pattfield

Which battery to use with the Pattfield PE-AGS 18 Li Basic?

Use only the 18 V lithium-ion battery specifically designed for this device (ref. on the rating plate). Using other batteries may present a risk of injury or fire.

How to change the grass cutter blade?

Make sure the device is switched off and the battery is removed. Press the blade release lever (2) to release it, then insert the new blade until it clicks into place. Wear protective gloves.

What to do if the motor does not start?

Check that the battery is charged and correctly inserted. If the problem persists, contact the after-sales service. Do not attempt to repair it yourself.

How to maintain the blades for optimal cutting?

Clean the blades after each use with a soft cloth. Apply a few drops of oil (sewing machine oil type) to the blades to improve cutting performance. Do not use grease.

Can I use the device in the rain?

No, never expose the tool to rain or moisture. This increases the risk of electric shock and damages the device. Use it only in dry weather.

What is the maximum branch thickness the hedge trimmer can cut?

The maximum branch thickness is 8 mm. For thicker branches, use pruning shears or another suitable tool.

How to store the device after use?

Remove the battery, clean the blades, and put the blade guards back in place. Store the device in a dry place out of reach of children, protected from frost.

Is the battery included in the set?

No, the battery is not included. You must purchase it separately. The device is compatible with the Pattfield 18 V battery (ref. on the rating plate).

How to dispose of the device at end of life?

Do not dispose of the device with household waste. Take it to a collection point for electronic waste (WEEE). Used batteries must be placed in the containers provided for this purpose.

What to do if the blade jams during use?

Immediately release the On/Off switch. Wait for the blades to stop completely, then remove the battery. Remove the jammed object with a non-sharp tool. Never use your fingers.

USER MANUAL PE-AGS 18 Li Basic Pattfield

Pattfield® ERGO TOOLS

REEMPLACEMENT DES LAMES

2

MISE EN / HORS SERVICE

1

FIXER LA BATTERIE

2

ENLEVER LA BATTERIE

1

PROTECTIONS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

18 V Accu-aangedreven grastrimmer en heggenschaar PE-AGS 18 Li Basic

geproduceerd voor:

Hornbach Baumarkt AG

Hornbachstraße 11

Max. vibrationsemission ( a_hw )

osäkerhetsfaktor K = 2,09 dB(A)

83,4 dB(A)/

osäkerhetsfaktor K = 2,09 dB(A)

≤ 2,5 ~m / s^2

osäkerhet K = 1,5 m/s²

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

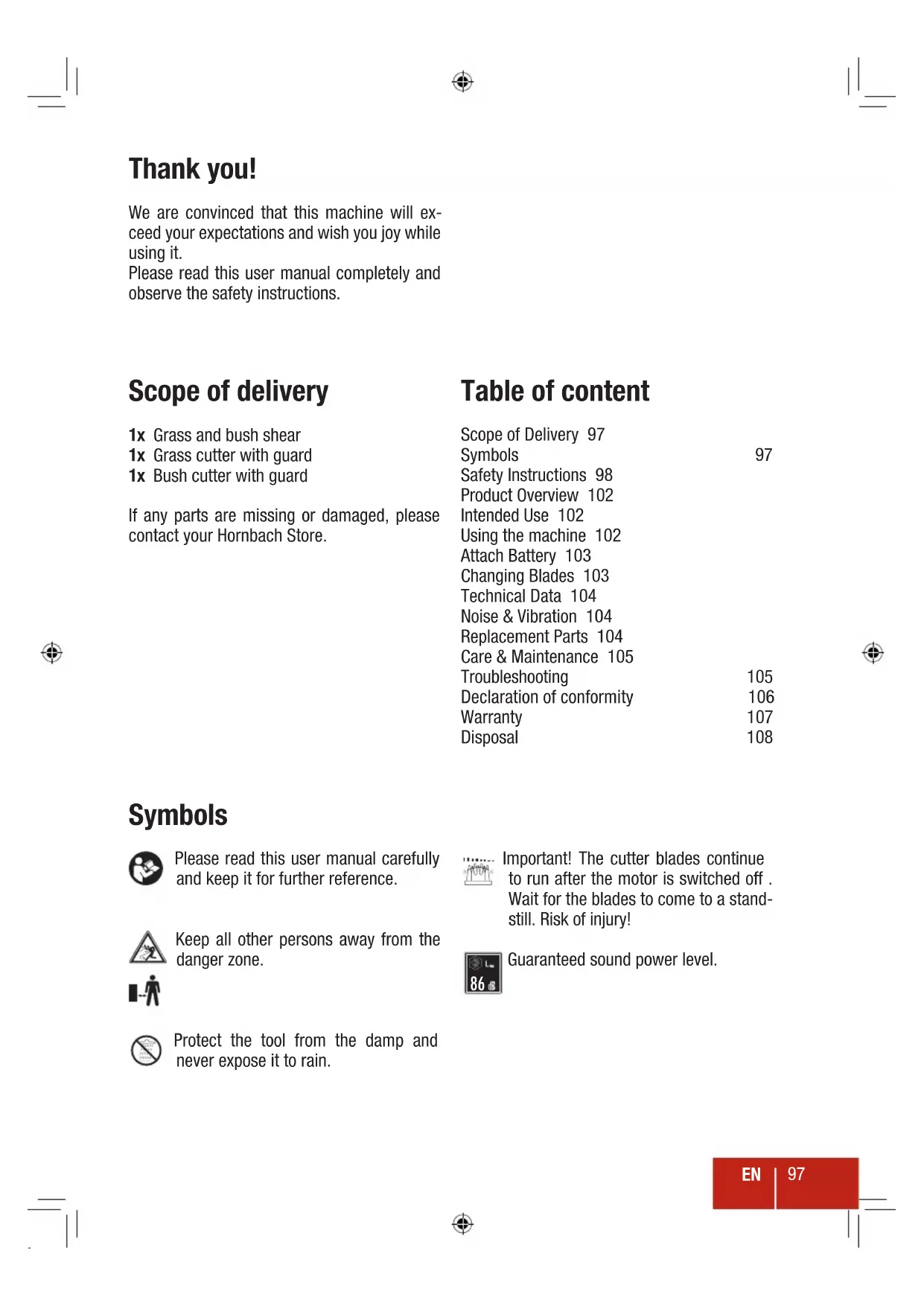

We are convinced that this machine will exceed your expectations and wish you joy while using it.

Please read this user manual completely and observe the safety instructions.

Scope of delivery

1x Grass and bush shear
1x Grass cutter with guard
1x Bush cutter with guard

If any parts are missing or damaged, please contact your Hornbach Store.

Table of content

Scope of Delivery 97

Symbols 97

Safety Instructions 98

Product Overview 102

Intended Use 102

Using the machine 102

Attach Battery 103

Changing Blades 103

Technical Data 104

Noise & Vibration 104

Replacement Parts 104

Care & Maintenance 105

Troubleshooting 105

Declaration of conformity 106

Warranty 107

Disposal 108

Symbols

Please read this user manual carefully and keep it for further reference.

Keep all other persons away from the danger zone.

Protect the tool from the damp and never expose it to rain.

Important! The cutter blades continue to run after the motor is switched off. Wait for the blades to come to a standstill. Risk of injury!

Guaranteed sound power level.

EN

97

Safety Instructions

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1 WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2 ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) If operating a power tool in a damp loca-

tion is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3 PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become

complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4 POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not

allow for safe handling and control of the tool in unexpected situations.

5 BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6 SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

7SAFETYINSTRUCTIONSFORGRASS SHEARS

a) Before you begin your work, examine the material you want to cut. Remove any foreign bodies. Keep a continuous watch out for foreign bodies while you are working. If you come across any foreign bodies while cutting, turn off the device (release the ON button) and remove the items in question.

b) Keep the device at a suitable distance from your body while working. Only switch on the device when all parts of the body are well out of the way.
c) Make sure that no people or animals ever come within the working or swiveling range of the device.
d) Only use the device in broad daylight or make sure that you provide adequate artificial light.

Important! The cutting tools continue running on after the device has been switched off.

e) When the device is not in use, make sure that it is stored in such a way that there is no risk of hands coming into contact with the cutting blades.
f) If the cutting blades get jammed while cutting, turn off the device (release the ON button) and remove the object in question (thick branch, foreign body) with a suitable blunt aid. Never remove any such objects with your fingers as the pretensioned blade can cause serious injuries through cutting.
g) Keep the air vents clean.
h) Keep the charging cable away from the blades. Never use the device with the charging cable plugged in.
i) We recommend that you use a socket with a residual current device with maximum 30mA tripping current for the charger.
j) Never attempt to remove the cuttings with the motor running or to hold material you wish to cut. Always switch off the device before attempting to remove any jammed cuttings.
k) Make sure you keep all parts of your body away from the blade. Never attempt to remove the cuttings with the blade running or to hold the material you wish to cut. Always switch off the equipment before attempting to remove any jammed cuttings. A single moment of carelessness when using the hedge trimmer can result in serious injuries.
I) Carry the hedge trimmer by its handle with the blades at a standstill. Always fit the protective cover when transporting the hedge

trimmer or putting it into storage. Careful handling of the equipment reduces the likelihood of injury by the blade.

m) Hold the power tool by the insulated handles because the blade may strike concealed power cables. Contact between the blade and a live cable can make the metal parts of the equipment live and cause an electric shock.
n) Hold the equipment correctly, for example with both hands if the equipment is fitted with two handles.
o) Make sure you stand squarely at all times while working. Be careful when walking backwards. Tripping hazard!
p) Never leave the equipment unsupervised in the work area. If you stop work for a while, leave the equipment in a safe place.
q) If you stop your work in order to go to another area to work, you must make sure that the equipment is switched off while you are going there.
r) Make sure you maintain a steady foothold on inclines at all times; walk – do not run.
s) It is prohibited to work when there is a risk of bad weather or lightning.
t) Ensure that somebody is in the vicinity (but at a safe distance) in case of an accident.

Warning! The switching arrangements installed on the tool by the facturer must not be removed or by d, e.g. by fitting a switching button to handle, as this may result in risk of in-nd the tool will no longer switch off atically.

Do not lose this safety Information.

GENERAL SAFETY INSTRUCTIONS

a) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

b) Children should be supervised to ensure that they do not play with the appliance. Familiarize yourself with the operator controls and proper operation of the machine. Local regulations may set minimum age requirements for the user.
c) Always keep in mind that the operator or user of the equipment is responsible for accidents or risks involving other persons or their property.
d) Never use the machine with safety devices which are damaged or fitted in the wrong position.
e) Beware of injuries to your feet and hands by the cutting mechanism.
f) Use only spare parts and accessories which are recommended by the manufacturer.

ADDITIONAL SAFETY INSTRUCTIONS ON RISKS DUE TO VIBRATION

a) The declared vibration data represents the main applications of the appliance, but different uses of the appliance or poor maintenance can result in different vibration data. This may significantly increase the vibration level over the total working period.
b) Additional safety measure shall be taken to protect the user from effects of vibration. Maintain the appliance and its accessories, keep hands warm and organize work patterns and periods.

FOR USE OF BATTERIES

a) Do not open, dismantle, shred or short-circuit batteries. Danger of explosion.
b) Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Protect from mechanical shock. Keep dry and clean. Keep away from children.
c) Dispose of properly. Pay attention to environmental aspects of battery disposal. Do not dispose of in household waste.
d) Remove batteries when not using the tool for a longer period of time.
e) In case of battery leakage, remove the batteries and clean the battery compartment

thoroughly. Avoid contact with skin and eyes.

f) In case of damage and improper use of the battery, Vapours may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapours can irritate the respiratory system.

Product overview

1 Handle
2 Blade release lever
3 Grass cutter blade
4 Grass cutter guard
5 Bush cutter blade
6 Bush cutter guard
7 Safety lock-off
8 On/Off switch
9 Battery slot

Using the machine

Cutting grass

The grass cutter can be used to cut edges of lawns and small areas of grass. The best results are achieved when the lawn is dry.

1. Mount the grass cutter blade 3 to the machine and take off the grass cutter guard 4.
2. Press the safety lock-off 7 and press the on/off switch 8 at the same time to start the machine.
3. Guide the grass cutter above the ground.
4. Watch out for foreign objects in or on the grass which could damage the blades.

Intended use

This garden tool is

• intended for cutting and trimming grass, hedges and bushes which have maximum branch thickness of 8 mm;
  – designed for maintaining grass, hedges and bushes in the private sector,
• to use according to the descriptions and safety instructions indicated in this operating manual.

The appliance is not intended for commercial use. Any other use 'or modification to the appliance is considered as improper use and could cause considerable dangers.

Trimming bushes

When is the best time to trim bushes? As a general rule, bushes which lose their leaves in the autumn should be trimmed in June and October. Bushes which do not lose their leaves should be cut in April and August. The best results are achieved when the bush is dry.

1. Mount the bush cutter blade 5 to the machine and take off the bush cutter guard 6.
2. Press the safety lock-off 7 and press the on/off switch 8 at the same time to start the machine.
3. Guide the bush cutter to the bush and watch out for foreign objects in or on the bush which could damage the blades.
4. When you notice a drop in cutting performance, re-charge the tool immediately so that the battery does not become fully discharged.

INSTALL GRASS CUTTER BLADE

1 Attach the rear end of the grass cutter blade 3 into the machine, press the blade release lever 2 and push the blades upwards until they click in place.

INSTALL BUSH CUTTER BLADE

2 Attach the rear end of the bush cutter blade 5 into the machine, press the blade release lever 2 and push the blades upwards until they click in place.

Caution! Make sure the machine is switched off and the battery is removed.

CHANGE THE BLADES

1 Press the blade release lever 2 to release the installed blade.

SWITCH ON / OFF

2 Press the safety lock-off 7 and hold pressed while pressing the on/off switch 8 to start the machine.

Caution! The blade will fall out when the blade release lever is led!

ATTACH BATTERY

1 Slide the battery into the battery slot 9.

RELEASE BATTERY

2 Press the release switch on the battery and remove the battery.

Caution! Only use the intended battery with the machine.

GUARDS

1 If the blades are not used or stored, make sure that the guard is installed.

Caution! To prevent injuries, slide the blade guard over the blade

Technical Data

Type Grass and bush shear

Nominal voltage 18 V

No-load speed (n₀) 1200/min

Cutting width of grass cutter 100 mm

Cutting length of bush cutter 200 mm

Maximum branch thickness 8 mm

Protection Class III

Net weight 0.66 kg

Sound pressure level ( L_pA ) 63.4 dB(A) /

Uncertainty K = 2.09 dB(A) Measured sound power level ( L_WA ) 83.4 dB(A) /

Uncertainty K = 2.09 dB(A) Max. vibration emission ( a_hw ) ≤ 2.5 m/s ^2

Uncertainty K = 1.5 m/s ^2

Please observe the article number on the type plate of the appliance. The trade names of the individual appliance may vary.

Noise & Vibration

The values given in these instructions have been measured in accordance with a standardized measurement procedure specified in EN 60745 and can be used to compare appliances.

It may be used for a preliminary assessment of exposure.

Warning! The vibration emission during actual use can differ from the declared total value depending on the use of the appliance.

Replacement parts

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required

Care & Maintenance

Warning! Make sure the appliance is switched off and the battery is re-

• Once you have removed the blade you will be able to see the toothed wheels of the gear unit. Make sure that no dirt gets into the gear unit when you change the blade.
• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• Clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap.
• Never use cleaning agents or solvents; these could attack the plastic parts of the equipment.
• Ensure that no water can seep into the device.
• A few drops of oil (e.g. sewing machine oil) will improve the cutting performance of the blades.

Caution! Never clean the tool under running water - and particularly with high pressure - because of the social danger to persons and property. Your cordless grass cutter and hedge enter in a dry and frostproof place. We are a place that children are unable to

• Never apply any grease to the blades.
• Keep the blades sharp at all times to achieve good results.
• In particular we recommend that you immediately level off any jags or ridges caused by stones or the like.
• The tool should be thoroughly cleaned both before and after use.
• There are no parts inside the equipment which require additional maintenance.

Troubleshooting

Warning! Make sure the appliance is switched off and the battery is removed. Always wear protective gloves.

Problem Possible cause Solution

Motor does not run The battery is empty Recharge the battery

Power turned off Turn power on

If the device still does not work even with a voltage supply, please send it to our customer services department at the address indicated.

Declaration of Conformity

CE We declare, that the product described in Technical Data:

Pattfield® ERGO TOOLS

18 V Battery Grass and Bush Shear PE-AGS 18 Li Basic

manufactured for:

Hornbach Baumarkt AG Hornbachstraße 11 76879 Bornheim / Germany

is in conformity with the following directives:

Machinery Directive 2006/42/EC Outdoor Directive 2000/14/EC EMC Directive 2014/30/EU

and in accordance to the following applicable harmonized standards:

EN 60745-1:2009+A11 EN 60745-2-15:2009+A1 EN 60335-1:2012+A11 EN 50636-2-94:2014 EN 62233:2008 EN 55014-1:2006+A2 EN 55014-2:1997+A2

The conformity with the Noise Emission of Outdoor Equipment Directive is verified by the conformity assessment procedure according to annex V, and the Directive 2005/88/EC.

Measured sound power level: 83.4 dB (A) Guaranteed sound power level: 86 dB (A)

A. Judous Faulk

Andreas Back Head of Quality Management, environment & CSR Person authorised to compile the technical file

This Pattfield item has been produced according to state-of-the-art production methods and is subject to ongoing strict quality control. Hornbach Baumarkt AG, Hornbachstrasse 11, 76879 Bornheim, Germany, guarantees the quality of the machines according to the following terms and conditions.

1. Warranty Period

The warranty period is 3 years. The warranty period starts on the date of purchase. Please retain the original receipt or invoice in order to be able to furnish evidence of the date of purchase.

2. Warranty Scope

The warranty applies exclusively to production or material defects. The warranty applies only in the case of private use of the item.

The warranty does not apply to defects resulting from

• misuse or improper use,
• use of force or external influences,
• damage due to failure to observe the installation instructions or instructions for use,
• connecting to an incorrect grid voltage or current type,
  • unprofessional installation,
  • overloading the device,
• use of non-approved attachments or accessories,
• failure to observe the maintenance and safety instructions,
• entry of foreign matter into the device,
• wear and tear due to normal use or
• commercial use.

Furthermore, the warranty does not cover damage to parts subject to wear and tear, which is caused by normal wear and tear. The warranty does not comprise any collateral or consequential damage or possible installation and dismantling costs in the event of a warranty incident.

3. Warranty Services

During the warranty period, the warrantor will inspect the defective item in order to determine whether a warranty incident is on hand. If a warranty incident is on hand, the warrantor will repair or replace the item at his own expense. If the item is no longer available at the time of the warranty incident, the warrantor may replace the item with a similar product. The replaced item or part shall become property of the warrantor.

Warranty services (repair or replacement) do not extend the warranty period. Warranty services do not result in any new warranty.

4. Warranty Claims

For warranty claims, please contact the nearest HORNBACH DIY store.

You can find it at www.hornbach.com.

Warranty claims will only be accepted if the original receipt or invoice is produced.

5. Statutory Rights

The warranty does not restrict your statutory rights regarding warranty and product liability.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Such equipment may contain dangerous and hazardous substances. These tools must be returned to a designated collection point for the recycling of WEEE and must not be disposed as unsorted municipal waste. By doing so, you will help to conserve resources and protect the environment. Contact your local authorities for more information.

Children must not play with plastic bags and packaging material, due to possible injury or danger of suffocation. Store such material safely or dispose of environmentally friendly.

Used batteries must be disposed of properly. Battery selling stores and municipal collection points offer special containers for battery disposal.
