USER MANUAL TB 5300 Testboy

Line drawing of a handheld electronic device with control buttons and display screen (no text or symbols)

Testboy® TB 5300

Version 1.0

Testboy® TB 5300 3

Bedienungsanleitung

Testboy® TB 5300 9

Operating instructions

Testboy® TB 5300 15

Cd = Cadmium, Hg = Quecksilber, Pb = Blei, Mn = Mangan, Li = Lithium.

Safety instructions 10

Intended use 10

Disclaimer 11

Disposal 12

Operation 13

Product description 13

Function 13

Max. / Min. / Avg. 13

Auto Power Off 13

DATA HOLD function 13

Backlight 13

Change units 13

Cleaning 13

Maintenance 14

Battery change

14

Technical data

14

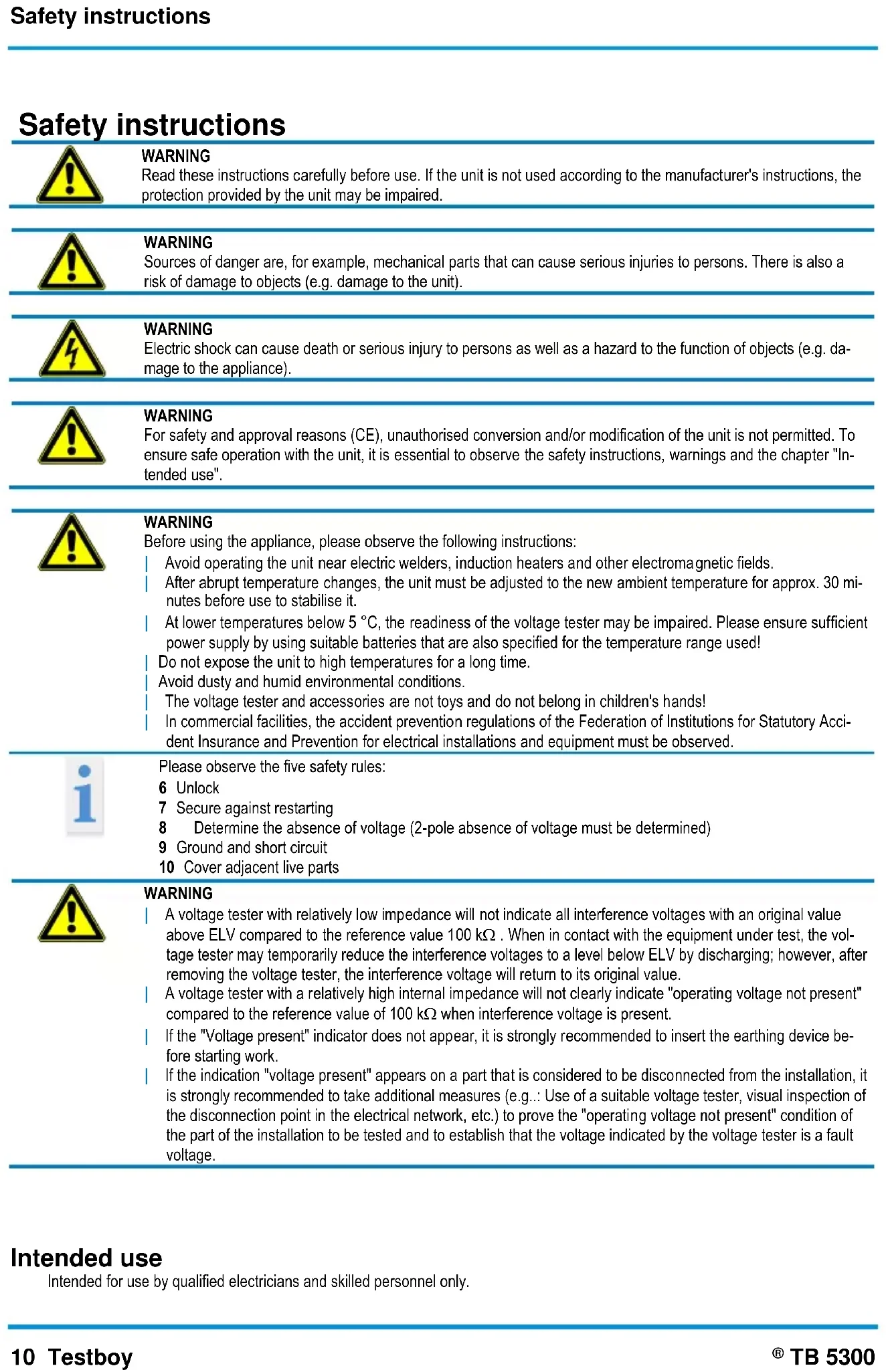

Safety instructions

	WARNINGRead these instructions carefully before use. If the unit is not used according to the manufacturer's instructions, the protection provided by the unit may be impaired.
	WARNINGSources of danger are, for example, mechanical parts that can cause serious injuries to persons. There is also a risk of damage to objects (e.g. damage to the unit).
	WARNINGElectric shock can cause death or serious injury to persons as well as a hazard to the function of objects (e.g. damage to the appliance).
	WARNINGFor safety and approval reasons (CE), unauthorised conversion and/or modification of the unit is not permitted. To ensure safe operation with the unit, it is essential to observe the safety instructions, warnings and the chapter "Intended use".
	WARNINGBefore using the appliance, please observe the following instructions:Avoid operating the unit near electric welders, induction heaters and other electromagnetic fields.After abrupt temperature changes, the unit must be adjusted to the new ambient temperature for approx. 30 minutes before use to stabilise it.At lower temperatures below 5 °C, the readiness of the voltage tester may be impaired. Please ensure sufficient power supply by using suitable batteries that are also specified for the temperature range used!Do not expose the unit to high temperatures for a long time.Avoid dusty and humid environmental conditions.The voltage tester and accessories are not toys and do not belong in children's hands!In commercial facilities, the accident prevention regulations of the Federation of Institutions for Statutory Accident Insurance and Prevention for electrical installations and equipment must be observed.
[k5w3]	Please observe the five safety rules:6 Unlock7 Secure against restarting8 Determine the absence of voltage (2-pole absence of voltage must be determined)9 Ground and short circuit10 Cover adjacent live parts
	WARNINGA voltage tester with relatively low impedance will not indicate all interference voltages with an original value above ELV compared to the reference value 100 kΩ . When in contact with the equipment under test, the voltage tester may temporarily reduce the interference voltages to a level below ELV by discharging; however, after removing the voltage tester, the interference voltage will return to its original value.A voltage tester with a relatively high internal impedance will not clearly indicate "operating voltage not present" compared to the reference value of 100 kΩ when interference voltage is present.If the "Voltage present" indicator does not appear, it is strongly recommended to insert the earthing device before starting work.If the indication "voltage present" appears on a part that is considered to be disconnected from the installation, it is strongly recommended to take additional measures (e.g.: Use of a suitable voltage tester, visual inspection of the disconnection point in the electrical network, etc.) to prove the "operating voltage not present" condition of the part of the installation to be tested and to establish that the voltage indicated by the voltage tester is a fault voltage.

Intended use

Intended for use by qualified electricians and skilled personnel only.

The unit is only intended for the applications described in the operating instructions, such as AC voltage, DC voltage and continuity tests, phase and rotating field tests. Any other use is not permitted and may lead to accidents or destruction of the unit. Such misuse will immediately void any warranty and guarantee claims of the operator against the manufacturer.

Anyone using this tester should be properly trained and familiar with the special voltage testing hazards encountered in an industrial environment, the necessary safety precautions, and the procedures for verifying proper operation of the tester before and after each use.

To protect the unit from damage, remove the batteries if the unit will not be used for a long time.

We accept no liability for damage to property or personal injury caused by improper handling or non-observance of the safety instructions. In such cases, all warranty claims are void. An exclamation point within a triangle is intended to alert the user to the presence of safety precautions in the user manual. Read the instructions completely before using the appliance. This unit is CE-approved and therefore complies with the required directives.

Rights reserved to change specifications without prior notice © 2023 Testboy GmbH, Germany.

Disclaimer

In case of damage caused by non-observance of the instructions, the warranty claim is void! We accept no liability for consequential damage resulting from this!

Testboy is not liable for damage resulting from

failure to observe the instructions
from Testboy unapproved changes to the product or
from Testboy Spare parts not manufactured or not approved
Are caused by the influence of alcohol, drugs or medication

result.

Correctness of the operating instructions

These operating instructions have been prepared with great care. No responsibility is taken for the correctness and completeness of the data, illustrations and drawings. Changes, misprints and errors excepted.

Disposal

Dear Testboy-customer, with the purchase of our product you have the option of returning the device to suitable collection points for electronic waste at the end of its life cycle.

WEEE regulates the take-back and recycling of waste electrical equipment. Manufacturers of electrical appliances are obliged to take back and recycle electrical appliances that are sold free of charge. Electrical appliances may then no longer be placed in the "normal" waste streams. Electrical equipment must be recycled and disposed of separately. All appliances covered by this directive are marked with this logo.

Disposal of used batteries

As the end user, you are legally obliged (Battery Act) to return all used batteries and rechargeable batteries;

Disposal with household waste is prohibited!

Batteries/rechargeable batteries containing harmful substances are marked with the adjacent symbols indicating that they must not be disposed of with household waste.

The designations for the decisive heavy metal include:

Cd = cadmium, Hg = mercury, Pb = lead, Mn = manganese, Li = lithium.

You can hand in your used batteries/rechargeable batteries free of charge at the collection points of your municipality or wherever batteries/rechargeable batteries are sold!

Quality certificate

All within the Testboy GmbH are permanently monitored by a quality management system. The Testboy GmbH also confirms that the test equipment and instruments used during calibration are subject to permanent test equipment monitoring.

Declaration of conformity

The product complies with the latest directives. For more information, please visit www.testboy.de

Operation

Thank you for choosing the Testboy ^® TB 5300, a multi-channel thermometer with LCD display. Four temperature measurements can be carried out simultaneously. It is possible to measure maximum, minimum, average and real-time values.

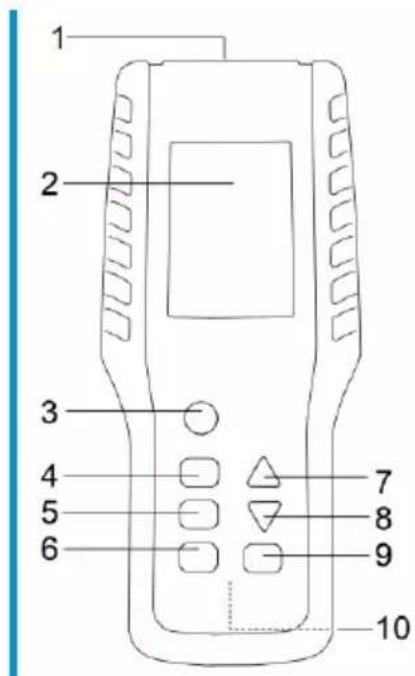

Product description

1. Connection sockets
2. LCD
3. Power on/off button
4. Data Hold button
5. Button for changing the units
6. Backlight
7. Max. Value key
8. Min. value key
9. Mean value key
10. Battery compartment

1 2 3 4 5 6 7 8 9 10

Function

To switch on the unit, simply press the power button.

In stand-by mode, the display shows T1 to T4 and "----". If a sensor is connected, a temperature is displayed for the corresponding connection.

Max. / Min. / Avg.

The Max., Min. and Avg. keys can be used to display the minimum values, maximum values and average values. Pressing the corresponding key again takes you back to the real-time measurement.

Auto Power Off

The unit switches itself off after 10 minutes using the Auto Power Off mode to prolong the life of the batteries.

DATA HOLD function

By briefly pressing the Hold key, a test value can be stored on the LC display. The "DATA HOLD" function is shown on the display field and can be switched off again by briefly pressing the same key again.

Backlight

The display backlight is normally off and can be switched on by pressing a button. It switches off automatically after a few seconds to save battery power.

Change units

The Unit key can be used to change the measuring units. There are the measuring units °C, °F and °K.

Cleaning

If the unit has become dirty through daily use, the unit can be cleaned with a damp cloth and some mild household cleaner. Never use harsh cleaners or solvents for cleaning.

To avoid electrical shock and damage to the meter, do not allow moisture to enter the housing.

Maintenance

The unit does not require any special maintenance except for the batteries when operated according to the instruction manual.

Battery change

If the batteries have run down, the device may switch off. Please change the batteries immediately to ensure the accuracy of the test values. To change the batteries, open the battery compartment. To do this, loosen the screw using a suitable screwdriver. Make sure that the polarity is correct when using the new batteries. Carefully close the battery compartment and screw it back in.

Batteries do not belong in household waste. There is also a collection point near you!

Technical data

Display	backlit LC display
Measuring range	-200 ... +1372°C / -328 ... +2501°F
Tolerances	>100°C (±1°C / 1°F)<100°C (±2°C / 3.6°F)
Resolution	>1000°C = 1°C/°F/°K<1000°C = 0.1°C/°F/°K
Connection options	4x K-Type
Data Hold	Yes
Min./Max./Avg.	Yes
Temperature units	°C, °F, °K
Auto Power Off	Yes (10 min.)
Dimensions	200 x 85 x 38 mm
Weight	275 g
Power supply	1x 9 V block
