TV 329 - Thermometer Testboy - Free user manual and instructions

Product type	Non-contact infrared thermometer
Brand	Testboy
Model	TV 329
Measuring range	-50 °C to +550 °C (-58 °F to +1022 °F)
Accuracy (IR) -20~550 °C	±2% or 2 °C
Accuracy (IR) -50~-20 °C	±5 °C
Emissivity	0.95 (fixed)
Distance to spot ratio (D:S)	12:1
Power supply	2 AA 1.5 V batteries
Dimensions (L × H × D)	86 × 160 × 46 mm
Weight (batteries included)	approx. 130 g
Display	LCD screen with backlight
Main functions	Deactivatable targeting laser, Data-Hold, °C/°F switching
Operating temperature	0-45 °C, <90% RH (non-condensing)
Storage temperature	-20...60 °C, <80% RH (without batteries)
Included accessories	User manual
Maintenance and cleaning	Clean the housing with a dry cloth without any cleaning agent. Blow off the IR lens and brush with a fine brush.
Safety	Do not point the laser at eyes. Avoid moisture inside the housing.
Battery replacement	Open the compartment, observe polarity (+/-). Remove batteries if not used for an extended period.
General information	CE approved device. Do not dispose of with household waste. Recycle via WEEE.

Frequently Asked Questions - TV 329 Testboy

How to measure temperature with the Testboy TV 329?

Point the IR sensor opening at the object and press the measurement button. Ensure the measurement spot size is smaller than the object. Release the button to hold the displayed value (Data-Hold function).

How to activate the targeting laser?

Press the laser button (laser symbol) when the device is on until the laser symbol appears on the screen. The laser turns on when you press the trigger. To deactivate, press the laser button again until the symbol disappears.

What is the accuracy of the thermometer?

For measurements between -20 and +550 °C, the accuracy is ±2% or ±2 °C (whichever is greater). Between -50 and -20 °C, it is ±5 °C.

How to switch from Celsius to Fahrenheit?

Use the '°C' and '°F' buttons on the device to switch the display unit.

What batteries to use for the TV 329?

Use two AA 1.5 V batteries (alkaline type recommended). Observe the polarity indicated in the compartment.

How to clean the device and the lens?

Clean the housing with a dry cloth without any cleaning agent. For the IR lens, blow off dust then gently brush with a fine lens brush.

What does the 'HD' display on the screen mean?

'HD' stands for Data Hold. It appears after releasing the trigger to indicate that the last measured value is held on the screen for about 10 seconds.

Can you measure temperature through glass or other transparent surfaces?

No, transparent surfaces like glass are not measured directly. The device measures the temperature of the glass surface, not the object behind it.

What is the measurement spot size depending on distance?

The distance to spot ratio is 12:1. For example, at a distance of 100 cm, the spot has a diameter of about 8.5 cm. The measured object must be at least twice as large as the spot.

How to adjust the emissivity?

The emissivity is fixed at 0.95 and cannot be changed. For shiny or metallic surfaces, apply black paint or adhesive tape to improve accuracy.

USER MANUAL TV 329 Testboy

Line drawing of a handheld medical or thermal scanner device (no text or symbols)

Testboy TV 329

Version 1.0

de Testboy TV 329 3

Bedienungsanleitung

en Testboy TV 329 13

Operating Instructions

fr Testboy TV 329 23

Table of Contents 13

Safety instructions 14

General safety instructions 14

Operation 18

Operation 18

Product description 18

Maintenance and cleaning 18

Safety 19

Battery change 19

Device explanation 20

Temperature measurement 20

Functions 21

Target laser 21

Spot size - Distance to Spot Ratio (D/S) 21

°C/°F changeover 21

Emissivity 21

Technical data 22

Safety instructions

WARNING

Sources of danger are, for example, mechanical parts that can cause serious injuries to persons. There is also a risk of damage to objects (e.g. damage to the unit).

WARNING

Electric shock can cause death or serious injury to persons as well as a hazard to the function of objects (e.g. damage to the appliance).

WARNING

Never point the laser beam directly or indirectly at the eye through reflective surfaces. Laser radiation can cause irreparable damage to the eye. When measuring near people, the laser beam must be deactivated.

General safety instructions

WARNING

For safety and approval reasons (CE), unauthorised conversion and/or modification of the unit is not permitted. To ensure safe operation with the unit, it is essential to observe the safety instructions, warnings and the chapter "Intended use".

WARNING

Before using the appliance, please observe the following instructions:

Avoid operating the unit near electric welders, induction heaters and other electromagnetic fields.
After abrupt temperature changes, the unit must be adjusted to the new ambient temperature for approx. 30 minutes before use to -stabilise the IR sensor.
Do not expose the unit to high temperatures for a long time.
Avoid dusty and humid environmental conditions.
Measuring instruments and accessories are not toys and do not belong in children's hands!
In commercial facilities, the accident prevention regulations of the Federation of Institutions for Statutory Accident Insurance and Prevention for electrical installations and equipment must be observed.

Intended use

The unit is only intended for the applications described in the operating instructions. Any other use is not permitted and may lead to accidents or destruction of the unit. These applications lead to an immediate expiry of any guarantee and warranty claims of the operator against the manufacturer.

To protect the unit from damage, please remove the batteries if the unit will not be used for a long time.

We accept no liability for damage to property or personal injury caused by improper handling or non-observance of the safety instructions. In such cases, any warranty claim becomes void. An exclamation point within a triangle is intended to alert the user to the presence of safety precautions in the user manual. Read the instructions completely before using the appliance. This unit is CE-approved and therefore complies with the required directives.

Rights reserved to change specifications without notice © 2022 Testboy GmbH, Germany.

Disclaimer

In case of damage caused by non-observance of the instructions, the warranty claim is void! We accept no liability for consequential damage resulting from this!

Testboy is not liable for damage resulting from

failure to observe the instructions
unapproved changes to the product or
Spare parts not manufactured or not approved by Testboy
the influence of alcohol, drugs or medication

Correctness of the operating instructions

These operating instructions have been prepared with great care. No responsibility is taken for the correctness and completeness of the data, illustrations and drawings. Changes, misprints and errors excepted.

Disposal

Dear Testboy-customer, with the purchase of our product you have the option of returning the device to suitable collection points for electronic waste at the end of its life cycle.

WEEE regulates the take-back and recycling of waste electrical equipment. Manufacturers of electrical appliances are obliged to take back and recycle electrical appliances that are sold free of charge. Electrical appliances may then no longer be placed in the "normal" waste streams. Electrical equipment must be recycled and disposed of separately. All appliances covered by this directive are marked with this logo.

Disposal of used batteries

As the end user, you are legally obliged (Battery Act) to return all used batteries and rechargeable batteries; disposal with household waste is prohibited!

Batteries/rechargeable batteries containing harmful substances are marked with the adjacent symbols indicating that they must not be disposed of with household waste.

The designations for the decisive heavy metal are:

Cd = cadmium, Hg = mercury, Pb = lead.

You can hand in your used batteries/rechargeable batteries free of charge at the collection points of your municipality or wherever batteries/rechargeable batteries are sold!

Quality certificate

All within the Testboy GmbH are permanently monitored by a quality management system. The Testboy GmbH also confirms that the test equipment and instruments used during calibration are subject to permanent test equipment monitoring.

Declaration of conformity

The product complies with the latest directives. For more information, please visit www.testboy.de

Operation

Thank you for choosing the Testboy TV 329 you have chosen. Testboy TV 329 is a measuring instrument for non-contact temperature measurement. It was built according to the current state of the art.

Operation

The intended use includes the non-contact measurement of temperatures from -50 to +550 °C. Only 1.5 V AA batteries or identical types may be used for the power supply.

Product description

Non-contact temperature measurement is ideal on rotating or live parts, etc., as conventional contact temperature measurement is not possible on such parts. The device features fast response time and a high temperature measuring range in a robust and practical pistol housing. The data hold function allows the measured value to be stored for a short time. Furthermore, the device is equipped with a laser that can be switched off and a backlight.

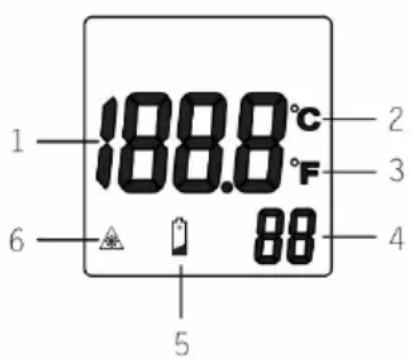

Display

1. temperature
2. celsius
3. fahrenheit
4. SC: active measurement
   HD: data hold
5. battery status
6. laser warning

1 188.8°C 2 3 6 88 4 5

Maintenance and cleaning

To avoid electric shocks, do not allow moisture to enter the housing.

Clean the housing at regular intervals with a dry cloth without cleaning agents. Do not use abrasives, scouring agents or solvents.
Blow loose dirt particles off the IR lens. Brush off any remaining dirt with a fine lens brush.

Safety

When the units are open, remember that some internal capacitors may still have life-threatening voltage potential even after they have been switched off.

If any faults or abnormalities are found, take the unit out of service and ensure that it cannot be used until it has been checked.

Battery change

If the unit is not to be used for a long period of time, remove the batteries and store the unit in an environment that is not too humid or too hot.

Do not leave used batteries in the meter, as even leak-proof batteries can corrode, releasing chemicals that can harm your health or destroy the meter.

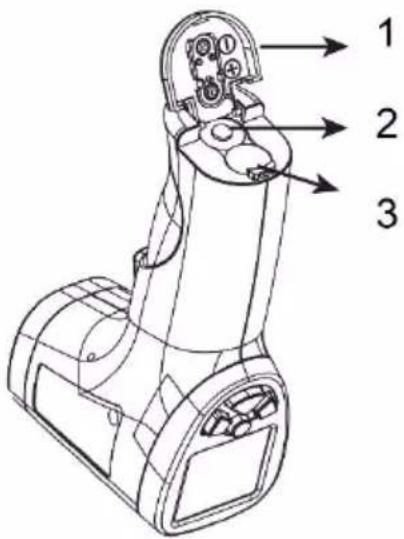

Procedure

1. Open battery compartment
2. Positive battery terminal
3. Negative battery terminal
   Then close the battery compartment.

Technical diagram of a robotic device with numbered parts labeled 1, 2, and 3

Batteries do not belong in household waste. There is also a collection point near you!

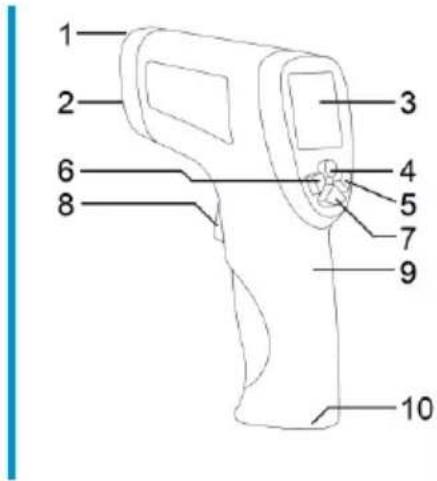

Device explanation

1. Laser
2. Infrared sensor
3. LCD
4. Backlight button
5. Fahrenheit key
6. Celsius button
7. Laser button
8. Measurement trigger
9. Housing
10. Battery compartment

1 2 3 4 5 6 7 8 9 10

Temperature measurement

To measure temperatures, point the aperture of the IR sensor at the object to be measured and press the temperature measurement button.

Make sure that the spot size is not larger than the object to be measured. The currently determined temperature value is shown in the LCD display. To locate the hottest spots of an object, the Testboy TV 329 is pointed at a point outside the desired area and the area is then "searched" with "zigzag" movements while holding down the temperature measurement button until the hottest spot is found. After you have released the key for temperature measurement, the temperature value determined is displayed for a few more seconds. During this time, "HD" is displayed. After these approx. 10 seconds, the unit switches itself off automatically to save battery capacity. Select the desired unit for the display (°C/°F). When the laser is switched on, the laser dot marks the approximate centre of the measuring area. This facilitates precise measurements.

Functions

Target laser

When the laser is switched on, the laser dot shows you approximately the centre of the measuring area. This makes it easier to take precise measurements. To activate the laser, press the "laser symbol button " when the unit is switched on until the laser symbol appears in the LCD display. If you now press the key for temperature measurement, the laser beam will indicate approximately the centre of the measuring spot. To deactivate, press the "laser symbol key " while the unit is switched on until the laser symbol goes out.

Spot size - Distance to Spot Ratio (D/S)

To obtain accurate measurement results, the object to be measured must be larger than the measuring surface of the infrared thermometer. The determined temperature is the average temperature of the measured area. The smaller the measuring object, the shorter the distance to the infrared thermometer must be. The exact measurement spot size can be found in the following diagram. This is also printed on the device.

For accurate measurements, the measuring object should be at least twice as large as the measuring spot!

D 1500 1000 500 S φ 125 φ 84 φ 42 Unit: mm D : S = 12 : 1

i.e. at a distance of 100 cm, the measuring surface has a size of approx. 8.5 cm.

°C/°F changeover

With the "°C" and "°F" keys, the temperature display can be switched between °C and °F.

Emissivity

The unit is preset to an emissivity of 0.95! The emissivity is a value used to describe the energy radiation characteristics of a material. The higher this value, the higher the

material's ability to emit radiation. Many organic materials and surfaces have an emissivity of about 0.95. Metallic surfaces or shiny materials have a lower emissivity. More accurate readings can be obtained by masking the measurement point with black paint or tape. Measurements cannot be taken through transparent surfaces such as glass. Instead, the surface temperature of the glass surface is measured.

Technical data

Measuring range	-50 °C to +550 °C-58 °F to + 1022 °F
Storage temperature	-20...60 °C, < 80% rel. humidity, without batteries
Power supply	2 × 1.5 V AA
Working temperature	0-45 °C, < 90 % rel. humidity, non-condensing
Accuracy (IR) -50~-20 °C	± 5 °C
Accuracy (IR) -20~550 °C	± 2% or 2 °C
Accuracy (IR) -58~-4 °F	± 9 °C
Accuracy (IR) -4~1022 °F	± 2% or 4 °F
Emission value	0,95
Battery status indicator	Battery symbol in the display
D:S ( Distance to Spot)	12:1
Dimensions	86 × 160 × 46 mm (W × H × D)
Weight	approx. 130 g incl. batteries
Display	LC display
Accessories	Operating instructions
