SGS Essential - Garage door opener SOMFY - Free user manual and instructions

Brand	Somfy
Model	SGS Essential
Product type	Swing garage door opener
Usage	Residential
Maximum door leaf dimensions	Height 2 m, Width 1.25 to 2.5 m
Maximum weight per leaf	250 kg
Power supply	230 V ~ 50 Hz
Standby consumption	4 W
Maximum consumption	600 W (with lighting)
Motor type	24 V DC, 120 W
Maximum frequency of maneuvers	20 cycles/day (10 cycles/day in solar mode)
Opening time	20 s minimum to 90°
Obstacle detection	Automatic, compliant with EN 12453
Thermal protection	Yes
Protection rating	IP44
Operating temperature	-20°C to +60°C
Built-in radio receiver	Yes, 433.42 MHz, range ~30 m
Number of memorizable remotes	16
Functions	Full opening, pedestrian opening, automatic closing, emergency stop
Optional accessories	Photoelectric cells, flashing light, backup battery, remote antenna, key switch, area lighting, solar power supply
Safety	Integrated opening stops, manual release, obstacle detection
Maintenance	Monthly check, clean optics, replace remote batteries
Spare parts	Use only genuine Somfy parts
Repairability	Contact Somfy support

Frequently Asked Questions - SGS Essential SOMFY

How to program an additional remote?

Press the button on the control electronics for 2 seconds, the indicator lights up. Place the remote on the target, then briefly press the desired button. The RADIO indicator lights up then goes off. The remote is memorized for full opening.

How to adjust the opening stop?

After powering on, use the remote to open the leaf to the desired position. Tighten the integrated opening stop with a 3 mm Allen key until contact, then 2 additional turns. Repeat for the other leaf.

What to do if the gate reopens at the end of closing?

Loosen the fixing brackets of the actuators on the leaves and shift them slightly towards the center of the gate. This adjusts the obstacle detection.

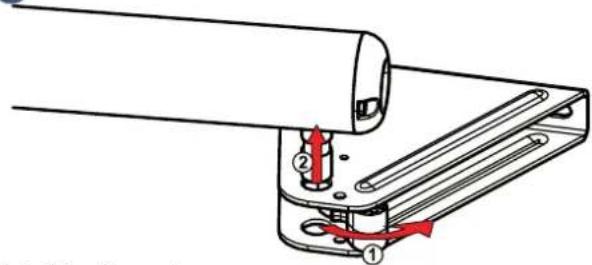

How to manually release the gate in case of power failure?

Unclip the release part on each actuator and remove the actuator from the leaf fixing bracket. The gate can then be operated manually.

Can I install a backup battery?

Yes, a backup battery is available as an option. It provides approximately 10 continuous cycles or 24 hours in standby. Connection is made to the BATT terminals on the control unit.

Is the motorization compatible with solar power?

Yes, a solar power supply is available as an option. Warning: never connect both mains and solar power simultaneously. In solar mode, wired controls are disabled, only remotes and safety accessories remain active.

What is the recommended maintenance frequency?

Check the condition of cables and mounting monthly, and test the obstacle detection with a 50 mm object. Clean the optics of photoelectric cells regularly if present.

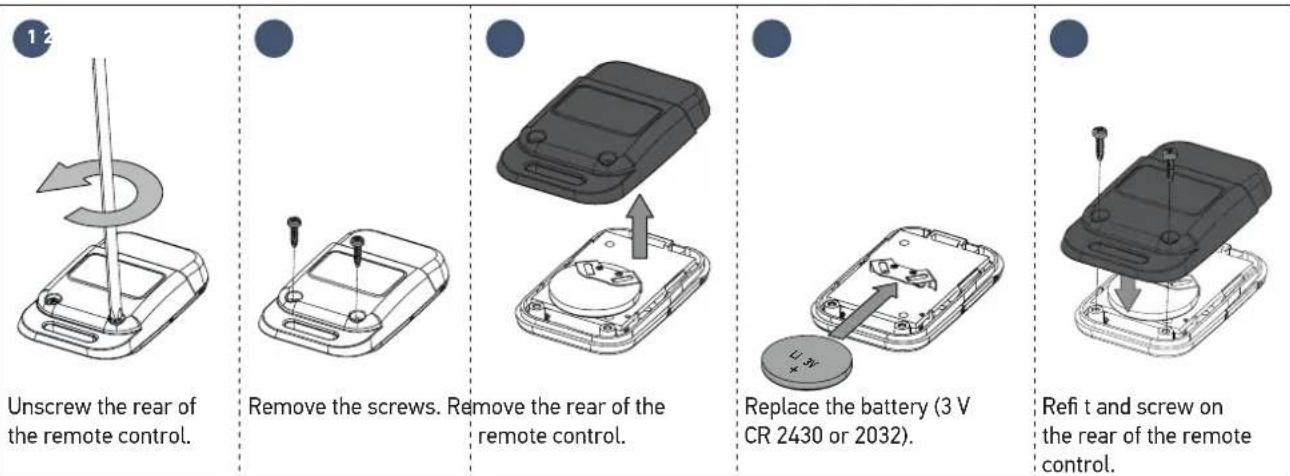

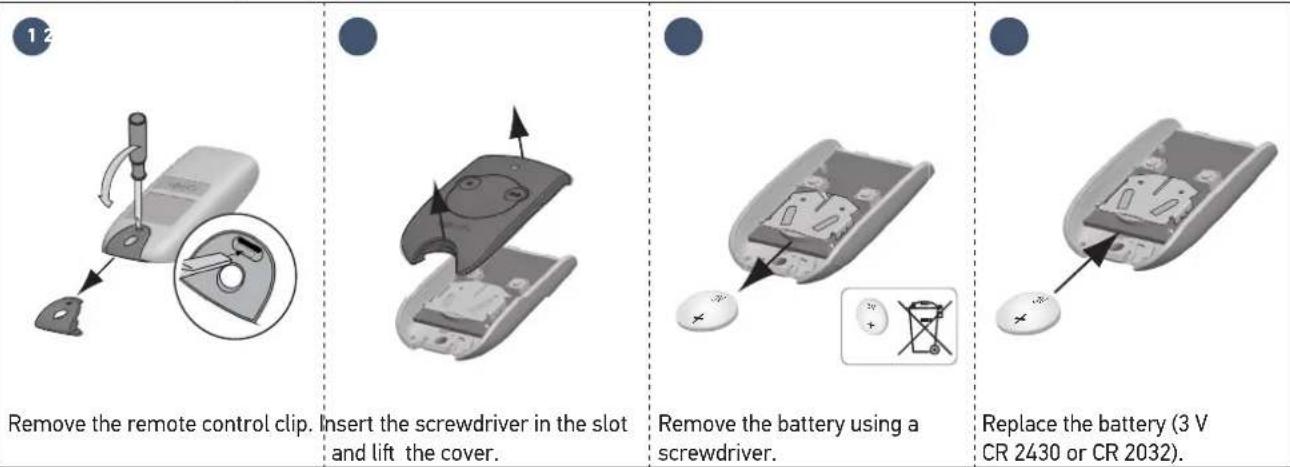

How to change the remote battery?

For 2 or 4-button remotes, remove the clip, lift the cover with a screwdriver, replace the battery with a CR2430 or CR2032. For the 3-button model, unscrew the back, replace the battery, then screw back.

What safety devices are included?

Built-in automatic obstacle detection (reverses movement during closing), integrated opening stops, stop during opening. Photoelectric cells and a flashing light are recommended for optimal safety.

What to do if the control box indicator flashes 3 times?

This indicates a photoelectric cell fault. Check that no obstacle blocks them, that they are properly aligned and wired. If they are intentionally disconnected, disable automatic closing via the indicated procedure.

USER MANUAL SGS Essential SOMFY

3D rendering of a metallic robotic device with multiple articulated arms and a separate external component (no text or symbols visible)

Sommaire

Diagram of a two-level mechanical or electrical apparatus with labeled Zone 5, showing no text, numbers, or symbols.

Simple line drawing of a hand pressing down on a rectangular object (no text or symbols)

Solution :

Diagram showing a human figure standing next to a vertical pole with a ruler, no text or symbols present

Warning sign with warning triangle, warning symbol, and warning triangle with hazard symbol

Solution :

Diagram of a smart air conditioner unit with labeled components including air filters, refrigerators, and control panels

A B C D E F G RADIO P1 RESET somfy.

Two simple line drawings of a door frame with slats, shown from different angles (no text or symbols)

Simple line drawing of a doorway with a small figure inside, no text or symbols present

Renforts

A < 0 cm A = 0 cm

1.2 Cas particulier

Diagram showing a mechanical assembly before and after modification, with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram of a handheld device with a vertical line and dotted alignment lines, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing showing a mechanical component before and after assembly, with no visible text or symbols

Technical line drawing of a cylindrical tank with internal components and a red arrow indicating downward motion (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Technical diagram showing a mechanical assembly with labeled parts ① and ②, likely illustrating a component or assembly.

Diagram of a lever system with two blocks and directional arrows indicating motion (no text or labels)

Fermer le portail.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with a tool inserted, no visible text or symbols

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of a handheld tool with a string and probe, connected to a wire, with no visible text or symbols.

Technical line drawing of a mechanical component with mounting holes and wiring (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Technical diagram showing mechanical assembly with red directional arrows and dimension labels like 150 and 45

Technical diagram of a device with labeled dimensions and components

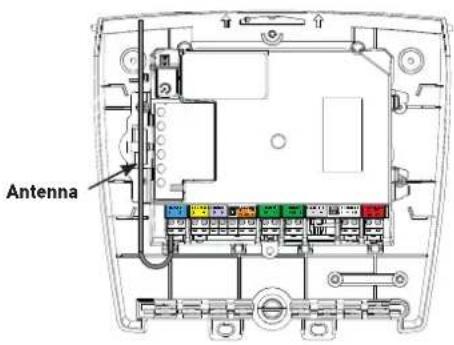

▶ Vérifi er la position de l'antenne

Technical diagram showing mechanical assembly with a red arrow indicating direction, no text or symbols present

Diagram illustrating a device's wireless signal transmission process, showing sensor input, signal output, and rotation.

Diagram showing a device emitting signal to a rectangular component, with a stop button labeled 'STOP'

Technical diagram showing mechanical assembly with a red arrow indicating rotation, no text or symbols present

Diagram illustrating a wireless signal transmission process with a device emitting signals and two rotating components.

Technical diagram showing a mechanical component with a red arrow pointing to a detailed inset image of internal components.

Diagram showing two steps of a device lock or latch mechanism with red arrows indicating rotation and adjustment.
    DXVXX["X"]

Technical diagram of an electrical device showing internal components and wiring (no text or labels)

Technical diagram showing a cable connection with labeled components including a 1-2 meter and an ANT terminal block.

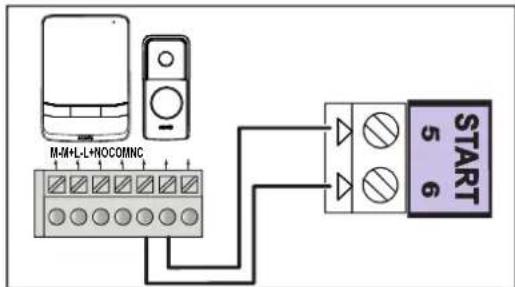

3.5 Visiophone (option)

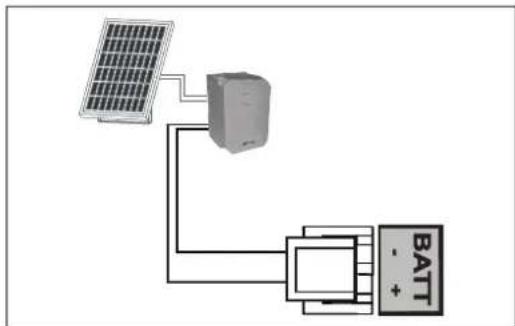

Diagram showing solar panel connected to a battery with labeled connection points

RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy. RADIO P1 RESET somfy. x2 RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy. RADIO P1 RESET somfy.

RADIO P1 RESET somfy. x2 RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

Medical device with needle insertion and magnified view of a tool (no text or symbols visible)

3D diagram of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Close-up of a computer mouse with a button and an inset showing a battery symbol (no text or labels)

Close-up of a computer mouse with an open lid and a small button labeled '+', no text or symbols present.

Diagram of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

3D diagram showing a device with a lid and internal casing, no text or symbols present

3D illustration of a smartphone showing internal components and a circular button with an 'X' symbol (no text or labels)

3D diagram of a device with a lid and base, showing internal components and mounting points (no text or symbols)

RADIO P1 RESET somfy.

Technical diagram showing a mechanical assembly with labeled parts and red arrows indicating motion or force directions.

Technical diagram showing a mechanical assembly with labeled parts and red arrows indicating motion or force directions.

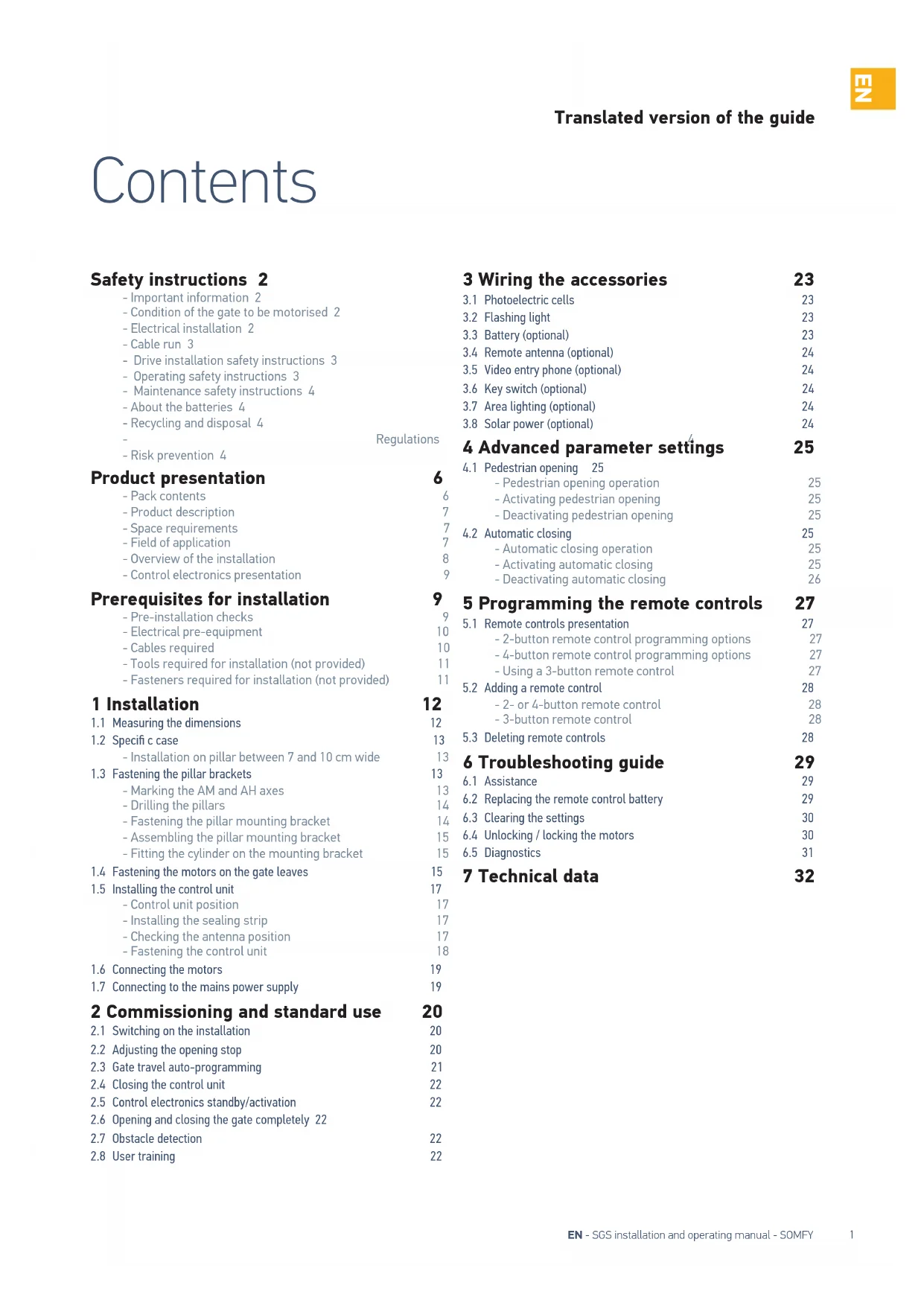

Safety instructions 2

- Important information 2

- Condition of the gate to be motorised 2

- Electrical installation 2

- Cable run 3

- Drive installation safety instructions 3

- Operating safety instructions 3

- Maintenance safety instructions 4

- About the batteries 4

- Recycling and disposal 4

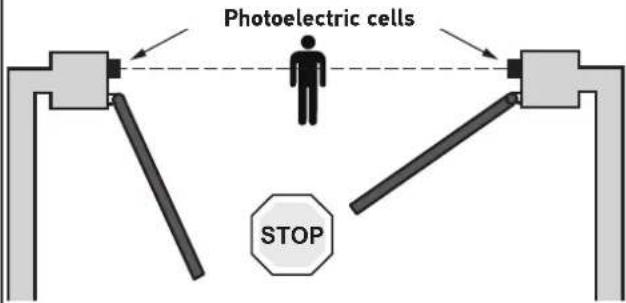

• Risk prevention 4

- Regulations

Product presentation

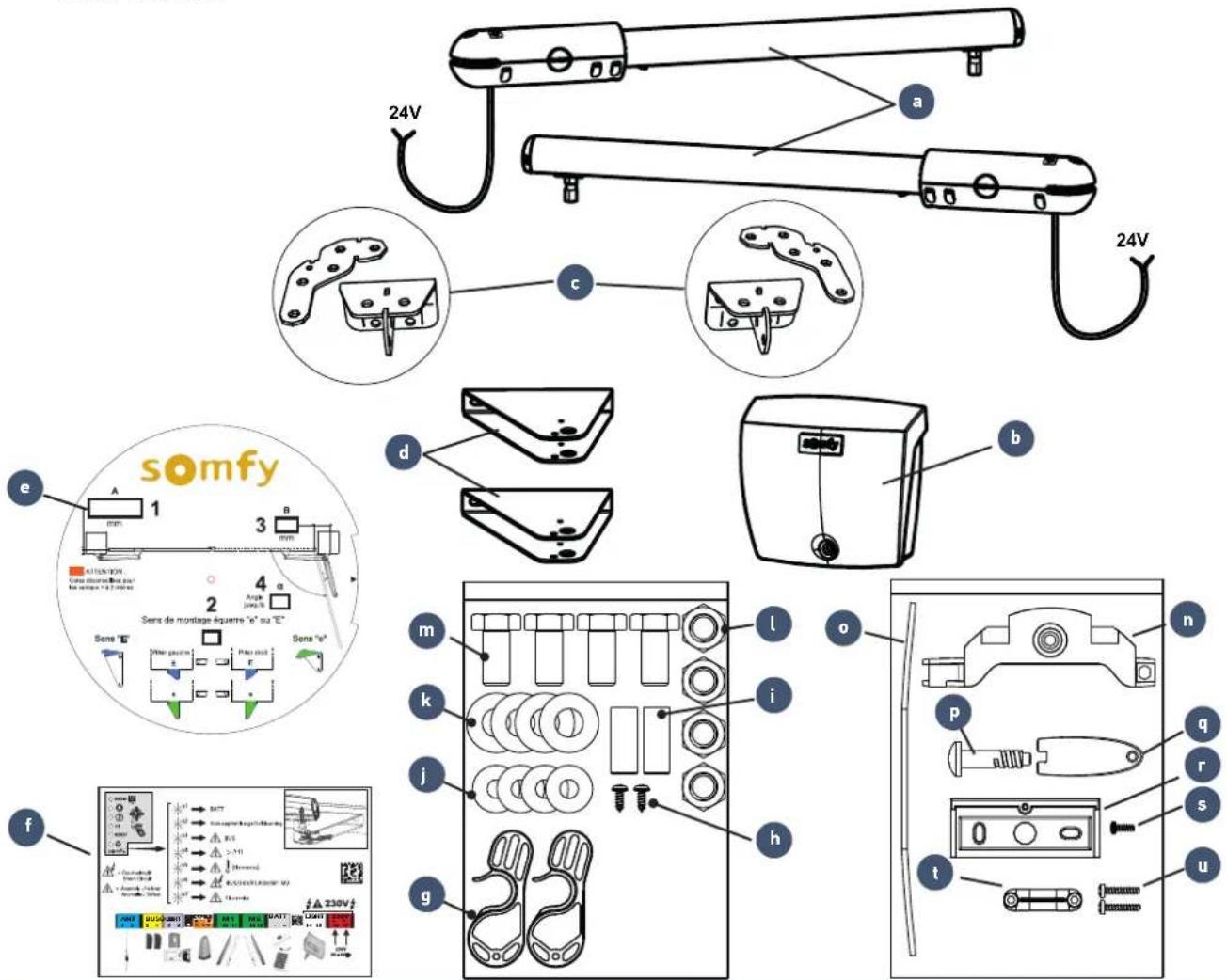

• Pack contents 6
• Product description 7
• Space requirements 7
• Field of application 7
• Overview of the installation 8
• Control electronics presentation 9

Prerequisites for installation

• Pre-installation checks 9
• Electrical pre-equipment 10

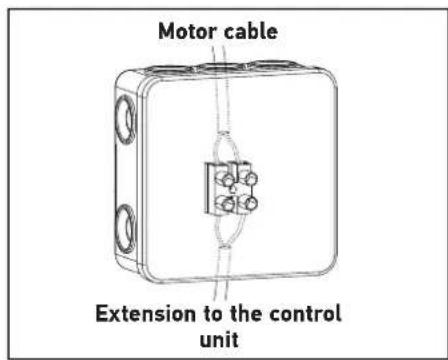

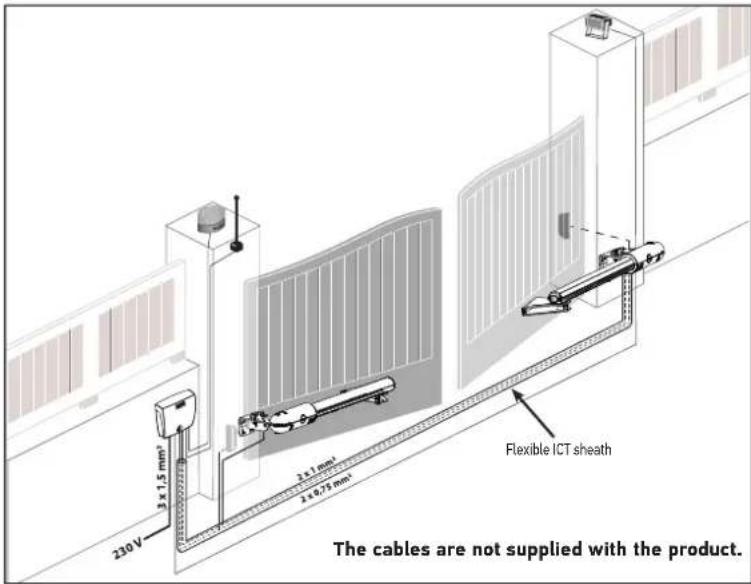

• Cables required 10
• Tools required for installation (not provided) 11
• Fasteners required for installation (not provided) 11

1 Installation

1.1 Measuring the dimensions 12
1.2 Specific case 13 - Installation on pillar between 7 and 10 cm wide 13
1.3 Fastening the pillar brackets 13

• Marking the AM and AH axes 13

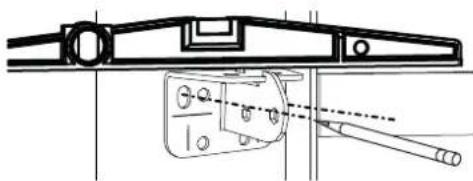

• Drilling the pillars 14
• Fastening the pillar mounting bracket 14
• Assembling the pillar mounting bracket 15
• Fitting the cylinder on the mounting bracket 15

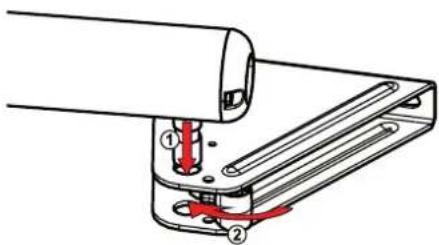

1.4 Fastening the motors on the gate leaves 15

1.5 Installing the control unit 17

• Control unit position 17

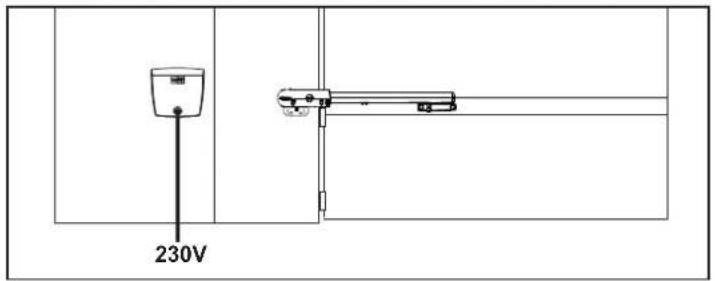

• Installing the sealing strip 17
• Checking the antenna position 17

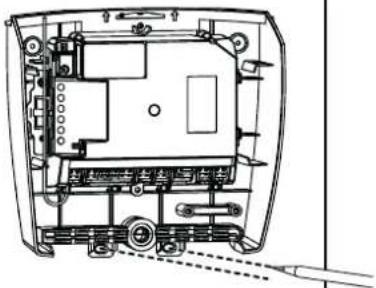

• Fastening the control unit 18

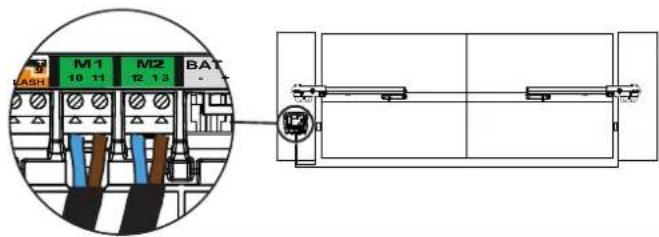

1.6 Connecting the motors 19

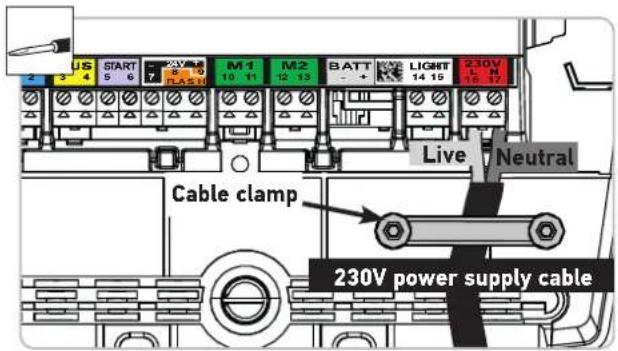

1.7 Connecting to the mains power supply 19

2 Commissioning and standard use 20

2.1 Switching on the installation 20
2.2 Adjusting the opening stop 20
2.3 Gate travel auto-programming 21

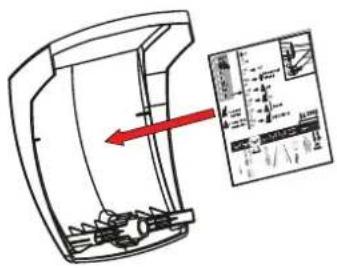

2.4 Closing the control unit 22
2.5 Control electronics standby/activation 22
2.6 Opening and closing the gate completely 22
2.7 Obstacle detection 22
2.8 User training 22

3 Wiring the accessories 23

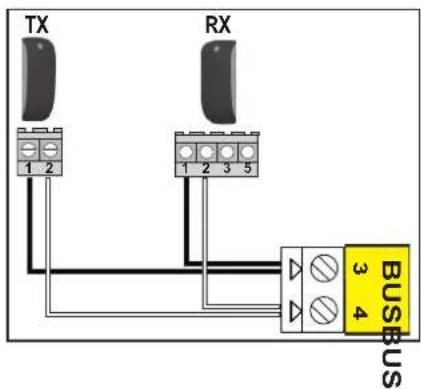

3.1 Photoelectric cells 23

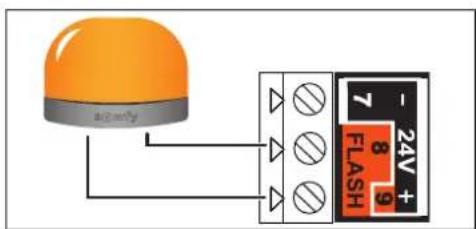

3.2 Flashing light 23
3.3 Battery (optional) 23

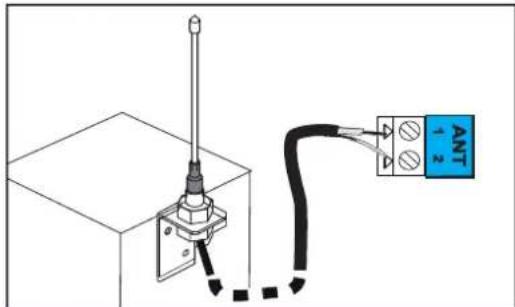

3.4 Remote antenna (optional) 24
3.5 Video entry phone (optional) 24

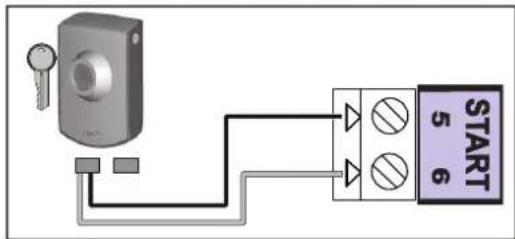

3.6 Key switch (optional) 24
3.7 Area lighting (optional) 24
3.8 Solar power (optional) 24

4 Advanced parameter settings 25

4.1 Pedestrian opening 25 - Pedestrian opening operation 25

• Activating pedestrian opening 25
• Deactivating pedestrian opening 25

4.2 Automatic closing 25

• Automatic closing operation 25
• Activating automatic closing 25
• Deactivating automatic closing 26

5 Programming the remote controls 27

5.1 Remote controls presentation 27

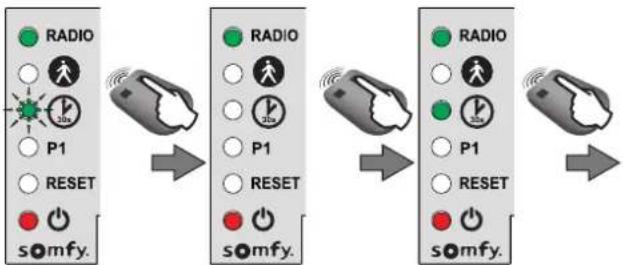

• 2-button remote control programming options 27
• 4-button remote control programming options 27

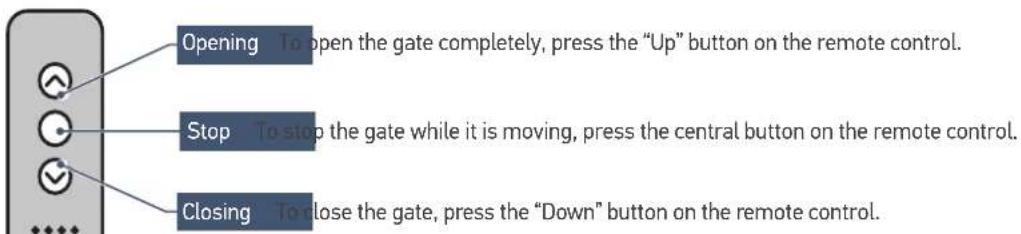

• Using a 3-button remote control 27

5.2 Adding a remote control 28

• 2- or 4-button remote control 28
• 3-button remote control 28

5.3 Deleting remote controls 28

6 Troubleshooting guide 29

6.1 Assistance 29
6.2 Replacing the remote control battery 29
6.3 Clearing the settings 30
6.4 Unlocking / locking the motors 30
6.5 Diagnostics 31

7 Technical data 32

> Safety instructions

This symbol indicates a hazard, the different degrees of which are described below.

DANGER

Indicates a hazard which may result in immediate death or serious injury.

WARNING

Indicates a hazard which may result in death or serious injury.

CAUTION

Indicates a hazard which may result in minor or moderate injury.

NB

Indicates a hazard which may result in damage to or destruction of the product.

WARNING

CAUTION - Important safety instructions.

For reasons of personal safety, it is important to follow all the instructions, as incorrect installation can lead to serious injury. Retain these instructions. The installer must train all users to ensure completely safe use of the drive, in accordance with the operating manual. The instructions must be given to the end user.

▶ Important information

This product is a drive for a hinged gate on a residential property as defined in standard EN 60335-2-103, with which it is compliant. The main purpose of these instructions is to satisfy the requirements of the aforementioned standards and to ensure personal and equipment safety.

WARNING

Any use of this product outside the field of application described in this manual is prohibited (see "Field of application" paragraph in the manual). The use of any accessory or any component not recommended by Somfy is prohibited, on the grounds of personal safety.

Somfy cannot be held liable for any damage resulting from failure to follow the instructions in this manual.

If in any doubt when installing the drive or to obtain additional information, consult the website www.somfy.com. The instructions may be modified if and when there is a change to the standards or to the drive.

▶ Condition of the gate to be motorised

Before installing the drive, check that:

- the gate is in good mechanical condition.

• the gate is stable regardless of its position.
• the structures supporting the gate allow the drive to be fastened securely. Reinforce them if necessary.
• the gate can be correctly opened and closed manually using a force of less than 150 N.
• the temperature range marked on the drive is suitable for the location.

NB

Do not spray water onto the drive.

Do not install the drive in an explosive environment.

WARNING

Make sure to avoid any danger areas (crushing, cutting, trapping) between the driven part and the surrounding fi xed components caused by the opening movement of the driven part, or that they are indicated on the installation (see "Risk prevention").

Permanently affi x the crushing warning labels so that they are clearly visible, or near any fixed control devices.

Electrical installation

DANGER

The power supply installation must comply with the standards in force in the country in which the drive is installed, and must be carried out by qualified personnel.

DANGER

The electric line must be exclusively reserved for the drive and equipped with protection, comprising:

• a 10 A fuse or circuit breaker,
• a residual current device (30 mA).

An all-pole power supply cut-off device must be provided. The switches provided to ensure a cut-out of all poles on fixed appliances must be connected to the power supply terminals, and there must be a separation between the contacts on all poles to ensure complete disconnection in conditions where category III over-voltage is present. Low-voltage cables subject to inclement weather must be at least type H07RN-F. It is recommended to install a lightning arrester (mandatory maximum residual voltage of 2 kV).

▶ Cable run

DANGER

Underground cables must be equipped with a protective sheath of sufficient diameter to contain the motor cable and the accessories cables. For overground cables, use a cable grommet that will withstand the weight of passing vehicles (ref. 2400484).

▶ Drive installation safety instructions

WARNING

Take off any jewellery (bracelet, chain, etc.) during installation. For handling, drilling and welding operations, wear appropriate protection (special glasses, gloves, ear defenders, etc.).

DANGER

Do not connect the drive to a power supply (mains, battery or solar) until installation is complete.

WARNING

Modifying a component provided in this kit, or using an additional component not recommended in this manual, is strictly prohibited.

Monitor the gate as it moves and keep people away from it until installation is complete. Do not use adhesives to mount the drive.

WARNING

Manual unlocking may result in uncontrolled movement of the gate. Permanently affi x the label concerning the manual unlocking device near its actuator.

WARNING

Install any fixed control device at a height of at least 1.5 m and within sight of the gate, but away from moving parts.

After installation, ensure that:

• the mechanism is correctly adjusted.
- the manual unlocking device is operating correctly.
- that the drive changes direction when the gate encounters an object measuring 50 mm positioned halfway up the leaf.

WARNING

For operation in automatic mode or remote control, photoelectric cells must be installed. In automatic mode, the drive operates in at least one direction with no intentional activation by the user.

For operation in automatic mode or if the gate opens onto a public road, installing a fl ashing light may be required in accordance with the regulations in the country in which the drive is commissioned.

▶ Operating safety instructions

WARNING

This drive may be used by children aged 8 and over, and by persons whose physical, sensory or mental capacity is impaired, or persons with little experience or knowledge, as long as they are under supervision or have received instructions on safe use of the drive and fully understand the associated risks. Do not allow children to play with the gate control devices. Keep remote controls out of the reach of children. Children must not be allowed to clean or service the unit.

The sound pressure level of the drive is less than or equal to 70 dB(A). The noise emitted by the structure to which the drive will be connected is not taken into account.

WARNING

Any potential user must be trained by the installer in using the drive, applying all the recommendations in this manual. It is essential to ensure that no untrained persons are able to operate the gate. The user must monitor the gate each time it moves and keep people away from it until it is completely open or closed. Do not deliberately prevent the gate from moving.

WARNING

In case of malfunction, switch off the power supply and unlock the drive immediately to gain access to it, and contact Somfy assistance.

Do not try to open the gate manually if the drive has not been unlocked. Ensure that there are no natural obstacles (branch, stone, tall grasses, etc.) that might obstruct movement of the gate.

▶ Maintenance safety instructions

DANGER

The drive must be disconnected from any power supply during cleaning and maintenance, and when parts are replaced.

WARNING

Every month, check:

• the installation, looking for any signs of wear or damage to the cables and assembly.
• that the drive changes direction when the gate encounters an object measuring 50 mm positioned halfway up the leaf

Do not use the drive if it needs repairing or adjusting.

Gates in poor condition must be repaired, reinforced or even replaced.

Use only original parts for any servicing or repair work.

Any technical, electronic or mechanical modification to the drive must be made with the approval of Somfy assistance.

If the installation is equipped with photoelectric cells and/or a fl ashing light, regularly clean the photoelectric cell optical units and the fl ashing light.

▶ About the batteries

DANGER

Do not leave batteries of any kind within reach of children. Keep them somewhere children cannot access. There is a risk that they could be swallowed by children or pets. Danger of death! If this does occur, seek medical advice immediately or go to hospital.

Ensure that the batteries are not short-circuited, thrown in the fire or recharged. There is a risk of explosion.

▶ Recycling and disposal

If installed, the battery must be removed from the drive before the latter is disposed of.

Do not dispose of used remote control or other batteries, if installed, with household waste. They must be taken to an appropriate recycling point.

Do not dispose of the drive with household waste at the end of its life. Return the drive to its distributor, or use your local authority's special waste collection services.

▶ Regulations

CE Somfy declares that, when used in accordance with these instructions, the product described in these instructions complies with the essential requirements of the applicable European Directives, and in particular the Machinery Directive 2006/42/EC and the Radio Equipment Directive 2014/53/EU.

The full text of the EC declaration of conformity is available on the following website: www.somfy.com/ce. Phillipe Geoff roy, Regulations Manager, Cluses

UK CA Somfy limited, Yeadon LS19 7ZA UK hereby declares that the drive covered by these instructions when marked for input voltage 230V\~50Hz and used as intended

according to these instructions, is in compliance with UK legislation of Machinery safety regulations S.I.2008 N°1597 and the Radio Equipment Regulations S.I. 2017 N°1206. The full text of the UKCA declaration of conformity is available at www.somfy.co.uk.

Steven MONTGOMERY, Managing Director Somfy Ltd UK & Ireland, Yeadon, 11/2022.

Risk prevention

Identification of risk zones

Zone 2 Zone 1 Zone 3 Zone 3 Zone 2 Zone 4 Zone 4

Pure technical line drawing of a mechanical setup with two horizontal supports and a central control unit (no text or symbols)

Zone 5

Measures to be taken to counter risks

ZONE 1
Risks of impact and crushing

Solution:
Obstacle detection built into the motor
Photoelectric cells

Photoelectric cells STOP

ZONE 2

Risks of crushing and cutting of hands

Simple line drawing of a hand pressing down on a rectangular object (no text or symbols)

Solution:

If there a cutting risk zone on the installation:

• leave a distance of at least 10 cm between the leaf and the pillar/wall.
• cut off the corner of the pillar without weakening it.

ZONE 4
Risk of trapping and crushing

Diagram showing a human figure standing next to a vertical pole with a cylindrical object inserted, no text or symbols present.

Solution:
Obstacle detection built into the motor. If there is an area between the gate leaves and the surrounding fi xed components, where someone could get trapped, you must leave a minimum distance of 50 cm between the gate leaves and the fi xed sections.

ZONE 5
Risk of feet being trapped

Warning sign with warning triangle, warning symbol, and triangular hazard symbol in a safety context

Solution:

If there is an area where feet could be trapped between the bottom of the gate leaves and the ground, you must leave a distance between the bottom of the gate leaves and the ground of at least 12 cm, and up to 5 mm.

12 cm min.

5 mm max.

ZONE 3
Risk of impact
Solution:
Obstacle detection built into the motor.

STOP

Pack contents

Technical diagram of a Somalia brand air conditioner with labeled components and parts

ID Designation Quantity ID Designation Quantity
a	24V cylinder x2 Control unit accessories pouch
b	Control unit	x1
c	Pillar/wall bracket (angle bracket + extension)	x2
d	Gate leaf mounting bracket	x2
e	Disc for reading dimensions	x1
f	Summary label	x1
Cylinder accessories pouch
g	Unlocking mechanism	x2
h	Unlocking mechanism screw	x2
i	Cylinder-pillar/wall bracket fastening pin	x2
j	M8x22 flat washer	x4
k	Pillar/wall mounting bracket washer	x4
l	Pillar/wall mounting bracket nut	x4
m	Pillar/wall mounting bracket screw	x4

n	Battery bracket	x1
o	Sealing strip	x1
p	Unit cover screw	x1
q	Unit cover unlocking key	x1
r	Wall mounting bracket	x1
s	Unit-bracket fastening screw	x1
t	Cable clamp	x1
u	Cable clamp screw	x2

▶ Product description

Control unit cover Pillar/wall mounting bracket Cylinder bracket pin Cover screw Angle bracket screw Angle bracket Sealing strip Control electronics Cable clamp Cable clamp screw 24V Cylinder Catch Gate leaf bracket Unlocking mechanism screw Unlocking mechanism

▶ Space requirements

163 mm 104 mm L 70 mm 105 mm 76 mm 85 mm 786 mm 124 mm 174 mm M/L S 149.59 mm 164.49 mm 208 mm 187 mm 72 mm

▶ Field of application

This automated system was designed to motorise residential double-door gates for a detached house.

Dimensions and weight of the gate leaves

	SGS LINE	SGS ESSENTIAL
Max. weight per leaf (P)	200 kg	250 kg
Max. height per leaf (H)	2 m	2 m
Min./max. width per leaf (L)	1.25 / 2 m	1.25 / 2.5 m

The type of gate (solid / open-worked) and the weather conditions (presence of strong winds) may reduce these maximum values (see table below).

H L P

Dimensions and weight of gate leaves which can be motorised, based on the wind strength

Wind strength Effect Product SGS LINE SGS ESSENTIAL
≥ 80 km/h The wind is too strong to walk against		Min./max. width Max. weight	1.25 /1.5 m 200 kg	1.25 /1.5 m 250 kg
< 80 km/h >40 km/h	Tree branches are swaying		Min./max. width Max. weight	1.25 / 2 m 200 kg	1.25 / 2.5 m 250 kg
			Min./max. width Max. weight	1.25 / 1.5 m 200 kg	1.25 / 1.5 m 250 kg
≤ 40 km/h Sand is drift ing		Min./max. width Max. weight	1.25 / 2 m 200 kg	1.25 / 2.5 m 250 kg

Openworked gate

Semi-openworked gate Solid gate

▶ Overview of the installation

Diagram of a smart air conditioner unit with labeled components including air filters, refrigerators, and control panels

ID	Design
A	Area lighting* E Remote antenna*
B	Video entry phone*
C Key switch* G Motors
D	Photoelectric cells

	ID
F	Flashing light
H	Control unit

*optional accessories

▶ Control electronics presentation

A B C D E F G RADIO P1 RESET somfy.

ID Designation Function
A	Button	Activate the control electronics
B	RADIO indicator light	Lights up whenever the control electronics receive a radio command
C	Indicator light Lights	lights up upon activation/deactivation of pedestrian opening
D	Indicator light	On automatic gate closing is activated
		Off automatic gate closing is deactivated
		Flashing	the "automatic closing" parameter is selected
E	Indicator light P1	Not used
F	RESET indicator light	On	the settings alone or the settings and the radio control points are deleted
		Flashing	the settings and radio control points deletion function is selected
G	Indicator light	On	the drive is working correctly - the control electronics are active
		Off	the drive is working correctly - the control electronics are on standby
		Flashing see "Diagnostics", page 31

> Prerequisites for installation

▶ Pre-installation checks

Gate

The gate is in good condition: it opens and closes properly with ease. It remains horizontal throughout its travel. It opens inwards towards the property.

Mounting bracket Reinforcement

Two simple line drawings of a gate structure with vertical slats, no text or symbols present

Simple line drawing of a door with a cross symbol at the center (no text or labels)

Reinforcements

The motors must be fastened to the horizontal reinforcements of the gate leaves, which should ideally be positioned 1/3 up the gate.

If there are no reinforcements, use metal reinforcement backplates approximately 4 mm thick.

Closing end stops on the ground

The gate's closing travel must be delimited by end stops firmly anchored in the ground.

The opening stops are built into the motor (see "Opening stop setting", page 21).

Note: in the specific case of pillars between 7 and 10 cm wide, built-in opening stops cannot be used, ground-anchored stops will be required.

Mechanical lock

If the gate is equipped with a mechanical lock, it must be removed.

Pillars

The pillars should have a robust structure and be at least 7 cm wide. Small pillars will need to be reinforced by casting concrete inside, to improve their robustness and hold.

It is not recommended to mount the bracket level with the pillar: risk of spalling.

Electrical pre-equipment

Cables required

• Mains power supply: 3 × 1.5 ~mm^2 cable or 3 × 2.5 ~mm^2 for outdoor use (at least H07RN-F).
• Connection between the motors: 2 x 1 mm ^2 cable; fit an IP 55 junction box to protect the connection between the cable leaving the motor and the extension which goes to the control unit.
  • Cell connections: 2 x 0.75 mm ^4 cable.

The power supply cable run must be set up in accordance with the electrical standards in force in the country of use.

Motor cable Extension to the control unit

230 V 3 x 1.5 mm² 2 x 1 mm² 3 x 0.75 mm² Flexible ICT sheath The cables are not supplied with the product.

Cable run

• Underground cables must be equipped with a protective sheath of sufficient diameter to contain all the cables.
• Fit a 230 V electrical input as close as possible to the control unit.

▶ Cables required

If a cable conduit cannot be made, use a cable grommet which will withstand the weight of passing vehicles (ref. 2400484).

Details of the wiring are given in the "Wiring the accessories" section, page 23.

ANT 1 2 BUSB 3 4 START 5 6 - 24V + 7 8 9 FLASH M1 11 M2 131 BATT 104101212 LIGHT 14 15 230V L N 16 17 230 V power supply 2 x 0.75 mm² 2 x 0.75 mm² 2 x 0.75 mm² 2 x 0.75 mm² 2 x 1 mm² 2 x 1 mm² 3 x 1.5 mm²

▶ Tools required for installation (not provided)

PH PZ2 13 17 19 13 17 19

▶ Fasteners required for installation (not provided)

This information is provided for information purposes.

For fastening the... Quantity
BRACKETS TO THE PILLARS/WALLS
	Fasteners appropriate for the pillar/wall material (screws, studs, chemical seals, etc.): - diameter: 8 to 10 mm - hex head	6
	Washers: - internal diameter: 8 to 10 mm - external diameter: 16 to 20 mm Nuts: - hexagonal: 13 mm (8 mm screw) / 17 mm (10 mm screw)	6
BRACKETS TO THE GATE LEAVES
	Fasteners appropriate for the gate leaf reinforcement material: - diameter: 8 mm - length appropriate for the gate leaf reinforcement thickness	6
	Washers supplied - internal diameter: 8 mm - external diameter: 22 mm	6
CONTROL UNIT
	Fasteners appropriate for the pillar/wall material - screw diameter: 3.5 to 4.5 mm - countersunk or domed-head screws - Type "S" rawl plugs for concrete: S5, S6 or S8	4

1.1 Measuring the dimensions

Measure the dimensions using the disc (e) to determine the position of the motors on the pillars.

Note: For these measurements, the gate leaves and their hinge pins are assumed to be on the same axis.

Reminder: You must leave a minimum distance of 50 cm between the gate leaves and the fixed sections (see "Risk prevention", page 5).

Measure dimension A. Transfer the measured dimension A on the disc. A cm NB Dimensions not recommended for gate leaves > 2 metres 3 Determine dimension B somfy 3 S M L cm B A 1 cm S M L cm B 4 O α 2 X ≥30cm 20≤X<30cm M 10≤X<20cm S

2 Measure the width of pillar X to determine the pillar bracket fitting direction S, M or L. In the case of an confi guration L, select e or E according to the guidance provided. Left -hand pillar Right-hand pillar 2 Take care to ensure the bracket is fitted the right way up. Direction correct Direction incorrect

4 The maximum opening angle α is indicated. Angle 4 S M/L α Observe the maximum opening angle given by the disc.

Recommended: dimension A is negative

If dimension A is negative, the gate leaf hinge is located in front of the pillar. We recommend that you add a shim so that the cylinder mounting bracket is aligned with the gate leaf hinge and A is 0 cm.

A < 0 cm A = 0 cm

1.2 Specific case

▶ Installation on pillar between 7 and 10 cm wide

PREREQUISITES:

- The built-in opening stops cannot be used: ground-anchored opening stops must be installed. - You need to cut the motor bracket:

Diagram showing a mechanical assembly before and after change, with no visible text or symbols

A B Max.	opening angle Comments
3.5 cm 10	cm 90 Recommended confi guration
3.5 cm 10	cm 100	Possible confi guration, but may cause:Risk of shaking when the gate is closing.Poor resistance to opening.

1.3 Fastening the pillar brackets

▶ Marking the AM and AH axes

1. Transfer dimension B onto the pillar from the hinge axis and mark a vertical axis AM on the pillar.
2. Mark the horizontal axis AH on the pillar, halfway up the reinforcement.

Check before proceeding to the next step Have you marked the AM and AH axes?

AM B AH

Drilling the pillars

1
M or L configuration

AM AH

Align the markings made on the bracket with the AH axis, and align the edge of the bracket with the AM axis.

Note: The markings made on the bracket are underneath the oblong holes.

Take care to ensure the bracket is fitted the right way up.

Correct orientation
Incorrect orientation

S configuration

AM AH-

Align the marking made on the lower part of the bracket with the AH axis, and align the edge of the bracket with the AM axis.

2

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Check that the bracket is horizontal, then mark the bracket mounting holes.

Note: Use the 2 oblong holes for a concrete pillar, or the 4 round holes for a metal/ aluminium pillar.

3

Diagram of a handheld tool emitting a beam to a vertical line, with no visible text or symbols

Drill the 2 or 4 holes in each pillar at the locations marked (see page 11 for the drilling diameter).

▶ Fastening the pillar mounting bracket

1

Technical line drawing of a mechanical assembly with no visible text or symbols

Fasten the bracket on the pillar according to the configuration (S,M,L) given by the disc, using appropriate fasteners for the mounting support.

2

Technical line drawing of a mechanical component with no visible text or symbols

Check that the bracket is at the right level. Retighten if necessary.

Check before proceeding to the next step

Have you checked that the brackets are perfectly horizontal on the pillars?

▶ Assembling the pillar mounting bracket

Assemble the pillar bracket according to the configuration defined with the disc (see page 12).

Confi guration L - E	L - e M S
Left -hand pillar
Right-hand pillar

▶ Fitting the cylinder on the mounting bracket

1

Technical line drawing showing a mechanical component before and after assembly, with no visible text or symbols

Fit the cylinder on the mounting bracket. Lock it with the pin (i).

2

Technical line drawing of a vehicle interior with no visible text or symbols

1.4 Fastening the motors on the gate leaves

!

Never operate the cylinder before having finished mounting it on the gate leaf. If this happens, the cylinder internal stop setting could be incorrect, leading to malfunctions.

1

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Fasten the unlocking mechanism (h) onto the gate leaf mounting bracket (e) using the screw (i).

2

Technical diagram showing a mechanical assembly with labeled parts ① and ②, likely illustrating a component or assembly.

Fit the cylinder on the leaf mounting bracket. Clip the unlocking mechanism onto the cylinder catch to lock it.

3

Diagram of a lever balance with two supports and directional arrows indicating motion (no text or symbols)

Close the gate.

In the closed position, the gate leaves must be firmly against the ground stop and the cylinder against its internal stop.

4

Technical line drawing of a mechanical device with no visible text or symbols

Push the gate leaf mounting bracket against the gate leaf reinforcement. Check that the cylinder is level.

5

Technical line drawing of a mechanical component with a tool inserted, no visible text or symbols

Make the markings on the sides of the gate leaf mounting bracket.

6

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Unclip the unlocking mechanism, then remove the cylinder from the gate leaf mounting bracket.

7

Pure technical line drawing of a mechanical component with no text or symbols

Reposition the gate leaf mounting bracket, then mark the mounting holes in the centre of the oblong holes.

8

Diagram of a tool emitting a string into a wire, with no visible text or symbols

Drill the gate leaves with a diameter of 8.

9

Technical line drawing of a mechanical component with no visible text or symbols

Fasten the leaf mounting bracket at two points on the gate leaves using appropriate screws for the reinforcement material and the washers (j) supplied.

10

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

The washers (j) provided must be fitted.

Check before proceeding to the next step Have you checked that the cylinders are perfectly horizontal?

1.5 Installing the control unit

▶ Control unit position

The unit will be mounted on a pillar/wall on the incoming power supply side.

▶ Installing the sealing strip

Fit the sealing strip (o) inside the top of the control unit.

230V

Technical diagram showing three views of a device with red directional arrows indicating motion or force, and dimension annotations like 150 and 45.

▶ Checking the antenna position

For optimum performance, it is essential that the antenna is correctly positioned.

Never trim the antenna wire.

Antenna

▶ Fastening the control unit

1			·Position the unit mounting bracket (r) against the pillar/ wall. ·Check that it is horizontal by placing a spirit level in the intended location. ·Mark the mounting points for the bracket.
2			Remove the bracket and drill the pillar/wall. The drilling diameter is to be defined based on the type of screws used for fastening (see page 11).
3			Fasten the bracket to the pillar/wall.
4			Position the unit base to mark the 2 mounting points at the bottom of the unit.
5			Remove the unit base then drill the pillar/wall. The drilling diameter is to be defined based on the type of screws used for fastening (see page 11).
6			Fasten the unit base to the pillar/wall: 1 screw (s) to fasten the unit to the bracket + 2 screws to fasten the unit to the pillar/wall.

1.6 Connecting the motors

i

Motor M1 actuates the gate leaf which:

• opens first and closes last,
• opens for pedestrian access to the gate.

1

With the gate closed, identify the gate leaf that opens first.

Motor M1 actuates this gate leaf.

2

Connect the motors as indicated in the table below:

Connect motor wire... to terminal ...
M1	blue 10
	brown 11
M2	blue 12
	brown 13

M1 10 11 M2 12 13 BAT -

1.7 Connecting to the mains power supply

!

For your safety, these operations must be carried out with the power supply switched off.

Use a 3 1.5 x 1.5 mm ^2 cable for outdoor use (at least H07RN-F).

The cable clamp supplied must be used. For all low-voltage cables, ensure that they can withstand traction of 100 N.

Check that the conductors have not moved when this traction has been applied.

1

4 cm Live Neutral 230V power supply cable

On a 3 x 1.5 mm ^2 type cable, prepare 2 x 4 cm wires (live and neutral).

2

US START M1 M2 BATT LIGHT 230V 1 N 15 17 Live Neutral Cable clamp 230V power supply cable

• Connect live and neutral to terminals 16 and 17 (red "230 V" label).
• Lock the 230 V power supply cable with the cable clamp provided (u).
• Mount a split fi tting on the earth wire (yellow/green) and store it in the control unit.

2.1 Switching on the installation

The ◦ Indicator light fl ashes (twice).

The drive is switched on and awaiting auto-programming.

If the Ⓧ indicator light does not come on or the number of fl ashes is not as expected: see "Diagnostics", page 31.

2.2 Adjusting the opening stop

i

Opening stops

The opening stops are built into the cylinder. They delimit the gate's opening travel.

Reminder: The installation must be equipped with ground-anchored closing stops delimit the gate's closing travel.

During this phase, pressing button 1 on the programmed remote control will only open and stop the gate (1st press = open, 2nd press = stop, 3rd press = open, 4th press = stop, etc.). The desired opening position can thus be adjusted in several steps. It will be possible to close the gate once the opening stops are installed.

1

- Press button 1 on the remote control.

After a few seconds, the first gate leaf opens, slowly.

If the gate leaf does not open, check that the motors are wired as shown on page 19.

- Press button 1 on the remote control again to stop the gate leaf in the desired opening position.

2

Technical diagram showing mechanical assembly with a tool and a close-up of a component being inserted (no text or symbols present)

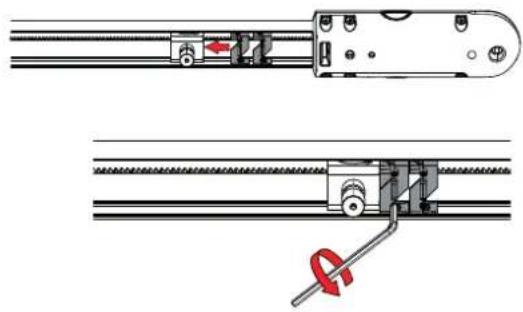

Position the opening stops in contact with the cylinder knob, then tighten the stops using an Allen key, diameter 3 (2 screws per stop).

Perform 2 full turns of the key after contact.

3

Diagram illustrating a device's wireless signal transmission process, showing sensor input, signal output, and rotation.

Press button 1 on the remote control.

The second gate leaf opens.

4

Diagram showing a sensor device interacting with a rectangular object and a stop button, illustrating signal transmission or control logic.

Press button 1 on the remote control again to stop the gate leaf in the desired opening position.

5

Technical diagram showing mechanical assembly with a red arrow indicating motion direction (no text or symbols)

Position the opening stops in contact with the cylinder knob, then tighten the stops using an Allen key, diameter 3 (2 screws per stop).

Perform 2 full turns of the key after contact.

6

Diagram illustrating a wireless signal transmission process with a device emitting signals and two rotating arms.

Press button 1 on the remote control to close the gate completely. The leaves close one after the other.

Check before proceeding to the next step Have you set the position of the opening stop on each motor?

2.3 Gate travel auto-programming

Check that the installation is switched on: the Indicator light fl ashes (twice).

Case 1: First commissioning your drive

Press button 1 on the remote control to initiate a COMPLETE opening motion of the gate.

When the gate is completely open, press button 1 on the remote control again to initiate a COMPLETE closing movement of the gate.

When the gate is completely closed, the ⏻ indicator light on the control unit should be CONTINUOUSLY LIT.

Case 2: You have just deleted the settings

Launch 4 full gate opening and closing movements. Upon completion of the 4 movements, the ⏻ indicator light on the control unit must be CONTINUOUSLY LIT.

The gate movements must not be interrupted (complete opening / closing). If they are interrupted, programming will resume the next time the opening command is issued.

If the Indicator light fl ashes , relaunch gate leaf travel auto-programming (4 full opening and closing movements).

If the Ⓧ indicator light continues to flash refer to "Diagnostics", page 31.

If the gate re-opens at the end of the closing movement, loosen and offset the gate leaf brackets slightly towards the centre of the gate.

WARNING

Once installation is complete, it is essential to check that the obstacle detection system complies with Annex A of standard EN 12 453.

2.4 Closing the control unit

1

Technical diagram showing a mechanical component with a red arrow pointing to a detailed inset image of internal components.

Affi x the summary label (f) on the back of the control unit cover. Close the control unit and screw in the cover.

2

Diagram showing two steps of a device door switch mechanism with red arrows indicating rotation and adjustment.

2.5 Control electronics standby/activation

Once the auto-programming process has been completed, the electronics automatically switch to standby aft er 5 minutes of inactivity to save energy. In standby mode, all the indicator lights are off.

To check whether the drive is switched on or to check/modify the parameter setting, press the ⏻ button for 2 seconds to activate the electronics. The electronics will automatically switch to standby after 5 minutes of inactivity.

2.6 Opening and closing the gate completely

The remote controls supplied with the kit are already memorised and programmed so that button 1 on the remote controls requests complete opening of the gate.

Button 1

• Gate closed: press button 1 on the remote control to open the gate fully.
• Gate moving: press button 1 on the remote control to stop the gate.
• Gate open: press button 1 on the remote control to close the gate.

2.7 Obstacle detection

If an obstacle is detected (abnormal force on the drive):

• When the gate is opening: the gate will stop.
• When the gate is closing: the gate will stop and reopen.

2.8 User training

All users must be trained in how to safely use this motorised gate (standard use and unlocking principle) and in the mandatory periodic checks.

For your safety, these operations must be carried out with the power supply switched off.

You are advised to auto-program the gate travel before connecting the accessories (photoelectric cells, flashing light, etc.).

3.1 Photoelectric cells

It is not possible to wire a second set of photoelectric cells on this drive.

▶ Installation

After wiring the photoelectric cells:

• switch the motor on again,
• start a gate opening or closing procedure.

The photoelectric cells are recognised by the control electronics once this movement is complete.

▶ Operation with photoelectric cells

If the cells are blocked when closing the gate, the gate will stop and reopen.

TX RX 1 2 1 2 3 5 BUS 3 4

or

TX RX 1 2 1 2 BUS 3 4 BUS

▶ In the event of photoelectric cell disconnection

After the photoelectric cells have been disconnected, switch the motor on again and perform the "Deactivating automatic closing" procedure, page 26.

3.2 Flashing light

10 W - 24 V bulb MAXIMUM - using a bulb with a power greater than 10 W - 24 V can cause drive malfunctions.

▶ Operation of the fl ashing light

The light fl ashes while the gate is moving.

24V+ 7 8 9 FLASH

3.3 Battery (optional)

This accessory is not compatible with solar power.

To increase the operation time of the battery during use, the wired controls are deactivated, and the gate can only be controlled using the remote controls and the radio control points.

Technical diagram of an electrical device showing internal components and wiring (no text or labels)

The backup battery ensures the operation of the gate in the event of an electrical power failure.

The ⏻ indicator light fl ashes (1 blink) when the motor is battery-operated.

▶ Battery technical data

• Battery life: 10 continuous cycles or 24 hours on a gate in perfect condition.
• Optimum charge time before using the battery: 48 hours.
  • Service life: 3 years.

To ensure an optimum battery life, switch the gate's electric power supply off at least 3 times a year to run a number of cycles using the battery.

3.4 Remote antenna (optional)

The wire antenna can be replaced with a longer-range remote antenna. This is placed on top of the pillar and must be clearly accessible.

It is connected to terminals 1 and 2 (blue "ANT" label) on the control unit:

• the wire core on terminal 1,
• the ground strap on terminal 2.

Technical diagram showing a cable connection with labeled components including a 1-2 meter and an ANT terminal block.

3.5 Video entry phone (optional)

This accessory is not compatible with solar power. Only connect one non-powered dry contact.

M-M-L-L+NOCOMNC START 5 6

3.6 Key switch (optional)

This accessory is not compatible with solar power.

START 5 6

3.7 Area lighting (optional)

This accessory is not compatible with solar power.

LIGHT 14 15

▶ Lighting output power

The maximum lighting output power is 500 W:
• either 5 fluocompact or LED lights
• or 2 power supplies for low-voltage LEDs
• or 1 halogen light, max. 500 W

▶ Area lighting operation

The area lighting comes on each time the drive is started up. It goes out automatically 1 minute and 30 seconds after movement has finished.

3.8 Solar power (optional)

Never connect your motor to a 230 V power supply when it is connected to a solar power supply, as this may damage the motor's electronic unit.

When the motor is solar powered:

• only the remote controls and radio control points can be used to control the gate (wired controls are deactivated),
• the wired safety accessories (photoelectric cells, flashing light) remain active.

4.1 Pedestrian opening

▶ Pedestrian opening operation

Pedestrian opening (motor M1) by pressing the activated button.

Stop when moving by pressing the activated button again.

Close by pressing the activated button again.

▶ Activating pedestrian opening

Button 1 on 2- or 4-button remote controls cannot be programmed to control the gate's pedestrian opening. See "Remote controls presentation", page 27, for more information.

Press the button on the control electronics for 2 seconds. The indicator light comes on.

RADIO P1 RESET Somy.

Position the remote control on the control electronics target.

RADIO P1 RESET somfy.

Press button 2 on the remote control. The "RADIO" and 🎨 indicator lights come on then go out. Pedestrian opening is activated on this button.

Move away from the control electronics when testing pedestrian opening.

▶ Deactivating pedestrian opening

Repeat the "Activate pedestrian opening" procedure using the button for which the pedestrian opening must be deactivated. The ⚠ indicator light comes on then goes out. The pedestrian opening is deactivated on this button.

4.2 Automatic closing

▶ Automatic closing operation

Press button 1 on the remote control to open the gate.

The gate closes again after 30 seconds, or 5 seconds if the photoelectric cells detect a passage motion.

Automatic closing can be interrupted by pressing button 1 on the remote control. To reclose the gate, press button 1 on the remote control again.

▶ Activating automatic closing

Automatic closing can only be activated if the photoelectric cells are connected and recognised by the motor's control electronics.

12

Press the 📊 button on the control electronics for 2 seconds. The Ⓧ indicator light comes on.

●

RADIO P1 RESET somfy.

Position the remote control on the control electronics target.

●

RADIO P1 RESET somfy.

Hold down button 1 on the remote control until the indicator light fl ashes.

i

Once step 3 has been carried out, you can carry out the following steps remotely (without placing the remote control on the target).

4

    F["Radio"] --> G["Clock Signal"]
    G --> H{P1}
    H --> I["RESET"]
    I --> J["somyf."]

    K["Radio"] --> L["Clock Signal"]
    L --> M{P1}
    M --> N["RESET"]
    N --> O["somyf."]

Hold down button 2 on the remote control until the indicator light goes out and is then lit constantly.

5

RADIO P1 RESET somfy. RADIO P1 RESET somfy. x2 RADIO P1 RESET somfy.

When you release button 2, the ⏻ indicator light flashes; press button 1 on the remote control twice. The ⏻ indicator light remains lit. Automatic closing is activated.

▶ Deactivating automatic closing

12

Press the button on the control electronics for 2 seconds. The indicator light comes on.

RADIO P1 RESET somfy.

Position the remote control on the control electronics target.

RADIO P1 RESET somfy.

Hold down button 1 on the remote control until the ⏻ indicator light fl ashes.

45

RADIO P1 RESET somfy. RADIO P1 RESET somfy.

Press button 2 on the remote control. The indicator light fl ashes.

●

RADIO P1 RESET x2 somy. RADIO P1 RESET somy.

Press button 1 on the remote control twice.

●

The indicator light is off. Automatic closing is deactivated.

5.1 Remote controls presentation

Depending on the chosen parameter settings, Somfy RTS remote controls can control:

• complete opening of the gate
• pedestrian opening of the gate
- another Somfy RTS device (e.g.: garage door motor, roller shutter, etc.)

2-button remote control

4-button remote control

i

The remote controls supplied with the kit are already memorised and programmed so that button 1 on the remote controls requests complete opening of the gate.

i

You can memorise up to 16 control points (remote controls, other radio control point). If you memorise a 17th control point, the first point memorised will automatically be deleted.

i

If you wish to program pedestrian opening, it must be programmed on the button following programming of the complete opening (e.g.: complete opening controlled by button 2, pedestrian opening controlled by button 3). It is not possible to programme pedestrian opening on button 1 of the remote controls.

▶ 2-button remote control programming options

	Button 1	Button 2
Option 1	Complete opening Pedestrian opening or another Somfy RTS automated system
Option 2 Another Somfy RTS device Complete opening

▶ 4-button remote control programming options

	Button 1	Button 2	Button 3	Button 4
Option 1	Complete opening Pedestrian opening or another Somfy RTS automated system		Another Somfy RTS automated system	Another Somfy RTS automated system
Option 2 Another Somfy RTS automated system		Complete opening Pedestrian opening or another Somfy RTS automated system		Another Somfy RTS automated system
Option 3 Another Somfy RTS automated system		Another Somfy RTS automated system	Complete opening Pedestrian opening or another Somfy RTS automated system
Option 4 Another Somfy RTS automated system		Another Somfy RTS automated system	Another Somfy RTS automated system	Complete opening

▶ Using a 3-button remote control

Opening To open the gate completely, press the "Up" button on the remote control. Stop To stop the gate while it is moving, press the central button on the remote control. Closing To close the gate, press the "Down" button on the remote control.

i

The 3-button remote control cannot be used to change the motor settings.

5.2 Adding a remote control

▶ 2- or 4-button remote control

1

Press the 📊 button on the control electronics for 2 seconds. The ⏻ indicator light comes on.

●

RADIO P1 RESET somfy.

Position the new remote control to be programmed on the control electronics target.

●

Brief y press the button on the remote control to be programmed. The "RADIO" indicator light will come on then go out when you release the button on the remote control.

Complete opening is programmed on this button.

▶ 3-button remote control

12

Press the 🎨 button on the control electronics for 2 seconds. The ⏻ indicator light comes on.

C

RADIO P1 RESET somfy.

Position the new remote control to be programmed on the control electronics target.

●

RADIO P1 RESET <0,5s somfy.

Briefly press a button on the remote control to be programmed. The "RADIO" indicator light will come on then go out when you release the button on the remote control. The remote control has been memorised.

5.3 Deleting remote controls

See "Clearing the settings", page 30.

The drive must be disconnected from any power supply during cleaning, maintenance and when replacing parts.

6.1 Assistance

If the fault remains, or for any other problem or enquiry relating to your drive, visit: www.somfy.com.

6.2 Replacing the remote control battery

The battery service life is generally 2 years.

6.3 Clearing the settings

When should I clear the settings?

• After programming the gate leaf travel, if you change the opening position stop or if you modify the motor wiring.
- If the gate opens at random due to normal wear of the gate.

12

Press the button on the control electronics for 2 seconds. The indicator light comes on.

RADIO P1 RESET somfy.

Place the memorised remote control on the target.

Hold down button 1 on the remote control until the indicator light fl ashes.

Press button 1 on the remote control once. The "RESET" indicator light fl ashes.

5

To clear the settings*

    E["Radio"] --> F["P1"]
    F --> G["RESET"]
    G --> H["s o m f y."]

    I["Radio"] --> J["P1"]
    J --> K["RESET"]
    K --> L["s o m f y."]

Hold down button 2 on the remote control until the "RESET" indicator light comes on.

5

To clear the settings* and the memorised remote controls/control points

    F["Radio"] --> G["Switch"]
    G --> H["P1"]
    H --> I["RESET"]
    I --> J["somfy."]

    K["Radio"] --> L["Switch"]
    L --> M["P1"]
    M --> N["RESET"]
    N --> O["somfy."]

Hold down button 2 on the remote control until all the indicator lights come on.

The Indicator light flashes twice (see "Gate travel auto-programming", page 21).

*Gate travel, deactivating the parameters, etc.

6.4 Unlocking / locking the motors

When unlocking the motors, the gate can be manoeuvred manually if there is an electrical fault.

Technical diagram showing a mechanical assembly with labeled parts and red directional arrows indicating motion or force.

Unlocking the motors

Unclip the unlocking mechanism, then remove the cylinder from the gate leaf mounting bracket.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force.

Locking the motors

Fit the cylinder. Clip the unlocking mechanism onto the catch to lock it.

6.5 Diagnostics

DIAGNOSTICS TROUBLESHOOTING
The motors are not responding to remote control commands	The remote control range is reduced -	Check the remote control battery (see “Replacing the remote control battery”, page 29).- Check the control unit antenna (wiring, position, see page 17).- Check that there are no outside elements that may be interfering with the radio signal (electric pylon, metal reinforced walls, etc.). If this is the case, fi t a remote antenna.
	Non-memorised remote control Memorise the remote control (see page 28).
	Poorly wired motors Check the motor wiring (see page 19).
The control unit's ⏻ indicator light is off	The electronics unit is on standby	Press the ➕ button for 2 seconds to activate the electronics.
	No power supply to the control electronics	- Check the mains power supply.- Check the power supply cable.
The control unit's ⏻ indicator light fl ashes:
1 blink Running on backup battery	Check the mains power supply.
2 blinks	Motor waiting for auto-programming	Start the gate travel auto-programming procedure (see page 21).
3 blinks Faulty photoelectric cells -	Check that there are no obstacles between the cells.	- Check the cell alignment.- Check the cell wiring (see page 23).- If the cells are deliberately disconnected, perform the “Deactivating automatic closing” procedure, page 26.
4 blinks Electronic unit continuous	"START" command (terminals 5-6)	Check the accessories connected to the electronic unit’s “START”.
5 blinks Electronics thermal safety	triggered	Allow the electronics to cool down until the ➕ indicator light comes back on continuously.
6 blinks Short-circuit on the electronics unit’s "BUS" (terminals 3-4)		Check the accessories connected to the electronic unit’s “BUS”.
		Short-circuit on the electronics unit’s “24 V” (terminals 7-9)
		Short-circuit on electronics unit’s “fl ashing light” (terminals 8-9)
		Motor short circuit Check the motor wiring (see page 19).
7 blinks Electronic fault Contact Somfy assistance.
The gate reopens at the end of the closing motion		Unscrew the gate leaf brackets and off set them slightly towards the centre of the gate.

Power supply 230 V-50Hz/24V (on solar power)
Motor type 24 V
Motor output 120 W
Max. power consumed(with area lighting)	600 W
Standby consumption 4 W
Maximum manoeuvre frequency per day 20 cycles / day	10 cycles / day on solar power
Opening time At least 20 s to 90°
Automatic obstacle detection Compliant with standard EN 12 453
Operating temperature -20°C to +60°C
Thermal protection Yes
Index protection rating IP 44
Built-in radio receiver Yes
Remote controls:- Radio frequency- Range in fi eld of use- Storage quantity	433.42 MHz, < 10 mW~ 30 m16
Possible connections:- Flashing light output- Lighting output- Accessories power supply output- Input for backup battery- Input for photoelectric cells- Dry contact control input	Flashing, 24 V, 10 W maximum500 W max. at 230 Veither 5 fl uocompact or LED lightsor 2 power supplies for low-voltage LEDsor 1 halogen light, max. 500 W24 VDC / 15 W max.YesYesYes (does not work with battery or solar power)

Inhaltsverzeichnis

Sicherheitshinweise

2

Diagram of a two-level scientific apparatus labeled Zone 5, showing a central platform with two side supports and a small container (no text or symbols on the apparatus itself)

Simple line drawing of a hand pressing down on a right-angle pipe (no text or symbols)

und Scherbewegungen

Lösung:

Diagram showing a human figure standing next to a vertical pole with a ruler, no text or symbols present

Warning sign with warning symbol, warning triangle, and hazard symbol for a foot safety hazard

Lösung:

Technical diagram of a Somalia device with labeled components and parts, including 24V power connections and internal wiring layouts.

Diagram of a smart air conditioner unit with labeled components including front panel, door, and control panel

A B C D E F G RADIO P1 RESET somfy.

Two simple line drawings of a two-story building with vertical slats and a central door (no text or symbols)

Simple line drawing of a doorway with a cross symbol at the center (no text or labels)

Technical line drawing of a rectangular electronic device with mounting holes and a central connector (no text or symbols)

A < 0 cm A = 0 cm

1.2 Sonderfall

Mechanical assembly diagram showing a disassembly or reassembly process of a mechanical component (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram of a handheld tool with a pointed tip and dashed alignment lines, no text or symbols present

Technical line drawing of a mechanical assembly with numbered components (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a housing (no text or symbols)

Technical line drawing showing a mechanical component before and after assembly, with no visible text or symbols.

Technical line drawing of a vehicle interior with directional arrows indicating movement or force (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Technical diagram showing a mechanical assembly with labeled parts ① and ②, likely illustrating a component or assembly.

Diagram of a lever system with two blocks and directional arrows indicating motion (no text or labels)

Das Tor schließen.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with a tool inserted, no visible text or symbols

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force.

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a tool emitting a wire or filament into a wire, with no visible text or symbols.

Technical line drawing of a mechanical or architectural component with no visible text or symbols

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Technical diagram showing three views of a device with red directional arrows indicating motion or force, and dimension annotations like 150 and 80.

Technical diagram showing mechanical assembly with a sliding mechanism and a red-handled tool (no text or symbols)

Diagram illustrating a device's wireless signal transmission process, showing sensor input, signal output, and rotation.

Diagram showing a sensor device interacting with a rectangular object and a stop button, illustrating signal transmission or control logic.

Technical diagram showing mechanical assembly with a red arrow indicating rotation direction (no text or symbols)

Diagram illustrating a device's wireless signal transmission process, showing signal input, transformation, and output stages.

Technical diagram showing a mechanical component with a red arrow pointing to a detailed inset image of its internal structure.

Diagram illustrating a device lock mechanism with labeled parts and red directional arrows indicating rotation or movement.

Technical diagram of an internal combustion engine showing piston, crankshaft, and housing components (no text or labels)

Technical diagram showing a cable connection with labeled components including a 1-2 meter and an ANT terminal block.

Diagram showing solar panel connected to a battery with labeled polarity and connection point

RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy. RADIO P1 RESET somfy. x2 RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy. RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

Mechanical device with tool and magnified detail showing a cutting tool (no text or symbols visible)

3D diagram of a device with an open lid and internal components, showing directional arrows (no text or symbols)

Close-up of a computer mouse with a plus button and an inset showing a battery symbol (no text or labels)

3D diagram of a computer mouse with an arrow pointing to the internal component (no text or symbols)

Diagram of a mechanical device with a rotating arrow and a base, no text or symbols present

Diagram showing a device with a top view and its internal component, no text or symbols present.

3D diagram of a device with a lid and internal components, no visible text or symbols

The image is too blurry to recognize any text content.

RADIO P1 RESET somfy.

The image is too blurry to recognize any text content.

Technical diagram showing a mechanical assembly with labeled parts and red arrows indicating motion or force directions.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force.

Diagram of a two-level mechanical or electrical device labeled 'Zone 5' with no visible text or symbols on the device itself.

Simple line drawing of a hand pressing down on a rectangular object (no text or symbols)

Oplossing:

Diagram showing a human figure standing next to a vertical pole with a ruler, no text or symbols present

Warning sign with warning triangle, warning symbol, and hazard symbol for a foot wearing boots

Oplossing:

Technical diagram of a Somfy electric shock absorber with labeled components and parts

Diagram of a smart air conditioner unit with labeled components including front panel, back panel, and control panel.

Markering	Omschr
A	Verlichting van de zone* E Aparte antenne*
B Videofoon* F Knipperlicht
C Contactslot* G Motoren
D	Foto-elektrische cellen

	Markering
H	Bedieningseenheid

*optionele accessoires

A B C D E F G RADIO P1 RESET somfy.

Two simple line drawings of a two-story building with vertical slats and a central door (no text or symbols)

Simple line drawing of a doorway with a cross symbol at the center (no text or labels)

Versterkingen

A < 0 cm A = 0 cm

1.2 Speciaal geval

Mechanical assembly diagram showing a disassembly or reassembly process of a mechanical component (no text or symbols present)

A B Maximale openingshoek Toelichting
3,5 cm	10 cm	90 Aanbevolen confi guratie
3,5 cm	10 cm	100

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram of a handheld tool with a pointed tip and dashed line indicating direction (no text or symbols)

Pure mechanical diagram showing a lever mechanism with pulleys and weights, no text or symbols present

Technical line drawing of a mechanical component with mounting holes and a housing (no text or symbols)

Technical line drawing showing a mechanical component before and after assembly, with no visible text or symbols.

Technical line drawing of a vehicle interior with no visible text or symbols

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Technical diagram showing a mechanical assembly with labeled parts ① and ②, likely illustrating a component or assembly.

Diagram of a lever system with two blocks and directional arrows indicating motion (no text or symbols)

Sluit het hek.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with a tool inserted, no visible text or symbols

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of a handheld tool with a string and probe, connected to a wire, with no visible text or symbols.

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Technical diagram showing three views of a mechanical component with red directional arrows and dimension annotations

Technical diagram showing mechanical assembly with a tool and a red-handled knob (no text or symbols)

Diagram illustrating a device's wireless signal transmission process, showing sensor input, signal output, and directional shift.

Diagram showing a sensor device interacting with a rectangular object and a stop button, illustrating signal transmission or control logic.

Technical diagram showing mechanical assembly with a red arrow indicating rotation, no text or symbols present

Diagram illustrating a device's wireless signal transmission process, showing signal input, transmission, and output stages.

Technical diagram showing a mechanical component with a red arrow indicating direction and a small inset image of a device with labeled parts.

Diagram illustrating a device's internal components and tool path, showing a switch mechanism with red arrows indicating rotation.

Diagram illustrating a hand holding a sensor with wireless signal, followed by two directional arrows indicating rotation or movement.

Diagram showing a hand holding a phone with wireless signal, followed by a stop button and two vertical sensors.

Diagram illustrating a hand holding a sensor and interacting with a device, showing signal transmission and rotation direction.

TX RX of 1 2 1 2 BUS 3 4 BUS US

Technical diagram of an electrical device showing internal components and wiring (no text or labels)

▶ Technische gegevens van de accu

Technical diagram showing a cable connection with labeled components and a blue panel labeled ANT

Diagram showing solar panel connected to a battery with labeled polarity and connection point

4.1 Voetgangersopening

RADIO P1 RESET somy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy. RADIO P1 RESET somfy. x2 RADIO P1 RESET somfy.

RADIO 30% P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy. RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

Mechanical device with a tool and magnified inset showing a cutting tool (no text or symbols visible)

3D diagram of a device with an open lid and internal components, showing directional arrows (no text or symbols)

Steek de schroevendraaier in de gleuf en til de kap op.

●

Diagram showing a computer mouse with a plus button and an icon indicating battery status

Diagram of a computer mouse with an arrow pointing to the internal component (no text or symbols present)

Vervang de batterij (3 V CR 2430 of CR 2032).

12

Diagram of a mechanical device with a rotating shaft and curved arrow indicating rotation (no text or symbols)

Diagram showing a device with a lid and an open casing, both with an upward arrow indicating assembly or transformation (no text or symbols present)

The image is too blurry to recognize any text content.

3D diagram of a device with labeled components and internal structure (no text or symbols)

RADIO P1 RESET somfy.

Technical diagram showing a mechanical assembly with labeled parts ① and ②, including red arrows indicating motion or force.

Technical diagram showing a mechanical assembly with labeled parts and red arrows indicating motion or force directions.

Technical line drawing of a horizontal platform labeled 'Zona 5' with two identical supports and a small container on the left (no text or symbols beyond label)

Simple line drawing of a hand pressing down on a rectangular object (no text or symbols)

Solutie:

Diagram showing a human figure standing next to a vertical pole with a ruler, no text or symbols present

Warning sign with warning triangle, warning symbol, and hazard symbol for a foot wearing boots

Solutie:

Diagram of a smart air conditioner unit with labeled components including air filters, refrigerators, and sensors

A B C D E F G RADIO P1 RESET somfy.

Two simple line drawings of a door frame with vertical slats, no text or symbols present

Simple line drawing of a doorway with a cross symbol at the center (no text or labels)

Ranforturile

A < 0 cm A = 0 cm

1.2 Caz particular

Diagram showing a mechanical assembly before and after change, with no visible text or symbols

AM AH-0 10

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram of a handheld device with a pointed tip and dashed alignment lines, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with mounting holes and housing (no text or symbols)

Technical illustration of a mechanical component with a red arrow indicating a process or operation (no text or symbols present)

Technical line drawing of a cylindrical tank with internal components and a red arrow indicating downward motion (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Technical diagram showing a mechanical assembly with numbered components and red arrows indicating parts of motion or force.

Diagram of a lever system with two blocks and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with a tool inserted, no visible text or symbols

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of a handheld tool with a string and probe, connected to a wire, with no visible text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Technical diagram showing three views of a device with red directional arrows indicating motion or force, and dimension annotations like 150 and 45.

Technical diagram showing mechanical assembly with a tool and a close-up of a component being inserted (no text or symbols present)

Diagram illustrating a hand holding a remote control with signal waves, transforming a device into a vertical panel and finally to a horizontal rod.

Diagram illustrating a wireless signal transmission process with a stop button, showing signal propagation and control mechanism.

Technical diagram showing mechanical assembly with a red arrow indicating rotation direction (no text or symbols)

Diagram illustrating a device's wireless signal transmission process, showing signal input, transmission, and output stages.

Technical diagram showing a mechanical component with a red arrow pointing to a detailed inset image of its internal structure.

Diagram showing two steps of a device door switch: first with red arrow indicating rotation, second with red arrow indicating clockwise rotation.
    DXVXX["X"]

Technical diagram of an electrical device showing internal components and wiring (no text or labels)

Technical diagram showing a cable connection with labeled components and a blue ANT terminal block

3.5 Videointerfon (optional)

Diagram showing solar panel connected to a battery with labeled power connection

RADIO P1 RESET Somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy. RADIO P1 RESET somfy. x2 RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy. RADIO P1 RESET somfy.

RADIO P1 RESET x2 somy. RADIO P1 RESET somy.

RADIO P1 RESET somfy.

RADIO P1 RESET somfy.

Mechanical assembly diagram showing a tool interacting with a component, with an inset close-up of a pin-like component (no text or symbols present)

3D diagram of a device with an open lid and internal components, showing directional arrows (no text or symbols)

Close-up of a computer mouse with a circular button and an icon showing a battery symbol (no text or labels)

Close-up of a computer mouse with an open lid and a mouse pointer (no text or symbols visible)

Diagram of a mechanical device with a rotating shaft and curved arrow, no text or symbols present

Two views of a device showing top and side views with a gray arrow indicating transformation (no text or symbols)

The image is too blurry to recognize any text content.

3D diagram of a device with labeled components and internal structure (no text or symbols)

RADIO P1 RESET somfy.

Technical diagram showing a mechanical assembly with labeled parts and red directional arrows indicating motion or force.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Blocarea motoarelor

Somfy Romania S.R.L.

([phone]

www.somfy.ro

White rectangular electronic device with a small circular button and 's2.5m2' label on its side (no other text or symbols visible)
