Capsule3 Pro - Earphones SoundPEATS - Free user manual and instructions

Product Type	True Wireless Earbuds
Brand	SoundPEATS
Model	Capsule3 Pro
Connection	Bluetooth 5.3 (estimated)
Noise Reduction	Active Noise Cancelling (ANC) with Transparency mode and Normal mode
Earbuds Battery Life	Up to 6 hours (estimated)
Total Battery Life with Case	Up to 24 hours (estimated)
Earbuds Charging Time	About 1.5 hours (estimated)
Case Charging Time	About 2 hours (via USB-C) (estimated)
Case Battery	500 mAh (estimated)
Touch Control	Yes (tap, double tap, triple tap, long press)
Game Mode	Yes (low latency)
Voice Assistant	Compatible (activation by triple tap on right)
Case LED Indicator	Green (100%-50%), Yellow (49%-10%), Red (<10%), flashing during charging
Water Resistance	IPX5 (estimated)
Earbuds Weight	About 4.5 g each (estimated)
Case Weight	About 40 g (estimated)
Box Contents	Earbuds, charging case, USB-C cable, user manual
Maintenance	Clean the charging contacts with a soft cloth
Safety Instructions	Do not dispose of with household waste; follow recycling instructions

Frequently Asked Questions - Capsule3 Pro SoundPEATS

What does the charging case LED indicator mean?

The indicator shows the case battery level: green (100%-50%), yellow (49%-10%), red (<10%). During charging, it breathes slowly in red (0-19%), yellow (20-69%), green (70-99%) and turns solid green at 100%.

How to charge the charging case?

Connect a USB-C power adapter (current ≤ 1A) to the case. If not used for a long time, recharge at least once every three months.

Why do the earbuds stay connected even after closing the case?

The case is probably discharged. Make sure the earbuds are placed correctly and the metal contacts are clean. Clean them with a soft cloth.

How to reset the Capsule3 Pro earbuds?

Place both earbuds in the case, open the lid, then press the case button for 10 seconds until the indicator flashes white and red alternately twice. Close and reopen the lid to activate.

How to enter pairing mode?

Open the lid, take out the earbuds, remove the insulating film, then put them back in the case. With the lid open, press the case button for 3 seconds until the indicator flashes white. Enable Bluetooth on your device and select 'SOUNDPEATS Capsule3 Pro'.

How to activate ANC or Transparency mode?

Press and hold the touch key on the left earbud for 1.5 seconds to switch between ANC, Transparency, and Normal mode.

How to activate game mode (low latency)?

Perform three taps on the touch key of the left earbud to enter or exit game mode.

How to control volume?

One tap on the left earbud decreases volume, one tap on the right earbud increases volume.

How to answer or reject a call?

To answer or hang up: two taps on the touch key. To reject a call: press and hold the key for 1.5 seconds.

How to use the voice assistant?

Perform three taps on the touch key of the right earbud to activate your phone's voice assistant.

USER MANUAL Capsule3 Pro SoundPEATS

1. Please open the charging case, take out the two earbuds, and tear off the insulating film on the earbuds charging contacts, then put the earbuds back into the charging case and keep the lid open. Long press the button on the charging case for 3 seconds at the same time until the LED indicator on charging case blinking with white light, which indicates that the earbuds have entered pairing mode.
2. Turn on the bluetooth of your device, and please choose "SOUNDPEATS Capsule3 Pro" in the list to pair, then the earbuds will connect with your device.

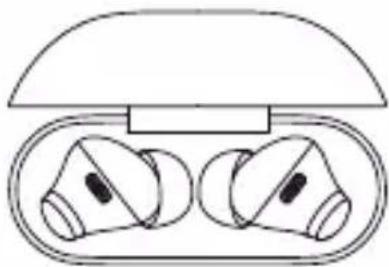

Reset

1. Put both earbuds into the charging case properly, and the indicator of the charging case flashes twice.
2. Then, with the lid of the charging case open, long press the button on the charging case for 10 seconds until the LED indicators of the charging case flash white and red light alternately twice, the reset is completed.
3. Close the lid of charging case and open it again, the earphones are activated.

Line drawing of a pair of wireless earbuds inside an open bulb (no text or symbols)

Product Diagram


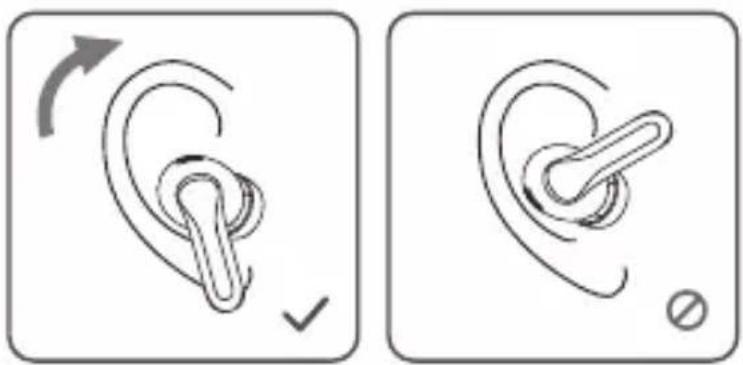

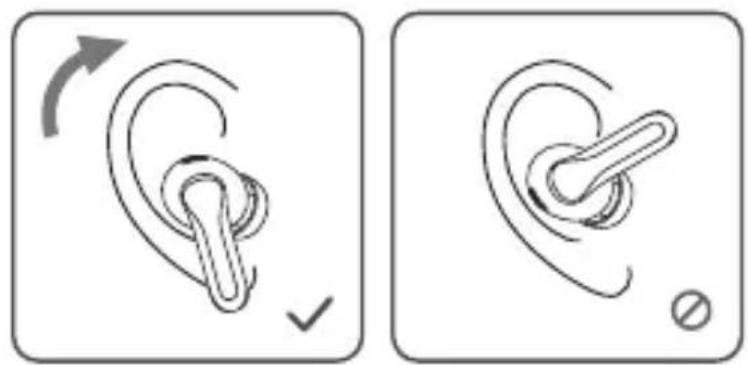

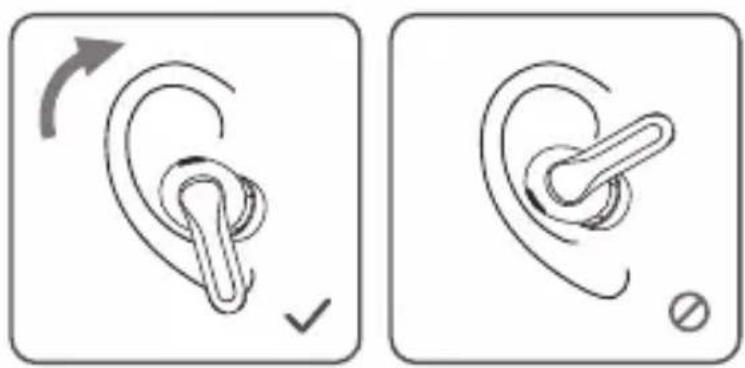

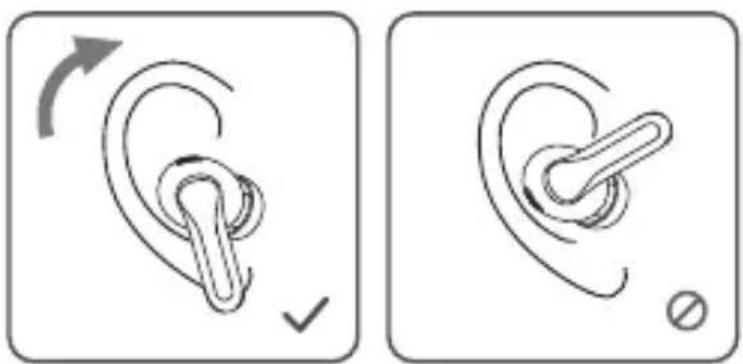

Wearing

Four technical line drawings of a mechanical component, labeled L and R, showing different configurations (no text or symbols beyond labels)

Illustration of a ear with a probe inserted, showing two different states of ear rotation (no text or symbols)

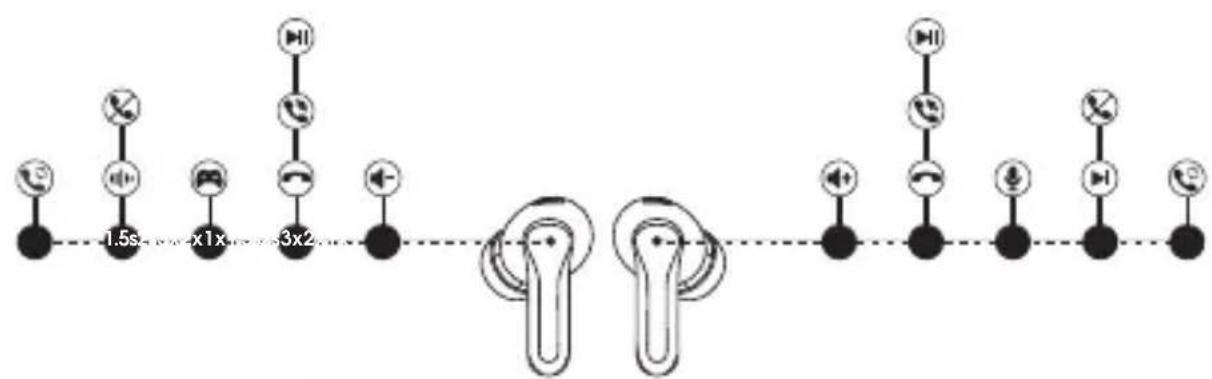

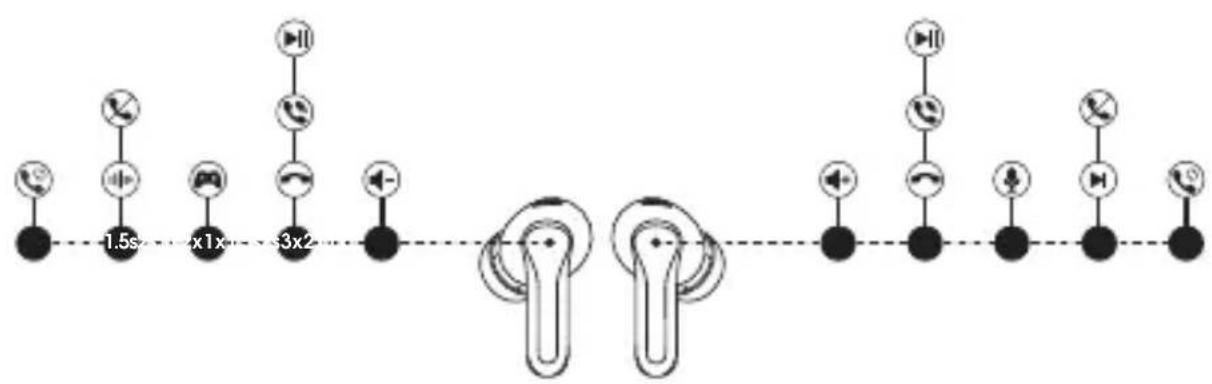

Touch Control

Power on	Automatically: Open the charging case, the earbuds will automatically power on Manually: Long press the touch button for 1.5 seconds
Power Off	Automatically: Place the earbuds back into the charging case and close the lid. Manually: Long press the touch button for 10 seconds
Play/Pause	Double tap the touch button
Volume-	Tap the left touch button once
Volume+	Tap the right touch button once
Play Next	Long Press the right touch button for 1.5 seconds
Answer/Hang up phone call	Double tap the touch button
Reject phone call	Long press the touch button for 1.5 seconds
Switch between two calls	Long press the touch button for 2 seconds
Manually enter into pairing mode	Long press the button on the charging case for 3 seconds
Activate voice assistant	Triple tap the right touch button
Enter/Exit Game Mode	Triple tap the left touch button
Noise reduction/transparency /normal mode switching	Long press the left touch button for 1.5 seconds

Q&A

Q1: What does the LED indicator on the charging case mean?

Display remaining power of the charging case:

100%-50% remaining power shows green light

49%-10% remaining power shows yellow light

Under 10% remaining power shows red light

When charging the charging case, the indicator light indicates:

0-19% remaining power, red light flashes slowly

20%-69% remaining power, yellow light flashes slowly

70%-99% remaining power, green light flashes slowly

100% remaining power, green light stay on

Simple geometric diagram of a circle with a horizontal line and a dot at the center (no text or symbols)

Q2: How to charge the charging case?

1. Connect with a Type-C charging adapter to charge the charging case.(Charging current is not greater than 1A).

2. When not using for a long time, please charge it once every three months at least.

Line drawing of a mechanical component with a circular body and a protruding rod (no text or symbols)

Q3: Why are the earphones still connected to the phone when the earphones are put back into the charging case and the charging case is closed?

1. The charging case has no remaining power. The earphone will not power off in charging case when charging case has no power.

2. Make sure the earphones are properly placed in the charging case and the charging metal piece and pin are clean. Please try to clean the charging contact area between the charging box and the earphones with a soft cloth.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

IC ID

- English: "

This device compiles with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.*

- French."

RF warning statement:

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
