Product type	Gasoline lawn mower
Brand	SOLO
Model	4852 VS ALU
Fuel	Unleaded gasoline (see engine manufacturer recommendations)
Cutting height	Centralized or axle adjustment, multiple notches
Grass catcher	Yes, with level indicator
Mulching kit	Optional
Side discharge	Optional
Starting	Manual (cable) or electric depending on model
Transmission	Wheels (optional), Vario (optional)
Safety	Safety bar, deflector flap
Blade maintenance	Sharpening and replacement by an authorized professional
Cleaning	After each use, do not use a water jet
Storage	Dry place, frost-free, drain the fuel tank
Warranty	Legal according to country of purchase, wear parts excluded
Repairs	Authorized after-sales service centers only

Frequently Asked Questions - 4852 VS ALU SOLO

How to start the engine of the Solo 4852 VS ALU lawn mower?

For manual start, pull the safety bar towards the handlebar and hold it, then quickly pull the starter cable. For electric start, turn the ignition key to the right. Make sure the blade is mounted and the grass catcher or deflector flap is in place.

How to adjust the cutting height?

The cutting height can be adjusted centrally or by axle. For central adjustment, hold the button and push or pull the handle. For axle adjustment, push the release lever and move it left or right. Make sure all wheels are on the same notch.

How to empty the grass catcher?

Lift the deflector flap, unhook the catcher by pulling it backward, empty it, then reattach it to the supports. The level indicator signals when the catcher is full.

What to do if the engine does not start?

Check the fuel level, set the throttle lever to 'Start', engage the safety bar, check the spark plug and the air filter. Make sure the blade rotates freely and that the starter battery (if applicable) is charged.

How to use the mulching kit?

Remove the grass catcher, lift the deflector flap and insert the mulching kit into the discharge opening until it clicks. For best results, mow regularly cutting only 2 cm maximum and maintaining a grass height of at least 4 cm after mowing.

How to maintain the cutting blade?

The blade should be sharpened or replaced by an authorized professional if worn or damaged. An unbalanced blade causes vibrations. Wear gloves when handling and always turn off the engine before any manipulation.

What engine oil to use?

Follow the engine manufacturer's recommendations. The oil quantity is approximately 0.6 liters. Use oil suitable for 4-stroke engines. Dispose of used oil at a recycling center.

How to store the lawn mower in winter?

Let the engine cool down, drain the fuel tank, remove the spark plug, clean the appliance and store it in a dry and frost-free place. Recharge the starter battery occasionally if applicable.

What to do in case of abnormal vibrations?

Stop the engine immediately and check the cutting blade. If it is damaged or unbalanced, have it replaced by a professional. Vibrations may also come from a deformed engine shaft.

Does the warranty cover wear parts?

No, wear parts (blade, belts, etc.) are not covered by the warranty. The legal warranty covers material and manufacturing defects. Keep your purchase receipt and warranty card for any claims.

USER MANUAL 4852 VS ALU SOLO

Line drawing of two lawn mower machines, one with a flat blade and the other with a flat blade and handle (no text or symbols)

DE

GB

NL

FR

ES

PT

IT

SI

HR

RS

PL

CZ

SK

HU

DK

SE

NO

FI

EE

LV

LT

RU

UA

BG

RO

GR

MK

TR

DE: Betriebsanleitung ....7 DK: Brugsanvisning....155
GB: Operating Instructions .....17 SE: Bruksanvisning .....165
NL: Instructies voor gebruik ....28 NO: Bruksanvisning ....175
FR : Mode d'emploi ....39 FI: Käyttöohjeet....185
ES: Instrucciones de uso ....50 EE: Kasutusjuhend....195
PT: Instruções para o uso ....61 LV: Instrukcijas....205
IT: Libretto di istruzioni .....72 LT: Instrukciju vadovas .....215
SI: Navodilo za uporabo ....83 RU: Руководство по эксплуатации....225
HR: Upute za uporabu .....93 UA: Посібник з експлуатації .....236
RS: Упутства за употребу.....104 BG: Ръководство за експлоатация .....247
PL: Instrukcja obsługi....115 RO: Instructiuni....258
CZ: Návod k použití .....125 GR: Ođnyíčs leitoupryíac .....268
SK: Návod na použitie ....135 MK: Упатство за работа....279
HU: Használat .....145 TR: Kullanım kılavuzu .....290

Notice

1 9

©

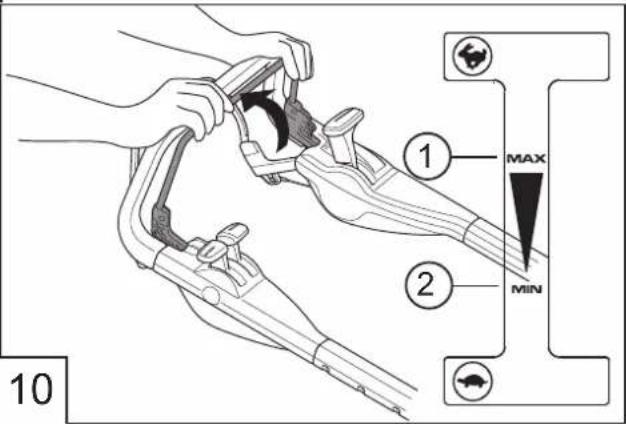

1 ① MAX ② MIN 10

Illustration of two hands operating a mechanical clamp or tool, with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a belt drive mechanism with a key and curved guide (no text or labels)

Illustration of a mechanical clamp or bracket being adjusted, showing hand positioning and motion direction (no text or symbols)

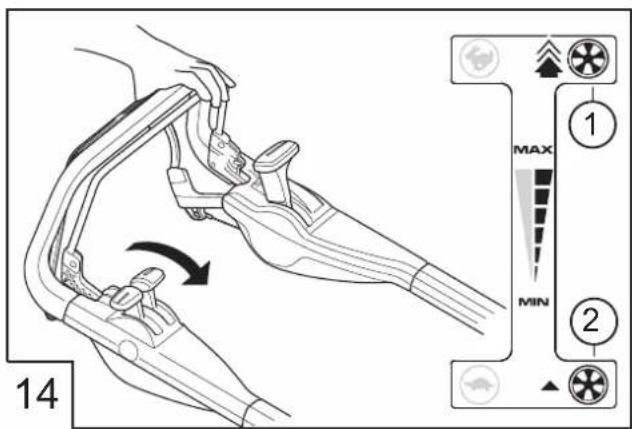

14 MAX MIN ① ②

Illustration of a medical procedure showing hand positioning and tool manipulation (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

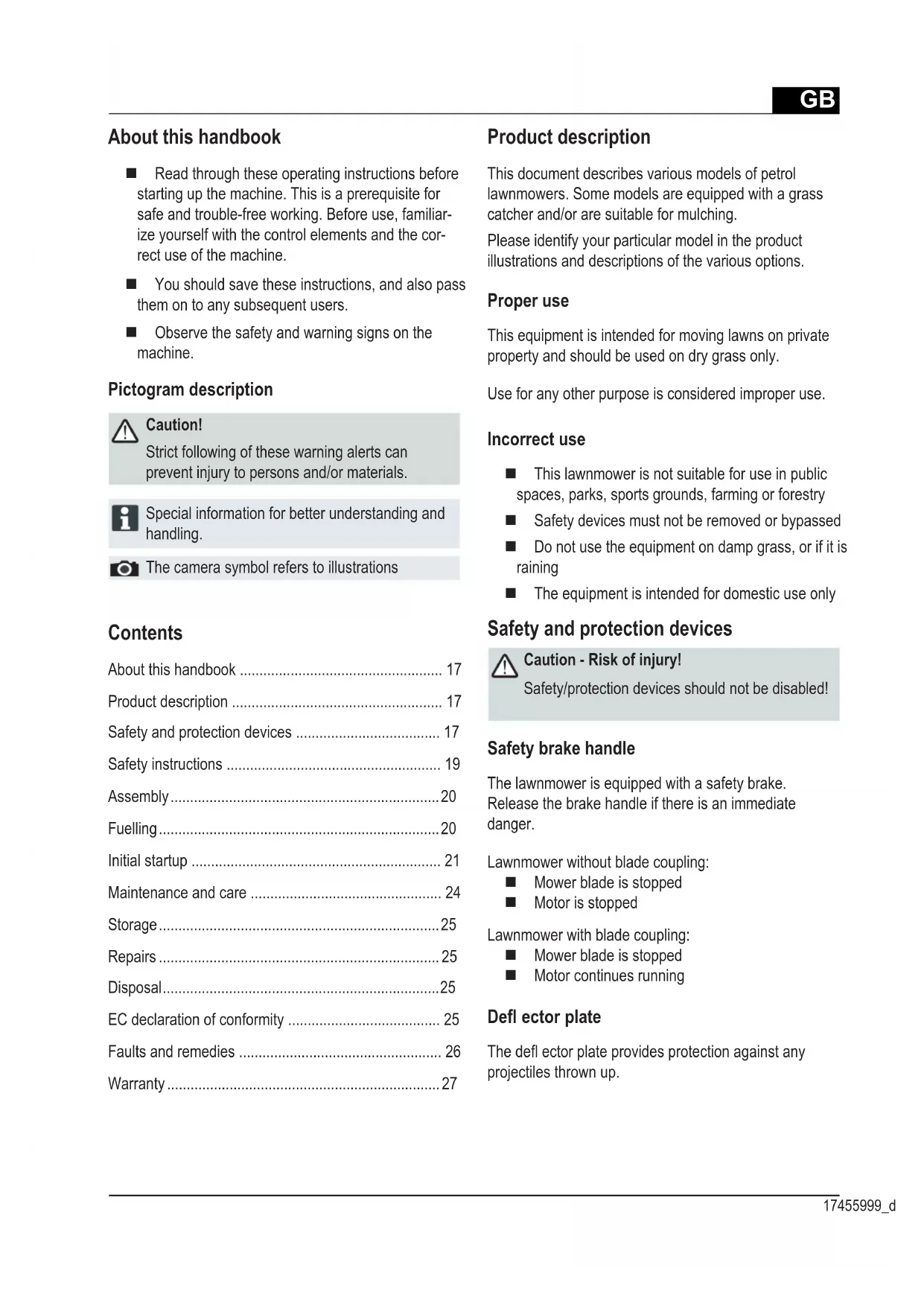

Zu diesem Handbuch

Technical diagram of a lawn mower with numbered parts and exploded view, including open and closed views.

Read through these operating instructions before starting up the machine. This is a prerequisite for safe and trouble-free working. Before use, familiarize yourself with the control elements and the correct use of the machine.
■ You should save these instructions, and also pass them on to any subsequent users.
- Observe the safety and warning signs on the machine.

Pictogram description

Caution!

Strict following of these warning alerts can prevent injury to persons and/or materials.

Special information for better understanding and handling.

The camera symbol refers to illustrations

Contents

About this handbook 17

Product description 17

Safety and protection devices 17

Safety instructions 19

Assembly....20

Fuelling....20

Initial startup 21

Maintenance and care 24

Storage 25

Repairs 25

Disposal....25

EC declaration of conformity 25

Faults and remedies 26

Warranty 27

Product description

This document describes various models of petrol lawnmowers. Some models are equipped with a grass catcher and/or are suitable for mulching.

Please identify your particular model in the product illustrations and descriptions of the various options.

Proper use

This equipment is intended for moving lawns on private property and should be used on dry grass only.

Use for any other purpose is considered improper use.

Incorrect use

This lawnmower is not suitable for use in public spaces, parks, sports grounds, farming or forestry
■ Safety devices must not be removed or bypassed
■ Do not use the equipment on damp grass, or if it is raining
■ The equipment is intended for domestic use only

Safety and protection devices

Caution - Risk of injury!

Safety/protection devices should not be disabled!

Safety brake handle

The lawnmower is equipped with a safety brake. Release the brake handle if there is an immediate danger.

Lawnmower without blade coupling:

■ Mower blade is stopped
■ Motor is stopped

Lawnmower with blade coupling:

■ Mower blade is stopped
■ Motor continues running

Defl ector plate

The defl ector plate provides protection against any projectiles thrown up.

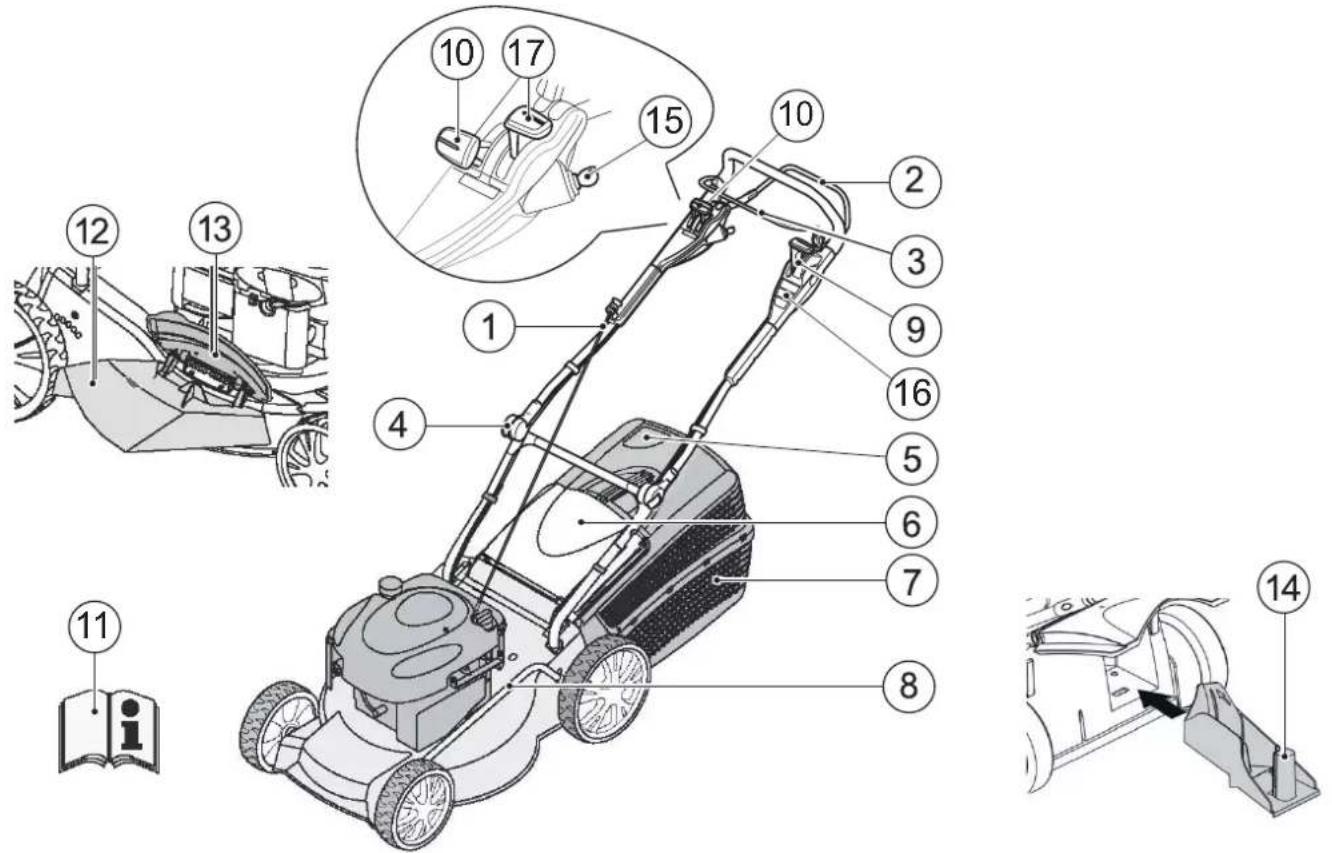

Technical diagram of a lawn mower with numbered parts and exploded view, including close-ups and assembly details.

1 Starter cable 10 Vario transmission*
2 Wheel drive* 11 Operating instructions
3 Safety brake handle 12 Outlet shaft insert*
4 Ergonomic height adjustment* 13 Cover fl ap*
5 Fill level indicator* 14 Mulch kit*
6 D e fl ector plate 15 Ignition switch for electric start*
7 Grass catcher 16 Quick guide
8 Cutting height adjustment 17 Remote throttle control*
9 Blade coupling* * depending on version

Symbols on the device

	Caution!Be particularly careful when handling.		Remove the spark plug connector before working on the cutting gear.
	Before initial startup read the instructions for use!		Ignition switch for electric start:Remove the ignition key before maintenance and repair work!
	Keep other people out of the danger area!		Quick guideRelease the motor brake.
	Keep hands and feet away from the cutting gear!		Quick guideSwitch on the wheel drive.
	Keep away from the danger area.		Quick guideRemote throttle control Start / Stop.

Additional symbols on lawnmowers with Electrostart

Caution! Risk of electric shock.

Keep the connection line away from the mower blades.

If the cable is damaged, or when carrying out maintenance work, always disconnect the equipment from the mains supply.

Safety instructions

Caution!

Use the equipment only if it is in correct operating condition!

Caution - Risk of injury!

Safety/protection devices should not be disabled!

Caution - risk of fi re!

After fuelling, do not store the machine in buildings where the petrol fumes might come into contact with naked flames or sparks!

Keep the area around the motor, exhaust, battery case, and fuel tank clear of grass cuttings, petrol and oil.

• Keep other people out of the danger area
  ■ The machine operator or user is responsible for any accidents affecting other people or their property
  ■ Children, or any persons who have not read these operating instructions, should not be allowed to use this machine
  ■ Follow the local regulations regarding the minimum age for operators of this type of machine

■ Do not use the equipment if under the influence of alcohol, drugs or medication

■ Wear appropriate work clothes

Long trousers
Hard, non-slip shoes
■ Hearing protection

■ If working on slopes

■ always make sure you are positioned securely
■ always work across the slope, never upward or downward

do not work on slopes where the gradient is greater than 20^
■ Take particular care when turning

■ Only use the lawnmower if there is sufficient daylight or artificial lighting

• Keep the body, limbs and clothing away from the cutting gear
  ■ Follow the hours of use regulations applying in the country concerned
  ■ Do not leave the equipment unattended when ready to operate
  ■ Only use the lawnmower if the mower blade is sharp
  ■ Do not operate the equipment if the safety devices / protective grilles are damaged
  ■ Never operate the equipment if the safety devices are not fully assembled (e.g. defl ector plate, grass catching devices)
  ■ Before each use, check the equipment for damage; replace any damaged parts before using again
  ■ Switch off the motor, wait for the equipment to come to a standstill, then pull out the spark plug connector
  ■ if leaving the equipment unattended
  ■ if a fault has occurred
  ■ before clearing blockages
  ■ before removing obstructions
  ■ if the lawnmower has run into foreign objects
  ■ if malfunctions or unusual vibrations occur on the machine

Check the lawnmower for damage, and carry out the necessary repairs before restarting or using the lawnmower again.

■ Insert the spark plug connector and start the motor
■ after correcting the fault (see Faults table) and checking the equipment
■ after cleaning the equipment

■ Carefully check the ground to be mowed, and remove any foreign objects

■ Take particular care when turning the lawnmower around, or if pulling it towards you

■ Do not mow over obstacles (such as branches, tree roots)

■ Remove cuttings only when the motor has stopped
■ Switch off the motor / mower blade when passing over areas other than those that have to be mowed
■ Never lift or carry the equipment while the motor is running
■ Do not eat or drink when topping up the petrol or motor oil
■ Do not inhale the petrol fumes
■ Move the machine at walking speed
■ Before use, ensure that all nuts, screws and bolts are securely fastened.

Assembly

Follow the accompanying assembly instructions.

Caution!

The equipment can be used only after complete assembly.

Fuelling

Fill the lawnmower with fuel before the initial startup.

Warning - risk of fi re!

Petrol and oil are highly infl ammable!

Warning!

Remove the ignition key!

Always observe the operating instructions supplied by the motor manufacturer.

Operating fluids

	Petrol Motor oil
Grade Regular petrol / unleaded		Refer to the motor manufacturer's instructions
Filling capacity	Refer to the motor manufacturer's instructions	about 0.6 l

Safety

Warning!

Never leave a motor running in an enclosed space. Toxic hazard!

Store petrol and oil only in containers intended for this purpose

■ Only add or drain oil in the open air, and when the motor has cooled down
■ Do not add petrol or oil while the motor is running
■ Do not overfill the tank (petrol expands)
■ Do not smoke when refuelling
■ Do not open the tank lock when the motor is running or when hot
■ Replace the tank or tank lock if damaged

■ Always close the tank cap firmly

■ If petrol has been spilt:
Do not start the motor
Do not start the equipment
Clean the equipment

■ If motor oil has been spilled:

Do not start the motor
Soak up the spilled oil with an oil binding agent and dispose of appropriately
Clean the equipment

Used oil should not be:

■ disposed of with domestic rubbish
■ poured into the sewage system, drains, or onto the ground

We recommend to collect the used oil in a closed container and to deliver it to a suitable recycling or service station.

Adding petrol

1. Unscrew the tank cap, and keep in a clean place.
2. Pour in petrol using a funnel.
3. Firmly replace the cap on the filler opening and clean it.

Adding motor oil

1. Unscrew the filler cap, and keep in a clean place.
2. Pour in oil using a funnel.
3. Firmly replace the cap on the filler opening and clean it.

Warning!

Remove the ignition key!

Initial startup

Caution!

The equipment should not be used if the cutting gear and/or fastenings are loose, damaged or worn.

Carry out a visual inspection before each start-up.

Warning!

Remove the ignition key!

The camera symbol on the following page refers to the illustrations on Page 4–7.

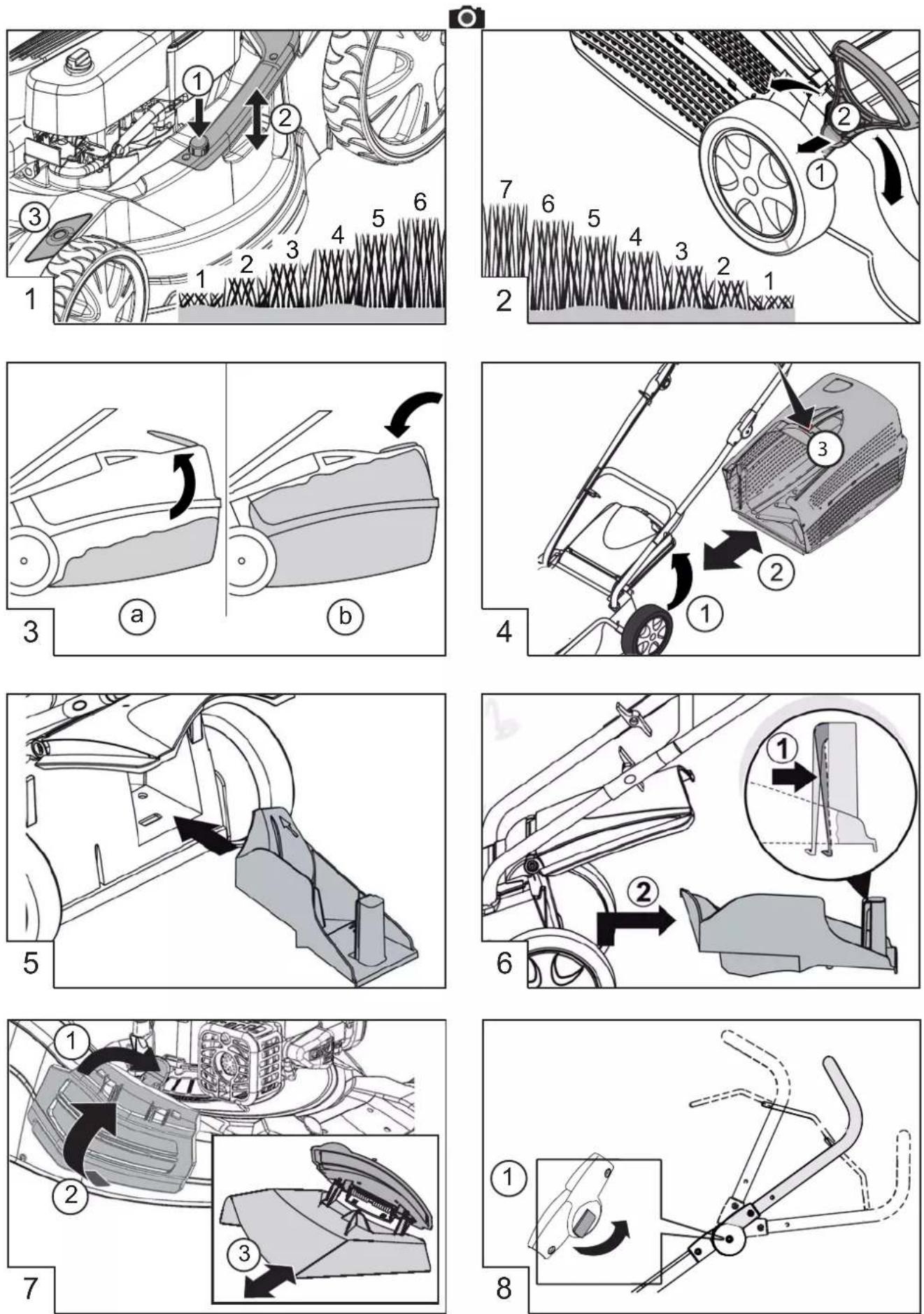

Adjusting the cutting height

Caution - Risk of injury!

Adjust the cutting height only with the motor switched off and when the mower blade has come to a standstill.

- Always set all the wheels to the same cutting height.

- Cutting height adjustment depends on the particular model.

Central adjustment (☐ 1)

1. Press and hold the central height adjustment knob (☐1).

For shorter grass, press the central adjustment handle downward (1/2)
For longer grass, pull the central adjustment handle upward (1/2)
The central height adjustment level is indicated (1/3)

1. Release the knob at the desired cutting height.

Axle adjustment or central adjustment (☐)

1. To release the lever, press to the side and hold.
2. Push the lever to the left or right to select the desired cutting height.
3. Let the lever click into position.
4. Check that all wheels are set to the same position.

Mowing with the grass catcher

Caution - Risk of injury!

Attach/detach the grass catcher only when the motor is switched off and the mower blade has come to a standstill.

1. Lift the deflector plate and insert the grass catcher in the holders (☐ 4).

Important!

Only a correctly attached and undamaged grass collector offers sufficient protection against flying objects!

Fill level indicator

The fill level indicator is pushed upward by the air flow when mowing (☐ 3a).

If the grass catcher is full, the indicator points to the box (3b). The grass catcher must be emptied.

Emptying the grass catcher

1. Lift the defl ector plate.
2. Unhook the grass catcher and pull backward to remove (☐ 4).
3. Empty the grass catcher.
4. Lift the defl ector plate and insert the grass catcher in the holders (☐ 4).

Mowing without the grass catcher

Caution!

Only work without the grass catcher if the defl ector plate torsion spring is working correctly.

The defl ector plate is held to the mower housing by spring force. This causes the mowed grass to be thrown backward and downward.

Mulching with the mulch kit (optional)

When mulching, the grass cuttings are not collected, but are left on the lawn. The grass mulch prevents the soil from drying out, and supplies it with nutrients.

The best results are obtained by cutting back regularly by about 2 cm. Only young grass with a soft leaf texture decomposes quickly.

■ Grass height before mulching: 8 cm maximum
■ Grass height after mulching: 4 cm minimum

Adapt your walking pace to the mulching process, do not walk too fast.

Inserting the mulch kit

Caution - Risk of injury!

Insert/remove the mulch kit only with the motor switched off and when the mower blade has come to a standstill.

1. Remove the grass catcher ( 4).
2. Lift the defl ector plate and insert the mulch kit in the outlet shaft (5). It must lock into place.

If the mulch kit is not locked into position, both the mulch kit and the mower blade may be damaged.

Removing the mulch kit

1. Lift the defl ector plate.
2. Release the lock on the mulch kit ( 6/1).
3. Pull out the mulch kit ( 6/2).

Mowing with side discharge unit (option)

Important – Danger of injury!

Attach or remove the side discharge unit only when the motor has been switched off and the cutting blade is at a standstill.

Fitting the side discharge unit

1. Remove the grass collector and fit the mulching kit.

2. Press the release lever on the cover of the side discharge unit (7/1).

3. Open and hold the cover of the side discharge unit (7/2).

4. Fit the side discharge tunnel ( 7/3).
5. Slowly close the cover.
   The cover secures the side discharge tunnel to prevent it from falling out.

Removing the side discharge unit

1. Open and hold the cover of the side discharge unit (7/2).
2. Remove the side discharge unit and close the cover (7/3).

Setting the handle height (optional)

Clamp adjustment

1. Hold the bar and loosen both clamps ( 8).
2. Move the bar to the desired position
3. Lock the clamps.

Starting the motor

Caution - risk of poisoning!

Never leave a motor running in an enclosed space.

Caution - Risk of injury!

Do not tilt the lawnmower while starting.

• Start the motor only when the blade is mounted (the blade acts as a flywheel mass)
• If starting the motor when hot do NOT use the choke or primer button
• Do not change the motor controller settings

■ Do not start the equipment if the outlet shaft is not covered by one of the following parts:

Grass catcher

Deflector plate

Mulch kit

■ Be particularly careful when operating the starter switch - follow the manufacturer's instructions

- Keep your feet at a safe distance from the cutting gear

■ Start the lawnmower where the grass is shorter

Starting manually

without remote throttle control

1. Pull in the safety brake handle on the handlebar and hold it (☐ 10) – the brake handle does not lock.

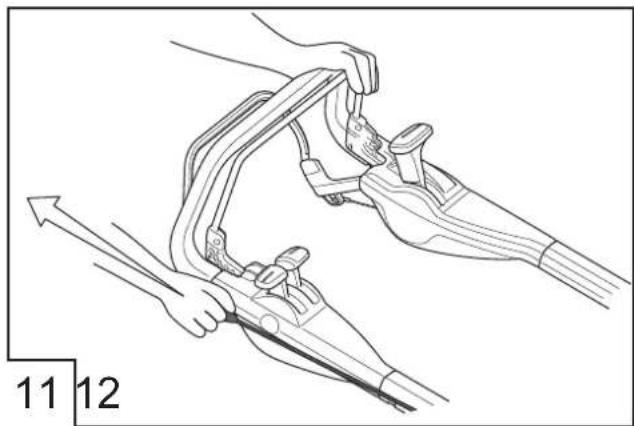

2. Pull out the starter cord sharply, then allow it to slowly rewind (☐ 11).

with remote throttle control

1. Set the throttle lever to position max ( 10/1).
2. Pull in the safety brake handle on the handlebar and hold it (☐ 10) - the brake handle does not lock.
3. Pull out the starter cord sharply, then allow it to slowly rewind (☐ 11).
4. When the motor has warmed up (about 15–20 seconds), set the throttle lever to a position between min and max.

Electrostart without primer/choke

1. Pull in the safety brake handle on the handlebar and hold it (☐ 10) – the brake handle does not lock.

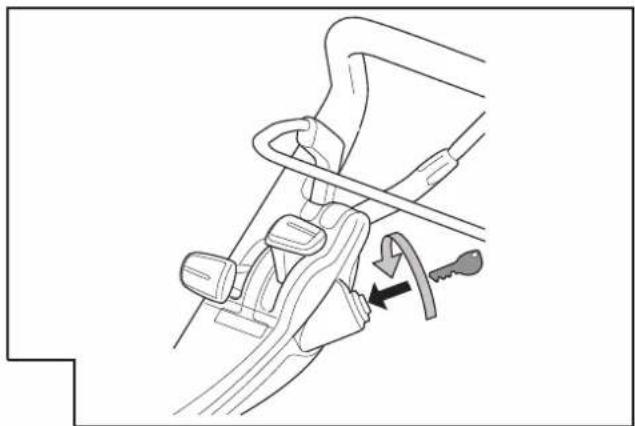

2. Turn the ignition key fully to the right in the ignition lock (☐2).
3. As soon as the motor starts running, release the ignition key (it returns automatically to position "0").

Blade coupling (optional)

With the blade coupling, the mower blade can be engaged or disengaged while the motor is running.

Engaging the blade coupling

1. Pull in the safety brake handle on the handlebar and hold it (☐ 10) - The brake handle does not lock.

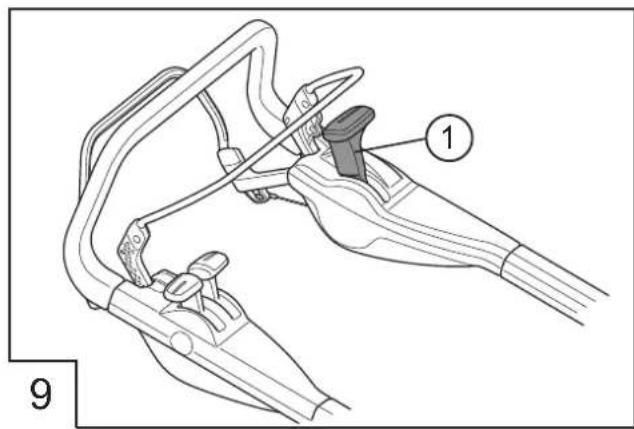

2. Push the coupling lever away from you ( 9/1)
3. The blade coupling is engaged.

Disengaging the blade coupling.

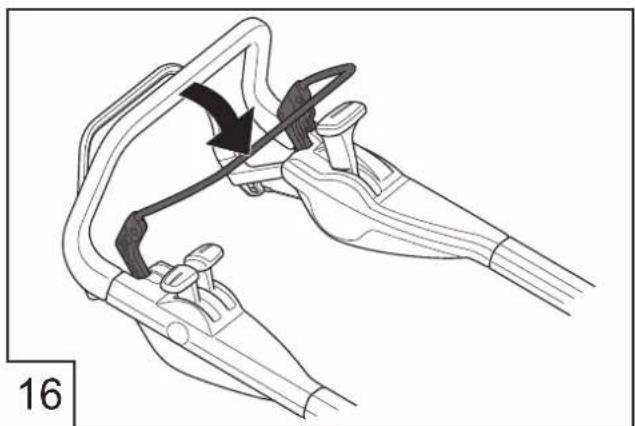

1. Release the safety brake handle ( 16).
2. The blade coupling is disengaged.
3. The coupling lever moves to rest position (9/2).

Turn the motor off

Lawnmower without blade coupling

1. Release the safety brake handle ( 16).
2. The motor is switched off.

Caution - danger of serious cut injuries!

The motor may continue running. After switching off, make sure the motor has stopped turning.

Warning!

Remove the ignition key!

Lawnmower with blade coupling

1. Release the safety brake handle ( 16).
2. Set the throttle lever to position min ( 10/2).
3. The motor is switched off.

Caution - danger of serious cut injuries!

The motor may continue running. After switching off, make sure the motor has stopped turning.

Wheel drive (optional) (4)

Caution!

Engage the transmission only when the motor is running.

Switching on the wheel drive

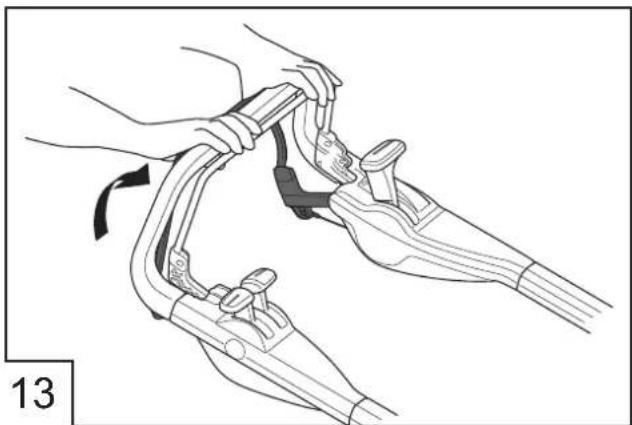

1. Press the transmission control handle against the handlebar and hold it (☐3) – the transmission control handle does not lock.
2. The wheel drive is switched on.

Switching off the wheel drive

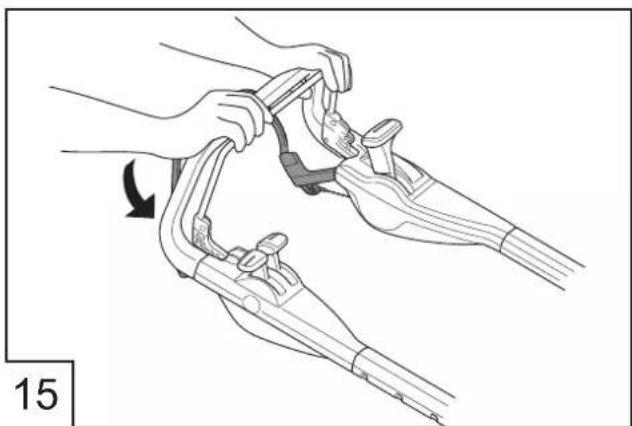

1. Release the transmission control handle ( 15).
2. The wheel drive is switched off.

Vario transmission (Speed Control) (optional)

The Vario transmission allows continuous variation of the ground speed of the lawnmower.

Caution!

Operate the lever only when the motor is running. Operating the lever without the motor drive may damage the drive mechanism.

■ To increase the speed, pull the level(14) towards (14/2)
■ To lower the speed, pull the level(14) towards (14/1)

Always adjust the ground speed to suit the current ground and lawn conditions.

Maintenance and care

Caution - Risk of injury!

• Before carrying our any care or maintenance work, always switch off the motor and pull out the spark plug connector.
• The motor may continue running. After switching off, make sure the motor has stopped turning.
• Always wear working gloves when carrying out maintenance or repair work.

• Remove the ignition key.

• Check the grass catcher regularly for wear, and to ensure it is working correctly
  ■ Clean the equipment after each use
  ■ Do not wash the equipment by hosing or spraying with water

Water infi ltration can cause faults (in the ignition system, carburettor)

■ Check the mower blade regularly for damage

■ Always replace the muffler if faulty

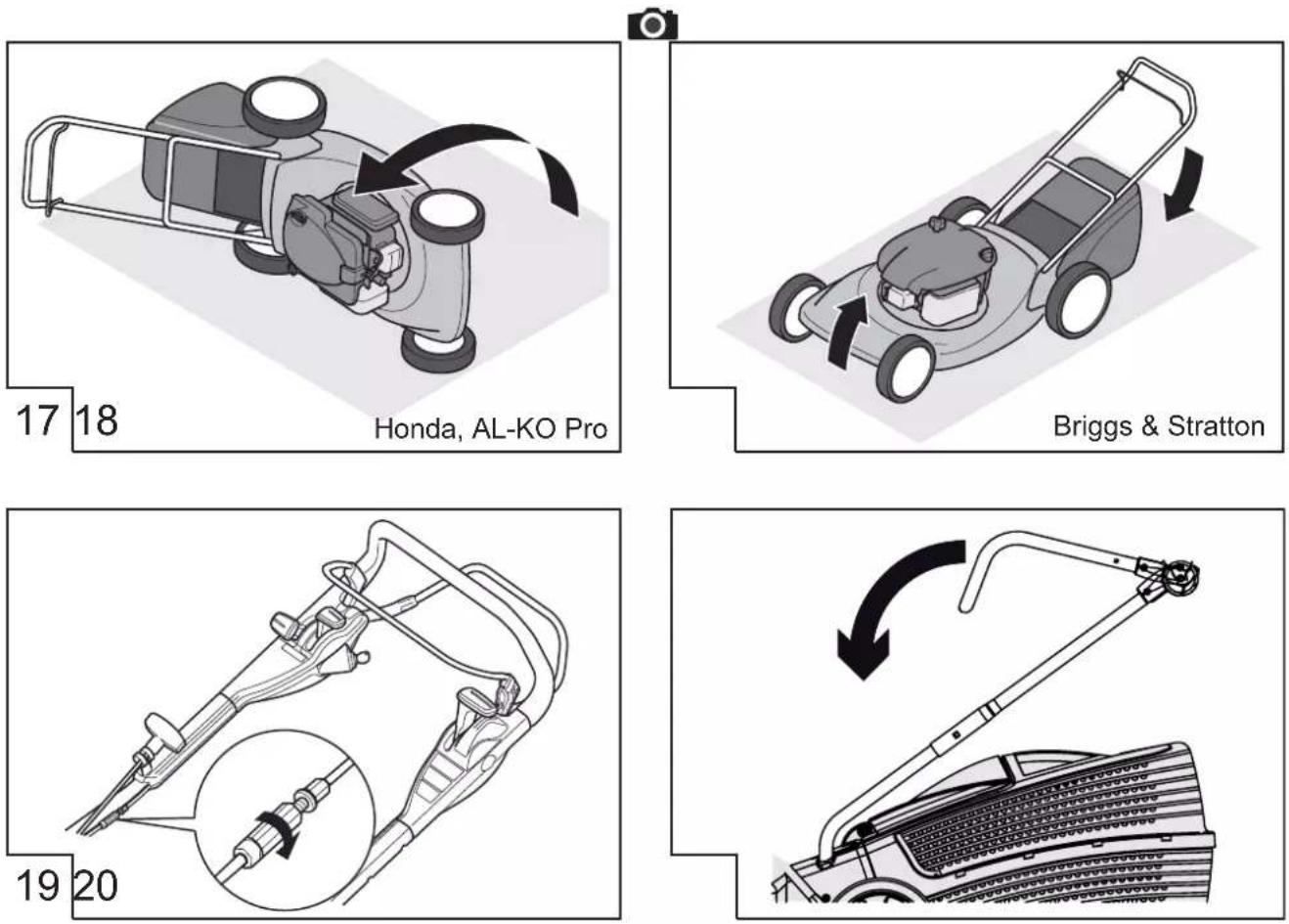

Tilting the lawnmower

Depending on the motor manufacturer:

■ the carburettor / air filter must be facing upward (17)

■ the spark plug must be facing upward(18)

Follow the operating instructions of the motor manufacturer!

Resharpening/replacing the mower blade

■ Blunt or damaged blades should be resharpened / replaced only at a service point or by an authorised specialist
■ Resharpened blades must be rebalanced

Caution!

Blades that have not been rebalanced can cause serious vibrations, and may result in damage to the lawnmower.

■ Always have the equipment checked out by a professional in the following cases:

■ after bumping against an obstacle
■ if the motor stops suddenly
■ if there is damage to the transmission
■ if the V-belt is faulty
■ if the blade is bent
■ if there is warping of the motor shaft

Charging the starter battery (optional)

■ Follow the instructions of the manufacturer of the motor.

Caution!

Use only the original battery charger supplied.

• Charge the starter battery only in dry, well-ventilated rooms.
• Do not start up the lawnmower while the battery is charging.

Care of the motor

Changing the motor oil

1. Have a suitable container ready to collect the used oil.
2. Drain or suction off all the oil through the oil filler opening.

Dispose of used motor oil in a manner that is compatible with the environment!

We recommend to collect the used oil in a closed container and to deliver it to a suitable recycling or service station.

Used oil should not be

• disposed of with domestic rubbish
• poured into the sewage system or drains
• poured out onto the ground

Changing the air fi Iter

■ Follow the instructions of the manufacturer of the motor.

Changing the spark plug

■ Follow the instructions of the manufacturer of the motor.

Wheel drive (optional)

Adjusting the Bowden cable

If the wheel drive can no longer be switched on or off while the motor- is running, the related Bowden cable needs to be adjusted.

Caution!

Adjust the Bowden cable only when the motor is switched off.

1. Turn the adjuster on the Bowden cable in the direction of the arrow (☐ 19).
2. To test the cable setting, switch on the motor and switch on the wheel drive.
3. If the wheel drive is still not working, the lawnmower must be taken to a service point or an authorised specialist.

Lubricating the drive pinion

■ From time to time, lubricate the drive pinion on the transmission shaft

The wheel drive gearing is maintenance free.

Storage

Caution - risk of explosion!

Do not store the equipment where there are naked flames or heat sources.

■ Allow the motor to cool down
■ Store the equipment in an area which is kept dry, and which cannot be accessed by children or unauthorised persons
■ Store the starter battery where it will be protected from frost
■ Recharge the starter battery from time to time
- Drain the fuel tank
■ Follow the instructions of the manufacturer of the motor.
■ Pull out the spark plug connector

Repairs

Repairs should be carried out only by a service point or an authorised specialist.

Disposal

Do not dispose of old equipment, batteries or accumulators as household waste!

Machine, packaging, and accessories were made with recyclable materials, and should be disposed of accordingly.

EC declaration of conformity

■ see assembly instructions

Faults and remedies

Caution!

The motor shaft and mower blade should not be aligned.

Fault Solution
The motor does not start▪ Add petrol▪ Set throttle lever to "Start"▪ Press the motor switch at the handlebar▪ Check the spark plugs and replace if necessary.▪ Clean the air filter.▪ Spin the mower blade▪ Recharge the starter battery▪ Start on a surface already mowed
Motor power reduced▪ Adjust the cutting height▪ Resharpen / replace the mower blade▪ Clean the outlet shaft/housing▪ Clean the air filter.▪ Reduce the working speed
Lawnmower cuts unevenly▪	Resharpen/replace the mower blade▪ Adjust the cutting height
Grass catcher does not fi ll suffi ciently	▪ Adjust the cutting height▪ Allow the lawn to dry▪ Resharpen/replace the mower blade▪ Clear the grille on the grass catcher▪ Clean the outlet shaft/housing
Wheel drive does not work▪	Adjust the Bowden cable▪ V-belt faulty▪ Contact the service-workshop▪ Clean any dirt away from the wheel drive, toothed belt and gearing▪ Lubricate the freewheels (drive pinion on drive shaft) with spray oil
Wheels do not turn when the transmission is switched on	▪ Retighten the wheel bolts▪ Wheel hub faulty▪ V-belt faulty▪ Contact the service-workshop
Unusually strong vibrations in the lawnmower	▪ Check the mower blade

For faults not listed in this table, or which you cannot resolve by yourself, please contact our customer service.

Warranty

If any material or manufacturing defects are found during the statutory customer protection period, we will either repair or replace the equipment, whichever we consider the more appropriate. This statutory period may vary according to the legislation in force in the country where the equipment was purchased.

Our warranty is valid only if: The warranty is no longer valid if:

■ The equipment has been used properly
■ The operating instructions have been followed
■ Genuine replacement parts have been used

■ The equipment has been tampered with
■ Technical modifications have been made
■ The equipment was not used for its intended purpose (for example, used for commercial or communal applications)

The following are not covered by warranty:

■ Paint damage due to normal wear

■ Wear parts identified by a border XXX XXX (X) on the spare parts list
Combustion motors – these are covered by a separate warranty from the manufacturer concerned

To make a claim under warranty, please take this statement of warranty and proof of purchase to the nearest authorised customer service centre. This warranty does not affect the usual statutory rights of the customer relative to the seller.

Over dit handboek

Technical diagram of a lawn mower with numbered parts and exploded view, including close-ups and assembly details.

Technical diagram of a lawn mower with numbered parts and an inset view of the engine compartment

Technical diagram of a lawn mower with numbered parts and exploded view, including hand positioning and component identification.

Technical diagram of a lawn mower with numbered parts and an inset view of the engine compartment

Technical diagram of a lawn mower with numbered parts and exploded view, including close-ups and assembly details.

Technical diagram of a lawn mower with numbered parts and exploded view, including close-ups and assembly details.

Technical diagram of a lawn mower with numbered parts and an inset view of the engine compartment

1 Uže pokretača 10 Vario prijenosnik*
2 Pogon kotača* 11 Upute za uporabu
3 Sigurnosni stremen 12 Nastavak za izbacivanje*
4 Ergonomsko namještanje visine* 13 Zatvarač*
5 Pokazatelj razine napunjenosti* 14 Komplet za malčiranje*
6 Zaklopac 15 Paljenje Električni Start*
7 Košara 16 Brzi vodič
8 Namještanje visine rezanja 17 Daljinsko upravljanje gasom*
9 Spojka noža za rezanje* * ovisno o izvedbi

Simboli na uređaju

Technical diagram of a lawn mower with numbered parts and exploded view, including open and closed views.

Technical diagram of a lawn mower with numbered parts and an open book icon labeled 'i'

Elektryzny start bez Primer/Choke

Technical diagram of a lawn mower with numbered parts and exploded view, including hand positioning and component identification.

Technical diagram of a lawn mower with numbered parts and exploded view, including close-ups and assembly details.

1 Lanko štartéra 10 Vario prevodovka*
2 Pohon kolies* 11 Návod na obsluhu
3 Bezpečnostný strmeň 12 Vyhadzovací nadstavec*
4 Ergonomické prestavenie výšky* 13 Uzatváracia klapka*
5 Indikátor stavu naplnenia* 14 Mulčovacia výbava*
6 Odrazová klapka 15 Zámok zapal'ovania pre elektrický štart*
7 Box na zachytávanie trávy 16 Stručný sprievodca
8 Prestavenie výšky rezu 17 Dial'kové ovládanie plynu*
9 Nožová spojka*

Technical diagram of a lawn mower with numbered parts and exploded view, including open and closed views.

Technical diagram of a lawn mower with numbered parts and exploded view, including labeled parts and component annotations.

Advarsel - brandfare!

Technical diagram of a lawn mower with numbered parts and an inset view of the engine compartment

Technical diagram showing a mechanical assembly with labeled component 14 and directional arrow indicating motion or force.

Technical diagram of a lawn mower with numbered parts and an inset view of the engine compartment

Technical diagram showing a mechanical assembly with labeled component 14 and directional arrow indicating motion or force.

Technical diagram of a lawn mower with numbered parts and exploded view, including open and closed views.

Technical diagram of a lawn mower with numbered parts and an inset view showing mechanical components and parts.

Technical diagram of a lawn mower with numbered parts and an open book icon labeled 'i'

Technical diagram of a lawn mower with numbered parts and exploded view, including open and closed views.

Technical diagram of a lawn mower with numbered parts and exploded view, including open and closed views.

Technical diagram of a lawn mower with numbered parts and an inset view of the handle mechanism.

Technical diagram of a lawn mower with numbered parts and exploded view, including open and closed views.

Technical diagram of a lawn mower with numbered parts and exploded view, including open and closed views.

Technical diagram of a lawn mower with numbered parts and exploded view, including labeled parts and component annotations.

Technical diagram of a lawn mower with numbered parts and exploded view, including open and closed views.

Technical diagram of a lawn mower with numbered parts and exploded view, including close-ups and assembly details.
