USER MANUAL HTA 2050 AL-KO

HECKENSCHEREN (IEC 60745-2-15)

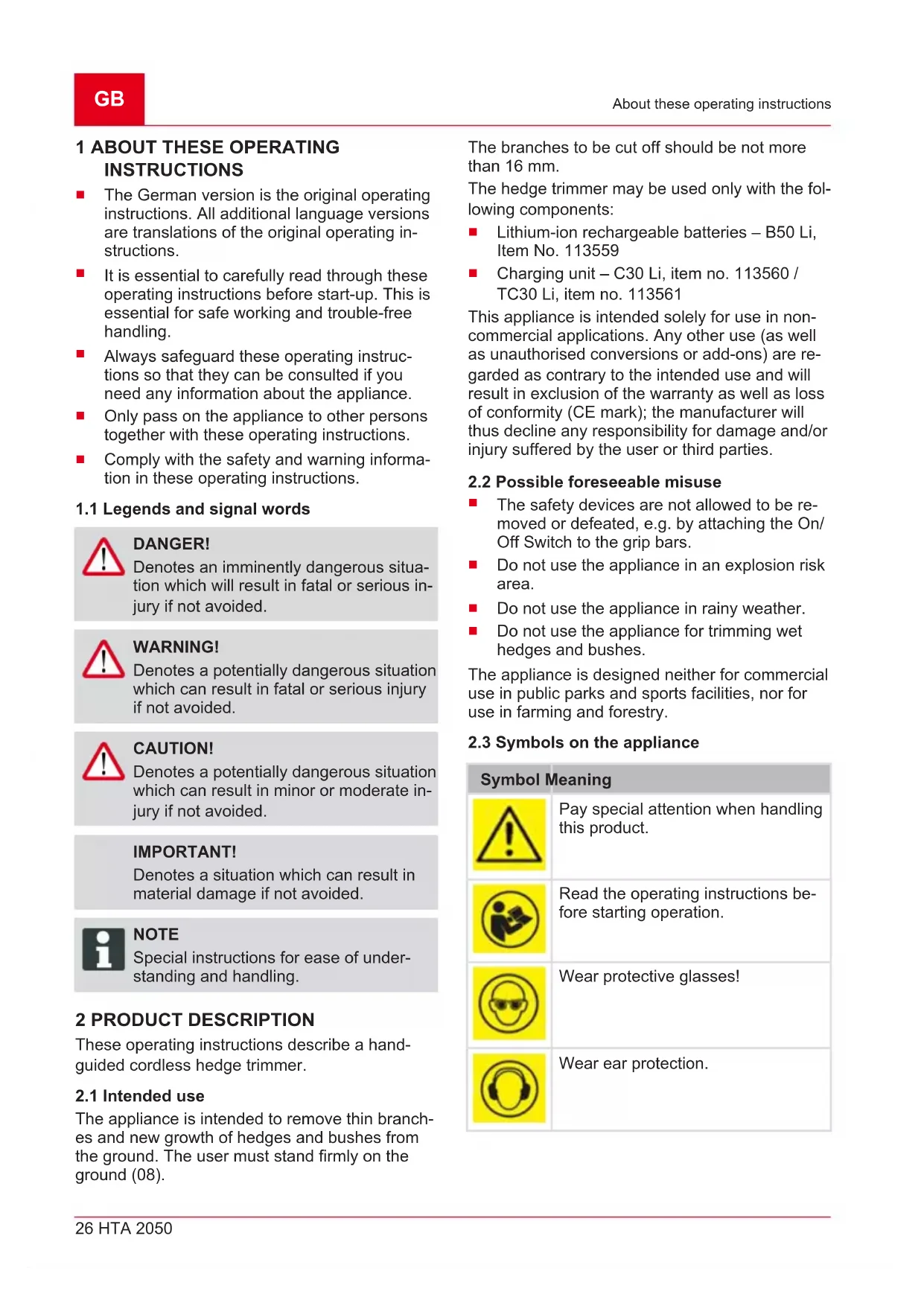

1 ABOUT THESE OPERATING

The German version is the original operating instructions. All additional language versions are translations of the original operating in- structions.

It is essential to carefully read through these operating instructions before start-up. This is essential for safe working and trouble-free handling.

Always safeguard these operating instruc- tions so that they can be consulted if you need any information about the appliance.

Only pass on the appliance to other persons together with these operating instructions.

Comply with the safety and warning informa- tion in these operating instructions.

1.1 Legends and signal words

DANGER! Denotes an imminently dangerous situa- tion which will result in fatal or serious in- jury if not avoided. WARNING! Denotes a potentially dangerous situation which can result in fatal or serious injury if not avoided. CAUTION! Denotes a potentially dangerous situation which can result in minor or moderate in- jury if not avoided. IMPORTANT! Denotes a situation which can result in material damage if not avoided. NOTE Special instructions for ease of under- standing and handling. 2 PRODUCT DESCRIPTION These operating instructions describe a hand- guided cordless hedge trimmer.

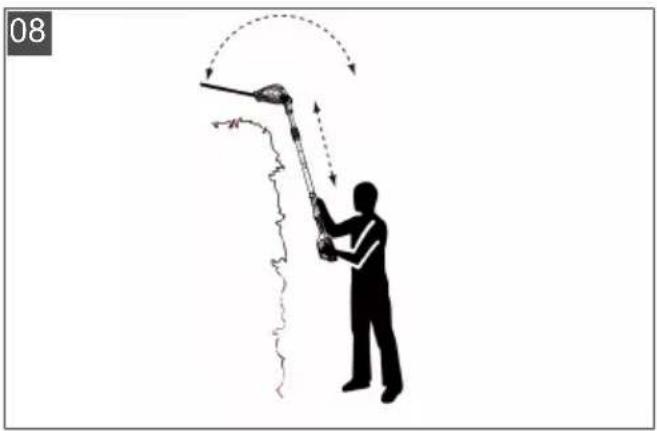

The appliance is intended to remove thin branch- es and new growth of hedges and bushes from the ground. The user must stand firmly on the ground (08). The branches to be cut off should be not more than 16mm. The hedge trimmer may be used only with the fol- lowing components:

Lithium-ion rechargeable batteries – B50 Li, Item No. 113559

Charging unit – C30 Li, item no. 113560 / TC30 Li, item no. 113561 This appliance is intended solely for use in non- commercial applications. Any other use (as well as unauthorised conversions or add-ons) are re- garded as contrary to the intended use and will result in exclusion of the warranty as well as loss of conformity (CE mark); the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.

The safety devices are not allowed to be re- moved or defeated, e.g. by attaching the On/ Off Switch to the grip bars.

Do not use the appliance in an explosion risk area.

Do not use the appliance in rainy weather.

Do not use the appliance for trimming wet hedges and bushes. The appliance is designed neither for commercial use in public parks and sports facilities, nor for use in farming and forestry.

2.3 Symbols on the appliance

Symbol Meaning Pay special attention when handling this product. Read the operating instructions be- fore starting operation. Wear protective glasses! Wear ear protection.442212_a 27 Product description Symbol Meaning Wear a face mask! Do not use in the rain! Protect against moisture! Wear safety boots! Wear protective gloves! Wear a protective helmet. Sharp cutting blade! Objects being discharged! Keep your distance from high-volt- age lines!

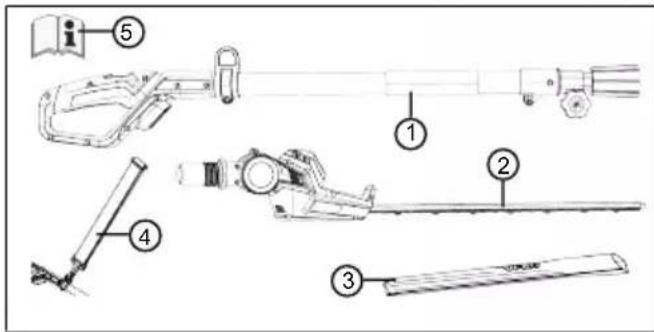

After unpacking check that all the parts have been delivered. NOTE The rechargeable battery and the charging unit are not included.

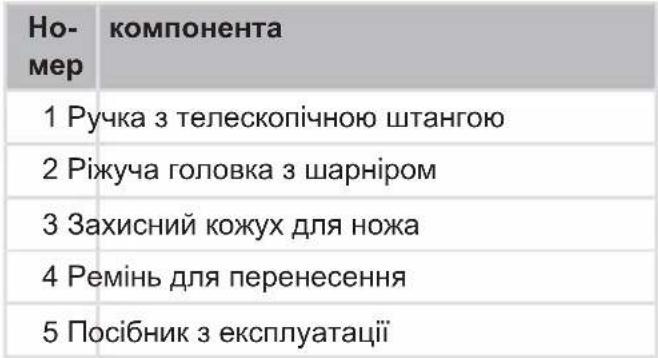

No. Component 1 Handle with telescopic pole 2 Cutter head with swivel joint 3 Protective cover for the cutting blade 4 Shoulder strap 5 Operating instructions

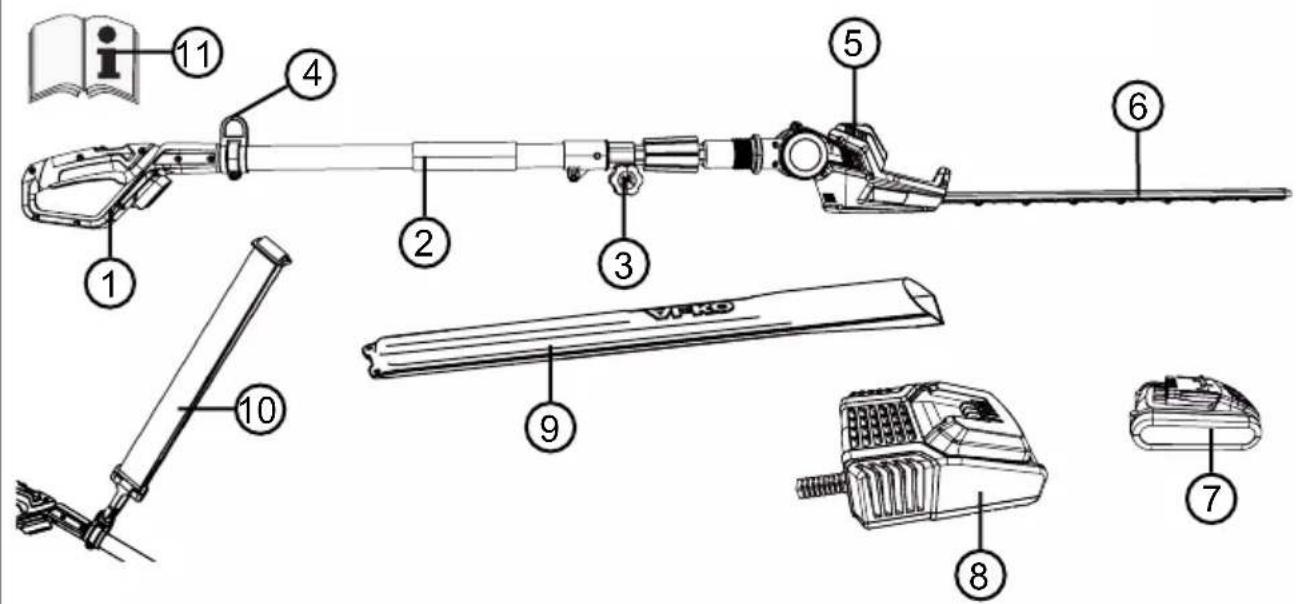

2.5 Product overview (01)

The product overview (01) provides an overview of the appliance. No. Component 1 Handle with safety switch and on/off switch 2 Telescopic handle 3 Clamping screw 4 Eye for carry strap 5 Cutter head with swivel joint 6 Cutting blade 7 Battery with locking mechanism* 8 Charger with mains plug* 9 Protective cover for the cutting blade 10 Shoulder strap 11 Operating instructions *Not included in the scope of delivery.GB 28 HTA 2050 General safety instructions for power tools

WARNING! Read all safety instructions, instruc- tions, illustrations and technical data that are provided with this power tool. Failure to comply with the following in- structions can lead to an electric shock, fire and/or series injuries.

Keep all safety instructions and other instructions for future reference. The term "power tool" used in the safety instruc- tions refers to mains-operated power tools (with mains line) and to battery-operated power tools (without mains line).

3.1 Safety in the workplace

Keep your working area clean, and make sure it is well illuminated. Untidiness or dimly lit working areas can lead to accidents.

Do not work with the power tool in a po- tentially explosive atmosphere with the presence of flammable liquids, gases or dust. Power tools give rise to sparks that can ignite the dust or vapours.

Keep children and other people away from the power tool when using it. If you are dis- tracted, you may lose control of the power tool.

3.2 Electrical safety

Avoid physical contact with earthed sur- faces such as on pipes, heaters, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed.

Keep electrical tools out of the rain and away from moisture. Water getting into an electrical tool increases the risk of an electric shock.

Be alert, pay attention to what you are do- ing and take a cautious approach to work- ing with a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol or medicines. A mo- ment's inattentiveness when using the power tool can result in serious injury.

Wear personal protective equipment, and always use safety goggles. The injury risk can be reduced by wearing personal protec- tive equipment such as a dust mask, non-slip shoes, a protective helmet or ear defenders, depending on the type and application of the power tool.

Avoid starting to operate the appliance in- advertently. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the power tool. Accidents can be caused by leaving your finger on the switch when you carry the power tool or when you connect it to the power supply.

Remove the adjusting tools or spanner before you switch on the power tool. A tool or spanner that is in a rotating part of the power tool can cause injury.

Avoid an abnormal bodily posture. Make sure you can stand safely and keep your balance at all times. This will enable you to control the power tool better if something un- expected happens.

Wear suitable clothing. Do not wear baggy clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothing, jewellery or long hair can be snagged on moving parts.

If dust extraction and catchment devices can be mounted, then these must be con- nected and correctly used. Using a dust ex- traction system can reduce the risk caused by dust.

Do not give yourself a false sense of safe- ty; do not ignore the safety rules for pow- er tools even if you are familiar with the power tool after using it many times. One careless action can lead to serious injuries within seconds.

3.4 Use and handling of the electrical tool

Do not overload the power tool. Use the appropriate power tool for the job you are doing. Using the appropriate power tool will enable you to work more effectively and safe- ly in the specified performance range.

Do not use a power tool if it has a defec- tive switch. A power tool that can no longer be switched on or off is dangerous and must be repaired.

Disconnect the plug from the socket and/ or remove the battery before you make adjustments to the appliance, replace parts or put the power tool away. This pre- cautionary measure will prevent the power tool from starting inadvertently.442212_a 29 Safety instructions for hedge trimmers (IEC 60745-2-15)

Keep unused power tools out of the reach of children. Do not allow people to use the power tool if they are not familiar with it or have not read these instructions. Power tools are dangerous if they are used by inex- perienced people.

Look after power tools and the insertion tool with care. Check whether moving parts function perfectly and do not stick, whether there are any broken parts or parts that are damaged in such a way that the function of the power tool is impaired. Have damaged parts repaired before us- ing the power tool. Many accidents are caused by failure to maintain power tools properly.

Keep cutting tools sharp and clean. Care- fully maintained cutting tools with sharper cutting edges are less likely to stick and are easier to control.

Use power tools, accessories, insertion tools, etc. according to these instructions. When doing so, take account of the work- ing conditions and the activity to be un- dertaken. Using power tools for applications other than the intended purpose can result in dangerous situations.

Keep the grips and grip surfaces dry, clean and free from oil and grease. Slip- pery grips and grip surfaces prevent safe op- eration and control of the power tool in un- foreseen situations.

For your own safety, only have your pow- er tool repaired by qualified specialist per- sonnel using genuine spare parts. This en- sures that the power tool remains safe.

Never maintain damaged batteries. All re- chargeable battery maintenance should only ever be undertaken by the manufacturer or authorised customer service points.

3.6 Use and handling of the rechargeable

battery-operated tool

Only recharge batteries with chargers that are recommended by the manufacturer. Using a charger intended for one particular type of rechargeable battery with a different type of rechargeable battery represents a fire risk.

Only use batteries in the power tools that are intended for this purpose. Using other batteries can lead to injuries and represents the risk of fire.

Keep the unused rechargeable battery away from paper clips, coins, keys, nails, screws or other small metal objects that could short-circuit the contacts. A short circuit between the rechargeable battery con- tacts can result in burns or fire.

Incorrect use can result in fluid leaking out of the rechargeable battery. Avoid coming into contact with it. In case of in- advertent contact, rinse off with water. If the fluid gets into your eyes, additionally seek medical assistance. Leaking re- chargeable battery fluid can lead to skin irrita- tions or burns.

Do not use a damaged or changed re- chargeable battery. Damaged or changed batteries can behave unpredictably and lead to fire, explosion or a risk of injury.

Do not expose a rechargeable battery to fire or high temperatures. Fire or tempera- tures over 130°C can cause an explosion.

Comply with all of the instructions for charging, and never charge the recharge- able battery or the rechargeable battery- operated tool outside of the temperature range specified in the operating instruc- tions. Incorrect charging or charging outside of the permissible temperature range can de- stroy the rechargeable battery and increase the risk of fire.

Keep all body parts away from the cutting blade. Do not attempt to remove cut mate- rial or hold onto material to be cut when the blade is operating. Switch off the ap- pliance before you remove trapped cut material. A moment's inattentiveness when using the hedge trimmer can result in serious injuries.

Carry the hedge trimmer using the handle, and make sure the blade is switched off. Always put on the protective cover when transporting or storing the hedge trimmer. Careful handling of the appliance reduces the risk of injury from the blade.GB 30 HTA 2050 Safety of persons, animals and property

Hold the power tool by insulated gripping surfaces only, because the cutting blade may contact concealed electrical cables or its own cable. Contact between the cut- ting blade and a live cable can result in elec- trical current flowing through metal parts of the appliance, leading to an electric shock.

Keep the cable away from the cutting ar- ea. During operation, the cable can become obscured in the bushes and accidentally sev- ered.

5 SAFETY OF PERSONS, ANIMALS

Note that the user is responsible for acci- dents and damage that may befall other per- sons or their property.

Use the appliance only for the purposes for which it is intended. Any non-intended use can lead to injury and property damage.

Switch on the appliance only when there are no other persons or animals in the working area.

Maintain a safe distance to persons or ani- mals, or switch off the appliance if persons or animals approach.

WARNING! Danger due to vibration The actual magnitude of the vibration emissions during the use of the appliance may deviate from that stated by the man- ufacturer. Observe the following influenc- ing factors before or during use:

Is the appliance being used as in- tended?

Is the material being cut or pro- cessed in the proper manner?

Is the appliance in a proper condition of use?

Is the cutting tool properly sharpened or is the correct cutting tool installed?

Are the handle grips and any optional vibration grips mounted, and are they firmly attached to the appliance?

Only operate the appliance at the motor speed required for the respective work. Avoid using the maximum speed in order to reduce noise and vibrations.

The noise and vibrations of the appliance can increase due to improper use and mainte- nance. This leads to damage of the health. In this case, immediately switch off the appli- ance and have it repaired by an authorised service workshop.

The degree of stress due to vibration de- pends on the work to be performed or on the use that the appliance is put to. Estimate the stress and plan appropriate work breaks. This considerably reduces stress due to vi- bration over the entire working time.

Extensive use of the appliance exposes the operator to vibrations, which can lead to cir- culatory issues ("white fingers"). To avoid this risk, wear gloves and keep your hands warm. If any symptoms of "white fingers" occur, im- mediately consult a physician. These symp- toms include: Numbness, loss of feeling, tin- gling, itching, pain, reduced muscular strength, changes in the colour or condition of the skin. Normally these conditions affect the fingers, hands or pulse. The risk increas- es at low temperatures.

Take long breaks during your working day so you can recover from the noise and the vibra- tions. Plan your work in such a way that the use of appliances that generate strong vibra- tions is spread over several days.

If you notice an unpleasant sensation or disc- olouration of the skin on your hands when us- ing the appliance, stop work immediately. Take sufficient work breaks. Without suffi- cient breaks, a hand/arm vibration syndrome can occur.

Minimise your risk of being exposed to vibra- tions. Maintain the appliance according to the instructions in the operating instructions.

If the appliance is used frequently, contact your dealer to purchase anti-vibration acces- sories (e.g. handles).

Avoid working with the appliance at tempera- tures below 10°C. Define how the vibration load can be limited in a work plan.

A certain level of noise exposure from this appli- ance is inevitable. Carry out noisy work at ap- proved and specified time periods. Observe rest periods as necessary and restrict the duration of the work to a minimum. For your personal protec- tion and protection of persons in the vicinity, ap- propriate hearing protection must be worn.442212_a 31 Safety instructions relating to operation

6 SAFETY INSTRUCTIONS RELATING

TO OPERATION WARNING! Risk due to electromagnetic field This power tool produces an electromag- netic field during operation. Under certain circumstances, this field may impair ac- tive or passive medical implants.

In order to reduce the risk of serious or fatal injury, we recommend that any persons fitted with medical im- plants should consult their doctor and the manufacturer of the medical im- plant before operating the power tool.

Before cutting, check the hedges and bushes for concealed objects – e.g. wires, wire fenc- es, electrical cables, garden equipment, bot- tles – and remove them.

Move and transport the appliance so that per- sons and animals cannot touch the cutting blade. Before transport, push the protective cover over the cutting blade.

During the work, do not hold the branches to be cut off.

Before removing jammed branches, switch off the appliance and wait until the cutting blade has come to a standstill.

Remove the rechargeable battery from the appliance and push the protective cover over the cutting blade for:

Testing, adjustment work and cleaning work

Working on the cutting blade

Leaving the appliance

Maintenance and repair work

6.1 Safety information regarding the

rechargeable battery This section mentions all the basic safety and warning information to be heeded when using the rechargeable battery. Read these instructions.

Only use the rechargeable battery as desig- nated, i.e. for AL-KO rechargeable battery- driven appliances. Only charge the recharge- able battery with the AL-KO charging unit provided.

Only unpack the new rechargeable battery from the original packaging when it is to be used.

Fully charge the rechargeable battery before using it for the first time and always use the specified charger. Comply with the details given in these instructions for use for charging the rechargeable battery.

Do not use the rechargeable battery in envi- ronments where there is a potential risk of explosion and/or fire.

Do not expose the rechargeable battery to moisture and humidity when in use with the appliance.

Protect the rechargeable battery from heat, oil and fire to prevent it being damaged so no vapours and electrolyte liquids can escape.

Do not subject the rechargeable battery to impacts or throw it.

Do not use the rechargeable battery when soiled or wet. Before use, clean and dry the rechargeable battery with a dry, clean cloth.

Do not open, dismantle or crush the re- chargeable battery. There is a danger of electric shock and short-circuit.

This rechargeable battery must not be used by unauthorised persons unless they are su- pervised by a person responsible for their safety or have been instructed on how to use the rechargeable battery. Unauthorised per- sons include, for example:

Persons (including children) with limited physical, sensory or mental aptitude

Persons who have no experience and/or knowledge of the rechargeable battery.

Children must be supervised and instructed so they do not play with the rechargeable battery.

Do not leave the rechargeable battery perma- nently in the charger. For prolonged storage, remove the rechargeable battery from the charger.

When not in use, remove the rechargeable batteries from the operated appliances.

Dry the unused rechargeable battery and store in a closed place. Protect from heat and direct sunlight. Unauthorised persons and children must not have access to the re- chargeable battery.GB 32 HTA 2050 Assembly (02, 10)

6.2 Safety information regarding the

charging unit This section mentions all the basic safety and warning information to be heeded when using the charger. Read these instructions.

Only use the appliance as designated, i.e. for charging the intended rechargeable batteries. Only charge original rechargeable batteries from AL-KO in the charging unit.

Before each use, inspect the entire appliance – and especially the mains cable and the re- chargeable battery compartment – for dam- age. Only use the appliance when it is in a proper working order.

Do not use the appliance in environments where there is a potential risk of explosion and/or fire.

Only operate the appliance indoors and do not expose it to moisture and humidity.

Always place the charging unit on a well ven- tilated and non-inflammable surface because it heats up during the charging process. Keep the ventilation slots clear and do not cover the appliance.

Before connecting the charging unit, make sure that the mains voltage matches the volt- age stated in the "Technical data".

Only use the mains cable for connecting the charging unit, not for other purposes. Do not carry the charging unit by the mains cable and do not remove the power plug from the power outlet by pulling on the mains cable.

Protect the mains cable from heat, oil and sharp edges to prevent it being damaged.

Do not use the charging unit and recharge- able battery when soiled or wet. Before using the appliance, clean and dry the recharge- able battery.

Do not open the charging unit or recharge- able battery. There is a danger of electric shock and short-circuit.

For your own safety, have your appliance re- paired by qualified specialist personnel only using original spare parts.

This appliance must not be used by unautho- rised persons unless they are supervised by a person responsible for their safety or have been instructed on how to use the appliance. Unauthorised persons include, for example:

Persons (including children) with limited physical, sensory or mental aptitude

Persons who have no experience and/or knowledge of the appliance.

Children must be supervised and instructed so they do not play with the appliance.

Dry unused appliances and store in a closed place. Unauthorised persons and children must not have access to the appliance. 7 ASSEMBLY (02, 10) WARNING! Danger if assembly is not carried out completely! Operation of an incompletely assembled appliance can result in serious injury.

Only operate the appliance when it is fully assembled.

Do not insert the battery into the ap- pliance until it is fully assembled.

Check that all safety and protective devices are in place and functioning correctly before switching on. Mount the cutter head onto the telescopic pole

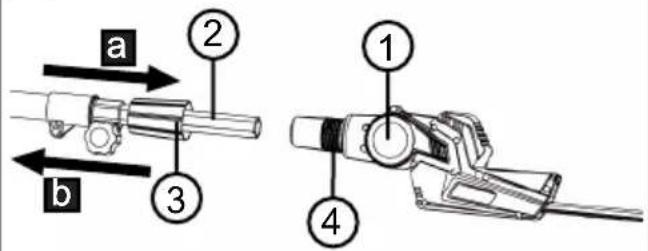

1. Align the cutter head (02/1) and telescopic

pole (02/2) with one another.

2. Slide the coupling (02/3) and coupling coun-

terpart (02/4) inside each other up to the end stop (02/a).

3. Screw the coupling (02/3) tight.

Remove the cutter head from the telescopic pole

1. Unscrew the coupling (02/3).

2. Pull apart (02/b) the cutter head (02/1) and

telescopic pole (02/2). Attaching the carrying belt to the basic appliance (10) The supplied carrying belt transfers the load onto your upper body.

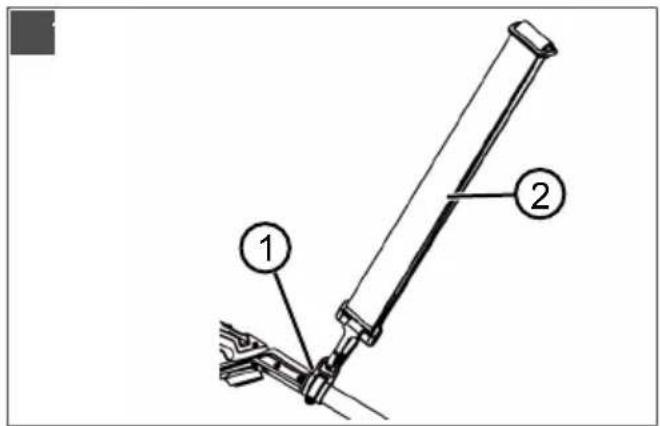

1. Hang the carrying belt (10/2) over your shoul-

2. Hook the snap hook of the carrying belt into

the eye (10/1) on the appliance.

3. Adjust the length of the carrying belt by mov-

ing the buckle on the carrying belt so that the appliance is comfortable to carry.442212_a 33 Start-up

4. Carry out a number of work movements with

the appliance switched off to test the length of the carrying belt. Adjust the length of the carrying belt if necessary. 8 START-UP

8.1 Charging the rechargeable battery

CAUTION! Danger of fire during charging! Due to heating of the charger, there is a danger of fire if it is placed on an inflam- mable surface and is not adequately ven- tilated.

Always use the charger on a non-in- flammable surface or in a non-com- bustible environment.

If available: Keep the ventilation slots free. NOTE Fully charge the rechargeable battery be- fore using it for the first time. The re- chargeable battery can be charged in any charge status. Interrupting charging does not damage the rechargeable battery. NOTE When charging, the rechargeable battery is protected from overcharging due to au- tomatic detection of the charge status and thus can remain connected to the charging unit for some time, but not per- manently. Observe the temperature range for the charging mode, the charging time until fully charged and the rechargeable battery operating time, see technical details. If the operating time of the re- chargeable battery shortens considerably despite being fully charged, it has reached the end of its useful life and must be replaced by a new original rechargeable battery.

1. Connect the charger (01/8) without the re-

chargeable battery (01/7) to the power sup- ply. The LED on the plug-in power supply is green.

2. Insert the rechargeable battery into the char-

The LED on the plug-in power supply is red. The charging process begins.

Charging is completed when the LED on the plug-in power supply is green. The rechargeable battery is then fully charged.

3. Disconnect the charger from the mains.

4. Remove the rechargeable battery from the

charger. 9 OPERATION WARNING! Risk of injury due to detaching appli- ance parts Appliance parts detaching during opera- tion can lead to serious injury.

Before turning the appliance on, check that all the parts of the appli- ance are firmly tightened.

Attach cutting tools so that they can- not detach during operation.

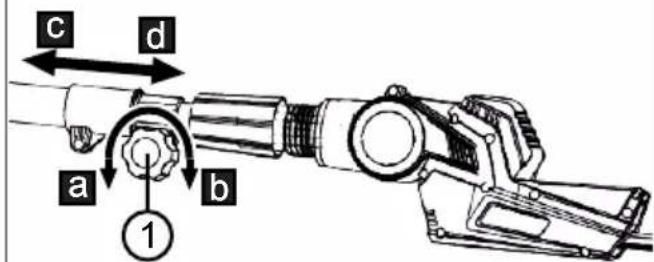

9.1 Extending/shortening the telescopic

pole (03) The telescopic pole is infinitely adjustable. This means the length can be adjusted as required for the work.

1. Unscrew (03/a) the clamping screw (03/1) in

the direction of the arrow until the clamp is released.

2. Set the required length by moving in the di-

rection (03/c) or (03/d).

3. Screw the clamping screw (03/1) tight in the

direction of the arrow (03/b).

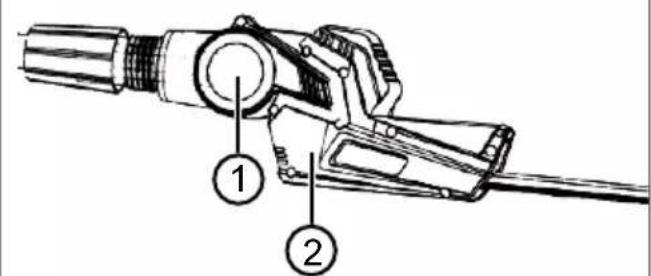

9.2 Turning the cutter head (04, 05)

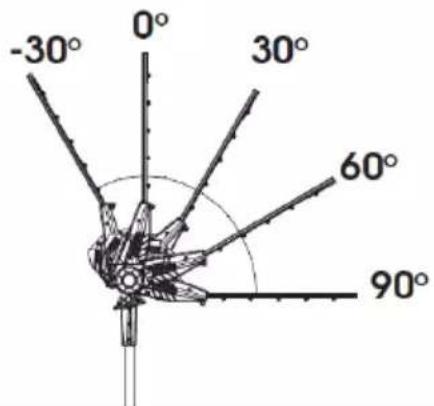

The cutter head can be adjusted stepwise be- tween -30°, 0°, +30°, +60° and +90° (05). This means it can be adjusted as required for the work. WARNING! Danger of cutting injuries Danger of cutting injuries when reaching into the cutting blade.

Always switch off the appliance be- fore turning the cutter head.

1. Switch off the appliance and pull out the re-

3. Turn the cutter head (04/2) until it engages in

the required position.GB 34 HTA 2050 Working behaviour and working technique

4. Release the unlocking button (04/1).

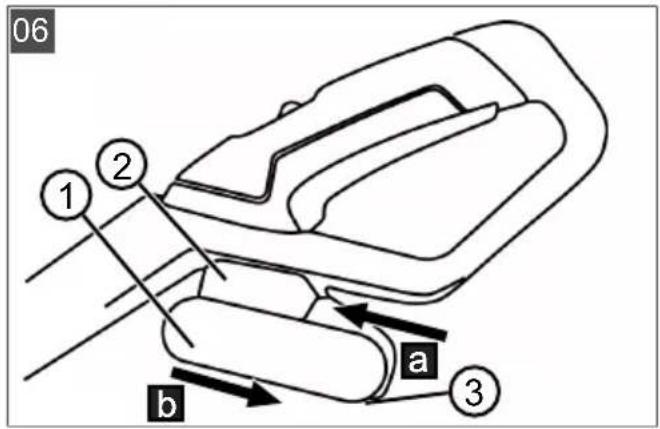

9.3 Inserting the rechargeable battery (06)

Inserting the battery

1. Push the rechargeable battery (06/1) from

above (06/a) into the rechargeable battery slot (06/2) until it engages. Pull out the rechargeable battery

1. Press and hold the unlock button (06/3) on

the rechargeable battery (06/1).

2. Pull out the rechargeable battery (06/1).

2. Hold the telescopic pole in one hand, then

the handle with your other hand.

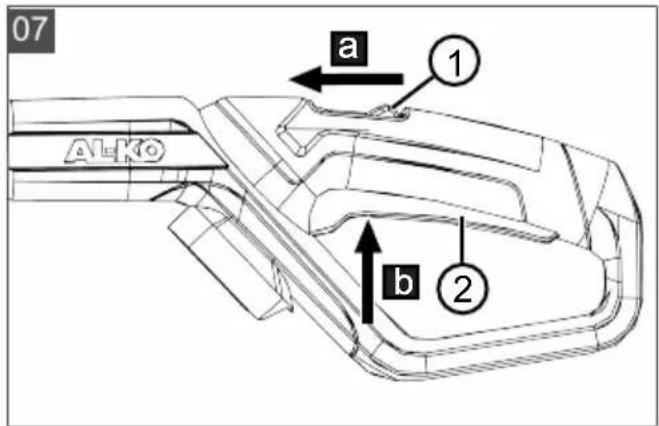

3. Press the safety switch (07/1) forward (07/a),

then press (07/b) the on/off switch (07/2). The appliance starts.

4. Keep the on/off switch (07/2) pressed while

you are working. The appliance switches off when the on/off switch is released.

5. Release the unlocking button. It is not neces-

sary to keep the unlocking button pressed once the appliance has started. The unlock- ing knob is intended to prevent inadvertent starting of the appliance.

10 WORKING BEHAVIOUR AND

WORKING TECHNIQUE WARNING! Increased risk of falling There is a greater risk of falling if work is carried out from an elevated position (e.g. ladder).

always work with the appliance from the ground and make sure that you are standing securely.

Heed the safety instructions.

Cut the hedge regularly and only at the per- mitted times.

Only cut off the thin branches and new growth on the surface of the hedge; do not cut too deep.

Always cut the two sides of a hedge first, fol- lowed by the top. This prevents cut material from falling into areas that you have not yet trimmed.

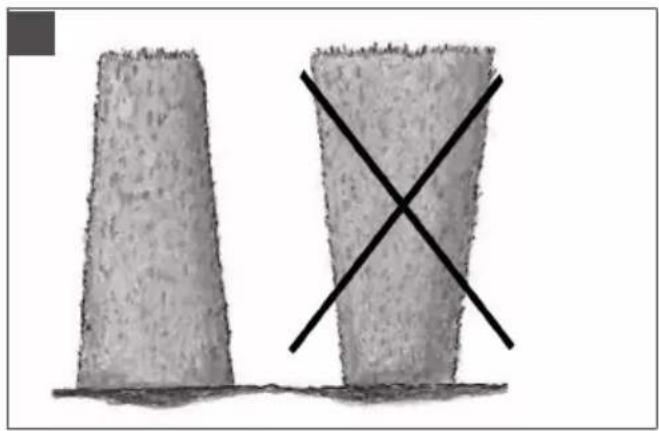

Hedges should always be trimmed into a trapezoidal shape (tapering toward the top). This prevents the leaves on the lower branches from being shaded out (09).

Make sure the motor is stopped before you remove any cuttings.

When leaving/transporting the appliance:

Switch off the appliance.

Fit the protective cover.

After use, remove the battery and check the appliance for damage.

11 MAINTENANCE AND CARE

WARNING! Danger of cutting injuries Danger of cutting injuries when reaching into sharp-edged, moving appliance parts and into cutting tools.

Before maintenance, care and clean- ing work, always switch off the appli- ance. Remove the rechargeable bat- tery.

Always wear protective gloves during maintenance, care and cleaning work. NOTE Repair work is only allowed to be carried out by expert workshops or our AL-KO service centres.

Do not get the appliance wet or expose it to moisture.

After each use, clean the housing and cutting blades with a brush or cloth. Do not use wa- ter and/or aggressive cleaning agents or sol- vents - risk of corrosion and damage to the plastic parts.

Remove the battery and check for damage after each use.

Clean the cutting blade and spray with rust- proofing oil.

Regularly check the cutting blade. Contact an AL-KO service centre under the following cir- cumstances:

Defective cutting blade

Check all screws for tightness.442212_a 35 Transport

Check the electrical contacts on the appli- ance for corrosion, clean with a fine wire brush if necessary and then spray with a con- tact spray. 12 TRANSPORT Before transporting, carry out the following mea- sures:

1. Switch off the appliance.

2. Remove the rechargeable battery from the

3. Pack the battery properly.

NOTE The nominal energy of the rechargeable battery is less than 100Wh. Therefore, heed the following transport instructions. The li-ion rechargeable battery contained in the appliance is subject to the hazardous goods law, but can be transported under simplified condi- tions:

The undamaged rechargeable battery can be transported on public roads by the private us- er without further conditions provided it is packaged for retail sale and the transport serves personal purposes. The weight limits for batteries sent separately must be ob- served:

Max. 30 kg total weight per package when transported by road, rail and water

No upper limit for air transport but max. 2 pieces per package

If damage to the battery (e.g. due to the ap- pliance falling) is suspected, transport is not permissible.

Commercial users who carry out the trans- port in connection with their main activity (e.g. delivery from and to building sites, or demonstrations) can also take advantage of this simplification. In both cases, it is essential to take the mandato- ry precautions mentioned above to prevent any leakage of the contents. In other cases, it is es- sential to comply with the regulations of the haz- ardous goods law. In the case of non-compli- ance, severe penalties can be imposed on the sender and possibly the transporter. Additional notes on transport and shipment

Only transport or ship lithium-ion recharge- able batteries in an undamaged state.

Secure the appliance in such a way as to prevent it from starting to operate inadver- tently during transport.

Secure the appliance with strong outer pack- aging (cardboard shipment box). Use the manufacturer's original packaging if possible.

Ensure correct identification and documenta- tion of the consignment during transport or dispatch (e.g. by parcel or forwarding):

When transporting by road, rail and wa- ter, a warning sticker must be applied to the packaging when the battery/batteries accompany the appliance. No warning sticker is necessary if the battery/batter- ies are installed or fitted into the appli- ance, since the outer packaging/original packaging must already comply with spe- cific regulations.

A warning sticker must always be placed on the packaging when transporting by air. The maximum weight limits for batter- ies sent together with the appliance must be observed: max. 5 kg battery weight per package and max. 2 pieces per pack- age, if the battery/batteries are accompa- nying the appliance.

Please find out in advance whether transport is possible with the selected service provider, and show your shipment. We recommend involving a hazardous goods specialist in the preparation of the shipment. Please heed any other national regulations. 13 STORAGE

13.1 Storage of the appliance

Thoroughly clean the appliance and its ac- cessories after each use and – if present – attach all covers.

Store the appliance in a dry place protected against frost.

Keep out of the reach of children and unau- thorised persons. Carry out the following jobs before intervals in work lasting for longer than 30 days:

Clean the cutting blade and spray with rust- proofing oil.

Thoroughly clean the appliance and store it in a dry place.GB 36 HTA 2050 After-Sales / Service

13.2 Storing the battery and charger

DANGER! Danger of explosion and fire! Persons will be fatally or severely injured if the rechargeable battery explodes be- cause it was stored in front of naked flames or heat sources.

Store the rechargeable battery in cool and dry conditions, but not in front of naked flames or heat sourc- es. NOTE When charging, the rechargeable battery is protected from overcharging due to au- tomatic detection of the charge status and thus can remain connected to the charging unit for some time, but not per- manently.

Store the rechargeable battery in a dry, frost- free place at a storage temperature between 0°C – +35°C and with a charge state of ap- prox. 40 – 60%.

Due to a risk of short-circuit, do not store the battery near metallic or acid-containing ob- jects.

The battery must be recharged after a certain storage period. Please also comply with the rechargeable battery operating instructions. 14 AFTER-SALES / SERVICE In the event of questions of warranty, repair or spare parts, please contact your nearest AL- KOService Centre. These can be found on the Internet at: www.al-ko.com/service-contacts 15 DISPOSAL Information on the German Electrical and Electronic Equipment Act (ElectroG)

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.

Used batteries or rechargeable batter- ies that are not installed permanently in the old appliance must be removed be- fore disposal. Their disposal is regulat- ed by the battery law.

Owners or users of electrical and elec- tronic appliances are obliged by law to return them after use.

The end user bears personal responsi- bility for deleting his personal data from the old appliance to be disposed of. The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish. Electrical and electronic appliances can be hand- ed in at no charge at the following places:

Public service disposal or collection points (e.g. municipal building yards)

Points of sale of electrical appliances (sta- tionary and online) provided traders are obliged to take them back or offer this volun- tarily. These statements only apply to appliances that are installed and sold in the countries of the Eu- ropean Union and are subject to European Direc- tive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appli- ances in countries outside the European Union.442212_a 37 Disposal Information on German Battery Act (BattG)

Used batteries and rechargeable bat- teries do not belong in household waste, but should be collected and dis- posed of separately.

For safe removal of batteries or re- chargeable batteries from the electrical appliance and for information on their type or chemical system, follow the fur- ther information within the operating or installation instructions.

Owners or users of batteries and re- chargeable batteries are obliged by law to return them after use. The return is limited to the handover of customary household quantities. Used batteries can contain harmful substances or heavy metals that can cause damage to the envi- ronment and human health. Reuse of the used batteries and use of the resources contained therein contributes to the protection of these two essential commodities. The symbol of the crossed-through rubbish bin means that batteries and rechargeable batteries may not be disposed of in household rubbish. In addition, if the symbol Hg, Cd or Pb appears under the rubbish bin, this stands for the follow- ing:

Hg: Battery contains more than 0.0005% mercury

Cd: Battery contains more than 0.002% cad- mium

Pb: Battery contains more than 0.004% lead Rechargeable batteries and batteries can be handed in at the following places at no charge:

Public service disposal or collection points (e.g. municipal building yards)

Points of sale of batteries and rechargeable batteries

Disposal points of the common take-back system for the used batteries of appliances

Disposal point of the manufacturer (if not a member of the common take-back system) These statements apply only to rechargeable bat- teries and batteries that are sold in the countries of the European Union and that are subject to European Directive 2006/66/EU. Different provi- sions can apply to the disposal of rechargeable batteries and batteries in countries outside the European Union.GB 38 HTA 2050 Help in case of malfunction

16 HELP IN CASE OF MALFUNCTION

CAUTION! Risk of injury Sharp-edged and moving appliance parts can lead to injury.

Always wear protective gloves during maintenance, care and cleaning work. Malfunction Cause Remedy Engine does not run. Rechargeable battery is flat. Charge the rechargeable battery. Rechargeable battery miss- ing or rechargeable battery not seated correctly. Insert the rechargeable battery cor- rectly. Power supply is interrupted. 1. Remove the battery.

2. Clean the plug contacts of the ap-

pliance. The motor protection switch has switched off the motor due to overload. Wait until the motor protection switch enables the motor again. Motor keeps cutting out.

The On/Off switch is de- fective. Contact an AL-KO service centre. Cutting blade becomes hot when running. Generation of smoke. No oil on the cutting blade. 1. Switch off the appliance and re- move the rechargeable battery.

2. Clean and oil the cutting blade.

3. Insert the rechargeable battery

Cutting blade is blunt.

Nicks in the cutting blade. Contact an AL-KO service centre. Branches are not cleanly cut. Branches are often jammed in the cutting blade. Cutting blade is blunt. Contact an AL-KO service centre. The sliding play of the cutting blade is too great. Contact an AL-KO service centre. Motor running, but the cutting blade does not move. Appliance faults Contact an AL-KO service centre. Appliance vibrates unusually. Appliance faults Contact an AL-KO service centre. Rechargeable battery operat- ing time is significantly short- er. The service life of the re- chargeable battery has ex- pired. Replace the rechargeable battery. Only use genuine accessories from the manufacturer. Rechargeable battery cannot be charged. Rechargeable battery con- tacts are dirty. Contact an AL-KO service centre. Rechargeable battery or charging unit is defective. Order spare parts. Contact an AL-KO service centre. Rechargeable battery is too hot. Allow the battery to cool down.442212_a 39 Guarantee NOTE If you encounter any malfunctions that are not listed in this table or that you cannot rectify your- self, please contact our customer service. 17 GUARANTEE We will resolve any material or manufacturing faults on the appliance during the legal warranty period for claims relating to faults, in accordance with our choice either to repair or replace. The legal warranty period is determined by the legislation of the country in which the appliance was purchased. Our warranty promise applies only if:

These operating instructions are heeded

The appliance is handled correctly

Original spare parts have been used The warranty becomes void in the case of:

Unauthorised repair attempts

Unauthorised technical modifications

Non-intended use The guarantee excludes:

Paint damage that can be attributed to normal wear and tear

Wear parts that are marked with a frame xxxxxx (x) on the spare parts card The guarantee period commences with purchase by the first end user. The date on the proof of pur- chase is decisive. In the event of a guarantee claim, please take this guarantee declaration and the original proof of purchase, and contact your dealer or the nearest authorised customer service centre. This statement does not affect the purchaser's statutory claims for defects against the vendor.

18 EU DECLARATION OF CONFORMITY

2. Potisnite spojko (02/3) in protispojko (02/4)

SÖVÉNYNYÍRÓKHOZ (IEC

5 SIKKERHED FOR PERSONER, DYR

3. Skru koblingen (02/3) fast.
