USER MANUAL Massage Gun Pro MG70 TUNTURI

Black TUNTURI massage tool with green circular button and white connector (no text or symbols on the device itself)

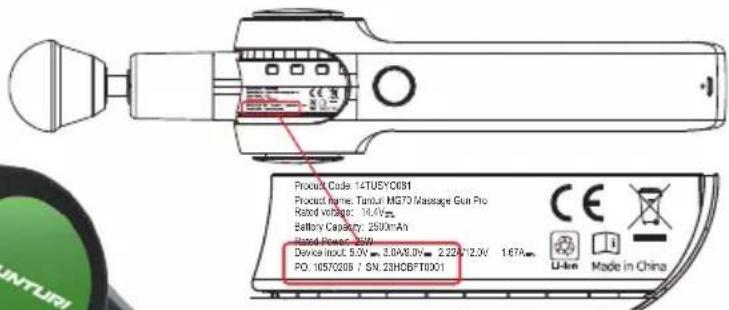

Serial number

Seriennummer

Numero de serie

Serienummer

Numero di serie

Número de serie

Seriennummer

Sarjanumero

Attention, Achtung, Attention, Attentie, Attenzione, Atención, Giv akt, Huomio

- Please read this user manual carefully prior to using this product.

• Lesen Sie sich vor dem Gebrauch des Produkts diese Bedienungsanleitung sorgfältig durch.
• Veuillez lire attentivement le présent manuel de l'utilisateur avant d'utiliser ce produit.
• Lees deze gebruikershandleiding zorgvuldig voordat u dit product gaat gebruiken.
• Leggere attentamente questo manuale dell'utente prima di utilizzare il prodotto.
• Antes de utilizar este producto, lea atentamente este manual de usuario.
• Läs den här användarhandboken noggrant före användning av den här produkten.
• Lue tämä käyttöohje huolellisesti ennen tämän tuotteen käyttöä.

A

B

C

Black Y-shaped object with a long neck, resembling a stylized musical instrument or tool (no text or symbols visible)

U Type Head *Needs to specifically positioned

Close-up of a black plastic mechanical component with a flanged top and cylindrical shaft (no text or symbols visible)

Shock absorption head

Close-up of a black plastic cap or knob with a cylindrical stem (no text or symbols visible)

Foaming large ball head

Foamed cone head

Foaming small flat head

Black plastic funnel-shaped object with a small protruding tube (no text or symbols visible)

Spade head

D

Technical diagram showing a device with a red circle highlighting a component and a black cable inserted into a device (no text or symbols present)

E

F

English

Index

Welcome 8

Safety warnings......8

Usage instructions......9

Charging 9

Operating 9

Maintenance cleaning & storage ......9

Button functions....9

Display function....10

Working modes 10

Massage heads 11

Switch massage heads 11

Massage head functions....11

How to adjust the massage head angle.....11

Warranty......12

Declaration of the manufacturer .... 12

Disclaimer 12

Welcome

Welcome to the world of Tunturi New Fitness! Thank you for purchasing this piece of Tunturi equipment. Tunturi offers a wide range of home fitness equipment, including crosstrainers, treadmills, exercise bikes and rowers. The Tunturi equipment is suitable for the entire family, no matter what fitness level. For more information, please visit our website www.tunturi.com

Important Safety Instructions

This Owner's Manual is an essential part of your training equipment: reading all instructions in this manual before you start using this appliance. The following precautions must always be followed:

Safety warnings

WARNING

- Read the safety warnings and the instructions. Failure to follow the safety warnings and the instructions can cause personal injury or damage to the equipment. Keep the safety warnings and the instructions for future reference.

DANGER

- To reduce risks of electric shock, fire and personal injury, this product must be used in accordance with the following instructions.

- The equipment is suitable for domestic use only. The equipment is not suitable for commercial use.

- The use of this equipment by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety must give explicit instructions or supervise the use of the equipment.

- If you experience nausea, dizziness or other abnormal symptoms, immediately stop your workout and consult a physician.

- The equipment is suitable for indoor use only. The equipment is not suitable for outdoor use.

- Only use the equipment in environments with ambient temperatures between 10°C and 35°C. Only store the equipment in environments with ambient temperatures between 5°C and 45°C.

- Do not use or store the equipment in humid surroundings. The air humidity must never be more than 80%.

- Only use the equipment for its intended purpose. Do not use the equipment for other purposes than described in the manual.

- Do not use the equipment if any part is damaged or defective. If a part is damaged or defective, contact your dealer.

- Keep your hair away from the moving parts.

- Keep jewellery and other objects away from the moving parts.

- Keep fingers, hair or any other body part away from the shaft and backside of the applicator as pinching may occur.

- Make sure that only one person uses the equipment at a time.

- Do not open equipment without consulting your dealer.

- Use only on a dry clean surface of the body by lightly pressing and moving across the body for approximately 60 seconds per region.

- Use the Massage Gun only on the body's soft tissue as desired without producing pain or discomfort.

- Do not use on head or any hard or bony area of the body.

- Use only the applicators that provide the best desired effect.

- Bruising can occur regardless of control setting or pressure applied. Check treated areas frequently and immediately stop at first sign of pain or discomfort

- Do not place any objects into the ventilation holes of the Massage Gun.

- Do not immerse in water or allow water to enter the ventilation holes of the Massage Gun.

- Do not drop or misuse the Massage Gun.

- Do not tamper or alter Massage Gun in any way.

- Never leave the Massage Gun operating or charging unattended.

- Keep ventilation ports free from dust and debris.

- Do not operate continuously for more than one hour. Allow device to rest for 30 minutes before re-using.

- Unplug the charger from device, after charging or prior to use.

- Do not use if injured. Consult your doctor before using this product.

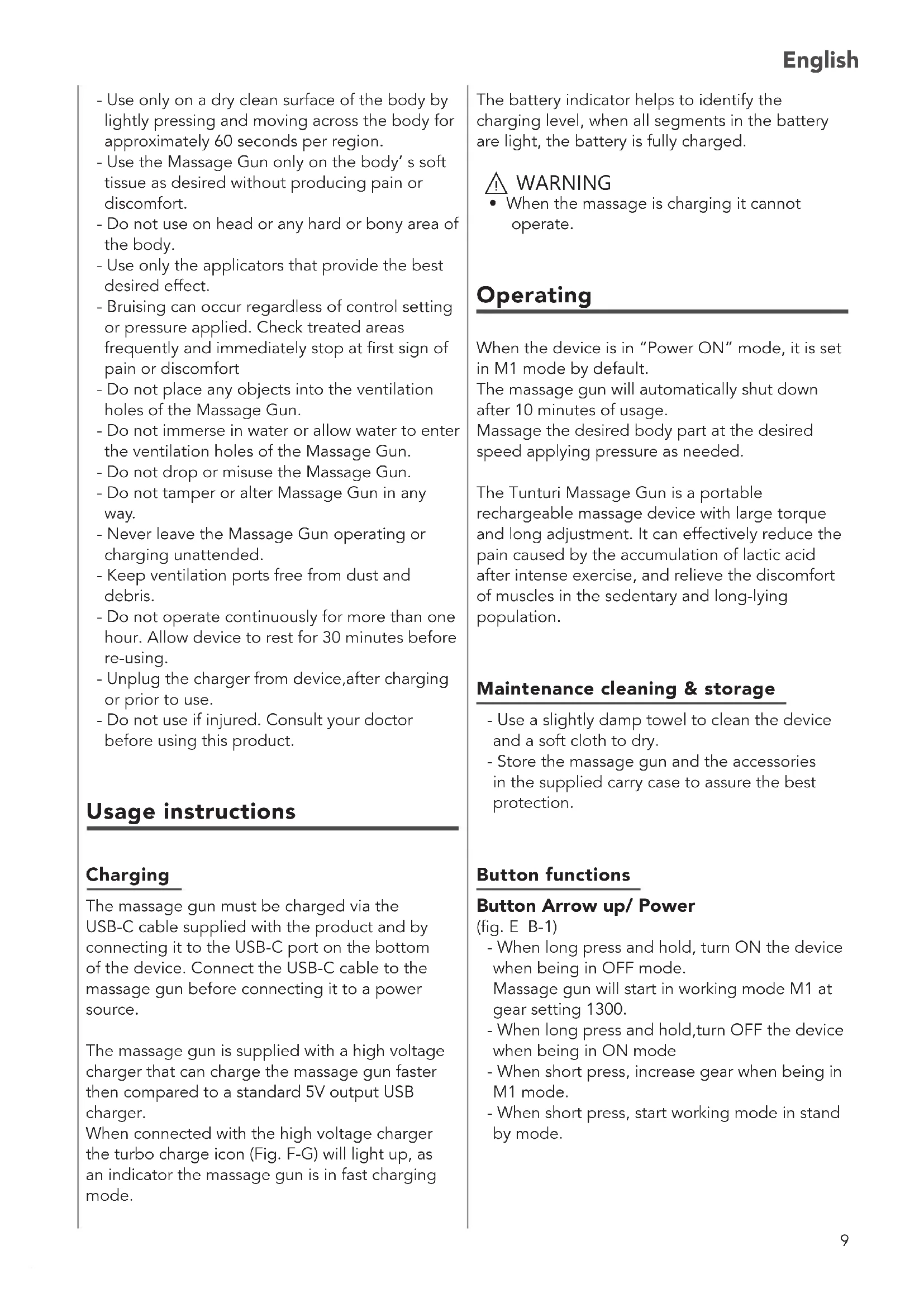

Usage instructions

Charging

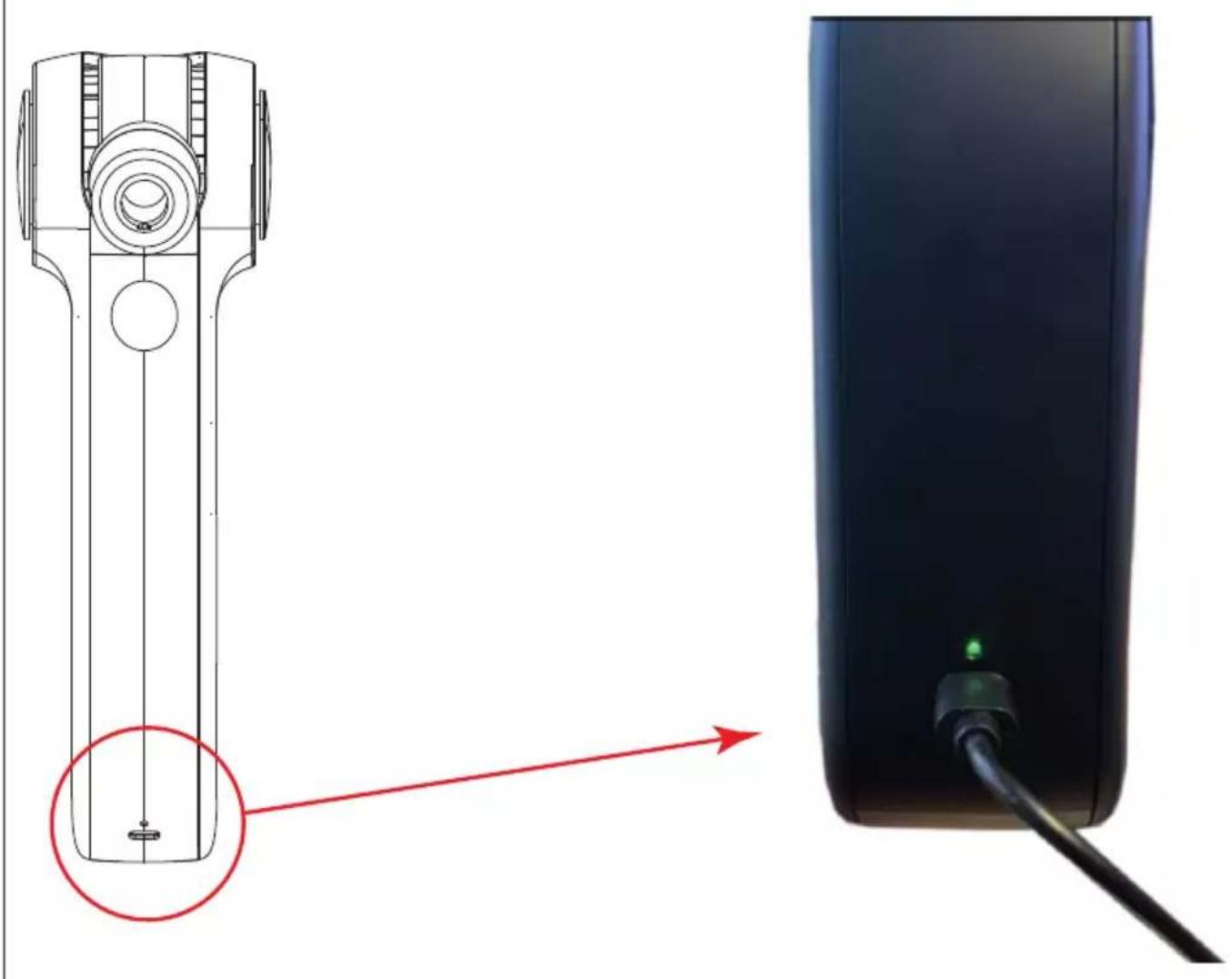

The massage gun must be charged via the USB-C cable supplied with the product and by connecting it to the USB-C port on the bottom of the device. Connect the USB-C cable to the massage gun before connecting it to a power source.

The massage gun is supplied with a high voltage charger that can charge the massage gun faster then compared to a standard 5V output USB charger.

When connected with the high voltage charger the turbo charge icon (Fig. F-G) will light up, as an indicator the massage gun is in fast charging mode.

The battery indicator helps to identify the charging level, when all segments in the battery are light, the battery is fully charged.

WARNING

- When the massage is charging it cannot operate.

Operating

When the device is in "Power ON" mode, it is set in M1 mode by default.

The massage gun will automatically shut down after 10 minutes of usage.

Massage the desired body part at the desired speed applying pressure as needed.

The Tunturi Massage Gun is a portable rechargeable massage device with large torque and long adjustment. It can effectively reduce the pain caused by the accumulation of lactic acid after intense exercise, and relieve the discomfort of muscles in the sedentary and long-lying population.

Maintenance cleaning & storage

- Use a slightly damp towel to clean the device and a soft cloth to dry.

- Store the massage gun and the accessories in the supplied carry case to assure the best protection.

Button functions

Button Arrow up/ Power

(fig. E B-1)

- When long press and hold, turn ON the device when being in OFF mode.

Massage gun will start in working mode M1 at gear setting 1300.

- When long press and hold, turn OFF the device when being in ON mode

- When short press, increase gear when being in M1 mode.

- When short press, start working mode in stand by mode.

English

Button Arrow down/ M

(fig. E B-2)

• Long press and hold, turn device in switching mode when being in stand-by mode, or when being in M2, M3, M4 functional mode.
• When short press, decrease gear when being in M1 mode.
• When being in working mode M1 at lowest gear (1300) setting, pressing the arrow down button will set the massage gun in switching mode.
• When short press, start working mode in stand by mode.

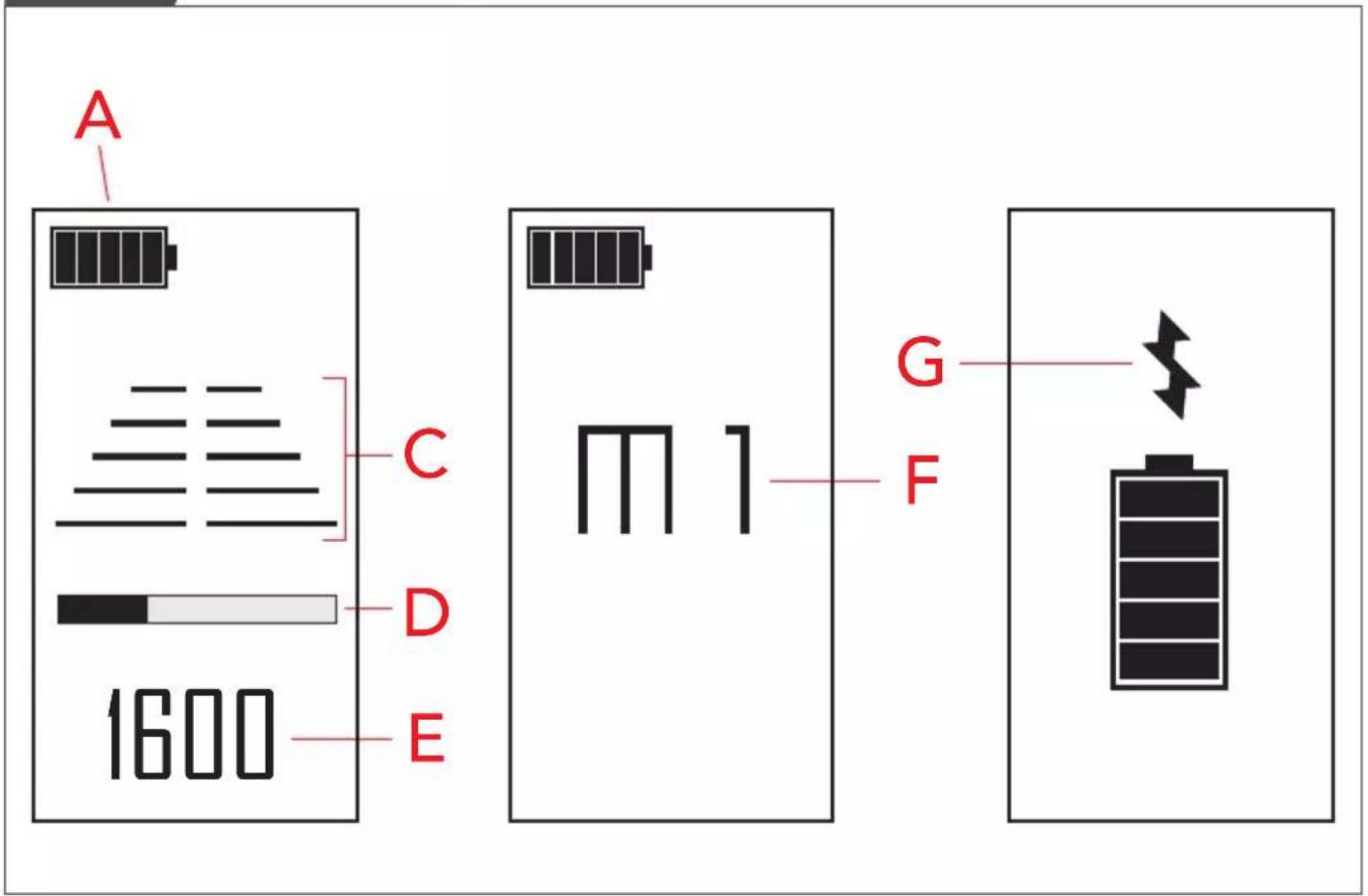

Display function

Battery power indicator (Fig F-A)

The battery power level is a help to see your battery charge level at all times.

Stall force indicator (Fig. F-C)

The stall force indicator bars are a reference of the force being applied on the massage gun when being in use.

One bar set visible is light pressure, more bar sets visible means more pressure on the massage gun.

Time indicator (Fig. F-D)

The time indicator is only visible in M2, M3 and M4, indicating the time duration of the program cycle, before it starts over again.

The time line is filling as a reference of completing the cycle.

Speed gear indicator (Fig. F-E)

There are 5 speed settings available in self adjustable mode M1, knowing:

1 1300 r/min
2 1600 r/min
3 1900 r/min
4 2200 r/min
5 2500 r/min

Working modes (Fig. F-F)

The display will show the active working mode being M1, M2, M3 or M4.

Working modes

There are 4 working modes available.

M1 manual mode

In the M1 mode the speed is not controlled by the massage gun and starts at 1300 rpm by default.

- Use up and down buttons to change speed as you desire at any time.

M2 ascending mode

In the M2 mode the speed increases every ±5 seconds from: 1300, 1600, 1900, 2200, 2500 rpm.

• The time line helps to recognize the progress in each cycle.
• After a full cycle the cycle starts over again.
• Up and down buttons to change speed are disabled in this mode.

M3 descending mode

In the M3 mode the speed decreases every ±5 seconds from: 2500, 2200, 1900, 1600, 1300 rpm.

• The time line helps to recognize the progress in each cycle.
• After a full cycle the cycle starts over again.
• Up and down buttons to change speed are disabled in this mode.

M4 wave mode

In the M4 mode the speed first increases every ±2 seconds with 100 rpm starting at 1600, and will decrease after reaching the programs highest setting being 2200 rpm again with 100 rpm every ±2 seconds.

• The time line helps to recognize the progress in each cycle.
• After a full cycle the cycle starts over again.
• Up and down buttons to change speed are disabled in this mode.

Massage heads

Switch massage heads

Fig C.

• With unit switched in OFF mode, fully insert applicator by pressing in firmly.
• With unit switched in OFF mode remove the applicator by pulling it out.
  To ease the release you can rotate slightly and pull at the same time, but this does not apply for the U type head

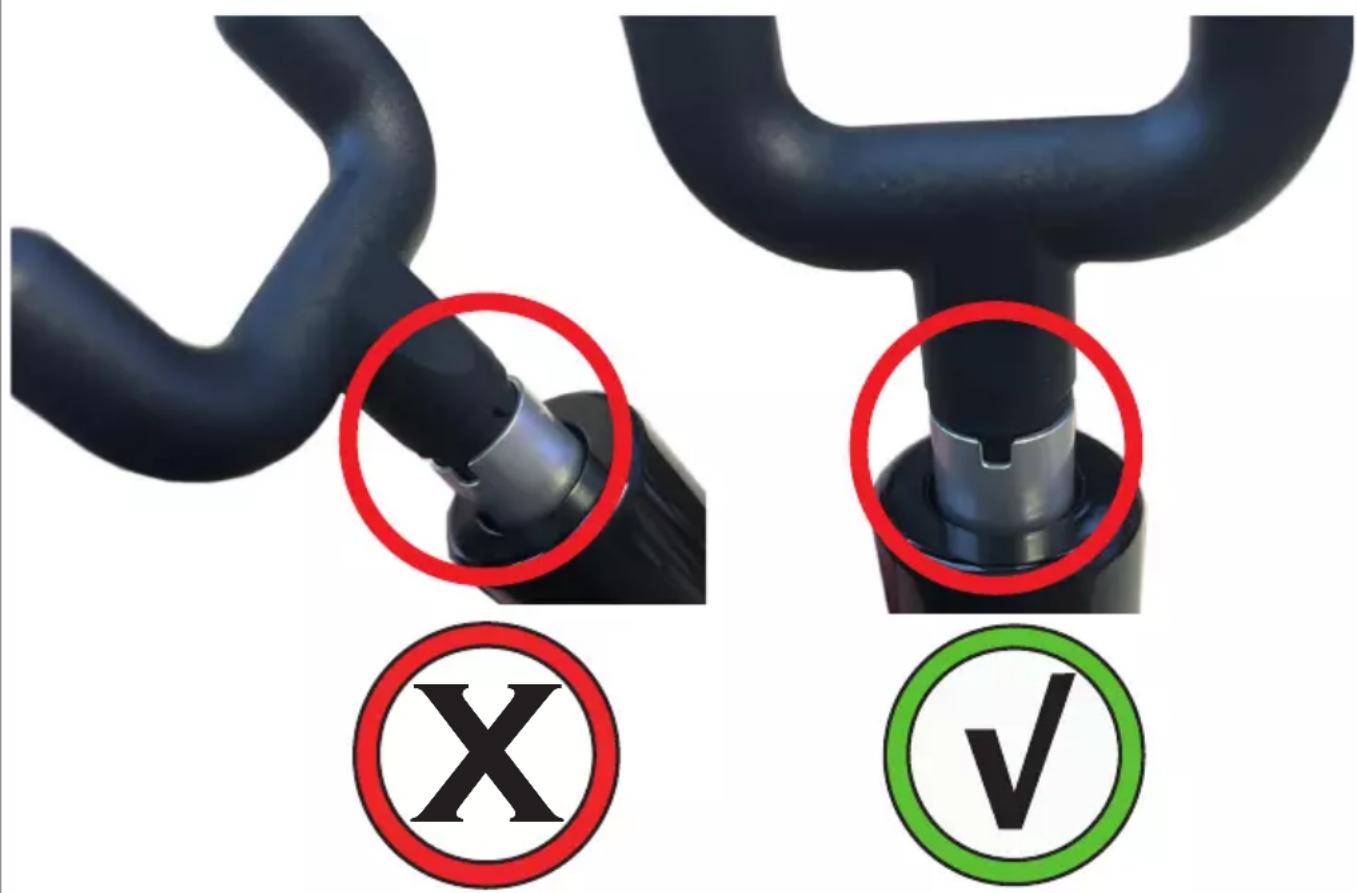

Take note of the alignment socket on the massage head and massage gun insert when inserting the U type head. This insert prevents the U type head from turning while being used.

WARNING

- Do not press/ pull the applicator in/ out at an angle to avoid damages.

Massage head functions

Foaming large ball head

Round spherical design produces a power output of propagating and diffusing type between receiving and pushing. Strength is even and soft. It is suitable for massage and relaxation of waist, abdomen, buttocks and legs. As well as muscle relaxation before and after exercise, recommend light weight fitness enthusiasts like dancing, yoga, aerobics and so on.

Foaming small flat head

Small and brief design, on the basis of the plane, a small arc which fits the body modelling mechanism is added and make it feel better. Suitable for the inside and outside muscles of the abdomen, chest and legs of the human body.

U type head

The force path between the two points is even, the stimulation is in place and powerful, which can effectively carry out some simple acupoint massage. Reasonable U-shaped width size perfectly avoids the human spine and cervical vertebra, and achieves a better sense of experience. Suitable for shoulder, cervical spine and bilateral muscles. (Can not directly hit the cervical spine and spine, it will cause physical injury).

Foamed cone head

Simple shape, full of impact experience, direct pressure to the depths. Suitable for meridians, soles of feet, palms, Achilles tendons, rhomboid muscles of back, etc.

Shock absorption head

The shock absorption head can be used for the same purposes as the foaming large ball head, but comes with a build in shock absorption, so more suitable for sensitive body parts.

Spade head

The spade head is designed for accuracy in the narrower spots, such as in between the shoulder blades or calves.

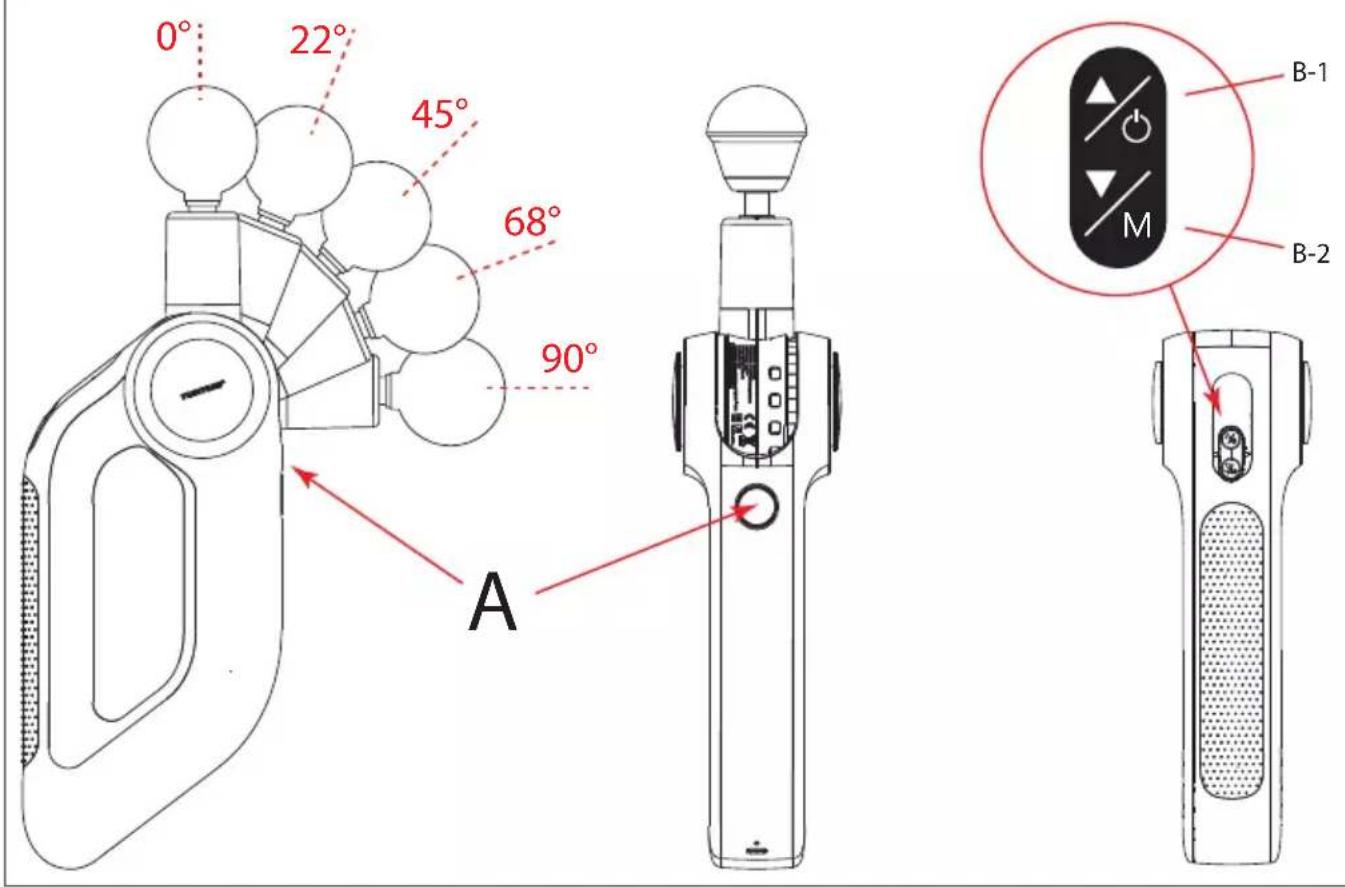

How to adjust the massage head angle

(Fig. E)

• Press and hold the button "A" under the massage head insert to release the fixation of the massage head position.
• Set the massage head in the desired position and release the button.
• Fine-tune the massage heads position until it locks in place.

Warranty

Tunturi purchaser's warranty

Warranty terms

The consumer is entitled to the applicable legal rights stated in the national legislation concerning the commerce of consumer goods. This warranty does not restrict these rights. The Purchaser's Warranty is only valid if the item is used in an environment approved by Tunturi New Fitness BV for that particular equipment. The product-specific approved environment is stated in the Owner's Manual provided with your equipment.

English

Warranty conditions

The warranty conditions commence from the date of purchase. Warranty conditions may vary per country, so please consult your local dealer for the warranty conditions.

Warranty coverage

Under no circumstances shall Tunturi New Fitness BV or the Tunturi Distributor be liable by virtue of this warranty or otherwise for any special, indirect, secondary or consequential damages of any nature arising out of any use or inability to use this equipment.

This warranty excludes.

• Damage caused by accident, abuse, mishandling, or transport;
• Units not used in accordance with instructions;
• Damage exceeding the cost of the product;
• Deterioration of the delivered product resulting from abnormal storage and / or safeguarding conditions on the client's premises;
• Failure to provide the dated proof of purchase.

Failure to follow the instructions given in the Owner's Manual will invalidate the product's warranty.

Declaration of the manufacturer

Tunturi New Fitness BV declares that the product is in conformity with the following standards and directives: EN 957 (HC), 2014/30/EU. The product therefore carries the CE label.

06-2023

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2023 Tunturi New Fitness BV All rights reserved.

• The product and the manual are subject to change.
• Specifications can be changed without further notice.
• Check our website for the latest user manual version.
