Brand	Tunturi
Model	14TUSFU272
Product type	Fitness trampoline
Use	Indoor, outdoor (on a flat surface)
Maximum weight capacity	135 kg
Mat diameter	Approximately 100 cm
Frame material	Steel
Mat material	Polypropylene
Number of springs	35 (estimated)
Spring type	Galvanized steel
Overall height (assembled)	Approximately 25 cm (flat)
Product weight	Approximately 12 kg
Main functions	Cardio, muscle strengthening, balance, coordination
Adjustments	Tilt possible (manual)
Included accessories	Support handles (optional), springs, hooks
Maintenance and cleaning	Mat cleaned with damp cloth; frame dried; springs and hooks checked regularly
Safety	Use under supervision; do not exceed 135 kg; fold by two people
Recommended age range	From 12 years old (with adult presence until 18)
Folding / storage	Yes, foldable into half-moon; vertical storage possible
Warranty	2 years (standard)
Customer service	[e-mail]
Repairability	Spare parts available (springs, hooks, mat, frame)

Frequently Asked Questions - 14TUSFU272 TUNTURI

How to assemble the Tunturi 14TUSFU272 trampoline?

Place the folded trampoline on the ground, open the ends outward to form a half-moon, then push the center upward until it clicks. Raise the 6 supports to a vertical position. For the handles (optional), insert the lower tubes into the openings then fix the upper tubes with the provided screws. Refer to the manual for detailed instructions.

What is the maximum supported weight?

The Tunturi 14TUSFU272 trampoline supports a maximum weight of 135 kg. Do not exceed this limit to ensure safety and durability.

How to fold and store the trampoline?

To fold, lay the trampoline flat. With another person, place your knees near the hinges, tilt the frame and fold it by bringing the edges toward each other. Make sure no fingers are caught. Folding should always be done by two people. Store it in a dry place.

What are the benefits of using this trampoline?

Using the Tunturi Trampoline improves cardiovascular health, strengthens muscles, improves balance and coordination. A 10-minute session equals 20 minutes of running in terms of calorie expenditure, with less impact on joints.

How to clean and maintain the trampoline?

The mat is cleaned with a damp cloth and mild soap. The frame should be wiped after use if wet. Regularly check springs, hooks and supports for any wear. Do not use abrasive products. Refer to the maintenance section of the manual.

Can I use the trampoline outdoors?

Yes, but place it on a flat and stable surface. Avoid rough surfaces that could damage it. Do not leave it exposed to rain or prolonged sun to preserve the materials.

Are the handles mandatory?

No, the handles are optional. They help maintain balance during exercises like squats or lunges. Follow the assembly instructions if you wish to install them.

How to adjust the tilt of the trampoline?

To tilt the trampoline, fold the rear supports into the retracted position after lifting the frame. Manually turn the mechanism to the desired angle (2 positions available). Tilt allows varying exercise intensity.

What to do if a spring or hook breaks?

Contact Tunturi customer service at [e-mail] to order spare parts. Do not use the trampoline with damaged parts to avoid accidents.

Is there a warranty on the 14TUSFU272 trampoline?

Yes, the Tunturi Trampoline comes with a standard 2-year warranty. Keep the proof of purchase and contact the retailer or Tunturi for any claims.

USER MANUAL 14TUSFU272 TUNTURI

OWNER'S MANUAL P.2-10

HANDLEIDING P.11-19

Two black trumbats with visible branding, one circular and one rectangular, displayed against a plain background (no text or symbols on the objects themselves)

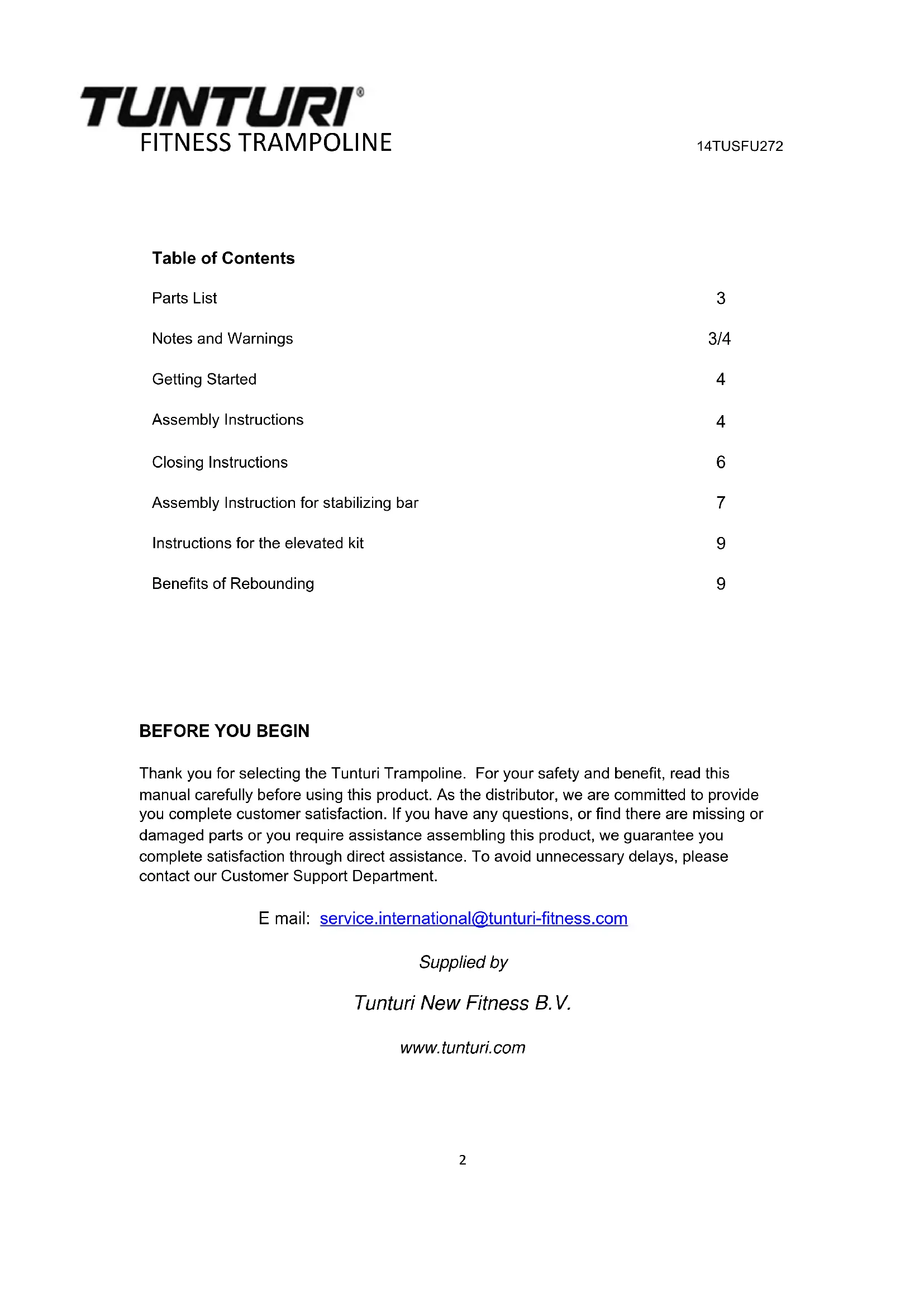

Table of Contents

Parts List	3
Notes and Warnings	3/4
Getting Started	4
Assembly Instructions	4
Closing Instructions	6
Assembly Instruction for stabilizing bar	7
Instructions for the elevated kit	9
Benefits of Rebounding	9

BEFORE YOU BEGIN

Thank you for selecting the Tunturi Trampoline. For your safety and benefit, read this manual carefully before using this product. As the distributor, we are committed to provide you complete customer satisfaction. If you have any questions, or find there are missing or damaged parts or you require assistance assembling this product, we guarantee you complete satisfaction through direct assistance. To avoid unnecessary delays, please contact our Customer Support Department.

E mail: [e-mail]

Supplied by

Tunturi New Fitness B.V.

www.tunturi.com

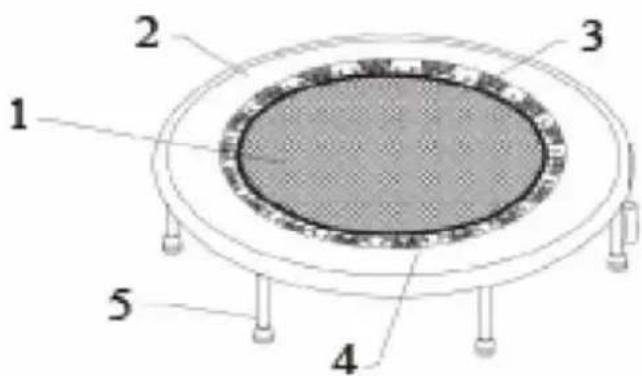

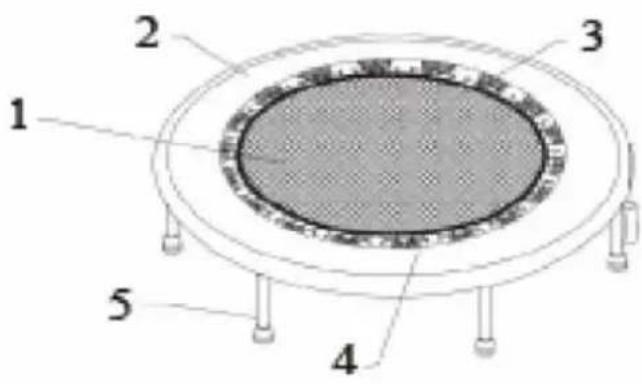

1 Jumping Mat
2 ProtectiveSkirt
3 Springs
4 W-Spring Hook
5 Rebounder Legs and angle rubber tip

Important Notes

1. This product should not be used by persons weighing more than 135kgs.
2. The legs of the Tunturi Trampoline are installed tightly during production, please make sure not to pinch your fingers or hand during assembly.
3. The folding mechanism can be stiff if the early stages of us-age of the Tunturi Trampoline and will loosen with time. Please be careful while opening and folding the Tunturi Trampoline and do not hurt your body.
4. The Tunturi Trampoline does not have to be folded when stored and can be stored in the open position.
5. Due to our continuing effort to improve the product, the actual product might not be exactly as shown in the instruction manual.
6. Must use elevated Tunturi Trampoline on wall to wall carpet or a floor that is not slippery so unit does not slide when used.

IF YOU CLOSE OR FOLD THE TUNTURI TRAMPOLINE THE INCORRECT WAY NOT FOLLOWING THE DIRECTIONS AND ARROW STICKERS ON THE FRAME RESULTING IN DAMAGE TO THE UNIT, TUNTURI NEW FITNESS B.V. WILL NOT BE HELD RESPONSIBLE. WE REPEAT WE WILL NOT BE HELD RESPONSIBLE IF YOU BEND THE STEEL FRAME BY NOT FOLLOWING THE FOLDING DIRECTIONS.

TUNTURI®

FITNESS TRAMPOLINE

14TUSFU272

Warning

Keep others away from equipment when in use. Children under the age of 12 should be supervised by an adult when using the Tunturi Trampoline. Read instructions before using the Tunturi Trampoline, as with any fitness exercise program consult with your doctor before use.

Tunturi New Fitness B.V. and their marketing partners assume no responsibility for any personal injury or property damages or any liability that may arise from this product (Tunturi Trampoline).

Getting Started

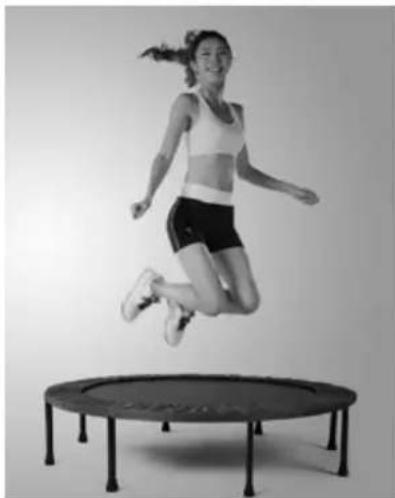

Black-and-white photo of a woman jumping over a trampoline (no text or symbols visible)

Welcome to Tunturi Trampoline jumping!!!

We want to assure your jumping experience is save by following a few simple steps. Please make sure to wear appropriate clothing and workout shoes and also make sure that...

1. The Tunturi Trampoline is not placed near any sharp furniture.

2. The mat surface of the Tunturi Trampoline is clean and dry.

3. All six legs are on a flat surface.

Assembly Instructions

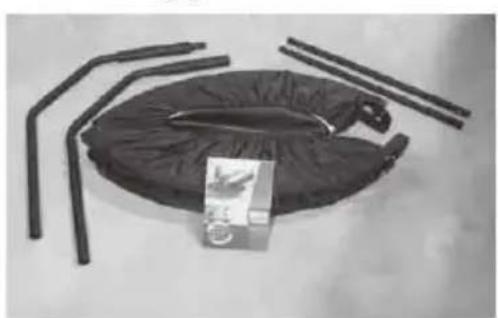

Please remove contents from the box and make note of all the parts you see in the picture. This Tunturi Trampoline contains 10-legs. The trampoline could be used with either flat rubber tips or elevated rubber tips, that you could choose the one accordingly.

Black cushion with three metal tools and a small package, no visible text or symbols

Circular mechanical component with internal gear-like structure and central oval body (no visible text or symbols)

To open Trampoline

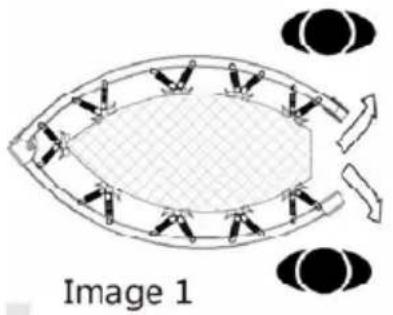

1. Lay the Tunturi Trampoline on the floor, in it's still folded position (looks like a football). Push out the ends according to the arrows on the picture (Image 1), so the Tunturi Trampoline expands and looks like a half moon (Image 2). Make sure the larger outside hinges are touching the floor (see Fig. 1).

Diagram of a circular object with internal components and eye-like shapes, labeled 'Image 1' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component labeled 'Image 2' (no other text or symbols)

Pure mechanical assembly diagram showing layered components with no text or symbols

Flguer 1

1. Firmly grasp both halves of the frame at the midpoint of each half circle according to the arrows and pull out (Image 3).
   Note: Frame will snap open so please read step no.3 carefully. Please keep all fingers away from hinge when opening and closing.
2. Using steady pressure, with hands open and fingers extended, use palm of hands to push top side of frame up, over and down to open position.
3. With the Tunturi Trampoline now open and still upside down, lift the 6 legs to a perpendicular position (up and over its holding platform pin). (Image 4)

Note: Be careful not to catch spring cover fabric.

Diagram of a mechanical component with a circular inset showing internal features (no text or symbols)

Image 4

Circular diagram with radial lines and leaf-like patterns, no text or symbols present

1. Turn the Tunturi Trampoline right side up, and adjust the fabric of the skirt evenly around the jumping mat so that the skirt covers all the springs in an even manner.
2. Proceed to page 6 for stabilizing bar assembly instructions.

IF YOU CLOSE OR HOLD THE TUNTURI TRAMPOLINE THE INCORRECT WAY NOT FOLLOWING THE DIRECTIONS AND ARROW STICKERS ON THE FRAME RESULTING IN DAMAGE TO THE UNIT, TUNTURI NEW FITNESS B.V. WILL NOT BE HELD RESPONSIBLE. WE REPEAT WE WILL NOT BE HELD RESPONSIBLE IF YOU BEND THE STEEL FRAME BY NOT FOLLOWING THE FOLDING DIRECTIONS.

Closing Instructions

Important Safety Note: Always close your Tunturi Trampoline with 2 people.

1. Pull and release the fabric hinge (1 fold model) cover from above the hinges to allow easier folding.

2. Turn the unit upside down and lay it flat.

3. Pull the 6 legs up and over it's platform pin and lay it down towards the center of the mat.

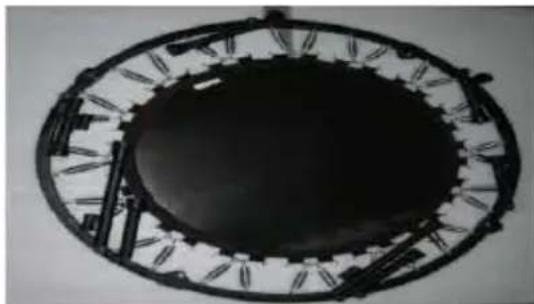

Circular diagram of a meeting or gathering with participants seated and standing, no visible text or symbols

Note: Extend the leg spring only enough to get it up and over the platform pin. Do not over extend.

1. Locate the larger hinges on each side of the trampoline. Stand near the hinges on opposite sides of the Tunturi Trampoline facing the upper half of the frame (Image A).

1. Both persons kneel facing the "top half" of the Tunturi Trampoline and place their knee closest to the Tunturi Trampoline on the "bottom half" of the frame approximately 2 inches below (not on) the hinge (Image B).

Silhouette of a person in a kneeling position with a small object nearby, labeled Image B (no text or symbols on the figure itself)

1. Both persons lean forward placing their outside hand on the ground and use their inside hand to grasp on of the springs near the top of the Tunturi Trampoline (Image C).

1. Together pull up gently on the spring and the top half of the frame will raise toward the middle. Ensure that your hands are clear of moving frame (Image 6, Image 7).

Note: Watch out for your hands, feet body part, etc. And always take 2 people to fold the Tunturi Trampoline.

TUNTURI®

FITNESS TRAMPOLINE

14TUSFU272

Diagram of an airplane viewed from above, showing wing structure and eye symbols (no text or labels)

Diagram of a curved mechanical component labeled 'Image 7' (no other text or symbols)

1. Once the Tunturi Trampoline is folded (now looks like a half moon), simply push the two ends inwards to make the rebounder smaller (the shape will look like a football). (Image 8)

IF YOU CLOSE OR FOLD THE TUNTURI TRAMPOLINE THE INCORRECT WAY NOT FOLLOWING THE DIRECTIONS AND ARROWS ON THE FRAME RESULTING IN DAMAGE TO THE UNIT. TUNTURI NEW FITNESS B.V. WILL NOT BE HELD RESPONSIBLE. WE REPEAT WE WILL NOT BE HELD RESPONSIBLE IF YOU BEND THE STEEL FRAME BY NOT FOLLOWING THE FOLDING DIRECTIONS.

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Stabilizing Bar Assembly Instructions

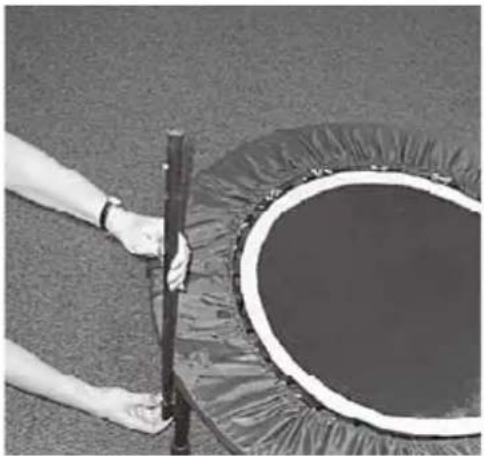

1. Now find the two bottom halves of the stabilizing bar. You will see that the Trampoline surface has two legs with attachments. These are the openings that you will use to place the stabilizing bar's two bottom halves.

Take the end that slides into the leg attachment and securely place it in the attachment opening (see picture).

Person holding a pole next to a circular object on a textured surface (no visible text or symbols)

1. Repeat step 2 for the second bar.

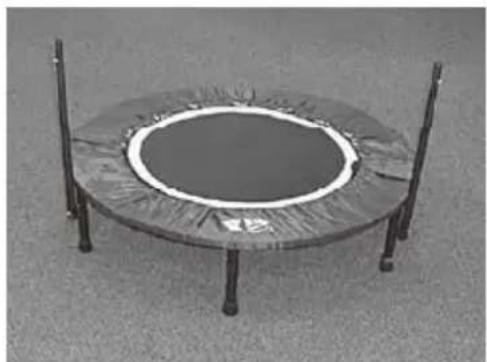

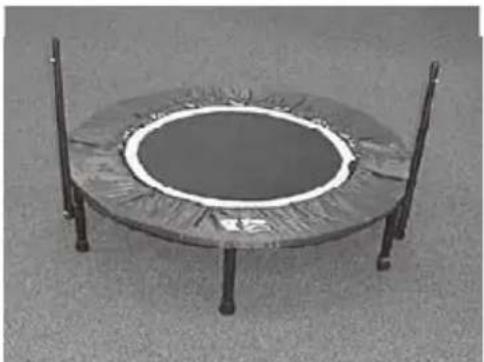

2. This is how the Tunturi Trampoline should look after step 2 (see picture).

Top-down view of a round trampoline table with four legs and a central circular opening (no text or symbols visible)

TUNTURI® FITNESS TRAMPOLINE

14TUSFU272

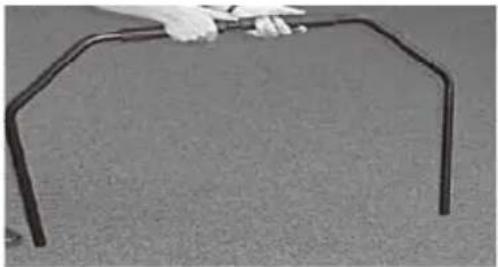

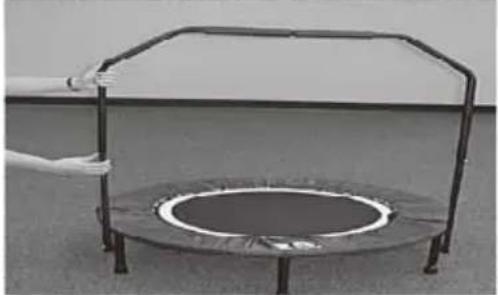

1. Find the two parts that make up the top of the stabilizing bar and tightly lock both padded ends together (see picture).
2. Now place both ends of the top half of the stabilizing bar on the openings op the two bottom halves (see picture).

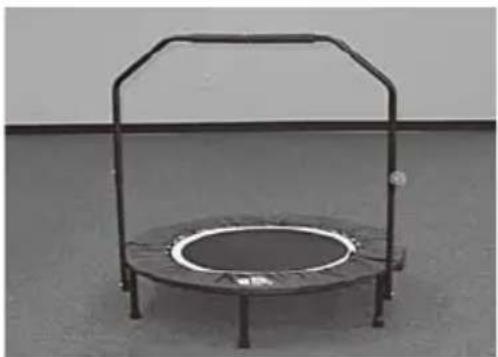

3. After making sure that all of the parts are tightly secured your Tunturi Trampoline should look like the picture.

Close-up of a metal bracket with curved ends, held by hand (no text or symbols visible)

Hand holding a metal trampoline with a circular vent on the base (no text or symbols visible)

Exterior view of a trampoline with metal frame and circular base (no text or symbols visible)

Spare parts:

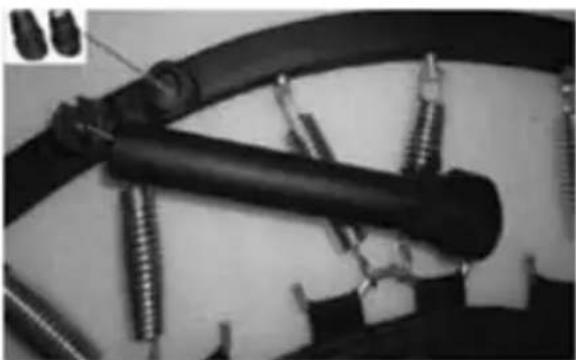

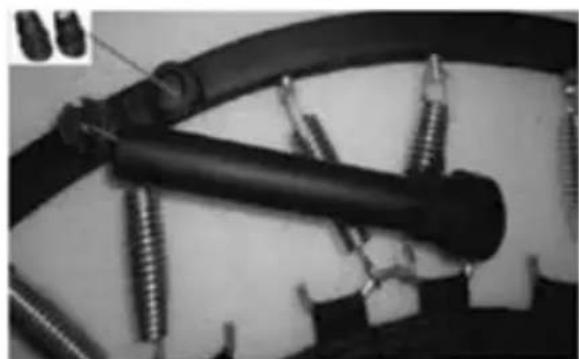

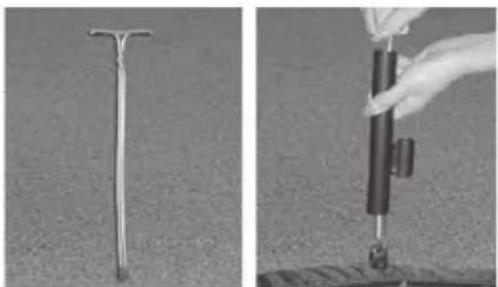

The use of the hook is to hitch the spring to the hole on the legs when it falling off.

Two experimental setups showing a metal tool and a hand holding a cylindrical object (no text or symbols visible)

The smell emanating from the rubber tips will fade over time.

The Tunturi Trampoline has 10 legs.

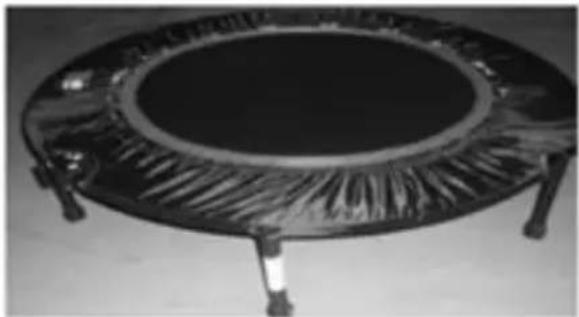

You can switch between elevated and flat. When you want to use it in the flat position, you need to change the tips to the flat tips.

Circular metal tray with four legs and a central oval, no visible text or symbols

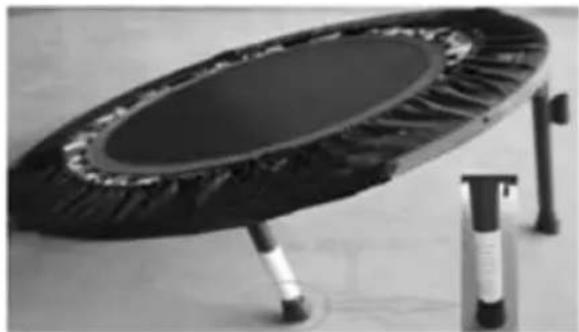

To change to the elevated position, you need to pull down the-tipped legs in the back, and put the front and long back flat legs up. However, they do not need to change the tips on any of the feet at all. The new round crutch tips never need to be taken off.

Black trampoline with circular frame and stand, no visible text or symbols

YOU NEED TO SCREW IN THE 2 SHORT STUMP LEGS MANUALLY.

Close-up of a black cable with attached screws and connectors, no visible text or symbols

Benefits

Tunturi Trampoline program is Efficient, Effective, Easy on the Body and Enjoyable. So that you can GET FIT and HAVE FUN.

Efficient

Tunturi Trampoline is taught entirely on a unique spring-enhanced device, this type of exercise allows the body to work harder, for a longer period of time, because the body is not absorbing the shock and stress of hard-surface workouts. This is accomplished by bringing the forces of gravity, acceleration and deceleration into vertical alignment, bouncing allows you to do less and accomplish more. In fact, just 10 minutes of bouncing on a Trampoline has the same aerobic result as over 20 minutes of jogging.

Effective

Tunturi Trampoline is effective because the workouts combine more than just cardiovascular movements, such as abdominal exercises, squats, lunges, push-ups, and dips. In fact, by following the Tunturi Trampoline workout program you:

➢ Simultaneously work all the major muscle groups
➢ Take advantage of a calorie burning, cardiovascular, strength conditioning workout
Build stamina, strength and balance

Easy on the body

The Tunturi Trampoline Program is a style of aerobics that provides a surprisingly challenging cardiovascular workout without excess stress on the heart, muscles and joints. In fact, the Tunturi Trampoline bounding surface enables you to do simple, low-impact workouts that build strength, cardiovascular capacity, and balance without jarring the body like other conventional exercises.

Enjoyable

Unlike any other workout the Tunturi Trampoline workouts are easy dance & aerobic moves which are coordinated to music. It enables you to combine a love for music and a desire to lose weight all into one.

Inhoudsopgave

Black-and-white photo of a woman jumping over a trampoline (no text or symbols visible)

Black cushion with multiple metal rods and a small package, no visible text or symbols

Circular mechanical component with internal components and a central oval shape (no visible text or symbols)

Diagram of a bird's head and neck with eye-like shapes, labeled 'Image 1' (no text or symbols on diagram itself)

Line drawing of a mechanical component with grid pattern and labeled 'Image 2' (no other text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Flguer 1

Diagram of a bird's wing with eye-like structures, labeled 'Image 3' (no text or symbols on the diagram itself)

Circular diagram with radial lines and leaf-like patterns, labeled 'Image 4' at bottom (no text or symbols within the diagram itself)

FITNESS TRAMPOLINE

14TUSFU272

Diagram of a circular meeting or conference with participants seated at the front (no text or symbols visible)

Silhouette of a person in a prone position with a small object nearby, labeled 'Image' (no text or symbols on the figure itself)

Diagram of an aircraft fuselage with visible structural lines and eye symbols, labeled 'Image 6' (no text or labels on the diagram itself)

Diagram of a curved mechanical component labeled 'Image 7' (no other text or symbols)

Diagram of a symmetrical mechanical or architectural component with no visible text or symbols

Person using a tool to cut a circular object on a textured surface (no text or symbols visible)

Circular trampoline with four legs and a central circular opening, placed on a textured floor (no text or symbols visible)

Hand holding a metal bracket on a textured surface (no text or symbols visible)

A person adjusting a trampoline with a circular base, no visible text or symbols.

Black trampoline with metal frame and circular base, no visible text or symbols

Onderdelen:

Two black-and-white photos showing a nail and a hand holding a cylindrical object, both on textured surfaces (no text or symbols visible)

Circular metal tray with ribbed and four legs, no visible text or symbols

Black trampoline with circular frame and metal legs, mounted on a stand (no visible text or symbols)

ZOALS HIERNAAST WORDT WEERGEGEVEN DIENEN HANDMATIG 2 STOOTDOPPEN IN DE TRAMPOLINE GEDRAAID TE WORDEN.

Close-up of a black cable with metal screws and connectors, no visible text or symbols

Voordelen

[e-mail]

Geliefert von

Tunturi New Fitness B.V.

www.tunturi.com

Black-and-white photo of a woman jumping over a trampoline (no text or symbols visible)

Black plastic cushion with multiple bent pins and a small inset image of a camera (no text or symbols visible)

Circular mechanical component with internal gear-like structure and central oval shape (no visible text or symbols)

Diagram of a bird's head and neck with eye-like shapes, labeled 'Image 1' (no text or symbols on diagram itself)

Diagram of a curved, segmented structure with grid pattern, labeled 'Image 2' at bottom (no other text or symbols)

Pure mechanical diagram showing two stacked blocks with a hand operating one block (no text or symbols)

Flguer 1

Technical line drawings of two mechanical components labeled Image 3 and Image 4, showing internal structures with no visible text or symbols.

Falten Anleitung

Diagram of a circular meeting or conference with participants seated around the ring (no text or symbols visible)

Diagram of an airplane viewed from above, showing front, side, and perspective views (no text or labels)

Image 7

Diagram of a mechanical or electrical component with multiple circular features and directional arrows, labeled 'Image 8' at bottom (no text or symbols on diagram itself)

Person holding a tool next to a circular object on a textured surface (no visible text or symbols)

Top-down view of a round trumbar with four legs and a central circular opening, placed on a textured floor (no text or symbols visible)

FITNESS TRAMPOLINE

14TUSFU272

Circular metal tray with ribbed pattern and four legs, no visible text or symbols

Black triplunk with circular frame and stand, no visible text or symbols

ALS SOLCHE DAS RECHT ZU SEIN SCHEINT IN DAS TRAMPOLIN SOLLTE MANUELL GEDREHT WERDEN, BE 2 SCHUSS CAPS.

Close-up of black cable connectors with metallic fittings and metal clips, no visible text or symbols

Vorteile

Black-and-white photo of a woman jumping over a trampoline (no text or symbols visible)

Black fabric cushion with multiple metal rods and a small inset image of a device (no visible text or symbols)

Circular mechanical component with internal gear-like structure and central oval body (no visible text or symbols)

Diagram of a circular object with internal components and eye-like shapes, labeled 'Image 1' (no text or symbols on the diagram itself)

Line drawing of a curved mechanical component with grid pattern, labeled 'Image 2' at bottom (no other text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawings of two mechanical components labeled Image 3 and Image 4, showing internal components and assembly (no text or symbols beyond labels)

I VOUS FERMEZ LE TRAMPOLINE TUNTURI DANS LA VOIE DU MAL ET NE SUIVEZ PAS LES INSTRUCTIONS DE LA FLÈCHE PEUVENT CE DOMMAGE LE TRAMPOLINE. TUNTURI NEW FITNESS B.V. DÉCLINE TOUTE RESPONSABILITÉ POUR LE DÉMONTAGE ET LE MONTAGE INCORRECT.

Diagram of a circular meeting or conference with participants seated around the ring (no text or symbols visible)

Pure wireframe diagram of a boat hull with no text, numbers, or symbols

Image 6

Image 7

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Image 8

montage poignées

Person using a pull-up device to cut a circular object on a textured surface (no text or symbols visible)

Top-down view of a round trumbar with a circular opening, mounted on four legs (no text or symbols visible)

Hand holding a metal bracket on a textured surface (no text or symbols visible)

Person holding a trampoline with a circular vent on the ground (no text or symbols visible)

Exterior view of a trampoline with metal frame and circular base (no text or symbols)

Pièces:

Two black-and-white photos showing a tool and a mechanical device, both on textured surfaces (no text or symbols visible)

FITNESS TRAMPOLINE

14TUSFU272

Circular metal tray with three legs and a central circular opening, no visible text or symbols

Black trampoline with circular frame and stand, no visible text or symbols

Close-up of a black cable with multiple metal screws attached, no visible text or symbols

Avantages
