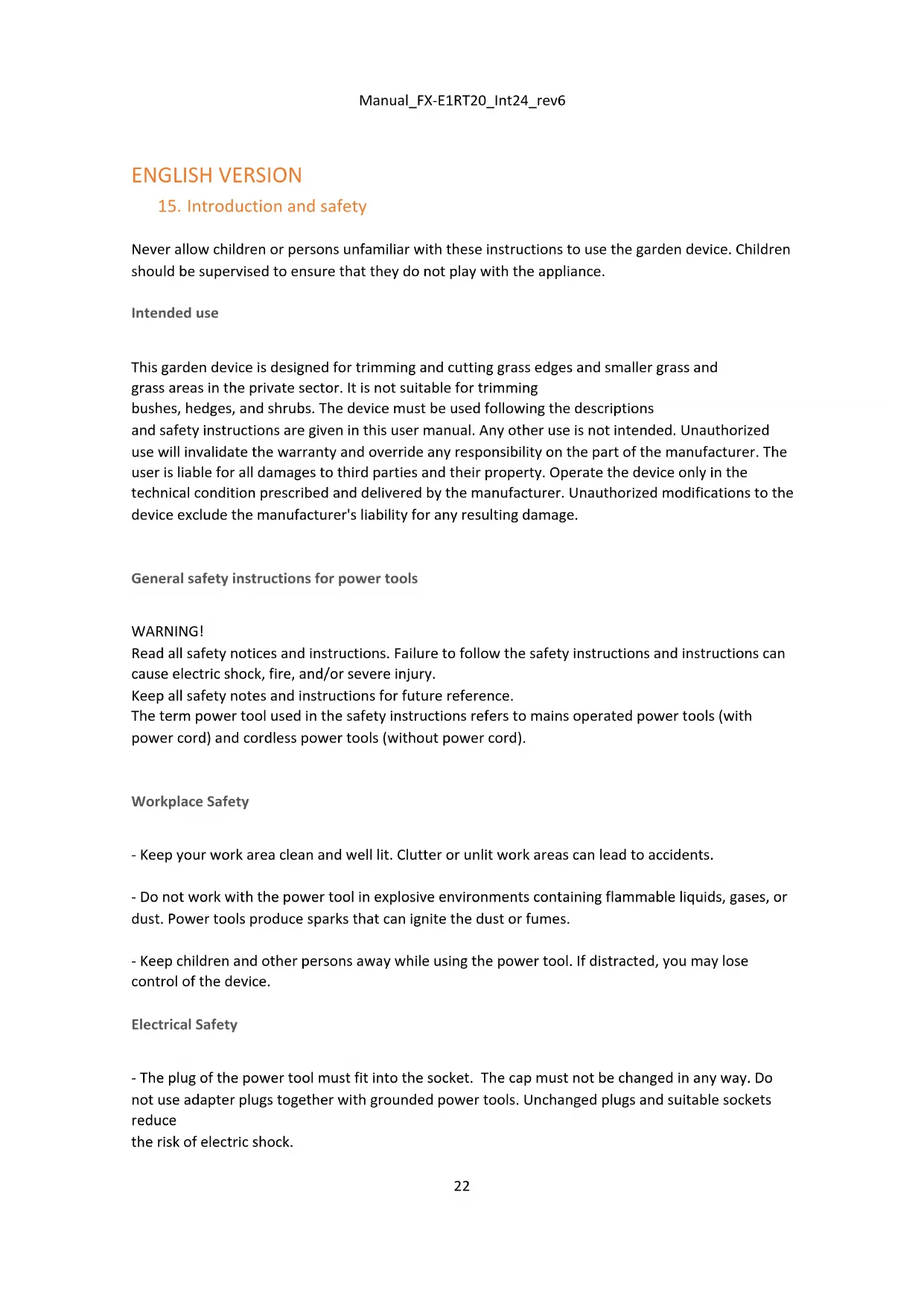

Never allow children or persons unfamiliar with these instructions to use the garden device. Children should be supervised to ensure that they do not play with the appliance. Intended use This garden device is designed for trimming and cutting grass edges and smaller grass and grass areas in the private sector. It is not suitable for trimming bushes, hedges, and shrubs. The device must be used following the descriptions and safety instructions are given in this user manual. Any other use is not intended. Unauthorized use will invalidate the warranty and override any responsibility on the part of the manufacturer. The user is liable for all damages to third parties and their property. Operate the device only in the technical condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.

General safety instructions for power tools WARNING! Read all safety notices and instructions. Failure to follow the safety instructions and instructions can cause electric shock, fire, and/or severe injury. Keep all safety notes and instructions for future reference. The term power tool used in the safety instructions refers to mains operated power tools (with power cord) and cordless power tools (without power cord).

Workplace Safety - Keep your work area clean and well lit. Clutter or unlit work areas can lead to accidents. - Do not work with the power tool in explosive environments containing flammable liquids, gases, or dust. Power tools produce sparks that can ignite the dust or fumes. - Keep children and other persons away while using the power tool. If distracted, you may lose control of the device. Electrical Safety - The plug of the power tool must fit into the socket. The cap must not be changed in any way. Do not use adapter plugs together with grounded power tools. Unchanged plugs and suitable sockets reduce the risk of electric shock.Manual_FX-E1RT20_Int24_rev6

- Avoid physical contact with grounded surfaces such as pipes, heaters, stoves, and refrigerators. There is an increased risk of electric shock if your body is grounded. - Keep power tools away from rain or moisture. The penetration of water into a power tool increases the risk of electric shock. - Do not use the cable to carry or hang up the power tool or to pull the plug from the socket. Keep the cord away from heat, oil, sharp edges, or moving parts. Damaged or tangled cables increase the risk of electric shock. - If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable ideal for outdoor use reduces the risk of electric shock. - If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable ideal for outdoor use reduces the risk of electric shock.

Safety of Persons - Be alert, pay attention to what you are doing, and use common sense when working with a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while utilizing the power tool can cause serious injury. - Wear personal protective equipment and always protective goggles. Wearing personal protective equipment, such as dust mask, non-slip safety shoes, safety helmet or hearing protection, depending on the type and use of the power tool reduces the risk of injury. - Avoid unintentional commissioning. Make sure that the power tool is switched off before connecting it to the power supply and/or battery, picking it up or carrying it. If you have your finger on the switch when carrying the power tool or if you connect the device to the power supply while it is switched on, this can lead to accidents. - Remove adjustment tools or wrenches before turning on the power tool. A tool or key that is in a rotating part of the device can cause injury. - Avoid an abnormal posture. Make sure you have a secure footing and keep your balance at all times. This allows you to better control the power tool in unexpected situations. - Wear suitable clothing. Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught by moving parts.Manual_FX-E1RT20_Int24_rev6

Use and treatment of the power tool - Do not overload the device. Use the appropriate power tool for your work. With the right power tool, you will work better and safer in the specified power range. - Do not use a power tool with a defective switch. A power tool that can no longer be switched on or off is dangerous and must be repaired. - Unplug the power cord and/or remove the battery before making any adjustments to the device, changing accessories, or putting the device away. This precaution prevents unintentional starting of the power tool. - Keep unused power tools out of the reach of children. Do not allow persons to use the device which is not familiar with it or have not read these instructions. Power tools are dangerous if they are used by inexperienced persons. - Maintain power tools with care. Check that moving parts function correctly and do not jam, that parts are not broken or damaged in such a way that the function of the power tool is impaired. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained power tools. - Keep cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges jam less and are easier to guide. - Use power tools, accessories, insertion tools, etc. according to these instructions. Take into account the working conditions and the job to be performed. The use of power tools for applications other than those intended can lead to dangerous situations.

Use and handling of the cordless tool - Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries. - Only use the batteries provided in the power tools. Using other batteries may result in personal injury and fire hazards. - Keep the unused battery away from paper clips, coins, keys, nails, screws, or other small metal objects that could cause the contacts to bridge. A short circuit between the battery contacts can cause burns or fire. - The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.Manual_FX-E1RT20_Int24_rev6

General Safety Instructions - For your safety and the safety of others, read this user manual and its safety instructions before using the device. Please keep the user manual and its safety instructions in a safe place for future reference and keep them handy for any use. - Pass on the operating instructions with the device if there is a change of ownership. - Persons operating the device must not be under the influence of intoxicating substances (e.g., alcohol, drugs, or medicines). - Operate the device only in the condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage. - Only use the device in daylight or under good artificial lighting. - Only use the device in dry weather conditions. Keep it away from rain or moisture. The penetration of water into the device increases the risk of electric shock. - Switch off the device and remove the battery in the following conditions: ⬧ if the device is left unattended; ⬧ before checking, cleaning or other work on the device; ⬧ if the device starts to vibrate excessively.

Before Use - Familiarize yourself with the grass trimmer and its functions and controls before starting work. - Check the device for signs of wear or damage before starting up and after a collision. - Do not use a device whose switch is defective and can no longer be switched on or off. - Check that all nuts, bolts, and screws are tight to ensure that the device is operated safely. - Never use a device with damaged or missing parts. Have them repaired or replaced if necessary by a qualified specialist or workshop. - To reduce the risk of serious injury, never use wire or metal-reinforced thread as cutting thread.Manual_FX-E1RT20_Int24_rev6

- When working with or on the device, always wear sturdy shoes, long trousers, and the appropriate personal protective equipment (safety goggles, hearing protection, non-slip work gloves, etc.). The wearing of personal protective equipment reduces the risk of injury. - Do not wear jewelry or loose clothing that could be caught by the grass trimmer. Keep long hair away from the spindle. - Check the area where the device is being used and remove stones and wires that could be caught by the grass trimmer to avoid endangering people. - Remove adjustment tools or wrenches before turning on the trimmer. A tool or key that is in a rotating part of the device can cause injuries. During Operation - Do not operate the device if persons (especially children) or animals are in the immediate vicinity. - Interrupt work if you notice that people (especially children) or pets are nearby. - Always keep hands and feet away from the rotating string, especially when you switch on the grass trimmer. - To prevent injury, still hold the grass trimmer parallel to the lawn when switching on. - Always keep a safe distance during the trimming process and do not reach into the rotating thread. - Avoid an abnormal posture. Make sure you have a secure footing and keep your balance at all times. This allows you to better control the grass trimmer in unexpected situations and on particularly steep slopes. - Do not work with the grass trimmer in potentially explosive environments containing flammable liquids, gases, or dust. The grass trimmer can produce sparks that can ignite the dust or fumes. - Exercise particular caution when walking backward. There is a danger of tripping! - Walk at a walking pace only. - Never leave the device unattended during work interruptions and store it in a safe place.

After use - Turn off the device, remove the battery, and then place the device in a safe place.Manual_FX-E1RT20_Int24_rev6

- Do not store the device within reach of children. - Make sure that the ventilation slots of the device are free of dirt. - Spare parts must meet the requirements specified by the manufacturer. Therefore only use original spare parts or spare parts approved by the manufacturer. When replacing the battery, please follow the installation instructions provided and remove the battery first. - Have repairs carried out exclusively by a qualified specialist or a specialist workshop.

17. Safety instructions for the charger

- Keep the charger away from rain or moisture. The penetration of water into a charger increases the risk of electric shock. - Keep the charger clean. There is a risk of electric shock from soiling. - Check the charger, cable, and plug before each use. Do not use the charger if you notice any damage. Do not open the charger yourself and have it repaired only by qualified personnel and only with original spare parts. Damaged chargers, cables, and connectors increase the risk of electric shock. - Do not place objects on the charger or place them on soft surfaces. There is a risk of fire. - Always check that the mains voltage corresponds to the voltage indicated on the charger's nameplate. - Never use the charger if the cable, plug, or the device itself is damaged by external influences. Take the charger to the nearest specialist workshop. - Never open the charger under any circumstances. Take it to a specialist workshop in the event of a fault.

- Do not open the battery. There is a danger of a short circuit. - Protect the battery from heat, including continuous exposure to sunlight, fire, water, and moisture. There is a danger of explosion. - Vapors may escape if the battery is damaged or misused. Supply fresh air and consult a doctor if you have any complaints. The vapors may irritate the respiratory tract. - The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.Manual_FX-E1RT20_Int24_rev6

- Only use original rechargeable batteries with the voltage specified on the rating plate of your power tool. When using other batteries, e.g., imitation, reconditioned batteries, or batteries from different manufacturers, there is a risk of injury and material damage due to exploding batteries. - The battery voltage must match the battery charging voltage of the charger. Otherwise, there is a risk of fire and explosion. - Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries. - The battery can be damaged by pointed objects such as nails or screwdrivers or by an external force. An internal short circuit may occur, and the battery may burn, smoke, explode or overheat.

3. Battery (only included in the set)

4. Joint for adjusting the cutting angle

7. Button for directional adjustment of the cutting head (normal trimming or

8. Rotary disc with blade attachment

9. Telescopic extension

10. Adjusting knob for the front handle

Figure 2: Battery and charger (only included in the set)

18. Compartment for spare blades

Figure 4: Press the button (7) to adjust the angle according to the intended use (normal trimming or lawn edge trimming).Manual_FX-E1RT20_Int24_rev6

To attach the protective shield to the trimmer, make sure that the holes for the screws are correctly aligned. To do this, place the opening of the label over the head of the battery trimmer and turn it so that the plastic rails snap into each other. As already mentioned, pay attention to the correct position of the drill holes. Now fasten the protective shield with the 2 screws supplied. The rotation disk can then be attached to the center of the sensor head with the supplied screw.

21. Settings before use

Adjust shaft length Adjust the grass trimmer to your height. To do this, loosen the threaded sleeve on the shaft coupling (Figure 1, item 9). Pull out the lower shaft until the ideal spar length is reached. Tighten the threaded sleeve

Adjusting the handlebars Adjust the handlebar to your height. To do this, press the button on both sides of the handlebar and keep it pressed (Figure 1, item 10). Place the handlebar in the desired position. Release the button when the desired position is reached.

Adjust head tilt With the grass trimmer, 3 angles of head tilt can be adjusted. This allows you to easily reach problematic and hard to reach places in the garden. The cutting head should always be parallel to the ground. Press the locking knob (fig. 1, point 4) to set the desired working angle. Plant hoop guard The plant protection bar protects shrubs, trees, and bedding plants. If the plant protection bar is not needed, it can be folded up.Manual_FX-E1RT20_Int24_rev6

Free cutting The cutting head is guided parallel to the ground. Guide the grass trimmer in a semicircle in front of the body when cutting free.

23. Switching the device on/off

Insert the battery into the rail provided. Then push in the safety lever (Figure 1, item 1) at the side, only then you can operate the on/off switch (Figure 1, item 2). The device now starts to work. If you release the on/off switch, the device stops working. Attention: after releasing the on/off switch, the disc continues to rotate for a few seconds until it has come to a complete stop. For an immediate stop, press the disc onto the lawn.

- Hold the device with both hands by the handles provided. - Hold the device parallel to the floor and make stroking movements from one side to the other. - Move forward slowly. - Cut grass over 20cm from top to bottom in small steps to avoid premature blade wear and increased motor resistance. - Only cut when grass and weeds are dry. - The blade can breakthrough: ⬧ Entanglement with foreign bodies, ⬧ Normal fatigue ⬧ Attempts to cut the thickest weeds ⬧ Knocking against walls, garden fences, etc.

25. Maintenance and care

Attention: before any work on the power tool, remove the battery from the device Do not use water or liquid detergents. - Remove dirt and dust from the housing with a brush or dry cloth. - Remove grass clippings from the bottom of the grass trimmer. - Keep the contacts of the battery and device clean and dust-free. - To change the blades, push the blade towards the cutting insert. If the blade is anchored in the larger opening, you can remove the blade and insert a new blade in reverse order. Please make sure that the blade is firmly fixed in the anchorage before using the device again.

• mains-operated power tools by removing the connecting plug,

• cordless power tools by removing the battery. For EU countries only Do not throw power tools in household waste! According to the European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in national law, used electrical equipment must be collected separately and sent for environmentally sound recycling. Recovery of raw materials instead of waste disposal. The device, accessories, and packagingManual_FX-E1RT20_Int24_rev6

should be recycled in an environmentally friendly manner. Plastic parts are marked for recycling according to type. WARNING! Do not throw batteries in the household waste, fire, or water. Do not open worn-out batteries. Batteries should be collected, recycled, or disposed of in an environmentally friendly manner. For EU countries only: According to Directive 2006/66/EC, defective or exhausted batteries must be recycled. NOTE: Please contact your local authority/city for information on disposal options, Recycling raw materials instead of waste disposal.

Cordless Grass Trimmer

Guaranteed sound power level 96 (LwA) dB Measured sound power level 92 (LpA) dB Weight (without battery) 2 kg Max. running time with a full battery 45 min 2Ah batteryManual_FX-E1RT20_Int24_rev6
