USER MANUAL K-416 Fuxtec

64. Important safety instructions before commissioning

If the power cable is defective, it must be replaced by the manufacturer or a specialist dealer. The device is not intended for use by people with physical, mental or psychological disabilities. Children should be kept away from the device. The use of the device by the previously named persons should only take place under supervision. The following substances can be vacuumed with this device: cold ash, cold charcoal, ashtrays and cooled barbecues. “Cold ash” means ash residue that has cooled down sufficiently and is free of any embers. To do this, use a suitable metal rod to check the ash for embers before vacuuming. Empty and clean the ash vacuum before and after use to prevent the accumulation of materials that could cause a fire. Do not vacuum soot-like or easily flammable substances. Please check the suction hose and ash vacuum cleaner for overheating every time you use it. If it becomes overheated, please switch the device off immediately and contact your dealer.

65. application area

For efficient cleaning of the open fireplace, grill, etc. Also particularly suitable for removing sawdust and leftover parts. The device is not suitable for professional use. WARNING! For your own safety, please read this manual and the general safety instructions carefully before using the device. If you give the device to third parties, always include these instructions for use.Manual_K-416_Int24_rev5

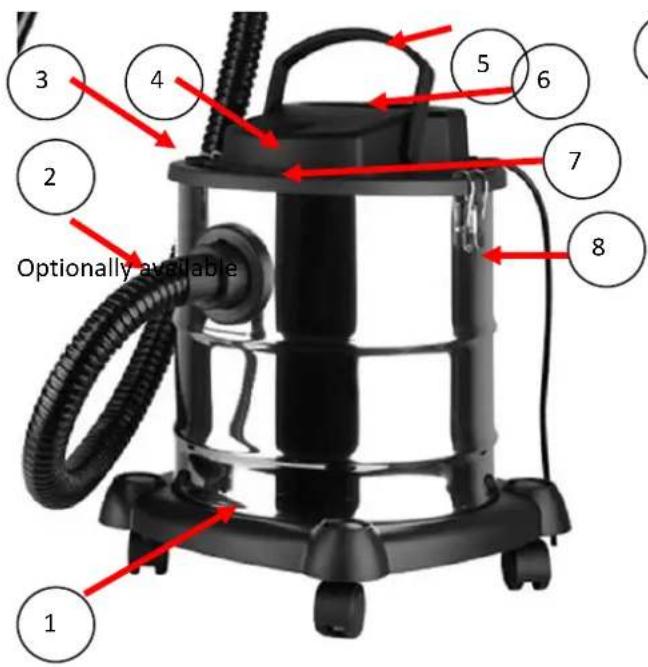

66. Description of the device

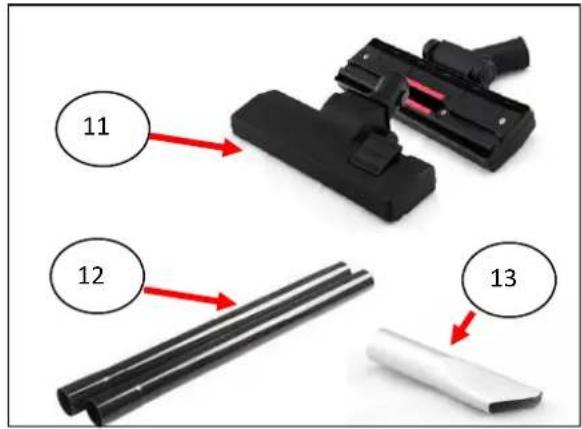

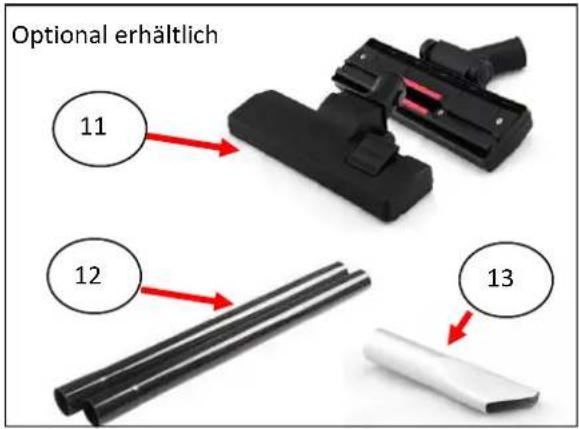

Optionally available

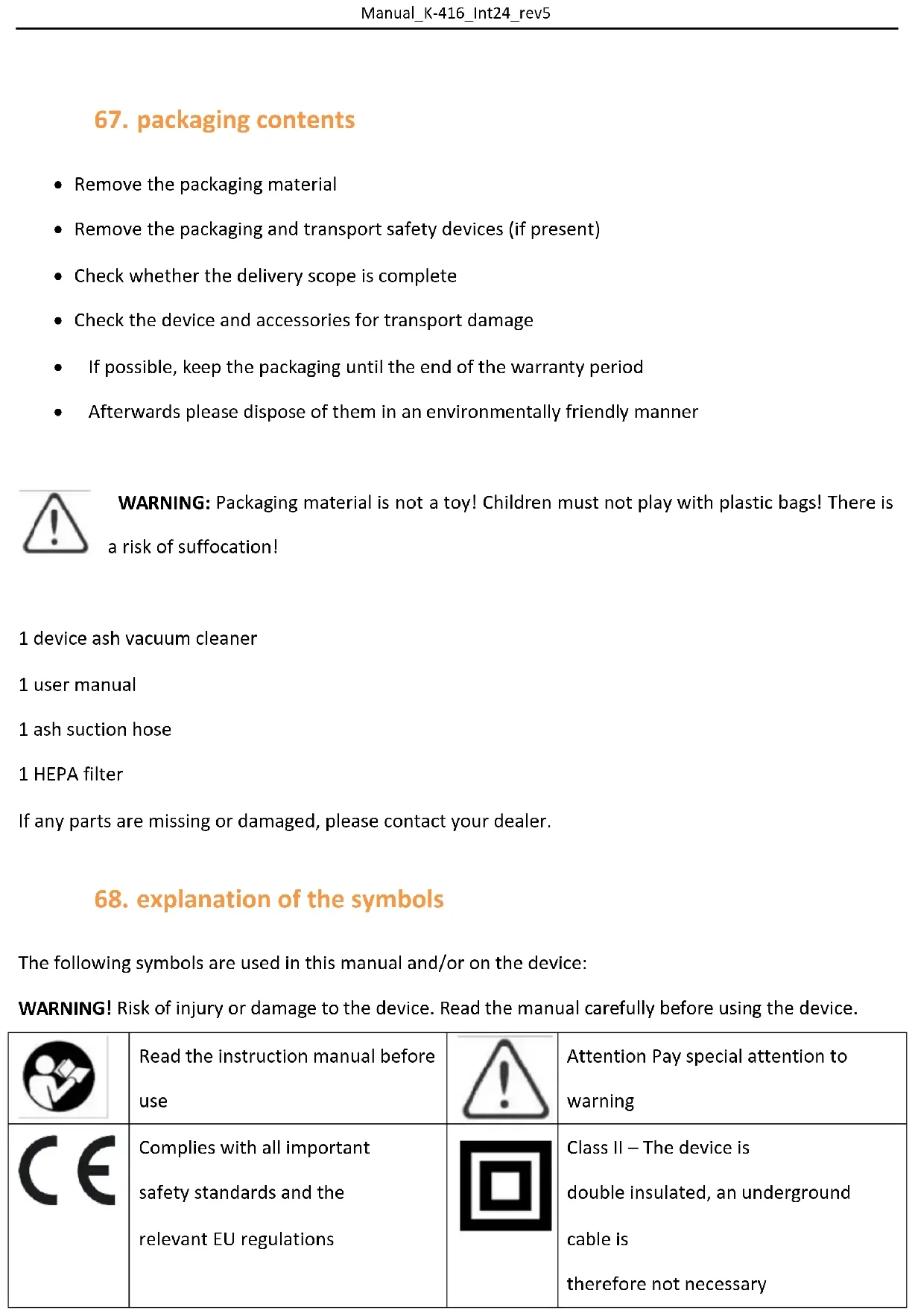

• Remove the packaging material

• Remove the packaging and transport safety devices (if present)

• Check whether the delivery scope is complete

• Check the device and accessories for transport damage

• If possible, keep the packaging until the end of the warranty period

• Afterwards please dispose of them in an environmentally friendly manner

WARNING: Packaging material is not a toy! Children must not play with plastic bags! There is

a risk of suffocation! 1 device ash vacuum cleaner 1 user manual 1 ash suction hose 1 HEPA filter If any parts are missing or damaged, please contact your dealer.

68. explanation of the symbols

The following symbols are used in this manual and/or on the device: WARNING! Risk of injury or damage to the device. Read the manual carefully before using the device.

Read the instruction manual before use

Attention Pay special attention to warning

Complies with all important safety standards and the relevant EU regulations

Class II – The device is double insulated, an underground cable is therefore not necessaryManual_K-416_Int24_rev5

69. General safety instructions for power tools

Please read all instructions and warnings carefully. Failure to follow instructions and warnings may result in electric shock, fire and/or serious injury. Please keep these instructions and warnings in a safe place. The term "device" refers to electrically operated devices, either mains-operated (with power cable) or battery-operated (without power cable).

Always keep the work area clean, tidy and well lit. Untidy and dark areas are prone to accidents. The device must not be operated in explosive areas, such as in the presence of flammable liquids, gases or dust. The device can cause sparks that can cause the dust or vapors to explode. When working with the device, other people, especially children, must always maintain a safe distance. If distracted by others, you may lose control of the device.

71. Electrical Safety

The mains voltage must always correspond to the corresponding voltage information on the rating plate of the device. The mains plug of the device must fit into the socket. The plug must not be modified in any way. Do not use adapter plugs with earthed electrical devices. Unmodified plugs and matching sockets reduce the risk of electric shock. Avoid any body contact with earthed surfaces such as pipes, heaters, stoves and refrigerators. There is an increased risk of electric shock when your body is earthed. Keep the device away from rain or moisture. Water entering the device increases the risk of electric shock. Do not misuse the cord to carry the appliance, hang it up, or unplug it from the outlet. Always keep the cord away from heat, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock. If you (have to) work with the device outdoors, use only extension cords that are suitable for outdoor use. Using an extension cord suitable for outdoor use reduces the risk of electric shock. If operating the device in a damp environment is unavoidable, always use a residual current device. The use of a residual current device reduces the risk of electric shock.Manual_K-416_Int24_rev5

72. safety of people

Be alert, pay attention to what you are doing and use caution when working with an electrical appliance. Do not use the appliance when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when using the appliance can result in serious injury. Wear personal protective equipment and always wear safety glasses. Wearing personal protective equipment such as a dust mask, non-slip safety shoes, hard hat or ear protection, depending on the type and use of the equipment, reduces the risk of injury. Avoid accidental operation. Make sure that the device is turned off before connecting it to the power supply. Carrying the device with your finger on the switch or connecting the device to the power supply while it is turned on can easily lead to accidents. Before switching on the device, remove any adjusting tools or wrenches. A tool or wrench left in a rotating part of the device can cause injury. Avoid any abnormal posture. Ensure that you stand securely and keep your balance at all times. This will enable you to operate the device in better control unexpected situations. Always wear suitable work clothing. Do not wear loose clothing or jewelry. Keep hair, clothing and gloves away from moving parts. Loose or loose clothing, jewelry or long hair can easily be caught in moving parts. If dust extraction and collection devices can be fitted, ensure that they are connected and used correctly. The use of such a device can reduce dust hazards.

73. Use and care of electrically operated devices

Do not overload the device. Only use the device that is suitable for your work. With the right device, you can work better and more safely within the specified performance range. Do not use an appliance with a defective switch. An appliance that cannot be switched on or off is dangerous and must be repaired. Unplug the power cord from the power outlet and/or remove the battery before making any adjustments to the device, changing accessories, or storing the device. This precaution will prevent the device from starting accidentally. Always keep idle appliances out of the reach of children. Do not allow persons unfamiliar with this appliance or who have not read these instructions to use the appliance. Electrical appliances are dangerous when used by inexperienced persons.Manual_K-416_Int24_rev5

Service the appliance regularly and take good care of it. Check that the moving parts work properly and do not bind, and that no parts are broken or damaged in a way that affects the operation of the appliance. Have any damaged components repaired before using the appliance. Many accidents are caused by poorly maintained equipment. Keep cutting tools (inserts) sharp and clean. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to guide. Use the device, accessories, inserts, etc. in accordance with these instructions, taking into account the working conditions and the work to be carried out. The use of electrical devices for purposes other than those intended can lead to dangerous situations.

74. maintenance / repair

Have your device serviced only by a qualified specialist using original spare parts or repaired by our customer service. This ensures that the safety of the device is guaranteed.

75. Additional safety instructions

• Do not vacuum up any sharp, hot or flammable parts.

• This appliance must not be exposed to heat. It must only be used with cooled ash (≤ 60°C)

• Do not suck in moisture or liquids. The device must not be exposed to water become.

• Disconnect the device from the mains after each use and before all maintenance and cleaning work. Disconnect the power supply. To do this, remove the plug from the socket, not by pull the cable.

• Do not insert any objects into the openings. The device must not be operated with blocked openings. not be operated, they must always be free from dust, dirt, lint, hair, etc. be kept free.

• Do not vacuum up powder, cement dust, etc. as this may overload the device.

• Only clean the device with a dry or damp cloth. Never

• exposed to water. Do not use solvents for cleaning.

• This device may only be used for private purposes, professional use is not permitted.

• The nozzle or brush must not come into contact with furniture.

• Never carry the device by the power cable. The power cable must not be laid over sharp edges be.Manual_K-416_Int24_rev5

25. Place the dual filter bag into the container

26. Slide the HEPA filter (10) from below onto the cover (1)

27. Place the cover (3) of the suction cup onto the

container (1) and close it with the clamp locks (9)

28. Insert the ash suction hose (2) into the suction opening

30. Optional: To vacuum with the additionally available

plastic pipes (11), attach them to the ash suction hose (2)

31. Optional: To vacuum with the additionally available

brush (12), place it on the plastic tubes (11)

32. To blow, insert the end of the ash suction hose (2) into

the suction opening (6)

ATTENTION: Before using the ash vacuum cleaner, check that all connections and the dustManual_K-416_Int24_rev5

filter are firmly and securely connected. The container and the dust filter must be absolutely dry.

77. operation of the device

• The filter bag must be inserted before starting the device.

• Unwind the power cord.

• Connect the device to the power supply and switch it on.

• Disconnect the device from the power supply after use.

• If the filter indicator is red, the filter element must be cleaned or replaced. be replaced. ATTENTION! Only use the device when the ash is cold! The temperature must not be higher than 60 degrees C.

78. cleaning and maintenance

Remove the HEPA filter (10)

Clean the HEPA filter from ash residue by shaking

Reassemble the ash vacuum cleaner as described in the Assembly chapter

ATTENTION: Do not clean the plastic parts of the device with a (chemical) cleaning agent. We recommend using a cloth moistened with a mild soap solution. Be careful, the device must not come into direct contact with water!Manual_K-416_Int24_rev5

problem Caused Solution engine does not start - Check that the power plug is correctly inserted - Socket has no power, please check the fuse - Device not switched on - Insert the power plug all the way in - Check the socket - Turn on the device using the on/off switch Insufficient suction power - Device is clogged - Dust filter must be emptied - Dust container not properly installed - filter clogged - eliminate constipation - cleaning the dust filter - Install the dust container correctly - cleaning the filter

81. customer service

Have your purchased device repaired only by qualified personnel and only with original spare parts. This ensures that the safety of the device is maintained. If necessary, please contact FUXTEC customer service at [e-mail] .

The warranty period is 24 months from the date of purchase. Keep your proof of purchase in a safe place. Excluded from the warranty are wearing parts and damage caused by improper use, the use of force, technical modifications, use of incorrect accessories or non-original spare parts and repair attempts by unqualified personnel. Warranty repairs may only be carried out by authorized specialist dealers.

83. disposal instructions

Please contact your local municipality for disposal of the device. To do this, please dispose of all operating materials such as petrol and oil beforehand. Please ensure that the cutting chain is appropriately protected during disposal.Manual_K-416_Int24_rev5

84. EU Declaration of Conformity

that the machine described below, due to its design and construction as well as in the version placed on the market by us, complies with the relevant essential safety and health requirements of the EC Directives. Name of the machine: ash vacuum cleaner Machine type: K-416 trademark: FUXTEC
