USER MANUAL 5CD891SC0 BLAUPUNKT

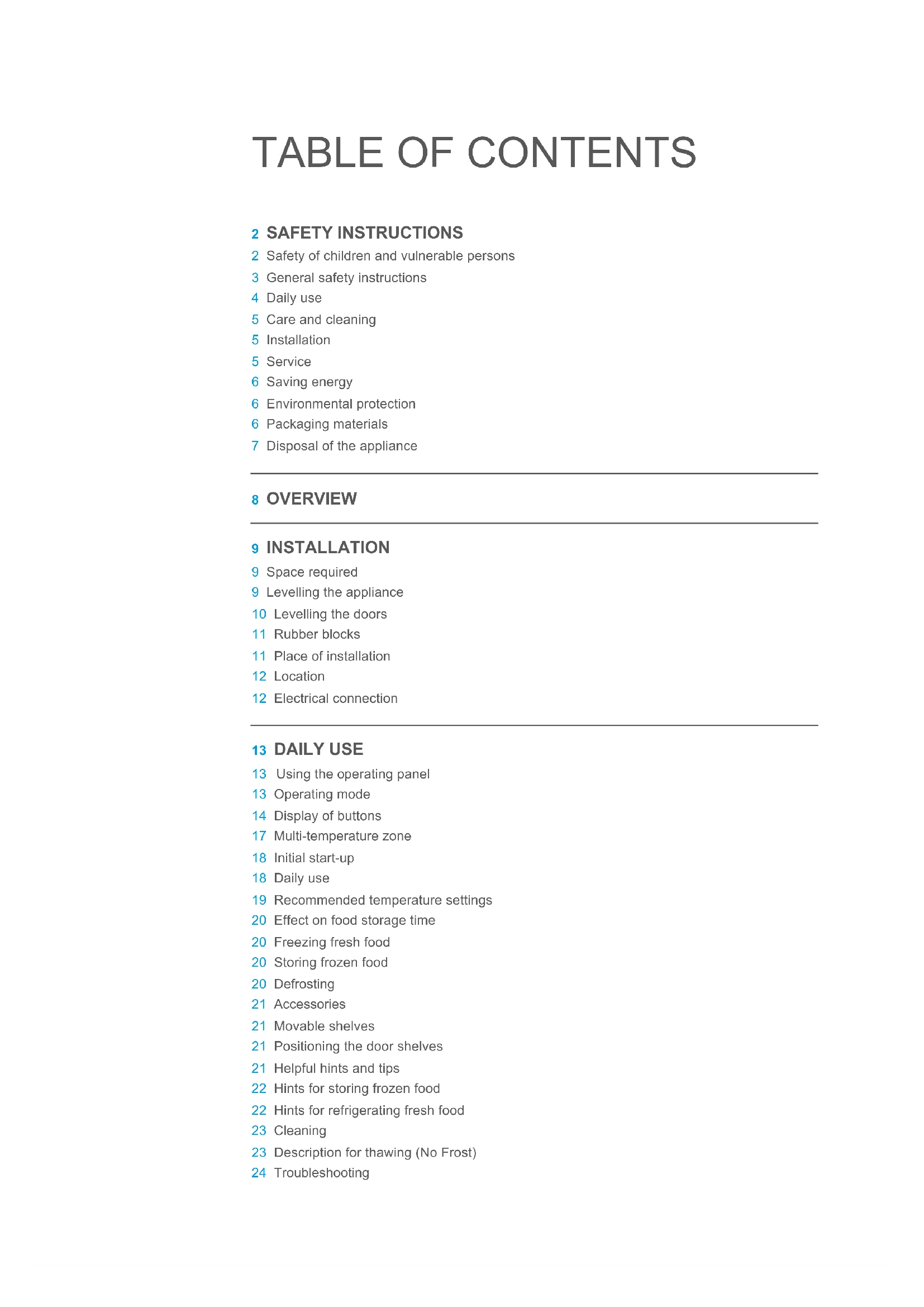

2 SAFETY INSTRUCTIONS 2 Safety of children and vulnerable persons 3 General safety instructions 4 Daily use 5 Care and cleaning 5 Installation 5 Service 6 Saving energy 6 Environmental protection 6 Packaging materials 7 Disposal of the appliance 8 OVERVIEW 9 INSTALLATION 9 Space required 9 Levelling the appliance 10 Levelling the doors 11 Rubber blocks 11 Place of installation 12 Location 12 Electrical connection 13 DAILY USE 13 Using the operating panel 13 Operating mode 14 Display of buttons 17 Multi-temperature zone 18 Initial start-up 18 Daily use 19 Recommended temperature settings 20 Effect on food storage time 20 Freezing fresh food 20 Storing frozen food 20 Defrosting 21 Accessories 21 Movable shelves 21 Positioning the door shelves 21 Helpful hints and tips 22 Hints for storing frozen food 22 Hints for refrigerating fresh food 23 Cleaning 23 Description for thawing (No Frost) 24 Troubleshooting2 SAFETY INSTRUCTIONS In the interest of your safety and to ensure correct use, you should read this instruction manual carefully, including the notes and warnings, before installing and using the appliance for the first time. To avoid unnecessary mistakes and accidents, it is important to ensure that those who use the appliance have thoroughly familiarised themselves with its operation and safety features. Keep this manual in a safe place and ensure that it remains with the appliance if it is moved or sold so that anyone who uses the appliance during its lifetime is adequately informed about its use and safety. To protect lives and property, follow the instructions in this manual, as the manufacturer will not be liable for any damage caused by non-observance of this manual.

SAFETY OF CHILDREN AND VULNERABLE PERSONS

• This appliance can be used by children 8 years of age or older and persons with restricted physical, sensory or intellectual capabilities or a lack of experience and knowledge, if they are observed by a responsible person or if they have received instructions on how to use the appliance safely, and understand the associated hazards.

• Children aged 3 to 8 years may load and unload this refrigerator.

• Children should be supervised in order to ensure that they do not play with the appliance.

• The appliance may only be cleaned and maintained by children over 8 years of age under the supervision of a responsible adult.

• Keep all packaging out of the reach of children. There is a risk of suffocation.

• When disposing of the appliance, pull out the power plug from the socket, cut the connection cable as close as possible to the appliance and remove the door to prevent playing children from being electrocuted or trapped inside.

• If this appliance with a magnetic door seal is to replace an older appliance with a locking bolt on the door or lid, make sure that this bolt is unusable before disposing of the old appliance. This ensures that it will not pose a danger to children.3

GENERAL SAFETY INSTRUCTIONS

WARNING! Keep the ventilation openings in the appliance housing or in the built-in structure free of obstructions. WARNING! Do not use any mechanical aids or other means to accelerate the defrosting process except those recommended by the manufacturer. WARNING! Do not damage the refrigerant circuit. WARNING! Do not use other electrical appliances (such as ice makers) in refrigerators unless they are approved for this purpose by the manufacturer. WARNING! When setting up the appliance, take care not to pinch or damage the power cord. WARNING! Do not attach multiple sockets or portable power supplies to the back of the appliance.

• Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.

• The refrigerant circuit of the appliance contains isobutane (R-600a) refrigerant. This is a natural gas with high environmental compatibility, but it is flammable.

• When transporting and installing the appliance, make sure that none of the components of the refrigerant circuit are damaged. – Avoid open flames and sources of ignition. – Thoroughly ventilate the room in which the appliance is located.

• It is dangerous to change the technical data or modify the product in any way. Any damage to the cable may cause a short circuit, fire and/or electric shock.

• This appliance is designed for household use and similar applications, such as: – in personal kitchens, shops, offices, and other work environments. – in agricultural operations, for guests at hotels, motels, and other living environments. – in guest houses and similar environments. – in catering and similar applications outside of retail areas. WARNING! All electrical components, plugs, power cords, the compressor, etc. must be replaced by a certified service representative or qualified service personnel. WARNING! The light bulb supplied with this appliance is a “special light bulb” which can only be used with the appliance supplied. This “special light bulb” is not suitable for household lighting.

• The power cord may not be extended.

• Make sure that the power plug is not crushed or damaged by the back of the appliance. A pinched or damaged power plug may overheat and cause a fire.

• Ensure that the power plug of the appliance is accessible.4

• Do not pull the power cord.

• If the power socket is loose, do not insert the power plug. There is a danger of electric shock or fire.

• You must not operate the appliance without the lamp.

• This appliance is heavy. Be careful when moving it.

• Do not take items out of the freezer or touch them when your hands are damp / wet as this could cause skin abrasions or cold burns.

• The appliance should not be exposed to direct sunlight for an extended period of time. DAILY USE

• Do not place hot objects on the plastic parts of the appliance.

• Do not place food directly against the back wall.

• Do not refreeze frozen food once it has been defrosted.

• Store pre-packed frozen food according to the instructions of the frozen food manufacturer.

• The appliance manufacturer’s storage recommendations should be strictly observed. See the corresponding manuals.

• Do not place carbonated drinks in the freezer compartment, as this will exert pressure on the container, which may cause an explosion and damage the appliance.

• Ice lollies may cause cold burns if consumed immediately after removal from the appliance.

• To avoid food contamination, please observe the following instructions.

• Opening the door for an extended time may cause a significant temperature increase in the compartments of the appliance.

• Regularly clean surfaces that may come into contact with food as well as accessible drains.

• Store raw meat and raw fish in the refrigerator in suitable containers so that it does not come into contact with or drip onto other food.

• Two-star freezer compartments (if present in the appliance) are suitable for storing pre-frozen food, storing or preparing ice cream and making ice cubes.

• One, two and three-star compartments (if present in the appliance) are not suitable for freezing fresh food.

• If the appliance is left empty for an extended period of time, switch it off, defrost, clean and dry it off, and then leave the door open to prevent mould from forming inside the appliance.5

• Prior to maintenance work, switch off the appliance and pull out the power plug from the socket.

• Do not use metallic objects to clean the appliance.

• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

• Check the drain in the refrigerator regularly for defrosted water. Clean the drain if necessary. If the drain is clogged, water will collect at the bottom of the appliance. INSTALLATION IMPORTANT NOTE! Befolgen Sie für den elektrischen Anschluss sorgfältig die Anweisungen in den einzelnen Abschnitten.

• Unpack the appliance and check it for damage. Do not connect the appliance if it is damaged. Report any damage immediately to the dealer where you bought the appliance. In this case, keep the packaging.

• It is recommended to wait at least four hours before connecting the appliance in order to allow the oil to flow back into the compressor.

• You should ensure adequate air circulation around the appliance, otherwise it could overheat. To ensure adequate ventilation, follow the relevant installation instructions.

• Wherever possible, the product’s spacers should be placed on a wall to prevent contact with hot parts (compressor, condenser) that could cause burns.

• The appliance must not be placed near radiators or stoves.

• Make sure that the power plug is accessible after the appliance has been installed. SERVICE

• Any electrical work required for servicing the appliance should be carried out by a qualified electrician or a competent person.

• This product must be serviced by an authorised service centre and only original spare parts must be used.6 SAVING ENERGY

• Do not place hot food in the appliance;

• Do not pack food closely together, as this prevents air circulation;

• Make sure that the food does not come into contact with the back of the compartment(s);

• Do not open the door(s) in the event of a power failure;

• Avoid opening the door(s) frequently;

• Do not leave the door(s) open for too long;

• Do not set the thermostat to excessively cold temperatures;

• We recommend not removing all accessories such as drawers, shelves and door compartments in order to reduce energy usage. ENVIRONMENTAL PROTECTION There are no gases in the refrigerant circuit or in the insulating materials of this appliance that could damage the ozone layer. The appliance must not be disposed of with household waste. The insulating foam contains flammable gases: The appliance must be disposed of in accordance with the appliance regulations available from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. Materials marked with the symbol are recyclable. The symbol on the product or its packaging indicates that this product must not be treated as household waste. Instead, it should be delivered to designated collection points for recycling electrical and electronic appliances. When you ensure this appliance is disposed of properly, you help avoid potential damage to the environment and to human health that could occur if this product was disposed of improperly. For more information about recycling this product, please contact your local council, your household waste disposal service or the shop where you purchased this product. PACKAGING MATERIALS The materials with the symbol are recyclable. Dispose of the packaging in a suitable collection container for recycling.7

DISPOSAL OF THE APPLIANCE

1. Pull out the power plug from the socket.

2. Cut off the power cord and dispose of it.

WARNING! When using, servicing or disposing of the appliance, please pay attention to the yellow or orange symbol on the left side located on the back of the appliance (rear panel or compressor). This is a fire hazard warning symbol. There are flammable materials in the refrigerant pipes and the compressor. Please keep the appliance away from sources of fire when using, servicing or disposing of it.8 OVERVIEW

This illustration is for reference only; please refer to your appliance for details. Door compartment Refrigerator shelves Levelling feet Large freezer drawer Slide-in compartment Moist fresh zone Large crisper zone Metal air duct LED light Türfach Null-Grad-Zone Wechselzone Door compartment Zero degree zone Adjustable zone9

• Leave enough space for the doors to open.

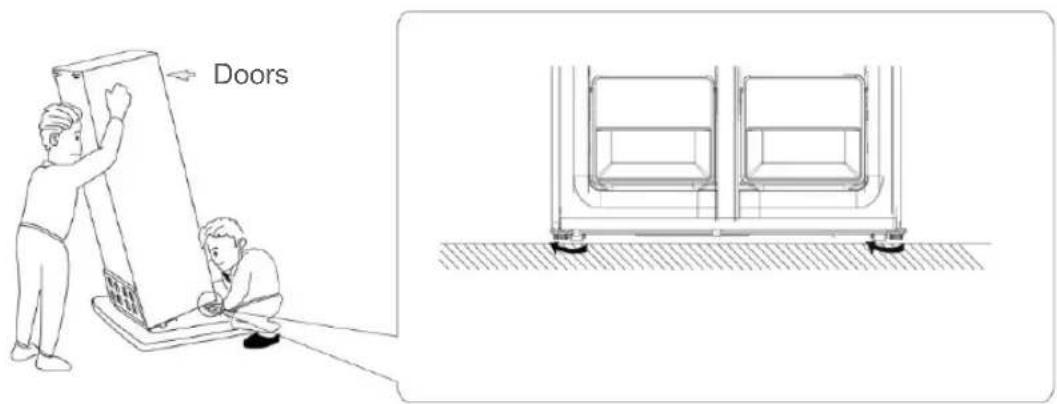

LEVELLING THE APPLIANCE

To do this, adjust the two levelling feet on the front of the appliance.

• Level and anchor the refrigerator by adjusting the feet.

• To raise the feet, turn them clockwise by hand.

• To lower the feet, turn them counter-clockwise by hand.

After transporting or loading the door compartments with food or drink, the top two doors may no longer be aligned correctly. There are 3 type C washers that are used to adjust the doors. Please follow the process described below to level the doors.

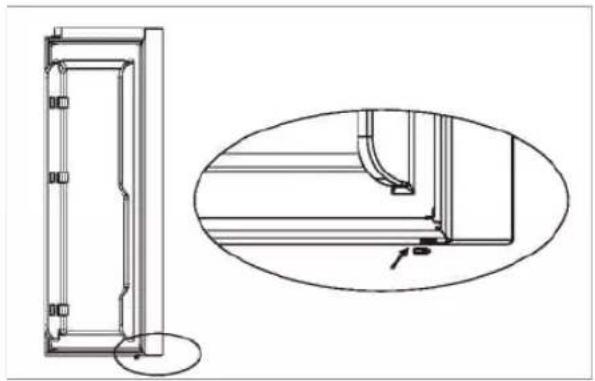

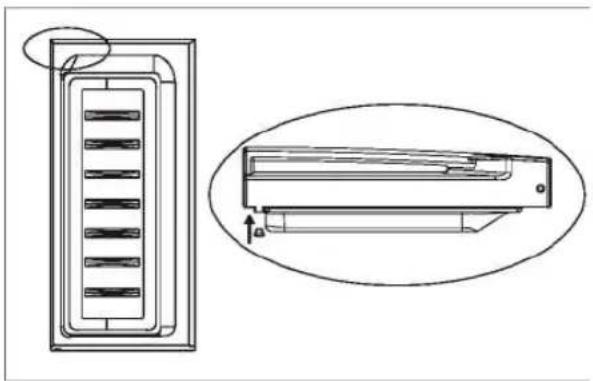

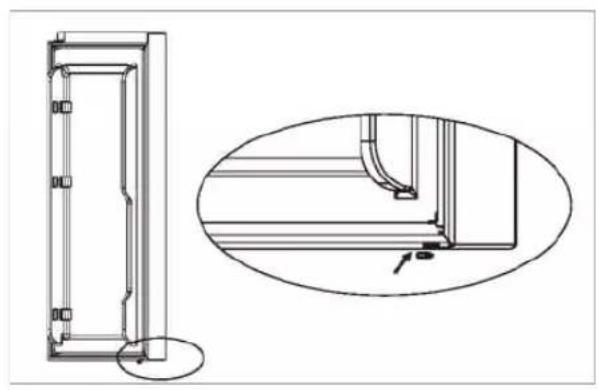

1. Before checking the alignment of the doors, please ensure that the appliance is horizontal.

2. If the tops of the two doors are not level with one another, please lift the bottom door slightly

and insert a type C washer between the bottom of the door and the middle hinge using a clip.

WARNING! Please be careful not to pinch your finger in the door. Please use a tool. WARNING! Keep type C washers away from children, since they can be swallowed. These are small parts.11 RUBBER BLOCKS There is a rubber block on each door. These blocks act as springs to prevent the door from slamming when closed. Please do not pull on the rubber blocks. If they are missing from the doors, please take a block from the accessory bag and insert it into the hole on the door.

WARNING! Keep the rubber blocks away from children, since they can be swallowed. These are small parts.

Install this appliance in a place where the ambient temperature corresponds to the climate class indicated on the type plate of the appliance: for refrigerators with climate class:

• Subnormal (SN): This refrigerator is for use in ambient temperatures from 10 °C to 32 °C;

• Normal (N): This refrigerator is for use in ambient temperatures from 16 °C to 32 °C;

• Subtropical (ST): This refrigerator is for use in ambient temperatures from 16 °C to 38 °C.

• Tropical (T): This refrigerator is for use in ambient temperatures from 16 °C to 43 °C.12 LOCATION The appliance should be placed far away from sources of heat, such as radiators, boilers, direct sunlight, etc. Make sure that the air can circulate freely at the back of the refrigerator. If the appliance is placed under an overhanging wall cabinet, the minimum distance between the top of the appliance and the wall cabinet must be at least 50 mm to ensure optimum performance. Ideally, however, the appliance should not be placed under an overhanging wall cabinet. Accurate levelling is ensured by one or more adjustable feet at the base of the appliance. This refrigerator is not intended for use as a built-in appliance. WARNING! It must be possible to disconnect the appliance from the power supply; for this reason, the plug must remain easily accessible after installation.

ELECTRICAL CONNECTION Before plugging in the power cord, make sure that the voltage and frequency indicated on the type plate match your household power supply. The appliance must be earthed. The plug of the power supply cable is provided with a contact for this purpose. If the socket of your household power supply is not earthed, the appliance must be earthed in accordance with current regulations. A qualified electrician should be consulted for this purpose. The manufacturer accepts no liability if the above safety precautions are not observed. This appliance complies with EEC directives.13 DAILY USE

1.1 Button operation

A Refrigerator temperature adjustment B Adjustable zone temperature adjustment C Freezer temperature adjustment D Mode setting (ECO, Vacation, Superfrost) F Lock/unlock setting

1 Temperature of the refrigerator compartment 2 Temperature of the freezer compartment 3 Temperature of the adjustable zone

a. The operating panel will be illuminated at 100% for 3 seconds, and then return to the settings it was on before it was switched off (mode and temperature). The system will be locked automatically 25 seconds after the last operation. After it is locked, the lights on the operating panel will go out 120 seconds after the last operation. No Frost Refrigerator Adjustable zone Freezer Mode Lock 3s14 b. The temperatures of the refrigerator/freezer compartment / adjustable zone will be displayed separately while the temperature of each zone is set.

2.1.1 The operating panel will be illuminated for 2 minutes as soon as the door of the

refrigerator compartment or freezer is opened. (a door signal is detected in each case)

2.1.2 The operating panel will be illuminated each time a button is pushed, and the light will

go out 2 minutes after the last operation.

2.1.3 Display during normal operation

Temperature display for the refrigerator compartment: Shows the temperature for the current setting. Temperature display for the freezer compartment: Shows the temperature for the current setting. Temperature for the adjustable zone: Shows the temperature for the current setting.

3. DISPLAY OF BUTTONS

3.1 Temperature regulation for the refrigerator compartment

a. Temperature regulation for the refrigerator compartment: This button can be used both in the user-defined mode and in Super mode. This button will flash after the temperature regulation for the refrigerator compartment is entered. If you touch the button multiple times, the temperature will change in a loop from “2 °C, 3 °C, 4 °C, 5 °C, 6 °C, 7 °C, 8 °C, – –(off)”. Then, it will flash for 5 seconds to indicate that the temperature selection is completed. b. Switching off the refrigerator compartment: Press the “Temperature regulation for the refrigerator compartment” button, then select “– –”. It will flash for 5 seconds to indicate that the temperature was selected, meaning that the refrigerator compartment will no longer be cooled.

3.2 Temperature regulation of the freezer compartment

Temperature regulation of the freezer compartment: This button can be used both in the user-defined mode and in vacation mode. This button will flash after the temperature regulation for the freezer is entered. If you touch the button multiple times, the temperature will change in a loop from “–14 °C, –15 °C, –16 °C, –17 °C, – 18 °C, –19 °C, –20 °C, –22 °C”. Then, it will flash for 5 seconds to indicate that the temperature selection is completed.15

3.3 Temperature regulation of the adjustable zone

a. Temperature regulation of the adjustable zone: This button can be used both in the user–defined mode and in the other modes. This button will flash after the temperature regulation for the adjustable zone is entered. If you touch the button multiple times, the temperature will change in a loop from “5 °C, 4 °C, 3 °C, 2 °C, 1 °C, 0 °C, –1 °C, –2 °C, –3 °C, –4 °C, –5 °C, –6 °C, –7 °C, –8 °C, –9 °C, –10 °C, –11 °C, –12 °C, –13 °C, –14 °C, –15 °C, –16 °C, –17 °C, –18 °C, –19 °C, –20 °C, – –(off)”. Then, it will flash for 5 seconds to indicate that the temperature selection is completed. b. Switching off the adjustable compartment: Press the “Temperature regulation of the adjustable zone” button, then select “– –”. It will flash for 5 seconds to indicate that the temperature was selected, meaning that the adjustable zone will no longer be cooled.

3.4 Lock/unlock mode

a. If you press this button multiple times, the operating mode for the refrigerator will change in a loop from “ECO mode – Vacation mode – Super mode – User-defined mode”. It will flash for 5 seconds after the temperature selection has been made. b. Press and hold the button to activate/deactivate lock mode. – Unlocking: Press and hold the button for 3 seconds in lock mode; all buttons will be unlocked after a beep sounds. – Locking: Press and hold the button for 3 seconds in unlock mode; all buttons will be locked after a beep sounds.

3.5 Pressing buttons

A quick beep sounds each time a button is pressed All buttons work only in unlock mode.

If no operation is taken for 25 seconds, the display is locked automatically.

Press the mode button to select Eco mode. The ECO symbol will flash for 5 seconds, then be illuminated continuously, meaning that you can activate ECO mode. The temperature of the refrigerator and freezer will be adjusted according to the following temperature settings16 Ambient temperature (T) T ≤ 13 °C 13 °C < T ≤ 20 °C 20° C< T ≤ 27 °C 27 °C < T ≤ 34 °C T > 34 °C Refrigerator temperature 3 °C 4 °C 5 °C 6 °C 8 °C Freezer temperature -18 °C -18 °C -18 °C -16 °C -15 °C

The “freezer” & “refrigerator” buttons do not work in ECO mode. The temperature of the adjustable zone can be freely adjusted by pressing the temperature of the adjustable zone. Deactivating ECO mode: Press and hold the mode button; ECO mode will be deactivated after 5 seconds and you can select the desired mode.

Press the mode button to select vacation mode. The symbol will flash for 5 seconds, then be illuminated continuously, meaning that you can activate vacation mode. The temperature in the refrigerator compartment will be 17 °C, the “Refrigerator” button will not work, and the vacation symbol will flash three times as an alarm. The temperature of the freezer compartment and adjustable zone can be freely adjusted. Deactivating vacation mode: Press and hold the mode button; vacation mode will be deactivated after 5 seconds and you can select the desired mode.

Press the mode button. The symbol will flash for 5 seconds, then be illuminated continuously, meaning that you can activate freezer mode. Freezer mode: The temperature in the freezer compartment will be –25 °C, the “Freezer” button will not work, and the freezing symbol will flash three times as an alarm. The temperature of the refrigerator compartment and adjustable zone can be freely adjusted. Deactivating freezer mode: Fulfilment of the following conditions. – Manual end to freezer mode. – Freezing time more than 50 hours The mode will remain the same as before Superfrost mode was activated.

4.0 Door opening alarm

If the (upper) refrigerator door is left open for 60 seconds, a regular alarm will sound until the door is closed again.17 MULTI-TEMPERATURE ZONE

Regulated using the operating panel

Regulated using the operating panel

5. Adjustable zone temperature –20 °C ~ 5 °C / Off

Regulated using the operating panel18 INITIAL START-UP Cleaning the interior Before you put the appliance into operation for the first time, to remove the typical smell of a brand- new product, wash the interior and all interior accessories with lukewarm water and a little neutral soap, then dry thoroughly. IMPORTANT NOTE! Do not use any detergents or abrasive cleaning agents, as these will damage the surface.

DAILY USE Place different foods in the different compartments according to the following table Refrigerator compartments Types of food Door or door shelves of the refrigerator compartment

• Foods with natural preservatives, such as jams, juices, drinks and condiments.

• Do not store perishable foods here. Crisper zone

• Fruit, herbs and vegetables should be stored separately in the crisper drawer.

• Bananas, onions, potatoes and garlic should not be stored in the refrigerator Refrigerator shelf

• Dairy products, eggs, cakes, noodles, pizza

• Food that does not need to be cooked, such as ready-to- eat food, sausages and leftovers. Moist fresh zone

• Storage for moist & fresh foods.

• Lengthening shelf life.

• Fresh fruits and vegetables, easily spoiled foods. Zero degree zone

• –3 °C ~ 0 °C, separate storage & hyper-fresh

• Refrigerating foods for short times, such as raw meat, fish, seafood and refrigerating baked goods.19

• The information above is intended as recommendation for the user for setting the temperature.

• The temperature setting for the adjustable zone will depend on the type of food stored there. Adjustable zone

• –20 °C ~ 5 °C, broad, variable temperature range.

• 3 °C ~ 5 °C: fresh fruits and vegetables.

• 0 °C ~ 2 °C: Drinks, beer, red wine, easily spoiled drinks

• –7 °C ~ –1 °C: Refrigerating foods for short times, such as raw meat, fish, seafood and dumplings.

• –20 °C ~ –8 °C: Long–term refrigeration of foods, such as raw meat, fish, seafood, and dumplings. Freezer compartment

• Food for long-term storage.

• Seafood, fish, meat, dumplings, frozen baked goods. Ambient temperature Setting the temperature

Refrigerator to 2 °C Freezer to -20 °C Normal

Refrigerator to 4 °C Freezer to -18 °C Winter (under 16 °C)

• At the recommended setting, the optimum storage time in the refrigerator is no more than 3 days.

• At the recommended setting, the optimum storage time in the freezer is not more than 1 month.

• Other settings may reduce the optimum storage time.

• The freezer compartment is suitable for freezing fresh food and for the long-term storage of frozen and deep-frozen food.

• Place the fresh food you want to freeze in the freezer compartment.

• The maximum amount of food that can be frozen within 24 hours is indicated on the type plate.

• The freezing process takes 24 hours: No other food should be frozen during this time.

When using the appliance for the first time or after an extended period of non-use, allow the appliance to run on the highest setting for at least 2 hours before placing food in the compartment. Important note! In case of accidental defrosting, e.g. if the power has been switched off for longer than the value indicated in the table of technical characteristics under “Defrosting time”, the defrosted food must be consumed quickly or cooked immediately and then refrozen (after cooking). DEFROSTING Deep-frozen or frozen food can be thawed in the refrigerator compartment or at room temperature before use, depending on how much time is available for this process. Small pieces can even be cooked while still frozen, straight from the freezer. In this case, cooking will take longer.21 ACCESSORIES MOVABLE SHELVES The walls of the refrigerator are equipped with a series of guide rails so you can position the shelves as desired!

POSITIONING THE DOOR SHELVES

To allow the storage of food packaging of different sizes, the door shelves can be positioned at different heights. To adjust them, proceed as follows: Pull the door shelves slowly in the direction of the arrow until released, then reposition it as required.

HELPFUL HINTS AND TIPS

The following are some important hints to help you get the most out of the freezing process:

• The maximum amount of food that can be frozen within 24 hours is indicated on the type plate;

• The freezing process takes 24 hours. No other food should be frozen during this time;

• Freeze only good quality, fresh and thoroughly cleaned food;

• Prepare food in small portions so that it can be frozen quickly and completely and so you can later defrost only the amount you need;

• Wrap the food in aluminium foil or polyethylene and make sure that the food is wrapped airtight;

• In order to prevent already frozen food from increasing in temperature, make sure it does not come into contact with fresh, non-frozen food;

• Lean foods can be stored better and longer than those containing fat, and salt reduces the shelf life of foods;

• Water ice consumed immediately after removal from the freezer may cause cold burns upon contact with the skin;

• It is recommended to mark the date of freezing on each individual pack in order to prevent unnecessarily removing packs from the freezer compartment, which may possibly cause cold burns to the skin;

• It is recommended to mark the freezing date on each individual pack so that you can keep track of the storage time.22

HINTS FOR STORING FROZEN FOOD

To get the best performance from this appliance, you should:

• ensure that any commercially frozen food was properly stored by the retailer;

• take care to transport the frozen food from the grocery shop to the freezer as quickly as possible;

• not open the door frequently or leave it open longer than necessary.

• remember that foods that have been thawed spoil quickly and cannot be frozen once again;

• do not exceed the storage time indicated by the food manufacturer.

HINTS FOR REFRIGERATING FRESH FOOD

To achieve the best possible performance, please observe the following recommendations:

• Do not place hot food or evaporating liquids in the refrigerator.

• Cover or wrap food, especially if it has a strong smell.

• Pack (all types of) food in polyethylene bags and place them on the glass shelves above the vegetable drawer.

• To be on the safe side, only store them in this way for a day or two.

• Cooked food, cold dishes etc.: These should be covered and can be placed on any shelf.

• Fruits and vegetables: These should be cleaned thoroughly and placed in the designated drawer(s).

• Butter and cheese: These should be placed in special airtight containers or wrapped in aluminium foil or polyethylene bags in order to trap as little air as possible.

• Milk bottles: These should have a lid and should be stored in the door shelves inside the door.

• Bananas, potatoes, onions and garlic should not be kept in the refrigerator unwrapped.23 CLEANING For hygienic reasons, the interior of the appliance, including the accessories in the interior, should be cleaned regularly. CAUTION! The appliance must not be connected to the power supply during cleaning. Danger of electric shock! Before cleaning, you must switch off the appliance and unplug the power plug or turn off the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in the electrical components, resulting in a danger of electric shock! Hot vapours may cause damage to plastic parts. The appliance must be dry before it is put back into operation. IMPORTANT NOTE! Essential oils and organic solvents may attack plastic parts, e.g. lemon juice or the juice of orange peel, butyric acid and cleaning agents containing acetic acid.

• Make sure that such substances do not come into contact with the appliance parts.

• Do not use abrasive cleaning agents.

• Remove the food from the freezer. Store it well-covered in a cool place.

• Switch off the appliance and unplug the power plug or turn off the circuit breaker or fuse.

• Clean the appliance and the accessories in the interior with a cloth and lukewarm water. After cleaning, wipe everything with fresh water and rub dry.

• Once everything is dry, put the appliance back into operation.

DESCRIPTION FOR THAWING (NO FROST) This is a completely frost-free refrigerator/freezer combination (No Frost) that is defrosted automatically.24 TROUBLESHOOTING CAUTION! Before troubleshooting, disconnect the appliance from the power supply. Any troubleshooting procedures not listed in this manual should only be carried out by a qualified electrician or competent person. IMPORTANT NOTE! Some noises can be heard during normal operation (compressor, refrigerant circuit). Problem Possible cause Solution The appliance is not working.

1. The power plug is not

plugged in or is loose.

2. The fuse has blown or is

3. The socket is defective.

3. Faults in the power supply must

be repaired by an electrician. The appliance freezes or cools excessively. The temperature is set too cold or the appliance is operating in SUPER mode. Temporarily turn the temperature control to a warmer setting. The food is not sufficiently frozen.

1. The temperature is not

2. The door has been open

3. A large amount of hot

food has been placed in the appliance within the last 24 hours.

4. The appliance is located

near a source of heat.

1. Please refer to the section on

initial temperature settings.

2. Open the door only as long as

3. Temporarily turn the

temperature control to a colder setting.

4. Please refer to the section on

the place of installation. There is a lot of frost on the door seal. The door seal is not airtight. Carefully heat the non-airtight areas of the door seal with a hair dryer (on a cool setting). As you do this, shape the heated door seal by hand so that it fits properly.25

If the malfunction occurs again, contact the service centre. This data is necessary in order to quickly provide you with the help you need. Enter the necessary data here; you will find it on the type plate. Unusual noises.

1. The appliance is not

2. The appliance is in

contact with the wall or other objects.

3. A component, e.g. a

pipe, on the back of the appliance is in contact with another part of the appliance or the wall.

1. Adjust the levelling feet.

2. Move the appliance slightly.

3. If necessary, carefully bend the

component out of the way. Water on the floor. The water drainage hole is clogged. See the section on cleaning and care.TABLE DES MATIÈRES

HET APPARAAT AFVOEREN

BEWAREN VAN DIEPVRIESPRODUCTEN

doorgebrand of defect.

3. De contactdoos is defect.
