5FS300SE0 - Fridge BLAUPUNKT - Free user manual and instructions

Product Type	Refrigerator with freezer compartment
Brand	Blaupunkt
Model	5FS300SE0
Dimensions (H x W x D)	1033 mm x 540 mm x 545 mm
Refrigerating Chamber Temperature Range	2°C to 8°C (default 5°C)
Freezing Chamber Temperature Range	-24°C to -16°C (default -18°C)
Cooling System	Air cooling (automatic defrost)
Defrost	Automatic defrost; manual option for seasonal frost
Display Type	Digital LED display with touch buttons
Lighting	LED interior light
Door Reversible	Yes (can be changed from right to left)
Leveling Feet	Adjustable front feet
Refrigerant	Flammable (R600a or similar)
Quick Cool Mode	Yes (sets fridge to 2°C)
Quick Freeze Mode	Yes (sets freezer to -24°C)
Vacation Mode	Yes (fridge off, freezer at -18°C)
Child Lock	Yes (touchpad lock with 3-second hold)
Door Open Alarm	Buzzer after 2 minutes, stops on any button press
Safety Features	Flammable material warnings, child entrapment prevention, electrical safety
Cleaning	Soft cloth with soapy water or baking soda solution; no abrasive cleaners
Installation Requirements	Top space >30 cm, rear clearance >10 cm, well-ventilated, level floor
Power Supply	Standard household (220-240 V, frequency 50/60 Hz assumed)
Chill Drawer	Present (for short-term fresh meat/fish)

Frequently Asked Questions - 5FS300SE0 BLAUPUNKT

How do I change the door swing direction?

To reverse the door, first unplug the appliance and remove all food. Follow detailed steps in the manual: remove upper hinge cover, screws, and hinge; take off refrigerator door and middle hinge; remove freezer door and bottom hinge; install hinge components on the opposite side; reassemble doors and reconnect wiring. Use a cross screwdriver, putty knife, and socket wrench. Keep spare parts included.

What do the error codes E1, E2, E3, E5, E6, E7 mean?

E1: Refrigerating chamber temperature sensor failure. E2: Freezing chamber temperature sensor failure. E3: Chill drawer temperature sensor failure. E5: Freezing defrost sensor circuit error. E6: Communication error. E7: Ambient temperature sensor error. Contact a qualified technician for repair.

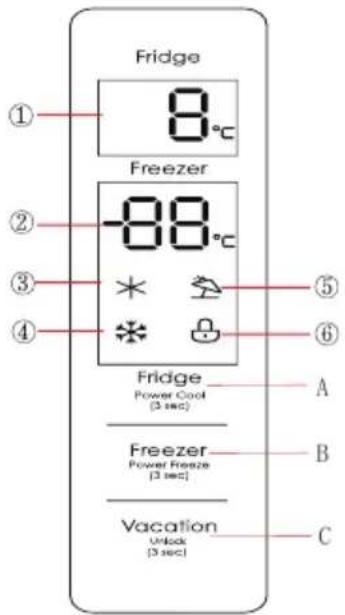

How do I set the temperature on the refrigerator?

Press the Fridge button repeatedly to cycle from 2°C to 8°C (each press decreases by 1°C, wrap around). For the freezer, press the Freezer button to adjust from -16°C to -24°C. The default settings are 5°C for fridge and -18°C for freezer.

How do I activate Quick Cool or Quick Freeze mode?

For Quick Cool, press and hold the Fridge button for 3 seconds. The fridge temperature will set to 2°C. To exit, press and hold again for 3 seconds. For Quick Freeze, press and hold the Freezer button for 3 seconds, setting the freezer to -24°C. Exit similarly. These modes cannot be used with Vacation mode simultaneously.

How do I unlock the display panel?

If the display is locked (lock icon illuminated), press and hold the Vacation button for 3 seconds. The icon turns off and the buzzer sounds, indicating the panel is now unlocked. To lock, repeat the same process.

What should I do during a power failure?

Keep the doors closed as much as possible. Food can remain safe for several hours. Avoid adding fresh food. Once power returns, check food condition. If the failure is prolonged, consume perishables quickly.

How do I clean the refrigerator interior?

Unplug the appliance and remove all food and shelves. Clean the interior with a soft cloth dipped in a solution of two tablespoons baking soda in a quart of warm water. Rinse with clean water and wipe dry. Leave the doors open to air dry before restoring power. Do not use soap, detergents, or abrasive cleaners.

Why is my refrigerator making buzzing or creaking noises?

A buzzing sound from the compressor is normal, especially during start or stop. A creaking sound is caused by refrigerant flowing through the system. If the noise is loud or unusual, check that the appliance is level and accessories are properly placed.

How do I install the door handle?

Fix the handle with screws using a cross screwdriver into the pre-drilled holes on the door. Then snap the screw covers over the screws. For disassembly, remove the covers and unscrew.

How do I adjust the leveling feet?

Turn the front feet clockwise to raise the refrigerator and counterclockwise to lower it. Adjust both feet until the appliance is stable and level. Use a spirit level if needed.

USER MANUAL 5FS300SE0 BLAUPUNKT

Simple line drawing of a plug with a cable and warning symbol (no text or labels)

Simple line drawing of a room with a window and a door, no text or symbols present

Simple line drawing of a refrigerator with a door and front panel, no text or symbols present.

Simple line drawing of a refrigerator and a bag with directional arrows, no text or symbols present

Simple line drawing of a hand holding a tool with a starburst effect (no text or symbols)

Simple line drawing of a cabinet with an open door, no text or symbols present

Simple line drawing of a trash bin with an open trunk and a warning symbol (no text or labels)

Simple line drawing of a hand holding a tray with a bottle and a box, no text or symbols present.

Simple line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a person lifting a cardboard box next to a refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to sun and an 'X' symbol (no text or labels)

Simple line drawing of a refrigerator and a window (no text or symbols)

Simple line drawing of a refrigerator with doors and wheels, no text or symbols present

Isometric line drawing of a mechanical or structural component with no visible text or symbols

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Line drawing of a multi-tiered refrigerator cabinet with shelves and doors (no text or symbols)

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

Line drawing of a door with an open lid and hand inserting a handle (no text or symbols)

4.3 Abtauen

2 Proper use of the refrigerator

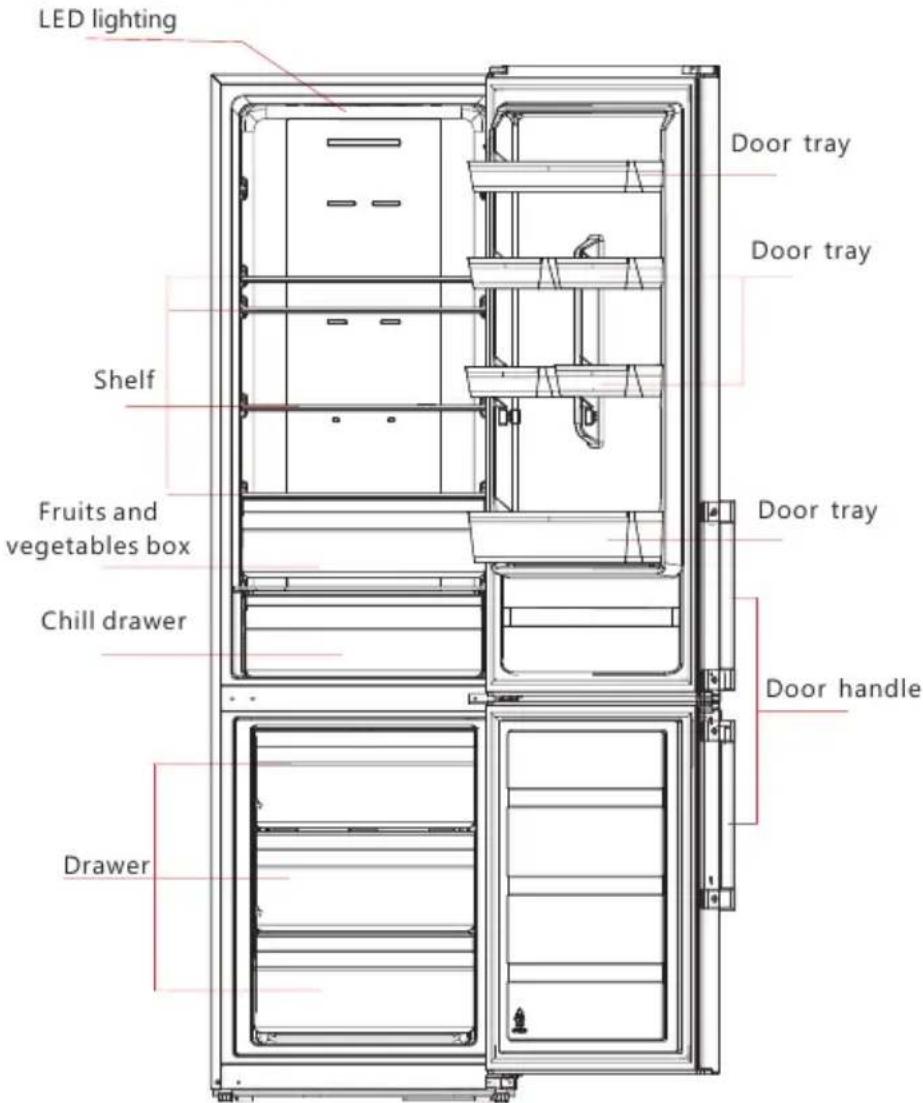

3 Structure and functions

4 Maintenance and care of the refrigerator

Warning :risk of fire /flammable materials

Intended use

Use this appliance

■ only for the cooling and freezing of food and for making ice.
■ only in the home and in the home environment.
■ only according to these operating instructions.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Do not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

—Take off the doors.

—Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

For IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children

should be supervised to ensure that they do not play with the appliance.

The instructions shall include the substance of the following: To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star ✉ ✉ frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 1)
• One * -,two ** -and three-star *** compartments are not suitable for the freezing of fresh food. (note 2)
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1,2: Please confirm whether it is applicable according to you product compartment type.

1.2 Meaning of safety warning symbols

Prohibition symbol

This is a prohibition symbol.

Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol

This is a warning symbol.

It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.

Note symbol

This is a cautioning symbol.

Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a cabinet and monitor, no text or symbols present

Line drawing of a refrigerator with a door and scroll, no text or symbols present

• Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.
• To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

- Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances. The power plug should be firmly contacted with the socket or else fires might be caused.

- Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

- Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

- Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.

1.4 Warnings for using

Simple line drawing of a refrigerator with tools and a crossed-out box, no text or symbols present

• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

• The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close the refrigerator door to avoid falling articles.
• Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Line drawing of a person installing or inspecting a cabinet with open doors (no text or symbols)

- Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

Simple line drawing of a trash can with a sad face and warning symbols (no text or labels)

• Do not place heavy objects on the top of the refrigerator considering that objectives may fall when close or open the door, and accidental injuries might be caused.
• Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

Illustration of hands holding a tray with a bottle, jar, and product (no text or symbols)

• Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
• Do not place flammable items near the refrigerator to avoid fires.

- The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

- Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; or otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 Warnings for energy

Warning for energy

1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2) The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3) The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
6) The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

1.7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable.

Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scraped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Correct Disposal of this product:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2 Proper use of refrigerators

2.1 Placement

Simple line drawing of a person handling a cardboard box next to an appliance (no text or symbols)

- Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

Simple line drawing of a refrigerator with a sad face, a sun, and a potted plant (no text or symbols)

- Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

- Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Simple line drawing of a refrigerator and a wall-mounted door (no text or symbols)

- The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for levelling if unstable).

Simple line drawing of a smiling refrigerator with height measurement lines (no text or symbols)

- The top space of the refrigerator shall be greater than 30cm, and The refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation.

Precautions before installation:

Before installation or adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

Precautions shall be taken to prevent fall of the handle from causing any personal injury.

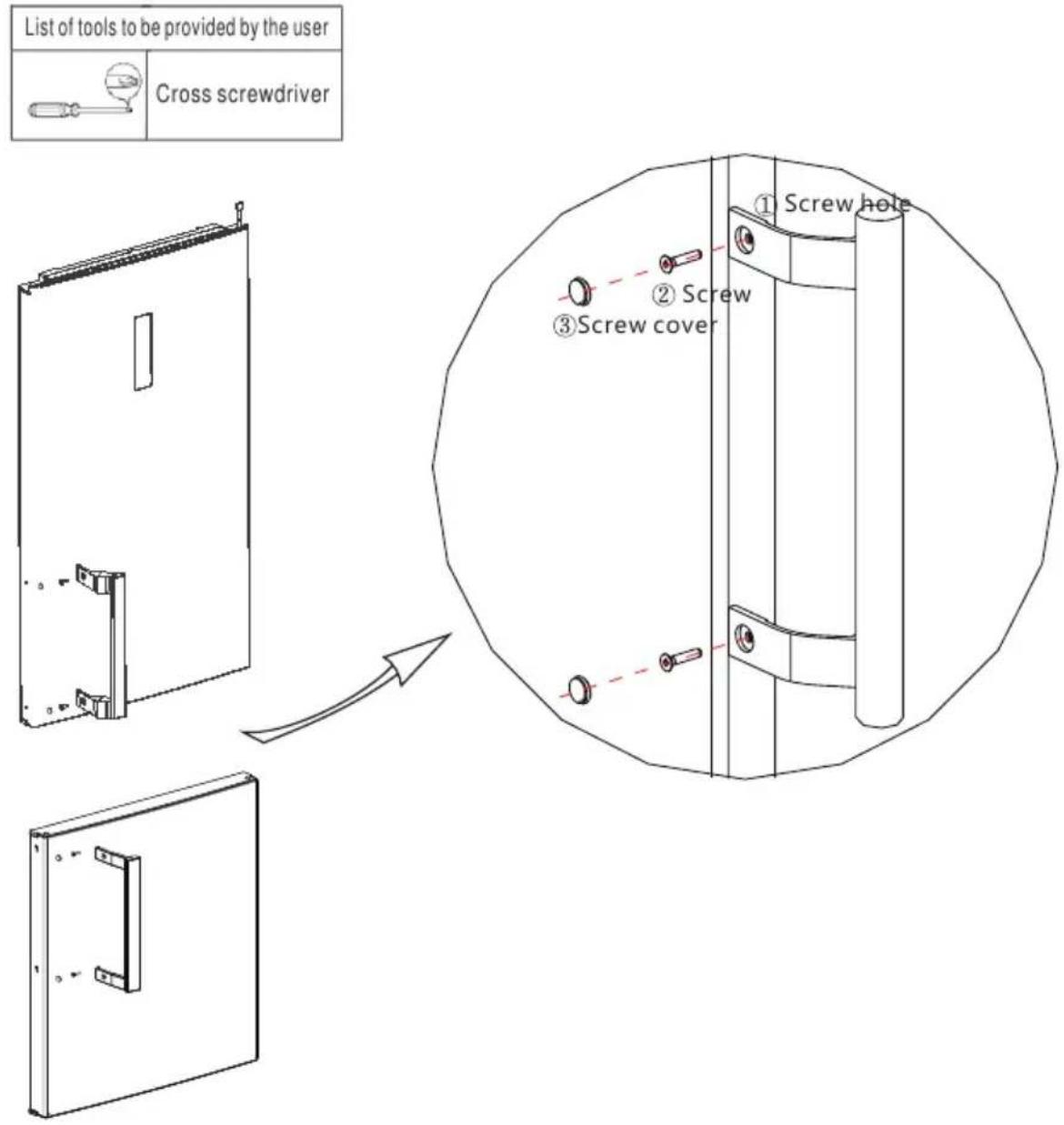

2.2 Door handle installation

precautions shall be taken to prevent fall of the handle from causing any personal injury.

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Assembly steps

a. Use cross screwdriver to fix screws ② into the screw hole ① tightly.
b. Assemble the screw hole caps ③ on the screw hole of handle .
c. The reverse operation is for disassembly.

2.3 Leveling feet

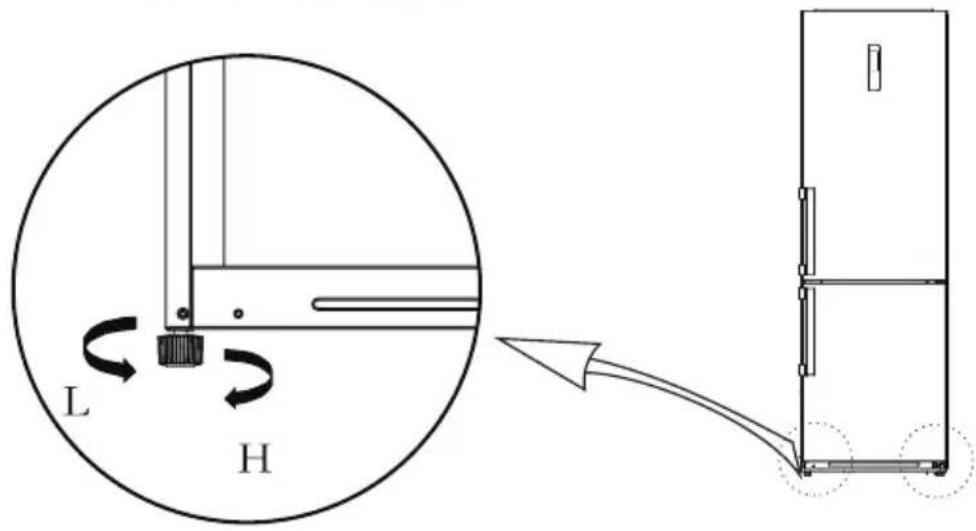

Schematic diagram of the leveling feet

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Adjusting procedures:

a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.

2.4 Door Right-Left Change

List of tools to be provided by the user
	Cross screwdriver		Putty knifethin-blade screwdriver
	5/16☒socket and ratchet		Masking tape

1) Please power off this appliance before conduct this operation Remove all food from door shelves.

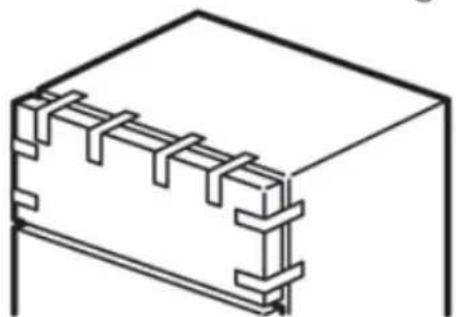

Fix the door by tapes.

Isometric line drawing of a mechanical component with no text or symbols

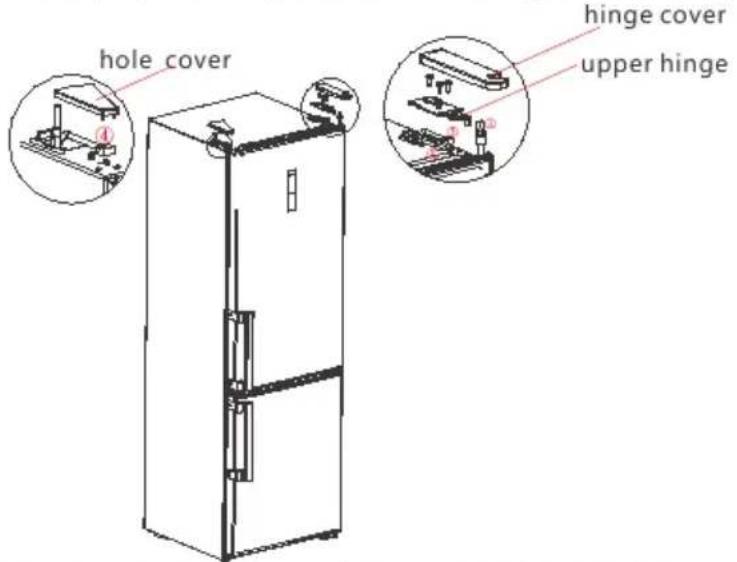

2) Dismantle the upper hinge cover, screws and upper hinge, and remove the hole cover from the other side. unplug the wiring connector on the right side of refrigerator top(①, ③ wiring connector).

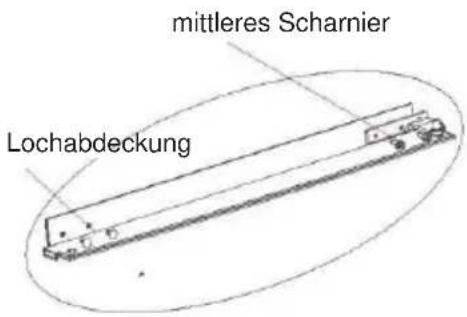

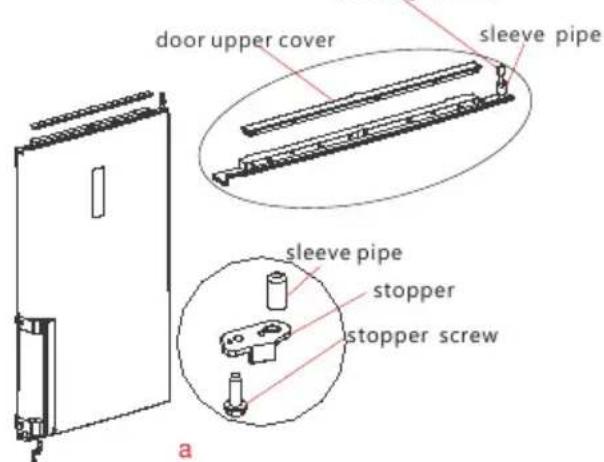

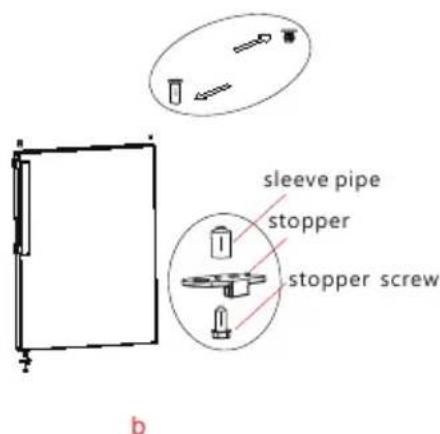

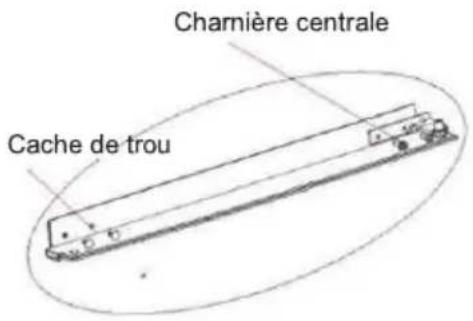

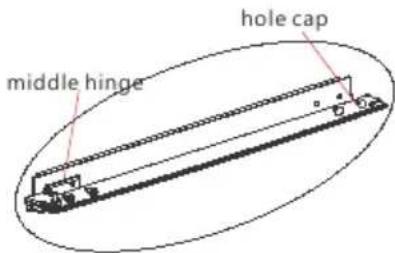

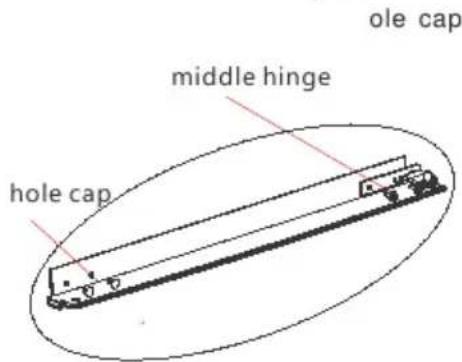

3) Take off refrigerating chamber door as well as middle hinge, h

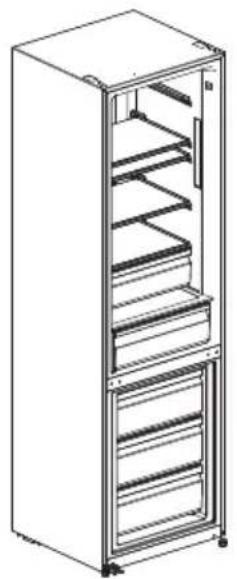

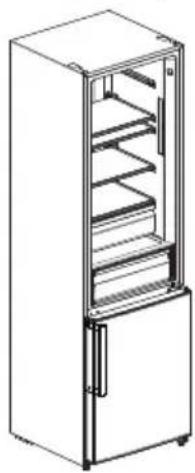

Line drawing of a refrigerator with multiple shelves and doors (no text or symbols)

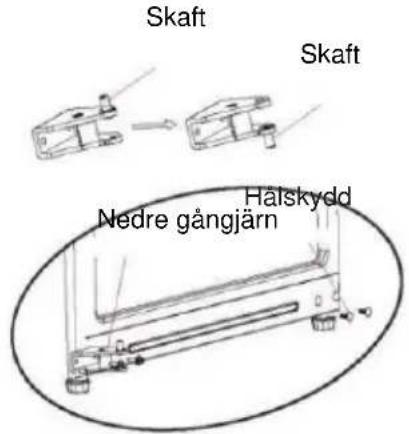

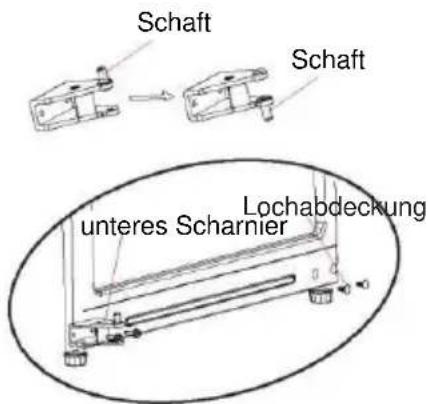

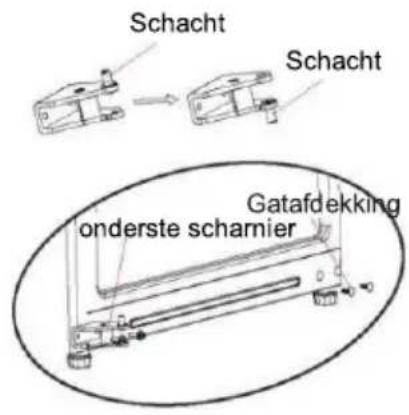

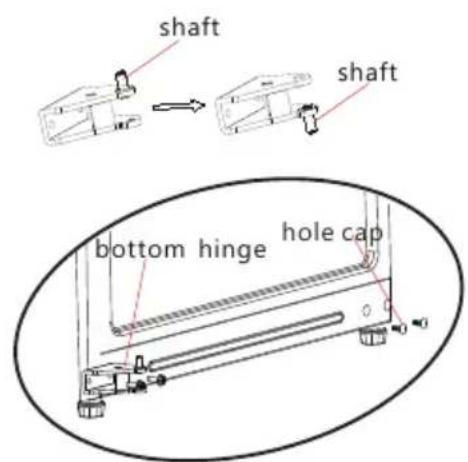

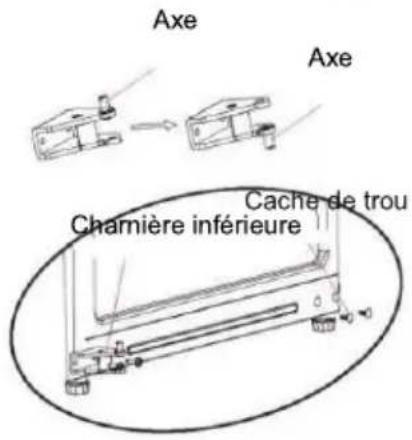

4) Take off freezing chamber door, dismantle bottom hinge, hole caps. Install shaft of bottom hinge on the other side and install the bottom hinge on the other side of bottom beam.

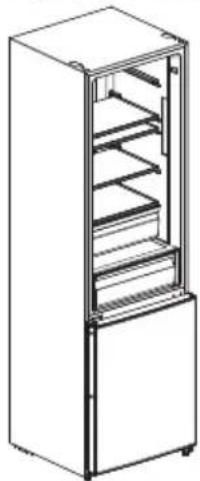

Line drawing of a multi-tiered refrigerator with open doors and slatted shelves (no text or symbols)

5)a) Remove the upper cover of refrigerating chamber door, install the upper hinge sleeve, door signal line to the other side and install the door upper cover,

Dismantle the stopper and sleeve pipe from the right bottom of freezing chamber door, take out another spare stopper(for reversible door), and assemble the sleeve pipe and spare stopper on left bottom of door by screw install the upper hinge sleeve, door signal line to the other side and install the door upper cover.

b) Dismantle the stopper and sleeve pipe from the right bottom of freezing chamber door, take out another spare stopper (for reversible door), and assemble the sleeve pipe and spare stopper on left bottom of door by screw. Take off the sleeve pipe and hole caps on the freezing chamber door and mount it on the other side.

door signal line

6) Put freezing door on bottom hinge and install middle hinge, hole caps

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

7) Take out the left top hinge, left top hinge cover from accessories package.

Put refrigerating door on middle hinge, install top hinge. connect signal line terminal ④ with signal line terminal ① connect signal line terminal ② with signal line terminal ③ install top hinge cover and hole cover. For the assembly of handle, please refer to chapter 2.2.

hinge cover

(The picture above is only for reference.)

Line drawing of a double refrigerator with top panel and front door (no text or symbols)

hole cover

2.5 Starting

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

• Before initial start, keep the refrigerator still for two hours before connecting it to power supply.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

- Spare enough space for convenient opening of the doors and drawers or statement by the distributor.

2.6 Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

3 Structure and functions

3.1 Key components

(The picture above is only for reference.)

Refrigerating chamber

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term.
  ● Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

Freezing chamber

- The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.

- The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.

- Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time.

Chill drawer

• Suitable for short term (1-3 days) to eat fresh fish, fresh meat, fresh food, etc.
• Near to the back and bottom of the of the drawer, food may be frozen, the food what should not be frozen can not be placed in.
• Food classification and sealing pack is suggested.

3.2 Functions

(The picture above is only for reference.)

Display screen

① Refrigerating chamber temperature display area ② Freezing chamber temperature display area
③ Quick cool icon
④ Quick freeze icon
⑤ Vacation icon
⑥Lock icon

Operation button

A. Temperature setting button of refrigerating chamber B. Temperature setting button of freezing chamber
C. Vacation / lock button

Display

When power on the refrigerator for the 1st time, the whole display panel will shine for 3 seconds. then the display panel enters the normal display. The first time for using the refrigerator, the default set temperatures of refrigerating chamber, freezing chamber is 5°C/-18°C respectively.

When the error occurs, the display panel shows the error code (see next page); during normal running, the display panel shows the set temperature of refrigerating chamber, freezing chamber.

Under normal running, if there is no operation or opening door action within 30s, the display panel will be locked, the light of display panel will go out after the locked state ☐ continued for 30s.

Lock /unlock

In the unlocked state, long press the lock button Vacation for 3 seconds, enter the lock state, The icon lights up and buzzer sounds, it means the display panel is locked, at this time, button operation cannot be implemented; In the locked state, long press the lock button Vacation for 3 seconds, enter the unlocked state, The icon go out and buzzer sounds, it means the display panel is unlocked, at this time, button operation can be implemented;

Temperature setting of refrigerating chamber

Click the button Fridge to change the set temperature of refrigerating chamber, each click of temperature adjusting button of the refrigerating chamber, the set temperature will be reduced 1 °C; The temperature setting range of refrigerating chamber is 2\~8 °C. When the set temperature is 2 °C, Click the button again, the set temperature of refrigerating chamber will switch to 8 °C.

Temperature setting of freezing chamber

Click the button Freezer to change the set temperature of freezing chamber, each click of temperature adjusting button of the freezing chamber, the set temperature will be reduced 1 °C; The temperature setting range for freezing chamber is -24\~ -16°C. When the temperature is -24 °C, click the button again, the set temperature of freezing chamber will switch to -16 °C.

Mode setting

Quick cool mode

Long press the button Fridge Power Cool (3x100) for 3s to set Quick cool mode, The icon ✗ lights up.

The refrigerating chamber temperature display 2°C, enter the Quick cool mode.

Under Quick cool mode, long press the button Fridge for 3s, The icon ✦ go out.

exit Quick cool mode. The set temperature of refrigerating chamber will automatically switch back to set temperature before Quick cool mode. When set vacation mode, exit Quick cool mode.

Quick freeze mode

Long press the button Freezer for 3s to set Quick freeze mode, The icon lights up.

The freezing chamber temperature display -24°C, enter the Quick freeze mode.

Under Quick freeze mode, long press the button Freezer for 3s, The icon go out.

exit Quick freeze mode. The set temperature of freezing chamber will automatically switch back to set temperature before Quick freeze mode. When set vacation mode, exit Quick freeze mode.

Vacation mode

click the button Vacation to set vacation mode, The icon lights up.

The refrigerating chamber temperature display go out, the freezing chamber temperature display -18°C enter the vacation mode.

Under vacation mode, click the button Vacation again, The icon go out. exit vacation mode.

The set temperature of refrigerating chamber and freezing chamber will automatically switch back to set temperature before vacation mode.

When set Quick cool mode and Quick freeze mode, exit vacation mode.

Opening warning and alarm control

When open the refrigerator door, the door open music will play. If the door is not closed in two minutes, the buzzer will sound once every minute until the door is closed. Press any one button to stop the buzzer alarm.

Fault indication

The following warnings appearing on the display indicate corresponding faults of the refrigerator. Though the refrigerator may still have cold storage function with the following faults, the user shall contact a maintenance specialist for maintenance, so as to ensure optimized operation of the appliance.

Fault Code	Fault Description
E1	Temperature sensor failure of refrigerating chamber
E2	Temperature sensor failure of freezing chamber
E3	Temperature sensor failure of chill drawer
E5	Freezing defrost sensor detection circuit error
E6	Communication error
E7	Ambient temperature sensor error

4. Maintenance and care of the appliance

4.1 Overall cleaning

• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
• Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the refrigerator should be cleaned regularly to avoid odor.
• Please turn off the power before cleaning interior, remove all foods, drinks .shelves, drawers, etc.
• Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
• For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.
• Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
  Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes), organic solvents (such as alcohol, acetone, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

⚠️ Please unplug the refrigerator for defrost and cleaning.

4.2 Cleaning the glass shelf

• Remove the drawer on the glass shelf;
• Lift up the front of glass shelf (about 60^ ), and then pull out;
• Remove the glass shelf and clean as needed;
• The reverse operation is for installation of glass shelf.

Line drawing of a cabinet or cabinet with a hand inserting a component into the door (no text or symbols)

4.3 Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

4.4 Out of operation

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.
• Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.
• Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45°.

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired

5 Trouble shooting

1. 1 You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Odor	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the refrigerator is normal in summerwhen the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequently
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damagedHave the light replaced by a specialist
Doors cannot be properly closed	The door is stuck by food packages Too much food is placedThe refrigerator is tilted
Loud noise	Check whether the floor is level and whether the refrigerator is placed stablyCheck whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration(or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrostingThe doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normalWhen housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigeratoris normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

Sticker "OK"

(not all models)

The “OK” temperature monitor can be used to determine temperatures below +4 °C. Gradually reduce the temperature if the sticker does not indicate “OK”.

Note

When the appliance is switched on, it may take 12 hours until the temperature is reached.

Correct setting

TABLE DES MATIÈRES

Simple line drawing of a plug with a cable and a warning symbol (no text or labels)

Simple line drawing of a room interior with a window and ceiling fixture (no text or symbols)

Simple line drawing of a refrigerator with a top-mounted appliance, no text or symbols present

Simple line drawing of a refrigerator, a pencil, and a battery (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect (no text or symbols)

Simple line drawing of a person inside a cabinet with shelves, no text or symbols present

Simple line drawing of a trash bin with a smiling face and a warning symbol (no text or labels)

Simple line drawing of a hand holding a tray with a bottle, a box, and a magnifying glass (no text or symbols)

Simple line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a person lifting a box next to a refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to sun symbols (no text or labels)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Simple line drawing of a refrigerator with a smiling face and handle, no text or symbols present

Isometric line drawing of a mechanical component with no text or symbols

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Line drawing of a multi-tiered refrigerator cabinet with open doors and slatted shelves (no text or symbols)

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

Line drawing of a cabinet with an open door and hand inserting a tray (no text or symbols)

4. 3 Dégivrage

Waarschuwing :brandgevaar / brandbare stoffen

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a room interior with a window and door, no text or symbols present

Simple line drawing of a refrigerator with a top-mounted appliance, no text or symbols present

Simple line drawing of a refrigerator and a bag with a handle, no text or symbols present

Simple line drawing of a hand holding a vertical object with a starburst effect (no text or symbols)

Simple line drawing of a person hanging from an open refrigerator (no text or symbols)

Simple line drawing of a trash bin with a warning symbol (no text or labels)

Simple line drawing of a hand holding a tray with a bottle, a container, and an icon (no text or symbols)

Simple line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a person lifting a cardboard box next to a refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to sun and an '×' symbol (no text or labels)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Simple line drawing of a refrigerator with doors and legs, no text or symbols present

Isometric line drawing of a mechanical component with no text or symbols

Line drawing of a tall rectangular refrigerator with multiple shelves and top panel (no text or symbols)

Simple line drawing of a refrigerator with a smiling face and a small electrical outlet (no text or symbols)

Line drawing of a door with an open lid and a hand inserting a tool into the door (no text or symbols)

4. 3 Ontdooien

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a window and a cabinet, no text or symbols present

Simple line drawing of a refrigerator with a top-mounted appliance and a circular symbol (no text or labels)

Simple line drawing of a refrigerator and a bag with a handle, no text or symbols present

Simple line drawing of a hand holding a vertical object above a starburst (no text or symbols)

Simple line drawing of a person hanging from an open cabinet (no text or symbols)

Simple line drawing of a trash bin with a handle and a warning symbol (no text or labels)

Simple line drawing of a hand holding a tray with a bottle, a container, and an icon (no text or symbols)

Simple line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a person pushing a cardboard box with a smiling face (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to sun and an '×' symbol (no text or labels)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Simple line drawing of a refrigerator with doors and a handle, no text or symbols present

Isometric line drawing of a rectangular electronic component with multiple notches and connectors (no text or symbols)

Simple line drawing of a refrigerator with a power outlet connected to its side (no text or symbols)

Line drawing of a door with a hand inserting a component (no text or symbols)

4.3 Disgelo

INNEHÅLLSFÖRTECKNING

1) Säkerhetsanvisningar

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a window and door, no text or symbols present

Simple line drawing of a refrigerator with a top-mounted box and a circular symbol (no text or labels)

Simple line drawing of a refrigerator with an open drawer and a falling object (no text or symbols)

Simple line drawing of a lamp with a starburst effect and a warning symbol (no text or labels)

Simple line drawing of a person inside a cabinet with shelves and doors, no text or symbols present

Simple line drawing of a trash bin with an open trunk and a warning symbol (no text or labels)

Simple line drawing of a hand holding a tray with a bottle and a container, no text or symbols present.

Simple line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a person pushing a cardboard box next to a refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a sad face and sun, next to a potted plant (no text or symbols)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Simple line drawing of a refrigerator with a smiling face and handle, no text or symbols present

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a tall rectangular cabinet with multiple shelves and drawers (no text or symbols)

Line drawing of a refrigerator with three circular insets showing internal components (no text or symbols)

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

Line drawing of a door with a hand inserting a tool into the opening (no text or symbols)

4. 3 Avfrosta

Simple line drawing of a plug with a bulb and a warning symbol (no text or labels)

Simple line drawing of a room interior with a monitor and desk, no text or symbols present

Simple line drawing of a refrigerator with a cabinet top (no text or symbols)

Simple line drawing of a refrigerator with an open lid and a pencil, accompanied by a magnifying glass icon (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a refrigerator with an open door and a person inside (no text or symbols)

Simple line drawing of a trash bin with a sad face and a warning symbol (no text or labels)

Simple line drawing of a tray with a bottle, a container, and an exclamation mark (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Simple line drawing of a person handling two cardboard boxes (no text or symbols)

Simple line drawing of a refrigerator with sad face, sun, and potted plant (no text or symbols)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Simple line drawing of a smiling refrigerator with wheels and a handle (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a closed book with a rectangular cover and a small bracket on the right (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

casquillo del tubo

tapón

tornillo tapón

Simple line drawing of a rectangular frame with vertical lines and corner markers (no text or symbols)

teasquillo del tubo

tapón

tornillo tapón

b

Line drawing of a rectangular refrigerator with multiple shelves and a front panel (no text or symbols)

Simple line drawing of a refrigerator with a smile and a small electrical outlet (no text or symbols)

Line drawing of a cabinet with hand inserting a component (no text or symbols)

4. 3 Descongelamiento
