5CC274FD0 - Fridge BLAUPUNKT - Free user manual and instructions

USER MANUAL 5CC274FD0 BLAUPUNKT

Line drawings of various hand tools including a hammer, wrench, screwdriver, screwdriver, pliers, scissors, measuring tape, and gloves (no text or labels)

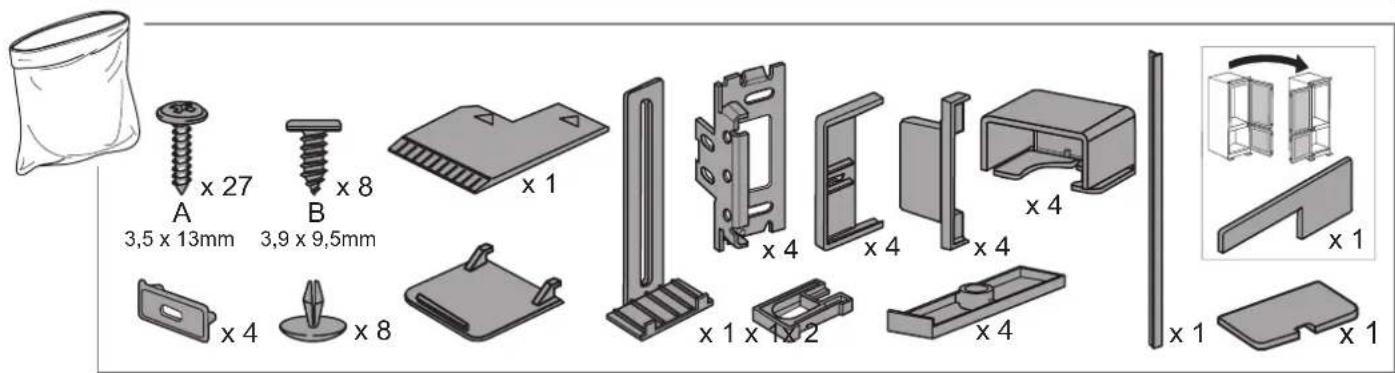

A x 27 3,5 x 13mm B x 8 3,9 x 9,5mm x 1 x 4 x 8 x 1 x 1x 2 x 4 x 4 x 4 x 4 x 1 x 1 x 1

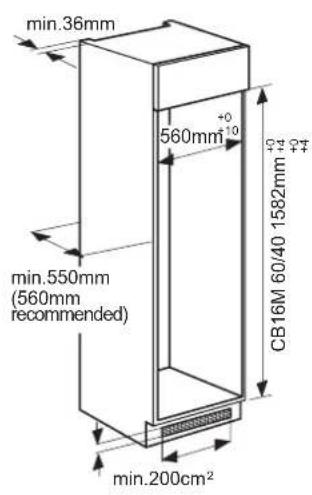

min.36mm 560mm⁺⁰ +0 +4 min.550mm (560mm recommended) min.200cm² CB16M 60/40 1582mm⁺⁰ +4 +0

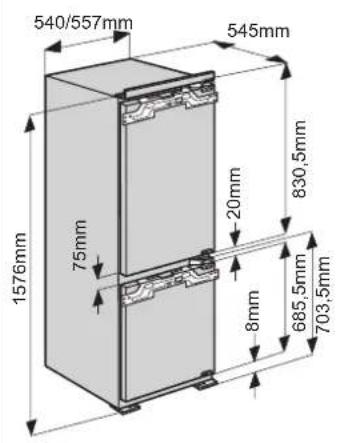

540/557mm 545mm 1576mm 75mm 20mm 830,5mm 685,5mm 703,5mm

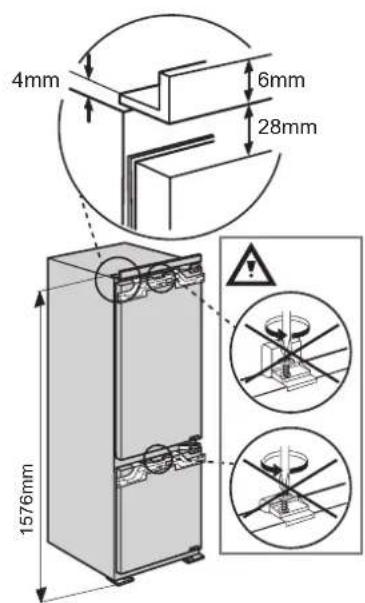

4mm 6mm 28mm 1576mm

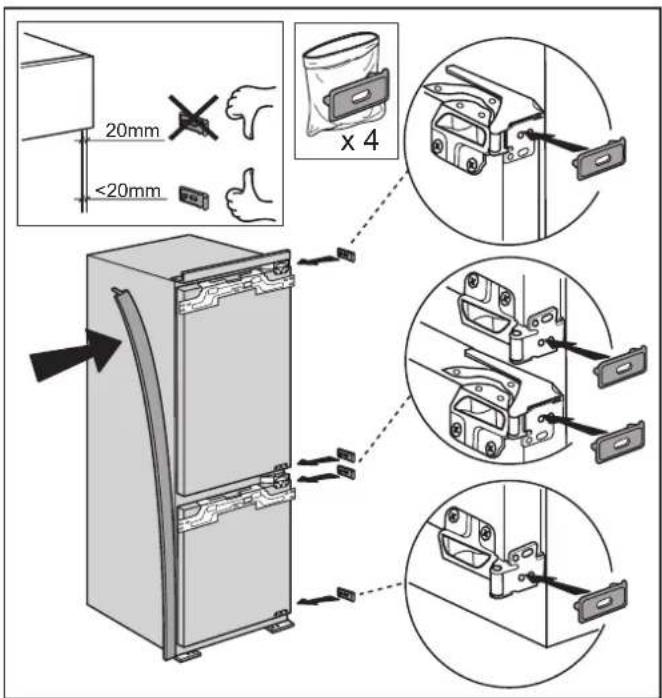

20mm <20mm x 4

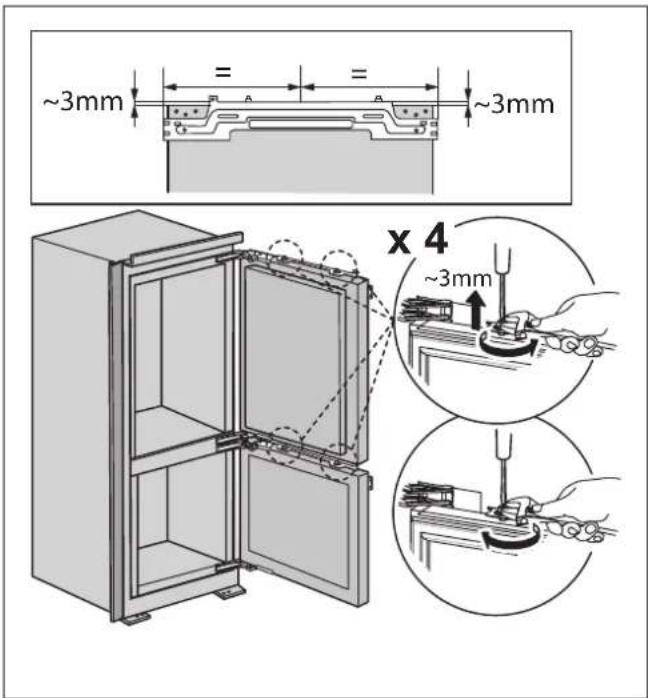

~3mm = = ~3mm x 4 ~3mm

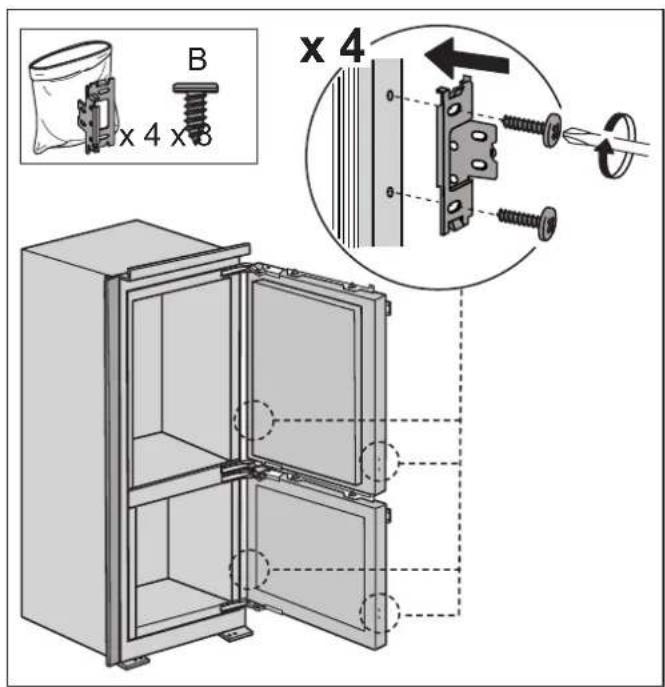

B x 4 x 3 x 4

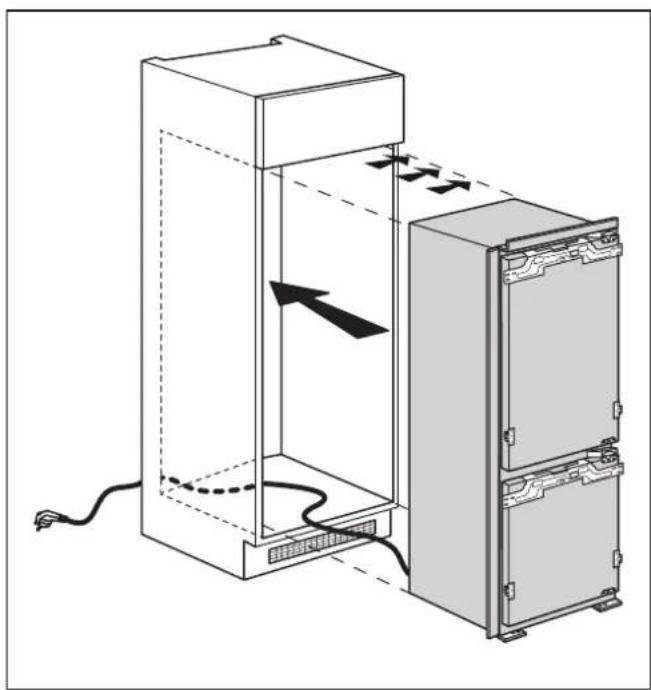

Diagram of a refrigerator unit with internal air ducts and wiring, showing no text or symbols

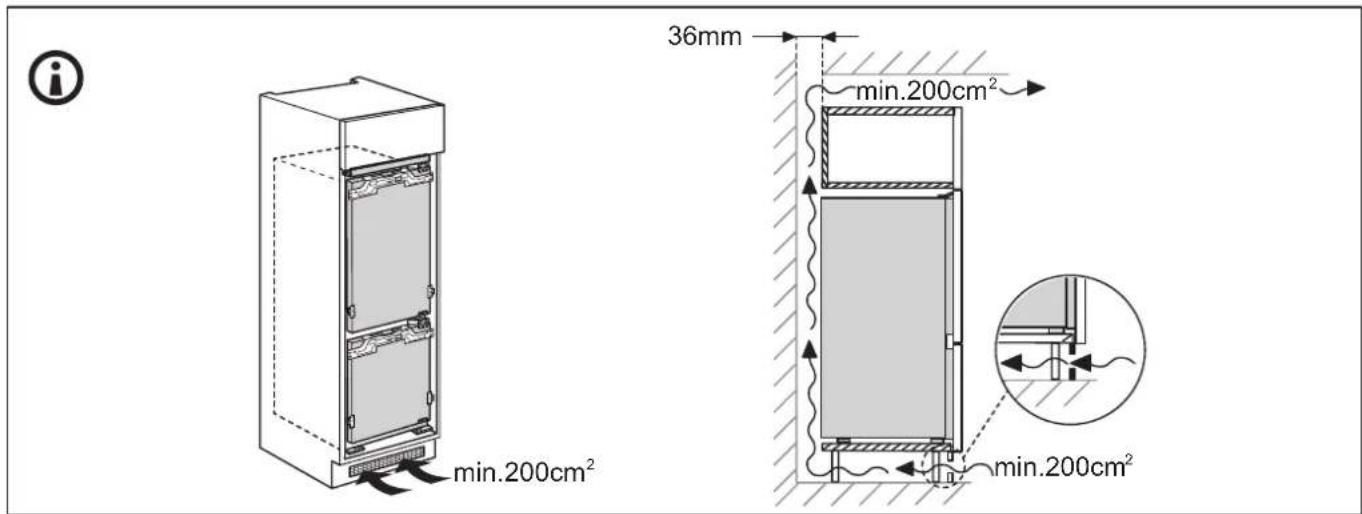

36mm min.200cm² min.200cm² min.200cm²

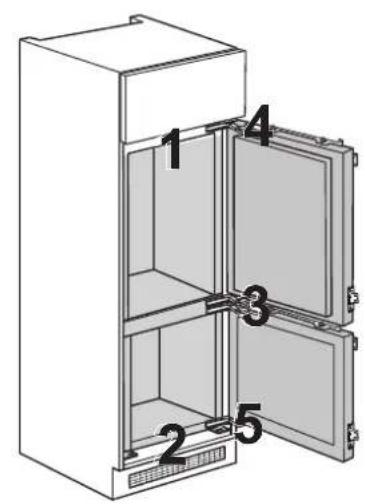

Diagram of an open refrigerator with numbered compartments for identification

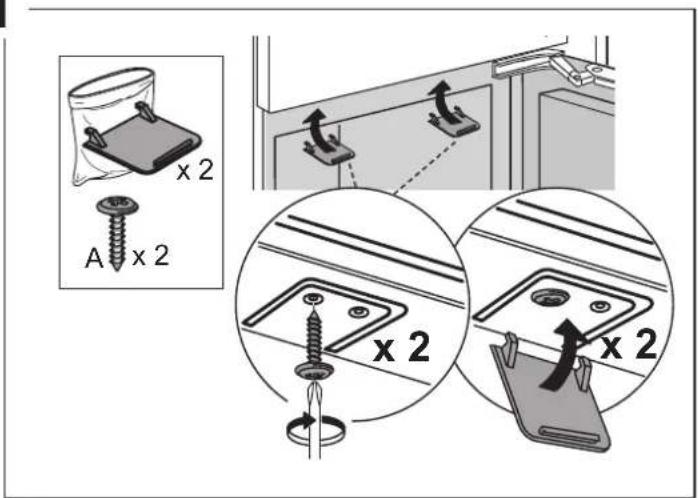

1

x 2 A x 2 x 2 x 2

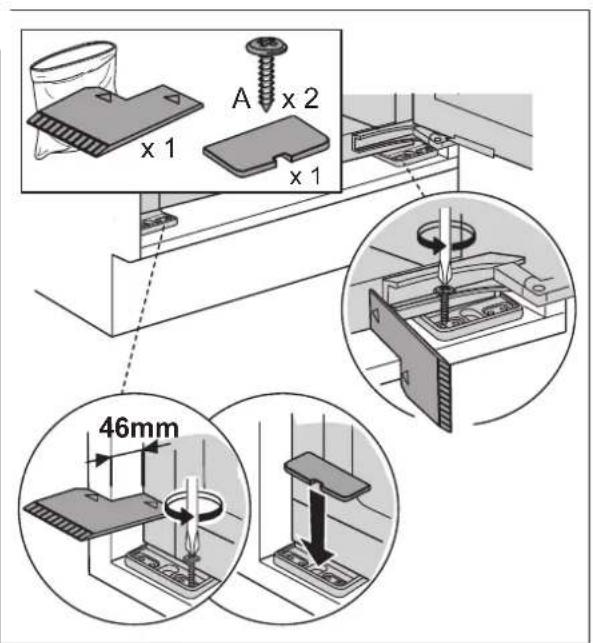

2

A x 2 x 1 x 1 46mm

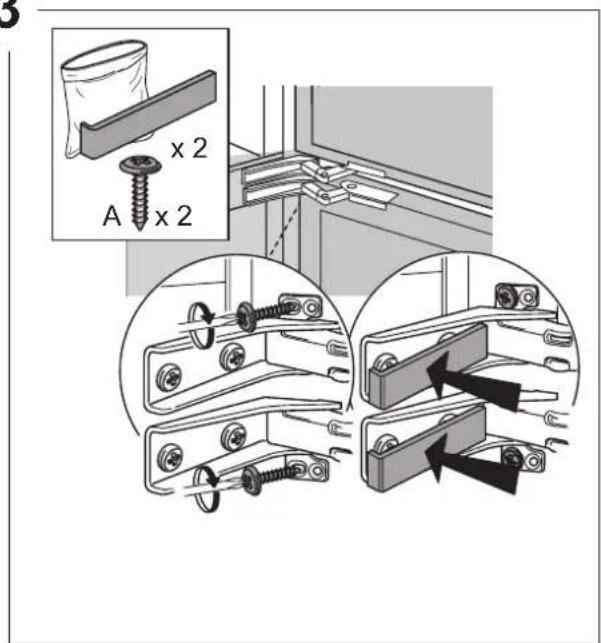

3

x 2 A x 2

4

Technical diagram showing a screw fastener installation with cross-sectional views and component details

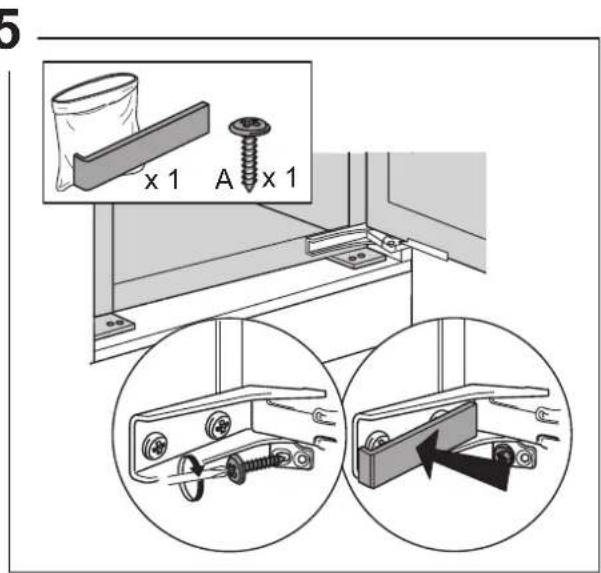

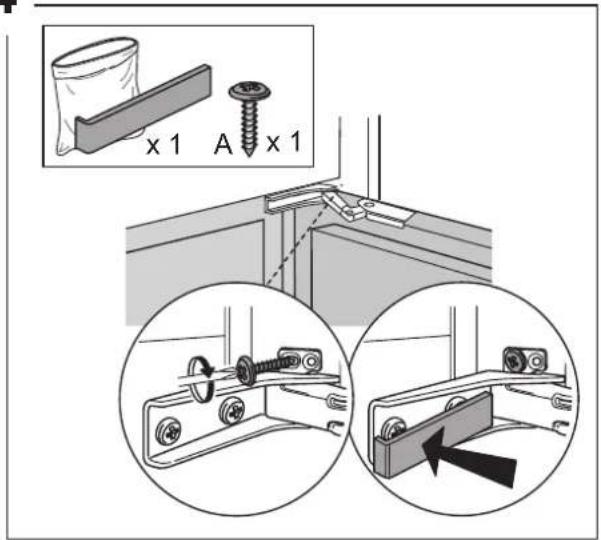

5

5 x 1 A x 1

Diagram of an open refrigerator with two doors and a door, showing internal compartments and directional arrows indicating movement (no text or symbols present)

1

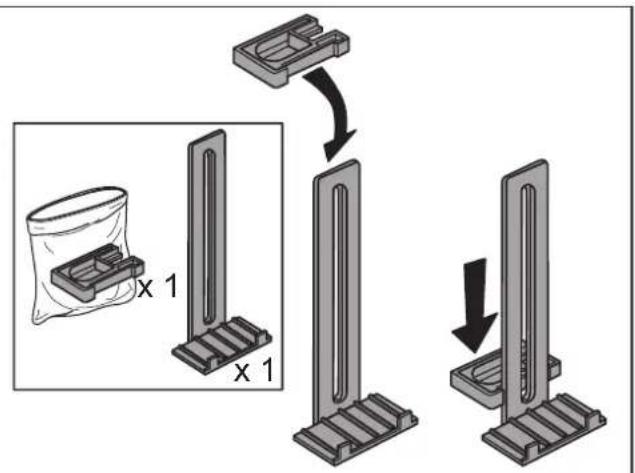

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or transformation.

2

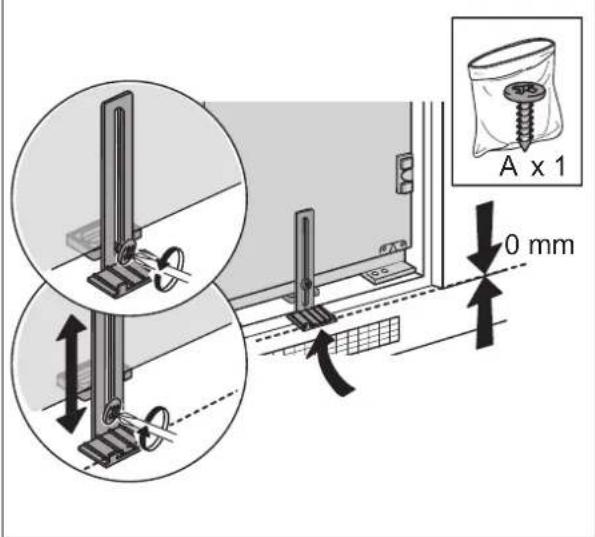

A x 1 0 mm

3

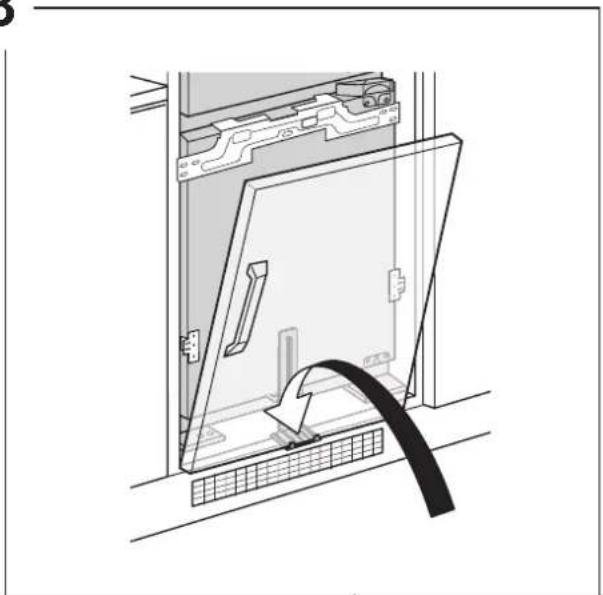

Diagram of a computer monitor with cable inserted into the front panel (no text or symbols)

4

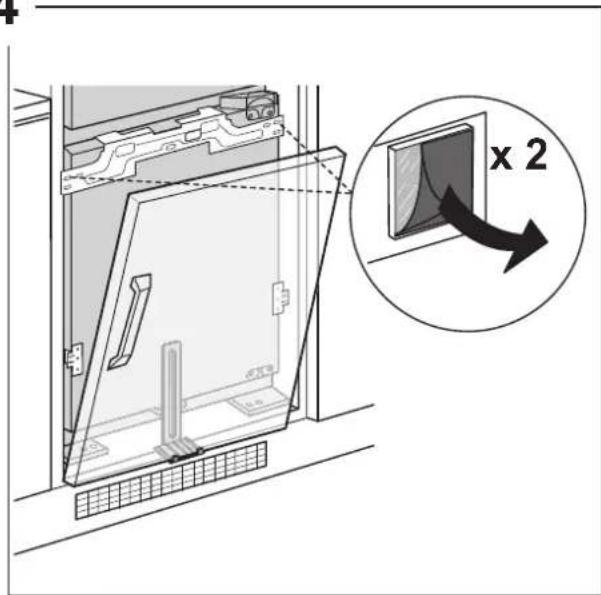

Diagram showing a door frame installation with an inset magnified view labeled 'x 2' indicating a dimension.

5

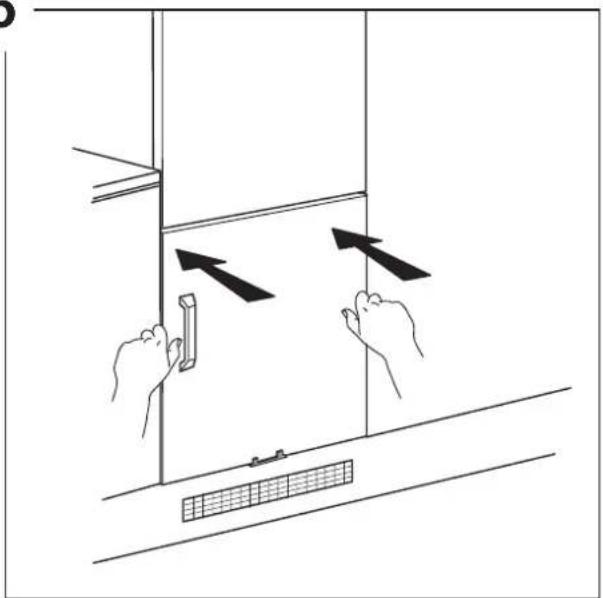

Diagram showing hand positioning of a door with arrows indicating movement, including a close-up view and a grid bar.

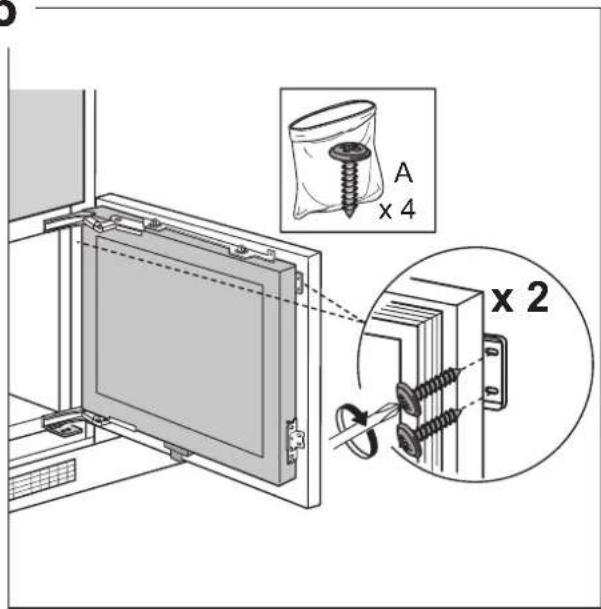

6

A x 4 x 2

7

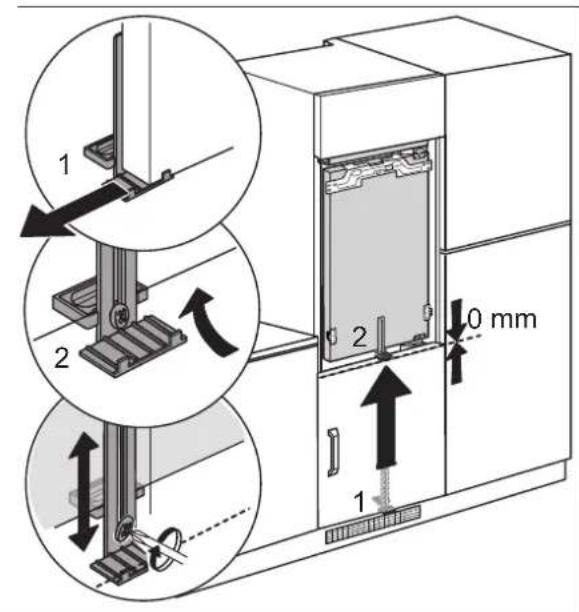

1 2 2 0 mm 1

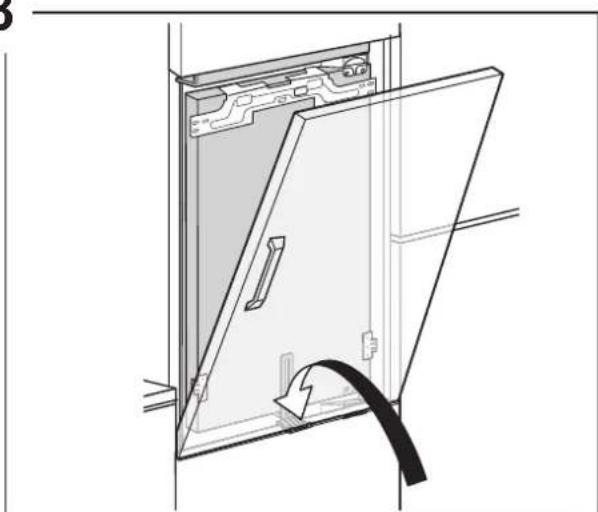

8

Diagram of a door frame with a cable inserted, showing internal components and a black arrow indicating direction (no text or symbols)

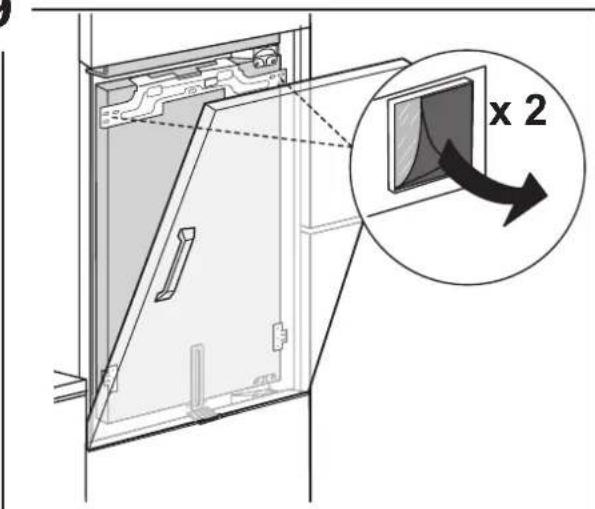

9

x 2

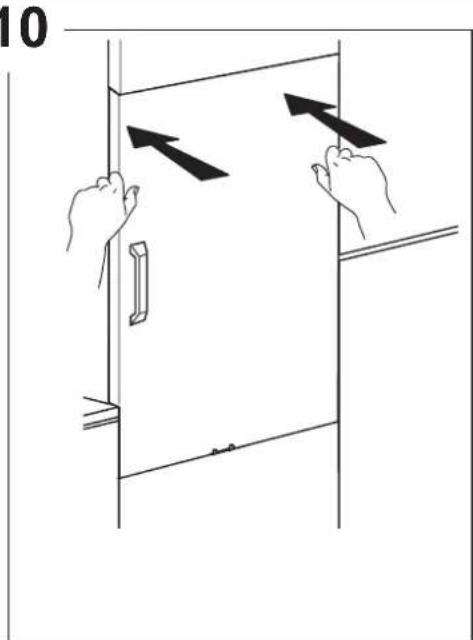

10

10

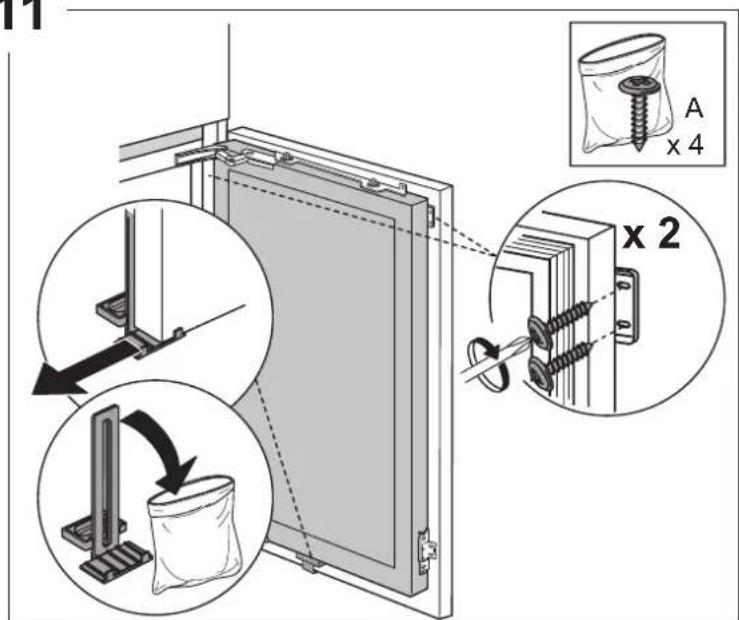

11

Diagram illustrating a door frame installation with labeled components and assembly steps, including screw fasteners and pin alignment.

12

Diagram illustrating refrigerator interior and door assembly, showing folding, lifting, and mounting steps with magnified views.

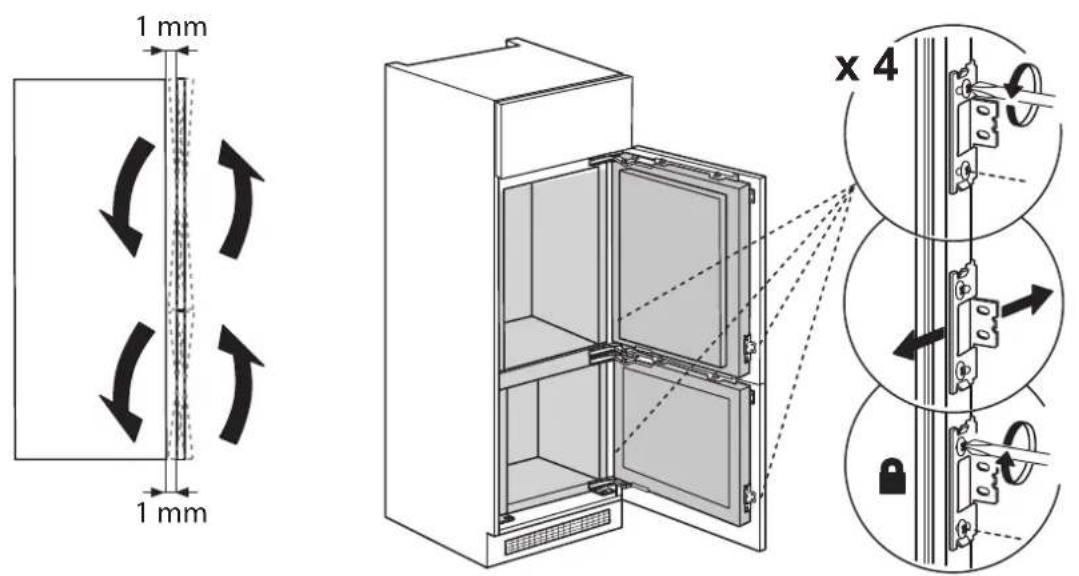

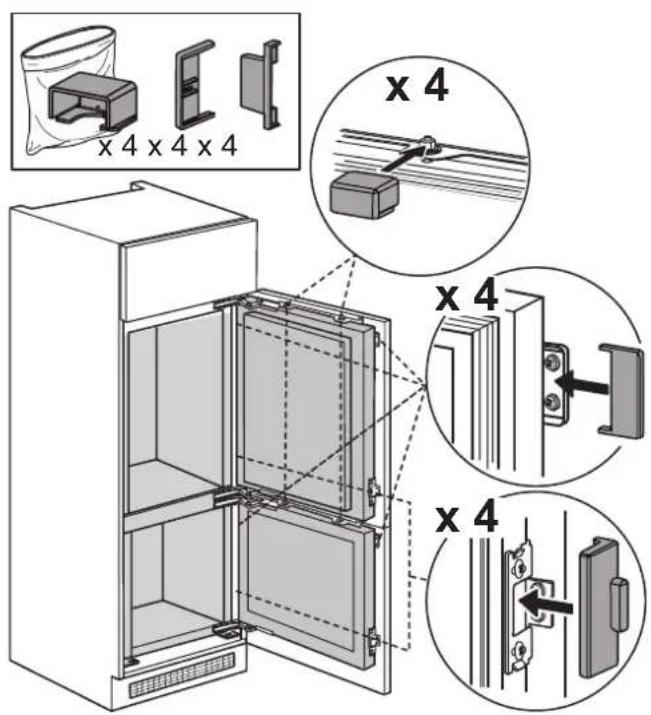

13

1 mm 1 mm x 4

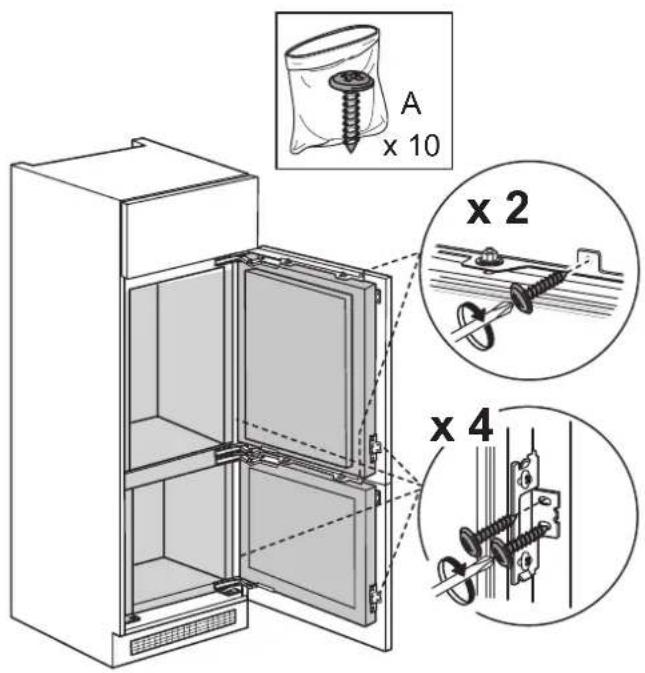

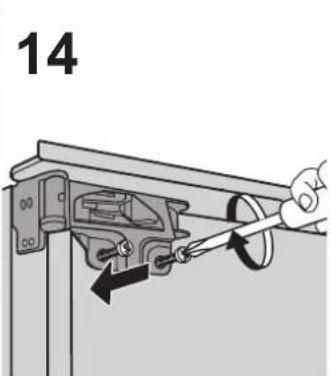

14

A x 10 x 2 x 4

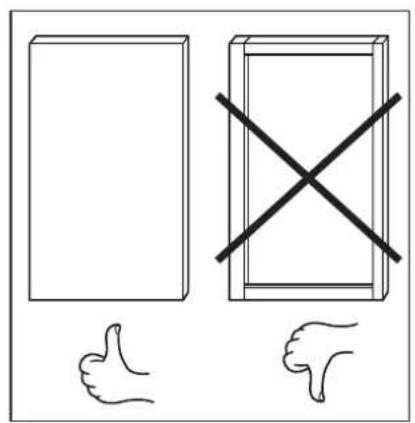

Diagram showing two document shapes with thumbs and cross symbols, indicating rejection or cancellation

15

Technical diagram of a refrigerator with labeled components and cross-sectional views showing internal structure and mounting details.

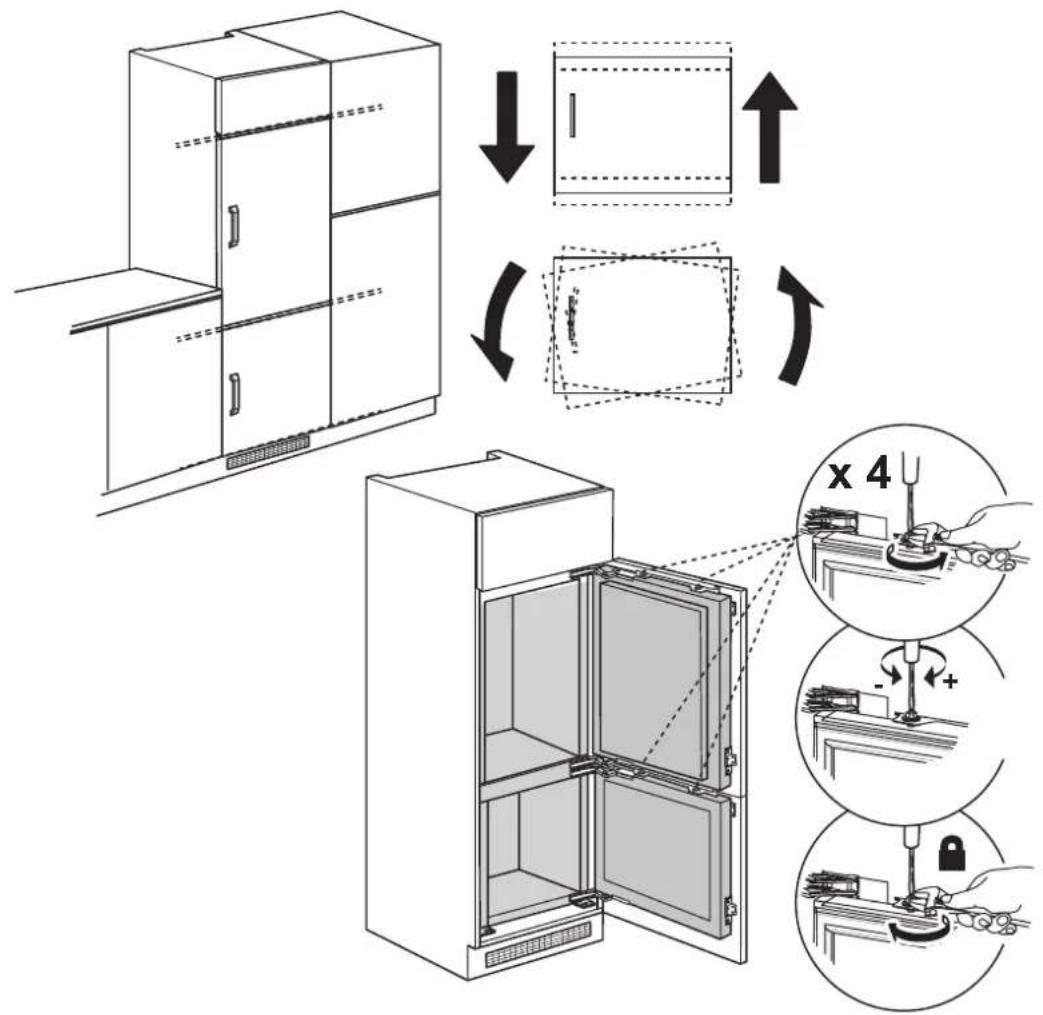

Diagram showing two views of a refrigerator with doors open, one rotated to the other (no text or symbols)

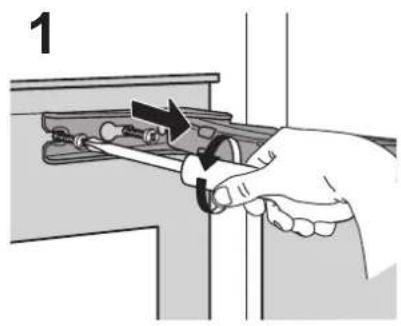

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

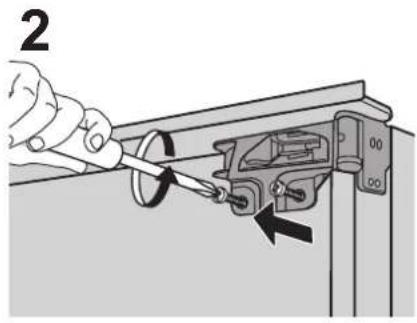

2

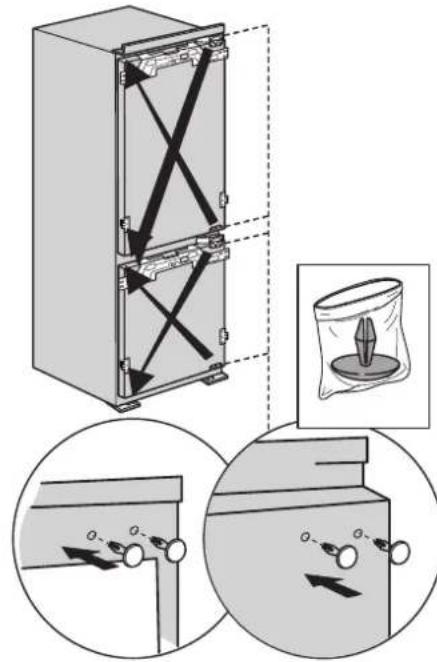

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows, including a magnified inset showing a component being inserted.

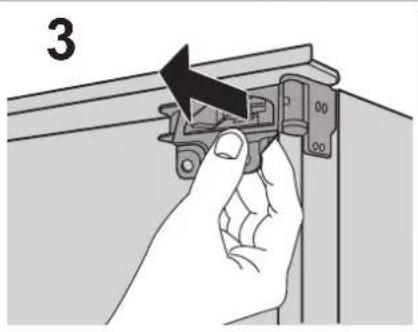

Hand holding a door lock with a black arrow indicating the handle (no text or symbols present)

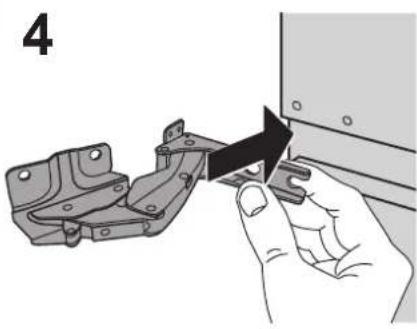

Hand holding a mechanical bracket with a black arrow indicating direction (no text or symbols)

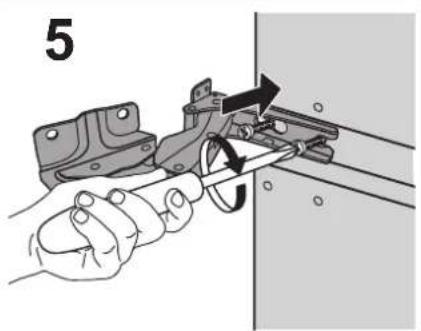

Illustration of a hand using a tool to adjust or install a mechanical component, no text or symbols present

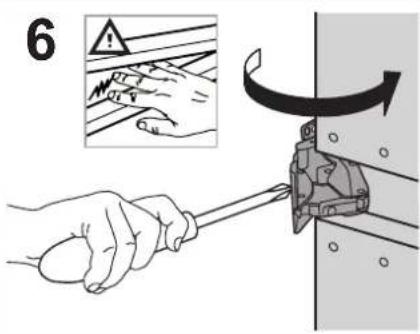

6

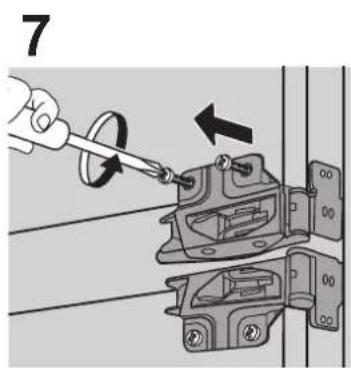

7

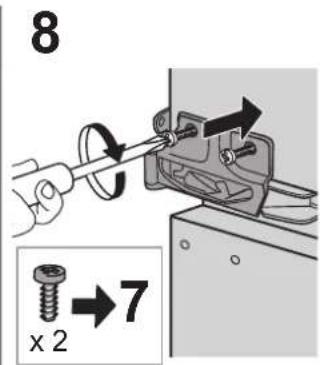

8 x 2 7

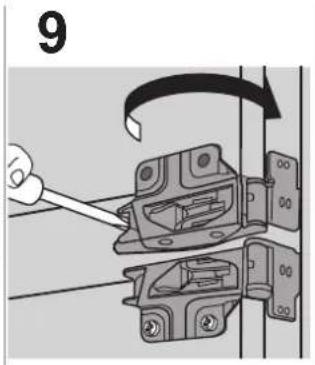

9

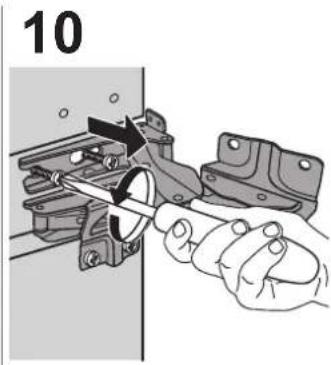

10

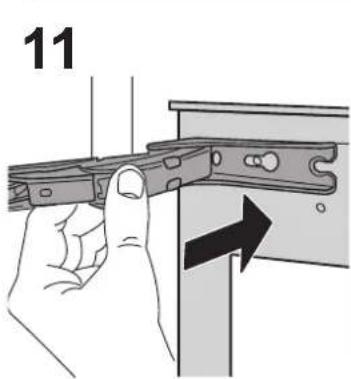

11

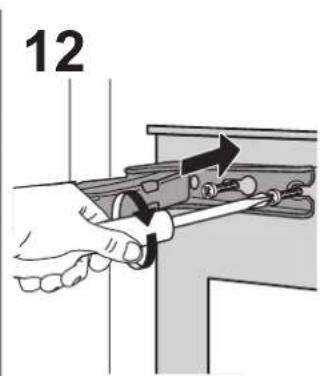

12

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

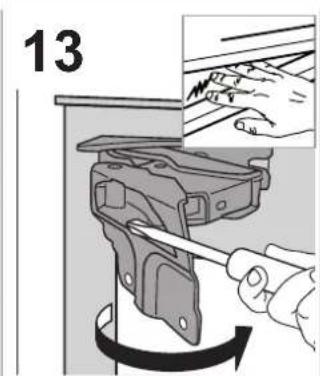

Mechanical assembly diagram showing a hand operating a rotating component with arrows indicating motion (no text or symbols)

INHALT

ÜBERSICHT....12

Allgemeine Informationen....12

FUNKTIONSWEISE....13

Erster Gebrauch 13

Five horizontal black bars with white rectangular cutouts, arranged vertically (no text or symbols)

Hoch (weniger kalt)

Mittel-hoch

Mittel

Mittel-tief

Niedrig (kälter)

Diagram of a refrigerator with a side panel and top panel, showing internal compartments (no text or symbols)

Zeichenerklärung

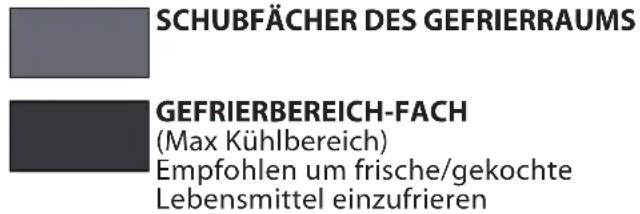

TEMPERATUR BEREICH

Two document icons: a clipboard on the left and a blank sheet with horizontal lines on the right (no text or symbols)

Zeichenerklärung

First time use....21

Refrigerator compartment and food storage 21

How to store fresh food and beverages....21

Freezer compartment food storage 22

Freezer compartment 22

Functional sounds....23

Recommendation in case of no use of the appliance....23

CLEANING AND MAINTENANCE....24

Refrigerator light 24

Shelves 24

Door....24

TROUBLESHOOTING 25

SUPPORT 26

OVERVIEW

GENERAL INFORMATION

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this quick guide. The light system inside the refrigerator compartment uses LEDs light, allowing a better lighting than traditional light bulbs as well as a very low energy consumption.

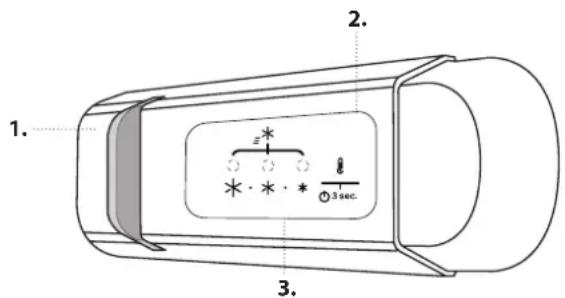

CONTROL PANEL

1. 2. 3.

ON/STAND-BY

Press the button for 3 seconds to turn the appliance off. In Stand-by mode the light in the refrigerator compartment does not turn on. Press the button again briefly to reactivate the appliance.

Note: this does not disconnect the appliance from the power supply.

FREEZER AND REFRIGERATOR COMPARTMENT TEMPERATURE

The three LED indicators indicate the refrigerator compartment set temperature. It is possible to set a different temperature of the appliance with the button. The following adjustments are possible:

LEDs lit Set temperature

Five horizontal black bars with white rectangular cutouts, arranged vertically (no text or symbols)

High (less cold)

Medium-high

Medium

Medium-low

Low (colder)

Recommended setting:

• Refrigerator compartment: MEDIUM

To avoid food waste, please refer to the recommended setting and storage times found in the online user manual.

To avoid an increase of food waste, refer to recommended setting and Storage Time in OPERATION chapter

DISPOSAL

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

1. LED Light
2. On/Stand-by
3. Freezer and refrigerator compartment temperature button

FAN\*

The Fan improves temperature distribution inside the refrigerator compartment, allowing better preservation of stored food. The fan will start/stop working depending on the temperature and/or humidity level inside the fridge.

Note: the fan restarts automatically after a power cut or after turning off the appliance. Do not obstruct the air intake area with food items.

FREEZING FRESH FOOD

Place the fresh food to be frozen in the FREEZING ZONE in the freezer compartment avoiding the direct contact with the food that is already frozen. To optimize the freezing speed, the lower drawer can be removed and the food can be placed directly on the bottom of the compartment.

FAST COOL FUNCTION (FAST COOLING)

To quickly cool the refrigerator compartment, or 6 hours before putting a large quantity of food to be frozen in the freezer compartment, turn on the "Fast Cooling" function by repeatedly pressing the 📄 button until the 3 icons flash green and then stay constant. The function automatically turns off after 30 hours and the temperature returns to the previous setting when the function is turned on.

To turn the function off manually, press the button. Note: avoid a direct contact between the fresh food and the food that is already frozen.

To optimize the freezing speed, the lower drawer can be removed and the food can be placed directly on the bottom of the compartment.

OPERATION

FIRST TIME USE

Wait at least two hours, after the installation, before connecting the appliance to the power supply. Connect the appliance to the power supply it starts the operation automatically. The ideal storage temperatures for the food are preset in the factory.

After turning the appliance on, you must wait for 4-6 hours for the correct storage temperature to be reached for a normally filled appliance. If the audible signal sounds, it means that the temperature alarm has intervened: press the button to switch off the acoustic alarms.

REFRIGERATOR COMPARTMENT AND FOOD STORAGE

The refrigerator compartment allows for the storage of fresh food and drink. The refrigerator compartment defrosts completely automatically. The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.

Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors. In very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves. In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one. All of the drawers, door shelves and shelves can be removed.

LIGHT SYSTEM

This product contains a light source of energy efficiency class G

HOW TO STORE FRESH FOOD AND BEVERAGES

Foods which give off a large amount ethylene gas (apples, apricots, pears, peaches, avocado, figs, prunes, blueberries, mellons, beans) and those that are sensitive to this gas, such as fruit vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage. Do not store food too close together to enable sufficient air circulation. Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods. If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment. Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them. To avoid bottles falling over, you can use the bottle holder (available on selected models).

Legend

TEMPERATURE ZONE

Suggested for the storage of tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam

COOL ZONE

Suggested for the storage of cheese, milk, daily food, delicatessen, yogurt

COOLEST AREA

Suggested for storage of cold cuts, desserts, meat and fish

FRUIT & VEGETABLE DRAWER

The load limits are determined by the particular construction (baskets, containers, flaps, drawers, shelves, etc.), or the load limits are determined by natural load limits.

FREEZER COMPARTMENT FOOD STORAGE

The freezer compartment - 100 allows long time storage of frozen food and freezing of fresh food. The quantity of fresh food that can be frozen in 24 hours is written on the rating plate. Arrange the fresh food in the freezing area inside the freezer compartment, leaving enough space around the food packages to allow air to circulate freely. It is advisable that you do not re-freeze food that has partially defrosted. It is important to wrap the food in a way that prevents the ingress of water, humidity or condensation.

Two document icons: a clipboard on the left and a blank sheet with horizontal lines on the right (no text or symbols)

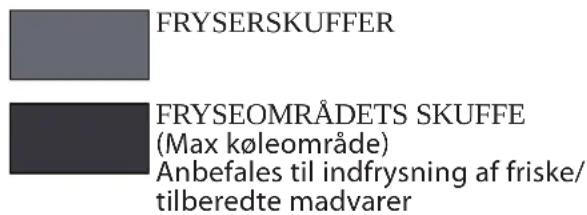

Legend

FREEZER DRAWERS

FREEZING ZONE DRAWER
(Max cool zone)
Suggested to freeze fresh/cooked food

REMOVING THE DRAWERS

Pull the drawers outwards as far as they will go, lift them up and remove them. To get more volume, the freezer compartment can be used without the drawers. Make sure that the door is closed properly after putting the food back on the grilles/shelves.

FREEZER COMPARTMENT

Freezing fresh food

1. It is advisable to set the temperature colder or turn on the Fast Freeze/ Fast Cool* at least four hours before removing the food from the freezer compartment, to prolong the preservation of the food during the defrosting phase.
2. To defrost, unplug the appliance and remove the drawers. Leave the door open to allow the frost to melt. To prevent the water from escaping during the defrost, it is advised that you place an absorbent cloth on the bottom of the freezer compartment and wring it out regularly.
3. Clean the inside of the freezer compartment with the ice scraper and dry it carefully.
4. Turn the appliance back on and put the food back inside. To remove the frost on the STOP FROST* accessory, follow the CLEANING.

Ice cubes

Fill 2/3 of the ice tray with water and put it back in the freezer compartment. Do not use sharp or pointed objects to remove the ice under any circumstances.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate.

Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

FUNCTIONAL SOUNDS

1. A buzz generated by the compressor is normal while the product is working.

Illustration of three industrial or commercial objects: a person with a head, a globe-like structure, and a server unit (no visible text or symbols)

1. Gurgling and crackles are generated by the passage of the refrigerant gas inside the cooling circuit, therefore these are normal noises.

Guide

1. It's possible to "hear" creaks when the compressor is active and inactive: it is a normal sound of the product's structure.

1. Check that the balconies on the inside of the refrigerator door, the shelves and the drawers in the refrigerator compartment are attached and positioned properly, to avoid possible vibrations.
2. Don't place glass containers (bottles, jars, etc.) in direct contact with each other, to avoid vibrations.
3. This device is equipped with a compressor that operates at an optimum speed to minimize energy consumption. So it may happen that in certain situations (in summer or if large quantities of food are introduced) that the compressor increases the speed and therefore it is more noisy than usual.

RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE

In the event of non-use of the applicance

Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it. Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.

In the event of an interruption to the power supply

Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).

CLEANING AND MAINTENANCE

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Never use abrasives. Never clean refrigerator parts with flammable fluids.

Do not use steam cleaners.

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.

Clean the appliance occasionally with a cloth and a solution of warm water and neutral cleaning agents specifically for cleaning the inside of the refrigerator.

REFRIGERATOR LIGHT

The light system inside the refrigerator compartment uses LEDs light, allowing a better lighting than traditional light bulbs as well as a very low energy consumption. Contact the Technical Assistance Service if you need a replacement.

Important: The refrigerator compartment light switches on when the refrigerator door is opened.

SHELVES

All of the drawers, door shelves and shelves can be removed.

DOOR

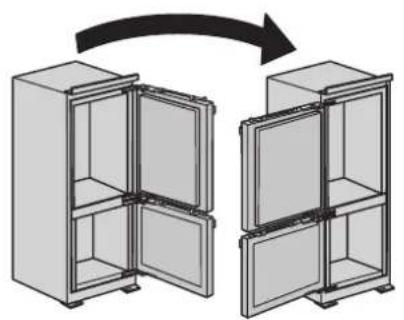

DOOR REVERSIBILITY

Note: The direction of door opening can be changed. If this operation is not performed by After-sales Service it is not covered by the warranty. Follow instruction in Installation chapter.

What to do if... Possible reasons Solutions

The control panel is switched off, the appliance does not work.	There may be an appliance power supply problem.	Check that:• there is not a power outage;• the plug is properly inserted in the power socket and the mains double-pole switch (if present) is in the correct position (i.e. allows the appliance to be powered);• the household electrical system protection devices are efficient;• the power cable is not damaged.
	The appliance could be in On/ stand by mode.	Turn the appliance on by briefly pressing the "Temp." button (see On/Stand-by function).
The inside light does not work.	The light may need to be replace.Malfunction of a technical component.	Disconnect the appliance from the power supply and contact the Technical Assistance Service if you need a replacement.
The inside light flashes.	Door alarm active.It is activated when the refrigerator compartment door remains open for a prolonged period of time.	To stop the alarm, close the refrigerator door.On reopening the door, check the light works.
The temperature inside the compartments is not low enough.	There could be various causes (see "Solutions").	Check that:• the doors close properly;• the appliance is not installed near a heat source;• the set temperature is adequate;• the circulation of air through the vents at the bottom of the appliance is not obstructed (see installation section).
There is water on the bottom of the refrigerator compartment.	The defrost water drain is blocked.	Clean the defrosting water drain (see section "Cleaning and Maintenance").
Excessive amount of frost in the freezer compartment	The door of the freezer compartment does not close properly.	• Check that there is nothing preventing the door from closing properly.• Defrost the freezer compartment.• Make sure the appliance has been correctly installed.
The front edge of the appliance, at the door striker seal, is hot.	This is not a defect. It prevents condensation from forming.	No solution is necessary.
One or more green symbols are flashing continuously and it is not possible to change the temperature set.	Malfunction alarm.The alarm indicates a fault in a technical component.	Contact Technical Assistance Service.
The temperature of the refrigerator compartment is too cold.	• The set temperature is too cold.• A large amount of fresh food may have been placed in the freezer compartment.	• Try to set a less cold temperature.• If fresh food has been placed in the freezer compartment, wait until it has fully frozen.• Turn off the fan (if present) following the procedure described in the paragraph "FAN".

SUPPORT

When contacting our Service Centre, please state the codes provided on your product's identification plate.
