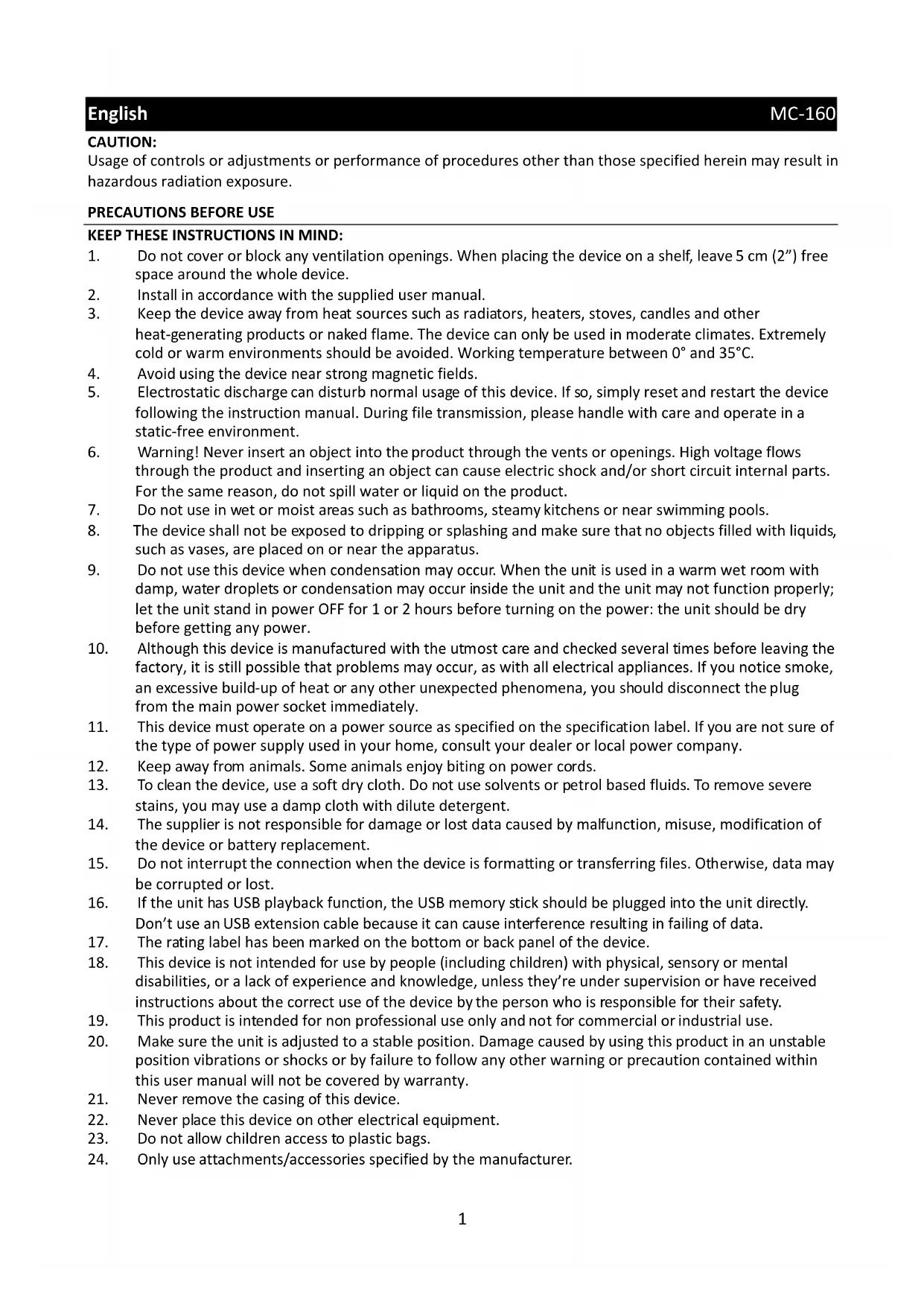

Version: 3.01 English MC-160 CAUTION: Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

PRECAUTIONS BEFORE USE

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2”) free

space around the whole device.

2. Install in accordance with the supplied user manual.

3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other

heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0° and 35°C.

4. Avoid using the device near strong magnetic fields.

5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device

following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.

6. Warning! Never insert an object into the product through the vents or openings. High voltage flows

through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.

7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.

8. The device shall not be exposed to dripping or splashing and make sure that no objects filled with liquids,

such as vases, are placed on or near the apparatus.

9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with

damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.

10. Although this device is manufactured with the utmost care and checked several times before leaving the

factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.

11. This device must operate on a power source as specified on the specification label. If you are not sure of

the type of power supply used in your home, consult your dealer or local power company.

12. Keep away from animals. Some animals enjoy biting on power cords.

13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe

stains, you may use a damp cloth with dilute detergent.

14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of

the device or battery replacement.

15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may

be corrupted or lost.

16. If the unit has USB playback function, the USB memory stick should be plugged into the unit directly.

Don’t use an USB extension cable because it can cause interference resulting in failing of data.

17. The rating label has been marked on the bottom or back panel of the device.

18. This device is not intended for use by people (including children) with physical, sensory or mental

disabilities, or a lack of experience and knowledge, unless they’re under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.

19. This product is intended for non professional use only and not for commercial or industrial use.

20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable

position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

21. Never remove the casing of this device.

22. Never place this device on other electrical equipment.

23. Do not allow children access to plastic bags.

24. Only use attachments/accessories specified by the manufacturer.2

25. Refer all servicing to qualified service personnel. Servicing is required when the device has been

damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.

26. Long exposure to loud sounds from personal music players may lead to temporary or permanent

27. If the product is delivered with power cable or AC power adaptor:

• If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.

• Don’t step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable’s exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children’s reach! When playing with the power cable, they can seriously injure themselves.

• Unplug this device during lightning storms or when unused for a long period.

• The socket outlet must be installed near the equipment and must be easily accessible.

• Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.

• Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.

• Devices with class 2 construction do not require a earthed connection.

• Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.

• Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

28. If the product contains or is delivered with a remote control containing coin/cell batteries:

• “Do not ingest battery, Chemical Burn Hazard” or equivalent working.

• [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

• Keep new and used batteries away from children.

• If the battery compartment does not close securely, stop using the product and keep it away from children.

• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

29. Caution about the use of Batteries:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.

• Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.

• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.

• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.

• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

• Attention should be drawn to the environmental aspects of battery disposal. INSTALLATION

• Unpack all parts and remove protective material.

• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

• Those instruction are related only to products using power cable or AC power adaptor.3 Accessories included: User manual Power Adaptor MC-160

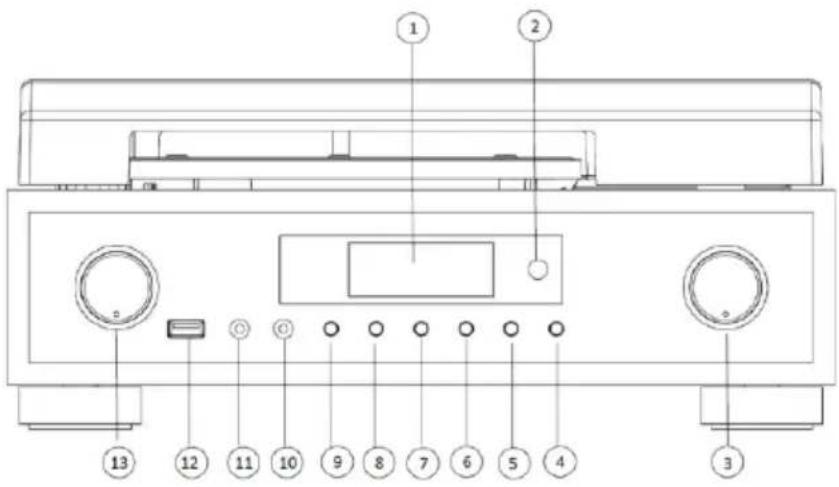

3. Functional knob (Scan, Tuning, Play/Pause, Enter)

12. USB socket (for music playback)

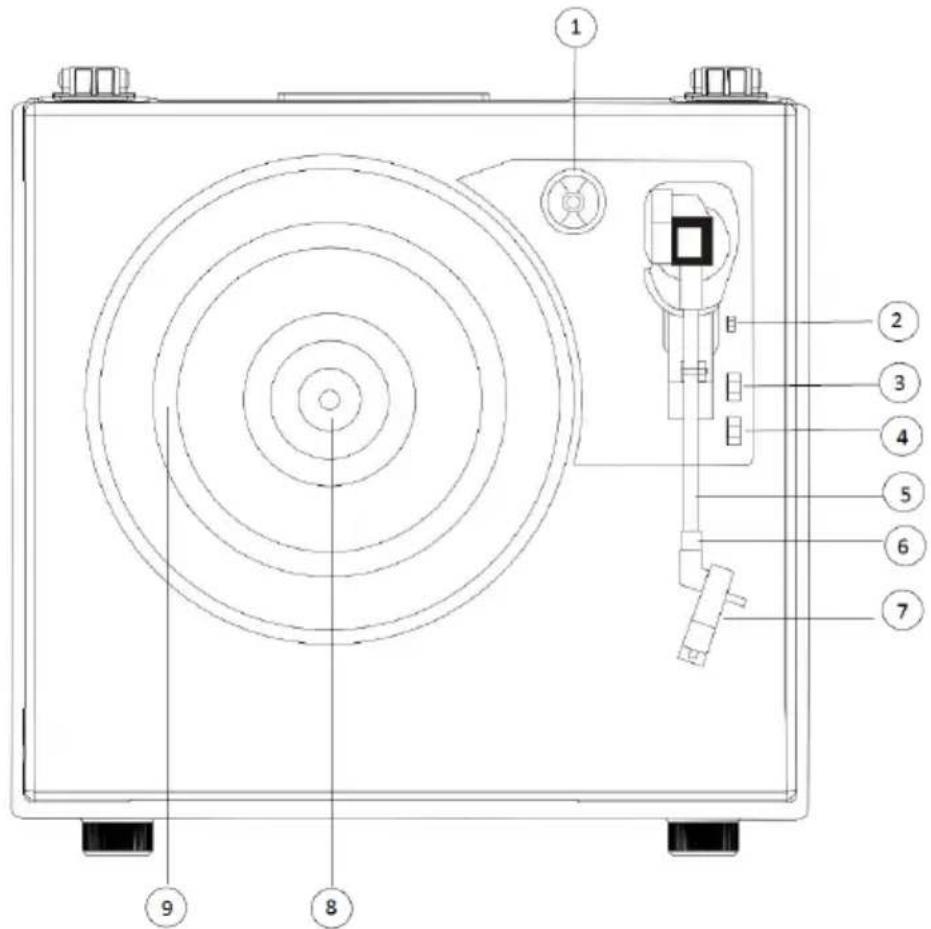

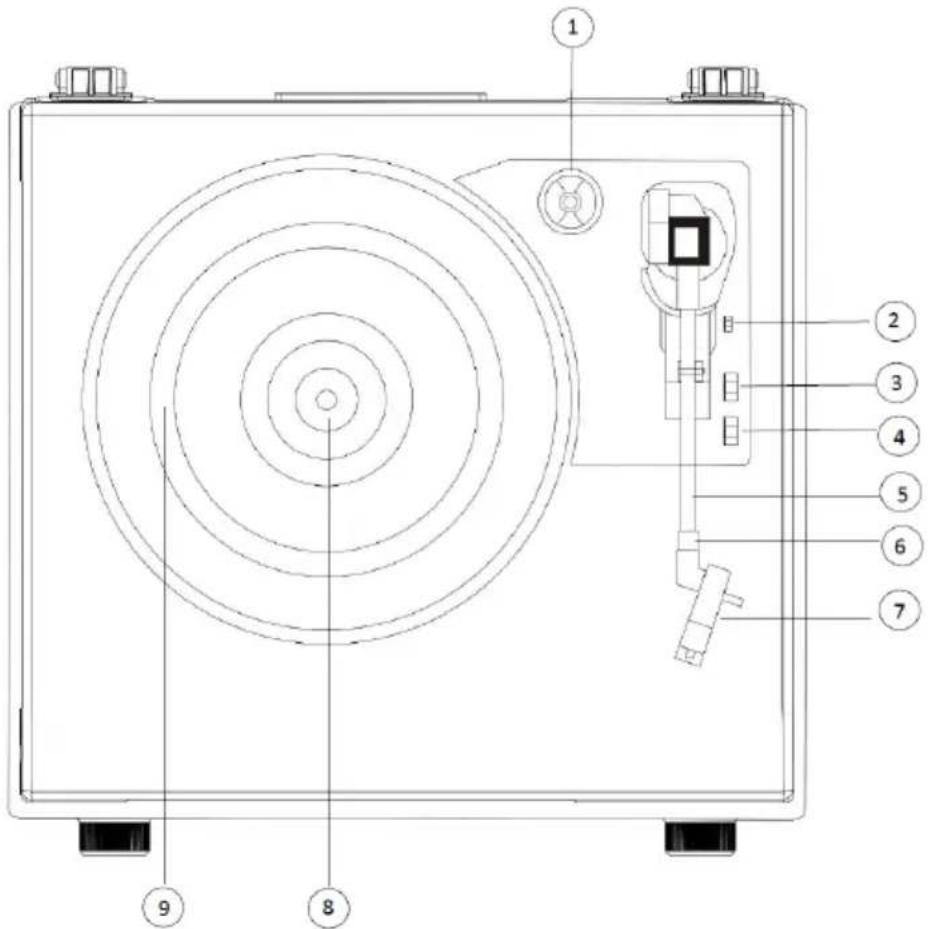

1. Removable Dust Cover

4. Pitch (speed) control knob

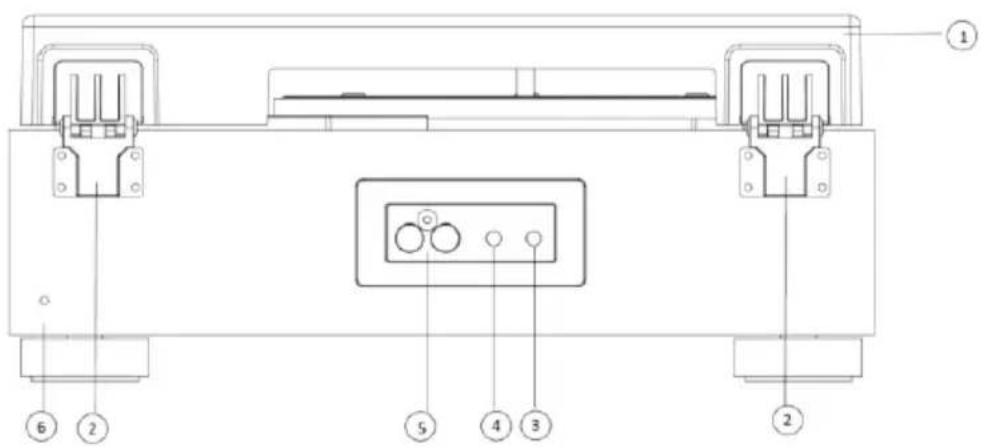

1. Speaker cable at External Speaker

SET UP An AC/DC adaptor with an output of 12V DC 2.0A is included with this Turntable system with Bluetooth reception and Wooden Speakers. The adaptor is required for operating the unit. Connect the speaker cables from each speaker to the back of the unit Note: The external speaker cables are color coded, the cable with the red connector should be put in the red hole and the white one in the white hole. Extend the antenna at the back of the unit to get the best DAB/FM reception. Firmly and securely insert the DC plug of the adaptor to the DC IN Jack on the back of the unit. Plug the adaptor’s AC plugs into a power outlet rated at 220-240V AC~ 50 Hz. The turntable system would be at standby mode with display ON. The system will get the time/date information from the air. If success, the display would show the time and date information, you can press the Functional knob to show the weekday at the display. You can also set the date and time manually. (Refer to SYSTEM SET UP section) Remark: To avoid Larsen effect or Feedback noise, you can do the following:

1. Put your speakers at minimum distance of 60 cm or more from your turntable

2. Let the dustcover open when you play a record at higher sound volume

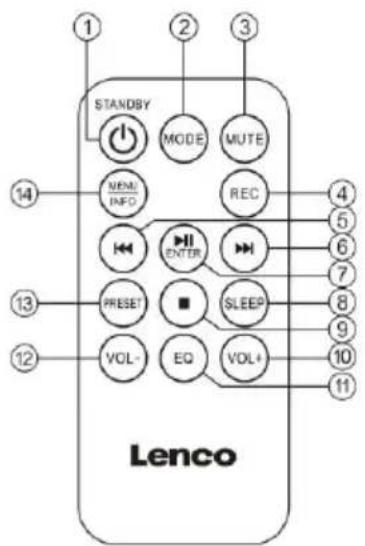

Battery installation (Remote Control):

1. First time use use the remote

Remove the plastic protected sheet

2. Replacing battery (Lithium CR2025)

- Pull battery out of battery compartment. - Insert new battery. - Close cover. CAUTION! - Remove battery when it has been depleted. - Batteries contain chemical substances, dispose of them properly and avoid expose to excessive heat such as sunshine, fire or the like - Danger of explosion if battery is incorrectly replaced. - Replace only with the equivalent or same type.8

1. POWER ON AND MODE SELECTION

Turn on the unit by pressing the STANDBY/VOLUME Knob or standby key at remote control. The default mode would be DAB mode at the first time power ON.

The default mode of the system would be DAB at the first time ON. You can also press the MODE key at the front panel or remote control to select DAB mode. The system would go to automatic scanning at the first time switch to DAB mode. User can also do the below steps for automatic tuning or manual tuning. Automatic Tuning

1. Long press MENU/INFO key at the front panel of the system or remote control

2. The display menu would show “Station scan”, or you can rotate Functional knob at the front panel or

|<</>>| at remote control to select it.

3. Press Functional knob at the front panel or ENTER at remote control to enter Station Scan menu.

4. The display menu would show “Full scan”, or you can rotate the Functional knob at the front panel or

|<</>>| at remote control to select it.

5. Press Functional knob at the front panel or ENTER at remote control to start the scanning.

1. Press MENU/INFO key at the front panel of the system or remote control

2. The display menu would show “Station scan”, or you can rotate Functional knob at the front panel or

|<</>>| at remote control to select it.

3. Press Functional knob at the front panel of the system or ENTER at remote control to enter Station Scan

4. Rotate the Functional knob at the front panel or |<</>>| at remote control to select “Manual tune”

shown at the display.

5. Press Functional knob at the front panel or ENTER at remote control to enter Manual tuning.

6. Rotate the Functional knob at the front panel or |<</>>| at remote control to tune manually the desired

station, then press Functional knob at the front panel or ENTER at remote control to select the tuning. Radio Data System Informations During DAB working mode, press the MENU/INFO key at the front panel or remote control to display the radio station information.

3. FM RADIO OPERATION

Turn on the unit by pressing the STANDBY/VOLUME Knob or standby key at remote control. Press the MODE key at the front panel or remote control to select FM mode. Automatic Full Scan tuning

1. During FM mode, long press the functional knob at the front panel or ENTER key at the remote control,

display would show Full Scan menu

2. Rotate the Functional knob at the front panel or |<</>>| at remote control to select “Yes”

3. Press the Functional Knob at the front panel or >||/ENTER key at the remote control.

4. Full scan would be started, the FM stations would be stored at FM station list.

5. You can recall the stored FM station list by long press the PRESET key at the front panel or remote control.

6. The stored station would be shown at menu, rotate the Functional knob at the front panel or |<</>>| at

remote control to select the desired station you want to play.9 Automatic Station Scan tuning

1. During FM mode, Pess the functional knob at the front panel or ENTER key at the remote control, display

would show Station Scan menu.

2. Rotate the Functional knob at the front panel or |<</>>| at remote control to select “Yes”

3. Press the Functional Knob at the front panel or >||/ENTER key at the remote control. Auto scan would be

started to next station.

4. You can also start this function by long press the |<</>>| at remote control.

Manual Tuning You can also manual tune the FM frequency by rotating the Functional knob at the front panel or press the |<</>>| at remote control. Radio Data System Informations During FM working mode, press the MENU/INFO key at the front panel or remote control to display the radio station information. Audio setting Stereo reception is possible when turned FM station is broadcasting in stereo.

1. Press and hold the MENU/INFO key at the front panel or remote control, display menu would show

2. Press the Functional Knob at the front panel or >||/ENTER key at the remote control to select the menu

3. Rotate the Functional knob at the front panel or |<</>>| at remote control to select “Stereo allowed” or

Forced mono” in this menu.

4. Press the Functional Knob at the front panel or >||/ENTER key at the remote control to confirm the

1. When selected the desired station, press the PRESET key at the front panel of the system or at remote

control to access preset menu.

2. The display menu show, "#: (Empty)". Rotate the Functional knob at the front panel or |<</>>| at remote

control to select the desired preset number, then press and hold the Functional knob at the front panel or ENTER key at the remote control to store the station. The display menu would show “Preset # stored”. Note: # is number of preset station, from 1 to 20 Play Preset Memory DAB/FM

1. To play the stored station, press the PRESET key at the front panel of the system or at remote control to

2. Rotate the Functional knob at the front panel or |<</>>| at remote control to select the stored preset

station you want to play.

3. Press the Functional knob at the front panel or ENTER key at the remote control to play the stored prest

An external device with Bluetooth Connectivity like a smartphone or tablet be wirelessly connected to this Turntable using the Bluetooth function.

1. Turn on the unit by pressing the STANDBY/VOLUME Knob or standby key at remote control

2. Press the MODE key at the front panel or remote control to select Bluetooth mode, the display would

3. The system would go to Bluetooth pairing mode, the display would show “Connecting”

4. The first time you use your Bluetooth device with the system, you will need to pair them together.

5. Turn your external device’s Bluetooth Setting ON. Wait a moment, then look for the Bluetooth pairing

name “Lenco MC-160”. If your device asks for a password (depending on the device manufacturers, model, and software version), then enter digits “0000” and press OK.

6. Select the Bluetooth pairing name, to connect the unit. Once connected, the Display would show

7. You are now connected to your external device via Bluetooth

8. Rotate the Standby/Volume Knob to adjust the sound level and adjust the volume control at your external

9. Rotate the Functional Knob at the front panel or press |<</>>| keys at the remote control to select

previous/next songs.

10. Press the Functional Knob at the front panel or >||/ENTER key at the remote control to pause/play the

11. Long press the Functional Knob at the front panel or >||/ENTER key at the remote control to disconnect

the Bluetooth connection for other device connect, you can also short press again to re-connect the last device. “This product has a bluetooth reception function, you can not transmit any bluetooth sound with it: this means that you can receive wirelessly a bluetooth sound signal from an external source like a smartphone.”

Listen to USB The system can play MP3 songs file by below steps:

1. Turn on the unit by pressing the STANDBY/VOLUME Knob or standby key at remote control

2. Press the MODE key at the front panel or remote control to select USB mode, the display would

3. Connect the USB flash stick (FAT32, up to 32GB) into the USB jack at the front panel, the display would

4. The system would start playback automatically

5. Press the Functional Knob at the front panel or >||/ENTER key at the remote control to Pause/Play the

6. Rotate the Functional Knob at the front panel or |<</>>| keys at the remote control to select

previous/next songs.

7. Long press the Functional Knob at the front panel or >||/ENTER key at the remote control to stop the

song playback. You can also use the STOP key at the remote control to do that. Recording to USB The system can record the audio from DAB/FM/AUX/Phono mode to the USB flash stick by below steps:

1. Turn on the unit by pressing the STANDBY/VOLUME Knob or standby key at remote control.

2. Press the MODE key at the front panel or remote control to select DAB, FM, Aux or Phono mode.

3. Start the playback (refer to corresponding mode section)

4. Connect the USB flash stick (FAT32 up to 32GB) into the USB jack at the front panel.11

5. Press the REC key at the front panel or remote control to start the recording, the REC logo would be

shown at the display

6. Press the REC key again to stop the recording. The REC logo would turn OFF. The system would

automatically play the recorded file. The audio would be stored as the last track at the USB flash stick.

1. Raise the dust cover

2. Turn on the unit by pressing the Standby/Volume Knob or standby key at remote control.

3. Press the MODE key at the front panel or remote control to select Phono mode.

4. Place a record on the turntable platter and set the player speed to match the record speed.

Note: When playing a single (a 45 rpm record) and/or records with large centre holes, use the 45 rpm adaptor.

5. Remove the needle cartridge protective cover

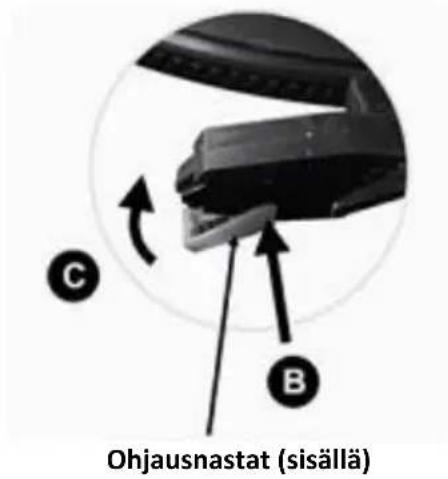

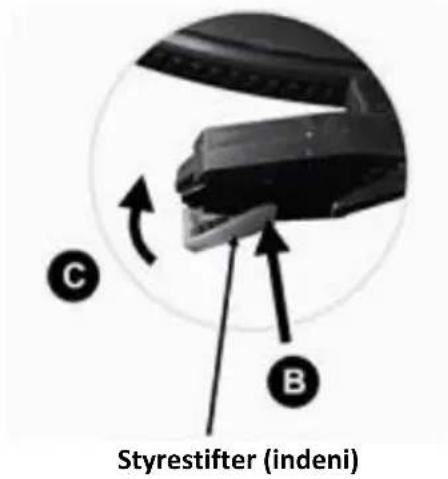

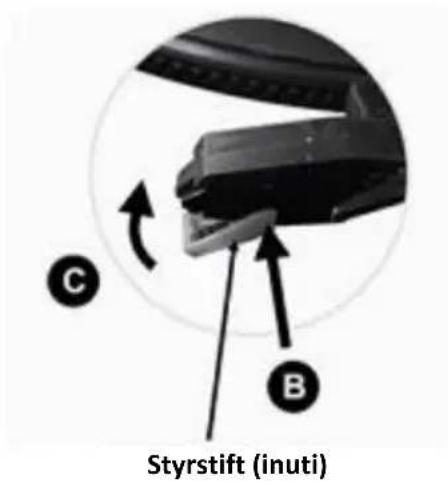

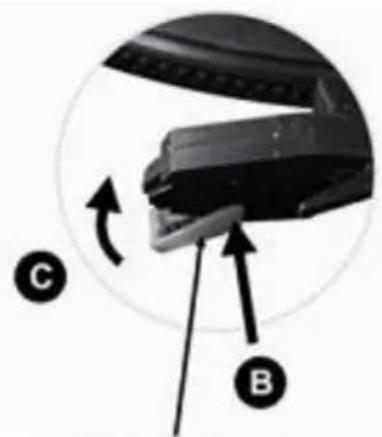

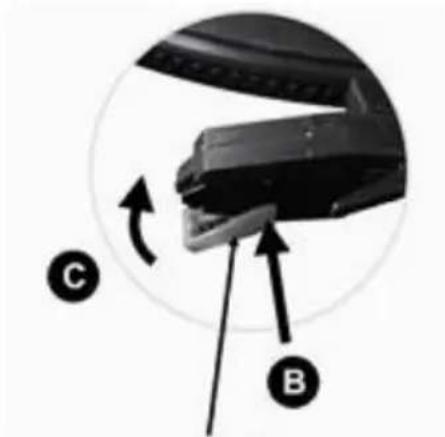

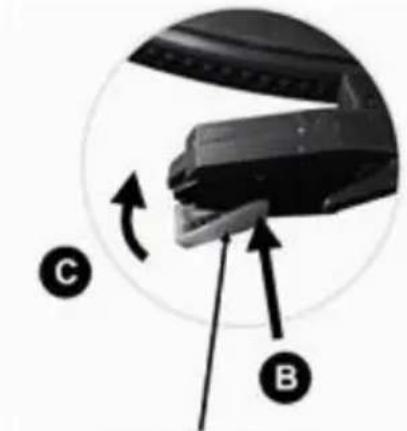

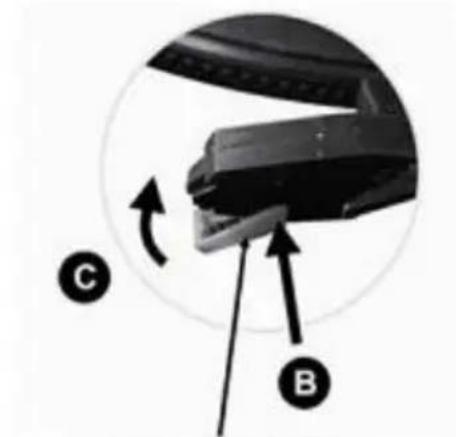

Unlock the tone arm lock from the tone arm rest. Push the lift lever backward, the tone arm will gently rise up. Gently move the tone arm to the desired position over the record and the turntable platter will begin to rotate when the arm is moved towards it If Auto Stop Control Switch in ON. Release the tone arm onto the turntable by pushing the lift lever forward and the vinyl record will begin to play. If the Auto Control Switch is turned ON, the record will stop automatically when finished. If Auto Stop Control Switch is turned OFF, the record will NOT stop automatically when finished; you must push the lift lever backward to raise the tone arm and place it back in the rest and then turn off the power to stop the turntable from spinning. Remark: AUTO STOP function applies to most 33RPM vinyl records. However, for very few vinyl records, it will stop when it does not come to the end, or it will not stop when it comes to the end when AUTO STOP is ON. NOTE: If your record stops before the last track finishes, set the AUTO STOP switch to OFF. Your record will now play to the end, but you will have to stop the turntable rotation manually. NOTE: Depending on the record length, AUTO STOP may be enabled before the end of the recording. Do not rely on AUTO STOP alone to turn off playback.

1. Using a 3.5mm Stereo cable (not included), connect an external audio device to the AUX IN socket at the

2. Turn on the unit by pressing the STANDBY/VOLUME Knob or standby key at remote control.

3. Press the MODE key at the front panel or remote control to select Aux mode, the display would show

4. Rotate the Standby/Volume Knob or VOL - & VOL + to adjust the volume and use the controls on the

external audio device to control the Playback/Volume functions

You can set the sleep timer for the system such that it can go to standby mode after certain of time by below steps:

1. Turn on the unit by pressing the STANDBY/VOLUME Knob or standby key at remote control.12

2. Press the SLEEP key at the front panel or remote control to select sleep timer menu

3. Press the SLEEP key/Functional Knob at the front panel or SLEEP key/Enter key at remote control to select

Set up the system by below steps:

1. Turn on the unit by pressing the STANDBY/VOLUME Knob or standby key at remote control.

2. Press and hold the MENU/INFO key at the front panel or remote control to select System menu. For DAB

and FM mode, you may need to Rotate the Functional Knob at the front panel or |<</>>| keys at the remote control to access it.

3. Rotate the Functional Knob at the front panel or |<</>>| keys at the remote control to select the setup

4. Press the Functional Knob at the front panel or >||/ENTER key at the remote control to enter the menu or

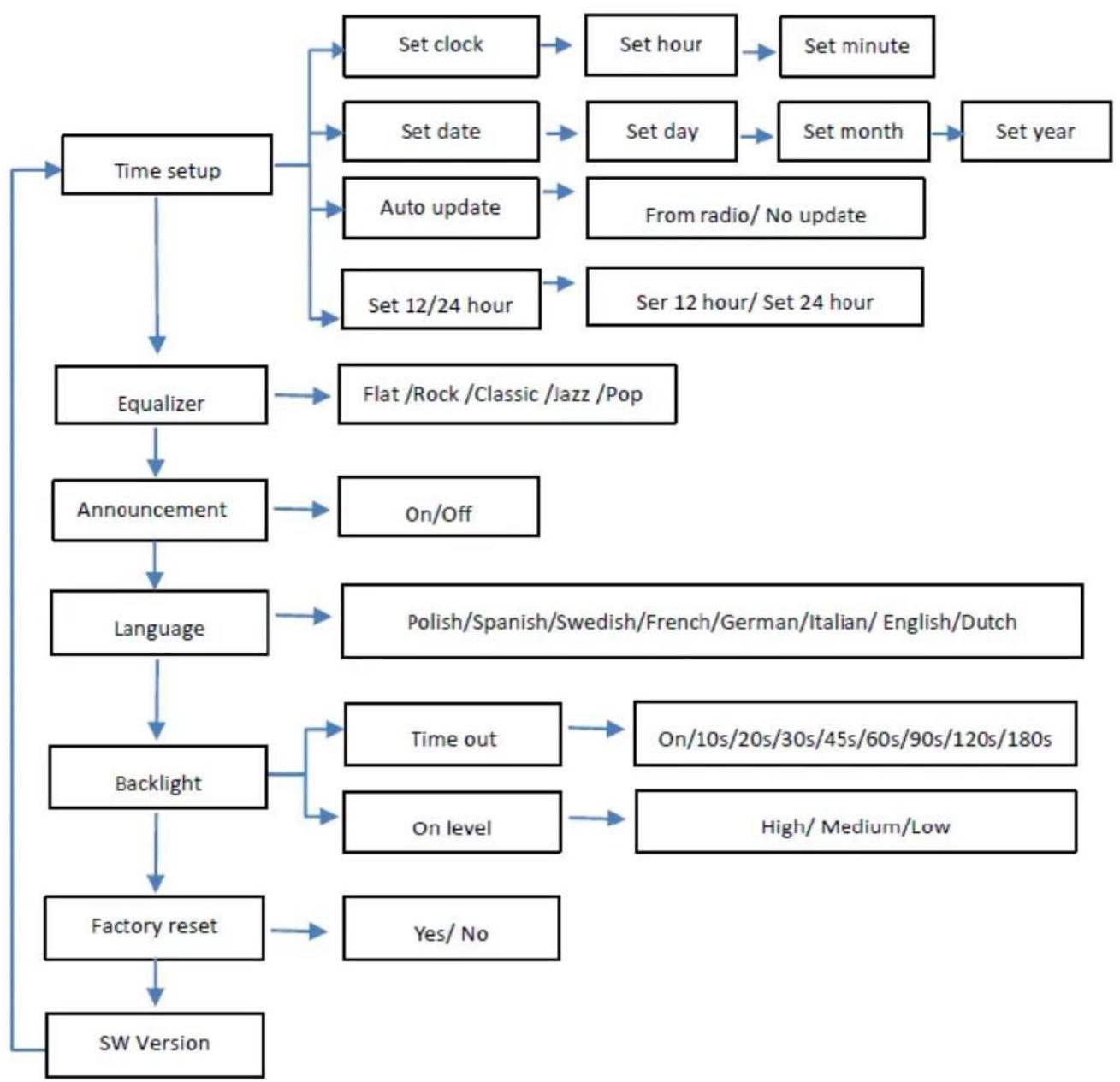

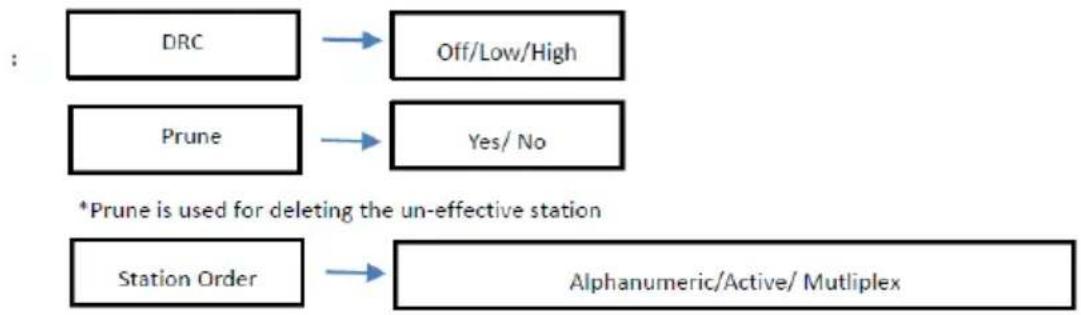

enable the setup item shown below: System set up at all mode:13 System set up available at DAB mode only Automatic stand-by for power saving (CE regulation): The MC-160 will go automatically in standby if there is no audio signal (record or Bluetooth) during ~ 10 minutes at below situation:

1. USB mode: Playback under pause or stop

2. Bluetooth mode: no connection, playback under pause

3. AUX mode: no incoming signal

4. Phono mode: Turntable stop rotation

5. Any mode: Volume level is 0

You can reactivate the system by pressing the STANDBY/VOLUME Knob or standby key at remote control.

HOW TO REPLACE THE NEEDLE

To replace the needle, please refer to the instructions below. Removing the needle from the cartridge

1. Place a screwdriver at the tip of the stylus and push downward as shown in direction “A”.

2. Remove the stylus by pulling the stylus forward and pushing downward.

Installing the Stylus

1. Hold the tip of the stylus and insert the stylus by pressing as shown in direction “B”.

2. Push the stylus upward as in direction “C” until the stylus locks into the tip position.

NOTES We advise you to clean your records with an anti-static cloth to gain maximum enjoyment from them. We would also point out that for the same reason your stylus should be replaced periodically (approximately every 250 playback hours) Guide Pins (inside)14 Lenco

Frequency Range 87.5~108MHz USB

Power supply adaptor Manufacturer: SHENZHEN SHI GUANGKAIYUAN TECHNOLOGY LTD Model number: GKYZD0200120EU Use only the power supply listed in the user instructions15 Information Value andprecision Manufacturers name or trade mark, commercial registration and address

SHENZHEN SHI GUANGKAIYUAN TECHNOLOGY LTD

2 floor, 41 TianSheng Road, TianLiao village, GongMing Street, Guangming, Shenzhen, Guangdong, P.R.China Model Identifier GKYZD0200120EU Input voltage 100-240V Input AC frequency 50-60Hz Output voltage DC 12V Output current

Output Power 24W Average active efficiency 86.66% Efficiency at low load (10%) 84.42% No load Power consumption

Guarantee Commaxx B.V. offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Commaxx B.V. directly. Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires. This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

Disclaimer Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.16 Disposal of the Old Device

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

DECLARATION OF CONFORMITY

Hereby, Commaxx B.V. declares that the radio equipment type [Lenco MC-160] is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://commaxx-certificates.com/doc/mc-160_doc.pdf Type RF Frequency range (MHz) Power (dBm) Bluetooth 2402-2480 < 6 DAB 174-240

WARNING WAARSCHUWING25

KEEP OUT OF REACH OF CHILDREN

• Prune is used for deleting the un-effective station

KEEP OUT OF REACH OF CHILDREN

• Prune is used for deleting the un-effective station

KEEP OUT OF REACH OF CHILDREN

• Prune is used for deleting the un-effective station

KEEP OUT OF REACH OF CHILDREN

KEEP OUT OF REACH OF CHILDREN

• Prune is used for deleting the un-effective station

KEEP OUT OF REACH OF CHILDREN

• Prune is used for deleting the un-effective station

KEEP OUT OF REACH OF CHILDREN

• Prune is used for deleting the un-effective station

KEEP OUT OF REACH OF CHILDREN

• Prune is used for deleting the un-effective station
