Product type	Handheld circular saw
Brand	Prowork
Model	PHS 1200/1
Mains voltage	230 V ~ 50 Hz
Power consumption	1200 W
No-load speed	4500 min⁻¹
Cutting depth at 0°	55 mm
Cutting depth at 45°	38 mm
Blade diameter	160 mm
Blade bore	20 mm
Blade thickness	2.4 mm
Sound pressure level	96 dB(A)
Sound power level	107 dB(A)
Vibration	< 2.5 m/s²
Weight	3.6 kg
Double insulation	Yes (II/回)
Extraction connection	Yes
Parallel guide	Included
Bevel adjustment	0° to 45°
Pivoting protection guard	Yes
Additional handle	Yes
Warranty	2 years
Spare parts available	Brushes, switch

Frequently Asked Questions - PHS 1200/1 Prowork

How to change the blade of the Prowork PHS 1200/1 circular saw?

Before any intervention, unplug the saw. Open the pivoting protection guard and lock the blade with the pin wrench. Loosen the center screw, remove the outer flange and the old blade. Clean the flange, insert the new blade observing the rotation direction (arrow on the guard), then retighten the flange and screw. Ensure concentricity before closing the guard.

How to adjust the cutting depth?

Loosen the base plate locking screw. Pivot the base plate downward and adjust the desired depth using the scale. The tooth tip should protrude about 2 mm from the wood. Then tighten the locking screw.

How to make a bevel cut (45°)?

Loosen the base plate locking screws. Adjust the base plate angle between 0° and 45° according to the scale, then tighten the screws. For a 45° cut with the parallel guide, position it on notch B. Make a test cut on a scrap piece before cutting the final workpiece.

How to use the parallel guide?

Loosen the locking screw of the guide. For a 90° cut, place the guide on notch A and adjust the width according to the scale. For a 45° cut, use notch B. Consider the saw blade width (2.4 mm) for measurement. Tighten the screw and make a test cut.

What are the essential safety instructions?

Always wear ear protection and safety glasses. Check that the pivoting protection guard works correctly before each use. Never lock the guard in the open position. Unplug the saw before any adjustment or blade change. Use blades in good condition, without cracks. Do not force the saw feed.

How to connect a vacuum cleaner?

The saw is equipped with a dust extraction connection on the protection guard. Connect a suitable vacuum cleaner to this connection to limit dust during sawing. Ensure the connection is secure and complies with regulations.

What regular maintenance is necessary?

Keep the motor ventilation slots clean by blowing them with compressed air. If excessive sparks appear, have the carbon brushes checked by a specialized workshop. Clean the saw with non-caustic products. Store it in a dry place.

Where can I order spare parts?

Spare parts (brushes, switch) are available from the after-sales service. To order, specify the appliance type (PHS 1200/1), the article number, and the spare part number (e.g., brushes: 43.308.51.01.002). Contact your dealer or the after-sales service indicated in the manual.

What is the power and speed of the saw?

The Prowork PHS 1200/1 saw has a power consumption of 1200 watts and a no-load speed of 4500 rpm. This enables clean cuts in wood and plastics.

Which saw blades are compatible?

The saw accepts blades of 160 mm diameter with a 20 mm bore and 2.4 mm thickness. Use only blades in good condition, without cracks, and observe the rotation direction indicated on the blade and guard.

USER MANUAL PHS 1200/1 Prowork

Labeled diagram of a mechanical tool with numbered parts for identification

Gehörschutz Protection acoustique Gehoorbescherming Ear muffs Dispositivo proteggiudito Höreværn Ochrona stuchu Zajcsökkentő füllvédő Gusniki Maska za disanje Средства защиты органов слуха Augenschutz Protection des yeux Oogbescherming Goggles Dispositivo proteggiocchi Öjenværn Ochrona wzroku Szemvédő Zaštitne naócale Средства защиты органов зрния Atomschutz Protection des voies respiratoires Adembescherming Dust mask Dispositivo proteggivie respiratorie Andedrætsværn Ochrona dróg oddechowych Légzésvédő Maska za disanje Средства защиты органов дыхания

Gehörschutz Protection acoustique Gehoorbescheming Ear muffs Dispositivo proteggiudito Høreværn Ochrona stuchu Zajcsökkentő füllivedő Gušniki Maska za disanje Средства защиты органов слуха

Augenschutz Protection des yeux Oogbescheming Goggles Dispositivo proteggiocchi Öjenværn Ochrona wzroku Szemvédö Zaštitne naočale Средства защиты органов зрния

Atemschutz Protection des voies respiratoires Adembescherming Dust mask Dispositivo proteggivie respiratorie Ändedrætsvæm Ochrona dróg oddechowych Légzésvédő Maska za disanje Средства защиты органов дыхания

1. Beschreibung:

Mechanical device with labeled component '1' (no visible text or symbols on the device itself)

Close-up of a mechanical device with labeled component '1' (no readable text or symbols beyond label)

Labeled mechanical device diagram showing components 3 and 4 with numbered parts

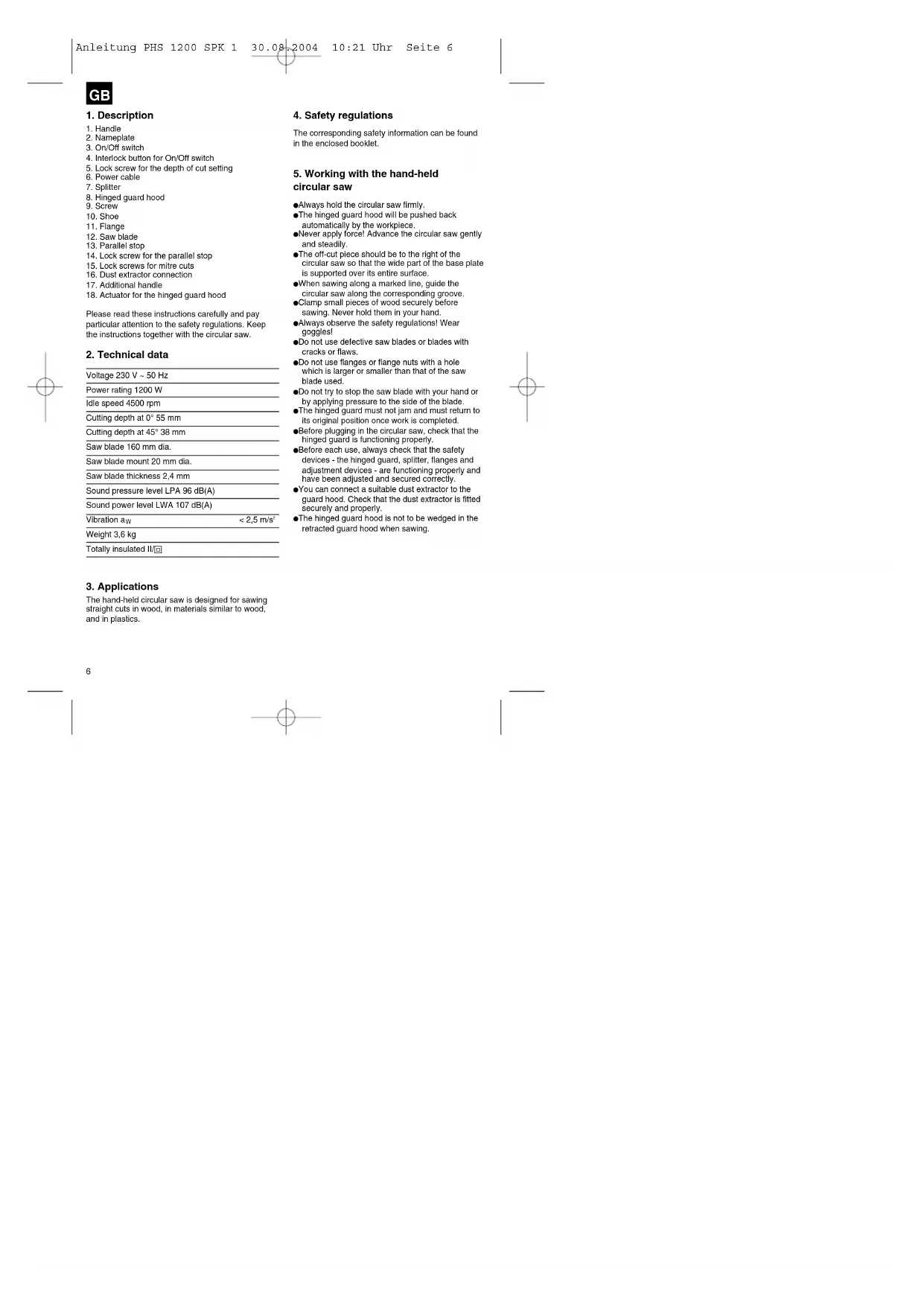

GB

1. Description

1. Handle
2. Nameplate
3. On/Off switch
4. Interlock button for On/Off switch
5. Lock screw for the depth of cut setting
6. Power cable
7. Splitter
8. Hinged guard hood
9. Screw
10. Shoe
    11 Flange
11. Saw blade
12. Parallel stop
13. Lock screw for the parallel stop
14. Lock screws for litre cuts
15. Dust extractor connection
16. Additional handle
17. Actuator for the hinged guard hood

Please read these instructions carefully and pay particular attention to the safety regulations. Keep the instructions together with the circular saw.

2. Technical data

Voltage 230 V \~ 50 Hz

Power rating 1200 W

Idle speed 4500 rpm

Cutting depth at 0° 55 mm

Cutting depth at 45" 38 mm

Saw blade 160 mm dia.

Saw blade mount 20 mm dia.

Saw blade thickness 2.4 mm

Sound pressure level LPA 96 dB(A)

Sound power level LWA 107 dB(A)

Vibration a _W < 2,5 m/s ^

Weight 3,6 kg

Totally insulated II/☐

4. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

5. Working with the hand-held circular saw

●Always hold the circular saw firmly.
●The hinged guard hood will be pushed back
automatically by the workpiece.
●Never apply force! Advance the circular saw gently and steadily.
●The off-cut piece should be to the right of the circular saw so that the wide part of the base plate is supported over its entire surface.
●When sawing along a marked line, guide the
circular saw along the corresponding groove.
●Clamp small pieces of wood securely before
sawing. Never hold them in your hand.
●Always observe the safety regulations! Wear goggles!
●Do not use defective saw blades or blades with cracks or flaws.
- Do not use flanges or flange nuts with a hole which is larger or smaller than that of the saw blade used.
●Do not try to stop the saw blade with your hand or
by applying pressure to the side of the blade
●The hinged guard must not jam and must return to its original position once work is completed.
●Before plugging in the circular saw, check that the hinged guard is functioning properly.
●Before each use, always check that the safety devices - the hinged guard, splitter, flanges and adjustment devices - are functioning properly and have been adjusted and secured correctly.
- You can connect a suitable dust extractor to the guard hood. Check that the dust extractor is fitted securely and properly.
●The hinged guard hood is not to be wedged in the retracted guard hood when sawing.

3. Applications

The hand-held circular saw is designed for sawing straight cuts in wood, in materials similar to wood, and in plastics.

GB

6. Maintenance

• Keep the cooling vents on the motor housing clean and unobstructed at all times. Blow out any dust and dirt at regular intervals.
  ●Have a specialist workshop check the carbon brushes in the event of excessive sparking.
  ●Wom carbon brushes are to be replaced only by a specialist workshop or by our Customer Service Centre.
• Keep the machine clean at all times.
  ●Never use any caustic agents to clean the plastic parts.
• If ever you discover any damage, consult the exploded drawing and parts list to determine exactly which replacement parts you need to order from our Customer Service Centre.

7. Ordering replacement parts

Please quote the following data when ordering replacement parts:
●Type of machine
●Article number of the machine
●Identification number of the machine
●Replacement part number of the part required

Replacement part Replacement part number

Carbon brush 43.308.51.01.002

Switch 43.308.51.01.001

Adjustment of the cutting depth

1. Release the lock screw.
2. Swing the shoe downwards.

3. Adjust the culling depth using the scale.
   The saw teeth must project approx. 2 mm out of the wood.

4. Tighten the lock screw.

Mechanical device with labeled component '1' (no visible text or symbols on the device itself)

Important! Wear car muffs and goggles. A B 2 1

Parallel cuts

1. Release the lock screw 1

2. For 90° cuts, adjust the parallel stop 2 using the scale on groove A. for 45° cuts adjust the parallel stop 2 using the scale on groove B. Observe the saw blade width.

3. Tighten the lock screw.

Important!

First make a trial cut.

Close-up of a mechanical device with a clamping tool inserted, showing no visible text or symbols

Adjustment of the shoe (cutting angle)

1. Release the lock screw 1
2. Adjust the shoe to the desired angle between 0 and 45°
3. Tighten the lack screw 1.

GB

Important!

Pull out the plug before

making any changes to the circular saw!

Switching on

Before pressing the On/Oft

switch, check that the saw blade

is properly fitted, that the moving

parts run smoothly and that the

clamping screws are tight.

Scanning Shorts 2 1 4

Changing the saw blade

1. Open the hinged guard hood 1 and hold.
2. Use the face spanner 2 to stop the saw blade from moving.
3. Undo the screw
4. Remove the flange 4 and the saw blade by dropping down
   and out.
5. Clean the flange and insert a new blade. Note the direction
   of rotation (see arrow on the guard hood).
6. Tighten the screw and check for concentricity.

Switching on and off

To switch on: Press the interlock button 3 and the switch 4

simultaneously

To switch off. Release the interlock button and the switch.

Mechanical device with labeled parts (3 and 4), no visible text or symbols beyond labels

F

1. Description:

Mechanical device with labeled component (1), no visible text or symbols on the device itself

Close-up of a mechanical tool with a labeled component (1), showing no visible text or symbols.

Close-up of a hand using a power cutter on a workpiece, with numbered callouts indicating parts 1, 2, and 4.

Changement de la lame de scie

Labeled mechanical device diagram showing components 3 and 4 with numbered parts

NL

1. Beschrijving:

Mechanical device with labeled component (1), no visible text or symbols on the device itself

Lct op

Gehoorbescherming en beschermbril dragen

Mechanical assembly diagram showing a component with labeled parts A, B, 1, and 2 (no readable text or symbols beyond labels)

Parallelsnede

Close-up of a mechanical tool with a circular head and clamping mechanism (no visible text or symbols)

Zaagschoen verzetten (schuln zagen)

Photo of a hand operating a power cutter with numbered parts labeled 1, 2, and 4

Zaagblad vervangen

Labeled mechanical device diagram showing components 3 and 4 with numbered parts

Mechanical device with attached components and labeled part (1), no visible text or symbols on the device itself.

Attenzione!

Close-up of a mechanical device with a clamping tool inserted, showing no visible text or symbols.

Photo of a hand operating a saw blade with numbered parts labeled 1, 2, and 4

Mechanical device with labeled parts (3, 4) and wiring, no visible text or symbols beyond labels

DK

1. Beskrivelse:

Mechanical device with labeled component '1' (no visible text or symbols on the device itself)

Vigtigt!

Close-up of a mechanical tool with a circular head and clamping mechanism (no visible text or symbols)

Close-up of hands operating a metal cutting machine with numbered parts (2, 1, 4) visible, no text or symbols on the machine itself.

Skift af savklinge:

Labeled mechanical device diagram showing components 3 and 4 with numbered parts

PL

1. Opis

Mechanical device with labeled component (1), no visible text or symbols on the device itself

Close-up of a mechanical clamp or clamping device with a labeled component (no visible text or symbols)

sq micro dokvsc 2 1 4

Labeled mechanical device diagram showing components 3 and 4 with numbered parts

H

1. Leírás:

Mechanical device with attached components and labeled part (1), no visible text or symbols on the device itself.

Figyelem!

Close-up of a mechanical tool with a circular component and clamping mechanism (no visible text or symbols)

Mechanical device with labeled parts (3 and 4), no visible text or symbols on the device itself

HR

1. Opis:

1. ručka

2. označna pločica

3. prekidaō

4. tipka za blokiranje prekidača

5. vijak za fiksiranje namještene dubine rezanja

6. priključni kabel

7. razdvojnik

8. preklopni zaštitni poklopac

9. vijak

10. podnožje pile

11. prirubnica

12. list pile

13, paralelni graničnik

1. vijak za fiksiranje paralelnog graničnika

2. vijci za fiksiranje za rezanje pod kutom

3. priključak za usisavanje prašine

4. dodalna ručka

5. stremen za pokretanje pokretnog zaštitnog

poklopca

Molimo da pažljivo pročitate naputak za upotrebu i da osobito uvažite sigurnosne upute. Čuvajte naputak za upotrebu zajedno s kružnom pilom.

2. Tehnički podaci:

Napajanje: 230 V - 50 Hz

Primljena snaga: 1200 Watt

Broj okretaja pri praznom hodu: 4500 min-1

Dubina rezanja pri 0°: 55 mm

Dubina rezanja pri 45°: 38 mm

List pile 160 mm R

Prihvat lista pile: 20 mm R

Debljina lista pile 2,4 mm

Razina tlaka zvuka LPA 96 dB(A)

Razina snage zvuka LWA 107 dB(A)

Vibracija a w < 2,5 m/s2

Težina 3,6 Kg

Zaštitno izolirana II/☐

4. Sigurnosne upute:

Odgovarajuće sigurnosne upute pronaći ćete u priloženoj knjižici.

5. Rad s ručnom kružnom pilom

Mechanical device with labeled component (1), no visible text or symbols on the device itself

Close-up of a mechanical clamp or clamping device with no visible text or symbols

Close-up of hands operating a mechanical device with numbered parts (2, 1, 4) visible, no text or symbols present.

Labeled mechanical device diagram showing components 3 and 4 with numbered parts

RUS

Mechanical device with attached components and labeled part (1), no visible text or symbols on the device itself.

RUS

Close-up of a mechanical cutting tool with a circular cutter and clamping mechanism (no visible text or symbols)

Mechanical device with labeled parts (3 and 4), no visible text or symbols on the body itself

Close-up of hands using a power cutter on a cutting board, with numbered callouts indicating parts 1, 2, and 4.

Замена полотна пилы

GB EC Declaration of Conformity

The undersigned declares in the name of the company that the product is in compliance with the following guidelines and standards.

The image contains no discernible text or characters.

97/23/EG

X

89/336/EWG

The image contains no text or characters.

90/396/EWG

[NO TEXT]

[Non-Text]

The image contains no text or characters.

[Non-Text]

89/686/EWG

87/404/EWG

R&TTED 1999/5/EG

2000/14/EG: L_WM dB(A); L_WA dB(A)

ISC GmbH

Eschenstraße 6

D-94405 Landau/Isar

or archives: 4330850-04-4141800-E

EN 60745-1; EN 60745-2-5; EN 61000-3-2; EN 61000-3-3; EN 55014-1; EN 55014-2

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

Info-Tel. [phone] • Telefax 0180-5 835 830

The reprinting or reproduction by any other means, in whole or in part of documentation and papers accompanying products is permitted only with the express renewal at ISC GmbH.

F

The product described in these instructions comes with a 2-year warranty covering defects. This 2-year warranty period begins with the passing of risk or when the customer describes the product. For warranty claims to be accepted, the product has to receive the correct maintenance and be put to the proper use as described in the operating instructions.

Your statutory rights of warranty are naturally unaffected during these 2 years.

This warranty applies in Germany, or in the respective country of the manufacturer's main regional sales partner, as a supplement to local regulations. Please note the details for contacting the customer service center responsible for your region or the service address listed below.

NOK GARANTIBEVIS

I Illeske st. at vor produkt skulle være lejbehættel, yder vi 2 åre gersni på del I valachningen navrsta produkt. Garantborden på 2 år begyder, när risiksen går over på kaber, eller när produkt avordrages till kunden.

For at some stalle krav på gerantien er del en landsetning, at produktet er hivest amsentig vedgelkritt i henhold til belperingszandringens anvisering samt at produktet er hivest amendt komkt i overnastammelas med datafamål.

Unit 5 Morocco Wharf

Twelve Quays

Burkenhead, Wirral

CH 41 1NG

Tel. [phone], Fax [phone]

© Einbell Portugal Ltda

Anariado 2109

Pue do Alicia 725 Apostada 3150

R. 4105.017 Arozele VNG

Tel [phone] Fax 022

1. SEE NOT TO SEE OFF

① Einhell Italia s.r.l.

Via Marconi, 16

©Einbell Hungary Ltd.

Vairda Poler u. 12

H-1089 Budapest

Tel. [phone], Fax [phone]

TR Samak

makina licatel un sanavi ld. eli.

Alay Ceema mah Yasemin Sek. No: 19

Alay Oceine Han. Rasemini S TR 34843 Maltene - Istanbul

Tel: [phone] Fax: 0216

TBI: 0216-4594869, PBX: 0216-4129325

SK Vobler a.r.o

Zupna 4

SK-95301 Zlate Moravce

Tel. [phone], Fax [phone]

©Turkeslan

Valtech S.I.S. Rd. Lower Category 24.06

Ed. Lasal Latargu 24-26 Sc. A AP 9 Sarlar 1

BO-75121 Bucureati

Tel. [phone] Fax [phone]

©Poker Plus SBO

Areal wu Bechovice

Burlave 15 B

CZ-19011 Pr

BGElew GmbH

©DiAn. Mavrolidopoulos S.A.

Technical & Commercial Company

1. Papastretou & Askliniou Str

GR 18545 Pirăus

Tel [phone], Fax [phone]

480Bermes

Altutvevskoe shosse, 2A

BUS-127273 Moscow

Tel [phone], Fax [phone]

H. Dibits

Molalo et. 23

LT-02190 Vilnius

Tel [phone] Fax [phone]

©DAS Baltoi

Boju aley

Haasleva valid

EE-62102 Tart

Tel [phone], Fax [phone]

Halei Trading Co. LLC

POB 9262, Nakheel Rd, Deira. Shop No. 15

UAE-Duba

Tel. [phone], Fax [phone]

⑱Albors Abzar Co. Ltd.

No. 111, Baslan Passage, Imam Khomeni Ave.

IR-11146 Teheran

Tel [phone]. Fax [phone]

FIS d.o.o

Poslovni Centar 96

BA-87000 Vitez

Tel [phone], Fax [phone]

©MANIMEX d.o.o

Uzicke republike 93

SCG-31000 Uzice

Tel [phone]. Fax [phone]

⑳Eurasia Industrial and Automotive Supply

Bessemer Str.

Duncanville

ZA-Vereenlging 1930

Tel [phone], Fax [phone]

EH 06/2004
