HSJ 1300 - Saw Prowork - Free user manual and instructions

Product type	Circular hand saw
Brand	Prowork
Model	HSJ 1300
Supply voltage	230 V ~ 50 Hz
Power input	1300 W
No-load speed	4500 min⁻¹
Cutting depth at 0°	65 mm
Cutting depth at 45°	46 mm
Blade diameter	185 mm
Blade arbor	16 mm
Blade thickness	2.4 mm
Sound pressure level LPA	91 dB(A)
Sound power level LWA	104 dB(A)
Vibration	1.7 m/s²
Weight	4.2 kg
Dimensions (L x W x H)	34 x 24 x 24 cm
Double insulation	Yes (Class II)
Swivel guard	Yes
Riving knife	Yes, adjustable
Parallel guide	Yes
Dust extraction connection	Yes
Additional handle	Yes

Frequently Asked Questions - HSJ 1300 Prowork

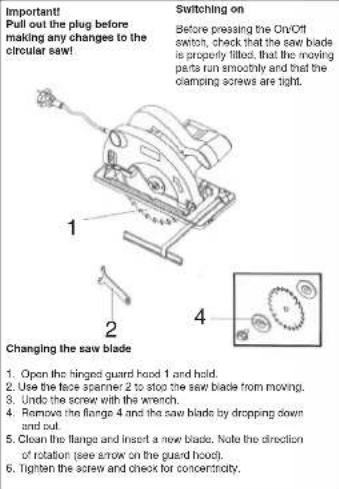

How to change the saw blade?

Unplug the saw. Open the swivel guard and hold it. Lock the blade with a socket wrench, loosen the screw, remove the outer flange and the blade. Clean the flange, mount the new blade respecting the direction of rotation (arrow on the guard). Tighten the screw. Check proper operation.

What are the noise levels of this saw?

The sound pressure level LPA is 91 dB(A) and the sound power level LWA is 104 dB(A). Wear ear protection to protect your hearing.

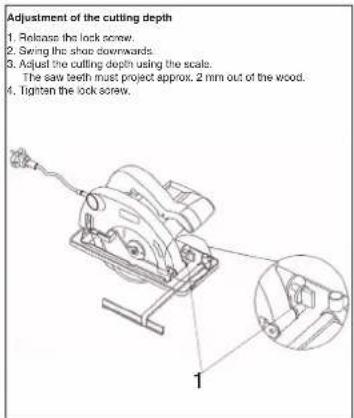

How to adjust the cutting depth?

The cutting depth is adjusted using the fixing screw provided for this purpose. The maximum depth at 0° is 65 mm, and at 45° is 46 mm.

Can I use HSS high-speed steel blades?

No, it is forbidden to use superalloy high-speed steel (HSS) blades. Only use blades conforming to the specifications in the manual.

How to clean and maintain the saw?

Keep ventilation slots clean and clear by blowing air. Clean the appliance regularly without using caustic products. Have the carbon brushes checked by a professional in case of excessive sparking.

What is the required supply voltage?

The saw operates on a voltage of 230 V ~ 50 Hz. It has double insulation (class II) and does not require an earth connection.

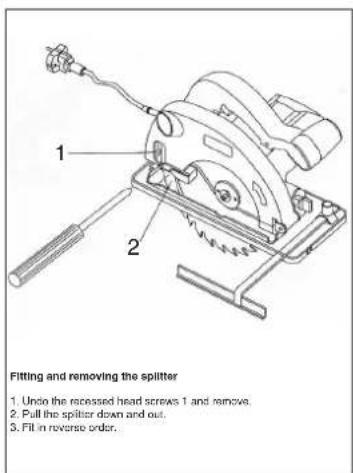

How to correctly use the riving knife?

The riving knife must be adjusted so that its distance to the blade teeth does not exceed 5 mm and its lowest point is not more than 5 mm below the toothed rim. It prevents blade jamming.

What to do if the blade jams?

Do not force it. Unplug the saw, remove the workpiece, check that the riving knife is correctly adjusted and that the blade is not damaged. Use a sharp and suitable blade.

Can I use this saw to cut plastic?

Yes, the saw is suitable for sawing straight lines in wood, similar materials and plastics.

How can I obtain spare parts?

Contact customer service or your dealer. Use the exploded view and spare parts list provided to identify the necessary parts.

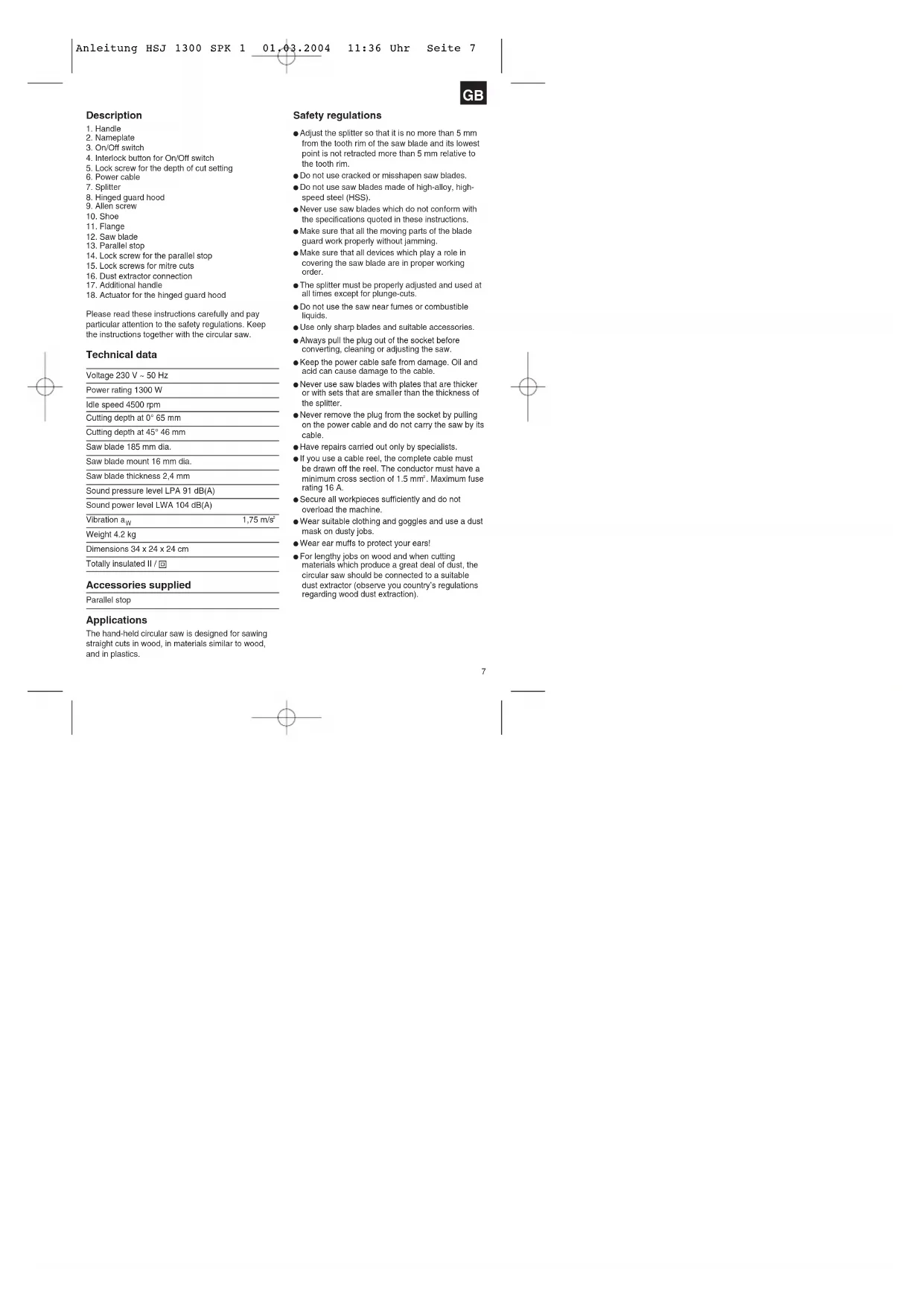

USER MANUAL HSJ 1300 Prowork

Description, technical data

safety instructions page

Operating and maintenance instructions page 8-9

Declaration of EC conformity page 31

Warranty certificate page 32-33

Table des matieres

1. Handle
2. Nameplate

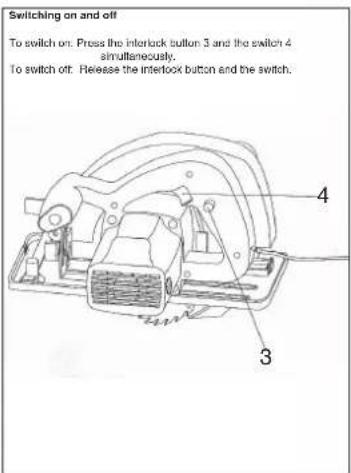

3. On/Off switch
4. Interlock button for On/Off switch
5. Lock screw for the depth of cut setting
6. Power cable
7. Splitter
8. Hinged guard hood
9. Allen screw
   10.Shoe
10. Flange
    12.Saw blade

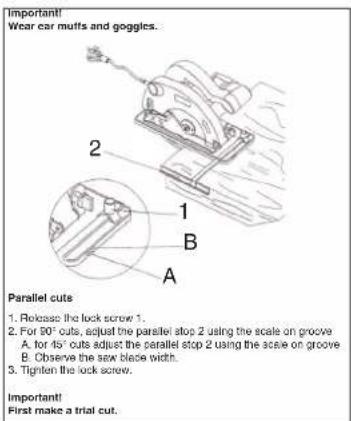

11. Parallel stop
12. Lock screw for the parallel stop

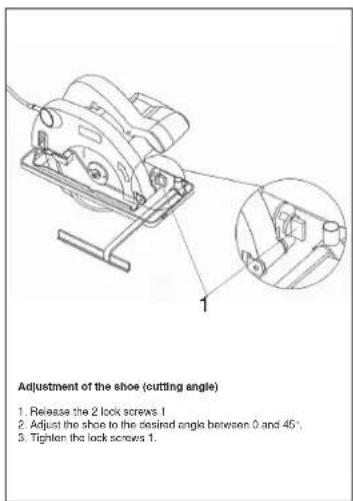

13. Lock screws for milre cuts
    16.Dust extractor connection
14. Additional handle
15. Additional file 18. Actuator for the hinged guard hood

Please read these instructions carefully and pay particular attention to the safety regulations. Keep the instructions together with the circular saw.

Technical data

Voltage 230 V ~ 50 Hz

Power rating 1300 W

Idle speed 4500 rpm

Cutting depth at 0^65mm

Cutting depth at 45^46mm

Saw blade 185 mm dia.

Saw blade mount 16 mm dia.

Saw blade thickness 2

Sound pressure level LPA 91 dB(A)

Sound power level LWA 104 dB(A)

Vibration a_W 1.75 m/s

Weight 4.2kg

Dimensions 34× 24× 24cm

Totally insulated II/

Accessories supplied

Parallel stop

Applications

The hand-held circular saw is designed for sawing straight cuts in wood, in materials similar to wood, and in plastics.

Safety regulations

• Adjust the splitter so that it is no more than 5mm from the tooth rim of the saw blade and its lowest point is not retracted more than 5mm relative to the tooth rim.
• Do not use cracked or misshapen saw blades.
• Do not use saw blades made of high-alloy, high-speed steel (HSS).
• Never use saw blades which do not conform with the specifications quoted in these instructions.
  Make sure that all the moving parts of the blade guard work properly without jamming.
  Make sure that all devices which play a role in covering the saw blade are in proper working order.
• The splitter must be properly adjusted and used at all times except for plunge-cuts.
  Do not use the saw near fumes or combustible liquids.
  Use only sharp blades and suitable accessories.
  Always pull the plug out of the socket before
  converting, cleaning or adjusting the saw.
• Keep the power cable safe from damage. Oil and acid can cause damage to the cable.
• Never use saw blades with plates that are thicker or with sets that are smaller than the thickness of the splitter.
• Never remove the plug from the socket by pulling on the power cable and do not carry the saw by its cable.
• Have repairs carried out only by specialists.
  If you use a cable reel, the complete cable must be drawn off the reel. The conductor must have a minimum cross section of 1.5mm^2 . Maximum fuse rating 16 A.
• Secure all workpieces sufficiently and do not overload the machine.
• Wear suitable clothing and goggles and use a dust mask on dusty jobs.
  Wear ear muffs to protect your ears!
  For lengthy jobs on wood and when cutting materials which produce a great deal of dust, the circular saw should be connected to a suitable dust extractor (observe you country's regulations regarding wood dust extraction).

GB

Working with the hand-held circular saw

Always hold the circular saw firmly.
The hinged guard hood will be pushed back automatically by the workpiece.
- Never apply force! Advance the circular saw gently and steadily.
The off-cut piece should be to the right of the circular saw so that the wide part of the base plate is supported over its entire surface.
- When sawing along a marked line, guide the circular saw along the corresponding groove.
- Clamp small pieces of wood securely before sawing. Never hold them in your hand.
Always observe the safety regulations! Wear goggles!
Do not use defective saw blades or blades with cracks or flaws.
- Do not use flanges or flange nuts with a hole which is larger or smaller than that of the saw blade used.
- Do not try to stop the saw blade with your hand or by applying pressure to the side of the blade.
- The hinged guard must not jam and must return to its original position once work is completed.
- Before plugging in the circular saw, check that the hinged guard is functioning properly.

Before each use, always check that the safety devices - the hinged guard, splitter, flanges and adjustment devices - are functioning properly and have been adjusted and secured correctly.
- You can connect a suitable dust extractor to the guard hood. Check that the dust extractor is fitted securely and properly.
The hinged guard hood is not to be wedged in the retracted guard hood when sawing.

Maintenance

• Keep the cooling vents on the motor housing clean and unobstructed at all times. Blow out any dust and dirt at regular intervals.
• Have a specialist workshop check the carbon brushes in the event of excessive sparking.
• Worn carbon brushes are to be replaced only by a specialist workshop or by our Customer Service Centre.
• Keep the machine clean at all times.
• Never use any caustic agents to clean the plastic parts.
  If ever you discover any damage, consult the exploded drawing and parts list to determine exactly which replacement parts you need to order from our Customer Service Centre.

GB

Description:

Skaeredybadved 45^46mm

Savklinge 185 mm O

Savklingeaksel 16 mm 0

Subject to change without notice
