1. As a cooker hood connected to an exhaust duct.

The extracted and filtered cooking vapours are removed to theoutdoors.

2. As a recirculation cooker hood.

The grease particles and the odour from the extracted cooking vapours are filtered. The extracted air is not removed but is returned to the kitchen. Therefore, you must fit a carbon filter. Note! The carbon filter must be ordered separately.

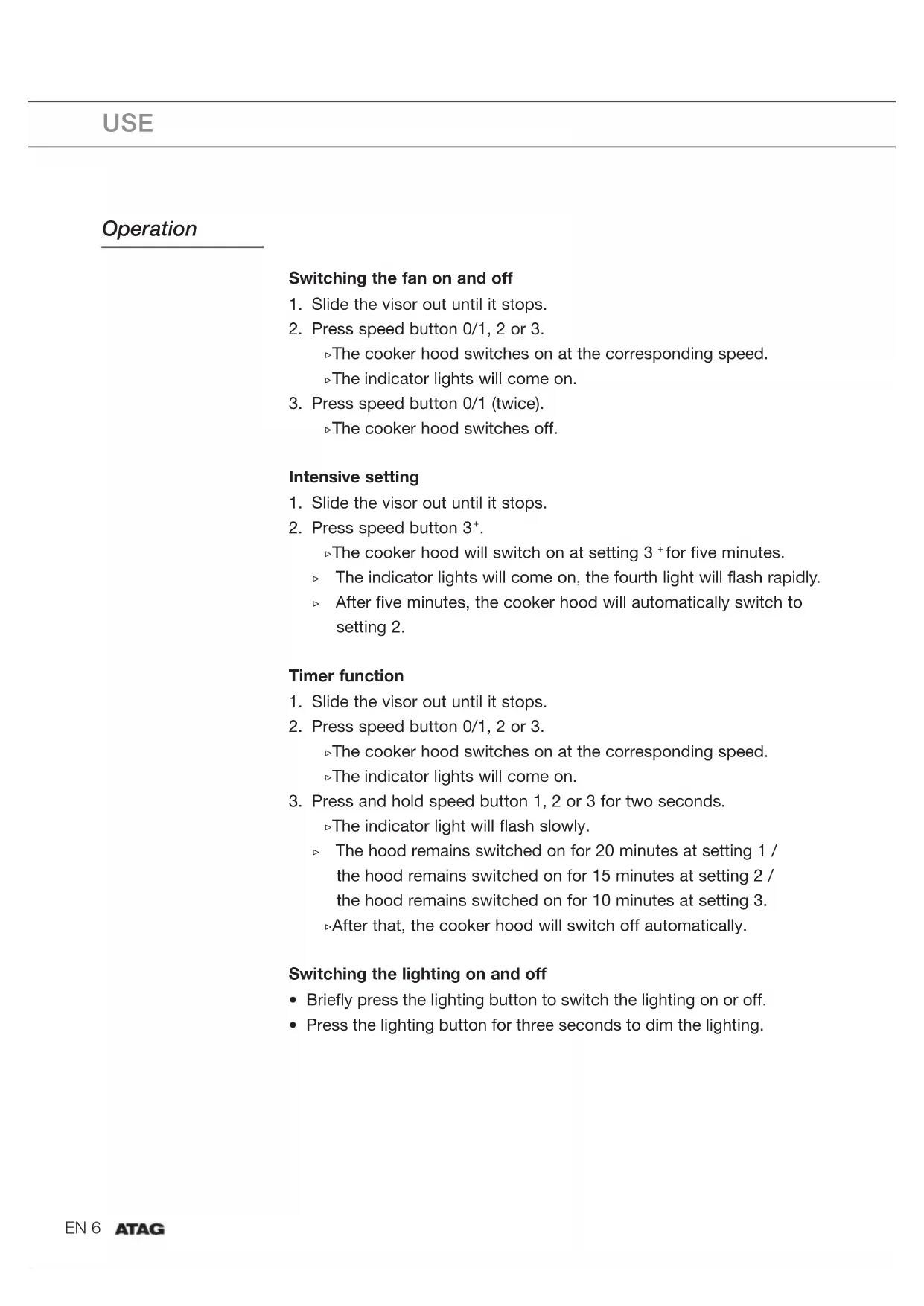

(intensive speed)EN 6 USE Operation Switching the fan on and off

1. Slide the visor out until it stops.

2. Press speed button 0/1, 2 or 3.

▷ The cooker hood switches on at the corresponding speed. ▷ Theindicator lights will come on.

3. Press speed button 0/1 (twice).

▷ The cooker hood switches off. Intensive setting

1. Slide the visor out until it stops.

▷ The cooker hood will switch on at setting 3

for five minutes. ▷ The indicator lights will come on, the fourth light will flash rapidly. ▷ After five minutes, the cooker hood will automatically switch to setting 2. Timer function

1. Slide the visor out until it stops.

2. Press speed button 0/1, 2 or 3.

▷ The cooker hood switches on at the corresponding speed. ▷ Theindicator lights will come on.

3. Press and hold speed button 1, 2 or 3 for two seconds.

▷ The indicator light will flash slowly. ▷ The hood remains switched on for 20 minutes at setting 1 / the hood remains switched on for 15 minutes at setting 2 / the hood remains switched on for 10 minutes at setting 3. ▷ After that, the cooker hood will switch off automatically. Switching the lighting on and off

• Briefly press the lighting button to switch the lighting on or off.

• Press the lighting button for three seconds to dim the lighting.EN 7 Filters cleaning indication The hood is equipped with a function that warns the user at regular intervals when the filters are saturated. Grease filter indicator lights All indicator lights of the speed buttons come on when the extractor hood is switched off; the grease filters must be cleaned (see chapter ‘Maintenance’).

• To reset the cleaning indicator, you must press speed button 2 for at least two seconds when the extractor hood is switched off. Charcoal filter indicator lights All indicator lights of the speed buttons flash when the extractor hood is switched off; the carbon filters must be replaced (see chapter ‘Maintenance’).

• To reset the cleaning indicator, you must press speed button 2 for at least two seconds when the extractor hood is switched off. Activation of the carbon filter cleaning indicator In standard mode, the carbon filter cleaning indicator is not active. If the cooker hood is used as a recirculation hood, the carbon filter cleaning indicator must be activated.

1. Switch off the extractor hood and the lighting.

2. Press and hold speed button 2 and speed button 3

simultaneously for at least three seconds. ▷ The indicator lights will flash to confirm. Switching off the carbon filter cleaning indicator

1. Switch off the extractor hood and the lighting.

2. Press and hold speed button 2 and speed button 3

simultaneously for at least three seconds. ▷ The indicator lights will come on to confirm. USEEN 8 Cleaning Attention! Before performing any maintenance operation, isolate the hood from the electrical supply by unplugging the appliance or switching off your household’s master switch. The cooker hood should be cleaned regularly (at least as frequently as the grease filters are cleaned) both internally and externally. Do not use abrasive products. Do not use alcohol! Attention! Failure to comply with the basic recommendations for cleaning the cooker hood and cleaning/replacing the filters may lead to a fire. Therefore, we recommend that you observe these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations. Cooker hood Clean the cooker hood with soapy water and a soft cloth. Then wipe with clean water to rinse. Do not apply aggressive cleaning agents such as caustic soda. The paintwork on the cooker hood will remain shiny if it is periodically rubbed with wax. Stainless steel canopy hoods Do not use any sort of scourer. Treat with a stainless steel care product and polish with the structure of the stainless steel. Metal grease filters Metal grease filters should be cleaned once a month (or when indicated by the filter saturation indication system, if present on your model), using a neutral cleaning agent, preferably by hand or in the dishwasher on a short, low-temperature program. Place the grease filters with the openings facing downwards in the dishwasher so the water can drain out of the filter. Aluminum-colored and black grease filters become dull as a result of dishwasher cleaning agents. This is normal and does not effect the working. The degree of saturation of the filter depends on the intensity of use, the manner of cooking and the regularity with which the grease filters are cleaned. MAINTENANCEEN 9 Grease filters

1. Slide the visor out until it stops.

2. Push in the handle of the filter and remove the grease filter.

Carbon filters Use a carbon filter if the cooker hood is not connected to an exhaust duct. Centre the carbon filter on the motor frame and turn it to mount it to the motor frame. Important: The regenerable active carbon filters can be washed by hand or in the dishwasher at a maximum temperature of 65 °C. The washing cycle must be done without other dishes and without dishwasher detergent. Do not use any cleaning agents! Remove excess water. Be careful to avoid damaging the filter. Place the filter in the oven to dry for at least 1 hour at a maximum temperature of 80 °C. After up to 3 years (or if the filtres are damaged), the filters will need to be replaced. It is important that the grease filters and the regenerable active carbon filters are properly dried before installation. MAINTENANCEEN 10 MAINTENANCE Lighting This hood is fitted with a light system. This light system has to be replaced by an authorized technician. Do not attempt to replace it by yourself. The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination.EN 11 INSTALLATION General This appliance should be connected to the power supply by a recognized fitter who is familiar with, and works according to the correct safety regulations. This appliance meets the European requirements. Important that you know:

• The minimum distance between the supporting surface for the cooking vessels on the gashob and the lowest part of the range hood must be not less than 65 cm. For use with an electric, ceramic or induction hob, this distance must be at least 55 cm.

• If the cooker hood is to be fitted to an existing duct no other appliances, such as a geyser or heater, may be connected to that same duct.

• Consider local regulations with respect to the ventilation of gas appliances.

• The shorter the duct, and the fewer the bends in it, the better the cooker hood will work.

• Before you start drilling check that there are no installation cables present.

• The connecting pipe for the cooker hood has a diameter of 120 or 150 mm. It is best also to use a flue pipe of the same diameter.

• The installation material supplied with this range hood is designed for fixing to reinforced concrete or masonry walls. For some types of walls you may need special plugs and screws.EN 12 INSTALLATION Electrical connection This appliance is manufactured in class I, it must therefore be connected to the earth system. Make sure the supply voltage ratings correspond with those stated on the appliance data plate. The connection to the mains is carried out as follows: BROWN = phase L BLUE = phase N YELLOW/GREEN = Earth During the electrical connection make sure that the electrical socket is equipped with earth connection. This telescopic cooker hood has been provided with a power plug. When installing the hood, make sure that this plug remains accessible. Attention: If you want to make a fixed connection, ensure that a multi-pole switch with a distance between contacts of 3 mm is installed in the supply cable. max. 100cm Mounting the cooker hood The last pages of this manual show the steps for mounting the cooker hood.EN 13 ENVIRONMENTAL ASPECTS Disposal of packaging and appliance This appliance is made from sustainable materials. This appliance must be disposed of in a responsible manner at the end of its service life. Contact the local authorities for information about the method. The packaging of this appliance is recyclable. It could have been made from:
