Product Type	Digital Multimeter
Brand	Velleman
Model	DVM020
Dimensions (L x W x H)	150 x 75 x 47 mm
Weight	300 g
Power Supply	2 x 1.5 V AAA batteries
Display	LCD 2000 counts, 52.5 x 31 mm, backlight
Safety Category	CAT III 600 V, pollution degree 2, IP20
Measurement Functions	DC/AC voltage, DC/AC current, resistance, diode, continuity, temperature, battery test, NCV, live wire detection
DC Voltage Ranges	20 mV to 600 V
AC Voltage Ranges	20 mV to 600 V
DC Current Ranges	200 µA to 10 A
AC Current Ranges	200 µA to 10 A
Resistance Ranges	200 Ω to 20 MΩ
Temperature Range	-20 °C to 1000 °C / -4 °F to 1832 °F
Input Impedance	10 MΩ
Fuses	F 0.20 A / 600 V (5x20 mm) and F 10 A / 600 V (5x20 mm)
Special Functions	Data hold, auto power off, LED flashlight, diode test and audible continuity
Maintenance and Cleaning	Disconnect test leads, clean with a damp cloth and mild detergent
Spare Parts and Repairability	Fuses and batteries user-replaceable; other repairs by an authorized dealer
Warranty	24 months for domestic use (Velleman conditions)
General Information	Indoor use, avoid moisture, do not exceed 600 V, overload protection, low battery indication

Frequently Asked Questions - DVM020 VELLEMAN

How to measure DC voltage with the DVM020?

Insert the red lead into the VΩmA jack and the black lead into COM. Set the rotary switch to a DC voltage range (e.g. 20V). Touch the test probes to the circuit. The value is displayed with polarity.

What does 'OL' mean on the multimeter?

OL stands for 'Over Load'. It indicates that the measured value exceeds the selected range. Switch to a higher range.

How to replace the battery of the DVM020?

Turn off the device and disconnect the test leads. Remove the screw on the back, open the case, replace the two AAA 1.5 V batteries observing polarity, then close.

Which fuses to use for the DVM020?

Use a F 0.20 A / 600 V (5x20 mm) fuse for the mA range and a F 10 A / 600 V (5x20 mm) fuse for the 10 A range. Never short-circuit the fuse holder.

How to perform a continuity test?

Set the rotary switch to the ^10 (continuity) position. Insert the leads as for a resistance measurement. If the resistance is below 50 Ω, the buzzer sounds.

Can I measure temperature with the DVM020?

Yes, set the rotary switch to °C or °F. Connect the type K temperature probe (red to dedicated jack, black to COM). Place the probe on the object to measure.

How to use the NCV (non-contact voltage detection) function?

Set the rotary switch to the NCV position. Bring the top of the multimeter close to the conductor. If voltage is present, the buzzer sounds and the indicator lights up.

The multimeter does not turn on, what to do?

Check the batteries. If the low battery symbol appears, replace the batteries. If the problem persists, check the fuse (a blown fuse may block the display in some ranges).

What is the safety category of the DVM020?

The DVM020 is certified CAT III 600 V with pollution degree 2 and IP20 protection. It is suitable for domestic and indoor use.

How to clean the multimeter?

Always disconnect the test leads before cleaning. Use a damp cloth with a mild detergent. Do not use solvents or abrasive products.

USER MANUAL DVM020 VELLEMAN

CATIII 600V

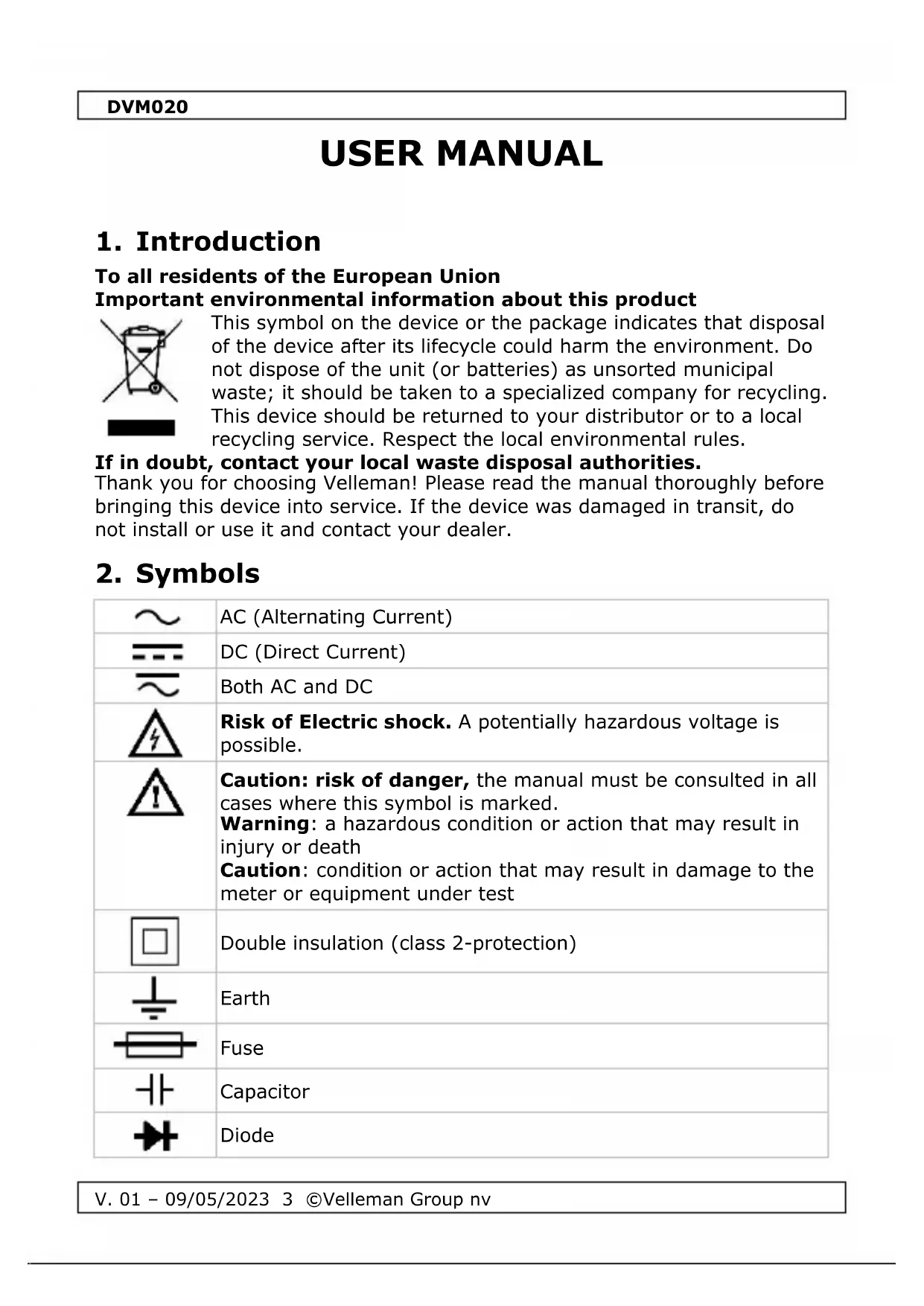

USER MANUAL 3

HANDLEIDING 18

MODE D'EMPLOI 34

MANUAL DEL USUARIO 50

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Symbols

	AC (Alternating Current)
	DC (Direct Current)
	Both AC and DC
	Risk of Electric shock. A potentially hazardous voltage is possible.
	Caution: risk of danger, the manual must be consulted in all cases where this symbol is marked.Warning: a hazardous condition or action that may result in injury or deathCaution: condition or action that may result in damage to the meter or equipment under test
	Double insulation (class 2-protection)
	Earth
	Fuse
	Capacitor
	Diode

Continuity

3. General Guidelines

Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.

This symbol indicates: Read instructions

Not reading the instructions and manual can lead to damage, injury or death.

This symbol indicates: Danger

A hazardous condition or action that may result in injury or death.

This symbol indicates: Risk of danger/damage

Risk of a hazardous condition or action that may result in damage, injury or death.

This symbol indicates: Attention; important information

Ignoring this information can lead to hazardous situations.

WARNING: To avoid electrical shock always disconnect the test leads prior to opening the housing. To prevent fire hazards, only use fuses with the same ratings as specified in this manual.

Remark: refer to the warning on the battery compartment.

Avoid cold, heat and large temperature fluctuations. When the unit is moved from a cold to a warm location, leave it switched off until it has reached room temperature. This to avoid condensation and measuring errors.

Protect this device from shocks and abuse. Avoid brute force when operating.

Pollution degree 2-device. For indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids. Not for industrial use. Refer to §8 Pollution degree.

Keep the device away from children and unauthorised users.

Risk of electric shock during operation. Be very careful when measuring live circuits.

DVM020

	There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
	This is an installation category CAT III measuring instrument. Refer to §7 Overvoltage/installation category.
	Read this addendum and the manual thoroughly. Familiarise yourself with the functions of the device before actually using it.
	All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
	Only use the device for its intended purpose. Using the device in an unauthorized way will void the warranty. Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

4. Maintenance

There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

Before performing any maintenance activities, disconnect the test leads from the jacks.

For instructions on replacing battery or fuse, refer to §11 Battery and fuse replacement.

Do not apply abrasives or solvents to the meter. Use a damp cloth and mild detergent for cleaning purposes.

5. During Use

Risk of electric shock during operation. Be very careful when measuring live circuits.

• If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
• Never exceed the limit value for protection. This limit value is listed separately in the specifications for each range of measurement.
• Do not touch unused terminals when the meter is linked to a circuit which is being tested.
• Never use the meter with CAT III installations when measuring voltages that might exceed the safety margin of 600 V above earth ground.

DVM020

• Set the range selector at its highest position if the intensity of the charge to be measured is unknown beforehand.
• Disconnect the test leads from the tested circuit before rotating the range selector in order to change functions.
• When carrying out measurements on a TV set or switching power circuits, always remember that the meter may be damaged by any high amplitude voltage pulses at test points.
• Always be careful when working with voltages above 60 VDC or 30 VAC rms. Keep your fingers behind the probe barriers at all times during measurement.
• Never perform resistance, diode or continuity measurements on live circuits. Make sure all capacitors in the circuit are depleted.

6. General Description

Refer to the illustration on page 2 of this manual:

1. NCV induction position
2. Illuminated LCD Display
3. NCV indicator
4. /H button: slightly press this button to activate data hold function, press again to exit data hold function. Hold and press this button to activate LCD backlight function, press again to exit backlight function.
5. button: turn on-off the LED flashlight
6. MIN/MAX/REL: short press to activate maximum value function, short press again to activate minimum value function. Long press to go back to normal mode.
7. Rotary switch
8. "10A" jack Insert the red test lead in this connector in order to measure a max. current of 10 A.
9. "VΩmA" jack Insert the red (positive) test lead in this connector to measure voltage and resistance.
10. "COM" jack Insert the black (negative) test lead.

7. Overvoltage/Installation Category

DMMs are categorized depending on the risk and severity of transient overvoltage that might occur at the point of test. Transients are short-lived bursts of energy induced in a system, e.g. caused by lightning strike on a power line.

DVM020

The existing categories according EN 61010-1 are:

CAT I	A CAT I-rated meter is suitable for measurements on protected electronic circuits that are not directly connected to mains power, e.g. electronics circuits, control signals...
CAT II	A CAT II-rated meter is suitable for measurements in CAT I-environments and mono-phase appliances that are connected to the mains by means of a plug and circuits in a normal domestic environment, provided that the circuit is at least 10 m apart from a CAT III- or 20 m apart from a CAT IV-environment. E.g. household appliances, portable tools...
CAT III	A CAT III-rated meter is suitable for measurements in CAT I- and CAT II-environments, as well as for measurements on (fixed) mono-or poly-phased appliances which are at least 10 m apart from of a CAT IV-environment, and for measurements in or on distribution level equipment (fuse boxes, lighting circuits, electric ovens).
CAT IV	A CAT IV-rated meter is suitable for measuring in CAT I-, CAT II-and CAT III-environments as well as on the primary supply level. Note that for all measurements on equipment for which the supply cables run outdoors (either overhead or underground) a CAT IV meter must be used.

Warning:

This device was designed in accordance with EN 61010-1 installation category CAT III 600 V. This implies that certain restrictions in use apply that are related to voltages and voltage peaks which can occur within the environment of use. Refer to the table above.

This device is only suitable for measurements up to 600 V in CAT III

8. Pollution Degree

IEC 61010-1 specifies different types of pollution environments, for which different protective measures are necessary to ensure safety. Harsher environments require more protection, and the protection against the pollution which is to be found in a certain environment depends mainly on the insulation and the enclosure properties. The pollution degree rating of the DVM indicates in which environment the device may be used.

Pollution degree 1

No pollution or only dry, nonconductive pollution occurs. The pollution has no influence. (only to be found in hermetically sealed enclosures)

DVM020

Pollution degree 2	Only nonconductive pollution occurs. Occasionally, temporary conductivity caused by condensation is to be expected. (home and office environments fall under this category)
Pollution degree 3	Conductive pollution occurs, or dry nonconductive pollution occurs that becomes conductive due to condensation that is to be expected.(industrial environments and environments exposed to outside air - but not in contact with precipitation)
Pollution degree 4	The pollution generates persistent conductivity caused by conductive dust or by rain or snow. (exposed outdoor environments and environments where high humidity levels or high concentrations of fine particles occur)

Warning: This device was designed in accordance with EN 61010-1 pollution degree 2. This implies that certain restrictions in use apply that are related to pollution which can occur within the environment of use. Refer to the table above.

This device is only suitable for measurements in Pollution degree class 2 environments.

9. Specifications

This device is not calibrated when purchased!

Regulations concerning environment of use:

Use this meter only for measurements in CAT I, CAT II and CAT III environments (see §7).

Use this meter only in a pollution degree 2 environment (see §8).

Ideal working conditions include:

• temperature: 18 °C to 28 °C
• relative humidity: max. 80 % RH
• altitude: max. 2000 m (6560 ft)

Auto power off: automatically power off about 15 minutes after meter switched on

Overload display: "OL"

Polarity display: negative "-"

Operating temperature: 0°C-40°C

Storage temperature: -10°C-50°C

Low battery indication:

test lead probe: CAT III 1000 V / CAT IV 600 V, L = 100 cm

DVM020

Display Counts	2000 Counts
LCD Size (mm)	52.5 x 31
DC Voltage: ±(0.8%+5)	20mV / 200mV / 2V / 20V / 200V / 600V
AC Voltage: ±(0.8%+5)	20mV / 200mV / 2V / 20V / 200V / 600V
DC Current: ±(1.2%+5)	200μA / 2mA / 20mA / 200mA /10A
AC Current: ±(1.5%+3)	200μA / 2mA / 20mA / 200mA /10A
Resistance: ±(1.2%+5)	200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ
Range Select	Manual Range
Continuity Check	Yes
Diode Test	Yes
Data Hold	Yes
Battery Test (1.5V/3V/9V)	Yes
Over Range Indication	Yes
LED/flash Light	Yes
Backlight	Yes
Auto Power Off	Yes
Unit Icon Display	Yes
Low Battery Indication	Yes
Overrange Protection	Yes
NCV Detection	Yes
Live Wire Detection	Yes
Temperature°C: ±(2.0%+3)	-20°C - 1000°C
Temperature°F: ±(3.0%+3)	-4°F - 1832°F
True RMS Measurement	Yes
Battery	1.5V (AAA) x 2
Product Size (mm)	150x75x47
Product Weight (g)	300
Safety Category	CATIII 600V
IP rating	IP20
Fuses	ReplaceableF 0.20 A / 600 V, 5 x 20 mmF 10A / 600V, 5 x 20 mm

9.1 DC & AC VOLTAGE

Input impedance:10MΩ Overload protection:200mV range at 250V DC or 250V AC RMS; other ranges at 600V DC or 600V AC RMS Frequency range: 40Hz - 1000Hz, Display: TRUE RMS

Range	Resolution	DCV Accuracy	ACV Accuracy
20mV	10μV	±1.0%±5	±1.0%±10
200mV	100μV	±0.5%±3	±1.0%±10
2V	1mV	±0.5%±3	±1.0%±10
20V	10mV	±0.8%±3	±1.0%±10
200V	100mV	±0.8%±3	±1.0%±10
600V	1V	±0.8%±5	±1.0%±10

9.2 DC & AC CURRENT

Overload protection: fuse F200mA/600V for mA range fuse F10A/600V for 10A range Frequency range: 40Hz - 1000Hz, Display: TRUE RMS

Range	Resolution	DCA Accuracy	ACA Accuracy
200uA	0.1μA	±1.0%±5	±1.8%±5
2000uA	1μA	±1.0%±5	±1.8%±5
20mA	10μA	±1.0%±5	±1.8%±5
200mA	100μA	±2.0%±5	±2.5%±5
2A	1mA	±3.0%±5	±3.0%±5
10A	10mA	±3.0%±5	±3.0%±5

Overload protection:

F 0.20 A / 600 V, 5 x 20 mm

F 10A / 600V, 5 x 20 mm

9.3 RESISTANCE

Do not conduct resistance measurements on live circuits

Range	Resolution	Accuracy
200Ω	0.1Ω	±1.0%±5
2kΩ	1Ω	±1.0%±5

V. 01 - 09/05/2023 10 ©Velleman Group nv

DVM020

20kΩ	10Ω	±1.0%±5
200kΩ	100Ω	±1.0%±5
2MΩ	1kΩ	±1.0%±5
20MΩ	10kΩ	±1.2%±8

Overload protection: 250 V DC or AC rms

9.4 DIODE AND CONTINUITY

	Do not conduct diode or continuity measurements on live circuits.
range	description
	display reads the approximate forward voltage of the diode
	built-in buzzer sounds if resistance < 50 Ω ±30Ω

Overload protection: 250 V DC or AC rms

9.5 TEMPERATURE

Unit	Range	Resolution	Accuracy
°C	-20°C~ 0°C	1°C	±4°C
	0°C~400°C		±(2.0%+3d)
	400°C~1000°C		±(3.0%+3d)
°F	-4°F~50°F	1°F	±5°F
	50°F~750°F		±(2.0%+5d)
	750°F~1832°F		±(3.0%+5d)

9.6 BATTERY TEST

Range	Display Value	Resolution
1.5V	1.5V	0.001V
3V	3V	0.01V
9V	9V	0.01V

Overload protection: 36V DC or 36V AC RMS

V. 01 - 09/05/2023 11 ©Velleman Group nv

10. Operation

10.1 DC + AC VOLTAGE MEASUREMENT

	Do not measure circuits that may contain voltages > 600 VDC or > 600 VAC
	Use extreme caution when measuring voltages higher than 60 VDC or 30 VAC rms.Always place your fingers behind the protective edges of the test probes while measuring!

1. Insert the red test lead into "VΩmA" jack and insert black test lead into "COM" jack.
2. Set the rotary switch to voltage range and touch the test lead probe tips to the circuit under test, the red test lead connection will be displayed.

Notes

• Set the rotary switch to higher range if not known the current range under test, and then lower down until the best accuracy.
• To avoid electrical shock and/or damage to the instrument, do not attempt to take any voltage measurement that might exceed 600VRMS.
• It is normal situation and no effect on measurement, once at mV or V range, even without input or connect with test lead, meter shows value in LCD.
  • An over-range is indicated by OL or -OL. Set to a higher range.
• The maximum input current is 600 V rms.

10.2 DC CURRENT MEASUREMENT

	Do not measure circuits that may contain voltages > 600 VDC or > 600 VAC
	Use extreme caution when measuring voltages higher than 60 VDC or 30 VAC rms.Always place your fingers behind the protective edges of the test probes while measuring!

1. Insert black test lead into COM jack, for current measurement less than 200mA insert the red test lead into "VΩmA" jack, for current measurement between 200mA to 10A insert the red test lead into 10A jack.

DVM020

1. Set the rotary switch to the current range and touch the test lead probe tips to the circuit under test, the red test lead connection will be displayed.

Notes

• Set the rotary switch to higher range if not known the current range under test, and then lower down until the best accuracy.
• If display “OL” for over range, set the rotary switch to higher range.
• Indicates the max current is 200mA or 10A based on jacks the red test leads to be inserted, fuse will be blown out at over-range current.

10.3 RESISTANCE MEASUREMENT

Do not conduct resistance measurements on live circuits. Make sure all capacitors in the circuit are depleted.

1. Insert black test lead into "COM" jack, and red test lead into "VΩmA" jack.
2. The rotary switch to range and touch the test lead to under-tested resistance and read the value from LCD.

Notes

• If display "OL" for over range, set the rotary switch to higher range. For measuring over 1MΩ high resistance, the meter may take a few seconds to stabilize the readings.
• In the open circuit, the meter display "OL" to indicate no input.
• To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any resistance measurements.

10.4 DIODE AND CONTINUITY TEST

Do not conduct diode or continuity measurements on live circuits. Make sure all capacitors in the circuit are depleted.

1. Insert black test lead into "COM" jack, and red test lead into "VΩmA" jack, the polarity of red test lead is "+".
2. Set the rotary switch to range, place the red test lead on the anode of diode and black test lead on the cathode of diode, the meter will show the approx. forward voltage of diode.

10.5 CONTINUITY CHECK

1. Insert black test lead into "COM" jack, and red test lead into "VΩmA" jack.

DVM020

1. Set the rotary switch to range and touch the test leads to both points of circuit, if the resistance between two points less than 50±30 , the inbuilt buzzer will be sounded

Notes

1. Even without buzzer sounds, voltage may still exist. Do not rely solely on non-contact voltage detection to determine the presence of voltage. Detection operation may be subject to socket design, insulation thickness and different type and other factors.
2. When the meter input terminals detect voltage, due to the influence of present voltage, the voltage sensing indicator may also light.
3. Keep the appliance away from electrical noise sources during tests, i.e. fluorescent and dimmable lights, motors, etc. These sources may trigger NCV detection and invalidate the test.

10.6 DATA HOLD

In any range, short press H to lock the display value. The H sign will appear on the display. Short press H again to exit.

10.7 TEMPERATURE MEASUREMENT

1. Set the rotary switch to ^ C/ ^ F range, the value of environmental temperature shows in LCD display
2. Insert the red terminal of temperature probe (K Type) into the ^ C/ ^ F jack, black terminal into COM jack, place the temperature probe tip where needed to measure.
3. Read the temperature value in LCD display.

Notes

Since cold-junction compensating circuit stalled inside meter, due to good sealing of meter, it takes long time to reach the thermal balance with the measuring environment, the meter needs to be placed in the measuring environments for a longer time to get the more accurate readings.

10.8 BATTERY TEST

1. Insert black test lead into "COM" jack, and red test lead into "VΩmA" jack. The polarity of the red test lead is "+".
2. Set the rotary switch to "BAT" range.
3. Put the red test lead tip to positive of battery and black test lead tip to negative pf battery.

Notes

To avoid damage meter, the max battery voltage is not exceeded 36V.

10.9 NON-CONTACT VOLTAGE (NCV) DETECTION

1. Set the rotary switch to NCV range and LCD display "EF".
2. Contact the top part of meter with the circuit under test, the audible alert signal will be sounded once voltage exits.

Notes

1. The detection result is for reference, do not determine the voltage by NCV detection ONLY.
2. Detection may interfere by socket design, insulation thickness and other variable conditions.
3. The external interference sources, such as flashlight, motor, etc, may cause the wrong detection.

10.10 LIVE WIRE RECOGNITION (LIVE)

1. Set the rotary switch to Live range and LCD display "LIVE".
2. Insert red test lead into VΩmA jack and place the red test lead tip to
3. contact AC Voltage. Once meter makes alarm sound and LCD shows "LIVE", means the wire under test is live wire.

Notes

1. When the circuit is in serious leakage, the red test lead even contact earth line, the buzzer of meter will be sounded.
2. Detection may interfere by socket design, insulation thickness and other variable conditions.
3. The external interference sources, such as flashlight, motor, etc, may cause the wrong detection.

11. Battery and Fuse Replacement

	WARNING: To avoid electrical shock always disconnect the test leads prior to opening the housing. To prevent fire hazards, only use fuses with the same ratings as specified in this manual.Remark: refer to the warning on the battery compartment
	There are no user-serviceable parts inside the device.Refer to an authorized dealer for service and/or spare parts.
	Disconnect the test leads from the test points and remove the test leads from the measuring terminals before replacing the batteries or fuses.

DVM020

• When" " is displayed, the battery should be replaced.
• Fuses rarely need replacement and blown fuses almost always result from human error.

To replace the battery:

• Switch off the instrument. Disconnect the test leads.
• Remove the screw at the back of the case and gently open the housing.
• Remove the old battery and insert a new one.
• Close the housing and fasten the screw.

Battery: 1.5V (AAA) x 2, make sure to respect the polarity

• Prior to fuse replacement, ensure that the multimeter is disconnected from external voltage supply and other connected instruments.
• Only use fuses as described in the technical data section! Using auxiliary fuses, in particular short-circuiting fuse holders is prohibited and can cause instrument destruction or serious bodily injury of operator.

To replace the fuses:

• Switch off the instrument. Disconnect the test leads.
• Remove the screw at the back of the case and gently open the housing.
• Remove the defective fuse and insert a new one.
• Close the housing and fasten the screw.

Fuses: F 0.20 A / 600 V, 5 x 20 mm & F 10A / 600V, 5 x 20 mm Make sure the meter is closed tight and put the protective edge back in place before using the meter.

DVM020

12. Troubleshooting

If the device acts abnormal while measuring, this means that the internal fuse is defective.

Keep in mind that a low battery level could lead to incorrect measurements. Replace the battery on a regular basis.

(Tip: the reduced luminosity of the backlight/LCD display indicates a low battery level.)

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

10A

10mA

±3.0%±5

±3.0%±5

10.3 WEERSTANDSMETING

9.1 TENSION C.C. ET C.A.

10.6 MAINTIEN DES DONNÉES

2A	1 mA	±3.0%±5	±3.0%±5
10A	10 mA	±3.0%±5	±3.0%±5

200uA	0,1μA	±1.0%±5	±1.8%±5
2000uA	1μA	±1.0%±5	±1.8%±5
20mA	10μA	±1.0%±5	±1.8%±5
200mA	100μA	±2.0%±5	±2.5%±5
2A	1mA	±3.0%±5	±3.0%±5
10A	10mA	±3.0%±5	±3.0%±5

Gama	Resolução	Precisão DCV	Precisão ACV
20mV	10μV	±1.0%±5	±1.0%±10
200mV	100μV	±0.5%±3	±1.0%±10
2V	1mV	±0.5%±3	±1.0%±10
20V	10mV	±0.8%±3	±1.0%±10
200V	100mV	±0.8%±3	±1.0%±10
600V	1V	±0.8%±5	±1.0%±10

9.2 CORRENTE DC E AC

Gama	Resolução	Exactidão
200Ω	0.1Ω	±1.0%±5
2kΩ	1Ω	±1.0%±5
20kΩ	10Ω	±1.0%±5
200kΩ	100Ω	±1.0%±5
2MΩ	1kΩ	±1.0%±5
20MΩ	10kΩ	±1.2%±8

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

- Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).

NL
