Product type	Electric beer brewer / Beer tap
Brand	Klarstein
Model	Brauheld Smart 65
Total capacity	65 L
Maximum liquid capacity	45 L (estimate)
Power supply	220-240 V ~ 50/60 Hz
Maximum power	3300 W
Temperature range	30 °C to 100 °C
Power adjustment	100 W to max power
Main material	Stainless steel
Weight	Approximately 20 kg (estimate)
Dimensions (L x W x H)	Approximately 45 x 45 x 60 cm (estimate)
Functions	Multi-step brewing, recirculation pump, anti-scald valve, WiFi app control, manual programming
Connectivity	WiFi 2.4 GHz, Klarstein app (iOS/Android)
Display	LED screen with control buttons
Cleaning	Manual cleaning of parts in contact with wort; do not use harsh cleaners or dishwasher; rinse tubes with hot water
Safety	Automatic shut-off, overheat protection, do not use without liquid, hot surfaces (burn risk)
Spare parts and repairability	Filter, tubes, valve, control panel, power cable (replacement by professional)
General information	96-page manual, available in several languages; CE declaration of conformity

Frequently Asked Questions - Brauheld Smart 65 Klarstein

How to connect the beer tap to the Klarstein app?

Make sure you are on a 2.4 GHz network. In the app, select 'Add device', then 'Others (WiFi)'. Choose your WiFi network and enter the password. Press the RESET button on the control panel for 3 seconds until the LED flashes. The app will search for the device. Once connected, the LED stays on.

What to do if the device does not heat after starting a program?

Check that you have pressed the START/STOP button for 3 seconds to start heating. Also ensure that the control panel cable is properly connected to the mainboard. If the problem persists, wait for the device to cool down (temperature below 175 °C) and try again.

How to calibrate the temperature if it is incorrect?

Press and hold the + and - buttons simultaneously for 3 seconds. The screen displays '−01'. Use the +/- buttons to adjust the displayed temperature by up to ±10 °C. Wait 5 seconds to save. This correction is retained for subsequent uses.

Why is the pump not working?

Check that the outlet valve is open. Ensure the water or wort level is above the outlet orifice to avoid air bubbles. If necessary, stop the pump, open a valve and the tap to purge air. Clean the filter tube and filter housing if clogged.

Can I use the multi-step mode without the app?

Yes, you can use the one-step manual mode. The multi-step mode (multiple temperature stages) is available via the cloud recipes of the Klarstein app. You can also manually program each step in the app.

How to clean the device after brewing?

Clean all parts that have been in contact with wort with warm water and a mild detergent. Do not put small parts in the dishwasher. For tubes, circulate hot water. Avoid acidic, alkaline, or saline cleaners.

What does error E1 on the screen mean?

Error E1 indicates that the control panel cable is not connected to the mainboard. Carefully reconnect the sensor cable to the mainboard.

What is the maximum filling capacity for liquid only?

For the Brauheld Smart 65 model, the maximum filling capacity for liquid only is approximately 45 L (estimate). Do not exceed this limit to avoid overflow.

Can I use the device unattended?

No, it is not recommended to leave the device unattended during operation due to the risk of burns and overflow. Always monitor the brewing process.

How to access the complete user manual?

The manual is available for free at notice-facile.com. You can download it in PDF format or scan the QR code on the device to get the latest version of the instructions.

USER MANUAL Brauheld Smart 65 Klarstein

COOKINGCO COOKINGCO KINGCOOKING KINGCOOKING COOKINGCO KINGCOOKING KINGCOOKING KINGCOOKING

KLARSTEIN

www.klarstein.com

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Close-up of a metallic cylindrical object with a red circular highlight and a small inset image (no visible text or symbols)

Three grayscale images showing a circular object with internal features, one in a container, another in a fan-shaped container, and a third empty (no text or symbols)

1 2 3 My home Welcome Home Set your home location for more information > All Devices No devices Add Device Add Manually Auto Scan Others Large Home Appliances Small Home Appliances Kitchen Appliances Outdoor & Health Security & Video Drive Outdoors Control Outdoor Trains Energy Entertainment Indicate & Applications Others Connector (Wi-Fi) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86)... Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Connector (RNA-86) Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to be 2.4GHz. Common router setting method × WiFi - 0.9GHz ✓ WiFi - 2.4GHz MN APPLIANCE mannang_2016 Next

456
Cancel EZ Mode Reset the device first.Power on the device and confirm that the indicator is blinking rapidly.Note: please complete the network distribution within 3 minutes after resetting the device.Perform net pairing as prompted. Confirm the indicator is blinking rapidly. Next	Cancel Adding device... Ensure that the device is powered on.01:58Scan devices. Register on Cloud Initialize the device.	DoneAdded successfully Mash boiler Device added successfully

Einstufiger Modus

Mash kettle Function mode Collect recipes Cloud recipe Scale switch 0 hours 0 minutes Cooking time 0°C Cooking Temperature 0°C Power 0W Start/Pause

Mehrstufiger Modus

1 2 3 ← Mash kettle unction mode Collect recipes Cloud recipes Stous Light Lager Amber Hybrid Beer Pils Ctrl+Alt+Delete ← Search Light Lager Amber Hybrid Beer Pils Ctrl+Alt+Delete describe material steps material 25.0lb(11.34kg) German Pilsner malt 6.0lb(2.72kg) Munich malt 3.0lb(1.36kg) Briess aromatic malt 1.0lb(0.45kg) Wyer mann Caramunich malt 1.0lb(0.45kg) White wheat malt 8.0oz(227g) Wyer mann Carafa Special II malt 2.0oz(57g) Tettnanger hops, boil (60min) 2.0oz(57g) Tettnanger hops, boil (30min) 4.0oz(113g) Saaz hops, boil (20min) 4.0oz(113g) Saaz hops, boil (15min) 4.0oz(113g) Tettnanger hops, boil (15min) Whirlfloc to calrify(10min) 4.0 g gypsum(mash) I pkg W1007 Run I pkg White stortorf Alt yeast (starter)

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

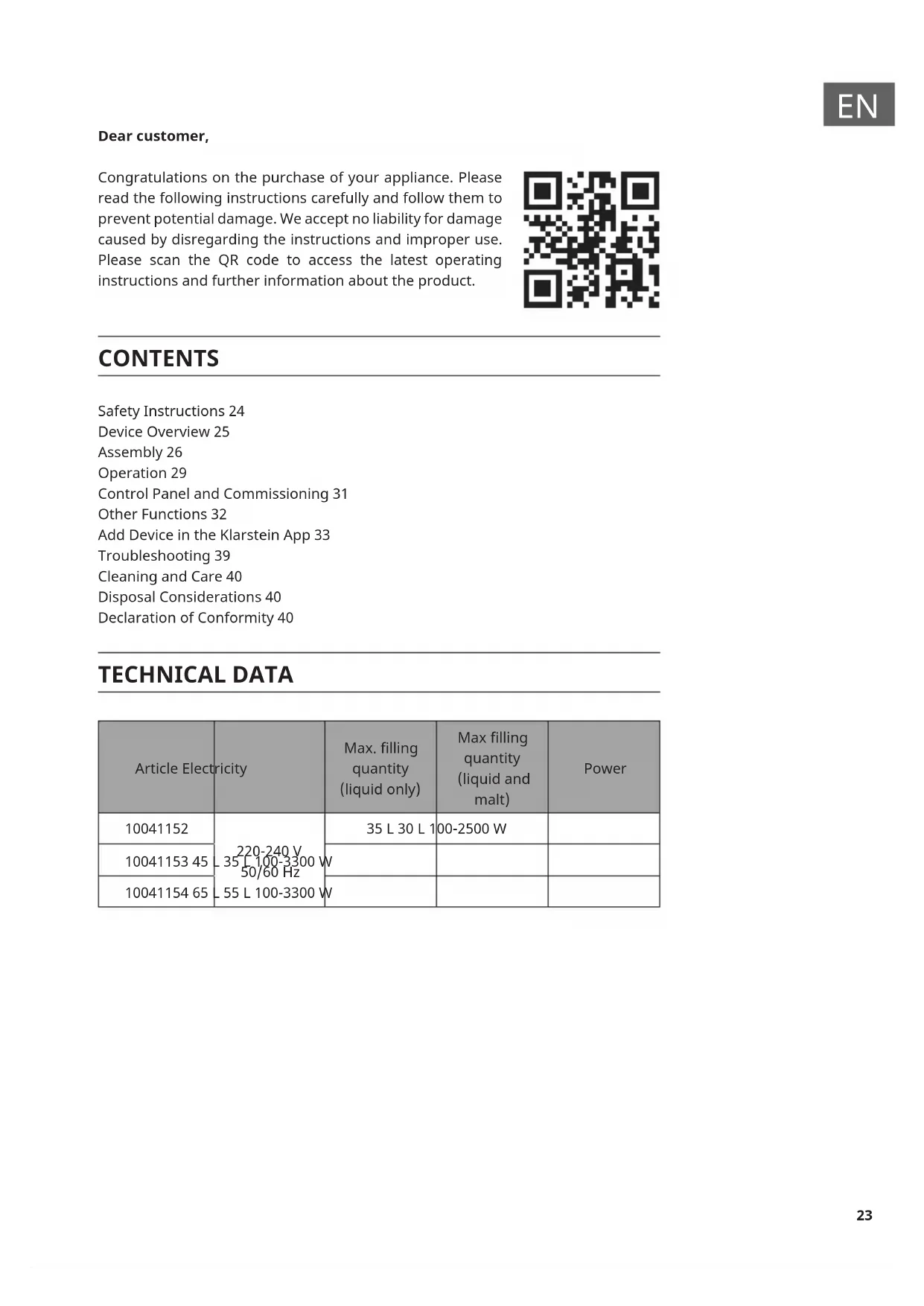

Congratulations on the purchase of your appliance. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 24

Device Overview 25

Assembly 26

Operation 29

Control Panel and Commissioning 31

Other Functions 32

Add Device in the Klarstein App 33

Troubleshooting 39

Cleaning and Care 40

Disposal Considerations 40

Declaration of Conformity 40

TECHNICAL DATA

Article Electricity		Max. filling quantity (liquid only)	Max filling quantity (liquid and malt)	Power
10041152	220-240 V35 L 100-3300 W50/60 Hz	35 L 30 L 1	00-2500 W
10041153 45
10041154 65	55 L 100-3300 W

SAFETYINSTRUCTIONS

• Children must not use the appliance! Mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• Check the voltage on the product label before use. Ensure that you only connect the appliance to sockets with the appropriate voltage.
• Do not use the device with a damaged power cord. If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualified person.
• Switch off the device after each use and pull the plug out of the socket.
• Before cleaning, remove the plug from the socket and allow the device to cool down completely.
• Place the device securely in the centre of the work surface.
• Do not let the cable hang over the edge of the work surface.
• Do not switch on the appliance when the tank is empty.
• Do not place the device near gas stoves, electric stoves or ovens.
• Make sure that the plug and power cord do not get wet in case the unit leaks.
• The appliance is intended for use in the home and similar environments only. It is not intended for commercial use. These include kitchens in offices, farms, hotels, motels and establishments offering bed & breakfast.
• Do not leave the device unattended during operation.
• Do not remove the lid while the contents are boiling.
• When removing the lid, hold it so that the steam flows away from you.
• Do not move the device while there is liquid in it.
• To ensure that the liquid does not overflow, do not overflow the device.
• If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualified person.
• Make sure that children do not play with the device.
• Do not place the unit near water or in damp rooms.
• Do not clean the device with a high-pressure cleaner and do not immerse the device in water.

CAUTION

Risk of burns! Parts of the unit can become very hot during use. Do not touch the surfaces during use.

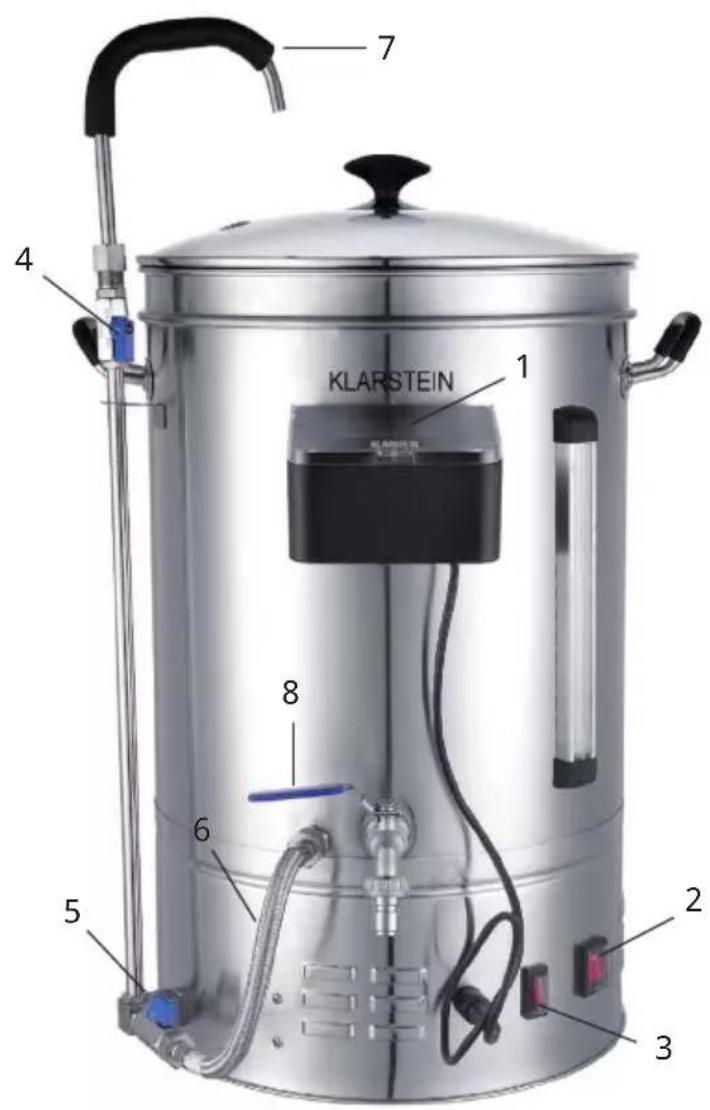

DEVICE OVERVIEW

KLARSTEIN 1 2 3 4 5 6 7 8

1 Control panel 5		Valve against burning (Anti-Burn-Circulation)
2 Power switch 6		Line against burning (Anti-Burn-Circulation)
3 Pump switch 7		Recirculation line (Mash Flow Technology)
4 Recirculation vent (Mash Flow Technology)	8 Outlet tap

ASSEMBLY

Individual parts

Perforated plate Filter	tube Filter tank
Stopper Circulation line

Connecting the filter tube

Close-up of a metallic cylindrical object with a red circular highlight and a small inset image (no visible text or symbols)

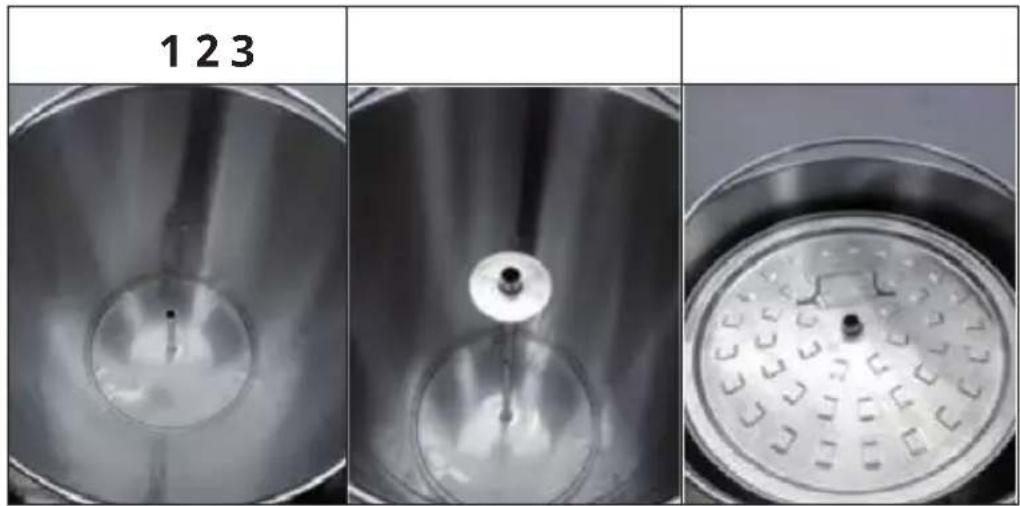

Installation of the perforated plate

Three grayscale images showing a circular object in different angles, with no visible text or symbols.

Installation of the filter container

123
The feet of the container pass through the notches	OR	The feet of the container hang on the rim of the vessel

Installation of the circulation line

		Insert Tighten nut Push the rubber		hose onto the circuit line and pass the other end of the hose through the cover

OPERATION

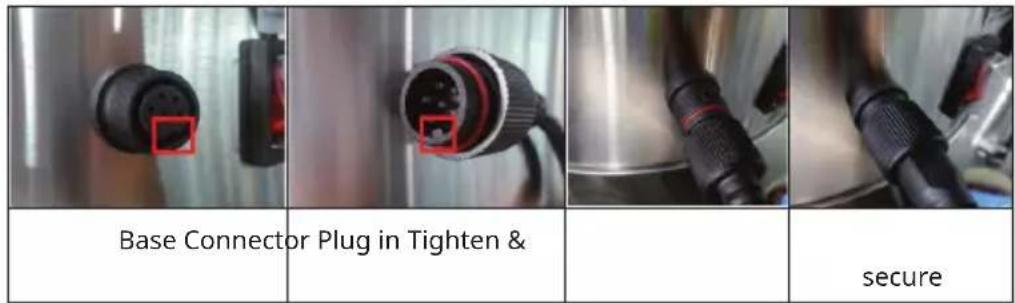

Connection of the control panel

Note: Do not overtighten the plug, otherwise the base may come loose or be damaged.

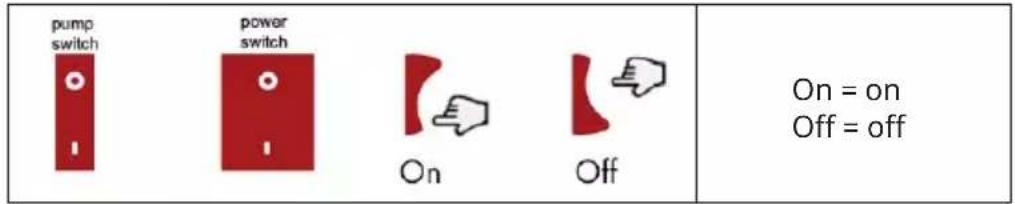

Operation of the switch

pump switch power switch On Off On = on Off = off

Operating the outlet tap

Closed

Pull the locking ring towards the end of the lever and turn the lever 90° anticlockwise.

Open. To close, pull the locking ring towards the end of the lever and turn the lever 90° clockwise.

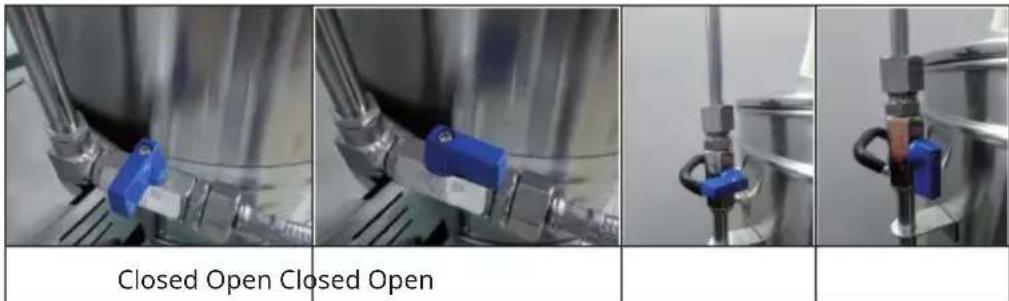

Valve operation

Note: Never open the circuit valve before installing the circuit pipe and pass the pipe through the cover. Otherwise, hot water or wort can cause burns.

CONTROL PANEL AND COMMISSIONING

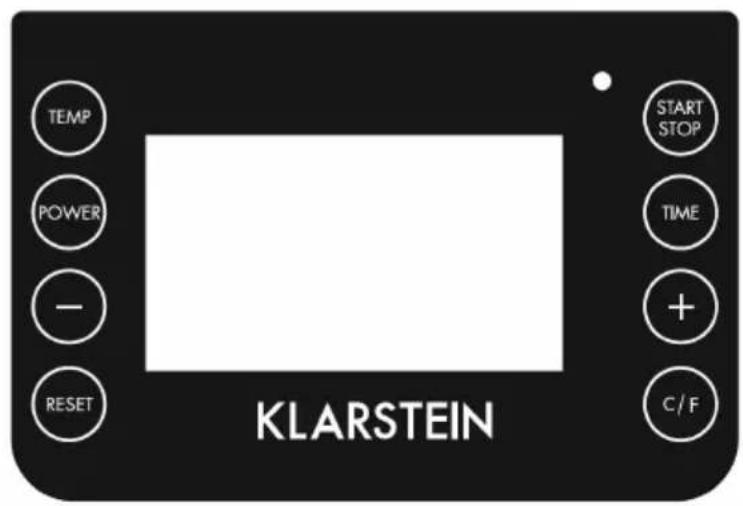

Control panel

TEMP POWER - RESET KLARSTEIN START STOP TIME + C / F

Temp Temperature adjustment from 30 °C - 100 °C

Power Adjustment of the power from 100 W to maximum power

Time Setting the time between 1 and 99 minutes

Start/Stop Starting/stopping a programme

Reset Resetting the machine during connection

C/F Changing the temperature display

+ Increase value

- Decrease value

Switching on the appliance

15°C -- MinPower --00W Target --°C

After plugging in and switching on, the current temperature is displayed on the screen.

OTHER FUNCTIONS

Note: In one step mode, if you want to change the setting of any step (temperature/power/time) during operation, press the TEMP/POWER or TIME button once and press the (+/-) button to change.

-01

If the boiling temperature does not match the temperature displayed in the thermometer, hold down the (+/-) buttons simultaneously for 3 seconds and correct the displayed temperature by up to +/- 10 °C. To do this, press the (+/-) button. Then wait 5 seconds to save the selected value. You can also correct the temperature before commissioning the machine. Once corrected, it is saved and you do not have to correct it the next time, unless the temperature is inaccurate again.

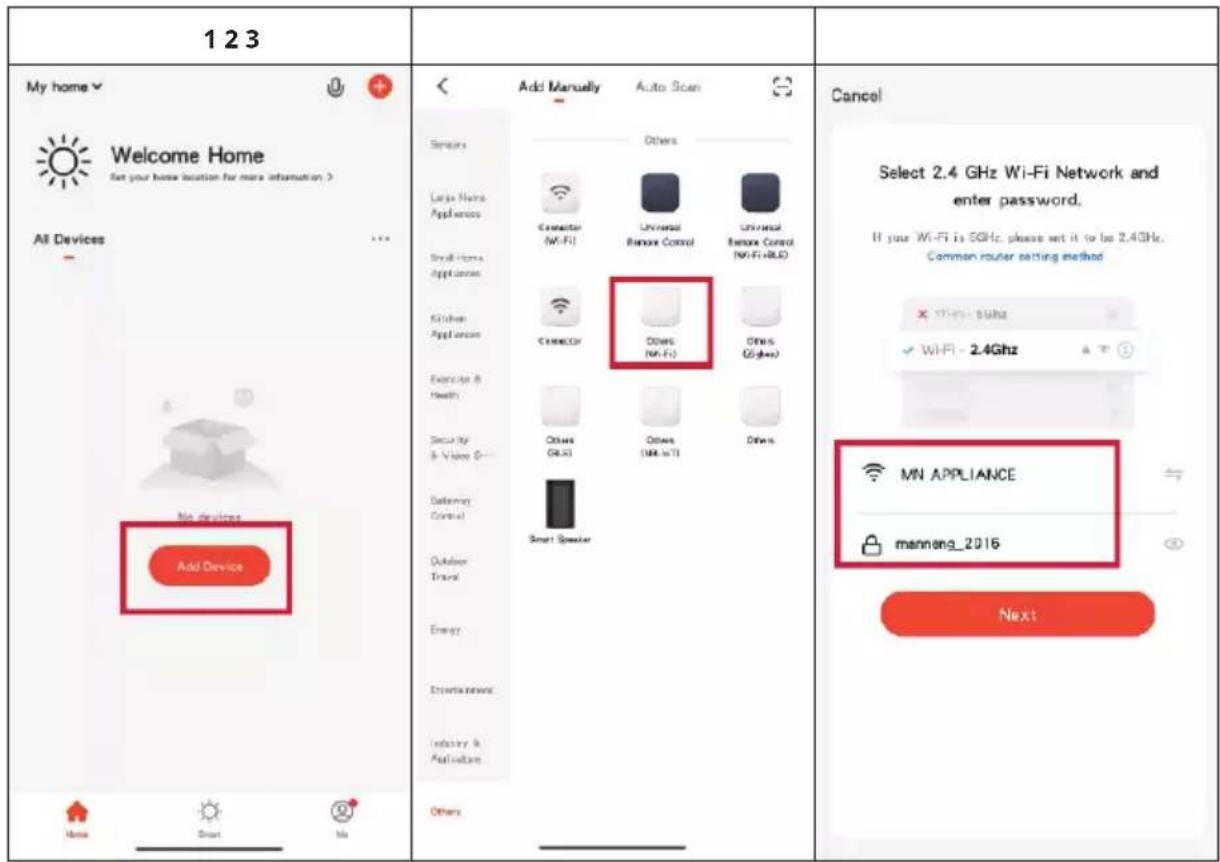

ADD DEVICE IN THE KLARSTEIN APP

After you have registered and logged in, it is necessary to add the device in the app under 2.4 GHz network. Select Add device. Select Others (WiFi). Select the desired WLAN network and enter the network key. Confirm your entry. After confirmation, the display flashes quickly. Press the RESET button for 3 seconds until the indicator light starts flashing. Wait while units are being searched for. As soon as a unit has been successfully added, the indicator light lights up permanently.

1 2 3 My home Welcome Home Set your home location for more information > All Devices No devices Add Device Home Smart No Add Manually Auto Scan Others Large Home Appliances Small Home Appliances Kitchen Appliances Exercise & Health Security & Video 0-- Delivery Control Outdoor Travel Energy Entertainment Industry & Publication Others Connector (Wi-Fi) Universal Remove Control Universal Remove Control (Wi-Fi+BLE) CANCOCH Others (Wi-Fi) Others (GS-8e+) Others GLS3 Others (MW-WT) Others Smart Speaker Cancel Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to be 2.4GHz. Common router setting method × WiFi - 5GHz ✓ WiFi - 2.4GHz MN APPLIANCE manneng_2016 Next

456
Cancel EZ Mode Reset the device first.Power on the device and confirm that the indicator is blinking rapidly.Note: please complete the network distribution within 3 minutes after resetting the device.Perform net pairing as prompted. Confirm the indicator is blinking rapidly. Next	Cancel Adding device...Ensure that the device is powered on.01:58Scan devices. Register on Cloud Initialize the device.	DoneAdded successfully Mash boiler Device added successfully

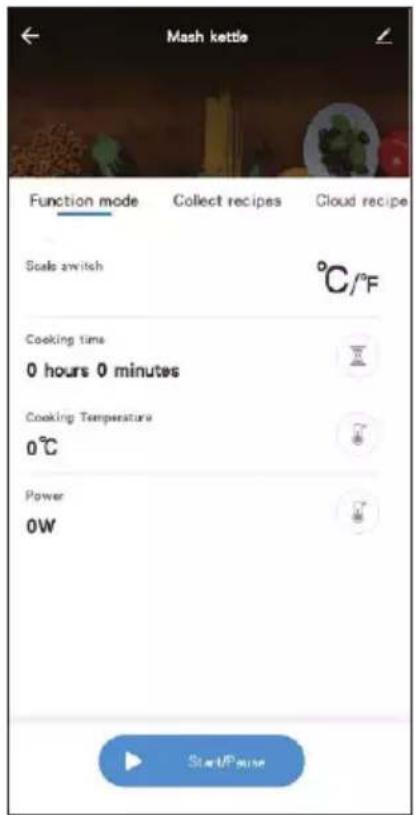

One-step mode

This mode can be used without an app if the network connection cannot be established.

15°C 30MinPower 1000W Target 90°C	Press the TEMP, TIME and POWER buttons in succession and select the desired temperature, time and power.
Mashing15°C 30MinPower 1000W Target 90°C	To start operation, press the START/STOP button once.

This mode can also be used with app if the network connection can be established.

Mash kettle Function mode Collect recipes Cloud recipe Scale switch °C/°F Cooking time 0 hours 0 minutes Cooking Temperature 0°C Power 0W StartPause

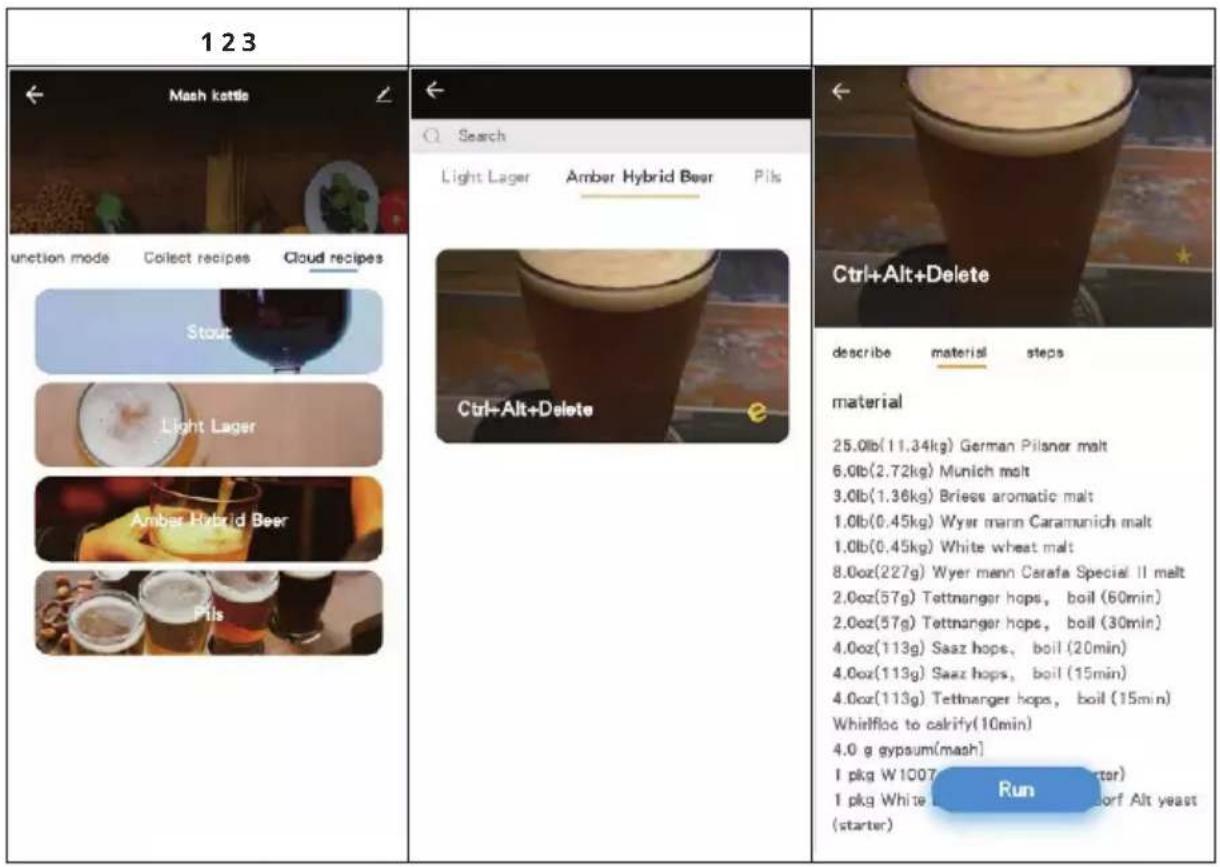

Multi-step mode

In this mode, several steps can be carried out in succession through the recipes in the app. Select Cloud Recipes and choose the type of beer you want. Afterwards, some recipes will be suggested to you. Select the desired recipe and press Run to start the machine.

1 2 3 ← Mash kettle unction mode Collect recipes Cloud recipes Stout Light Lager Amber Hybrid Beer Pils Ctrl+Alt+Delete ← Search Light Lager Amber Hybrid Beer Pils e Ctrl+Alt+Delete describe material steps material 25.0lb(11.34kg) German Pilaner malt 6.0lb(2.72kg) Munich malt 3.0lb(1.36kg) Briess aromatic malt 1.0lb(0.45kg) Wyer mann Caramunich malt 1.0lb(0.45kg) White wheat malt 8.0oz(227g) Wyer mann Carafa Special II malt 2.0oz(57g) Tettnanger hops, boil (60min) 2.0oz(57g) Tettnanger hops, boil (30min) 4.0oz(113g) Saaz hops, boil (20min) 4.0oz(113g) Saaz hops, boil (15min) 4.0oz(113g) Tettnanger hops, boil (15min) Whirlfloc to calrify(10min) 4.0 g gypsum(mash) I pkg W1007 Run I pkg White stator Isdorf Alt yeast (starter)

456
Mash kettle Current Temperature: 87°C step 2 Add 4.5kg pale malt Confirm Termination of the operation	Mash kettle Current Temperature: 50°C Mashing Pilsner[beta] (step 1) Stop	steps 1/11 Add 15kg water, boil to 67 degree device control Cooking Temperature 67°C Cooking time 0 hours 0 minutes Power 2500W
Some additional instructions appear on the screen if it is necessary to add more ingredients.	While the machine is in operation, you can view all the necessary steps of the recipe and the respective settings by pressing on the recipe.
789
While the appliance is in operation, you can press the TEMP, POWER or TIME buttons, if necessary, to adjust the temperature, power or time	While the unit is in operation, it can be stopped by pressing the START/STOP button	Clear the cache to access updates or solve problems.

TROUBLESHOOTING

Problem Possible	cause Method of solution
No power after switching on the on/off switch.	The control panel cable is not connected to the board.	Connect the control panel cable to the circuit board.
	Heating before adding water and the thermostat was overloaded.	Wait until the brewing equipment has cooled down to below 175 °C.
The control panel display shows E1.	The temperature sensor cable is not connected to the board.	Reconnect the sensor cable to the board.
No heating up after finishing the setting steps.	The start button was not pressed long enough.	Press and hold the start button for 3 seconds.
	Cable not properly connected.	Connect the cable properly.
The water is not pumped out of the outlet tap.	The outlet tap is not open.	Open the outlet tap.
	Air or bubbles in the pump.	Make sure the water level is above the discharge opening, stop the pump, open one of the valves and open the discharge tap to let the air escape from the pump.
The wort is not pumped out.	Air or bubbles in the pump.	Make sure the water level is above the discharge opening, stop the pump, open one of the valves and open the discharge tap to let the air escape from the pump.
	Filter pipe or filter container are clogged.	Switch off the brewing equipment, remove all the wort as soon as it has cooled down and clean the filter pipe and filter container.
	The wort is too thick and sticky.	Top up with water.

CLEANING AND CARE

• All parts that have been in contact with the wort should be cleaned after the brewing process.
• Do not clean small parts in the dishwasher.
• Do not use acidic, alkaline or salty liquids for cleaning.
  • Water and mild cleaning agents are suitable.
• The pipes can be cleaned by pumping hot water through them.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Brauheld Pro is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10041152

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Brauheld Pro is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10041152

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Close-up of a metallic cylindrical object with a red circular highlight and a small inset image (no visible text or symbols)

Three grayscale images showing a circular object with internal features, possibly a container or tank, under different lighting or testing conditions (no text or symbols visible)

1 2 3 My home Welcome Home Set your home location for more information > All Devices No devices Add Device Add Manually Auto Scan Others Large Home Appliances Connector N=FI Universal Remote Control Universal Remote Control (N=FI+BLE) Small Home Appliances CAMKCH Others (N=FI) Others (Gbps) Kitchen Appliances Others OKI Others (N=FI+BLE) Exercise & Switch Others OKI Others (N=FI+BLE) Security & Video 0... Sant Speaker Outdoor Travel Energy Energy news Industry & Applications Others Cancel Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to be 2.4GHz. Common router setting method X 11H-1 - 9GHz ✓ WiFi - 2.4Ghz MN APPLIANCE mannang_2016 Next

456
Cancel EZ Mode Reset the device first.Power on the device and confirm that the indicator is blinking rapidly.Note: please complete the network distribution within 3 minutes after resetting the device.Perform net pairing as prompted. Confirm the indicator is blinking rapidly. Next	Cancel Adding device... Ensure that the device is powered on.01:58Scan devices. Register on Cloud Initialize the device.	DoneAdded successfully Mash boiler Device added successfully

Modo de un paso

Mash kettle Function mode Collect recipes Cloud recipe Scale switch 0 hours 0 minutes Cooking time 0°C Cooking Temperature 0°C Power 0W Start/Pause

Modo de más pasos

1 2 3 ← Mash kettle unction mode Collect recipes Cloud recipes Stops Light Lager Amber Hybrid Beer Pils Ctrl+Alt+Delete ← Search Light Lager Amber Hybrid Beer Pils Ctrl+Alt+Delete describe material steps material 25.0lb(11.34kg) German Pilaner malt 6.0lb(2.72kg) Munich malt 3.0lb(1.36kg) Briess aromatic malt 1.0lb(0.45kg) Wyer mann Caramunich malt 1.0lb(0.45kg) White wheat malt 8.0oz(227g) Wyer mann Carafa Special II malt 2.0oz(57g) Tettnanger hops, boil (60min) 2.0oz(57g) Tettnanger hops, boil (30min) 4.0oz(113g) Saaz hops, boil (20min) 4.0oz(113g) Saaz hops, boil (15min) 4.0oz(113g) Tettnanger hops, boil (15min) Whirlfloc to calify(10min) 4.0 g gypsum(mash) I pkg W1007 Run I pkg Whitedorf Alt yeast (starter)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Close-up of a metallic cylindrical object with a red circular highlight and a small inset image (no visible text or symbols)

Three grayscale images showing a circular object in different angles, with no visible text or symbols.

1 2 3 My home Welcome Home Set your home location for more information > All Devices No devices Add Device Add Manually Auto Scan Others Large Home Appliances Connector (Wi-Fi) Universal Remote Control Universal Remote Control (Wi-Fi+8LS) Small Home Appliances CAMKCH Others (Wi-Fi) Others (Gbps) Kitchen Appliances Others (4LS) Others (ML wTI) Others Security & Video 0... Sant Speaker Outdoor Travel Energy Energy news Industry & Applications Others Cancel Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to be 2.4GHz. Common router setting method X 17-01 - 9GHz ✓ WiFi - 2.4Ghz MN APPLIANCE mannang_2016 Next

456
Cancel EZ Mode Reset the device first.Power on the device and confirm that the indicator is blinking rapidly.Note: please complete the network distribution within 3 minutes after resetting the device.Perform net pairing as prompted. Confirm the indicator is blinking rapidly. Next	Cancel Adding device... Ensure that the device is powered on.01:58Scan devices. Register on Cloud Initialize the device.	DoneAdded successfully Mash boiler Device added successfully

Mode à un niveau

Mash kettle Function mode Collect recipes Cloud recipe Scale switch 0 hours 0 minutes Cooking time 0°C Cooking Temperature 0°C Power 0W Start/Pause

1 2 3 ← Mash kettle unction mode Collect recipes Cloud recipes Stops Light Lager Amber Hybrid Beer Pils Ctrl+Alt+Delete ← Search Light Lager Amber Hybrid Beer Pils Ctrl+Alt+Delete describe material steps material 25.0lb(11.34kg) German Pilaner malt 6.0lb(2.72kg) Munich malt 3.0lb(1.36kg) Briess aromatic malt 1.0lb(0.45kg) Wyer mann Caramunich malt 1.0lb(0.45kg) White wheat malt 8.0oz(227g) Wyer mann Carafa Special II malt 2.0oz(57g) Tettnanger hops, boil (60min) 2.0oz(57g) Tettnanger hops, boil (30min) 4.0oz(113g) Saaz hops, boil (20min) 4.0oz(113g) Saaz hops, boil (15min) 4.0oz(113g) Tettnanger hops, boil (15min) Whirlfloc to calify(10min) 4.0 g gypsum(mash) I pkg W1007 Run I pkg White 1 kgdorf Alt yeast (starter)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DÉCLARATION DE CONFORMITÉ

CE UK CA

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

QR code image containing encoded data, no visible human-readable text

INDICE

Close-up of a metallic cylindrical object with a red circular highlight and a small inset showing a droplet (no text or symbols visible)

Three grayscale images showing a circular object with internal features, possibly a container or tank, with no visible text or symbols.

pump switch power switch On Off On = acceso Off = spento

1 2 3 My home Welcome Home Set your home location for more information > All Devices No devices Add Device Add Manually Auto Scan Others Large Home Appliances Connector N=FI Universal Remote Control Universal Remote Control (N=FI+BLE) Small Home Appliances CAMKCH Others (N=FI) Others (English) Kitchen Appliances Others (4x3) Others (ML wTI) Others Security & Video G... Battery Control Outdoor Travel Energy Events news Industry & Applications Others Cancel Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to be 2.4GHz. Common router setting method X: 1MHz - 9GHz ✓ WiFi - 2.4Ghz MN APPLIANCE mannang_2016 Next

456
Cancel EZ Mode Reset the device first.Power on the device and confirm that the indicator is blinking rapidly.Note: please complete the network distribution within 3 minutes after resetting the device.Perform net pairing as prompted. Confirm the indicator is blinking rapidly. Next	Cancel Adding device...Ensure that the device is powered on.01:58Scan devices. Register on Cloud Initialize the device.	DoneAdded successfullyMash boilerDevice added successfully

Mash kettle Function mode Collect recipes Cloud recipe Scale switch 0 hours 0 minutes Cooking time 0°C Cooking Temperature 0°C Power 0W Start/Pause

1 2 3 ← Mash kettle unction mode Collect recipes Cloud recipes Stops Light Lager Amber Hybrid Beer Pils Ctrl+Alt+Delete ← Search Light Lager Amber Hybrid Beer Pils Ctrl+Alt+Delete describe material steps material 25.0lb(11.34kg) German Pilaner malt 6.0lb(2.72kg) Munich malt 3.0lb(1.36kg) Briess aromatic malt 1.0lb(0.45kg) Wyer mann Caramunich malt 1.0lb(0.45kg) White wheat malt 8.0oz(227g) Wyer mann Carafa Special II malt 2.0oz(57g) Tettnanger hops, boil (60min) 2.0oz(57g) Tettnanger hops, boil (30min) 4.0oz(113g) Saaz hops, boil (20min) 4.0oz(113g) Saaz hops, boil (15min) 4.0oz(113g) Tettnanger hops, boil (15min) Whirlfloc to calify(10min) 4.0 g gypsum(mash) I pkg W1007 Run I pkg Whitedorf Alt yeast (starter)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
