USER MANUAL Gärkeller Pro XL Klarstein
Artikel 3
Items 11
Safety Instructions 12
Product Overview 13
Assembly 14
Cleaning and Care 18
ITEMS
Included
| Fermenter Item No. 10035622 | |
| Volume 60 L | |
Sold separately (not included)
| Lid and chiller Item No. | 10035623 |
| Glass bottle Item No. 1 | 0035930 |
SAFETY INSTRUCTIONS
- Read all instructions carefully.
- Contact your service representative if the unit does not work or is damaged.
- Place the machine securely in the middle of the table.
- Do not place the appliance next to a gas cooker, electric heater or heated oven.
- This appliance may only be installed in environments where it can be supervised by trained personnel.
- Do not remove the lid while fermenting.
- Do not carry the appliance when it is full.
- If the appliance is overfilled, water may overflow.
- This appliance must not be installed in environments where a jet of water is required.
- This appliance must not be cleaned with a water jet or immersed in water.


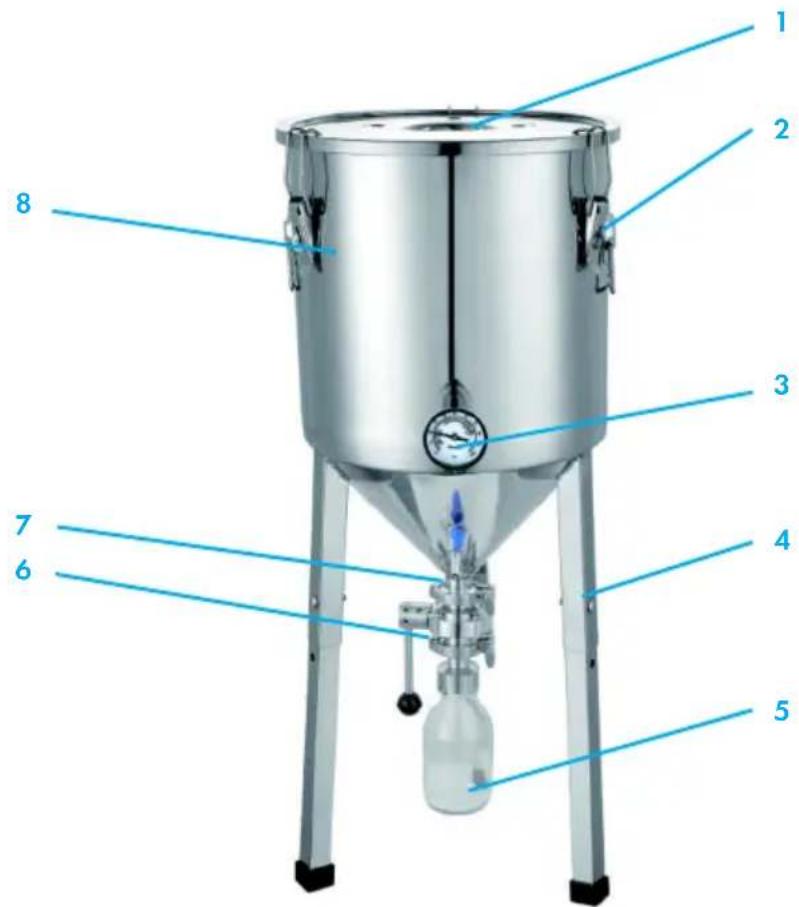

Labeled diagram of a stainless steel industrial vessel with numbered components and a gas collection bottle.1 Lid*
2 Lock
3 Thermometer
4 Feet
5 Glass bottle*
6 Valve
7 Outlet of wort
8 Fermenter
ASSEMBLY
Parts
![]() | ![]() | ![]() | ||||
| Outlet of wort Glass bottle (optional) Valve | ||||||
![]() | ![]() | ![]() | ||||
| Water seal Thermometer Chiller (optional) | ||||||
![]() | ||||||
| Thermometer tube | ||||||
Outlet assembly
| 1 2 3 | ||
![]() | ![]() | ![]() |
Glas bottle assembly (glass bottle not included)
| 1 2 3 | ||
![]() | ![]() | ![]() |
Water seal assembly
| 1 2 3 | ||
![]() | ![]() | ![]() |
Thermostat assembly
| 1 2 3 | ||
![]() | ![]() | ![]() |
Thermometer tube assembly
| 1 2 3 | ||
| 4 5 6 | ||
CLEANING AND CARE
• Each part that has been in contact with the wort should be cleaned after using.
- Do not use a dish washer to clean small parts.
- Do not use acidic, alkaline or salty liquids to clean.
• Water or cleanser essence is suitable for cleaning
