Caldwell - Ice machine Klarstein - Free user manual and instructions

Brand	Klarstein
Model	Caldwell
Product type	Ice maker
Dimensions (W x D x H)	222 x 294 x 290 mm
Weight	6.2 kg (6.7 kg depending on version)
Power supply	220-240 V ~ 50 Hz
Protection class	Class I
Refrigerant	R600a (isobutane, 22 g)
Daily ice production	12 kg
Water tank capacity	1.3 L
Ice compartment capacity	0.6 L
Climate class	SN/N/ST
Recommended ambient temperature	10 °C to 38 °C
Ice making cycle	Approximately 6 to 13 minutes
Functions	Ice cube size selection (small/large), automatic stop when basket is full, water level indicator, infrared sensor
Care and cleaning	Interior cleaning with diluted dish soap, drainage via front plug, complete drying before non-use
Safety	Do not immerse, do not use with a timer, mandatory grounded outlet, flammable refrigerant
Included accessories	Ice cube basket, ice scoop
Article numbers	10045219, 10045220

Frequently Asked Questions - Caldwell Klarstein

How to clean the ice maker?

Remove the ice basket. Clean the interior with a soft cloth soaked in soapy water (diluted dish soap). Rinse with clean water and drain by removing the drain plug located at the bottom front. Dry the interior and exterior thoroughly before reuse.

Why does the 'ADD WATER' indicator light up?

The water tank is empty or the water level is insufficient. Press the ON/OFF button, add potable water up to the maximum mark, then restart the appliance. Wait 3 minutes before restarting.

Ice cubes stick together, what to do?

If the ambient temperature is below 15 °C, choose the 'small' ice cube size to prevent them from sticking. Also ensure the machine is not exposed to direct sunlight.

What water to use?

Use only potable water, preferably mineral water. Distilled water is not suitable. Change the water every 24 hours for hygiene reasons.

The machine does not make ice cubes even though the cycle seems normal

Check that the ambient temperature is between 10 and 43 °C and the water temperature between 8 and 32 °C. If the 'ADD WATER' or 'ICE FULL' indicator is on, resolve the corresponding issue. Contact customer service if the problem persists.

Can I use an extension cord or power strip?

No, never plug the appliance into a timer or remote-controlled outlet. Ensure the outlet is properly grounded and the power cord is not damaged. Avoid power strips behind the appliance.

What to do if the machine does not stop when the basket is full?

Direct sunlight or reflections may disturb the infrared sensor. Move the appliance away from direct light. If the problem persists, contact customer service.

How to drain the water?

The drain plug is on the lower front face of the appliance. Remove it to drain the water from the tank. Be sure to dry the interior after draining.

What is the ice making time?

The cycle lasts approximately 6 to 13 minutes depending on the selected size (small or large) and ambient temperature. The maximum daily production is 12 kg.

Can I use the machine outdoors?

No, use the appliance only indoors, on a flat and stable surface, away from heat sources (oven, radiator). The distance from the wall must be at least 10 cm at the back and sides.

USER MANUAL Caldwell Klarstein

INHALT

Technische Daten 4

Line drawing of a portable electronic device with a circular vent and handle, no text or symbols present

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Technical Data 16

Safety Instructions 17

Product Description 19

Getting Started 21

Use 22

Cleaning and Care 22

Troubleshooting 23

Disposal Considerations 24

Manufacturer & Importer (UK) 24

TECHNICAL DATA

Item number 10045219 1004	5220
Power supply 220-240 V~ / 50	Hz
Protection class I
Climate class SN/N/ST
Ice making current 0.8 A
Ice harvest Current 1 A
Refrigerant (quantity) R600a (22 g)
Capacity 1.3 l
Ice storage capacity 0.6 l
Daily ice output 12 kg
Measurements 222 x 294 x 290 mm
Weight 6.2 kg 6.7 kg

SAFETY INSTRUCTIONS

• Place the device on a level surface.
• Use the device indoors only.
• Unplug the device from the power outlet when not in use.
• Never immerse the power cord and plug in water or other liquids.
• Only use accessories that are expressly recommended by the manufacturer for this device.
• Do not place the device directly under an electrical outlet.
• Do not let the power cord hang from the work surface so that children cannot pull on it.
• Do not overfill the unit, otherwise short circuits and electric shocks may occur.
• Make sure that the lid is always closed during operation.
• Do not pull the plug out of the outlet by the cord, but hold it by hand when unplugging.
• Use this device only for its intended purpose. We accept no liability for damage caused by disregarding the instructions and improper use. Only use the device in the household.
• Do not connect the device to a timer or remote-controlled socket.
• Do not immerse the device in water.
• If the power cord or plug is damaged, it must be replaced by the manufacturer, an authorized service centre, or a similarly qualified person.
• Follow local regulations for disposal of equipment containing flammable gas.
• Do not store highly flammable or explosive substances in the device.
• Fill the device only with potable water.
• Children from the age of 8, mentally, sensory and physically impaired persons may only use the device if they have been familiarized in detail with the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.

This appliance contains the refrigerant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

WARNING

Fire hazard due to improper disposal! Please observe the local regulations for the disposal of appliances containing flammable refrigerants and gases.

• Keep ventilation openings in the unit housing free of obstacles.
• Do not damage the refrigerant circuit.
• Do not use any mechanical devices or other means to accelerate the defrosting process or the ice recovery process.
• Do not use other types of electrical appliances inside the ice cube machine.

Special Notes

WARNING Risk of electric shock

This is a class I appliance. Connect the appliance to an earthed socket with protective contacts. Failure to do so may result in fatal injury from electric shock.

• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• Regularly clean surfaces that may cotme into contact with food. Clean the water drain regularly.
• If the appliance contains a water tank, clean it if it has not been used for 48 hours. Rinse the tank if no water has been removed for 5 days.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

• During transportation, do not tilt the machine more than 45 degrees, do not reverse the machine. This may damage the compressor and the sealing system.
• Remove all packing materials, check the machine carefully and make sure that the machine, power cord and plug are normal.
• The machine should be on a level surface. To ensure sufficient ventilation, the distance of the back of ice maker to the wall should be at least 150 mm, it should be away from the oven, radiator or other heat source.
• Before using the machine for the first time, place the machine and leave the transparent cover open for at least two hours.
• Make sure that the home voltage is consistent with the voltage indicated by the machine.
  • Distilled water is not allowed. Mineral water is recommended.
• When the indoor temperature is lower than 15^ , small ice is recommended. When the indoor temperature is higher than 30^ , large ice is recommended.

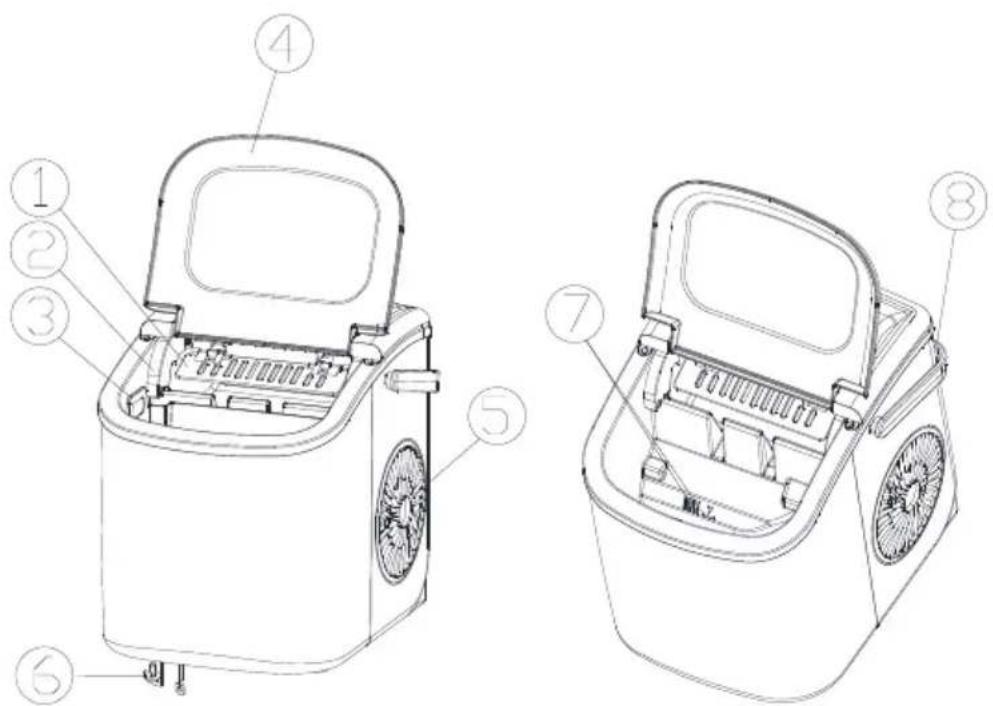

PRODUCT DESCRIPTION

1 Ice scoop.
2 Ice full sensor
3 Ice basket
4 Top cover with transparent window
5 Air exhausting
6 Water drain cap: at front btm side of the unit.
7 Maximum water level indicator
(Remove the ice basket to see the water level mark.)

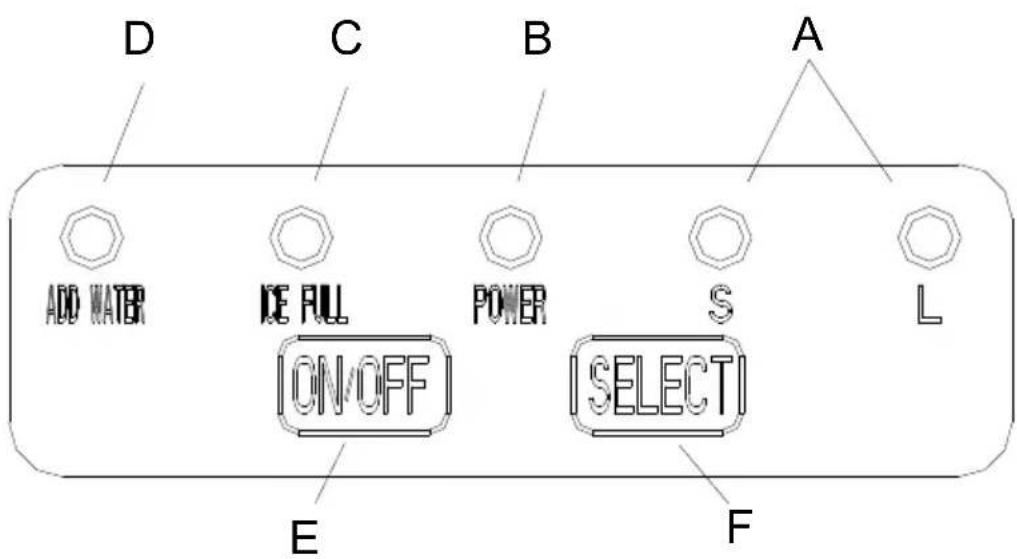

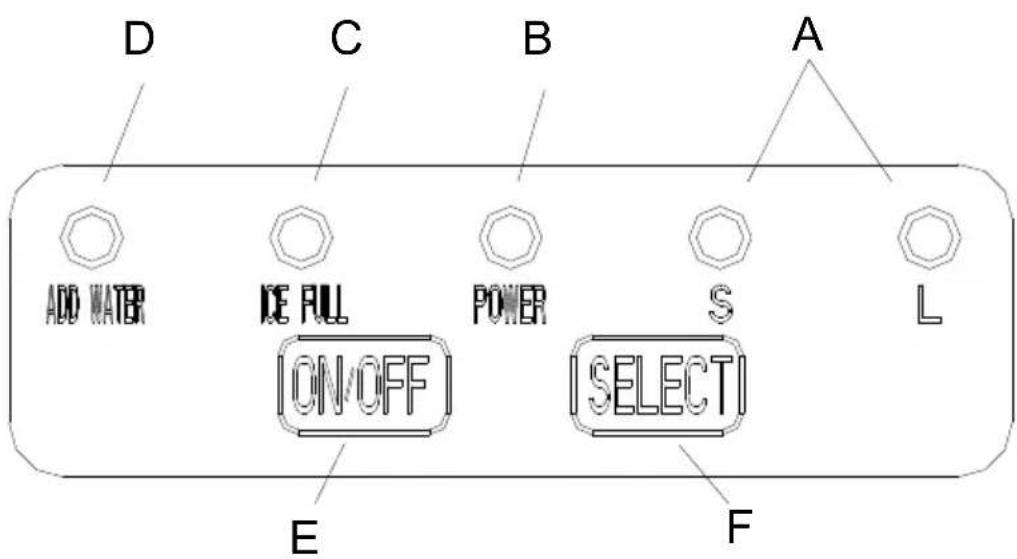

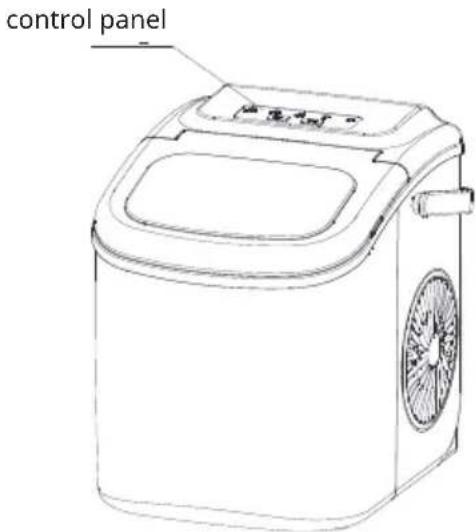

Control panel

A Selected ice size displaying: 'Small' and 'Large'
B Power indicator
C Ice-Full indicator
D Water shortage indicator
E Button to turn on/off the unit
F Button to select ice cube size.

GETTING STARTED

Unpacking your ice maker

1. Remove the exterior and interior packaging. Check if ice basket and ice scoop inside. If any parts are missing, please contact our customer service.
2. Remove the tapes for fixing ice shovel, ice basket & ice scoop. Clean the tank & ice basket.
3. Put the ice maker on a level & flat counter top without direct sunlight and other sources of heat (i.e.: stove, furnace, radiator). Maker sure that there is at least 4 inches gap between the back & LH/RH sides with the wall.
4. Allow one hour for the refrigerant fluid to settle before plugging the ice maker in.
5. The appliance must be positioned so that the plug is accessible.

CAUTION: HEALTH RISK

Fill with potable water only. Only use drinking water.

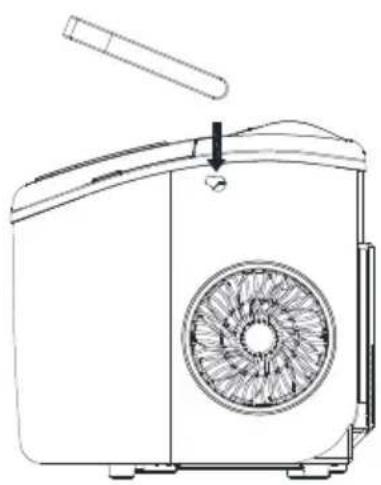

Assemble handle

Rotate the handle to the same angle as the mounting hole on the machine. Put it on the machine.

Line drawing of a portable electronic device with a circular vent and handle, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Connecting to electrical power

This appliance requires a standard 220-240 Volt, 50 Hz electrical outlet with good grounding means.

USE

1. Open the cover, remove the ice basket and pour water into tank. Keep water level below the water level mark.
2. Press the ON/OFF button on the control panel to begin the ice making cycle.
3. Select the ice cube size by pressing the SELECT button. If the room temperature is lower than 15^ C, it is recommended to select small ice cube in order to avoid ice sticking together.
4. The ice making cycle lasts approx. 6 to 13 minutes, depending on selection of ice cube size and the room temperature. The recommended room temperature is 10 °C - 38 °C .
5. If the water pump cannot inject water, the ice maker will stop automatically, and the "ADD WATER" indicator will be on. Press the ON/OFF button, fill water up to the max. water level mark and press the ON/OFF button again to turn on the unit again. Allow the refrigerant liquid inside the compressor at least 3 minutes to settle before restarting.
6. The ice maker stops when the ice basket is full and the "ICE FULL" indicator will be on.

Note: Direct sunlight or sunlight reflection may cause infrared sensor malfunction. If the unit does not stop even ice cubes obstruct sensor, move the unit where there is no sunlight.

1. Change water in the water reservoir every 24 hours to ensure a reasonable hygiene level. If unit is not to be used, drain all the water and dry the tank.

CLEANING AND CARE

Before using your ice maker, it is strongly recommended to clean it thoroughly.

1. Take out the ice basket.
2. Clean the interior with diluted detergent, warm water and a soft cloth.
3. Then use the water to rinse the inside parts, and drain out the water by unplugging the drain cap on front bottom side.
4. The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm water.
5. Dry the interior and exterior with a clean soft cloth.
6. When the machine is not to be used for a long time, drain water completely and dry the interior.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTIONS
“ADD WATER” indicator is on.	Lack of Water. Stop the	ice maker, fill water, and press “ON/OFF” button again to restart the unit.
“ICE FULL” indicator is on.	Ice is full in basket. Rem	ove ice from ice basket.Continuous press “Select” button 5 seconds, the unit could make ice 10 cycles even “Ice” indicator is on.
Ice cubes stick together.	The ice making cycle is too long.	Stop the ice maker, and restart it when the ice blocks melt. Select the small size ice cube selection.
	Water temperature in inner tank is too low.	Replace the water. Temperature of water recommended at 8-32 °C.
Ice making cycle is normal but no ice formed.	Room temperature or water temperature in inner tank is too high.	The room temperature should be 10-43 °C, water temperature should be 8-32 °C.
	Refrigerant in cooling system leaks.	Verify by a qualified technician.
	Pipe in the cooling system is blocked.	Verify by a qualified technician.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste, and a solid rectangle below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
