Albaron - Ice machine Klarstein - Free user manual and instructions

Brand	Klarstein
Model	Albaron
Product type	Ice cube maker
Dimensions (L x W x H)	224 x 308 x 283 mm
Weight	7.8 kg
Power supply	230-240 V ~ 50 Hz
Power consumption	120 W
Ice production	12 kg/24h
Storage capacity	600 g
Water tank capacity	1.5 L
Refrigerant	R600a (isobutane)
Functions	Large cubes, Small cubes, Cleaning
Safety	Low water alert, Full basket auto-stop, Micro-switch
Cleaning	Automatic function (5 cycles) + manual cleaning with diluted vinegar
Maintenance	Regular cleaning of surfaces and tank
Included accessories	Ice scoop, Collection tray, Basket
Recommended use	Mineral water, avoid distilled water
Features	Dual ice cube size selection
Manufacturer	Klarstein
Origin	Germany (brand)

Frequently Asked Questions - Albaron Klarstein

How to turn on the ice cube maker?

Plug in the appliance, the power indicator lights up. Press the POWER button to turn it on. The operation indicator lights up and production starts automatically in default large cube mode.

Which ice cube size to choose based on room temperature?

If the indoor temperature is below 15°C, it is recommended to choose small cubes. If it exceeds 30°C, choose large cubes for better performance.

What to do if the 'Add water' indicator flashes?

The water level in the tank is too low. Fill the water tank to the maximum mark, then press the POWER button to restart the appliance.

How to clean the ice cube maker?

Use the automatic function by selecting Cleaning with the SELECT button. Otherwise, unplug the appliance and clean the interior surfaces with a solution of diluted vinegar in water, then rinse with clean water.

Why are the ice cubes irregularly shaped at first?

During first use, the first 3 cycles may produce irregular and smaller ice cubes. This is normal; the shape improves afterwards.

What to do if the ice basket is full?

As soon as the Ice full indicator flashes, the appliance stops. Immediately remove the ice cubes to prevent overflow and allow production to resume.

Why is the compressor noisy?

The R600a refrigerant can generate a slightly higher flow noise. This is normal. If the noise is abnormal (humming), check the mains voltage.

How to resolve a jammed ice scoop?

Unplug the appliance. Gently push the ice scoop towards the back of the housing to remove ice chips. Plug it back in and restart with the POWER button.

Can I use distilled water?

No, distilled water is not suitable. Use mineral water or fresh drinking water to ensure ice cube quality and proper operation.

What to do if the appliance does not turn on?

Check the fuse and power supply. If the control panel remains off, replace the fuse or restore power. If the problem persists, contact customer service.

USER MANUAL Albaron Klarstein

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford

OX19UW

Großbritannien

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 17

Product Description 19

Control Panel Operation 20

Operating Instructions 21

Cleaning and Care 22

Troubleshooting 23

Disposal Considerations 24

Manufacturer & Importer (UK) 24

TECHNICAL DATA

Item number	10040344, 10040345, 10040346
Power supply 230-240 V ~ 50	Hz
Power consumption 120 W
Daily ice output 12 kg
Ice storage capacity 600 g
Water tank capacity 1.5 L
Refrigerant R600a
Dimensions 224 x 308 x 283 mm
Weight 7.8 kg

SAFETYINSTRUCTIONS

• Place the device on a level surface.
• Use the device indoors only.
• Unplug the device from the power outlet when not in use.
• Never immerse the power cord and plug in water or other liquids.
• Only use accessories that are expressly recommended by the manufacturer for this device.
• Do not place the device directly under an electrical outlet.
• Do not let the power cord hang from the work surface so that children cannot pull on it.
• Do not overfi ll the unit, otherwise short circuits and electric shocks may occur.
• Make sure that the lid is always closed during operation.
• Do not pull the plug out of the outlet by the cord, but hold it by hand when unplugging.
• Use this device only for its intended purpose. We accept no liability for damage caused by disregarding the instructions and improper use. Only use the device in the household.
• Do not connect the device to a timer or remote-controlled socket.
• Do not immerse the device in water.
• If the power cord or plug is damaged, it must be replaced by the manufacturer, an authorized service centre, or a similarly qualified person.
• Follow local regulations for disposal of equipment containing flammable gas.
• Do not store highly flammable or explosive substances in the device.
• Fill the device only with potable water.
• Children from the age of 8, mentally, sensory and physically impaired persons may only use the device if they have been familiarized in detail with the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

WARNING

Fire hazard due to improper disposal! Please observe the local regulations for the disposal of appliances containing flammable refrigerants and gases.

• Keep ventilation openings in the unit housing free of obstacles.
• Do not damage the refrigerant circuit.
• Do not use any mechanical devices or other means to accelerate the defrosting process or the ice recovery process.
• Do not use other types of electrical appliances inside the ice cube machine.

Special Notes

• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.
• If the appliance contains a water tank, clean it if it has not been used for 48 hours. Rinse the tank if no water has been removed for 5 days.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

• During transportation, do not tilt the machine more than 45 degrees, do not reverse the machine. This may damage the compressor and the sealing system.
• Remove all packing materials, check the machine carefully and make sure that the machine, power cord and plug are normal.
• The machine should be on a level surface. To ensure sufficient ventilation, the distance of the back of ice maker to the wall should be at least 150mm , it should be away from the oven, radiator or other heat source.
• Before using the machine for the first time, place the machine and leave the transparent cover open for at least two hours.
• Make sure that the home voltage is consistent with the voltage indicated by the machine.
• Distilled water is not allowed. Mineral water is recommended.
• When the indoor temperature is lower than 15^ , small ice is recommended.
• When the indoor temperature is higher than 30^ , large ice is recommended.

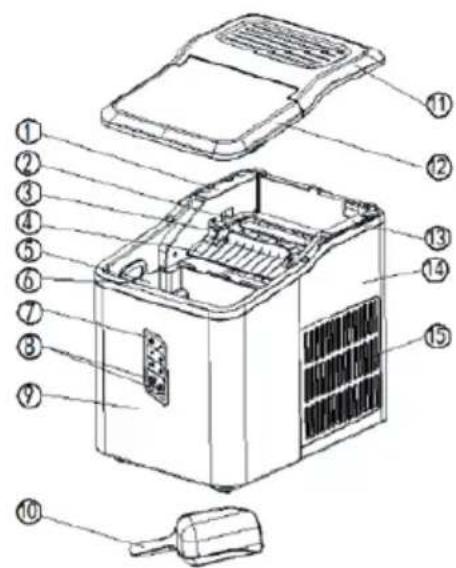

1 Micro switch support
2 Evaporator
3 Water box
4 Ice shovel board
5 Ice collecting tray
6 Water tank
7 Control panel
8 Buttons
9 Front housing
10 Ice shovel
11 Top cover
12 Transparent lid
13 Motor mount
14 Back housing
15 Air vent

Plug in the power, the "POWER" indicator light flashes, and the machine is in standby mode. Press the POWER button, the "POWER" indicator light always being on and then enter the operating state. By default, the machine enters the large ice mode, the "LARGE ICE" indicator light always being on, and then the ice block will be made automatically. After the ice making is completed, the deicing will be carried out, and then the ice shoveling function will be entered, and so on.

SELECT

Press the "POWER" button to start the machine, and then press the "SELECT" button switch between the three functions of "LARGE ICE", "SMALL ICE" and "CLEAN". To select any function, the corresponding function indicator flashes for 5 seconds, automatically confirm and switch to this function, the corresponding function indicator light always being on. The "SELECT" operation is invalid in standby mode. When the indoor temperature is lower than 15^ , small ice is recommended. When the indoor temperature is higher than 30^ , large ice is recommended.

CLEANING FUNCTION

Plug in the power, press the "POWER" button to start the machine, and then press the "SELECT" button to switch to the cleaning function. Start up the cleaning function and the "POWER" indicator light and the "CLEAN" indicator light are always being on. The machine first deicing once, and then starts cleaning. Each cleaning has 5 cycles (pumping water—pouring water) and each cycle is about 90 seconds. Do not disconnect the power supply during the cleaning. After the cleaning, the product automatically enters the standby mode.

Water shortage alarm

When the "ADD WATER" light flashes, it means that there is water shortage in the water tank. You need to add water and press the POWER button to restart the machine.

ADD WATER

Ice full alarm

When the ice reaches the maximum capacity of the ice storage container, the "ICE FULL" light flashes, and the machine stops. At this time, the ice needs to be poured out. When the ice position is lower than the full sensor position, the machine will restart automatically.

ICE FULL

OPERATING INSTRUCTIONS

Step 1

Open the lid and take out the basket and add water to the reservoir.

Note: There is a maximum scale MAX in the reservoir. The water should not exceed the MAX position. If the water exceeds the maximum scale MAX, you need to open the bottom drain plug, release the excess water, and cover with a transparent cover.

Step 2

Plug in the power and press the power button to start the machine.

Notes

• The three cycles used for the first time, the ice produced is small and irregular.
• When the ice basket is full, please take out the ice immediately, do not let the ice overflow the ice collecting tray.

CLEANING AND CARE

1. Clean the inner liner, ice collecting tray, water box, ice shovel and evaporator frequently. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surface of the ice maker. Do not spray Ice maker with chemicals or diluted agents such as acids, gasoline or oil. Rinse thoroughly before starting.
2. Keep ventilation openings in the appliance enclosure, or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3. Reuse the machine after being idled for a period of time, it may not have enough water to pump for air retard, in this case, the water shortage indicator "ADD WATER" will light up, repress POWER button to restart the ice maker is okay.
4. To ensure the cleanness of ice, please change water for water reservoir at least once one day. If do not use for a long time, please drain the water out and clean it up.
5. If the compressor takes a strike action for shortage water, fully water or interruption of power supply, it will delay for 3 minutes to start up after restarted.
6. Always use fresh water before starting ice production either at initial installation or after a long shut-off period.

TROUBLESHOOTING

1. Please note, if a power failure occurs due to disconnection of the power cord, or the power button has been pushed off during an ice making cycle, small ice chips may formed and lodge in the automatic shovel causing it to jam. If this occurs, the ice chips may be removed by disconnecting the power cord and gently pushing the shovel to the rear of the cabinet and removing the ice chips, then restarting.
2. Please check if the water reservoir is flat when the ice shovel can not remove the ice to ice basket. If not, please push the ice shovel gently by finger, then press POWER button to restart.

PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTIONS
The compressor works abnormally with a buzzing noise.	The voltage is lower than recommended.	Stop the Ice maker and do not restart until the voltage is normal.
Water shortage indicator light is on	1.There is no water. 2.The pump is full of air.	1.Add to some water until it reaches MAX position. 2 pressing POWER button to restart.
Indicator lights on control panel are not on.	Blown fuse/ No power Replace fuse	/ Turn power on.
The ice made is too large and with pieces sticking together.	Ice of previous cycles left in the water tray	Take out the ice under the standby state.
The ice making process was correct, but no ice came out.	1. The compressor has no refrigerant 2. Compressor damaged 3. Fan motor damaged	Call the service hotline.
All indicators twinkle simultaneously.	1. Water tray is blocked by ice cube. 2. The motor is stuck, or the motor falls off, or the motor is damaged. 3. Micro switch is damaged.	1. Unplug the power to take out the ice which blocking the tray, then plug the power and press the POWER button, the machine will restart 3minutes later. 2. Call the service hotline.
The machine has been working, but the water has been warming.	Solenoid broke down Replace the solenoid valve.
When the ice is full, the machine does not display the ICE FULL Icon	1. Ice full sensor damaged 2. Sunlight interference	1. Replace the ice full sensor. 2. Making ice indoor. 3. Call the service hotline.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom
