USER MANUAL Innobot Aqua PLUS HS1-SWB WILFA

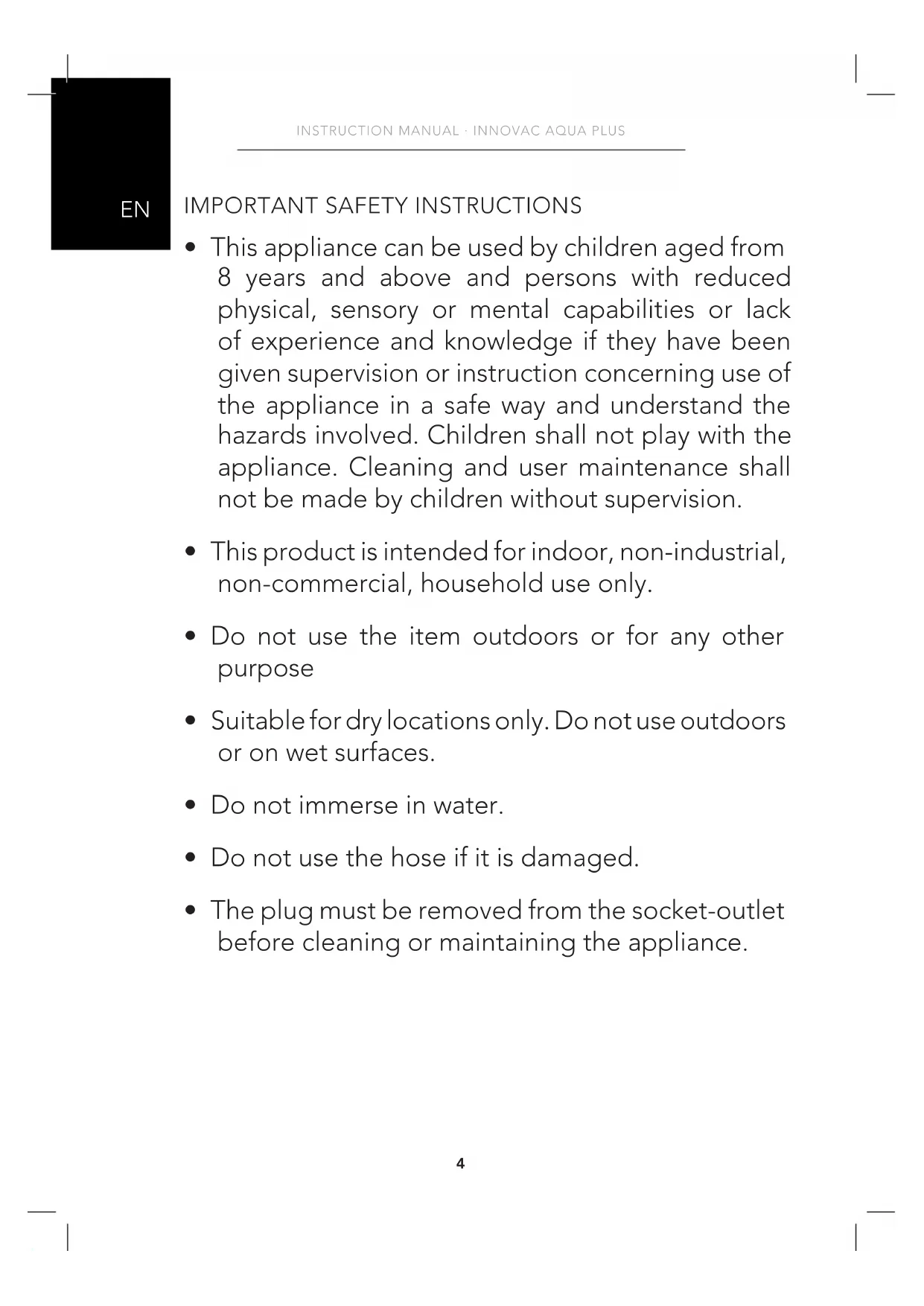

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This product is intended for indoor, non-industrial, non-commercial, household use only.

• Do not use the item outdoors or for any other purpose

• Suitable for dry locations only. Do not use outdoors or on wet surfaces.

• Do not immerse in water.

• Do not use the hose if it is damaged.

• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.5

• Do not charge the vacuum cleaner at the ambient temperature of lower than 5°C and higher than 40°C.

• Let the vacuum cleaner cool down after use before charging.

• If the low power icon is shown on the display after turning the vacuum cleaner on, you should charge the battery.

• When the battery is fully charged, disconnect the power supply.

• If your vacuum cleaner is not used for a long time (more than 2 months), please unplug it from the power supply. In order to ensure the battery life, it needs to be fully charged once every 2 months.

• Only use the maximum power when needed. Too much usage on max will shorten the expected battery life.6

• To ensure the suction force of your vacuum cleaner, please clean the oor brush, brush rollers, lters, and dustbin regularly.

• Make sure that all components are installed properly, otherwise it could cause product failure.

• Do not let water get into the electric elements of your vacuum cleaner, it could cause product failure.7

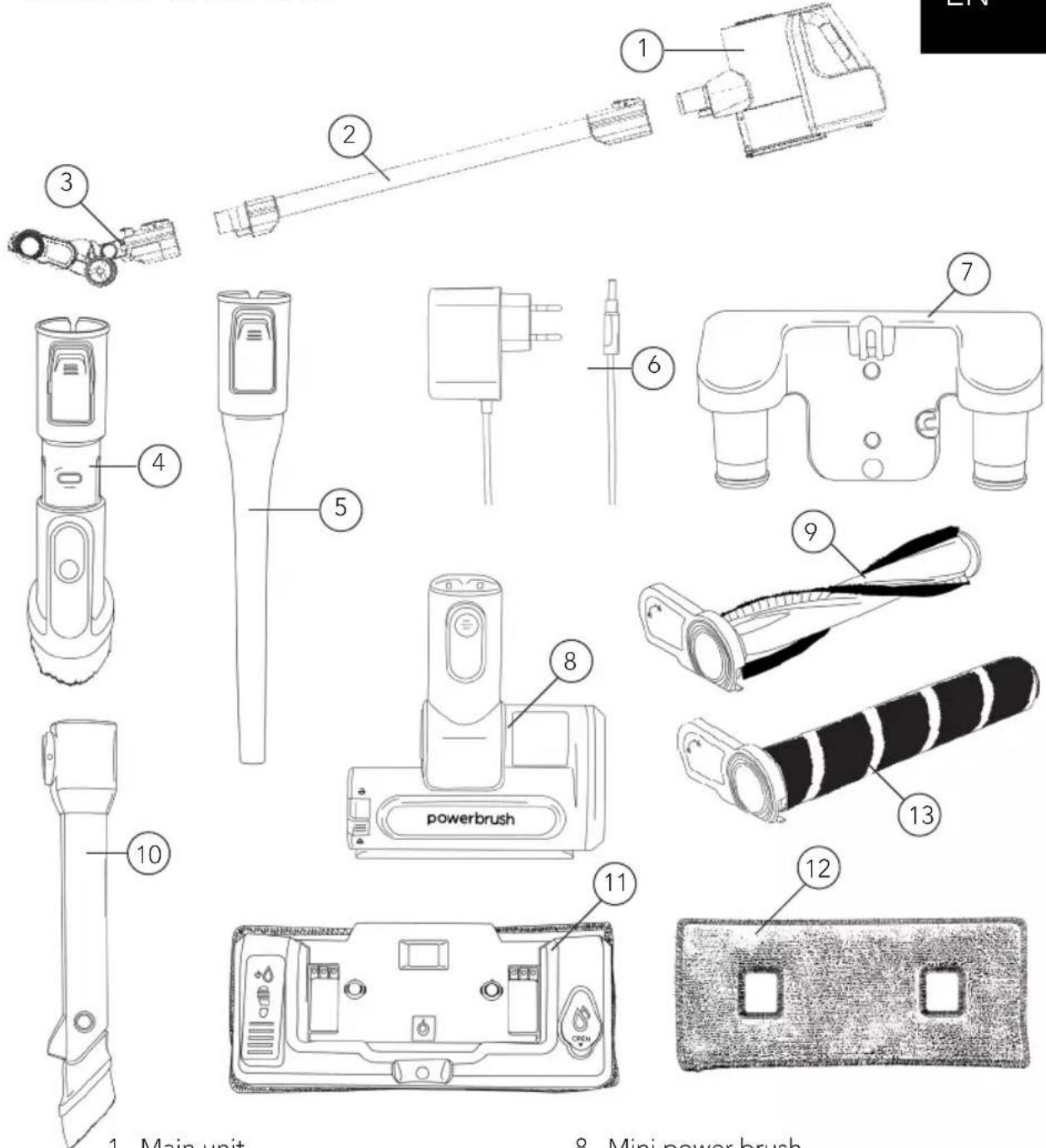

9. Combo carpet brush

10. Telescopic crevice nozzle with

11. Wet mop attachment

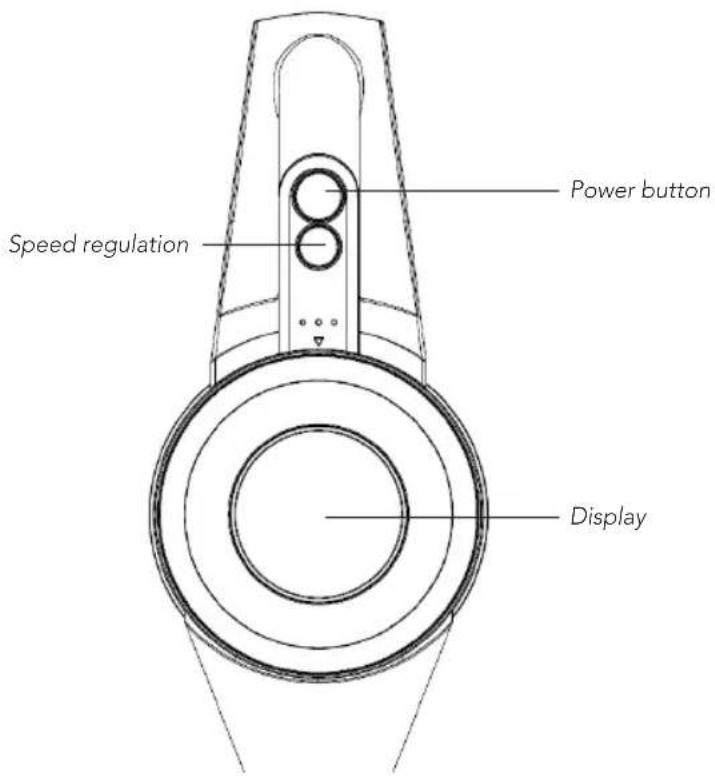

• Press the power button to start.

• After switching the vacuum cleaner on, press the speed regulation button to adjust the speed. The speed will go from Auto-High-Medium-Low.

• When using the Auto level, the dust sensing function is enabled. After sensing dust, the background animation on the display will change from blue to purple. If no dust is detected, the animation remains blue, and power will run on low.

• The battery time is indicated by a circle on the display, divided into 6 sections. As the battery is consumed the circle will lower section by section. When the battery is low, the display shows “Low Power”. Power button Display Speed regulation MOP ATTACHMENT

1. Before use, attach the mop onto the tank. Fill the tank with water and

close the lid. Do not fill over the max indicator.

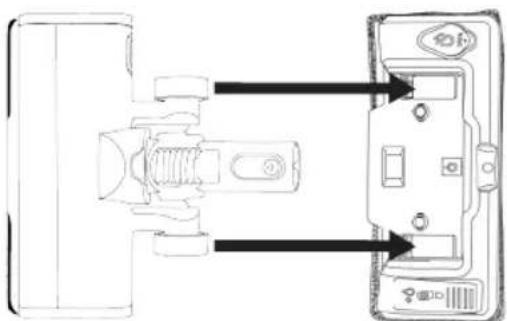

2. Attach the mop to the floor brush by placing the mop attachment on the

floor, and gently lower the electric floor brush onto the mop attachment (see illustration)

3. Press the foot pump to pump water onto the mop to keep the mop9

CORDLESS VACUM WITH WET MOP · HS1-SWB DISPLAY Filter clean Dust tank blocking Roller blocking Air ow blocking Air ow blocking Brush blocking Low speed Mid speed High speed Low battery Charging nished Charging damp. Wet the mop before attaching it to the mop attachment for a better cleaning result.

• Store the mop attachment with an open lid to make it dry and to prevent mould.

• The mop pads are machine washable at 40°. Clean after every use.

• Do not emerge the tank in water.

• Do not use floor cleaner.

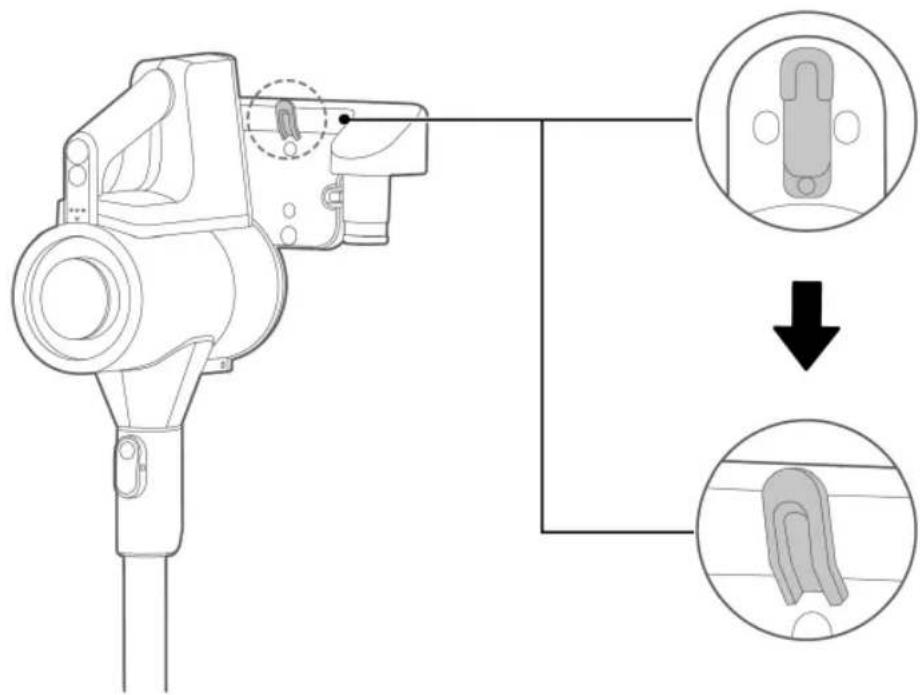

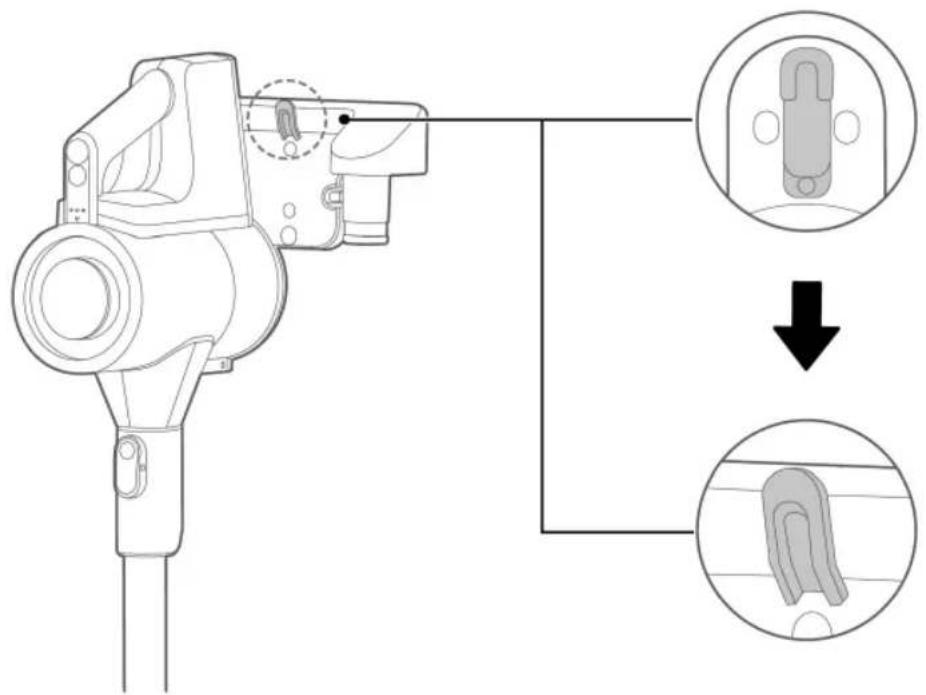

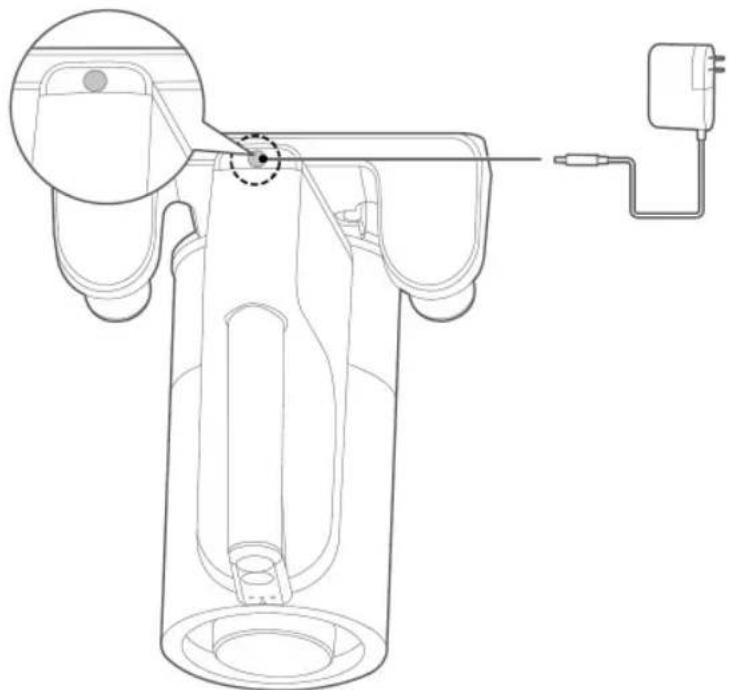

1. Hang the vacuum cleaner on the wall rack

2. Connect the power cord to the charging port

3. Charge for 4–6 hours.11

CLEANING AND MAINTENANCE

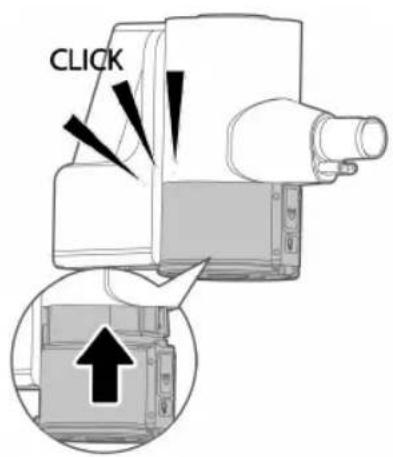

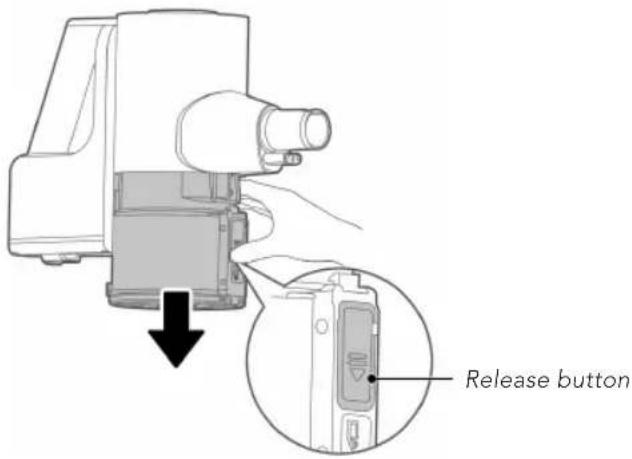

DUST CUP Disassembly Hold the bottom of the dust cup. Press the release button and carefully pull the dust cup out downward. Installation Push the dust cup up with the suction inlet facing outward. Release button12

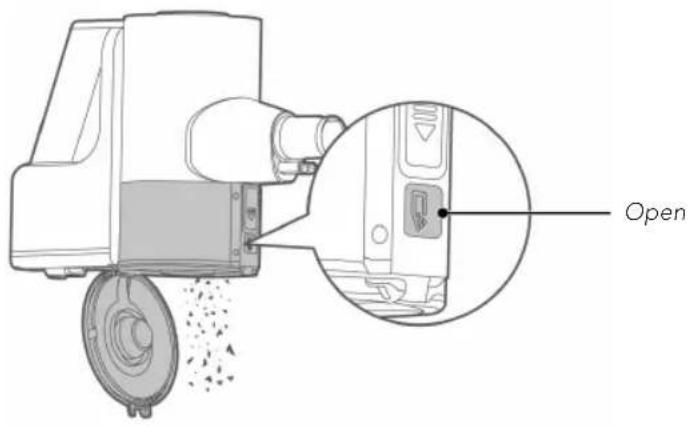

CLEANING Press the Dust cup release button, and the bottom cover opens. Clean the dust bin with water. Make sure it is completely dry before re-assembling. FILTER COMPONENTS

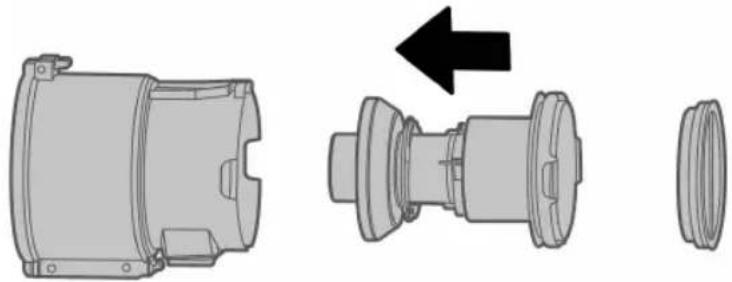

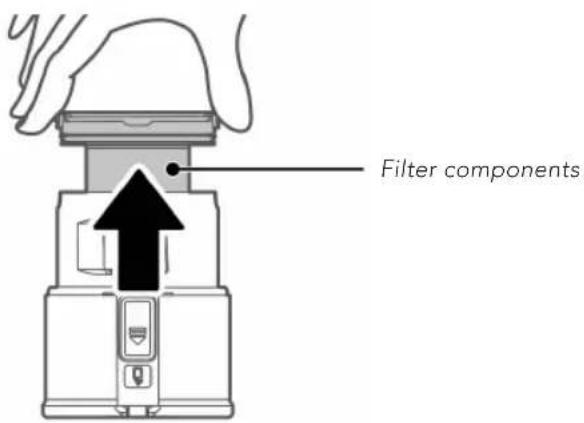

1. Hold the ribs on both sides and pull upwards to remove the lter components.

2. Remove the lter sponge, lay it with the white side down and tap it to remove

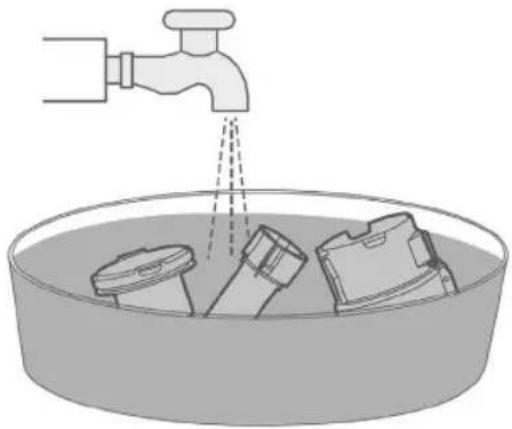

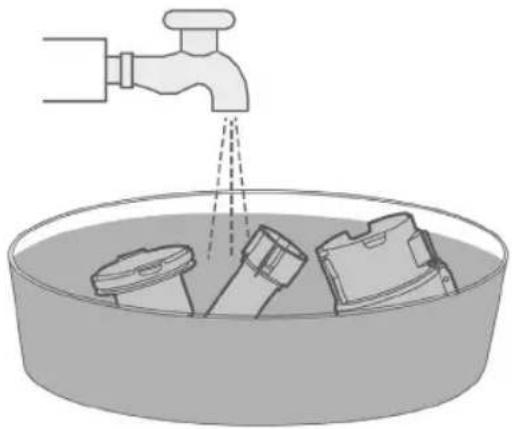

3. Rinse the parts under water.

4. The parts needs to be completely dry before installing the lter components

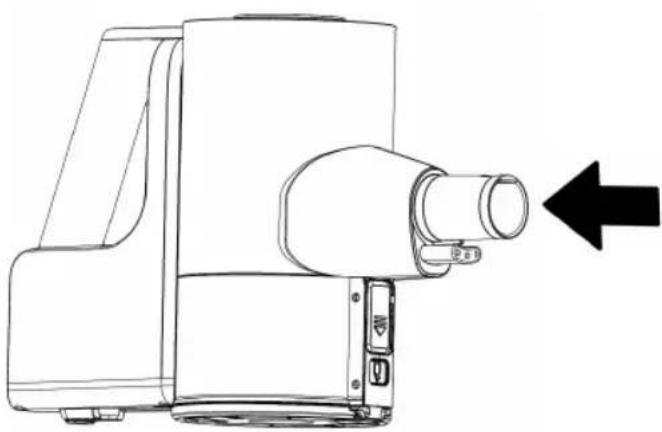

into the dust bin. DUST SENSOR For the dust sensor to function optimally it needs to be cleaned regularly. To clean the dust sensor just use your nger and remove the dust collected on the sensor. The sensor is located inside the tube on two sides. Use your nger or a dry towel to wipe over the sensors.14

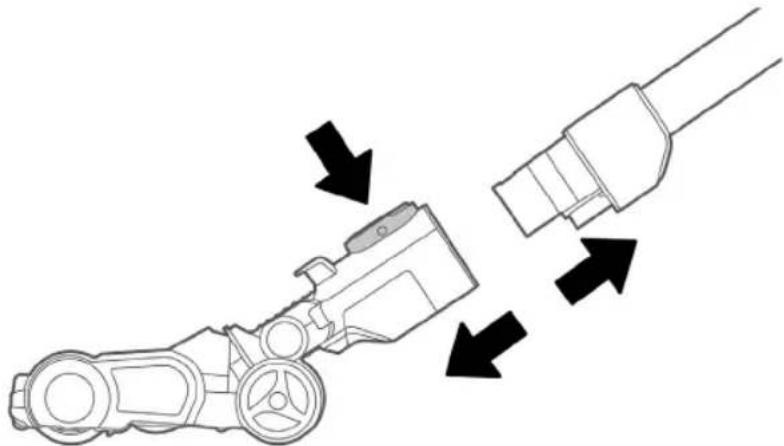

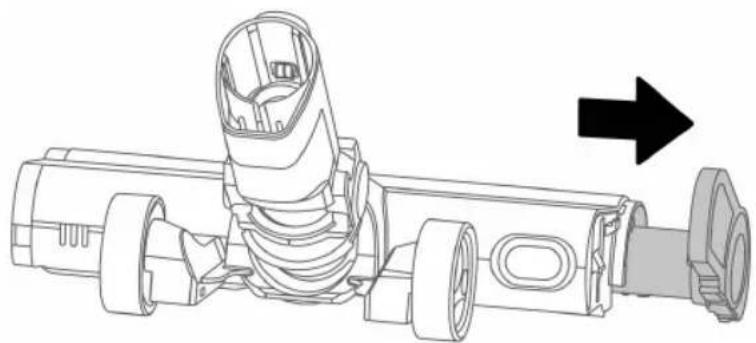

1. Press the button and remove the electric oor brush from the extension tube.

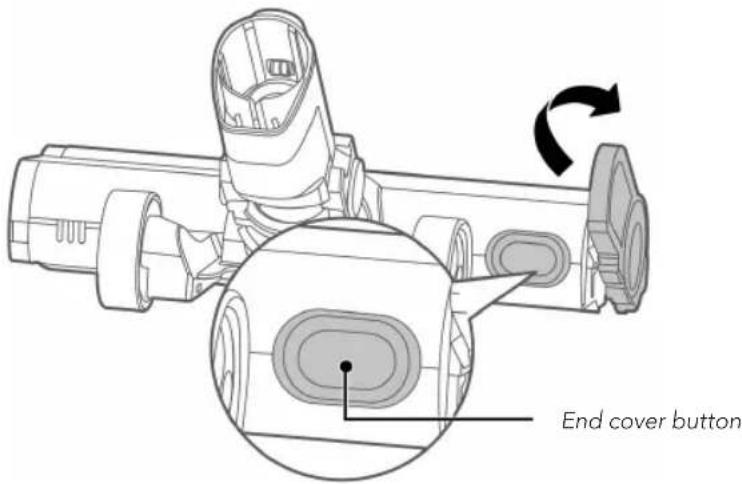

2. Press and hold the button and turn the end cover upwards.

3. Pull out the rolling brush and clean it. Do not use water!15

CORDLESS VACUM WITH WET MOP · HS1-SWB TROUBLESHOOTING Problem Possible reason Solution Three indicators ash Rolling brush is tangled by hair. The ambient temperature for operation is too high or too low. Remove hair or any foreign object stuck in the rolling brush. Use the vacuum cleaner in the proper environment. Electric oor brush is not working Large pieces of waste have been engaged. The rolling brush has been tangled with hair. Disassemble the electric oor brush and remove the waste. Remove the rolling brush from the electric oor brush and remove the hair from the brush. Operation duration becomes shorter Battery aging The ambient temperature for operation is too high or too low The battery is not fully charged Contact customer service Make sure the vacuum cleaner is not placed in the sunlight if it is too warm, and make sure doors and windows are closed if it is too cold. Charge the battery Suction force is weakened The lter sponge of the dust cup is blocked The suction inlet of the oor brush or accessories is blocked The lter components are not fully dried after washing with water Clean the lter sponge Remove the objects blocking the suction inlet Make sure the lter components are fully dried, and assembled in the correct way16

Charging failure Ambient temperature during charging is too high or too low Charge the appliance at the proper temperature. Make sure the vacuum cleaner is not placed in the sunlight if it is too warm, and make sure doors and windows are closed if it is too cold. Battery liquid leakage The vacuum cleaner has not been used for a long time. Change the battery. Contact the store to replace the battery. Error on the display The vacuum cleaner is lacking suction power. This can be due to something stuck inside the extension tube, lter being clogged with dust, or that the rolling brush is tangled with hair. Remove any object in the extension tube, clean the lter components, and clear the rolling brush for hair.17

GUARANTEE Wilfa issues a 5 year guarantee on this product from the day of purchase. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee. The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modied or if unauthorized reparation is done. Wilfa is not responsible for damage to third party parts and other collateral damage. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product

• Parts which are normally worn down

• Parts you can expect being replaced regularly (e.g. lter, battery etc.)

• Wear parts like motor heads, nozzles, battery, brushes, lters, wheels, light. Wilfa is also not responsible for damages occurred because of excessive use, incorrect assembly, incorrect storage, incorrect charging, lack of cleaning etc. The battery comes with a 1 year warranty. The warranty will not be valid if the appliance has not been charged according to the manual.19 AS Wilfa Sandakerveien 114A, 0484 Oslo, Norway

CORDLESS VACUM WITH WET MOP · HS1-SWB PRODUCT SPECIFICATIONS BATTERY

• Charging time: 4-6 hours.

• Battery time: up to 60 minutes on low, 20 minutes medium, 10 minutes max, 15-30 minutes auto. The battery time on auto depends on the amount of dust detected.

• Defected batteries can be replaced at our service partners.

• Battery efciency will degrade with time and use. With normal household usage, and by following the usage, charging and maintenance guidelines you can expect around 80% of efciency after 5 years or 390 hours of use.

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will nd frequently asked questions, spare parts, tips and tricks and all our contact information. RECYCLABILITY This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.20
