Innovac Sensor HS1SB - Handheld vacuum WILFA - Free user manual and instructions

Product Type	Cordless table vacuum
Brand	Wilfa
Model	Innovac Sensor HS1SB
Power Supply	Rechargeable lithium-ion battery
Charging Time	4 to 6 hours
Battery Life	Up to 60 min (low mode), 17 min (medium), 7 min (max), 15-30 min (auto)
Display	Screen with battery, speed and blockage indicators
Dust Sensor	Yes, automatic dust detection
Speed Modes	Auto, high, medium, low
Included Accessories	Electric floor brush, 2-in-1 brush, crevice tool, mini electric brush, carpet roller, power adapter, wall bracket
Filtration	Washable sponge filter and filter components
Maintenance	Clean the brush, filters and dust bin regularly
Safety	Do not use outdoors or on wet surfaces; do not immerse; charge between 5°C and 40°C
Warranty	5 years on the product, 1 year on the battery
Usage	Indoor, dry places only
Recycling	Do not dispose with household waste; follow recycling instructions

Frequently Asked Questions - Innovac Sensor HS1SB WILFA

How to charge the vacuum?

Hang the vacuum on the wall bracket, plug the power adapter into the charging port and let it charge for 4 to 6 hours. Unplug once charging is complete.

What is the battery life?

Battery life varies by mode: up to 60 minutes in low mode, 17 minutes in medium mode, 7 minutes in max mode, and 15 to 30 minutes in automatic mode depending on the amount of dust detected.

What to do if the vacuum loses suction?

Check that the dust bin and filters are not clogged. Clean the sponge filter and ensure the suction inlet of the brush or accessories is clear. If the problem persists, check the brush roll for any tangles.

How to clean the filter?

Remove the dust cap, then the filter components. Tap the sponge filter to remove dust, then rinse it with water. Let it dry completely before reassembling.

How to clean the dust sensor?

The sensor is located inside the tube on both sides. Use your finger or a dry cloth to wipe off accumulated dust on the sensor to ensure proper operation.

What do the flashing lights mean?

Three flashing lights usually indicate that the brush roll is jammed by hair or fur. Remove obstructions from the brush. Other light combinations may indicate a blockage in the airflow or brush.

How to clean the floor brush?

Press the button and remove the floor brush from the tube. Hold the button down and rotate the end cap upward to remove the brush roll. Clean it dry (do not use water). Remove hair and debris.

Does the warranty cover the battery?

The battery is warranted for 1 year. The 5-year warranty covers the product against manufacturing defects, but not normal wear and tear. Keep your purchase receipt.

Can the vacuum be used on carpets?

Yes, the vacuum comes with a carpet brush roll and an electric floor brush suitable for carpets. Use the appropriate mode for optimal cleaning.

How to install the wall bracket?

Attach the wall bracket to a suitable location with the provided screws. Ensure it is firmly fixed. Hang the vacuum on the bracket to charge and store it.

USER MANUAL Innovac Sensor HS1SB WILFA

INSTRUCTION MANUAL·INNOVAC SENSOR

CONTENTS

4 IMPORTANT SAFETY INSTRUCTIONS
5 ATTENTION - BATTERY
6 ATTENTION - CLEANING AND MAINTENANCE
7 PRODUCT OVERVIEW
8 OPERATION
9 DISPLAY
10 CHARGING
11 CLEANING AND MAINTENANCE
15 TROUBLESHOOTING
18 GUARANTEE
19 PRODUCT SPECIFICATIONS
19 SUPPORT AND SPARE PARTS
19 RECYCLABILITY

EN

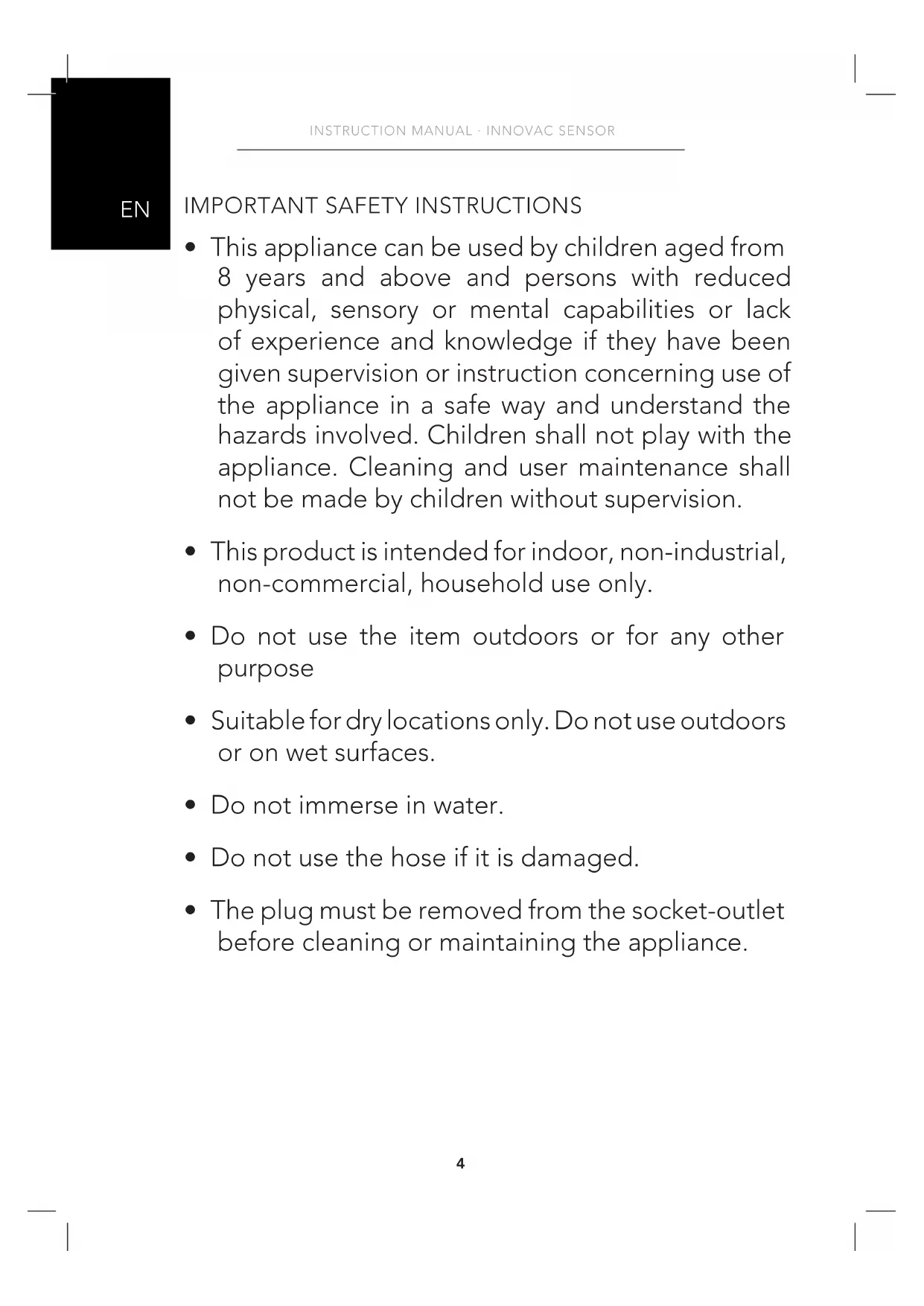

IMPORTANT SAFETY INSTRUCTIONS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This product is intended for indoor, non-industrial, non-commercial, household use only.
• Do not use the item outdoors or for any other purpose
• Suitable for dry locations only. Do not use outdoors or on wet surfaces.
• Do not immerse in water.
• Do not use the hose if it is damaged.
• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

ATTENTION - BATTERY

• Do not charge the vacuum cleaner at the ambient temperature of lower than 5^ and higher than 40^ .
• Let the vacuum cleaner cool down after use before charging.
• If the low power icon is shown on the display after turning the vacuum cleaner on, you should charge the battery.
• When the battery is fully charged, disconnect the power supply.
• If your vacuum cleaner is not used for a long time (more than 2 months), please unplug it from the power supply. In order to ensure the battery life, it needs to be fully charged once every 2 months.
• Only use the maximum power when needed. Too much usage on max will shorten the expected battery life.

EN

ATTENTION - CLEANING AND MAINTENANCE

• To ensure the suction force of your vacuum cleaner, please clean the floor brush, brush rollers, filters, and dustbin regularly.
• Make sure that all components are installed properly, otherwise it could cause product failure.
• Do not let water get into the electric elements of your vacuum cleaner, it could cause product failure.

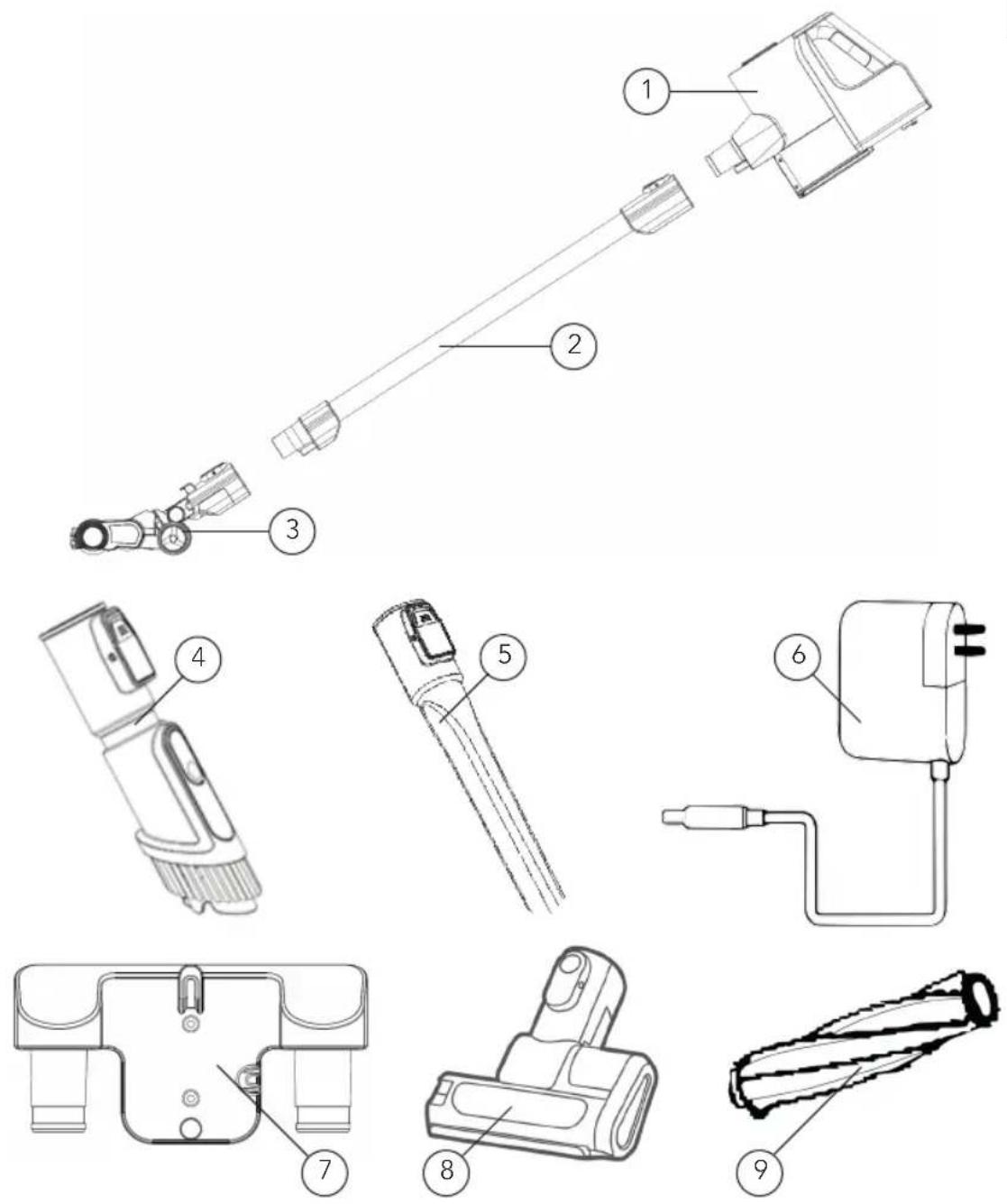

PRODUCT OVERVIEW

1. Main unit
2. Extension tube
3. Electric floor brush

Components

1. 2-in 1 brush

2. Crevice nozzle

3. Power adapter
4. Wall mount
5. Mini power brush
6. Carpet brush roller

EN

OPERATION

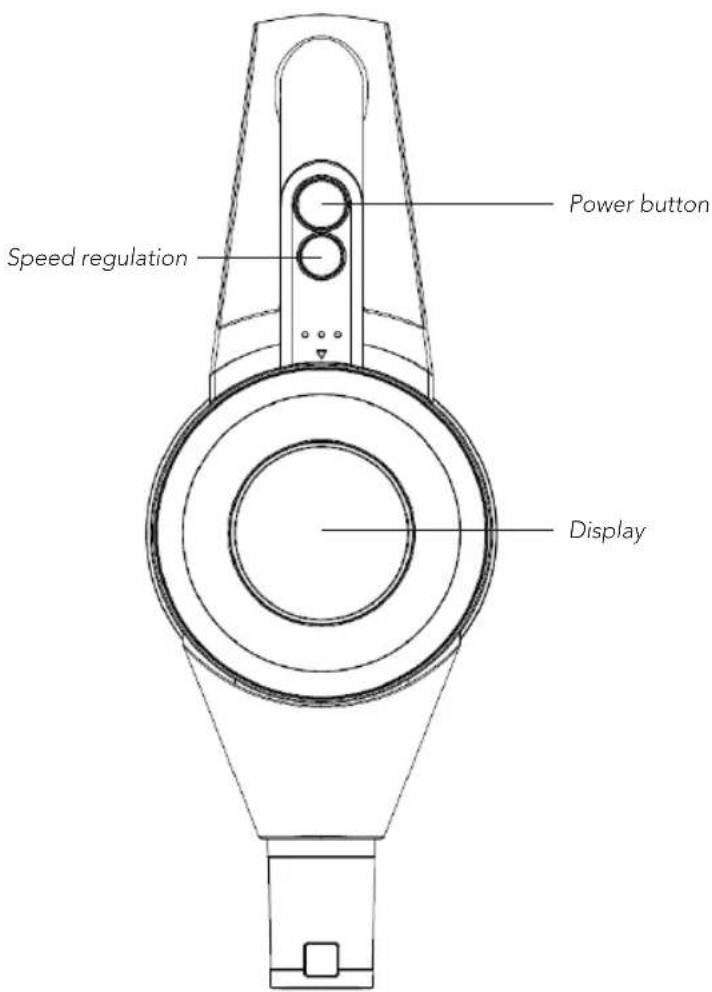

• Press the power button to start.
• After switching the vacuum cleaner on, press the speed regulation button to adjust the speed. The speed will go from Auto-High-Medium-Low.
• When using the Auto level, the dust sensing function is enabled. After sensing dust, the background animation on the display will change from blue to purple. If no dust is detected, the animation remains blue, and power will run on low.
• The battery time is indicated by a circle on the display, divided into 6 sections. As the battery is consumed the circle will lower section by section. When the battery is low, the display shows "Low Power".

DISPLAY

Filter clean Dust tank blocking Roller blocking Air flow blocking

Air flow blocking Brush blocking Low speed Mid speed

High speed Low battery Charging finished Charging

EN

CHARGING

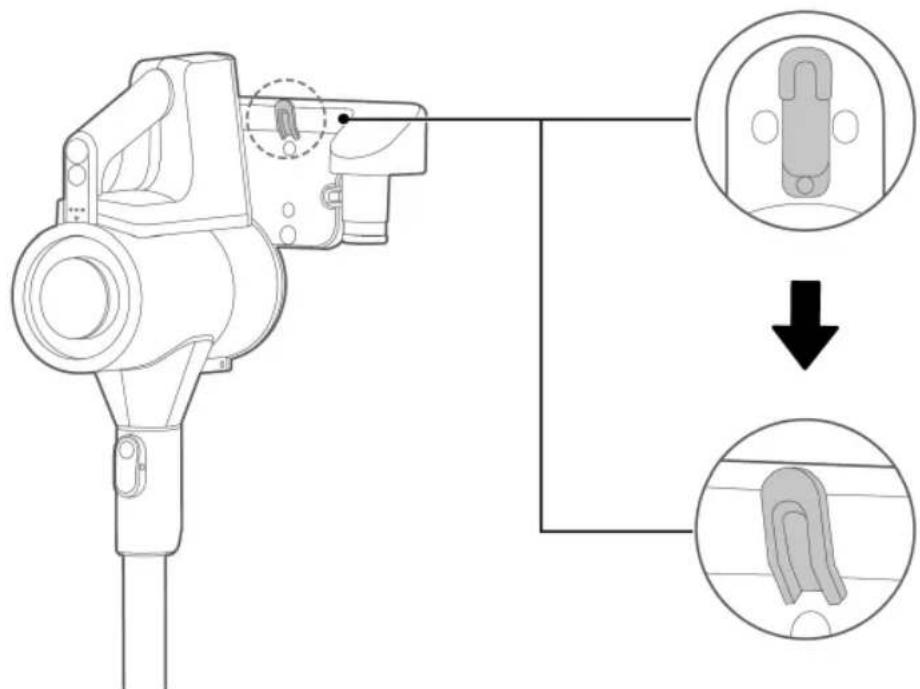

1. Hang the vacuum cleaner on the wall rack

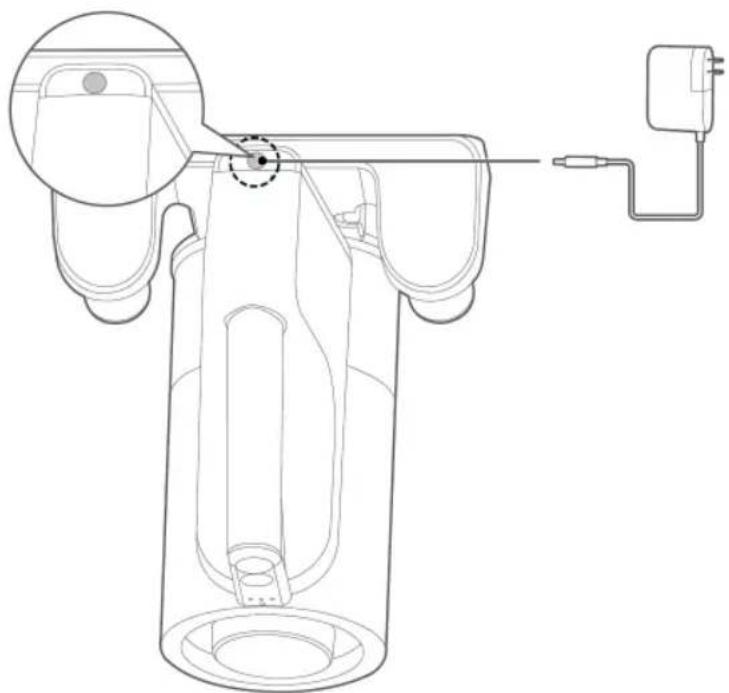

1. Connect the power cord to the charging port

1. Charge for 4-6 hours.

CLEANING AND MAINTENANCE

DUST CUP

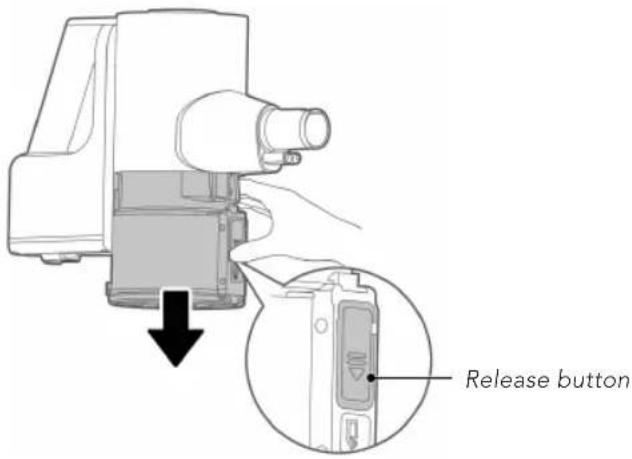

Disassembly

Hold the bottom of the dust cup. Press the release button and carefully pull the dust cup out downward.

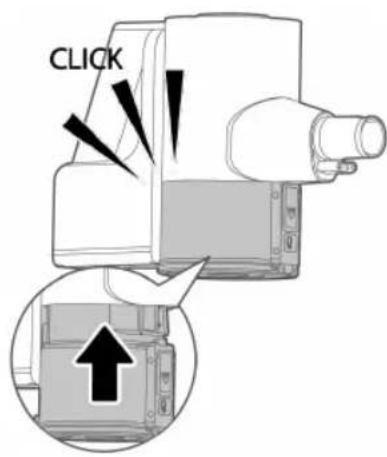

Installation

Push the dust cup up with the suction inlet facing outward.

EN

CLEANING

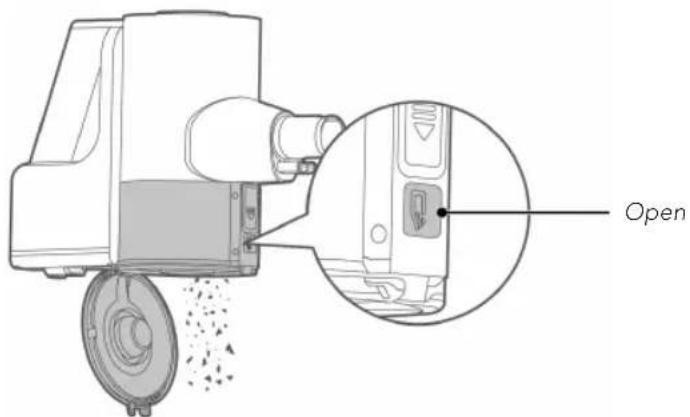

Press the Dust cup release button, and the bottom cover opens. Clean the dust bin with water. Make sure it is completely dry before re-assembling.

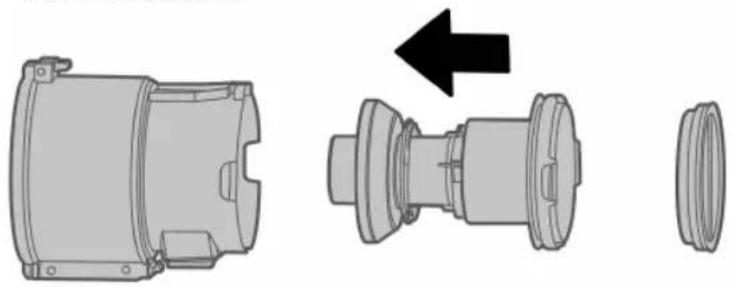

FILTER COMPONENTS

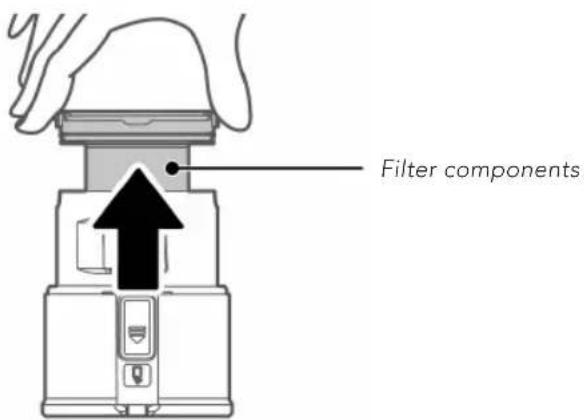

1. Hold the ribs on both sides and pull upwards to remove the filter components.

1. Remove the filter sponge, lay it with the white side down and tap it to remove dust.

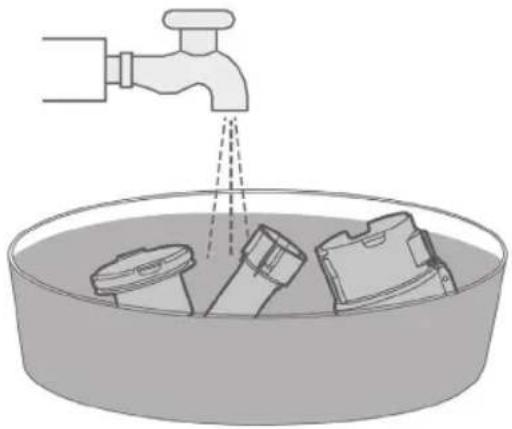

1. Rinse the parts under water.

1. The parts needs to be completely dry before installing the filter components into the dust bin.

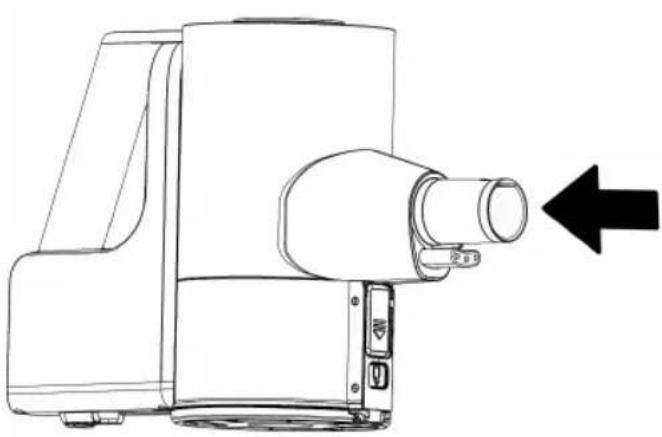

DUST SENSOR

For the dust sensor to function optimally it needs to be cleaned regularly. To clean the dust sensor just use your finger and remove the dust collected on the sensor. The sensor is located inside the tube on two sides. Use your finger or a dry towel to wipe over the sensors.

EN

FLOOR BRUSH

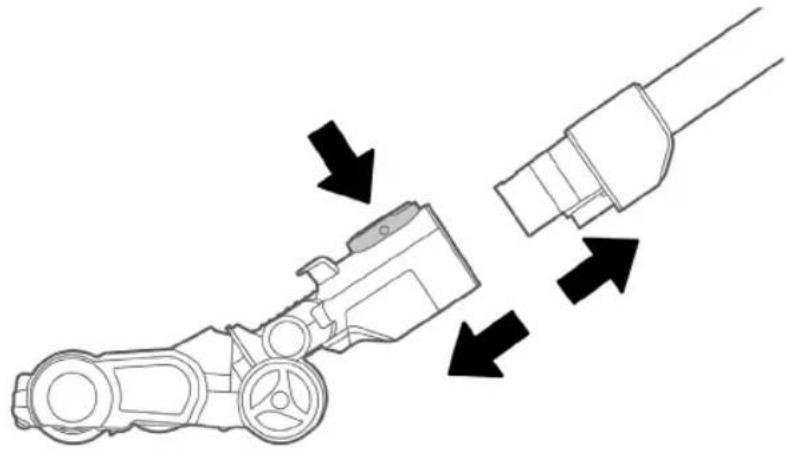

1. Press the button and remove the electric floor brush from the extension tube.

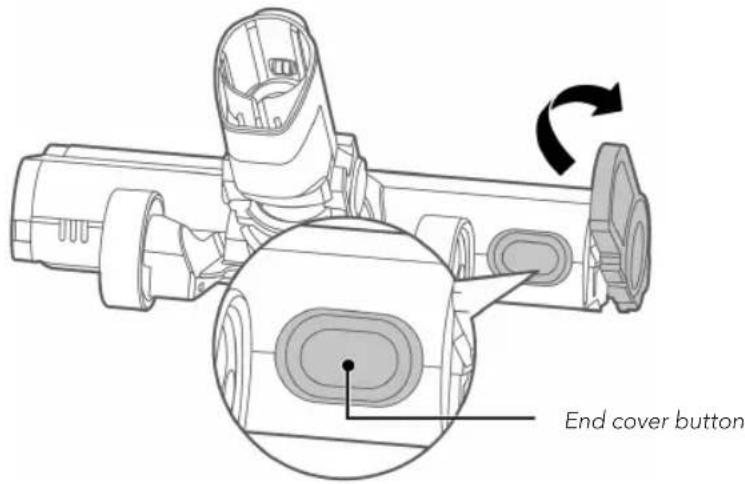

1. Press and hold the button and turn the end cover upwards.

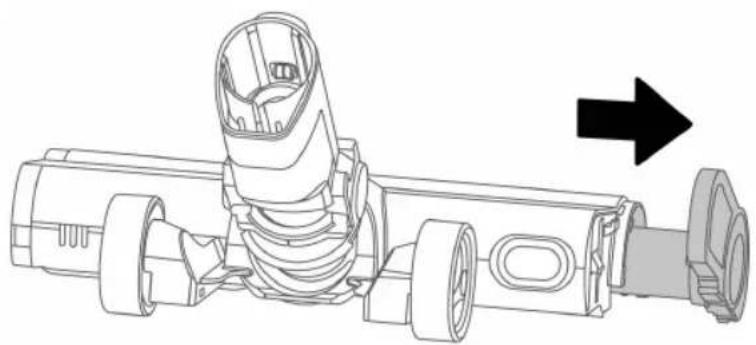

1. Pull out the rolling brush and clean it. Do not use water!

TROUBLESHOOTING

Problem Possible reason Solution
Three indicators flash	Rolling brush is tangled by hair.	Remove hair or any foreign object stuck in the rolling brush.
	The ambient temperature for operation is too high or too low.	Use the vacuum cleaner in the proper environment.
Electric floor brush is not working	Large pieces of waste have been engaged.	Disassemble the electric floor brush and remove the waste.
	The rolling brush has been tangled with hair.	Remove the rolling brush from the electric floor brush and remove the hair from the brush.
Operation duration becomes shorter	Battery aging	Contact customer service
	The ambient temperature for operation is too high or too low	Make sure the vacuum cleaner is not placed in the sunlight if it is too warm, and make sure doors and windows are closed if it is too cold.
	The battery is not fully charged	Charge the battery
Suction force is weakened	The filter sponge of the dust cup is blocked	Clean the filter sponge
	The suction inlet of the floor brush or accessories is blocked	Remove the objects blocking the suction inlet
	The filter components are not fully dried after washing with water	Make sure the filter components are fully dried, and assembled in the correct way
Charging failure Ambient temperature during charging is too high or too low		Charge the appliance at the proper temperature. Make sure the vacuum cleaner is not placed in the sunlight if it is too warm, and make sure doors and windows are closed if it is too cold.
Battery liquid leakage	The vacuum cleaner has not been used for a long time.	Change the battery. Contact the store to replace the battery.
Error on the display	The vacuum cleaner is lacking suction power. This can be due to something stuck inside the extension tube, filter being clogged with dust, or that the rolling brush is tangled with hair.	Remove any object in the extension tube, clean the filter components, and clear the rolling brush for hair.

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. Wilfa is not responsible for damage to third party parts and other collateral damage.

The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)
- Wear parts like motor heads, nozzles, battery, brushes, filters, wheels, light.

Wilfa is also not responsible for damages occurred because of excessive use, incorrect assembly, incorrect storage, incorrect charging, lack of cleaning etc.

The battery comes with a 1 year warranty. The warranty will not be valid if the appliance has not been charged according to the manual.

PRODUCT SPECIFICATIONS

BATTERY

• Charging time: 4-6 hours.
• Battery time: up to 60 minutes on low, 17 minutes medium, 7 minutes max, 15-30 minutes auto. The battery time on auto depends on the amount of dust detected.
  Defected batteries can be replaced at our service partners.
• Battery efficiency will degrade with time and use. With normal household usage, and by following the usage, charging and maintenance guidelines you can expect around 80% of efficiency after 5 years or 390 hours of use.

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and

collection systems or contact the retailer where the product was purchased.

They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

22 VIKTIGE SIKKERHETSANVISNINGER
23 OBS! - BATTERI
24 OBS! - RENGJØRING OG VEDLIKEHOLD
25 PRODUKTOVERSIKT
26 BRUK
27 DISPLAY
28 LADING
29 RENGJØRING OG VEDLIKEHOLD
33 FEILSØKING
36 GARANTI
37 PRODUKTSPESIFIKASJONER
37 SUPPORT OG RESERVEDELER
37 GJENVINNING

VIKTIGE SIKKERHETSANVISNINGER

OBS! - RENGJØRING OG VEDLIKEHOLD

RENGJØRING OG VEDLIKEHOLD

STØVBEHOLDER

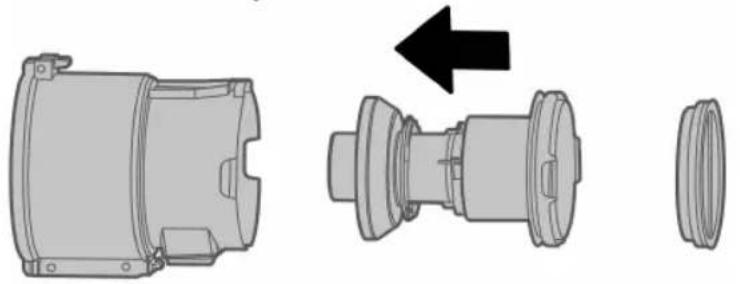

Demontering
