Product Type	Wireless in-ear headphones
Brand	Bose
Model	QuietComfort Ultra Headphones
Dimensions (earbuds)	Approximately 2.5 x 2.0 x 2.0 cm (per earbud)
Weight (earbuds)	Approximately 6.5 g per earbud
Charging case dimensions	Approximately 7.5 x 5.0 x 3.0 cm
Charging case weight	Approximately 60 g
Power supply	Input: 5 V ⎓ 1.2 A; case output: 5 V, 160 mA x 2; integrated lithium-ion battery
Battery life (earbuds)	Up to 6 hours (immersive audio off); quick charge: 20 min for 2 hours
Charging case battery life	Up to 3 full charges of earbuds
Protection rating	IPX4 (sweat and weather resistant)
Connectivity	Bluetooth 5.3, compatible with Snapdragon Sound, Fast Pair (Android)
Active noise cancellation	Yes, with Quiet, Aware, and Immersion modes
Immersive audio	Yes, with head tracking (Still and Motion modes)
Touch controls	Swipe and tap for playback, volume, calls, and shortcuts
In-ear detection	Auto play/pause, auto answer calls
Voice guide	Call notifications, battery status, modes
Care and cleaning	Clean ear tips and stability bands with soapy water; charge contacts with dry cotton swab; case with dry cloth
Important safety instructions	Keep out of reach of children; avoid high volume; do not immerse; do not modify; follow battery warnings
Spare parts and accessories	Ear tips (S, M, L), stability bands (1, 2, 3), USB-C to USB-A cable available from customer service
Repairability	Built-in battery not replaceable; repair by qualified personnel only
Limited warranty	One-year manufacturer warranty (varies by country)
General information	Case model: 441408; earbud models: 408L (left), 408R (right); FCC, IC, CE compliance; recommended use with Bose Music app

Frequently Asked Questions - QuietComfort Ultra Headphones BOSE

How do I connect the earbuds to my smartphone?

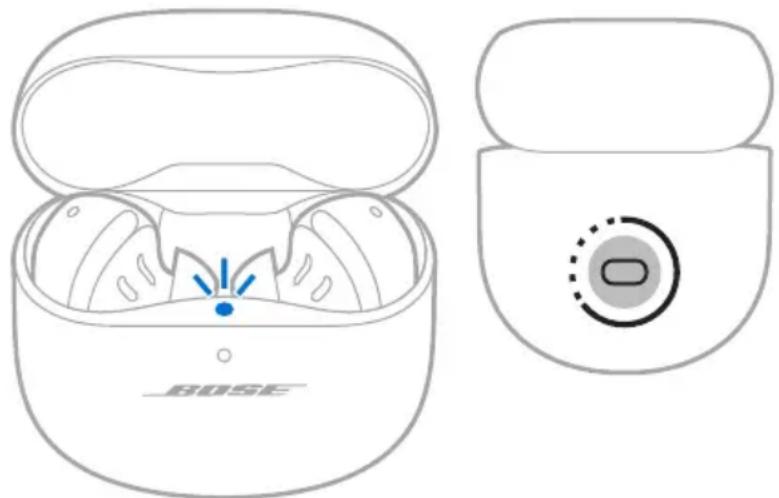

Open the charging case and press and hold the button on the back until the LED slowly flashes blue. Enable Bluetooth on your smartphone and select Bose QC Ultra Earbuds from the list. You can also use the Bose Music app for guided setup.

How long does the earbud battery last?

With immersive audio off, battery life is up to 6 hours. With immersive audio on, it's about 4 hours. A quick 20-minute charge in the case provides up to 2 hours of listening.

What if the sound quality is poor?

First check the fit of the ear tips using the test tool in the Bose Music app. Clean the ear tips and nozzles. Make sure the device is connected via the A2DP stereo profile. Turn Bluetooth off and on again, or clear the device list.

How do I change the size of the ear tips or stability bands?

For ear tips, hold the earbud, flatten the ear tip and gently pull. Align the new ear tip onto the nozzle and push until it clicks. For stability bands, slide the ring over the ear tip, then align the band's dot with the gray dot on the earbud. Use the provided sizes (S, M, L for ear tips; 1, 2, 3 for bands).

The earbuds aren't charging, what should I do?

Make sure the charging contacts are clean and the earbuds are properly placed in the case. Check that the USB cable is securely connected. Try a different cable or wall charger. If the case isn't charging, leave it plugged in for at least 30 minutes to initiate charging.

How do I reset the earbuds to factory settings?

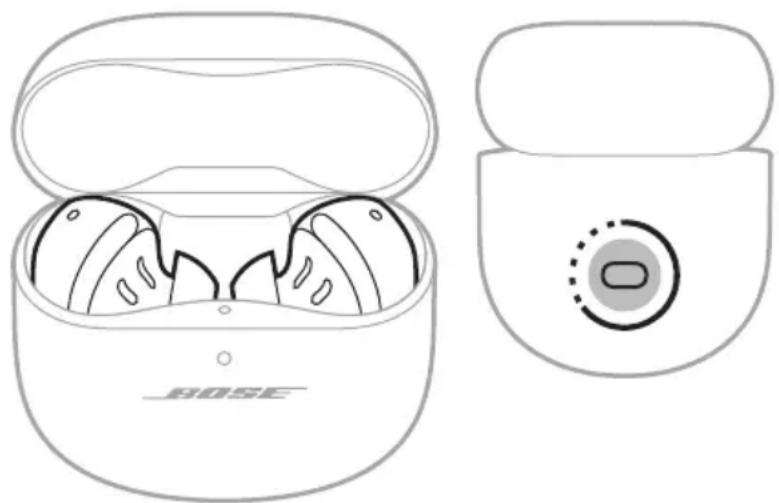

Place the earbuds in the open case. Press and hold the back button for 25 seconds until the LED flashes white twice, then slowly flashes blue. Repeat this process three times: the third time, the LED will flash orange for 3 seconds to confirm the reset.

Touch controls are not responding, what should I do?

Make sure you are pressing the outer touch surface. Ensure your hands are dry and you are not wearing gloves. If the earbuds are cold or hot, wait until they return to room temperature. Restart the earbuds by placing them in the case and closing/opening it.

How do I use immersive audio?

Immersive audio creates a sound stage in front of you. Use the Bose Music app to choose between Still mode (speakers stay fixed) and Motion mode (they follow your head). You can also use a touch shortcut by holding one earbud to cycle through settings.

Are the earbuds water resistant?

Yes, they are rated IPX4, protecting against sweat and splashes. Do not submerge them in water, swim, or shower with them. Regularly clean the charging contacts with a dry cotton swab to prevent corrosion.

How do I clean the earbuds and case?

Remove the ear tips and stability bands, wash them with warm soapy water, rinse and dry completely before reattaching. Use a dry cotton swab to clean the nozzles and charging contacts. Clean the case with a dry cloth. Do not use abrasive products.

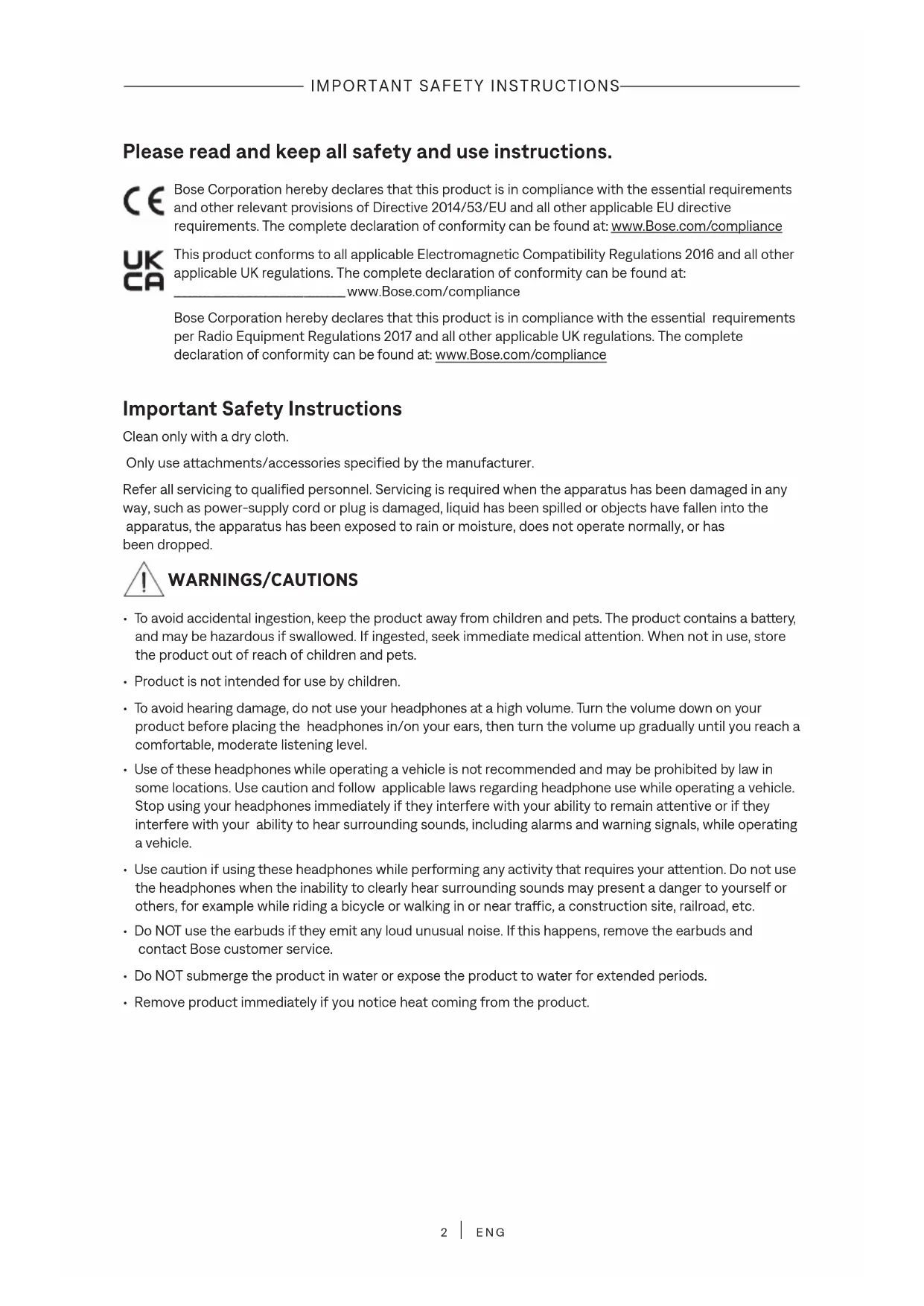

USER MANUAL QuietComfort Ultra Headphones BOSE

Please read and keep all safety and use instructions.

Bose Corporation hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance

This product conforms to all applicable Electromagnetic Compatibility Regulations 2016 and all other applicable UK regulations. The complete declaration of conformity can be found at: ____ www.Bose.com/compliance

Bose Corporation hereby declares that this product is in compliance with the essential requirements per Radio Equipment Regulations 2017 and all other applicable UK regulations. The complete declaration of conformity can be found at: www.Bose.com/compliance

Important Safety Instructions

Clean only with a dry cloth.

Only use attachments/accessories specified by the manufacturer.

Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNINGS/CAUTIONS

• To avoid accidental ingestion, keep the product away from children and pets. The product contains a battery, and may be hazardous if swallowed. If ingested, seek immediate medical attention. When not in use, store the product out of reach of children and pets.
• Product is not intended for use by children.
• To avoid hearing damage, do not use your headphones at a high volume. Turn the volume down on your product before placing the headphones in/on your ears, then turn the volume up gradually until you reach a comfortable, moderate listening level.
• Use of these headphones while operating a vehicle is not recommended and may be prohibited by law in some locations. Use caution and follow applicable laws regarding headphone use while operating a vehicle. Stop using your headphones immediately if they interfere with your ability to remain attentive or if they interfere with your ability to hear surrounding sounds, including alarms and warning signals, while operating a vehicle.
• Use caution if using these headphones while performing any activity that requires your attention. Do not use the headphones when the inability to clearly hear surrounding sounds may present a danger to yourself or others, for example while riding a bicycle or walking in or near traffic, a construction site, railroad, etc.
• Do NOT use the earbuds if they emit any loud unusual noise. If this happens, remove the earbuds and contact Bose customer service.
• Do NOT submerge the product in water or expose the product to water for extended periods.
• Remove product immediately if you notice heat coming from the product.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

• Do NOT make unauthorized alterations to this product.
• Keep the product away from fire and heat sources. Do NOT place naked flame sources, such as lighted candles, on or near the product.
• Do NOT use the earbuds without the supplied eartips attached.
• Use this product only with an agency-approved LPS power supply that meets local regulatory requirements (e.g., UL, CSA, VDE, CCC).
• The battery provided with this product may present a risk of fire or chemical burn if mishandled, incorrectly replaced or replaced with an incorrect type.
• If the battery leaks, do not allow the liquid to come in contact with the skin or eyes. If contact is made, seek medical advice.
• Do not expose products containing batteries to excessive heat (e.g. from storage in direct sunlight, fire or the like).
• Wipe off sweat from the earbuds and the charging case before charging.
• IPX4 is not a permanent condition, and resistance might decrease as a result of normal wear.
• To avoid hazardous radiation exposure from the internal laser component, use the product only as specified in the instructions. The earbuds should not be adjusted or repaired by anyone except properly qualified service personnel.
• Do not place or install near any heat sources, such as fireplaces, radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
• Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, date May 8, 2019.

These earbuds are classified as a CLASS 1 LASER PRODUCT according to EN / IEC 60825-1:2014.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving product or antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Bose Corporation could void the user's authority to operate this equipment.

This device complies with part 15 of the FCC Rules and with ISED Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device complies with FCC and ISED Canada radiation exposure limits set forth for general population. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC ID: A94408L / A94408R | IC: 3232A-408L / 3232A-408R

Case Model: 441408 | Right Earbud Model: 408R | Left Earbud Model: 408L

The earbuds in this system have been certified in accordance with the provisions set out in the Radio Law.

020-230152 (L)

020-230144(R)

CAN ICES-3(B)/NMB-3(B)

For Europe: Frequency band of operation 2400 to 2483.5 MHz. | Maximum transmit power less than 20 dBm EIRP.

SAR Information

Earbud	Measured1-g SAR W/kg	Measured10-g SAR W/kg
Left 0.381 0	161
Right 0.211 0	0.092

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Low-power Radio-frequency Devices Technical Regulations

Without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to an approved low power radio-frequency devices. The low power radio-frequency devices shall not influence aircraft security and interfere legal communications; If found, the user shall cease operating immediately until no interference is achieved. The said legal communications means radio communications is operated in compliance with the Telecommunications Management Act. The low power radio-frequency devices must be susceptible with the interference from legal communications or ISM radio wave radiated devices.

DON'T attempt to remove the rechargeable lithium-ion battery from this product. Contact your local Bose retailer or other qualified professional for removal.

電池請回收

Please dispose of used batteries properly, following local regulations. Do not incinerate.

Li-ion

R33807 RoHS

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X O O O O O
Metal Parts X O O O O O
Plastic Parts O O O O O O O
Speakers X O O O O O O
Cables X O O O O O O
This table is prepared in accordance with the provisions of SJ/T 11364.O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: Earbuds and Charging Case Type designation: 441408
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
PCBs -		○	○	○	○	○
Metal Parts	-	○	○	○	○	○
Plastic Parts	○○	○	○		○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1: "o" indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.Note 2: The "-" indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "3" is 2013 or 2023. | Location of Manufacture: The seventh digit in the serial number indicates the location of manufacture.

China Importer: Bose Electronics (Shanghai) Company Limited, Level 6, Tower D, No. 2337 Gudai Rd. Minhang District, Shanghai 201100 | EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands | Mexico Importer: Bose de México S. de R.L. de C.V., Avenida Prado Sur #150, Piso 2, Interior 222 y 223, Colonia Lomas de Chapultepec V Sección, Miguel Hidalgo, Ciudad de México, C.P. 11000 Phone Number: [phone] | Taiwan Importer: Bose Limited Taiwan Branch (H.K.), 9F., No.10, Sec. 3, Minsheng E. Road, Zhongshan Dist. Taipei City 10480, Taiwan Phone Number: [phone] | UK Importer: Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, United Kingdom

Input Rating: 5V = 1.2A | Output Voltage: 5VDC | Output Current: 160mA x 2 | Output Capacity: 680mAh | IPXX Rating: IPX4 (for the earbuds)

The CMIIT ID is located on the carton.

The Bose Terms of Use apply to this product: ____ worldwide.Bose.com/termsofuse

License Disclosures: To view the license disclosures that apply to the third-party software packages included as components of the Bose QuietComfort Ultra Earbuds, use the Bose Music app. You can access this information from the Settings menu.

Apple, the Apple logo, iPad, and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. The trademark "iPhone" is used in Japan with a license from Aiphone K.K. App Store is a service mark of Apple Inc.

Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bose Corporation is under license.

Google, Android, and Google Play are trademarks of Google LLC.

Snapdragon Sound is a product of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm, Snapdragon and Snapdragon Sound are trademarks or registered trademarks of Qualcomm Incorporated.

USB Type-C ^® and USB-C ^® are registered trademarks of USB Implementers Forum.

Bose, Bose Music, the Bose Music logo, ActiveSense, SimpleSync, and QuietComfort are trademarks of Bose Corporation. | Bose Corporation Headquarters: 1-877-230-5639 | ©2023 Bose Corporation. No part of this work may be reproduced, modified, distributed, or otherwise used without prior written permission.

Please complete and retain for your records

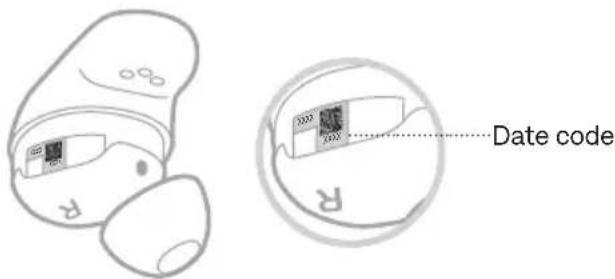

The earbud date code is located on the earbud under the band. The charging case serial number is located in the charging case well between the earbuds. The model numbers are located in the charging case lid.

Serial number: ____

Model number: 441408

Please keep your receipt. Now is a good time to register your Bose product.

You can easily do this by going to ____ worldwide.Bose.com/ProductRegistration

WHAT'S IN THE BOX

Contents.... 11

BOSE MUSIC APP SETUP

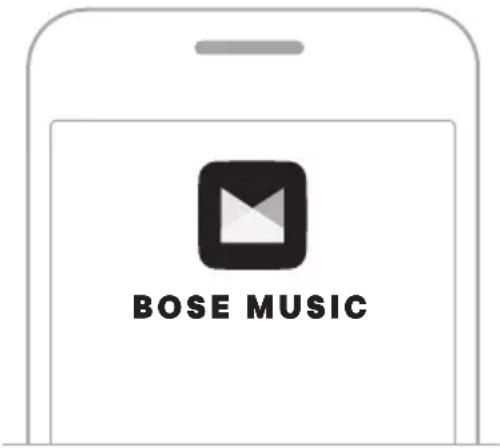

Download the Bose Music app.... 12

Add the earbuds to an existing account 12

SWEAT AND WEATHER RESISTANCE 13

HOW TO WEAR

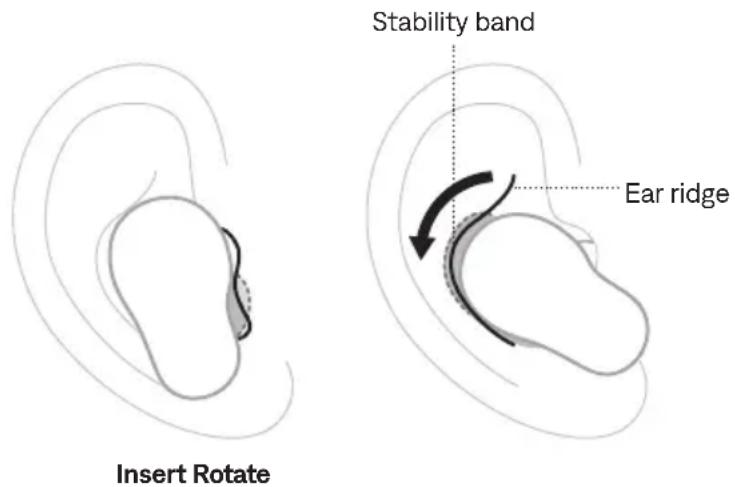

Insert the earbuds 14

Check your fit.... 15

Eartips 15

Stability bands.... 16

Try another size 17

Eartips.... 17

Stability bands 17

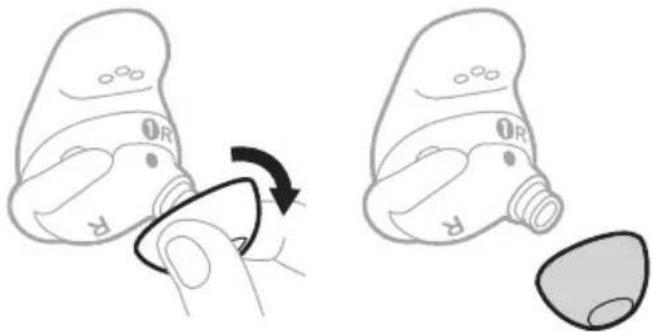

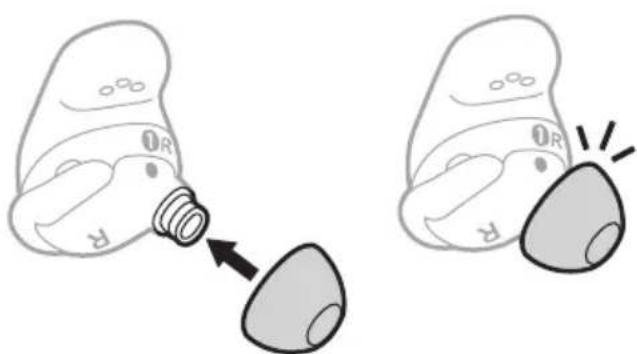

Change the eartips.... 18

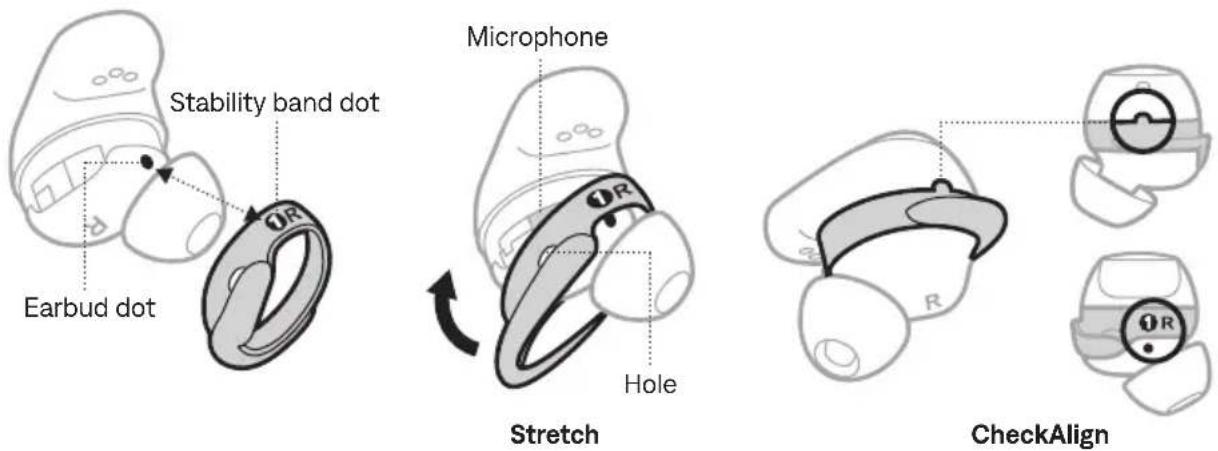

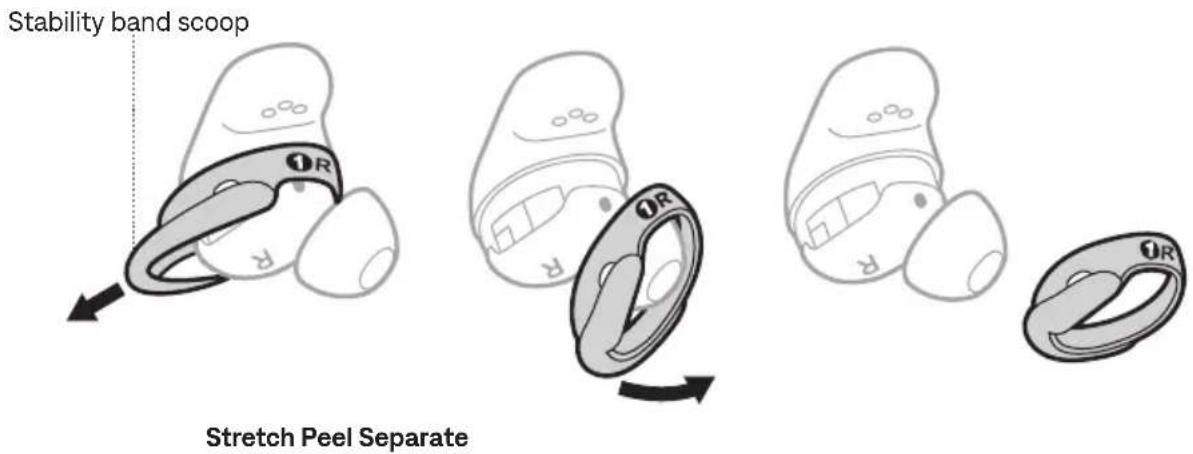

Change the stability bands.... 19

POWER

Power on 21

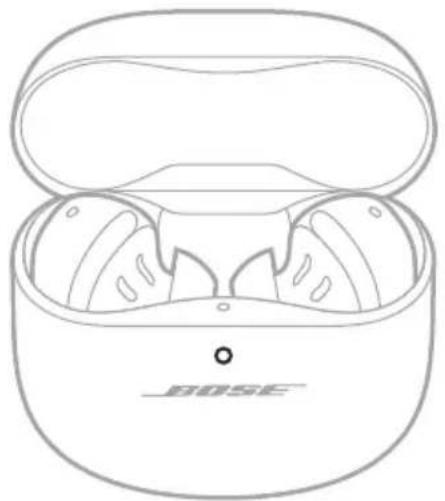

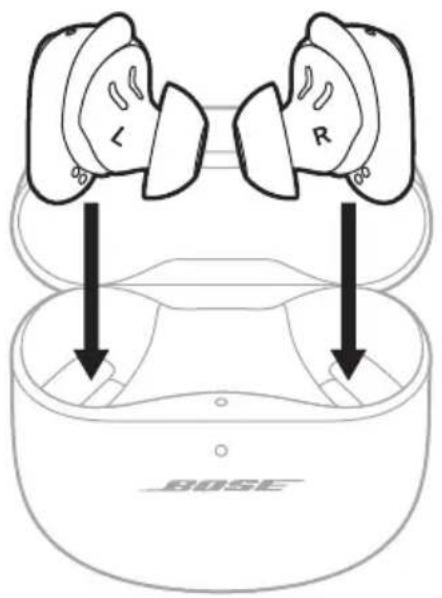

Power off 22

Standby 22

TOUCH CONTROL

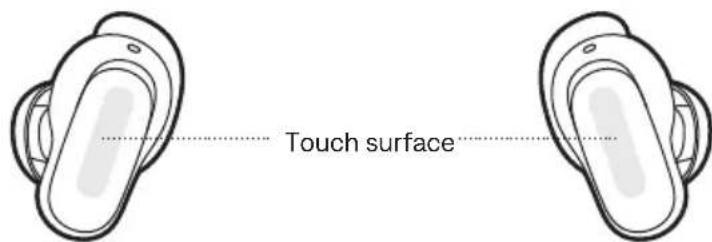

Touch surface area.... 23

Media playback and volume 23

Phone calls.... 24

Call notifications.... 25

Modes.... 25

Immersive audio settings.... 25

Mobile device voice control 26

SHORTCUTS

Use your shortcut.... 27

Change or disable your shortcut 27

IN-EAR DETECTION

Auto play/pause 28

Auto answer call 28

Auto transparency 28

NOISE CANCELLATION

Change the noise cancellation setting 29

Noise cancellation while on a call 29

Use noise cancellation only 29

IMMERSIVE AUDIO

Immersive audio settings.... 30

Change the immersive audio setting.... 31

Change the mode 31

Use your shortcut.... 31

Immersive audio while on a call 31

LISTENING MODES

Modes.... 32

Aware mode with ActiveSense.... 32

Change the mode 33

Add or remove modes from the earbuds.... 33

BATTERY

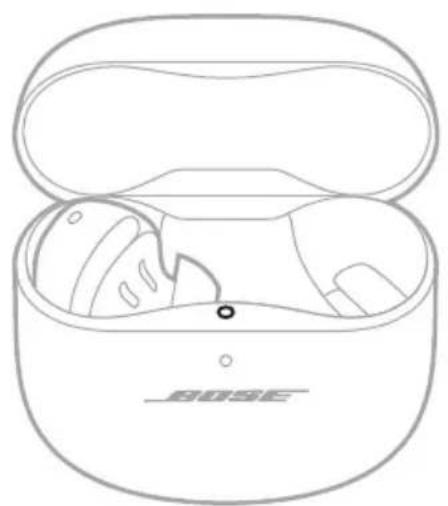

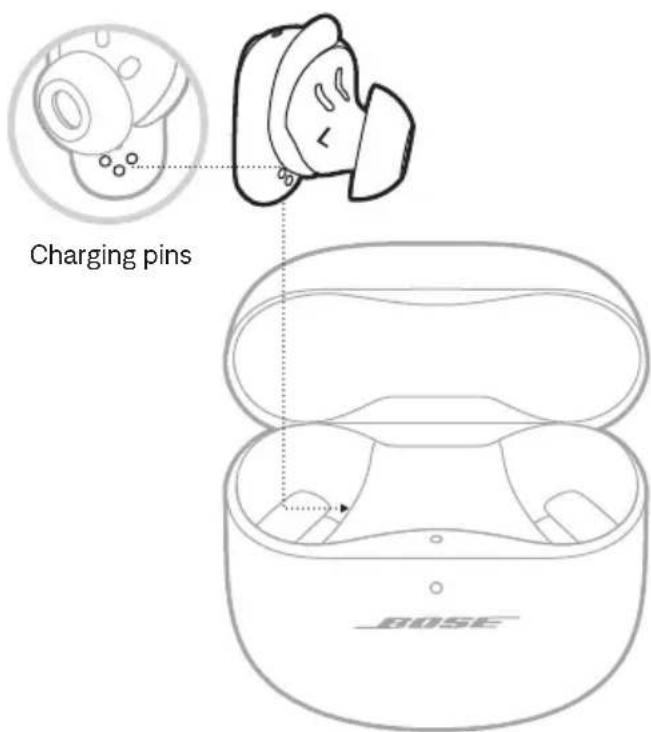

Charge the earbuds 34

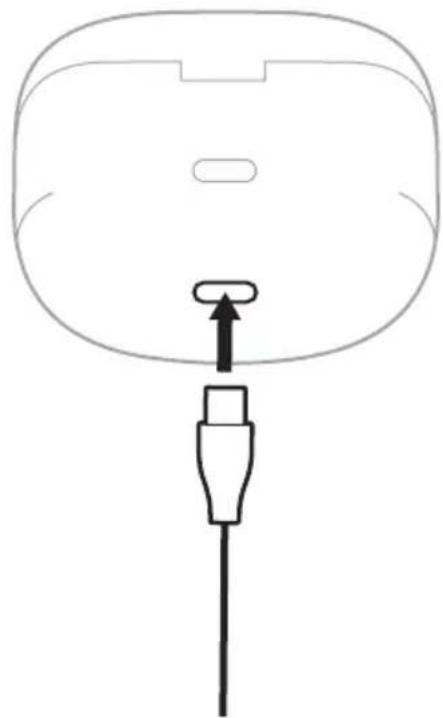

Charge the charging case.... 35

Check the earbud battery level.... 36

While using the earbuds 36

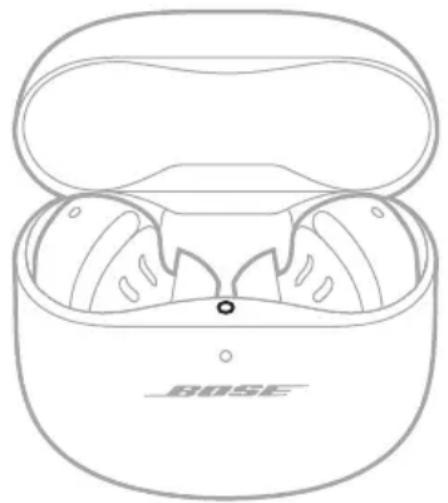

While charging the earbuds.... 36

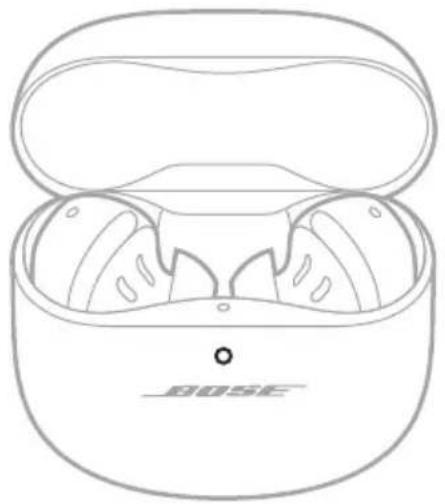

Check the charging case battery level.... 37

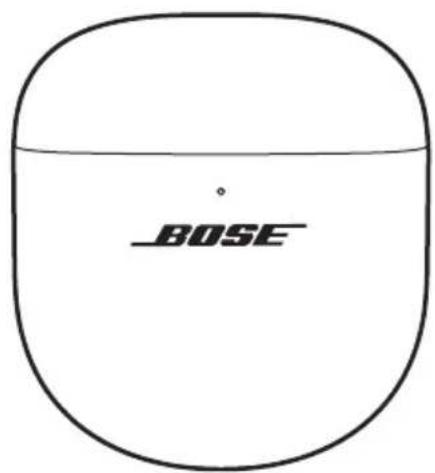

Charging time 37

EARBUD AND CHARGING CASE STATUS

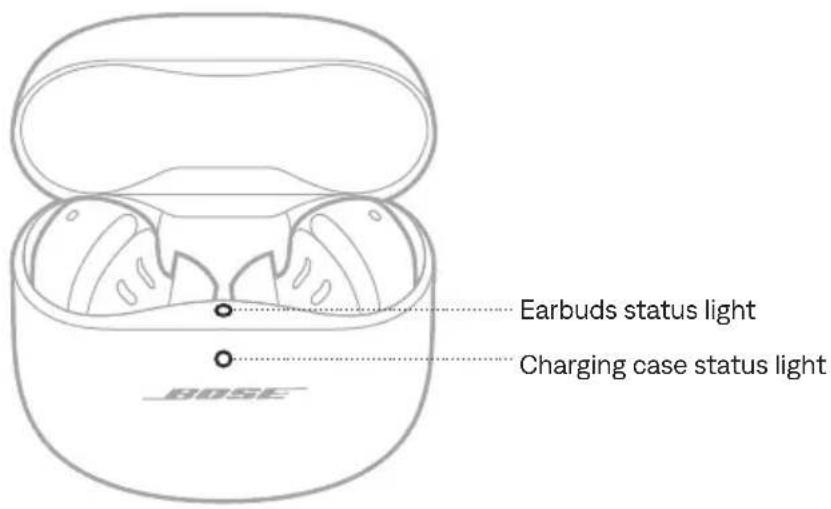

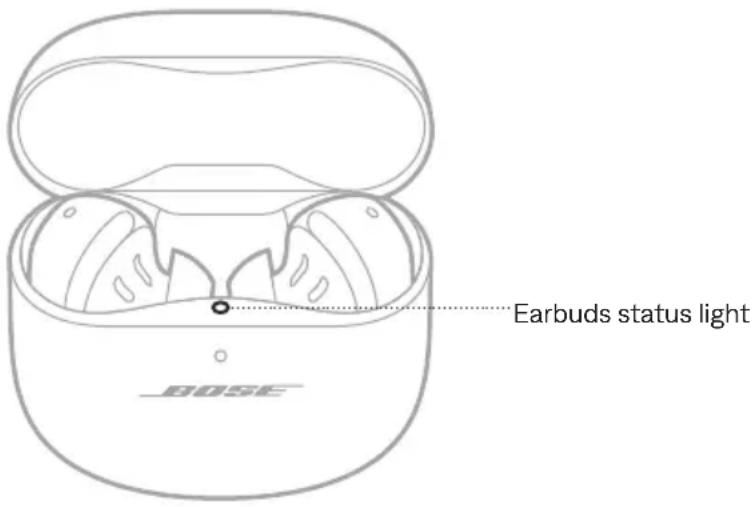

Earbuds status light 38

Bluetooth® status.... 38

Battery, update, and error status 38

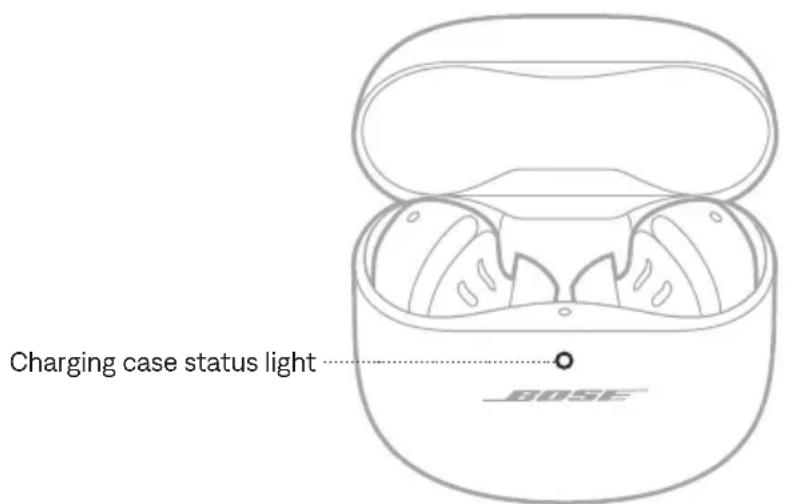

Charging case status light.... 39

Battery, update, and error status.... 39

BLUETOOTH CONNECTIONS

Connect using the Bose Music app 40

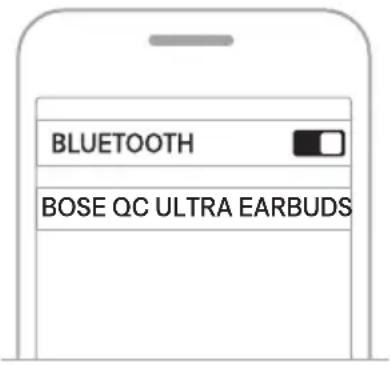

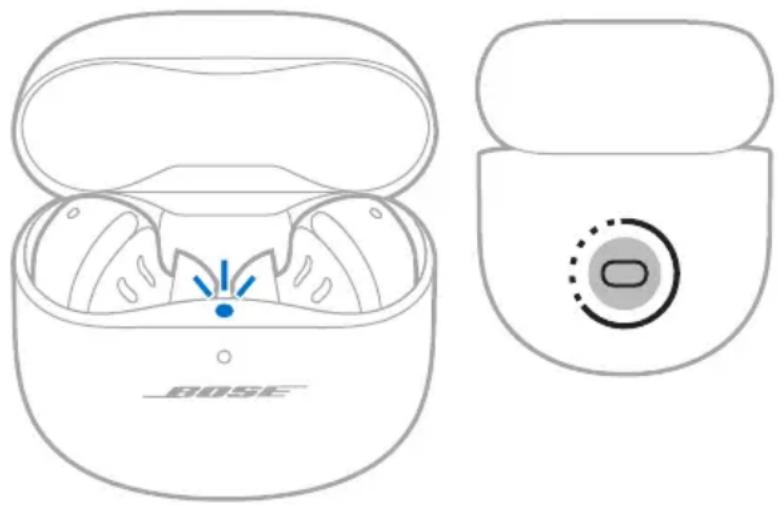

Connect using the Bluetooth menu on your mobile device 40

Disconnect a mobile device 41

Reconnect a mobile device 41

Clear the earbuds device list.... 42

Android™ devices only 43

Connect using Fast Pair 43

Snapdragon Sound™ technology.... 44

CONNECT BOSE PRODUCTS

Connect to a Bose Smart Speaker or Soundbar 45

Benefits 45

Compatible products.... 45

Connect using the Bose Music app 46

Reconnect to a Bose Smart Speaker or Soundbar 46

CARE AND MAINTENANCE

Store the earbuds 47

Clean the earbuds and charging case.... 47

Replacement parts and accessories 47

Limited warranty.... 47

Update the earbuds.... 48

Update the charging case 48

View the earbud date code.... 48

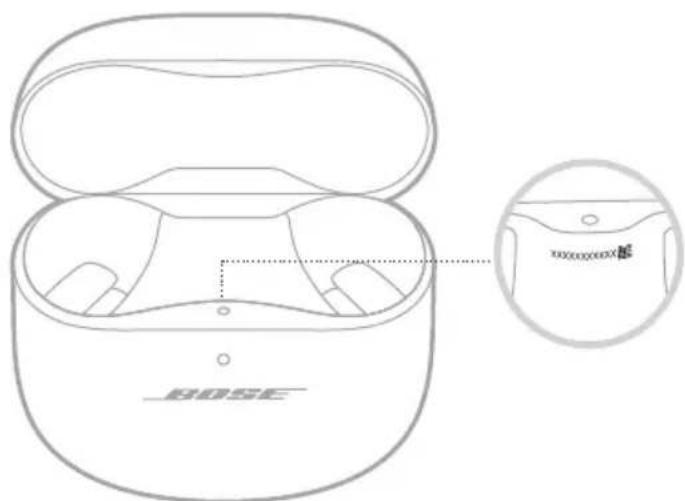

View the charging case serial number 48

TROUBLESHOOTING

Try these solutions first.... 49

Other solutions.... 49

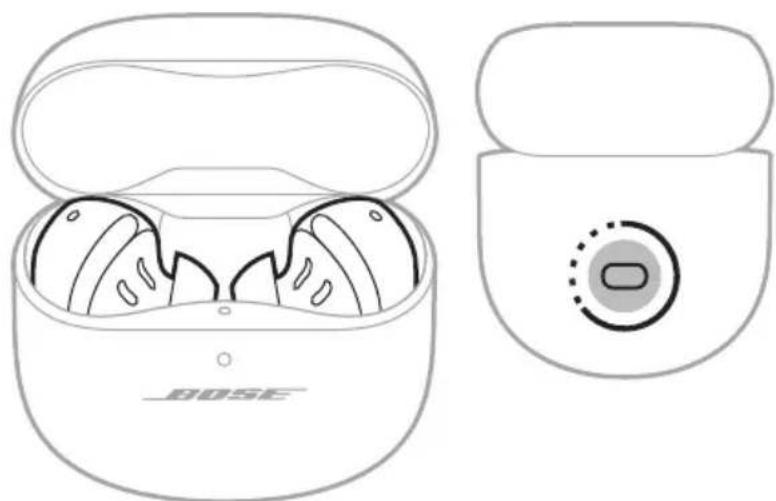

Reboot the earbuds and charging case 60

Restore the earbuds to factory settings.... 61

CONTENTS

Confirm that the following parts are included:

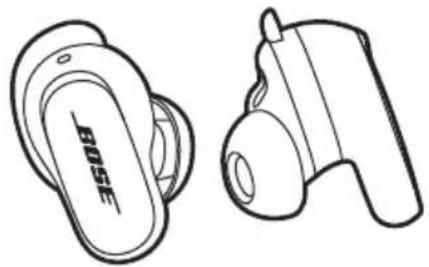

Line drawings of two different electronic devices, one labeled 'BOSE' and the other a camera lens (no text or symbols beyond branding)

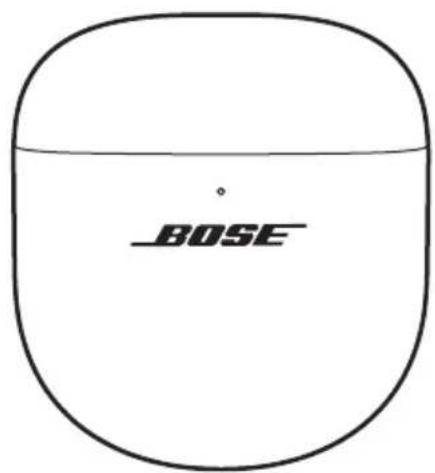

Bose QuietComfort Ultra Earbuds Charging case

_BOSE

Simple line drawing of two abstract shapes resembling eggs or containers (no text or symbols)

Eartips (sizes small and large)
NOTE: Medium eartips are attached to the earbuds. For help identifying the eartip sizes, see page 17.

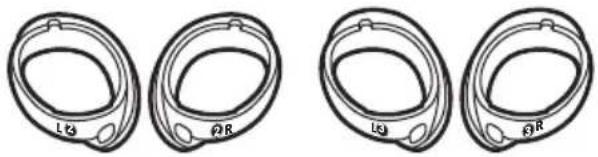

Four identical hand-shaped diagrams with labeled ends (L1, R, L2) and no accompanying text or symbols.

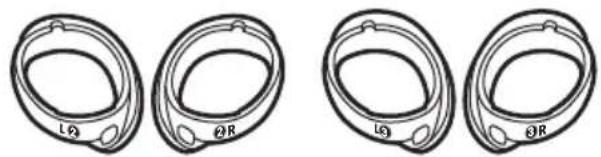

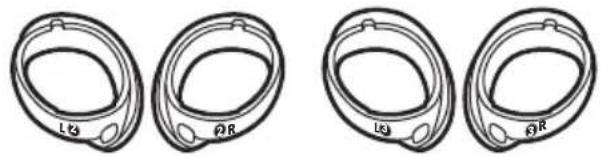

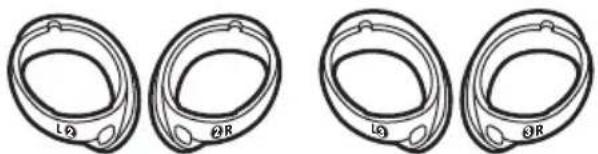

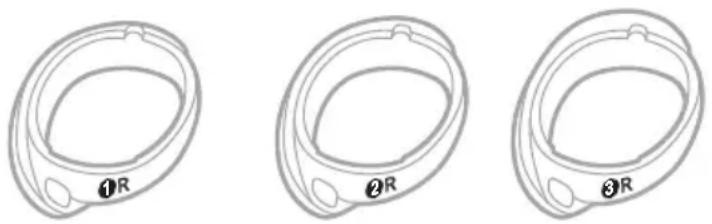

Stability bands (sizes 2 and 3)
NOTE: Size 1 bands are attached to the earbuds. For help identifying the band sizes, see page 17.

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

USB Type-C ^® to USB-A cable

NOTE: If any part of your product appears to be missing or damaged, don't use it. Visit support.Bose.com/QCUE for troubleshooting articles, videos, and product repair or replacement.

The Bose Music app lets you set up and control the earbuds from any mobile device, such as a smartphone or tablet.

Using the app, you can verify the earbud fit, manage Bluetooth connections, manage earbud settings, adjust the audio, choose your voice prompt language, and get updates and new features.

NOTE: If you have already created a Bose account for another Bose product, see "Add the earbuds to an existing account."

DOWNLOAD THE BOSE MUSIC APP

1. On your mobile device, download the Bose Music app.

NOTE: If you're located in Mainland China, download the Bose音乐 app.

BOSE MUSIC

GET IT ON Google Play

1. Follow the app instructions.

ADD THE EARBUDS TO AN EXISTING ACCOUNT

To add your Bose QuietComfort Ultra Earbuds, open the Bose Music app and add your earbuds.

The earbuds are rated IPX4 water resistant. They are designed to be sweat and weather resistant but aren't meant to be submerged under water.

CAUTIONS:

- Do NOT swim or shower with the earbuds.

- Do NOT submerge the earbuds.

Two symbolic icons: a circle with a diagonal line and a ring with droplets, both without any text or labels.

NOTES:

• To prevent corrosion, regularly clean the charging contacts on the earbuds with a dry, soft cotton swab or equivalent.
• IPX4 isn't a permanent condition, and resistance might decrease as a result of normalwear.

INSERT THE EARBUDS

1. Insert the earbud so the eartip gently rests at the opening of your ear canal.

NOTE: Each earbud is marked with either an R (right) or L (left).

R R/L marking

1. Slightly rotate the earbud back until the eartip creates a comfortable seal at your ear canal and the stability band rests against your ear ridge.

NOTE: You may need to rotate the earbud back and forth for the eartip to create a comfortable seal. However, rotating it too far back or forward may impact audio and microphone sound quality.

Stability band Ear ridge Insert Rotate

1. Check the fit (see page 15).
2. Repeat steps 1 – 3 to insert the other earbud.

When you insert the earbuds, the audio is personalized to your ears for the best audio performance and noise cancellation.

NOTE: If you're sharing the earbuds, place them in the charging case to clear the audio personalization between each user.

CHECK YOUR FIT

For the best fit, audio performance, and noise cancellation, use a mirror to make sure you're using the correct size eartips and stability bands. You may need to try a different size eartip or stability band for each ear.

TIP: You can also check your fit using the Earbud Seal Test in the Bose Music app. You can access this option from the Settings menu.

Eartips

FIT WHAT TO CHECK

Proper fit		The eartip gently rests at the opening of your ear canal to create a comfortable seal. Background noise should sound muffled. NOTE: Noise cancellation may impact the ability to hear muffled noise.
Too much pressure		The eartip feels uncomfortable and squished in your ear canal.
Too loose		The eartip rests too deep in your ear canal, feels loose in your ear, or falls out when you move your head.

Stability bands

FIT WHAT TO CHECK

Proper fit		The band doesn't stick out or feel squished against your ear ridge.
Too big		The band is sticking out or feels squished under your ear ridge.
Too small		The band doesn't reach your ear ridge.

TRY ANOTHER SIZE

Wear the earbuds for an extended period of time. If the earbuds don't feel comfortable or secure, or noise cancellation or sound quality isn't as expected, try another size eartip or stability band.

You may need to try all three eartip or band sizes or use a different size eartip or band for each ear.

Eartips

Three sizes of eartips are included with the earbuds: small, medium, and large.

Three identical abstract geometric shapes with concentric circles, no text or symbols present

Medium eartips come attached to the earbuds. If they feel too small, try large eartips. If they feel too big, try small eartips.

Stability bands

The stability bands are marked with size 1 (small), 2 (medium), or 3 (large) and an R (right) or L (left).

Three identical wireframe diagrams of a ring device with labeled points (1, 2, 3) and R symbols on each side (no text or numerical data beyond labels)

Size 1 bands come attached to the earbuds. If they feel too small, try size 2 bands.

CHANGE THE EARTIPS

1. Holding the earbud, gently squeeze the eartip and peel it away from the earbud.

Diagram illustrating a hand-pulling process on a device, showing the left and right views with labeled components and directional arrows.

Squeeze and peel Separate

CAUTION: To prevent tearing, do NOT pull on the edge of the eartip.

1. Choose a new eartip size (see page 17).

2. Align the eartip with the earbud nozzle and press the eartip onto the nozzle until you feel it snap securely into place and hear it click.

Diagram showing two stages of a device with labeled components and directional arrows indicating process flow.

Align Press

1. Repeat steps 1 - 3 for the other earbud, as needed.

NOTE: You may need to use a different size eartip for each ear.

1. Insert the earbuds (see page 14).

2. Check the fit (see page 15).

NOTES:

- If you change the eartip, you may need to change the stability band so the band rests comfortably against your ear ridge (see page 19).

• To see how-to videos about changing the eartips, visit: support.Bose.com/QCUE

- If you need additional eartip sizes, contact Bose customer service or visit: ____support.Bose.com/QCUE

CHANGE THE STABILITY BANDS

1. Holding the earbud, gently grab the stability band scoop and peel the band toward you, over the eartip, and away from the earbud.

Stability band scoop Stretch Peel Separate

CAUTION: To prevent tearing, do NOT pull on the thin part of the band.

1. Choose a new band size (see page 17). Select the band marked with either an R (right) or L (left), depending on the earbud.

2. With the band markings facing you and the band scoop facing away from you, align the dot on the band with the gray dot on the bottom of the earbud.

3. Gently stretch the band over the eartip, making sure the dots align and the tab on the band fits in the notch on the top of the earbud.

NOTE: Aligning the band correctly makes sure that the hole on the side of the band is over the earbud microphone so the microphone isn't blocked.

1. Press down until the band fits securely into place, then check for alignment.

Stability band dot Earbud dot Microphone Hole Stretch CheckAlign

1. Repeat steps 1 - 5 for the other earbud, as needed.

NOTE: You may need to use a different size band for each ear.

1. Insert the earbuds (see page 14).
2. Check the fit (see page 15).

NOTES:

• To see how-to videos about changing the bands, visit: support.Bose.com/QCUE
- If you need additional stability band sizes, contact Bose customer service or visit: ____support.Bose.com/QCUE

POWER ON

Open the charging case.

The earbuds power on. The earbuds status light blinks white and then glows according to the charging status (see page 38). The charging case status light glows according to the battery level (see page 39).

Earbuds status light Charging case status light BOSE

NOTE: When you remove the earbuds from the charging case, close the case to help preserve the battery life and keep the case free of debris.

POWER OFF

1. Place both earbuds in the charging case.

L R BOSE

The earbuds disconnect from your mobile device.

1. Close the case.

The earbuds power off. The charging case status light glows according to the battery level (see page 39).

Line drawing of a Bose-branded earbuds with open case (no text or symbols on device)

STANDBY

Standby conserves the earbud battery when an earbud is out of the case and not in use. The earbud switches to Standby when you remove it from your ear and don't move it for 10 minutes.

To wake the earbud, insert the earbud in your ear.

Use touch control by tapping or swiping the touch surface of either earbud. With touch control, you can play/pause audio, change the volume, perform basic call functions, and use a shortcut to change the mode or change immersive audio settings(seepage 27).

TOUCH SURFACE AREA

The touch surface is located on the outer surface of both earbuds. It controls media playback, volume, phone calls, and your shortcut.

Touch surface

MEDIA PLAYBACK AND VOLUME

CONTROL WHAT TO DO

Play/Pause Tap an earbud.
Increase the volume	Swipe up on an earbud.
Decrease the volume	Swipe down on an earbud.

CONTROL WHAT TO DO

Skip to the next track Double-tap an earbud.
Skip to the previous track Triple-tap an earbud.

PHONE CALLS

CONTROL WHAT TO DO

Answer a call Tap an earbud.
End/Decline a call Double-tap an earbud.
Answer a second incoming call and put the current call on hold	Tap an earbud.

CONTROL WHAT TO DO

Decline a second incoming call and stay on current call

Double-tap an earbud.

(2x)

(2x)

Call notifications

A voice prompt announces incoming callers and call status.

To stop call notifications, disable voice prompts using the Bose Music app. You can access this option from the Settings menu.

MODES

For information about changing the mode, see page 33.

IMMERSIVE AUDIO SETTINGS

For information about changing the immersive audio setting, see page 31.

MOBILE DEVICE VOICE CONTROL

You can set a shortcut to access your mobile device voice control using the earbuds. The microphone on the earbuds acts as an extension of the microphone on your mobiledevice.

NOTE: To access mobile device voice control using the earbuds, it must be set as a shortcut (see page 27).

CONTROL WHAT TO DO

Access mobile device voice control	Touch and hold an earbud until you hear a tone. Release, then say your request.
Stop mobile device voice control	Tap an earbud.

A shortcut enables you to quickly and easily access one of the following functions:

• Cycle through modes (see page 32)
• Cycle through immersive audio settings (see page 30)
- Use your mobile device voice control (see page 26)

NOTE: By default, cycling through modes is enabled on both earbuds.

USE YOUR SHORTCUT

Touch and hold an earbud.

Two identical illustrations of a stylized ear or ear device with concentric rings and central circular features (no text or symbols)

CHANGE OR DISABLE YOUR SHORTCUT

To change or disable a shortcut or to assign a different shortcut to each earbud, use the Bose Music app. To access this option, tap Shortcut on the main screen.

NOTE: If you assign a different shortcut to each earbud, you must touch and hold the appropriate earbud. If you remove an earbud, you can only use the shortcut assigned to the earbud in your ear.

In-ear detection uses sensors to identify when you're wearing both earbuds or just a single earbud.

You can automatically play/pause audio, answer phone calls (if enabled), and adjust noise cancellation by inserting or removing an earbud.

NOTE: To manage in-ear detection features, use the Bose Music app. You can access this option from the Settings menu.

AUTO PLAY/PAUSE

When you remove an earbud, audio pauses on both earbuds.

To resume audio, reinsert the earbud.

NOTE: If you want to use a single earbud, you can tap the earbud in your ear to resume audio.

AUTO ANSWER CALL

You can answer phone calls by inserting an earbud.

NOTE: To enable this feature, use the Bose Music app. You can access this option from the Settings menu.

AUTO TRANSPARENCY

When you remove an earbud, the mode adjusts to Aware mode on the earbud in your other ear (see page 32).

When you reinsert the earbud, the earbud in your ear adjusts to the previous noise cancelling level.

NOTE: If you want to use a single earbud, you can use your shortcut to cycle through the modes and choose the appropriate mode.

Noise cancellation reduces unwanted noise, providing a clearer, more lifelike audioperformance.

By default, the earbuds power on in Quiet mode. Noise cancellation is fully enabled (see page 32).

CHANGE THE NOISE CANCELLATION SETTING

You can switch between preset noise cancellation settings by changing the mode. For information about modes, see page 32.

NOISE CANCELLATION WHILE ON A CALL

When you make or receive a call, the earbuds remain at the current noise cancellation setting and self voice is activated. Self voice helps you hear yourself speak more naturally.

To adjust noise cancellation while on a call, change the mode (see page 33).

NOTES:

• Auto transparency is disabled while on a call (see page 28).
• To adjust self voice, use the Bose Music app. You can access this option from the Settings menu.

USE NOISE CANCELLATION ONLY

You can use noise cancellation only, without audio or interruptions from phone calls.

1. Do one of the following:

2. If you're wearing the earbuds, disconnect your mobile device (see page 41).

3. If the earbuds are in the charging case, turn the Bluetooth feature off on your mobile device. Then, remove the earbuds from the case and insert them in your ears.

4. Touch and hold an earbud to change the mode (see page 33).

NOTE: To reconnect your mobile device, select the earbuds from the Bluetooth list on your device.

Immersive audio takes what you're hearing out of your head and places it in front of you—like you're always in the sound's sweet spot. It feels like the sound is coming from outside the earbuds, resulting in a more natural listening experience. Immersive audio works on any streaming content from any source, taking it to new heights with better sound clarity and richer sound quality.

NOTE: When you make or receive a phone call, immersive audio is temporarily set to Off (see page 31).

IMMERSIVE AUDIO SETTINGS

SETTING DESCRIPTION WHEN TO USE

Still	Audio sounds like it's coming from two stereo speakers in front of you that stay where they are when you move your head.NOTE: A few seconds after you stop moving your head, the speakers recenter on your position.	Use for the most realistic and powerful experience. Best used when you're stationary.
Motion	Audio sounds like it's coming from two stereo speakers in front of you that follow the movements of your head.NOTE: To access this setting, use the Bose Music app. Tap Immersive Audio on the main screen.	Use for a more consistentexperience. Best used when you're doing activities that require you to frequently turn your head or look down.
Off	Audio sounds like it's coming from your earbuds.	Use when you want a classic listening experienceorwantto conserve battery life.

CHANGE THE IMMERSIVE AUDIO SETTING

You can change the immersive audio setting by changing the mode or using a shortcut to cycle through immersive audio settings.

TIP: You can also change the immersive audio setting using the Bose Music app. You can access this option from the main screen.

Change the mode

For information about changing the mode, see page 33.

NOTES:

• Changing the mode changes both the immersive audio and noise cancellationsettings.
• You can also create a custom mode with your preferred immersive audio and noise cancellation settings (see page 32).

Use your shortcut

You can change your shortcut to cycle through immersive audio settings without affecting your current mode's noise cancellation setting. This temporarily customizes the current mode until you power the earbuds off or change the mode.

NOTE: To change the immersive audio setting using the earbuds, it must be set as a shortcut (see page 27).

1. Touch and hold an earbud.

Two identical illustrations of earbuds with central circular features, no text or symbols present.

A voice prompt announces each immersive audio setting in a loop.

1. When you hear the name of your preferred setting, release the earbud.

IMMERSIVE AUDIO WHILE ON A CALL

When you make or receive a phone call, immersive audio is temporarily set to Off. When you end the call, the earbuds return to the previous immersive audio setting.

Listening modes are preset audio settings that you can switch between based on your listening preferences and environment. They consist of noise cancellation and immersive audio settings.

You can choose between three pre-configured modes — Quiet, Aware, and Immersion — or create up to seven of your own custom modes.

MODES

MODE DESCRIPTION

Quiet	Full noise cancellation with Bose-optimized stereo audio. Allows you to block out distractions using the highest level of noise cancellation.
Aware	Full transparency with Bose-optimized stereo audio. Allows you to hear your surroundings while enjoying your audio in stereo.
Immersion	Full noise cancellation with immersive audio. Allows you to block out distractions and immerse yourself in lifelike audio.
Custom	Custom noise cancellation and immersive audio settings based on your listening preferences and environment.NOTE: You can create up to seven custom modes using the Bose Music app. To access this option, tap Modes on the main screen.

NOTES:

• By default, the earbuds power on in Quiet mode. To set the earbuds to power on with the last mode used, use the Bose Music app. You can access this option from the Settings menu.
• For information about noise cancellation and immersive audio settings, see page 29 and page 30.

Aware mode with ActiveSense

The dynamic noise cancellation of Aware mode with ActiveSense technology allows you to hear your surroundings while reducing unwanted noise.

Aware mode with ActiveSense allows the earbuds to automatically turn on noise cancellation when sudden or loud noises occur near you, so you can maintain awareness without intermittent noise interrupting your audio. Once the noise stops, noise cancellation automatically turns off again.

To enable ActiveSense, use the Bose Music app. To access this option, on the main screen, tap Modes > Aware > ••••.

CHANGE THE MODE

NOTE: To change the mode using the earbuds, it must be set as a shortcut (see page 27).

1. To cycle through modes, touch and hold an earbud.

Two identical illustrations of earbuds with central circular features, no text or symbols present.

A voice prompt announces each mode in a loop.

1. When you hear the name of your preferred mode, release the earbud.

TIP: You can also change the mode using the Bose Music app. To access this option, tap Modes on the main screen.

Add or remove modes from the earbuds

To access modes on the earbuds, they must be set as favorites in the Bose Music app. By default, Quiet, Aware, and Immersion modes are set as favorites.

To add or remove modes from the earbuds, tap Modes on the main screen and customize which modes are set as favorites.

CHARGE THE EARBUDS

1. Align the charging contacts on the left earbud with the charging pins on the left side of the charging case.

Charging pins BOSE

NOTE: Before charging, make sure the earbuds are at room temperature, between 46^ F ( 8^ C) and 102^ F ( 39^ C).

1. Place the earbud in the case until it magnetically snaps into place.

The earbuds status light blinks white and then glows according to the charging status (see page 38).

Line drawing of an open wireless earbuds case with exposed internal components (no text or symbols)

1. Repeat steps 1 – 2 for the right earbud.

NOTE: The earbuds charge if the case is open or closed.

CHARGE THE CHARGING CASE

CAUTION: Use this product only with an agency-approved LPS power supply that meets local regulatory requirements (e.g., UL, CSA, VDE, CCC).

1. Connect the small end of the USB cable to the USB-C® port on the bottom of the charging case.

Simple line drawing of a device with a plug and connector (no text or symbols)

1. Connect the other end to a USB-A wall charger (not provided) or computer.

The charging case status light glows solid amber (see page 39).

NOTE: Before charging, be sure the case is at room temperature, between 46^ F ( 8^ C) and 102^ F ( 39^ C).

CHECK THE EARBUD BATTERY LEVEL

While using the earbuds

• When you remove the earbuds from the charging case and insert them into your ears, a voice prompt announces the earbud battery level.
• Use the Bose Music app. The earbud battery level is displayed on the main screen.

NOTE: If one earbud has a lower battery level than the other, the voice prompt announces the lower battery level. If the battery is low, you hear "Battery low."

While charging the earbuds

When you place the earbuds into the charging case, the earbuds status light blinks white and then glows according to the charging status (see page 38).

Line drawing of a Bose-branded wireless earbuds with open case (no text or symbols on device)

NOTE: If one earbud has a lower battery level than the other, the earbuds status light reflects the lower battery level.

CHECK THE CHARGING CASE BATTERY LEVEL

Open the charging case.

The charging case status light glows according to the battery level (see page 39).

Line drawing of a Bose-branded electronic device with open lid and front panel (no text or symbols on the device itself)

CHARGING TIME

COMPONENT CHARGING TIME

Earbuds 1 hour
Charging case Up to 3 hours

NOTES:

• When the earbud battery level is low, a 20-minute charge with the case closed powers the earbuds for up to 2 hours.
• A full charge powers the earbuds for up to 6 hours with immersive audio set to Off. Battery life varies depending on usage.
• When the case is fully charged, you can fully charge the earbuds up to 3 times.
• When the earbuds are inside of the case, the case charging time varies.

EARBUDS STATUS LIGHT

The earbuds status light is located on the inside surface of the charging case.

Earbuds status light BOSE

Bluetooth status

Shows the Bluetooth connection status to mobile devices.

LIGHT ACTIVITY SYSTEM STATE

Slowly blinks blue Ready to connect
Quickly blinks blue Connecting
Solid blue (5 seconds) Connected
Blinks white 2 times Device list cleared

Battery, update, and error status

Shows the earbud battery, update, and error status.

LIGHT ACTIVITY SYSTEM STATE

Blinks white, then glows solid white (5 seconds)	Fully charged
Blinks white, then glows solid amber (5 seconds)	Charging
Blinks white 2 times, slowly blinks blue, and turns off	Reboot complete

LIGHT ACTIVITY SYSTEM STATE

Blinks white 3 times (repeated) Updating software

Blinks amber (3 seconds) Restoring factory settings

Blinks amber and white Error – contact Bose customer service

CHARGING CASE STATUS LIGHT

The charging case status light is located on the front of the charging case.

Charging case status light BOSE

Battery, update, and error status

Shows the charging case battery, update, and error status.

LIGHT ACTIVITY SYSTEM STATE

Solid white Fully charged (100%) and plugged in

Solid white (5 seconds) Charged (34% – 99%)

Solid amber (5 seconds) Low charge (10% – 33%)

Blinks amber 2 times Need to charge (less than 10%)

Solid amber Charging

Blinks white 3 times (repeated) Updating software

Blinks amber and white Error – contact Bose customer service

You can connect the earbuds to your mobile device using the Bose Music app, the Bluetooth menu on your device, or Fast Pair (Android devices only).

You can store up to six devices in the earbud device list. You can connect and play audio from only one device at a time.

NOTES:

• For the best experience, use the Bose Music app to set up and connect your mobile device (see page 12).
• For information about connecting using Fast Pair, see page 43.

CONNECT USING THE BOSE MUSIC APP

To connect the earbuds and manage Bluetooth settings using the Bose Music app, see page 12.

CONNECT USING THE BLUETOOTH MENU ON YOUR MOBILE DEVICE

1. With the earbuds in the charging case and the case open, press and hold the button on the back of the case until the earbuds status light slowly blinks blue.

NOTE: Make sure both earbuds are in the case and the case is open.

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

1. On your device, enable the Bluetooth feature.

NOTE: The Bluetooth feature is usually found in the Settings menu.

1. Select the earbuds from the device list.

NOTE: Look for the name you entered for your earbuds in the Bose Music app. If you didn't name your earbuds, the default name appears.

BLUETOOTH BOSE QC ULTRA EARBUDS

The earbuds name appears in the mobile device list. The earbuds status light glows solid blue (see page 38).

DISCONNECT A MOBILE DEVICE

Place the earbuds in the charging case.

TIP: You can also use the Bose Music app or your Bluetooth settings to disconnect your device. Disabling the Bluetooth feature on your device disconnects the earbuds and all other devices.

RECONNECT A MOBILE DEVICE

When the earbuds are removed from the case, they try to connect with the most recently-connected device.

To connect to a different previously-connected device, use the device's Bluetooth settings to connect to the earbuds.

NOTES:

• The device must be within range (30 ft or 9 m) and powered on.
• Make sure the Bluetooth feature is enabled on your mobile device.

CLEAR THE EARBUDS DEVICE LIST

1. With the earbuds in the charging case and the case open, press and hold the button on the back of the case for 15 seconds until the earbuds status light blinks white 2 times and then slowly blinks blue.

NOTE: Make sure both earbuds are in the case and the case is open.

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

1. Delete the earbuds from the Bluetooth list on your device.

All devices are cleared, and the earbuds are ready to connect (see page 12).

ANDROID DEVICES ONLY

If you have an Android mobile device, you can access the following additional connectionfeatures.

Connect using Fast Pair

In one tap, the earbuds enable quick, effortless Bluetooth pairing with your Android devices.

NOTES:

• To use Fast Pair, you need an Android device running Android 6.0 or higher.

• Your Android device must have the Bluetooth and Location features enabled.

• With the earbuds in the charging case and the case open, press and hold the button on the back of the case until the earbuds status light slowly blinks blue.

NOTE: Make sure both earbuds are in the case and the case is open.

Line drawing of a Bose-branded wireless earbuds showing front and side views with no text or symbols

1. Place the case next to your Android device.

A notification appears on your device prompting you to pair the earbuds.

NOTE: If you don't see a notification, check that notifications are enabled for the Google Play Services app on your device.

1. Tap the notification.

Once the earbuds are connected, a notification appears confirming that the connection is complete.

Snapdragon Sound technology

Bose QuietComfort Ultra Earbuds feature Snapdragon Sound technology. Snapdragon Sound optimizes Qualcomm® audio technologies across connected devices to ensure the best sound quality, connection stability, and latency for your streaming audio.

To experience Snapdragon Sound, you need a Snapdragon Sound-certified device, such as a compatible Android mobile device. Once you connect the earbuds, your device will automatically stream audio using the aptX Adaptive Bluetooth codec.

NOTE: To see which Snapdragon Sound features the earbuds support and check if your device is compatible, visit: support.Bose.com/QCUE

CONNECT TO A BOSE SMART SPEAKER OR SOUNDBAR

Using SimpleSync technology, you can connect the earbuds to a Bose Smart Speaker or Bose Smart Soundbar for a personal listening experience.

Benefits

• Use independent volume controls on each product to lower or mute your Bose Smart Soundbar while keeping the earbuds as loud as you like.
• Hear your music clearly from the next room by connecting the earbuds to your Bose Smart Speaker.

NOTE: SimpleSync technology has a Bluetooth range of up to 30 ft (9 m). Walls and construction materials can affect reception.

Compatible products

You can connect the earbuds to any Bose Smart Speaker or Bose Smart Soundbar.

Popular compatible products include:

• Bose Smart Soundbar 900
• Bose Smart Soundbar 700/Bose Soundbar 700
• Bose Smart Soundbar 600
• Bose Soundbar 500
• Bose Smart Speaker 500/Bose Home Speaker 500
• Bose Home Speaker 300
• Bose Portable Smart Speaker/Bose Portable Home Speaker

New products are added periodically. For a complete list and more information, visit: ____support.Bose.com/Groups

Connect using the Bose Music app

1. With the earbuds in the charging case and the case open, press and hold the button on the back of the case until the earbuds status light slowly blinks blue.

NOTE: Make sure both earbuds are in the case and the case is open.

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

1. Use the Bose Music app to connect the earbuds to a compatible Bose product. For more information, visit: ____ support.Bose.com/Groups

NOTES:

• It could take up to 30 seconds to connect.
• Make sure that the earbuds are within 30 ft (9 m) of your soundbar or speaker.
• You can connect the earbuds to only one product at a time.

RECONNECT TO A BOSE SMART SPEAKER OR SOUNDBAR

Use the Bose Music app to reconnect the earbuds to a previously-connected compatible Bose product. For more information, visit: support.Bose.com/Groups

NOTES:

• Your soundbar or speaker must be within range (30 ft or 9 m) and powered on.
• If the earbuds don't reconnect, see "Earbuds don't reconnect to a previously-connected Bose Smart Soundbar or Speaker" on page 59.

STORE THE EARBUDS

When you're not using the earbuds, store them in the charging case. Close the charging case to help preserve battery life and keep the charging case free of debris.

CLEAN THE EARBUDS AND CHARGING CASE

COMPONENT PROCEDURE

Eartips and stability bands	Remove the eartips and bands from the earbuds and wash them with a mild detergent and water.NOTE: Make sure you thoroughly rinse and dry the eartips and bands before re-attaching them to the earbuds.
Earbud nozzles	Wipe only with a dry, soft cotton swab or equivalent.CAUTION: Never insert any cleaning tool into the nozzle.
Charging contacts (on earbuds)	To prevent corrosion, wipe with a dry, soft cotton swab or equivalent.
Charging case Wipe only with a dry, soft cotton swab or equivalent.

REPLACEMENT PARTS AND ACCESSORIES

Replacement parts and accessories can be ordered through Bose customer service.

Visit: ____ support.Bose.com/QCUE

LIMITED WARRANTY

The earbuds are covered by a limited warranty. Visit our website at ____ worldwide.Bose.com/Warranty for details of the limited warrant

To register your product, visitworldwide.Bose.com/ProductRegistration for instructions. Failure to register will not affect your limited warranty rights.

UPDATE THE EARBUDS

The earbuds begin updating automatically when connected to the Bose Music app and an update is available. Follow the app instructions.

UPDATE THE CHARGING CASE

Update the charging case using the Bose updater website. On your computer, visit: btu.Bose.com and follow the on-screen instructions.

VIEW THE EARBUD DATE CODE

Remove the stability band from the earbud (see page 19).

The date code is located on the earbud in the wide area near the microphone.

Date code

VIEW THE CHARGING CASE SERIAL NUMBER

Remove the earbuds from the charging case.

The charging case serial number is located below the earbuds status light inside the earbud well.

BOSE 西 西

TRY THESE SOLUTIONS FIRST

If you experience problems with the earbuds, try these solutions first:

• Charge the earbuds and the charging case (see page 34).
  • Power on the earbuds (see page 21).
• Check the earbuds status light (see page 38) and charging case status light (see page 39).
  • Make sure your mobile device supports Bluetooth connections (see page 40).
• Download the Bose Music app and run available software updates (see page 12).
• Move your mobile device closer to the earbuds (30 ft or 9 m) and away from any interference or obstructions.
• Increase the volume on the earbuds, your mobile device, and the music app.
• Connect another mobile device (see page 12).

OTHER SOLUTIONS

If you could not resolve your issue, see the table below to identify symptoms and solutions to common problems. You can also access troubleshooting articles, videos, and other resources at: support.Bose.com/QCUE

If you're unable to resolve your issue, contact Bose customer service.

Visit: ____ worldwide.Bose.com/contact

SYMPTOM SOLUTION

Earbuds don’t power on

Make sure the earbuds aren’t in Standby mode. To wake the earbuds, insert the earbuds in your ears.Place both earbuds in the charging case until they magnetically snap into place. Close and re-open the case. The earbuds status light blinks white and then displays charging status (see page 38).If the earbuds have been exposed to high or low temperatures, let the earbuds return to room temperature.See “Earbuds don’t charge” on page 58.

SYMPTOM SOLUTION

Earbuds don't connect with mobile device	Connect using the Bluetooth menu on your mobile device (see page 40).Disable the Bluetooth feature on your mobile device and then re-enable.Clear the earbud device list (see page 42). Delete the earbuds from the Bluetooth list on your device, including any duplicate listings labeled LE (Low Energy). Connect again (see page 12).Place both earbuds in the charging case until they magnetically snap into place. Close and re-open the case.The earbuds status light blinks white and then displays charging status (see page 38). Connect again (see page 12).Make sure both earbuds are in the charging case securely (see page 34).Visit: ____support.Bose.com/QCUE to see how-to v Reboot the earbuds and charging case (see page 60).
Earbuds don't respond during app setup	Uninstall the Bose Music app on your mobile device. Reinstall the app (see page 12).Make sure you're using the Bose Music app for setup (see page 12).Make sure you have given the Bose Music app access to Bluetooth connections in your mobile device Settings menu.Make sure the Bluetooth feature is on in your mobile device Settings menu.
Bose Music app can't find earbuds	Uninstall the Bose Music app on your mobile device. Reinstall the app (see page 12).Make sure you have given the Bose Music app access to Bluetooth connections in your mobile device Settings menu.Place both earbuds in the charging case until they magnetically snap into place. Close and re-open the case.The earbuds status light blinks white and then displays charging status (see page 38). Remove the earbuds.With the earbuds in the charging case and the case open, press and hold the button on the back of the case until the earbuds status light slowly blinks blue.See "Earbuds don't connect with mobile device" on page 50.

SYMPTOM SOLUTION

Bose Music app doesn't work on mobile device	Make sure your mobile device is compatible with the Bose Music app and meets minimum system requirements. For more information, refer to the app store on your mobile device.Uninstall the Bose Music app on your mobile device. Reinstall the app (see page 12).
Eartips aren't comfortable at ear canal	Make sure the eartip isn't resting too deep in your ear canal (see page 15).Try a larger eartip. If that doesn't help, try a smaller eartip (see page 18).Try a smaller stability band (see page 19).Check the earbud fit using a mirror (see page 15).Check the earbud fit using the Earbud Seal Test in the Bose Music app. You can access this option from the Settings menu.Contact Bose customer service or visit ____support.Bose.com/QCUE for additional size ea stability bands or to see how-to videos.
Stability band isn't comfortable at ear ridge	Try a smaller stability band (see page 19). If you're already using the smallest stability band, try a smaller eartip (see page 18).Check the earbud fit using a mirror (see page 15).Check the earbud fit using the Earbud Seal Test in the Bose Music app. You can access this option from the Settings menu.Contact Bose customer service or visit ____support.Bose.com/QCUE for additional size ea stability bands or to see how-to videos.
Earbuds aren't secure	Make sure the eartip is resting gently at the opening of your ear canal (see page 14).Try a larger stability band (see page 19).Try a larger eartip (see page 18).Contact Bose customer service or visit ____support.Bose.com/QCUE for additional size ea stability bands or to see how-to videos.
Eartips are falling off	Make sure the eartips are securely attached to the earbuds (see page 18).

SYMPTOM SOLUTION

Stability bands are falling off	Make sure the bands are securely attached to the earbuds (see page 19).Make sure the bands are positioned on the earbuds correctly (see page 19).
Intermittent Bluetooth connection	Clear the earbud device list (see page 42). Delete the earbuds from the Bluetooth list on your device, including any duplicate listings labeled LE (Low Energy). Connect again (see page 12).Move the mobile device closer to the earbuds.Reboot the earbuds and charging case (see page 60).
No sound	Make sure you're using the correct eartip and band sizes for each ear (see page 17).Check the earbud fit using a mirror (see page 15).Check the earbud fit using the Earbud Seal Test in the Bose Music app. You can access this option from the Settings menu.Visit: ____support.Bose.com/QCUE to see how-to vMake sure the volume is turned up (see page 23).Make sure that both eartips fit securely in your ear, and they aren't rotated too far back (see page 14).Make sure your head is upright when inserting the earbuds.Press play on your mobile device to make sure audio is playing.Play audio from a different application or music service.Play audio from content stored directly on your device.Clear any debris or wax buildup from the eartips and earbud nozzles.Restart your mobile device.Disable in-ear detection features using the Bose Music app (see page 28).

SYMPTOM SOLUTION

No sound from one earbud

Make sure you're using the correct eartip and band sizes for each ear (see page 17).Check the earbud fit using a mirror (see page 15).Check the earbud fit using the Earbud Seal Test in the Bose Music app. You can access this option from the Settings menu.Visit: ____support.Bose.com/QCUE to see how-to vMake sure the software in the Bose Music app is up to date (see page 48).Make sure that both eartips fit securely in your ear, and they aren't rotated too far back (see page 14).Make sure your head is upright when inserting the earbuds.Clear any debris or wax buildup from the eartips and earbud nozzles.Place both earbuds in the charging case until they magnetically snap into place. Close and re-open the case.The earbuds status light blinks white and then displays charging status (see page 38). Remove the earbuds.

Audio and video are out of sync

Close and re-open the application or music service.Play audio from a different application or music service.Place both earbuds in the charging case until they magnetically snap into place. Close and re-open the case.The earbuds status light blinks white and then displays charging status (see page 38). Remove the earbuds.

SYMPTOM SOLUTION

Poor sound quality

Check the earbud fit using a mirror (see page 15).Check the earbud fit using the Earbud Seal Test in the Bose Music app. You can access this option from the Settings menu.Make sure you're using the correct eartip and band sizes for each ear (see page 17).Visit: ____support.Bose.com/QCUE to see how-to vMake sure you're using the Bose Music app for setup (see page 12).Try a different audio track.Play audio from a different application or music service.Clear any debris or wax buildup from the eartips and earbud nozzles.Turn off any audio enhancement features on the device or music app.Make sure your earbuds are connected over the correct Bluetooth profile: Stereo A2DP. Check your device's Bluetooth/audio settings menu to make sure the correct audio profile is selected.Disable the Bluetooth feature on your mobile device and then re-enable.Clear the earbud device list (see page 42). Delete the earbuds from the Bluetooth list on your device, including any duplicate listings labeled LE (Low Energy). Connect again (see page 12).If you're sharing the earbuds, place them in the charging case to clear the audio personalization between each user.

SYMPTOM SOLUTION

Microphone doesn’t pick up sound

Make sure the stability bands are positioned properly so the hole on the side of the band is aligned with the microphone on the earbud (see page 19).Make sure the earbuds aren’t rotated too far back or forward (see page 14). For the best microphone sound quality, the earbuds should be angled so that they point towards your mouth or chin.Try another phone call.Try another compatible device.Disable theBluetoothfeature on your mobile device and then re-enable.Clear the earbud device list (see page 42). Delete the earbuds from the Bluetooth list on your device, including any duplicate listings labeled LE (Low Energy). Connect again (see page 12).

Can’t adjust the mode

Place both earbuds in the charging case until they magnetically snap into place. Close and re-open the case. The earbuds status light blinks white and then displays charging status (see page 38). Remove the earbuds.If you customized your shortcut to be on a specific earbud, make sure you touch and hold the correct earbud.See “Earbuds don’t respond to touch control” on page 57.Use the Bose Music app to adjust the mode. You can access this option from the main screen (see page 12).

SYMPTOM SOLUTION

Poor noise cancellation	Place both earbuds in the charging case until they magnetically snap into place. Close and re-open the case. The earbuds status light blinks white and then displays charging status (see page 38). Remove the earbuds.Check if ActiveSense is enabled (see page 32).Check the earbud fit using a mirror (see page 15).Check the earbud fit using the Earbud Seal Test in the Bose Music app. You can access this option from the Settings menu.Check the mode (see page 32).Remove the earbuds from your ears and reinsert in your ears.If you're on a phone call or using voice control on your mobile device, lower or turn off self voice using the Bose Music app (see page 29).If you're sharing the earbuds, place them in the charging case to clear the audio personalization between each user.Reboot the earbuds and charging case (see page 60). If that doesn't work, restore the earbuds to factory settings (see page 61).
Difficulty hearing caller while on a phone call	Increase the volume using your mobile device.Try a different mode (see page 32).
Difficulty hearing own voice while on a phone call	Change the mode to Aware mode (see page 33).Use the Bose Music app to adjust self voice. You can access this option from the Settings menu.
Earbuds don't respond	Place both earbuds in the charging case until they magnetically snap into place. Close and re-open the case. The earbuds status light blinks white and then displays charging status (see page 38). Remove the earbuds.Reboot the earbuds and charging case (see page 60). If that doesn't work, restore the earbuds to factory settings (see page 61).

SYMPTOM SOLUTION

Earbuds don’t respond to touch control	Make sure you’re touching the correct touch control surface (see page 23).Make sure your finger is making good contact with the touch control surface (see page 23).For multi-tap functions, vary the tap pressure.Make sure your fingers are dry.If your hair is wet, make sure it isn’t interfering with the touch surface.If wearing gloves, remove them before touching the touch control surface.Disable in-ear detection features using the Bose Music app (see page 28).If the earbuds have been exposed to high or low temperatures, let the earbuds return to room temperature.Reboot the earbuds and charging case (see page 60).
Can’t adjust volume	Make sure volume control is enabled using the Bose Music app (see page 23).Make sure you’re swiping the touch control surface in the correct direction (see page 23).See “Earbuds don’t respond to touch control.”
Can’t access shortcut	Make sure you have set a shortcut using the Bose Music app (see page 27).If you customized the shortcut to a specific earbud, make sure you touch and hold the correct earbud.

SYMPTOM SOLUTION

Earbuds don't charge	Make sure the earbuds are properly placed in the charging case. To help preserve the battery life, the case should be closed while the earbuds are charging (see page 34).Make sure there is no dirt or debris covering the charging contacts on the earbuds or the charging pins in the case.Make sure the stability bands are positioned on the earbuds correctly (see page 19). If the bands are positioned incorrectly, the charging contacts on the earbuds may not align with the charging pins in the case.Make sure the USB cable is correctly aligned with the port on the charging case.Secure both ends of the USB cable.Try another USB cable.Try another wall charger.If the earbuds or charging case have been exposed to high or low temperatures, let the earbuds or case return to room temperature. Charge again (see page 34).
Charging case doesn't charge	Make sure the USB cable is correctly aligned with the port on the charging case.If the charging case battery is fully depleted, make sure the USB cable is attached long enough for the case to gain an initial charge. If you remove the cable and the charging case status light goes out, reattach the USB cable.Secure both ends of the USB cable.Try another USB cable.Make sure the charging case is closed. To help preserve the battery life, the case should be closed while it's charging.Try another wall charger.If the charging case has been exposed to high or low temperatures, let the case return to room temperature. Charge again (see page 35).Make sure any charging case accessories are properly installed and don't prevent the USB cable from securely connecting to the port on the charging case.
Voice prompt language isn't correct	Change the voice prompt language using the Bose Music app (see page 12). You can access this option from the Settings menu.

SYMPTOM SOLUTION

Not receiving call notifications	Make sure your mobile device isn't set to Do Not Disturb.Make sure voice prompts are enabled using the Bose Music app (see page 12). You can access this option from the Settings menu.Make sure you have given the earbuds access to your contacts in your mobile device Bluetooth menu.
Earbuds making chirping sound	Make sure the earbud nozzles aren't blocked (see page 18).
Earbuds don't connect to a Bose Smart Soundbar or Speaker	Make sure you are connecting to a compatible Bose product. For a list of compatible products, visit: ____support.Bose.com/GroupsWith the earbuds in the charging case and the case open, press and hold the button on the back of the case until the earbuds status light slowly blinks blue.Make sure that the earbuds are within 30 ft (9 m) of your soundbar or speaker.
Earbuds don't reconnect to a previously-connected Bose Smart Soundbar or Speaker	With the earbuds in the charging case and the case open, press and hold the button on the back of the case until the earbuds status light slowly blinks blue. Use the Bose Music app to connect the earbuds to a compatible Bose product. For more information, visit: support.Bose.com/Groups
Delayed audio when connected to a Bose Smart Soundbar or Speaker	Download the Bose Music app and run available software updates.

REBOOT THE EARBUDS AND CHARGING CASE

If the earbuds or charging case are unresponsive, you can reboot them.

NOTE: Rebooting the earbuds clears the earbud device list. It doesn't clear other settings.

1. Remove the earbuds from the Bluetooth list on your device.

2. With the earbuds in the charging case and the case open, press and hold the button on the back of the case for 25 seconds until the earbuds status light blinks white 2 times, slowly blinks blue, and then turns off.

NOTE: Make sure both earbuds are in the case and the case is open.

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

When the reboot is complete, the earbuds status light glows according to the charging status (see page 38), and the charging case status light glows according to the battery level (see page 39).

RESTORE THE EARBUDS TO FACTORY SETTINGS

A restore to factory settings clears all settings and return the earbuds to their original out-of-box state. After, the earbuds can be configured as if they were being set up for the first time.

Restoring to factory settings is only recommended if you are having issues with the earbuds or you have been instructed to do so by Bose customer service.

1. Remove the earbuds from the Bluetooth list on your device.
2. Remove the earbuds from your Bose account using the Bose Music app.

NOTE: For more information about how to remove the earbuds from your Bose account using the Bose Music app, visit: ____support.Bose.cor

1. With the earbuds in the charging case and the case open, press and hold the button on the back of the case for 25 seconds until the earbuds status light blinks white 2 times, slowly blinks blue, and then turns off.

NOTE: Make sure both earbuds are in the case and the case is open.

Line drawing of a Bose wireless earbuds showing front and side views (no text or symbols)

1. Repeat the previous step 2 more times.

After the third time, the status light blinks amber for 3 seconds to indicate factory settings are being restored.

When the restore is complete, the status light slowly blinks blue. The earbuds are now in their original out-of-box state.

NOTE: If you're unable to resolve your issue, additional troubleshooting and support is available at: ____support.Bose.com/QCUE

TILSLUT PRODUKTER FRA BOSE

Opret forbindelse til en Bose Smart Speaker eller Soundbar.... 45

Fordele 45

Kompatible produkter 45

Line drawings of two different electronic devices, one labeled 'BOSE' and the other unlabeled (no text or symbols beyond branding)

_BOSE

Bose QuietComfort Ultra Earbuds Opladningsetui

Simple line drawing of two egg-like shapes with no text or symbols

Four identical hand-shaped diagrams with labeled ends (L1, R, L2) and no accompanying text or symbols.

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

Two symbolic icons: a circle with a diagonal line and a ring with droplets, both without any text or labels.

BEMAERKNINGER:

R....R/L-markering

Three identical abstract geometric diagrams with concentric circles, no text or symbols present

Three identical line drawings of a ring-shaped object with labeled points (1, 2, 3) and no additional text or symbols.

Diagram illustrating a finger pressing a button on a device, showing the process with labeled parts and directional arrow.

Tryk og træk Adskil

Diagram showing two stages of a device with labeled components and directional arrows indicating process flow.

Juster Tryk

Line drawing of a Bose-branded wireless earbuds with open case (no text or symbols on device)

STANDBY

Two identical illustrations of a pair of earbuds with central circular features, no text or symbols present.

SKIFT ELLER DEAKTIVER DIN GENVEJ

Two identical illustrations of ear earments with shaded circular centers, no text or symbols present.

Two identical illustrations of ear ear devices with central circular features, no text or symbols present.

Line drawing of a Bose-branded earbuds with open case (no text or symbols on device)

Simple line drawing of a device with a plug inserted into the base (no text or symbols)

Line drawing of a Bose-branded wireless earbuds with open case (no text or symbols on device)

BEMÄRK: Hvis den ene in-ear hovedtelefon har et lavere batteriniveau end den anden, viser statuslampen det laveste batteriniveau.

KONTROLLÉR OPLADNINGSETUIETS BATTERINIVEAU

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

OPLADNINGSTID

KOMPONENT OPLADNINGSTID

In-ear hovedtelefoner 1 time
Opladningsetui Op til 3 timer

BEMAERKNINGER:

Line drawing of a Bose-branded earbuds with open case and black dotted line indicating measurement (no text or symbols on the device itself)

'In-ear hovedtelefonernes statuslampe

Bluetooth-status

Viser status for Bluetooth-forbindelsen til mobile enheder.

LYSAKTIVITET SYSTEMTILSTAND

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose wireless earbuds showing front and side views (no text or symbols)

1. Gentag det foregående trin 2 gange mere.

Efter tredje gang blinker statuslampen gult i 3 sekunder for at angive, at fabriksindstillingerne gendannes.

Line drawings of two different electronic devices, one labeled 'BOSE' and the other a camera lens (no text or symbols beyond branding)

Bose QuietComfort Ultra Earbuds Lade-Etui

_BOSE

Simple line drawing of two abstract shapes resembling eggs or containers (no text or symbols)

Four identical hand-painted circular objects with labeled ends (L, R) and no additional text or symbols

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

USB Type-C® zu USB-A Kabel

Two symbolic icons: a circle with a diagonal line and a ring with droplets (no text or symbols)

HINWEISE:

Three identical abstract geometric diagrams with concentric circles, no text or symbols present

Three identical wireframe diagrams of a ring-shaped object with labeled points (1, 2, 3) and no text or symbols beyond labels.

Diagram illustrating finger positioning and movement of a device, showing hand positioning and tip insertion steps

Diagram showing two dental implant configurations with labeled parts and directional arrows indicating insertion or positioning.

Ausrichten Drücken

Line drawing of a Bose-branded wireless earbuds with open case (no text or symbols on device)

STANDBY

Two identical illustrations of a medical or electronic device with circular components and central hub (no text or symbols)

ENTFERNEN ODER ÄNDERN IHRES SHORTCUTS

Two identical illustrations of a medical or surgical device with circular features and concentric rings (no text or symbols)

Two identical illustrations of a stylized ear with shaded regions and dotted centerlines, no text or symbols present.

Line drawing of a Bose-branded earbuds with open case (no text or symbols on device)

Simple line drawing of a device with a plug inserted into a socket (no text or symbols)

Line drawing of a Bose-branded wireless earbuds with open case (no text or symbols on device)

Line drawing of a Bose-branded electronic device with open casing and internal earbuds (no text or symbols on the device itself)

LADEDAUER

TEIL LADEDAUER

Line drawing of a BOSE-branded earless device with open casing and black dots indicating measurement points (no text or symbols on the device itself)

Line drawing of a BOSE wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views with no text or symbols

Line drawing of a Bose-branded wireless earbuds showing internal components and a close-up of the device's screen (no text or symbols on the device itself)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose-branded wireless earbuds showing front and side views (no text or symbols)

Line drawings of two different electronic devices, one labeled 'BOSE' and the other a camera lens (no text or symbols beyond branding)

Bose QuietComfort Ultra Earbuds Oplaadetui

_BOSE

Simple line drawing of two egg-like shapes with no text or symbols

Oortips (formaten small en large)

Four identical hand-shaped diagrams with labeled inner and outer rings, no text or symbols present.

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

Two symbolic icons: a circle with a diagonal line and a droplet on the other, both without any text or labels.

OPMERKINGEN:

R....R/L-markering

Three identical abstract geometric shapes with concentric circles, no text or symbols present

Three identical line drawings of a ring-shaped object with labeled points (1, 2, 3) and no additional text or symbols.

Diagram illustrating a hand-pulling process on a device, showing step-by-step states of rotation and disassembly.

Diagram showing two stages of a device with labeled components and directional arrows indicating process flow.

Uitlijnen Vastduwen

Diagram illustrating a three-step robotic arm manipulation process with labeled parts and directional arrows

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

STAND-BY

Two identical illustrations of earbuds with central circular features, no text or symbols present.

Two identical illustrations of ear-shaped devices with central circular features, no text or symbols present.

Two identical illustrations of a stylized ear with circular features and concentric rings (no text or symbols)

Line drawing of an open wireless earbuds case with visible internal components (no text or symbols)

Simple line drawing of a device with a plug inserted into a housing (no text or symbols)

Line drawing of a BOSE-branded earbuds with open case (no text or symbols on device)

Line drawing of a Bose-branded electronic device with open casing and internal earbuds (no text or symbols on the device itself)

OPLAADTIJD

ONDERDEEL OPLAADTIJD

Oordopjes 1 uur

Line drawing of a Bose-branded earbuds with open case and black dotted line indicating measurement (no text or symbols on the device itself)

Statuslampje oordopjes

Bluetooth-status

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of two wireless earbuds with one open showing internal ear structure and the other closed, no text or symbols present.

Line drawing of a BOSE wireless earbuds showing front and side views (no text or symbols)

Line drawings of two different electronic devices, one labeled 'BOSE' and the other with a camera lens (no text or symbols beyond branding)

_BOSE

Bose QuietComfort Ultra Earbuds Estuche de carga

Two abstract geometric shapes resembling egg-like figures with internal concentric circles (no text or symbols)

Four identical hand-shaped diagrams with labeled ends (L1, R, L2) and no accompanying text or symbols.

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

Cables USB Type-C® a USB-A

Two symbolic icons: a circle with a diagonal line and a teardrop-shaped object emitting droplets (no text or labels)

NOTAS:

Three identical abstract geometric diagrams with concentric circles, no text or symbols present

Three identical circular mechanical components with labeled ports (1R, 2R, 3R), no additional text or symbols present.

Diagram illustrating a finger pressing a button on a device, showing the process with labeled parts and directional arrow.

Diagram showing two stages of a device with labeled ports and directional arrows, likely illustrating a process or operation.

Alinear Presionar

Line drawing of a Bose-branded earbuds with open case (no text or symbols on device)

MODO DE ESPERA

Two identical illustrations of a stylized ear device with circular features and concentric rings (no text or symbols)

CAMBIAR O DESACTIVAR EL ACCESO DIRECTO

Two identical illustrations of earbuds with central circular features, no text or symbols present.

Two identical illustrations of a stylized ear with circular features and concentric rings (no text or symbols)

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

Simple line drawing of a device with a plug and connector (no text or symbols)

Line drawing of a Bose-branded earless device with open lid and black buttons (no text or symbols on body)

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

TIEMPO DE CARGA

COMPONENTE TIEMPO DE CARGA

Line drawing of a Bose-branded earbuds with open case and black dotted line indicating measurement (no text or symbols on the device itself)

Line drawing of a Bose-branded VR headset with open casing and internal compartments (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Visite: ____ support.Bose.com/QCUE

GARANTÍA LIMITADA

Visite: ____ worldwide.Bose.com/contact

SÍNTOMA SOLUCIÓN

Line drawing of a Bose wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose wireless earbuds showing front and side views (no text or symbols)

Line drawings of two different electronic devices, one labeled 'BOSE' and the other unlabeled (no text or symbols beyond branding)

Bose QuietComfort Ultra Earbuds Latauskotelo

_BOSE

Simple line drawing of two abstract shapes resembling eggs or containers (no text or symbols)

Four identical hand-shaped diagrams with labeled ends (L1, R, L2) and no accompanying text or symbols.

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

USB Type-C® - USB-A -kaapeli

Two symbolic icons: a circle with a diagonal line and a teardrop-shaped object emitting droplets (no text or labels)

HUOMAUTUKSIA:

Three identical abstract geometric shapes with concentric circles, no text or symbols present

Three identical wireframe diagrams of a ring or container with labeled points (1, 2, 3) and 'R' on each side, no text or symbols beyond labels.

Diagram illustrating a finger pressing a button on a device, showing the process with labeled parts and directional arrow.

Purista ja irrota Erota

Diagram showing two stages of a device with labeled components and directional arrows indicating process flow.

Kohdista Paina

Line drawing of a Bose-branded electronic device with open lid and front bezel (no text or symbols on the device itself)

VALMIUSTILA

Two identical illustrations of earbuds with central circular features, no text or symbols present.

PIKAVALINNAN VAIHTAMINEN TAI POISTAMINEN KÄYTÖSTÄ

Two identical illustrations of a stylized ear with shaded circular centers and dotted outlines (no text or symbols)

Two identical illustrations of ear ear devices with central circular features, no text or symbols present.

Line drawing of an open wireless earbuds case with visible internal components (no text or symbols)

Simple line drawing of a device with a plug and connector (no text or symbols)

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

LATAUSAIKA

KOMPONENTTI LATAUSAIKA

Line drawing of a Bose-branded earbuds with open case and black dots indicating measurement (no text or symbols on the device itself)

Line drawing of a pair of wireless earbuds with one open and one closed, showing internal components and a control knob (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose-branded wireless earbuds showing the front and side views (no text or symbols)

1. Aseta kotelo Android-laitteen viereen.

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose-branded wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose wireless earbuds showing front and side views (no text or symbols)

CONNEXIONS BLUETOOTH

CONNEXION DES PRODUITS BOSE

Line drawings of two different electronic devices, one labeled 'BOSE' and the other unlabeled (no text or symbols beyond branding)

_BOSE

Bose QuietComfort Ultra Earbuds Étui de recharge

Simple line drawing of two abstract shapes resembling eggs or containers (no text or symbols)

Four identical hand-shaped diagrams with labeled ends (L1, R, L2) and no accompanying text or symbols.

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

Two symbolic icons: a circle with a diagonal line and a teardrop-shaped object emitting droplets (no text or labels)

REMARQUES :

Three identical abstract geometric diagrams with concentric ovals and overlapping circles, no text or symbols present.

Three identical wireframe diagrams of a ring device with labeled points (1, 2, 3) and no text or symbols beyond labels.

CHANGEMENT D'EMBOUTS

Diagram illustrating a hand-pulling process on a device, showing step-by-step rotation of the component.

Aplatir et tirer Retirer

Diagram showing two stages of a device with labeled components and directional arrows indicating process flow.

Aligner Appuyer

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

VEILLE

Surface tactile

LECTURE ET VOLUME MULTIMÉDIA

COMMANDE ACTION

Two identical illustrations of a stylized ear or ear device with concentric rings and central hub (no text or symbols)

MODIFICATION OU DÉSACTIVATION D'UN RACCOURCI

Two identical illustrations of ear earments with central circular features, no text or symbols present.

Two identical illustrations of ear-shaped objects with central circular features, no text or symbols present.

Line drawing of an open wireless earbuds case with visible internal components (no text or symbols)

Simple line drawing of a device with a plug and connector (no text or symbols)

Line drawing of a Bose-branded wireless earbuds with open case (no text or symbols on device)

Line drawing of a Bose-branded electronic device with open lid and internal earbuds (no text or symbols on the device itself)

TEMPS DE CHARGE

COMPOSANT TEMPS DE CHARGE

Line drawing of a Bose-branded VR headset with open casing and visible internal components (no text or symbols)

Line drawing of a BOSE-branded earbuds with open case and black buttons (no text or symbols on the device itself)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views with no text or symbols

Line drawing of a Bose-branded wireless earbuds showing the front and side views with no text or symbols on the devices themselves.

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose wireless earbuds showing front and side views (no text or symbols)

Line drawings of two different electronic devices, one labeled 'BOSE' and the other a camera lens (no text or symbols beyond branding)

_BOSE

Simple line drawing of two egg-like shapes with no text or symbols

Four identical hand-shaped diagrams with labeled ends (L1, R, L2) and no accompanying text or symbols.

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

Cavo da USB Type-C® a USB-A

Two symbolic icons: a circle with a diagonal line and a droplet on a ring, both without any text or labels.

NOTE:

Three identical abstract geometric diagrams with concentric circles, no text or symbols present

Three identical line drawings of a ring-shaped object with labeled points (1, 2, 3) and 'R' on each side, no text or symbols beyond labels.

Diagram illustrating a hand-pulling process on a device, showing step-by-step rotation of the component.

Diagram showing two stages of a device with labeled ports (R, R', O) and an arrow indicating process direction.

Allineare Premere

Line drawing of a Bose-branded electronic device with open lid and front panels (no text or symbols on the device itself)

STANDBY

Two identical illustrations of earbuds with central circular features, no text or symbols present.

CAMBIARE O DISABILITARE LA SCELTA RAPIDA

Two identical illustrations of earless devices with central circular features, no text or symbols present.

Two identical illustrations of a stylized ear or ear device with concentric rings and central circular features (no text or symbols)

Line drawing of an open Bose-branded wireless earbuds case (no text or symbols on the device itself)

Simple line drawing of a device with a connector inserted into a housing (no text or symbols)

Line drawing of a BOSE-branded earbuds with open case and black buttons (no text or symbols on the device itself)

Line drawing of a Bose-branded electronic device with open lid and internal earbuds (no text or symbols on the device itself)

TEMPO DI CARICA

COMPONENTE TEMPO DI CARICA

Line drawing of a Bose-branded earbuds with open case and black dots indicating measurement (no text or symbols on the device itself)

Line drawing of a Bose-branded VR headset with open casing and internal earbuds (no text or symbols)

Line drawing of a BOSE wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Visitare: ____ worldwide.Bose.com/contact

SINTOMO SOLUZIONE

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a BOSE wireless earbuds showing front and side views (no text or symbols)

Line drawings of two BOSE earbuds and a beige BOSER-branded charging case (no text or symbols on devices)

Simple line drawing of two egg-like shapes with no text or symbols

Four identical hand-shaped diagrams with labeled ends (L1, R, L2) and no accompanying text or symbols.

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

Two symbolic icons: a circle with a diagonal line and a ring with droplets, both without any text or labels.

MEGJEGYZÉSEK:

Three identical abstract geometric diagrams with concentric circles, no text or symbols present

Three identical line drawings of a circular object with labeled points (1R, 2R, 3R), no text or symbols present.

Diagram illustrating a hand-pulling process on a device, showing the left and right views with labeled components and directional arrows.

Diagram showing two stages of a device with labeled ports (R, R', O_R) and an arrow pointing to a component, possibly indicating a process or operation.

Line drawing of a Bose-branded wireless earbuds with open casing (no text or symbols on device)

KÉSZENLÉT

Two identical illustrations of a stylized ear device with circular features and shaded centers (no text or symbols)

A GYORSFUNKCIÓ MÓDOSÍTÁSA VAGY LETILTÁSA

Two identical illustrations of a stylized ear or button device with concentric rings and central dot pattern (no text or symbols)

Two identical illustrations of a stylized ear with circular features and concentric rings (no text or symbols)

Line drawing of a Bose-branded earbuds with open case (no text or symbols on device)

Simple line drawing of a device with a connector inserted into a housing (no text or symbols)

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

TÖLTÉSI IDŐ

Line drawing of a Bose-branded earbuds with open case and black dotted line indicating measurement (no text or symbols on the device itself)

Line drawing of a BOSE-branded earbuds with open case and black buttons (no text or symbols on the device itself)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a BOSE wireless earbuds showing front and side views with no text or symbols

Line drawing of a Bose-branded wireless earbuds showing front and side views with no text or symbols

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose-branded wireless earbuds with open case (no text or symbols on device)

Simple line drawing of a container with a circular button and an internal symbol (no text or labels)

Line drawing of a BOSE wireless earbuds showing front and side views (no text or symbols)

KOBLE TIL BOSE-PRODUKTER

Koble til Bose Smart Speaker eller Soundbar.... 45

Fordeler 45

Kompatible produkter 45

STELL OG VEDLIKEHOLD

Line drawings of two different electronic devices, one labeled 'BOSE' and the other a camera lens (no text or symbols beyond branding)

Bose QuietComfort Ultra Earbuds Ladeetui

_BOSE

Simple line drawing of two abstract shapes resembling eggs or containers (no text or symbols)

Four identical hand-shaped diagrams with labeled ends (L1, R, L2) and no accompanying text or symbols.

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

Two symbolic icons: a circle with a diagonal line and a droplet on the right, both without any text or labels.

MERKNADER:

PASSFORM SJEKK DETTE

PASSFORM SJEKK DETTE

Three identical abstract geometric diagrams with concentric ovals and overlapping circles, no text or symbols present.

Three identical wireframe diagrams of a ring-shaped object with labeled points (1, 2, 3) and no text or symbols beyond labels.

Diagram illustrating a finger pressing a button on a device, showing the process with labeled parts and directional arrow.

Diagram showing two stages of a device with labeled components and directional arrows indicating process flow.

Juster Trykk

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

VENTEMODUS

Two identical illustrations of a teardrop-shaped object with two circular features and an arrow pointing to the center (no text or symbols)

Redusere volumet Sveip ned på en ørepropp.

Two identical illustrations of a stylized object with a central circle and two downward arrows, no text or symbols present.

KONTROLL GJ∅R DETTE

Two identical illustrations of a medical or electronic device with circular components and concentric rings (no text or symbols)

ENDRE ELLER DEAKTIVERE SNARVEIEN

Two identical illustrations of a stylized ear device with circular features and concentric rings (no text or symbols)

En stemme leser opp hver innstilling for romtilpasset lyd i en sløyfe.

Two identical illustrations of ear-shaped objects with central circular features, no text or symbols present.

En stemme leser opp hver modus i en sløyfe.

Ladepinner BOSE

Line drawing of an open wireless earbuds case with visible internal components (no text or symbols)

Simple line drawing of a device with a plug and connector (no text or symbols)

Line drawing of a Bose-branded wireless earbuds with open case (no text or symbols on device)

Line drawing of a Bose-branded electronic device with open casing and internal earbuds (no text or symbols on the device itself)

LADETID

DEL LADETID

∅repropper	1 time
Ladeetui Opptil 3 timer

MERKNADER:

Line drawing of a BOSE-branded earless device with open casing and black buttons (no text or symbols on the device itself)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

KOBLE TIL MOBILENHETER PÅ NYTT

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

1. Bruk Bose Music-appen til å koble øreproppene til et kompatibelt Bose-produkt. Hvis du vil ha mer informasjon, kan du gå til ____support.Bose.com/G

MERKNADER:

KOBLE TIL EN BOSE SMART SPEAKER ELLER SOUNDBAR PÅ NYTT

Bruk Bose Music-appen til å koble øreproppene til et tidligere tilkoblet kompatibelt Bose-produkt på nytt. Hvis du vil ha mer informasjon, kan du gå til ____support.Bose.com/Groups

MERKNADER:

• Lydplanken eller høyttaleren må være innenfor rekkevidde (9 m) og slått på.
• Hvis øreproppene ikke kobles til, kan du se «∅reproppene kobles ikke til en tidligere tilkoblet Bose Smart Soundbar eller Speaker» på side 59.

OPPBEVARE ∅REPROPPENE

BOSE X20000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

PR∅V DETTE F∅RST

Line drawing of a Bose-branded wireless earbuds showing front and side views (no text or symbols)

Når omstarten er fullført, lyser statuslampen for øreproppene i henhold til ladestatusen (se side 38) og statuslampen for ladeetuiet lyser i henhold til batterinivået (se side 39).

GJENOPPRETTE TIL FABRIKKINNSTILLINGENE PÅ ∅REPROPPENE

Line drawing of a Bose wireless earbuds showing front and side views (no text or symbols)

Line drawings of two BOSE earbuds and a beige Bose-branded charging case (no text or symbols on devices)

Simple line drawing of two abstract shapes resembling eggs or containers (no text or symbols)

Four identical hand-shaped diagrams with labeled inner and outer rings, no text or symbols present.

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

Przewód USB Type-C® do USB-A

Two symbolic icons: a circle with a diagonal line and a droplet on a ring, both without any text or labels.

UWAGI:

Three identical abstract geometric diagrams with concentric circles, no text or symbols present

Three identical wireframe diagrams of a circular object with labeled points (1, 2, 3) and R symbols on its surfaces (no text or symbols beyond labels)

Diagram illustrating finger positioning and movement of a device, showing hand positioning and highlighted part with 'R' label

Diagram showing two types of camera lens components with labels R and O_R, illustrating optical path difference or alignment.

Wyrównaj Naciśnij

Line drawing of a BOSE-branded wireless earbuds with open casing and dotted-line outline indicating measurement points (no text or symbols beyond branding)

Line drawing of a Bose-branded earbuds with open case (no text or symbols on device)

TRYB GOTOWOŚCI

Simple line drawing of a stylized object resembling a helmet or device (no text or symbols)

Simple line drawing of a pair of objects, possibly a doorbell or stylus, with no text or symbols present.

ODTWARZANIE MULTIMEDIÓW I REGULACJA GŁOŚNOŚCI

CZYNNOŚĆ PROCEDURA

Two identical illustrations of a medical or surgical device with concentric ovals and central circular features, no text or symbols present.

ZMIANA LUB WYŁĄCZENIE SKRÓTU

Two identical illustrations of ear earments with shaded circular centers, no text or symbols present.

Two identical illustrations of earbuds with central circular features, no text or symbols present.

Line drawing of a Bose-branded earbuds with open case (no text or symbols on device)

Simple line drawing of a device with a connector inserted into a housing (no text or symbols)

Line drawing of a Bose-branded wireless earbuds with open case (no text or symbols on device)

Line drawing of a Bose-branded electronic device with open lid and front panels (no text or symbols on the device itself)

CZAS LADOWANIA

WYPOSAŻENIE CZAS ŁADOWANIA

Line drawing of an open Bose-branded earbuds case (no text or symbols on the device itself)

Line drawing of a Bose-branded VR headset with open casing and internal gear slots (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

BOSE xxxxxxx起

PODSTAWOWE ROZWIĄZANIA

Line drawing of a Bose wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose wireless earbuds showing front and side views (no text or symbols)

Brusreducing under samtal 29

ANSLUTA BOSE-PRODUKTER

Anslut till en Bose Smart Speaker eller soundbarhögtalare 45

Fördelar.... 45

Kompatibla produkter 45

Line drawings of two different electronic devices, one labeled 'BOSE' and the other a device outline (no text or symbols beyond branding)

_BOSE

Bose QuietComfort Ultra Earbuds Laddningsfodral

Simple line drawing of two abstract shapes resembling eggs or containers (no text or symbols)

Four identical hand-shaped diagrams with labeled ends (L1, R, L2) and no accompanying text or symbols.

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

USB Type-C®- till USB-A-kabel

Two symbolic icons: a circle with a diagonal line and a droplet on a surface, both without any text or labels.

TÄNK PÅ FÖLJANDE:

Three identical abstract geometric shapes outlined in concentric ovals, no text or symbols present

Three identical wireframe diagrams of a ring device with labeled points (1, 2, 3) and no text or symbols beyond labels.

Diagram showing two-step instructions for using a device to interact with a hand, labeled with 'R' and rotation arrow.

Diagram showing two stages of a device with labeled ports (R) and an arrow pointing to a component, likely illustrating a process or operation.

Rikta in Tryck

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

VILOLÄGE

Two identical illustrations of a stylized object with circular features and concentric rings, no text or symbols present.

BYT ELLER INAKTIVERA GENVÄGEN

Two identical illustrations of a stylized ear or ear device with concentric rings and central circular features (no text or symbols)

Two identical illustrations of earbuds with central circular features, no text or symbols present.

Line drawing of a Bose-branded earbuds with open case (no text or symbols on device)

Simple line drawing of a device with a plug and connector (no text or symbols)

Line drawing of a Bose-branded wireless earbuds with open case (no text or symbols on device)

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

LADDNINGSTID

KOMPONENT LADDNINGSTID

Line drawing of a Bose-branded earbuds with open case and black dots indicating measurement (no text or symbols on the device itself)

LADDNINGSFODRALETS STATUSLAMPA

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

1. Aktivera Bluetooth-funktionen på din enhet.

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a BOSE wireless earbuds showing front and side views (no text or symbols)

1. Placera fodralet intill din Android-enhet.

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose wireless earbuds showing front and side views (no text or symbols)

Line drawings of two different electronic devices, one labeled 'BIOSE' and the other unlabeled (no text or symbols beyond branding)

Simple line drawing of two abstract shapes resembling eggs or seed pods (no text or symbols)

이어팀(크기 소형 및 대형)

Four identical circular ring diagrams with labeled ends (L∅, ΘR), no additional text or symbols present.

고정 밴드(크기 2 및 3)

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

Two symbolic icons: a circle with a diagonal line and a droplet shape emitting water droplets (no text or labels)

참고:

Three identical abstract geometric diagrams with overlapping ovals, no text or symbols present

Three identical wireframe diagrams of a ring with labeled points (1R, 2R, 3R), no text or symbols present.

Diagram showing two-step cleaning or assembly process of a device with labeled parts and directional arrows

쥐어 벗기기 분리하기

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

대기

Two identical illustrations of earbuds with central circular features, no text or symbols present.

바로 가기 변경 또는 사용 해제

Two identical illustrations of a stylized ear or button device with concentric rings and central circular features (no text or symbols)

Two identical illustrations of ear ear devices with central circular features, no text or symbols present.

Line drawing of an open Bose-branded earbuds case (no text or symbols on the device itself)

Simple line drawing of a device with a plug inserted into a housing (no text or symbols)

Line drawing of a Bose-branded earbuds with open case (no text or symbols on device)

Line drawing of a BOSE-branded VR headset with open lid and front bezel (no text or symbols on the device itself)

충전 시간

구성 요소 충전 시간

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views with no text or symbols

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawings of two different electronic devices, one labeled 'BOSE' and the other unlabeled (no text or symbols beyond branding)

Bose QuietComfort Ultra Earbuds 充电盒

BOSE

Simple line drawing of two abstract shapes resembling eggs or containers (no text or symbols)

耳塞（小号和大号）

Four identical hand-shaped diagrams with labeled inner and outer rings, no text or symbols present.

固定带（2号和3号）

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

USB Type-C ^® 到 USB-A 线缆

Two symbolic icons: a circle with a diagonal line and a cloud-like shape emitting water droplets (no text or symbols)

注意：

Three identical abstract geometric diagrams with overlapping ovals and ellipses, no text or symbols present.

Three identical wireframe diagrams of a ring with labeled points (1R, 2R, 3R), no text or symbols present.

Diagram showing two-step cleaning or assembly process of a device with labeled parts and directional arrows

挤压并剥离 分离

Diagram showing two dental implant devices with labeled components and directional arrows indicating insertion or positioning.

对齐 按下

1. 根据需要，为另一个耳机重复步骤1-3。

Line drawing of a BOSE-branded VR headset with open lid and front panels (no text or symbols on the device itself)

待机

Two identical illustrations of earbuds with central circular features, no text or symbols present.

更改或禁用快捷方式

Two identical illustrations of ear earments with central circular features, no text or symbols present.

语音提示会循环播报每个沉浸式音频设置。

1. 当您听到喜欢的设置名称时，放开耳机。

通话时的沉浸式音频

Two identical illustrations of a stylized ear with shaded regions and dotted centerlines, no text or symbols present.

语音提示会循环播报每种模式。

1. 当您听到喜欢的模式名称时，放开耳机。

Line drawing of an open Bose-branded earbuds case (no text or symbols on the device itself)

1. 为右耳机重复执行步骤1-2。

Simple line drawing of a device with a plug and connector (no text or symbols)

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

Line drawing of a BOSE-branded earbuds with open case (no text or symbols on device)

充电时间

组件 充电时间

耳机 1小时
充电盒 最长3小时

注意：

充电盒状态灯 BOSE

电池、更新和错误状态

显示充电盒电池、更新和错误状态。

指示灯活动 系统状态

Line drawing of a Bose-branded wireless earbuds showing the open and closed views with no text or symbols

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views with no text or symbols

Line drawing of a Bose brand wireless earbuds showing front and side views with no text or symbols

worldwide.Bose.com/Warranty。

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

1. 重复前面的步骤2次。

Line drawings of two different electronic devices, one labeled 'BOSE' and the other unlabeled (no text or symbols beyond branding)

Bose QuietComfort Ultra Earbuds 充電盒

BOSE

Simple line drawing of two egg-like shapes with no text or symbols

耳塞（小號和大號）

Four identical hand-shaped diagrams with labeled inner and outer rings, no text or symbols present.

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

Two symbolic icons: a circle with a diagonal line and a cloud-like shape emitting water droplets (no text or symbols)

注意：

Three identical abstract geometric diagrams with overlapping ovals and ellipses, no text or symbols present.

Three identical circular diagrams with labeled points (1, 2, 3) and 'R' indicators, no text or symbols beyond labels.

Diagram showing two-step cleaning or assembly process of a device with labeled parts and directional arrows

擠壓並剝離 分離

Diagram showing two dental implant devices with labeled components and directional arrows indicating insertion or positioning.

對準 按下

Line drawing of a BOSE-branded VR headset with open lid and front panels (no text or symbols on the device itself)

待命

Two identical illustrations of earbuds with central circular features, no text or symbols present.

變更或禁用捷徑

Two identical illustrations of ear-shaped objects with central circular features, no text or symbols present.

語音提示會循環播報每個沉浸式音訊設定。

1. 當您聽到喜歡的設定名稱時，放開耳機。

通話時的沉浸式音訊

Two identical illustrations of a medical or electronic device with circular components and central hub (no text or symbols)

語音提示會循環播報每種模式。

1. 當您聽到喜歡的模式名稱時，放開耳機。

Line drawing of an open Bose-branded earbuds case (no text or symbols on the device itself)

1. 重複步驟1-2為右耳機充電。

Simple line drawing of a device with a plug and connector (no text or symbols)

Line drawing of a Bose-branded earless device with open lid and black buttons (no text or symbols on body)

Line drawing of a BOSE-branded earbuds with open case and black buttons (no text or symbols on the device itself)

充電時間

元件 充電時間

耳機 1小時
充電盒 最長3小時

注意：

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views with no text or symbols

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

worldwide.Bose.com/Warranty °

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose-branded wireless earbuds showing front and side views (no text or symbols)

1. 重複前面的步驟2次。

Line drawings of two different electronic devices, one labeled 'BOSE' and the other resembling a handheld device (no text or symbols beyond branding)

Simple line drawing of two abstract shapes resembling eggs or containers (no text or symbols)

イヤーチップ(SサイズおよびLサイズ)

Four identical hand-shaped diagrams with labeled ports (L, θ, R) and no text or symbols beyond labels

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

Two symbolic icons: a circle with a diagonal line and a cloud-like shape emitting droplets (no text or symbols)

注：

Three identical abstract geometric diagrams with concentric circles and overlapping loops (no text or symbols)

Three identical circular diagrams with labeled inner segments (1R, 2R, 3R), no text or symbols present.

Diagram illustrating a finger pressing a button on a device, showing two states of adjustment with labeled components and directional arrows.

ひねって剥がす 取り外す

Diagram showing two stages of a device with labeled components and directional arrows indicating process flow.

合わせる 押す

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

スタンバイ

Two identical illustrations of earbuds with central circular features, no text or symbols present.

ショートカットを変更する、無効にする

Two identical illustrations of ear ear structures with central circular features, no text or symbols present.

Two identical illustrations of ear-shaped devices with central circular features, no text or symbols present.

Line drawing of an open Bose-branded earbuds case (no text or symbols on the device itself)

Simple line drawing of a device with a connector inserted into a housing (no text or symbols)

Line drawing of a Bose-branded earbuds with open case and black buttons (no text or symbols on the device itself)

Line drawing of a BOSE-branded wireless earbuds with open case (no text or symbols on device)

充電時間

コンポーネント 充電時間

Line drawing of a BOSE-branded VR headset with open casing and internal compartments (no text or symbols)

バッテリー、アップデート、エラーの状態

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand earbuds showing front and side views with no text or symbols

Line drawing of a Bose brand wireless earbuds showing front and side views with no text or symbols

Line drawing of a Bose brand wireless earbuds showing front and side views with no text or symbols

Line drawing of a BOSE wireless earbuds showing front and side views (no text or symbols)

Line drawing of a Bose brand wireless earbuds showing front and side views (no text or symbols)

1. 前の手順を2回繰り返します。

Line drawings of two different electronic devices, one with a labeled 'BOSE' and the other without visible text or symbols.

Bose QuietComfort Ultra سماعات AZDN

Simple line drawing of two abstract, overlapping circular shapes with internal concentric circles (no text or symbols)

Simple line drawing of a U-shaped cable with two connectors (no text or symbols)

Two symbolic icons: a circle with a diagonal line and a droplet shape emerging from it, both without any text or labels.

ملاحظات:

Simple line drawing of a human ear with a shaded orbital area (no text or symbols)

すغط شديد

Line drawing of a human ear with a shaded orbital area (no text or symbols)

غير مثبته يإحكام

أشرطة التثiiت

Simple line drawing of a circular mechanical component with a labeled end (no text or symbols beyond the label)

Simple line drawing of a circular mechanical component with a labeled end (no text or symbols beyond the label)

Simple line drawing of a circular object with a labeled end (3R), no text or symbols present.

Diagram showing two-step cleaning or assembly process of a device with labeled parts and directional arrows indicating rotation.

الفصل ضغط وإزالة

Diagram illustrating a medical procedure involving an ear with a magnified view of the ear and a magnified view of the ear with a bulb.

اضخط محاذة

Line drawing of a Bose-branded electronic device with open lid and internal earbuds (no text or symbols on the device itself)

وضع الاستعداد

Simple line drawing of a speaker grille with no text or symbols

Simple line drawing of a stylized ear with a dotted circular mark on the central area (no text or symbols)

Two identical illustrations of a stylized ear or ear device with concentric rings and central dot pattern (no text or symbols)

Two identical illustrations of a stylized object with circular features and concentric rings, no text or symbols present.

Two identical illustrations of a stylized ear or ear device with concentric rings and central circular features (no text or symbols)

Line drawing of a Bose-branded wireless earbuds with open casing and display case (no text or symbols on device)

Simple line drawing of a device with a plug inserted into a housing (no text or symbols)

Line drawing of a BOSE-branded earbuds with open case (no text or symbols on device)

Line drawing of a Bose-branded VR headset with open lid and front panel (no text or symbols on the device itself)

مدة الشحن

مدة الشحن المكون

Line drawing of a Bose brand earbuds with open case and black buttons (no text or symbols on the device itself)

Bluetooth حالة

Line drawing of a Bose-branded electronic device with open casing and internal compartments (no text or symbols on the device itself)
