Aquarius Eco Expert 22000 - Water pump OASE - Free user manual and instructions
Find the device manual for free Aquarius Eco Expert 22000 OASE in PDF.
| Product type | Water pump |
| Brand | Oase |
| Model | Aquarius Eco Expert 22000 |
| Use | Pond water pumping for filters, waterfalls and streams |
| Power supply | 220-240 V AC, 50/60 Hz |
| Max. power consumption | 350 W |
| Max. flow rate | 22000 l/h |
| Max. head | 9.6 m |
| Protection rating | IP68 (waterproof up to 4 m depth) |
| Max. immersion depth | 4 m |
| Dimensions (L × W × H) | 490 × 235 × 215 mm |
| Weight | 12.2 kg |
| Mains cable length | 10 m |
| Suction connection | G2 thread, 50 mm olive adapter |
| Discharge connection | G2 thread, 38 and 50 mm olive adapters |
| Max. particle size | 11 mm |
| Dynamic function | Switch for pre-programmed flow variation |
| Environmental function control (EFC) | Automatic dry-run and blockage self-test |
| Permissible water temperature | +4 to +35 °C (submerged) |
| Permissible water values | pH 6.8–8.5, hardness 8–15 °dH, free chlorine <0.3 mg/l |
| Maintenance | Cleaning at least 2 times per year, replaceable power unit |
| Winter storage | Withstands down to -20 °C, store submerged in water |
| Safety | 30 mA RCD required, do not use in natural swimming pool |
| Wear parts | Power unit, bearing in motor block |
Frequently Asked Questions - Aquarius Eco Expert 22000 OASE
User questions about Aquarius Eco Expert 22000 OASE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Water pump in PDF format for free! Find your manual Aquarius Eco Expert 22000 - OASE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Aquarius Eco Expert 22000 by OASE.
USER MANUAL Aquarius Eco Expert 22000 OASE
22000, 28000, 36000, 44000
EN Operating instructions
FR Notice d'emploi
ARS0066
Garden Controller Home/Cloud
ARS0027
Environmental Function Control (EFC)
Gerät reinigen
ARS0054
Lagern/Überwintern
▶ Disconnect all electrical devices in the water from the power supply before reaching into the water. Otherwise there is a risk of severe injuries or death by electrocution.
This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow children to carry out cleaning and user maintenance under supervision.
Safety information
Electrical connection
- Special regulations apply for electrical installation in outdoor spaces. Only a qualified electrician may perform the electrical installation.
- The qualified electrician has the necessary professional training, knowledge and experience to perform electrical installation in outdoor spaces. The electrician can detect potential dangers and knows how to adhere to regional and national standards, regulations and directives.
— For your own safety, please consult a qualified electrician.
- Only connect the unit if the electrical data of the unit and the power supply match.
- Only plug the unit into a correctly installed outlet.
- The device is to be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
- Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).
- Protect open plugs and sockets from moisture.
Safe operation
- Do not use the unit, if electrical lines or the housing are damaged.
- The supply cord cannot be replaced. If the cord is damaged, the appliance should be scrapped.
- The impeller unit in the pump contains a magnet with a strong magnetic field that may affect the operation of pacemakers or implantable cardioverter defibrillators (ICDs). Keep a distance of at least 0.2 m between the implant and the magnet.
- Do not carry or pull the unit by its power cable.
- Route lines in such a way that they are protected from damage and do not present a tripping hazard.
- Never carry out technical changes to the unit.
- Only carry out work on the unit that is described in this manual.
- Only use original spare parts and accessories.
- Should problems occur, please contact the authorised customer service or OASE.
Intended use
Only use the product described in this manual as follows:
- For pumping normal pond water for filter systems, waterfall systems and water course systems.
- While adhering to the technical specifications. (→ Technical data)
- Adherence to the permissible water quality. (→ Permissible water quality)
The following restrictions apply to the unit:
- Do not use in swimming ponds.
- Never use the unit with fluids other than water.
- Never run the unit without water.
- Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
- Do not connect to the domestic water supply.
- Do not use for commercial or industrial purposes.
- According to EMC (Electromagnetic Compatibility), this is a class A unit. The unit may cause malfunctions in living environments. It is the user's responsibility to take suitable counter-measures.

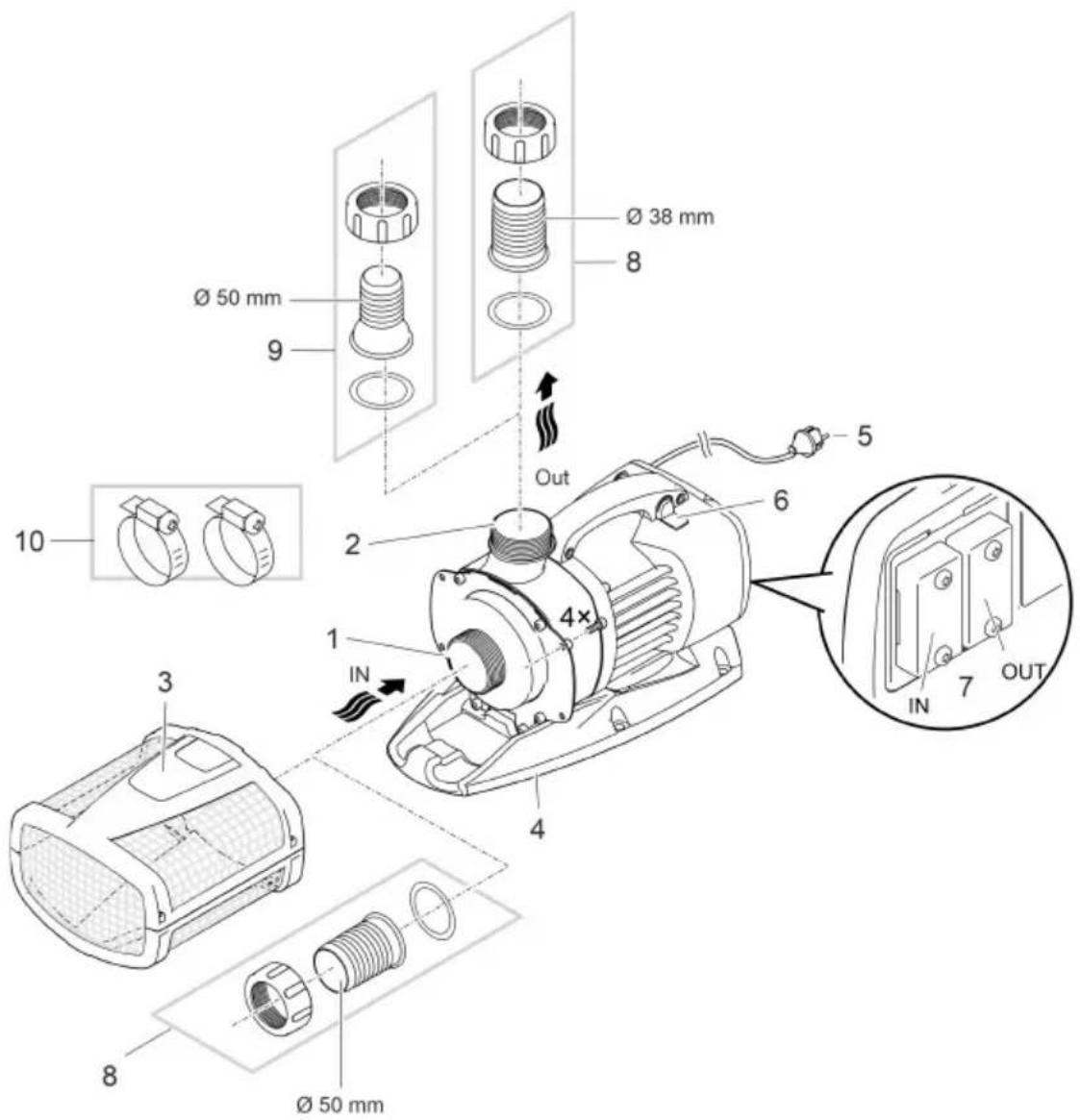

Product Description
Overview
ARS0066
1 Inlet (suction side)
- With filter cage (3) for submerged installation.
- With hose sleeve for connecting a hose for dry installation.
2 Outlet (pressure side)
- Connection of the return line into the pond (e.g. via a water course).
3 Filter cage
4 Foot
- With installation holes for firm installation on ground if required.
5 Power cable
- Pump power supply
6 Switch for switching on/off the dynamic function
- Numerous values for flow rates have been pre-programmed in the pump control system to create a dynamic fountain with changing heights and diameters. If the dynamic function is activated, the pump is continuously controlled with these values.
| 7 | Control sys tem connectionThe control system makes it possible to regulate the pump power.Without the control system, the pump runs permanently at full power. |
| 8 | Hose sleeve ∅ 50 mm |
| 9 | Hose sleeve ∅ 38 mmAlternative for outlet Aquarius Eco Expert 22000 and 28000. |
| 10 | Hose clips for fastening hoses on the hose sleeves. |
EN
Symbols on the unit
| IP68 4.0 m | The unit is dust-tight and water-tight down to 4 m. |
 | Possible danger for persons with pacemakers. |
 | Protect the unit from direct sunlight. |
 | Do not dispose of the unit with normal household waste. |
 | Read the operating instructions. |
Installation variants
AMX0157
- Variant (a): Submerged pump installation
— The pump is positioned in the pond or basin.
— Water flow via the filter cage.

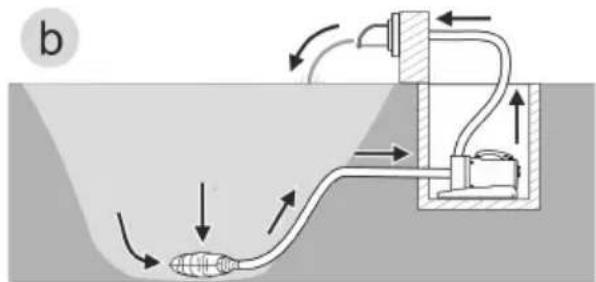

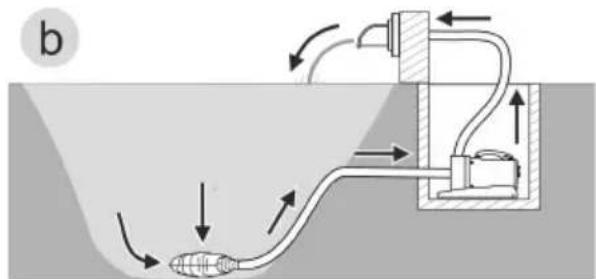

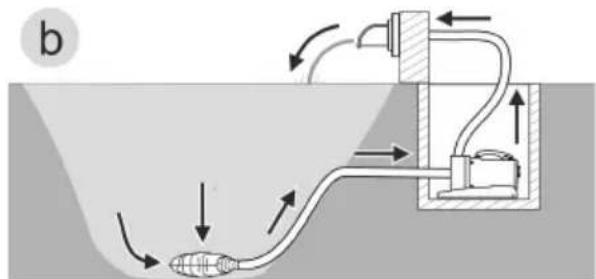

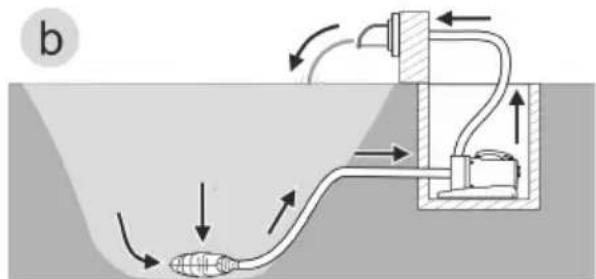

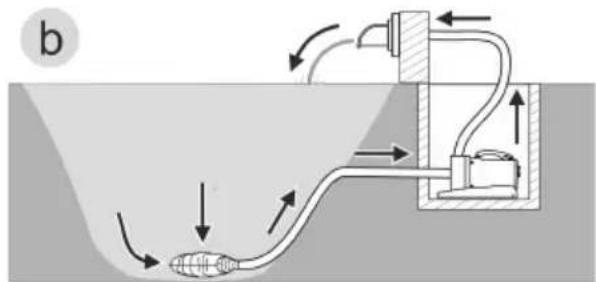

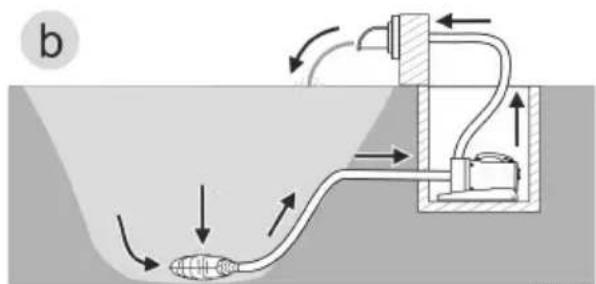

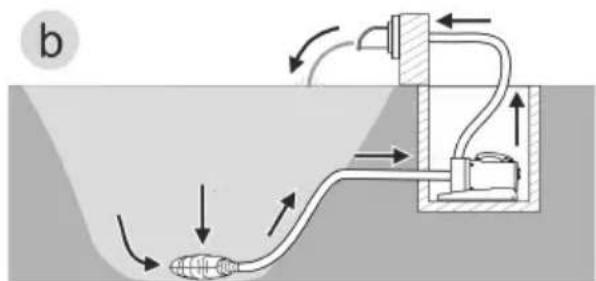

- Variant (b): Dry pump installation
- The pump is installed without the filter cage outside of the pond or basin but lower than the water level.
— Water flow via a satellite filter or skimmer.
Installation and connection
The pump can be installed submerged (in water) or dry (outside the water).
The use of the pump is only permitted with observance of the specified water quality.
(→ Permissible water quality)
- Pool water or salt water can impair the appearance of the unit. Such impairments are excluded from the guarantee.

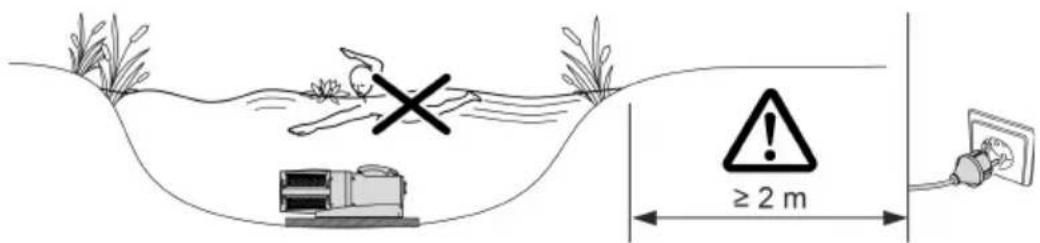

WARNING

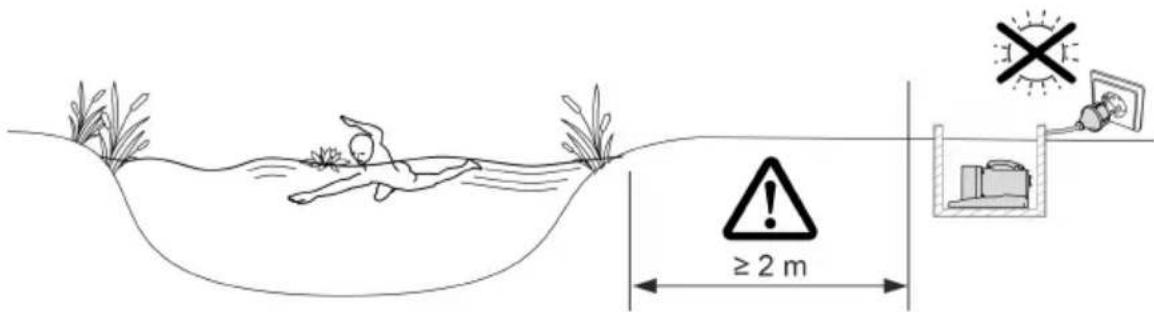

Severe injuries or death due to operation of this unit in a swimming pond. Defective electrical components will electrify the water with dangerous electrical voltage.
▶ Never operate the unit in a swimming pond.
CAUTION
Rotating components in the intake and pressure socket area. Risk of injury when reaching into the sockets.
In particular, observe the following: A unit that has stopped due to overload can start up unexpectedly!
▶ Do not reach into the opening of the intake socket or pressure socket while the power plug is plugged in.
▶ If the sockets are freely accessible during operation, e.g. if no hoses are connected, use a hand guard to secure the sockets. The hand guard is available as an accessory.
Avoid exposing any unit components to direct sunlight for extended periods of time, as this can lead to damage. If necessary, use a protective cover.

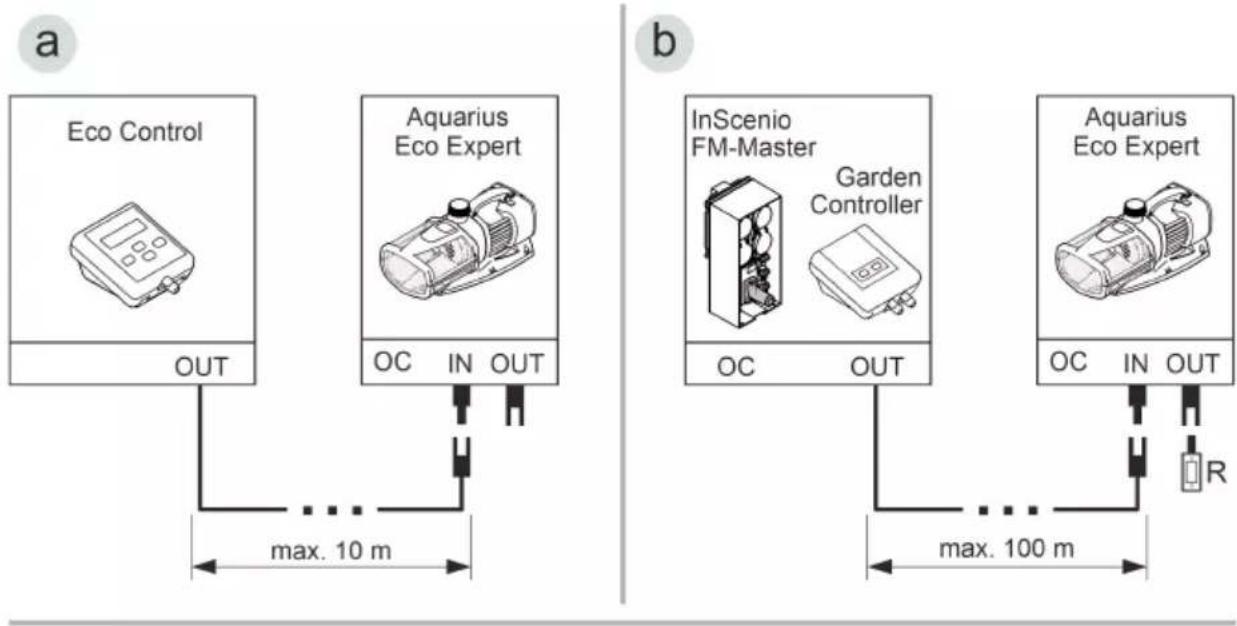

Connecting the control system
The pump can be operated with or without the control system.
- The control system makes it possible to regulate the pump power.
- Without the control system, the pump runs permanently at full power.
Compatible control systems (accessories):
- Eco Control
Intelligent control system for one pump.
• Incenio FM-Master Home/Cloud
Garden Controller Home/Cloud
Up to 10 OASE Control-compatible units (pumps, filters, lights) can be controlled using the "OASE Control" app.
For information on this topic, visit www.oase.com and navigate to the section "Smart garden controls and lighting".
subgraph_a["ECO Control"]
A1["EOG"] --> B1["OUT"]
B1 --> C1["max. 10 m"]
A2["Aquarius Eco Expert"] --> B2["OC IN OUT"]
B2 --> C2["..."]
C1 --> D1["Out"]
C2 --> D2["OUT"]
end
subgraph_b["InScenio FM-Master"]
E1["Garden Controller"] --> F1["OC OUT"]
F1 --> G1["max. 100 m"]
E2["Aquarius Eco Expert"] --> F2["OC IN OUT"]
F2 --> G2["..."]
G1 --> H["R"]
G2 --> H
end

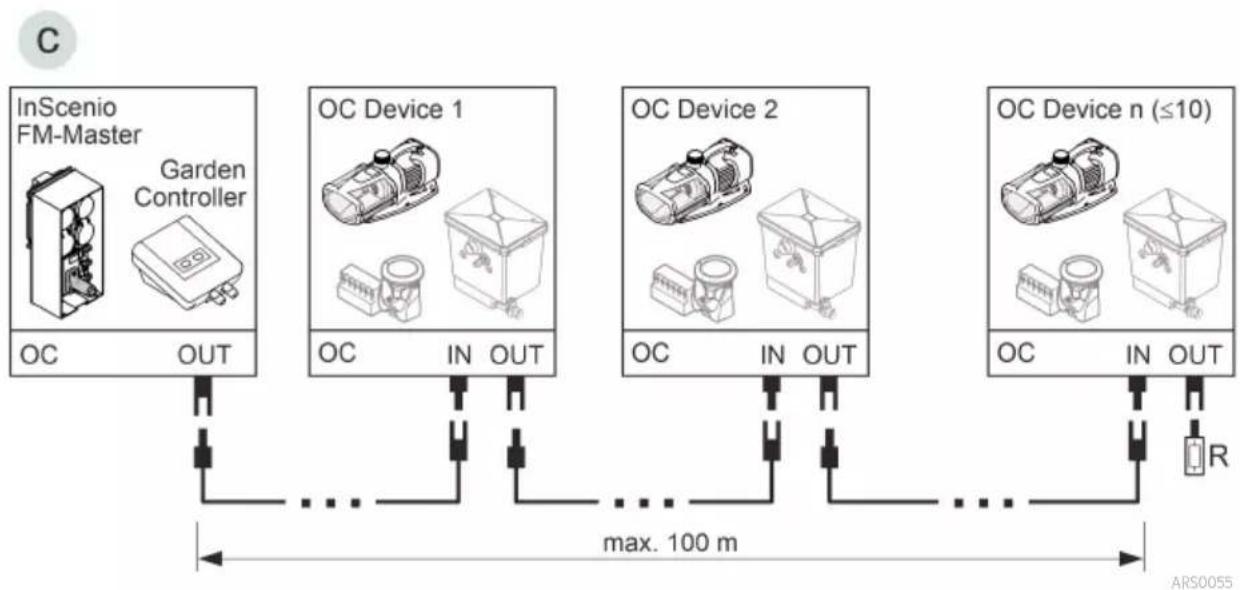

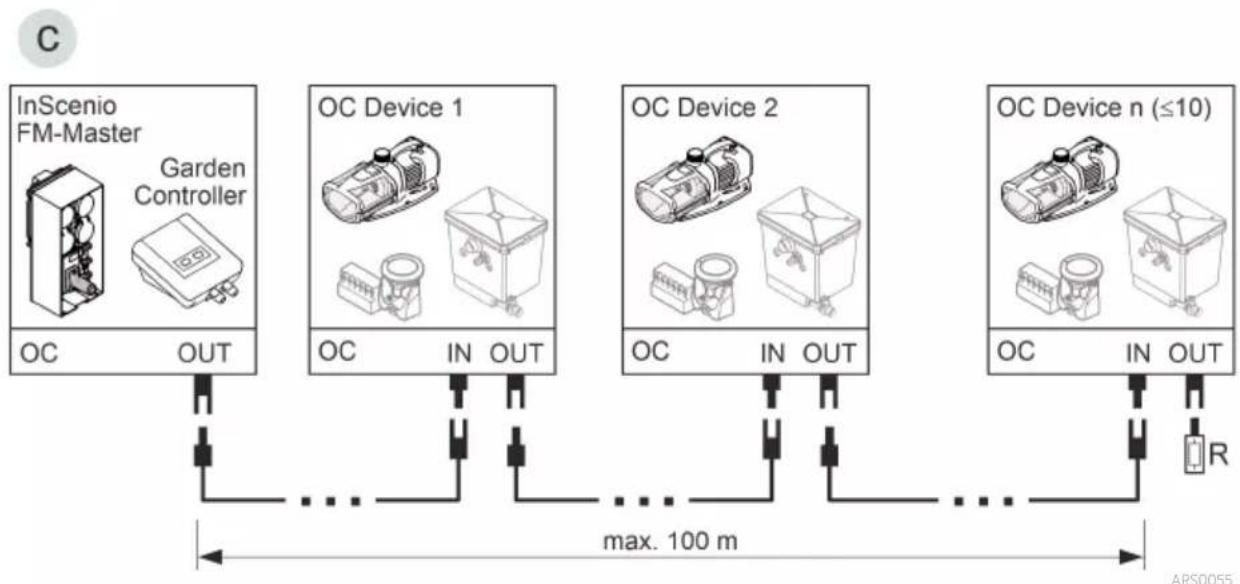

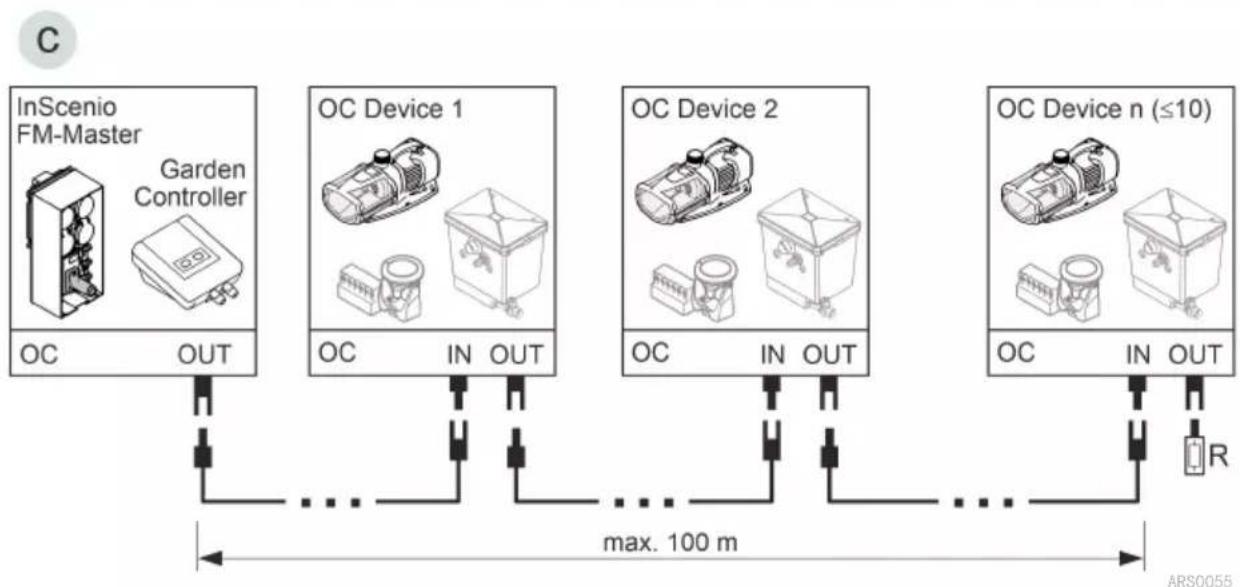

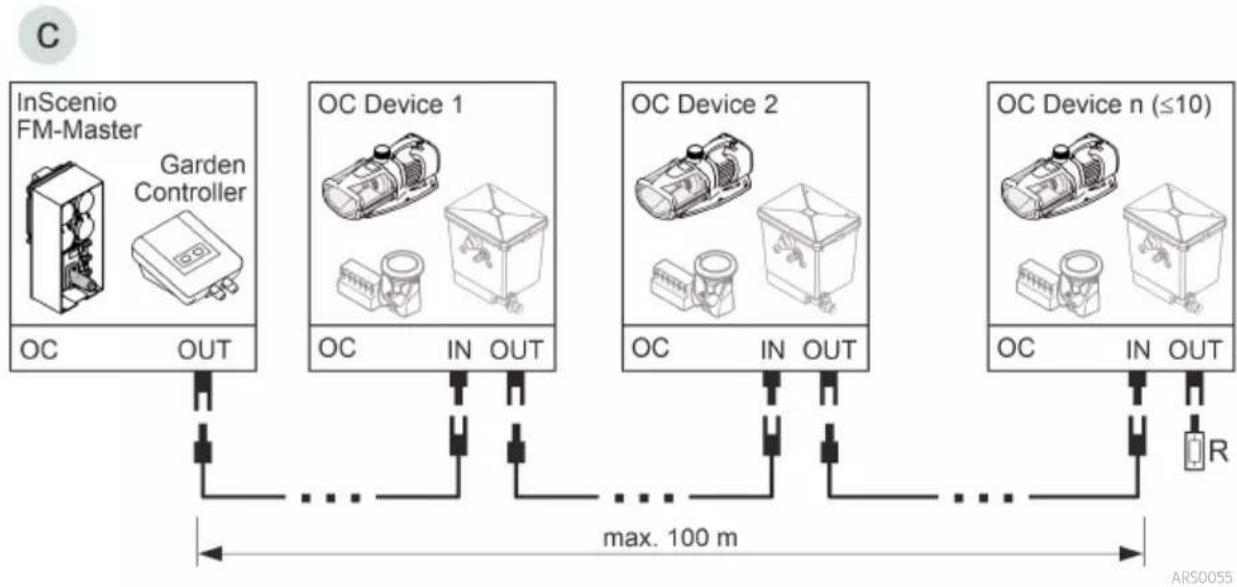

- An OASE Control network (variant B, C) must end with a terminal resistor R. The terminal resistor is included with the InSenio FM-Master or Garden Controller.

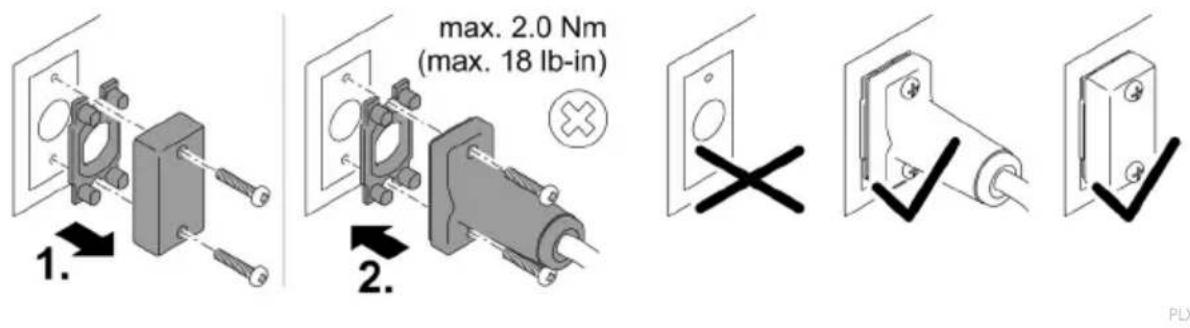

NOTE
The unit will be damaged, if water enters the plug connector.
▶ Connect the plug connector or place the protective cap on it.
▶ Ensure that the rubber seal is clean and fits exactly.
▶ If the rubber seal is damaged, it must be replaced. When the plug connector is disconnected, the rubber seal must be replaced if it is older than 2 years.
▶ Always secure the plug connector or the protective cap with the two screws.

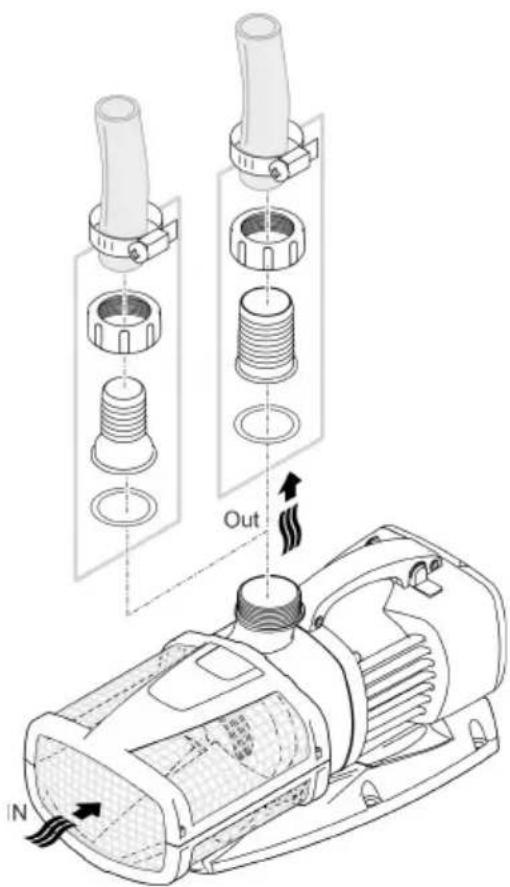

Submerged installation of the pump
Connecting
ARS0027
Do not plug the power plug into the socket yet!
Installation
- Place the pump horizontally on a stable surface.
- Ensure secure and stable positioning of the pump.
- For muddy or soiled water, we recommend installing the pump or intake-side components (skimmer, satellite filter, base outlet, etc.) above ground level. This decreases intake of particles and increases the service life of the impeller unit.
- Only operate the pump when it is covered in at least 10 cm of water. Otherwise it may draw in air.
AMX0160
The pull rope allows you to simply pull the pump from the water.
— Fasten the pull rope on the bottom filter casing through the round openings and make a knot.
Install the unit at a dry place

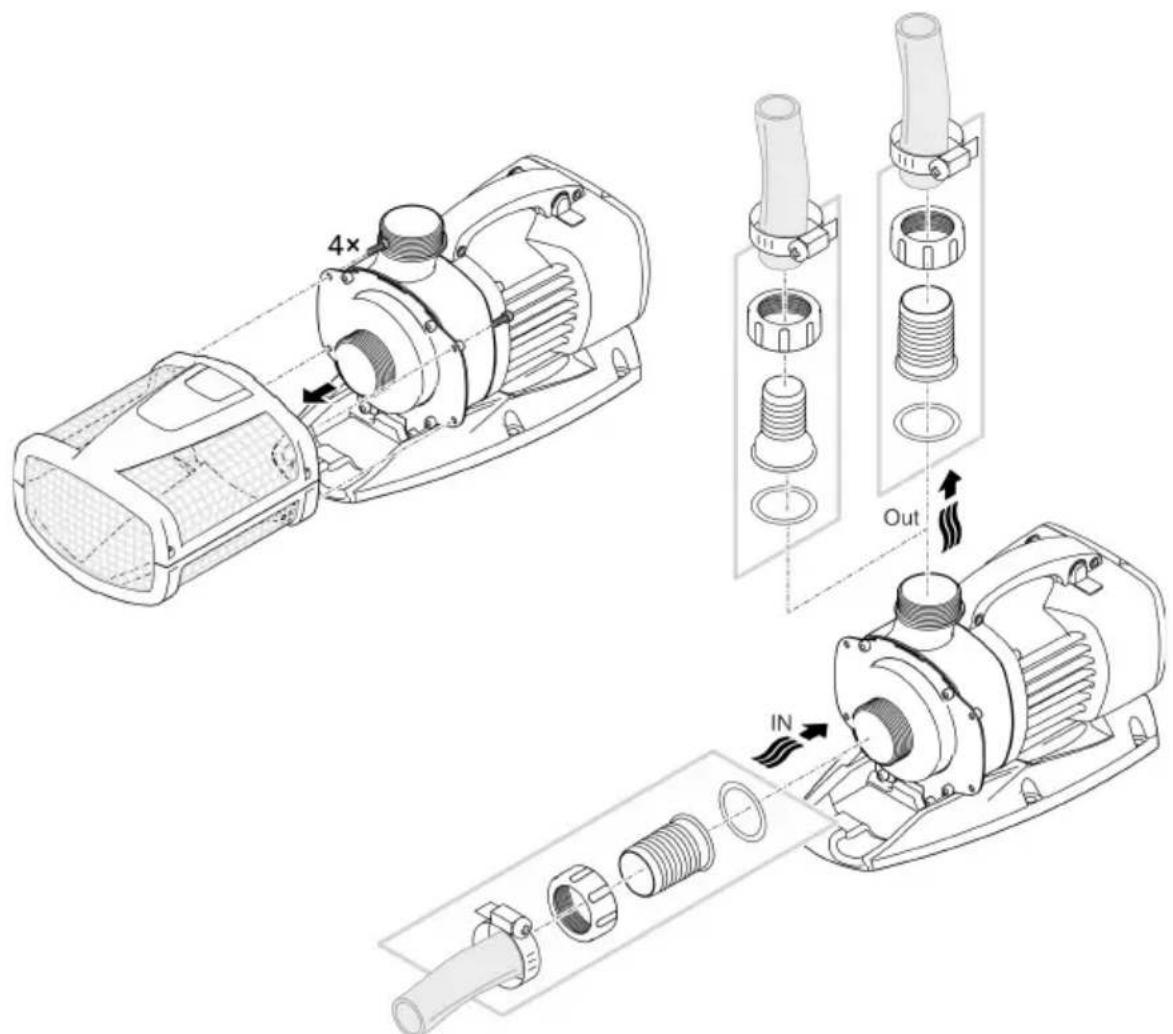

Connecting
Aquarius Eco Expert 22000 / 28000
- Hoses or pipes can be connected at the inlet and outlet. Recommendation:
— Up to 5 m length: Use 50 mm (2") hose sleeves and hoses.
— From 5 m length: Use DN 75 or DN 100 pipes.
- The pump can handle particles with a size of up to 11 mm. Larger particles will clog the pump. We recommend installing a filter or skimmer on the intake side.
Aquarius Eco Expert 36000 / 44000
- A DN75/100 pipe is connected to the inlet. A hose or a pipe can be connected to the outlet. Recommendation:
— Up to 5 m length: Use 50 mm (2") hose sleeves and hoses.
— From 5 m length: Use DN 75 or DN 100 pipes.
- The pump can handle particles with a size of up to 11 mm. Larger particles will clog the pump. We recommend installing a filter or skimmer on the intake side.
Connect pipes with a PVC transition sleeve with a female thread ( Technical data). PVC transition sleeves are available in specialised shops.
Do not plug the power plug into the socket yet!
Installation
- Place the pump horizontally on a stable surface.
- Ensure secure and stable positioning of the pump.
- Do not expose the pump to direct sunlight.
- Ensure that the installation site is sufficiently ventilated to prevent overheating of the pump.
AMX0161

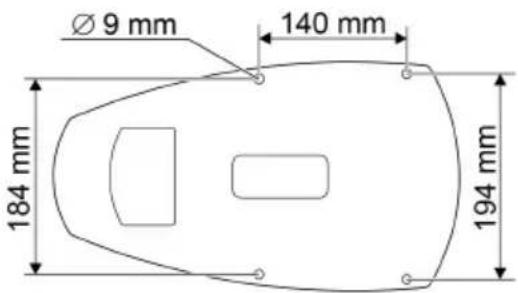

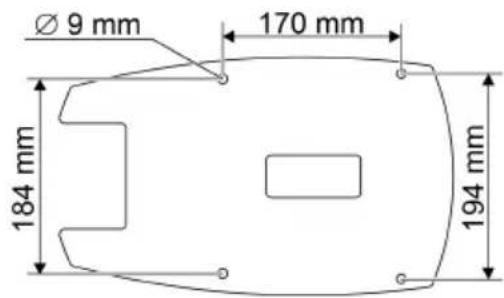

① It is possible to screw the unit to a suitable surface to ensure stability.
Aquarius Eco Expert 22000, 28000
Aquarius Eco Expert 36000, 44000
ARS0067
Commissioning/start-up
NOTE
The unit will be destroyed if it is operated with a dimmer. It contains sensitive electrical components.
▶ Do not connect the unit to a dimmable power supply.
NOTE
Never allow the pump to run dry. Otherwise the pump may be destroyed.
▶ Only operate the pump when it is submerged or flooded.
Switching ON/OFF
- Switching on: Plug the power plug into the outlet.
— The unit switches on immediately. - Switching off: Pull the power plug from the outlet.
Environmental Function Control (EFC)
When started up and then every 20 ... 40 minutes the pump automatically performs a pre-programmed self-test (Environmental Function Control (EFC)). The pump detects if it is running dry / clogged or submerged. The pump shuts down automatically after 60 to 120 seconds if it runs dry/is blocked. In the event of a malfunction, disconnect the power supply and “flood the pump” or remove the obstacle. Afterwards, the unit can be restarted.
Dynamic Function
- Slide the switch.
- ON: The function is activated.
- OFF: The function is deactivated.
NOTE
If the Dynamic Function is active, the EFC (Environmental Function Control) function is limited.
▶ The unit is not protected from running dry.
Maintenance and cleaning
CAUTION
Risk of injury due to unexpected start-up. Internal monitoring functions may switch off the unit and automatically reactivate it.
▶ Disconnect the power plug before carrying out any work on the unit.
NOTE
Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment.
▶ If possible, clean the unit with clear water and a soft brush or a sponge; remove stubborn dirt with the aid of the recommended cleaning agents.

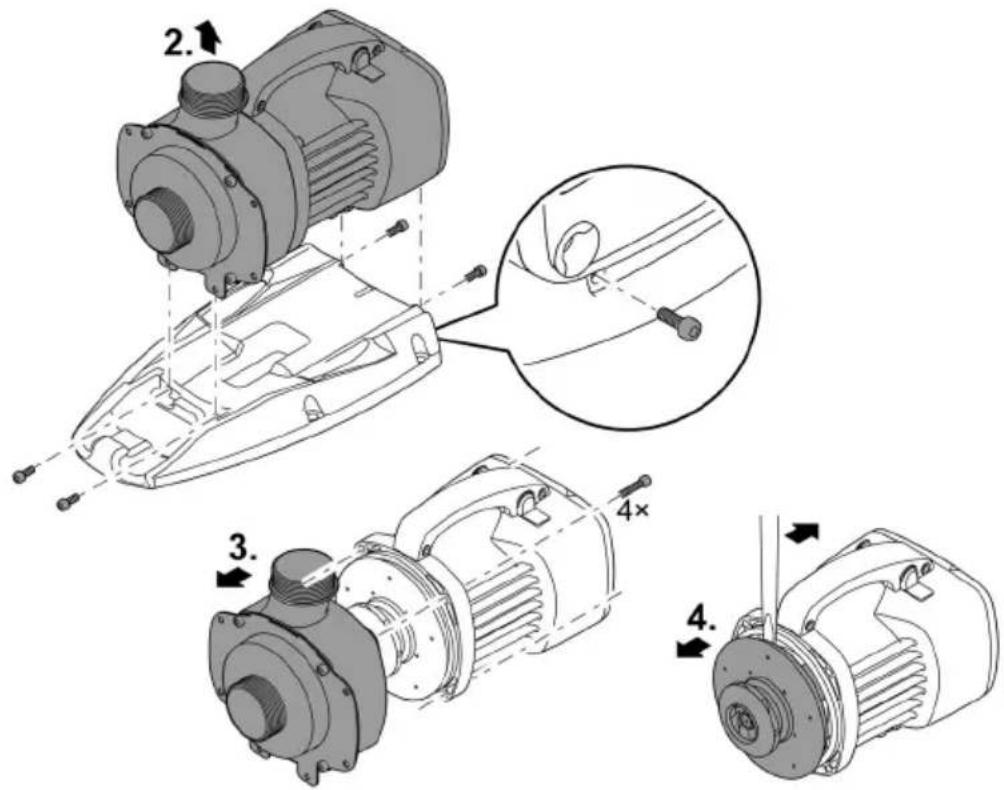

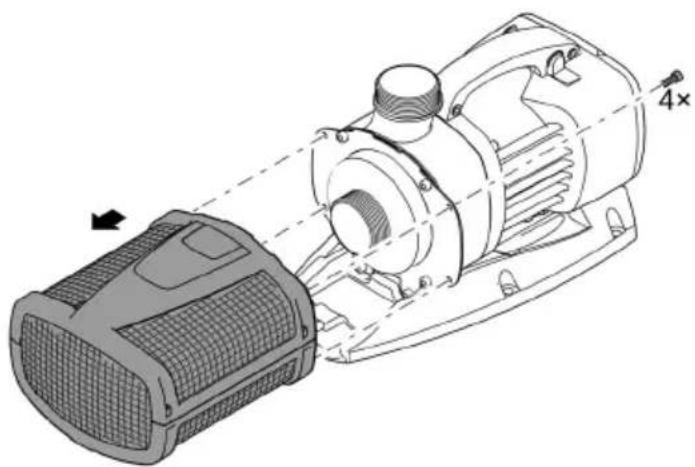

Dismantling the unit
- Pull the power plug and remove all connections.
- Dismantle the unit as shown in the figure.
Cleaning the device
i Clean the unit as required but at least twice per year.
- When cleaning the pump, pay particular attention to the impeller unit and the pump housing.
- Recommended cleaning agent for removing stubborn limescale deposits:
— Pump cleaning agent PumpClean from OASE.
— Vinegar- and chlorine-free household cleaning agent.
• After cleaning, thoroughly rinse all parts in clean water.
Cleaning/replacing the impeller unit
NOTE
The impeller unit is guided in the motor block by a bearing. This bearing is a wear part and should be changed at the same time as the impeller unit.
▶ Changing the bearing requires specialist knowledge and tools. Have the bearing changed by the OASE specialist dealer or send the pump to OASE.
NOTE
The impeller unit contains strong magnets that attract magnetic particles (e.g. iron filings). Any remaining particles can cause irreparable damage to the impeller unit and motor block.
▶ Carefully remove any adhering particles from the impeller unit prior to installation.
- Dismantle the motor block as shown in the figure.
- Use a brush under clear water to clean the components.
- Check all components for damage. Replace damaged or worn components.
- Reassemble the motor block in reverse order.
ARS0054
Storage/winter protection
The unit is frost resistant to minus 20 °C. Should you store the unit outside of the pond, clean it thoroughly with a soft brush and water, check it for damage, then store immersed in water or filled with water. Do not immerse the power plug in water!
EN
Malfunction remedy
| Malfunction | Cause | Remedy |
| Pump does not start | No mains voltage | Check the mains voltage. |
| No control voltage (only with optional external controls) | Check connection to OASE Eco Control or OASE Control network; if necessary switch on pump via these networks | |
| Supply lines kinked | Route the supply lines without kinks | |
| Supply lines blocked. | Check/clean the supply lines | |
| Impeller unit is blocked | Remove blockage, check impeller unit for ease of movement | |
| Pump does not transport fluid Insufficient delivered quantity | Filter housing clogged | Clean strainer casings |
| Excessive loss in the supply lines | Reduce hose length to the necessary minimum, remove unnecessary connection parts, use larger hose diameters | |
| Impeller unit is running slug-gishly | Check impeller unit for ease of movement | |
| Pump switches off after operating briefly | Water heavily soiled | Clean pump |
| Impeller unit is blocked | Remove blockage, check impeller unit for ease of movement | |
| Pump has run dry | Check/clean supply lines, increase immersion depth (min. 10 cm under water surface) | |
| Water temperature too high | Adhere to the maximum permissible water temperature. (→ Technical data) |
Technical data
| Description | Aquarius Eco Expert | |||||
| 22000 | 28000 | 36000 | 44000 | |||
| Connection voltage | V AC 220 ... 240 | |||||
| Mains frequency | Hz | 50/60 | 50/60 | 50/60 | 50/60 | |
| Max. power consumption | W | 350 | 440 | 550 | 700 | |
| Max. pump capacity | l/h | 22000 | 27900 | 36000 | 44000 | |
| Max. pump head | m | 9.6 | 10.0 | 10.2 | 10.5 | |
| Protection type | IP68 | IP68 | IP68 | IP68 | ||
| Max. immersion depth | m | 4 | 4 | 4 | 4 | |
| Inlet port | Thread | G2 | G2 | G212 | G212 | |
| Connection, hose | mm | 50 | 50 | 63 | 63 | |
| Outlet port | Thread | G2 | G2 | G2 | G2 | |
| Connection, hose | mm | 38, 50 | 38, 50 | 50 | 50 | |
| Max. particle size, coarse dirt particles | mm | 11 | 11 | 11 | 11 | |
| Filter supply surface area | cm^2 | 1000 | 1000 | 1060 | 1060 | |
| Water temperature (submerged installation) | During operation | °C | (→Permissible water quality) | |||
| Out of operation | °C | -20 ... +35 | -20 ... +35 | -20 ... +35 | -20 ... +35 | |
| Ambient temperature (dry installation) | During operation and convection | °C | -20 ... +30 | -20 ... +30 | -20 ... +30 | -20 ... +30 |
| During operation and forced cooling | °C | -20 ... +40 | -20 ... +40 | -20 ... +40 | -20 ... +40 | |
| Dimensions | Length | mm | 490 | 490 | 540 | 540 |
| Width | mm | 235 | 235 | 250 | 250 | |
| Height | mm | 215 | 215 | 225 | 225 | |
| Connection cable length | m | 10 | 10 | 10 | 10 | |
| Weight | kg | 12.2 | 12.2 | 14.9 | 14.9 | |
Permissible water quality
| Type | Fresh water | Pool water | Salt water | |
| pH value | 6.8 ... 8.5 | 7.2 ... 8.3 | 7.5 ... 8.5 | |
| Hardness | DH | 8 ... 15 | 8 ... 15 | 20 ... 30 |
| Free chlorine | mg/l | <0.3 | <0.6 | <0.3 |
| Chloride content | mg/l | <250 | <250 | <22000 |
| Salt content | % | <0.4 | <0.4 | <4 |
| Overall dry residue | mg/l | <50 | <50 | <50 |
| Temperature | °C | +4 ... +35 | +4 ... +30 | +4 ... +28 |
Wear parts
- Impeller unit
- Bearing in the motor block
EN
Disposal
NOTE
Do not dispose of this unit with household waste.
▶ Dispose of the unit by using the return system provided for this purpose.
▶ Should you have questions, please contact your local disposal company. They will give you information on how to correctly dispose of the unit.
▶ Render the unit unusable by cutting the cables.
AVERTISSEMENT
ARS0066
Garden Controller Home/Cloud
ARS0027
ARS0052
Environmental Function Control (EFC)
ARS0054
AMX0157
- Variant (a): Pomp ondergedompeld opstellen
ARS0027
Environmental Function Control (EFC)
Apparaat reinigen
ARS0054
Opslag/overwinteren
ARS0066
AMX0157
Garden Controller Home/Cloud
ES
ARS0027
Environmental Function Control (EFC)
Limpieza del equipo
ARS0054
ARS0066
AMX0157
- Variante (a): Posicionamento da bomba dentro do tanque
— A bomba deve ser posicionada no tanque ou na piscina.
ARS0027
Environmental Function Control (EFC)
Limpar o aparelho
ARS0054
Armazenar/Invernar
ARS0066
AMX0157
Garden Controller Home/Cloud
IT
ARS0027
Environmental Function Control (EFC)
ARS0054
ARS0066
1 Indgang (sugeside)
AMX0157
Garden Controller Home/Cloud
Der kan styres op til 10 OASE Control-kompatible apparater (pumper, filter, lamper) via appen "OASE Control".
Du kan finde oplysninger herom på www.oase.com under emnet "Smart havestyring og belysning".
ARS0027
Environmental Function Control (EFC)
Rengør apparatet
ARS0054
Opbevaring/overvintring
ARS0066
1 Inngang (sugeside)
AMX0157
- Variant (a): Plassere pumpe nedsenket
— Pumpen plasseres i dammen eller bekken.
– Vanninntak via filterkurven.
- Variant (b): Plassere pumpe tört
NO
ARS0027
Environmental Function Control (EFC)
Rengjøre apparatet
ARS0054
Lagring/overvintring
AMX0157
- Variant (a): Installera pumpen nedsänkt
Garden Controller Home/Cloud
Upp till 10 st OASE Control-kompatibla apparater (pumpar, filter, lampor) kan styras med appen "OASE Control".
subgraph_a[" setup a "]
A1["Eco Control"] --> B1["OUT"]
B1 --> C1["max. 10 m"]
C1 --> D1["OU"]
D1 --> E1["OU"]
E1 --> F1["OU"]
F1 --> G1["OU"]
G1 --> H1["OU"]
H1 --> I1["OU"]
I1 --> J1["OU"]
J1 --> K1["OU"]
K1 --> L1["OU"]
L1 --> M1["OU"]
M1 --> N1["OU"]
N1 --> O1["OU"]
O1 --> P1["OU"]
P1 --> Q1["OU"]
Q1 --> R1["OU"]
R1 --> S1["OU"]
S1 --> T1["OU"]
T1 --> U1["OU"]
U1 --> V1["OU"]
V1 --> W1["OU"]
W1 --> X1["OU"]
X1 --> Y1["OU"]
Y1 --> Z1["OU"]
Z1 --> AA1["OU"]
AA1 --> AB1["OU"]
AB1 --> AC1["OU"]
AC1 --> AD1["OU"]
AD1 --> AE1["OU"]
AE1 --> AF1["OU"]
AF1 --> AG1["OU"]
AG1 --> AH1["OU"]
AH1 --> AI1["OU"]
AI1 --> AJ1["OU"]
AJ1 --> AK1["OU"]
AK1 --> AL1["OU"]
AL1 --> AM1["OU"]
AM1 --> AN["OU"]
AN --> AO["OU"]
AO --> AP1["OU"]
AP1 --> AQ["OU"]
AQ --> AR["OU"]
AR --> AS["OU"]
AS --> AT["OU"]
AT --> AU["OU"]
AU --> AV["OU"]
AV --> AW["OU"]
AW --> AX["OU"]
AX --> AY["OU"]
AY --> AZ["OU"]
AZ --> BA["OU"]
BA --> BB["OU"]
BB --> BC["OU"]
BC --> BD["OU"]
BD --> BE["OU"]
BE --> BF["OU"]
BF --> BG["OU"]
BG --> BH["OU"]
BH --> BI["OU"]
BI --> BJ["OU"]
BJ --> BK["OU"]
BK --> BL["OU"]
BL --> BM["OU"]
BM --> BN["OU"]
BN --> BO["OU"]
BO --> BP["OU"]
BP --> BQ["OU"]
BQ --> BR["OU"]
BR --> BS["OU"]
BS --> BT["OU"]
BT --> BU["OU"]
BU --> BV["OU"]
BV --> BW["OU"]
BW --> BX["OU"]
BX --> BY["OU"]
BY --> BZ["OU"]
BZ --> CA["OU"]
CA --> CB["OU"]
CB --> CC["OU"]
CC --> CD["OU"]
CD --> CE["OU"]
CE --> CF["OU"]
CF --> CG["OU"]
CG --> CH["OU"]
CH --> CI["OU"]
CI --> CJ["OU"]
CJ --> CK["OU"]
CK --> CR["OU"]
end
ARS0027
Environmental Function Control (EFC)
Rengöra apparaten
ARS0066
1 Tulo (imupuoli)
AMX0157
FI
ARS0027
Environmental Function Control (EFC)
ARS0054
AMX0157
subgraph_a["ECO Control"]
A1["EOC"] --> B1["OUT"]
B1 --> C1["max. 10 m"]
C1 --> D1["OU"]
D1 --> E1["Aquarius Eco Expert"]
E1 --> F1["OC IN OUT"]
F1 --> G1["OU"]
end
subgraph_b["InScenio FM-Master"]
H1["OC"] --> I1["OUT"]
I1 --> J1["max. 100 m"]
J1 --> K1["OU"]
K1 --> L1["OU"]
L1 --> M1["OU"]
M1 --> N1["OU"]
N1 --> O1["OU"]
O1 --> P1["OU"]
P1 --> Q1["OU"]
Q1 --> R1["R"]
R1 --> S1["OU"]
S1 --> T1["OU"]
T1 --> U1["OU"]
U1 --> V1["OU"]
V1 --> W1["OU"]
W1 --> X1["OU"]
X1 --> Y1["OU"]
Y1 --> Z1["OU"]
Z1 --> AA["OU"]
AA --> AB["OU"]
end
A["InScenio FM-Master"]
B["Garden Controller"]
C["OC"]
D["OUT"]
end
subgraph OC Device 1
E["OC Device 1"]
F["OC Device 1"]
G["IN OUT"]
end
subgraph OC Device 2
H["OC Device 2"]
I["OC Device 2"]
J["IN OUT"]
K["IN OUT"]
end
subgraph OC Device n (≤10)
L["OC Device n (≤10)"]
M["OC Device n (≤10)"]
N["IN OUT"]
O["R"]
end
A --> D --> E --> H --> L
B --> E --> F --> H --> L
C --> E --> H --> I --> N
D --> E --> H --> L --> M --> N
E --> F --> H --> I --> L --> N
F --> G --> H --> I --> N
G --> L --> M --> N
H --> N --> O
I --> O
style InScenio FM-Master fill:#f9f,stroke:#333
style OC Device 1 fill:#ccf,stroke:#333
style OC Device 2 fill:#ccf,stroke:#333
style OC Device n (≤10) fill:#ccf,stroke:#333
ARS0027
Environmental Function Control (EFC)
ARS0054
Tárolás/Telelés
Environmental Function Control (EFC)
ARS0028
ARS0054
AMX0157
Garden Controller Home/Cloud
ARS0027
Environmental Function Control (EFC)
Čištění zařízení
ARS0054
Uložení/zazimování
ARS0066
AMX0157
ARS0027
Environmental Function Control (EFC)
ARS0054
Uloženie/prezimovanie
ARS0066
1 Vhod (sesalna stran)
- S filtrirno košaro (3) s potopljeno namestitvijo.
- Z navojnim priključkom za priključitev cevi pri suhi namestitvi.
subgraph_a["ECO Control"]
A1["EOC"] --> B1["OUT"]
B1 --> C1["max. 10 m"]
C1 --> D1["OU"]
D1 --> E1["OU"]
E1 --> F1["OU"]
F1 --> G1["OU"]
G1 --> H1["OU"]
H1 --> I1["OU"]
I1 --> J1["OU"]
J1 --> K1["OU"]
K1 --> L1["OU"]
L1 --> M1["OU"]
M1 --> N1["OU"]
N1 --> O1["OU"]
O1 --> P1["OU"]
P1 --> Q1["OU"]
Q1 --> R1["OU"]
R1 --> S1["OU"]
S1 --> T1["OU"]
T1 --> U1["OU"]
U1 --> V1["OU"]
V1 --> W1["OU"]
W1 --> X1["OU"]
X1 --> Y1["OU"]
Y1 --> Z1["OU"]
Z1 --> AA1["OU"]
AA1 --> AB1["OU"]
AB1 --> AC1["OU"]
AC1 --> AD1["OU"]
AD1 --> AE1["OU"]
AE1 --> AF1["OU"]
AF1 --> AG1["OU"]
AG1 --> AH1["OU"]
AH1 --> AI1["OU"]
AI1 --> AJ1["OU"]
AJ1 --> AK1["OU"]
AK1 --> AL1["OU"]
AL1 --> AM1["OU"]
AM1 --> AN["OU"]
AN --> AO["OU"]
AO --> AP1["OU"]
AP1 --> AQ["OU"]
AQ --> AR["OU"]
AR --> AS["OU"]
AS --> AT["OU"]
AT --> AU["OU"]
AU --> AV["OU"]
AV --> AW["OU"]
AW --> AX["OU"]
AX --> AY["OU"]
AY --> AZ["OU"]
AZ --> BA["OU"]
BA --> BB["OU"]
BB --> BC["OU"]
BC --> BD["OU"]
BD --> BE["OU"]
BE --> BF["OU"]
BF --> BG["OU"]
BG --> BH["OU"]
BH --> BI["OU"]
BI --> BJ["OU"]
BJ --> BK["OU"]
BK --> BL["OU"]
BL --> BM["OU"]
BM --> BN["OU"]
BN --> BO["OU"]
BO --> BP["OU"]
BP --> BQ["OU"]
BQ --> BR["OU"]
BR --> BS["OU"]
BS --> BT["OU"]
BT --> BU["OU"]
BU --> BV["OU"]
BV --> BW["OU"]
BW --> BX["OU"]
BX --> BY["OU"]
BY --> BZ["OU"]
BZ --> CA["OU"]
CA --> CB["OU"]
CB --> CC["OU"]
CC --> CD["OU"]
CD --> CE["OU"]
CE --> CF["OU"]
CF --> CG["OU"]
CG --> CH["OU"]
CH --> CI["OU"]
CI --> CJ["OU"]
CJ --> CK["OU"]
CK --> CR["OU"]
end
ARS0027
Environmental Function Control (EFC)
Čiščenje naprave
AMX0157
-
Varijanta (a): Pumpu postaviti pod vodom
— Pumpa se postavlja u ribnjak odn. bazen.
— Potiskivanje vode preko filtarske košare. -
Varijanta (b): Pumpu postaviti na suhom
— Pumpa se postavlja bez filtarske košare izvan ribnjaka odn. bazena, ali ispod razine vode.
— Potiskivanje vode preko pumpe filtra ili skimera.
ARS0027
ARS0052
Environmental Function Control (EFC)
Pumpa prilikom stavljanja u pogon, a zatim tijekom rada svakih 20 ... 40 minuta automatski obavlja unaprijed programiranu samoprovjeru (Environmental Function Control (EFC)). Pumpa prepoznaje radi li pritom na suho, je li blokirana ili uronjena. U slučaju rada na suho ili blokiranja, pumpa se automatski isključuje nakon otprilike 60 do 120 sekundi. U slučaju neispravnosti prekinite dovod elektroenergije i „potopite pumpu“ ili uklonite prepreku. Nakon toga možete uređaj ponovno staviti u pogon.
Dynamic Function
- Pomaknite sklopku.
- ON: Funkcija je uključena.
- OFF: Funkcija je isključena.
NAPOMENA
Kada je uključen Dynamic Function, EFC (Environmental Function Control) radi bez ograničenja.
▶ Zaštita od rada na suho je deaktivirana.
Čišćenje uređaja
i Čistite uređaj po potrebi, ali najmanje 2 puta godišnje.
— Na pumpi naročito temeljito očistite pokretnu jedinicu i kućište pumpe.
- Preporučena sredstva za čišćenje tvrdokornih naslaga vapnenca:
— Sredstvo za čišćenje PumpClean tvrtke OASE.
— Kućansko sredstvo za čišćenje bez octa i klora.
- Nakon čišćenja sve dijelove isperite čistom vodom.
ARS0054
1 Intrare (partea de aspirare)
ARS0027
Environmental Function Control (EFC)
Curățați aparatul
ARS0066
1 Вход (всмукателна страна)
AMX0157
Garden Controller Home/Cloud
ARS0052
Environmental Function Control (EFC)
Почистете уреда
ARS0054
ARS0066
AMX0157
Garden Controller Home/Cloud
ARS0027
Environmental Function Control (EFC)
Очищення пристрою
ARS0054
ARS0066
AMX0157
Garden Controller Home/Cloud
ARS0027
Environmental Function Control (EFC)
ARS0054
ARS0066
1 入水口（抽吸端）
subgraph_a["ECO Control"]
A1["EOC"] --> B1["OUT"]
B1 --> C1["max. 10 m"]
C1 --> D1["OU"]
D1 --> E1["OU"]
E1 --> F1["OU"]
F1 --> G1["OU"]
G1 --> H1["OU"]
H1 --> I1["OU"]
I1 --> J1["OU"]
J1 --> K1["OU"]
K1 --> L1["OU"]
L1 --> M1["OU"]
M1 --> N1["OU"]
N1 --> O1["OU"]
O1 --> P1["OU"]
P1 --> Q1["OU"]
Q1 --> R1["OU"]
R1 --> S1["OU"]
S1 --> T1["OU"]
T1 --> U1["OU"]
U1 --> V1["OU"]
V1 --> W1["OU"]
W1 --> X1["OU"]
X1 --> Y1["OU"]
Y1 --> Z1["OU"]
Z1 --> AA1["OU"]
AA1 --> AB1["OU"]
AB1 --> AC1["OU"]
AC1 --> AD1["OU"]
AD1 --> AE1["OU"]
AE1 --> AF1["OU"]
AF1 --> AG1["OU"]
AG1 --> AH1["OU"]
AH1 --> AI1["OU"]
AI1 --> AJ1["OU"]
AJ1 --> AK1["OU"]
AK1 --> AL1["OU"]
AL1 --> AM1["OU"]
AM1 --> AN["OU"]
AN --> AO["OU"]
AO --> AP1["OU"]
AP1 --> AQ["OU"]
AQ --> AR["OU"]
AR --> AS["OU"]
AS --> AT["OU"]
AT --> AU["OU"]
AU --> AV["OU"]
AV --> AW["OU"]
AW --> AX["OU"]
AX --> AY["OU"]
AY --> AZ["OU"]
AZ --> BA["OU"]
BA --> BB["OU"]
BB --> BC["OU"]
BC --> BD["OU"]
BD --> BE["OU"]
BE --> BF["OU"]
BF --> BG["OU"]
BG --> BH["OU"]
BH --> BI["OU"]
BI --> BJ["OU"]
BJ --> BK["OU"]
BK --> BL["OU"]
BL --> BM["OU"]
BM --> BN["OU"]
BN --> BO["OU"]
BO --> BP["OU"]
BP --> BQ["OU"]
BQ --> BR["OU"]
BR --> BS["OU"]
BS --> BT["OU"]
BT --> BU["OU"]
BU --> BV["OU"]
BV --> BW["OU"]
BW --> BX["OU"]
BX --> BY["OU"]
BY --> BZ["OU"]
BZ --> CA["OU"]
CA --> CB["OU"]
CB --> CC["OU"]
CC --> CD["OU"]
CD --> CE["OU"]
CE --> CF["OU"]
CF --> CG["OU"]
CG --> CH["OU"]
CH --> CI["OU"]
CI --> CJ["OU"]
CJ --> CK["OU"]
CK --> CR["OU"]
CR --> CS["OU"]
CS --> CT["OU"]
CT --> CU["OU"]
CU --> CV["OU"]
CV --> CW["OU"]
CW --> CX["OU"]
CX --> CY["OU"]
CY --> CZ["OU"]
CZ --> DA["OU"]
DA --> DB["OU"]
DB --> DC["OU"]
DC --> DD["OU"]
DD --> DJ["OU"]
DJ --> DK["OU"]
end
A["InScenio FM-Master"]
B["Garden Controller"]
C["OC"]
D["OUT"]
end
subgraph OC Device 1
E["OC Device 1"]
F["OC Device 1"]
G["IN OUT"]
end
subgraph OC Device 2
H["OC Device 2"]
I["OC Device 2"]
J["IN OUT"]
end
subgraph OC Device n (≤10)
K["OC Device n (≤10)"]
L["OC Device n (≤10)"]
M["IN OUT"]
end
A --> D --> E --> F --> J
B --> E --> F --> G --> J
C --> E --> F --> J --> L
D --> E --> F --> J --> L
G --> E --> F --> J --> L
K --> L
L --> M
M --> N["R"]
N --> L
ARS0027
先不要将电源插头插入插座！
安装
ARS0052
先不要将电源插头插入插座！
安装
Environmental Function Control (EFC)
清洁设备
ARS0054
存放/过冬
- Aquarius Eco Expert
- Environmental Function Control (EFC)
- Gerät reinigen
- Lagern/Überwintern
- Safety information
- Electrical connection
- Safe operation
- Intended use
- Product Description
- Overview
- Symbols on the unit
- Installation variants
- Installation and connection
- WARNING
- CAUTION
- Connecting the control system
- NOTE
- Submerged installation of the pump
- Connecting
- Do not plug the power plug into the socket yet!
- Installation
- Install the unit at a dry place
- Commissioning/start-up
- Switching ON/OFF
- Dynamic Function
- Maintenance and cleaning
- Dismantling the unit
- Cleaning the device
- Cleaning/replacing the impeller unit
- Storage/winter protection
- Wear parts
- Disposal
- AVERTISSEMENT
- Apparaat reinigen
- Opslag/overwinteren
- Limpieza del equipo
- Limpar o aparelho
- Armazenar/Invernar
- Rengør apparatet
- Opbevaring/overvintring
- Rengjøre apparatet
- Lagring/overvintring
- Rengöra apparaten
- Laitteen puhdistus
- Tárolás/Telelés
- Čištění zařízení
- Uložení/zazimování
- Čistenie prístroja
- Uloženie/prezimovanie
- Čiščenje naprave
- NAPOMENA
- Čišćenje uređaja
- Curățați aparatul
- Почистете уреда
- Очищення пристрою
- 入水口（抽吸端）
- 先不要将电源插头插入插座！
- 安装
- 清洁设备
- 存放/过冬
Brand : OASE
Model : Aquarius Eco Expert 22000
Category : Water pump
