BXMZ701E - Microwave Oven BLACK & DECKER - Free user manual and instructions

USER MANUAL BXMZ701E BLACK & DECKER

10ENGLISH (Original instructions)

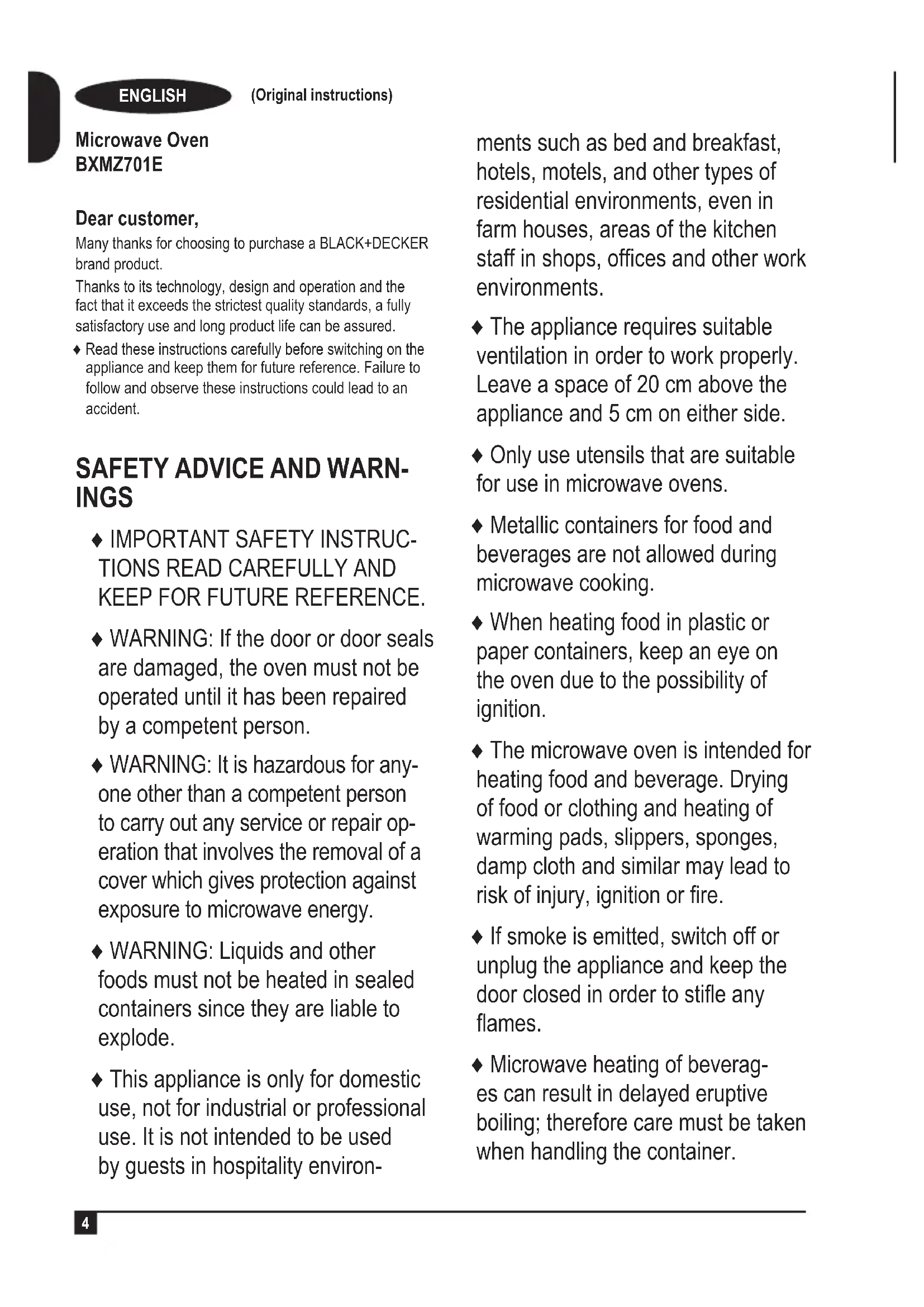

Microwave Oven BXMZ701E Dear customer, Many thanks for choosing to purchase a BLACK+DECKER brand product. Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured. ♦ Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARN-

TIONS READ CAREFULLY AND

KEEP FOR FUTURE REFERENCE. ♦ WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ♦ WARNING: It is hazardous for any- one other than a competent person to carry out any service or repair op- eration that involves the removal of a cover which gives protection against exposure to microwave energy. ♦ WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode. ♦ This appliance is only for domestic use, not for industrial or professional use. It is not intended to be used by guests in hospitality environ- ments such as bed and breakfast, hotels, motels, and other types of residential environments, even in farm houses, areas of the kitchen staff in shops, ofces and other work environments. ♦ The appliance requires suitable ventilation in order to work properly. Leave a space of 20 cm above the appliance and 5 cm on either side. ♦ Only use utensils that are suitable for use in microwave ovens. ♦ Metallic containers for food and beverages are not allowed during microwave cooking. ♦ When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. ♦ The microwave oven is intended for heating food and beverage. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or re. ♦ If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stie any ames. ♦ Microwave heating of beverag- es can result in delayed eruptive boiling; therefore care must be taken when handling the container.ENGLISH (Original instructions)

♦ The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. ♦ Eggs in their shell and whole hard- boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.. ♦ Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use. ♦ The oven should be cleaned reg- ularly and any food deposits re- moved. ♦ Failure to maintain the oven in clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous. ♦ The appliance shall not be cleaned with a steam cleaner. ♦ The microwave oven is intended to be used freestanding. ♦ The appliance shall not be placed in a cabinet. ♦ This appliance can be used by chil- dren aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and under- stand the hazards involved. ♦ This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance. ♦ Cleaning and user maintenance shall not be made by children unless they are supervised. ♦ The temperature of the door and other accessible surfaces may be high when the appliance is in use. ♦ Do not use the appliance in asso- ciation with a programmer, timer or other device that automatically switches it on. ♦ Do not remove the mica plate cover- ing the wave guide. ♦ If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard. ♦ This appliance is for household use only, not professional, industrial use. ♦ Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance. ♦ Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes. ♦ The appliance’s plug must t into the mains socket prop- erly. Do not alter the plug. Do not use plug adaptors.ENGLISH (Original instructions)

♦ Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance. ♦ Do not touch the plug with wet hands. ♦ Do not use the appliance if the cable or plug is damaged. ♦ If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock. ♦ Do not use the appliance if it has fallen on the oor, if there are visible signs of damage or if it has a leak. USE AND CARE: ♦ Fully extend the appliance’s power cable before each use. ♦ Do not use the appliance when empty. ♦ Do not use the appliance if the on/off switch does not work. ♦ Disconnect the appliance from the mains when not in use and before undertaking any cleaning task. ♦ Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge. ♦ Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance. ♦ Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation. ♦ CAUTION: Do not use the appliance if the glass is cracked or broken. Service: ♦ CAUTION: Maintenance or repair work, which requires only trained technicians, should carry out the removal of the microwave protection cover, as such actions are dangerous. ♦ Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer’s liability null and void. DESCRIPTION A Door B Opening button C LED Screen D Control Panel E Turning Plate F Turntable wheels G Grill rack

If the model of your appliance does not have the accesso- ries described above, they can also be bought separately from the Technical Assistance Service. INSTALLATION ♦ Be sure to remove all packaging material from inside the appliance. ♦ Do not cover or obstruct any of the openings of the appliance. ♦ The plug must be easily accessible so it can be discon- nected in an emergency. ♦ Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, bro- ken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualied personnel. ♦ Do not place anything over the Microwave. ♦ The appliance requires suitable ventilation in order to work properly. Leave a space of 20 cm above the appliance and 5 cm on either side. Plate mounting ♦ Remove all carton and plastic from the inside of the appliance. ♦ Place the plate wheels (F) in the internal cavity of the Microwave oven by assuring that they stay inside of the recess on the interior base. ♦ Place the plate over the wheels by matching the center with the internal piece connected to the motor.

INSTRUCTIONS FOR USE

Before use: ♦ Make sure that all products’ packaging has been removed. ♦ Prepare the appliance according to the function you wish to use:ENGLISH (Original instructions)

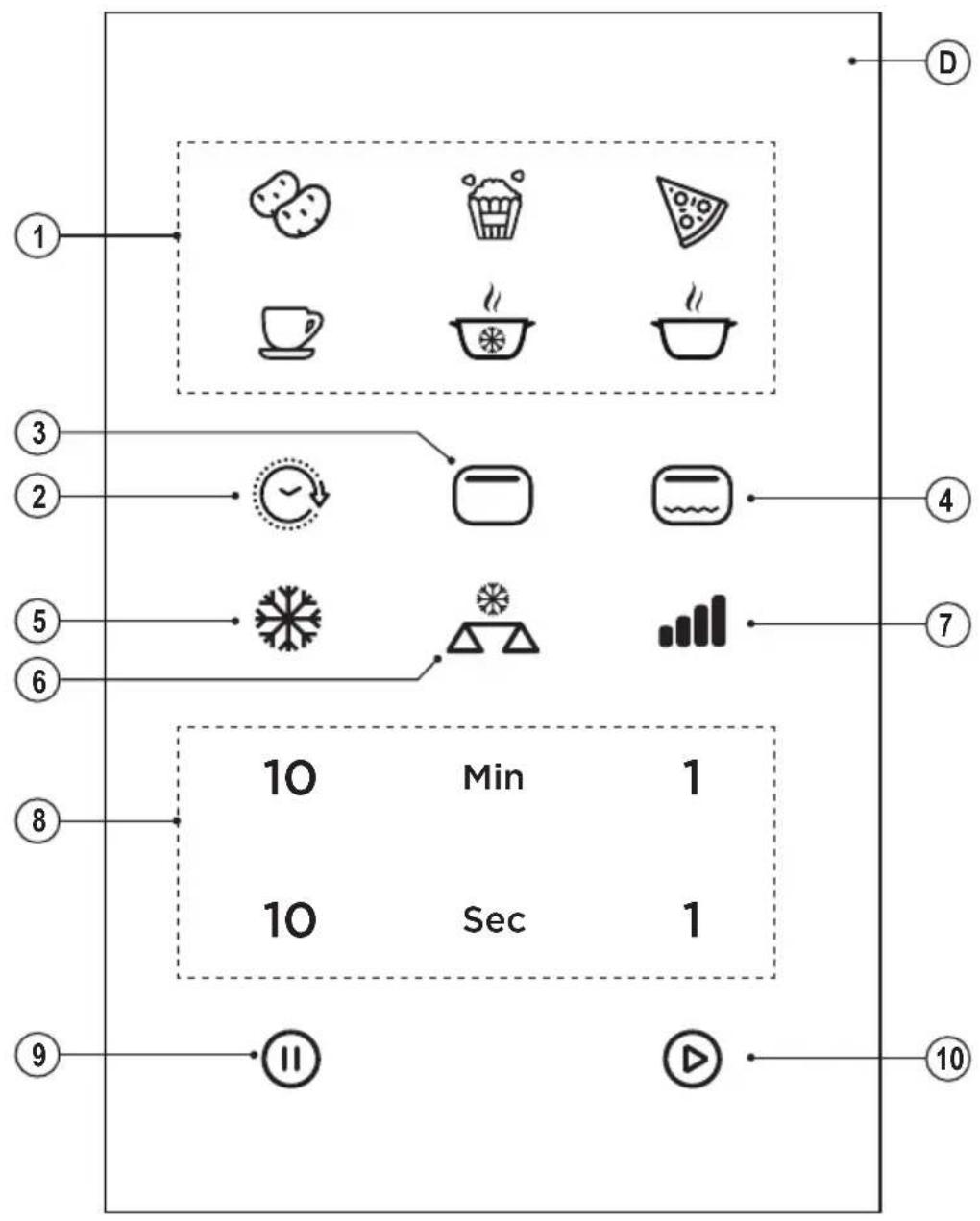

First connection ♦ The rst time connected, beep will sound and LED screen will show 1:01 ♦ During Cooking, if press stop/cancel button, the program will be paused, and then you will have to press start to resume, but pressing twice stop/cancel button will stop completely the microwave. ♦ In the process of operation, pressing a valid pad will make a beep, but if you miss to follow the step, the microwave will do 2 beeps. Open the door ♦ Push the opening button and the door will open auto- matically. ♦ To close, just push the door until it’s fully closed. Setting the time on the clock ♦ Press and hold the timer/clock button (2) for 3 seconds to select the 12h format. If you want it 24h clock, just press it again. ♦ Press number pads to set the correct time. ♦ Press timer/clock to conrm. Microwave: ♦ Place the food in the appliance and close the door. ♦ In standby mode, press the power level selector (7) repeatedly to select the power level you want to use. ♦ Press number pads to set the cooking time. Maximum time is 99min and 99sec ♦ Press start pad to conrm Grill Cooking Grill function is useful for cooking thin slices of meat, kebabs, sausages or chicken. Also, to gratin dishes. - In standby mode press the grill button (3) once. - Press number pads to set cooking time. The longest time is 99min and 99 sec. - Press start button to start. Combined Cooking This model has 2 combined functions that can help you cook the best dishes: - In standby mode, press Combi button (4) once for C-1 or twice for C-2. - Press number pads to set cooking time. The longest time is 99min and 99 sec. - Press start button to start. Defrost Cooking This model has two ways on defrosting food: Defrost by time - In standby mode, press the time defrost button (5) - Press the number pads to select a cooking time. The longest time is 99 min and 99 sec. - Press start button (10) to start. Defrost by weight - In standby mode, press the weight defrost button (6) - Press the number pads to select the weight. The frozen food maximum weight is 2000g. - Press start button (10) to start. NOTE: During defrosting process, the system will sound and pause to remind the user to turn food over, if neces- sary. After that, pres start button to resume. Stop the Microwave ♦ In order to stop the microwave temporarily, open the door. Once you close it press the start button to retake the function. ♦ In order to stop it completely, Press the button stop/ cancel two times. Multi stage cooking ♦ This microwave oven can be programmed up to 2 automatic sequences. In order to explain let us show you an example: ♦ Suppose you want to set the following cooking program: Microwave cooking at 70% power during 10 minutes and Grill cooking during 5 minutes afterwards. ♦ In stand by mode, press the power level 4 times, until display show P-70. ♦ Insert 10 minutes by using the number pad. DO NOT PRESS START YET. ♦ After setting the time, press the grill button. ♦ Set the time for the grill, in this case, 5 minutes. ♦ Press the start button. ♦ NOTE: The microwave will start grilling function after nishing with the microwave function. ♦ NOTE: Time defrost, Weight defrost and auto-cook menus can’t be set in multistage cooking. Child lock ♦ This appliance has a child lock function to prevent unsupervised operation of the oven by children.ENGLISH (Original instructions)

♦ To set: In standby mode, if there is no operation during one minute, it will enter directly in child lock mode. ♦ To cancel: Open or close the door. Automenu ♦ For food or the following cooking mode, it is not neces- sary to program the cooking time and power. ♦ For these functions, it will be needed to indicate type of food and weight, by indicating the servings. Check the table below: Food Servings Potato 1, 2, 3 servings (230g/serving) Popcorn 99g Pizza 150 – 450g Liquids 200ml/cup, 1-3 cup Frozen dinner 250 – 500g Reheat 200 – 800g NOTE: The result of auto cooking depends on factors such as the shape and size of food, position and personal done- ness. If you nd the result at any rate not quite satisfactory, please adjust the cooking time. Once you have nished using the appli- ance: ♦ Clean the appliance. CLEANING ♦ Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task. ♦ Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry. ♦ Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance. ♦ Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance. ♦ Never submerge the appliance in water or any other liquid or place it under running water. ♦ Remove the glass plate and the rotating ring for cleaning. Clean in hot, soapy water or in a dishwasher. Replace parts correctly. ♦ It is advisable to clean the appliance regularly and remove any food remains.

ANOMALIES AND REPAIR

♦ Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous. For EU product versions and/or in case that it is requested in your country: Ecology and recyclability of the product ♦ The materials of which the packaging of this appliance consists are included in a collection, classication and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material. ♦ The product does not contain concentrations of substances that could be considered harmful to the environment. This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE). This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products. Warranty and technical assistance This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our ofcial technical assistance services. You can nd the closest one by accessing the following web link: http://www.2helpu.com/ You can also request related information, by contacting us (see the last page of the manual). You can download this instruction manual and its updates at http://www.2helpu.com/FRANÇAIS (Instructions initiales)
