Product type	2-way active speaker
Brand	Edifier
Model	R1700BTs
Output power	Treble: 15W+15W, Midrange and bass: 18W+18W
Frequency response	52 Hz - 20 kHz
Audio sources	Line input 1 (RCA), Line input 2 (RCA), Bluetooth (A2DP)
Bluetooth	Version not specified, frequency 2.402-2.480 GHz, range 10 m
Power supply	Mains (power cord included)
Controls	Volume, treble, bass, input selection, on/off
Remote control	Yes (CR2032 battery included)
Subwoofer output	Yes (Sub Out with automatic detection)
Remote control battery	CR2032
Package contents	Active speaker, passive speaker, remote control, RCA-3.5mm audio cable, speaker connection cable, user manual
Usage	Indoor only
Operating temperature	0 to 35 °C
Protection class	Double insulation (Class II)
Maintenance	Clean with a dry cloth, do not use chemicals
Safety	Do not open, do not expose to water, do not block ventilation
Warranty	Check at www.edifier.com

Frequently Asked Questions - R1700BTs EDIFIER

How do I connect my Edifier R1700BTs speakers via Bluetooth?

Press the volume/input knob on the active speaker or the Bluetooth button on the remote to switch to Bluetooth mode (blue LED flashing). Enable Bluetooth on your smartphone or computer and select 'EDIFIER R1700BTs' from the device list. The blue LED stays on once connected.

What should I do if I hear no sound?

Check that the speaker is on and the volume is not at minimum. Make sure the audio cables are properly connected and the audio source is playing a signal. Try switching input modes (Line 1, Line 2, Bluetooth) by turning the knob or using the remote.

How do I use the remote control?

The remote allows you to turn on/off, adjust volume, select inputs (LINE1, LINE2), control Bluetooth playback (previous/next track, pause/play), and enable or disable sound field extension. It operates with a CR2032 battery.

How do I replace the remote control battery?

Turn the battery cover in the direction of the arrow to open. Remove the old battery and insert a new CR2032 battery, respecting polarity (+ facing up). Close the cover by turning in the opposite direction.

Can I connect an external subwoofer?

Yes, the 'Sub Out' port on the rear of the active speaker is intended for this. When you connect a subwoofer, the bass level of the speakers is automatically reduced to let the subwoofer handle the low frequencies.

How do I connect a wired audio source?

Use the supplied RCA-3.5mm audio cable to connect your source (smartphone, computer) to the Line 1 or Line 2 input. Then select the corresponding mode by pressing the volume/input knob or the LINE1/LINE2 buttons on the remote.

My Bluetooth won't connect, what should I do?

Make sure the speaker is in Bluetooth mode (blue LED flashing). If a device is already connected, disconnect it by pressing and holding the Bluetooth button on the remote or the volume/input knob for 2 seconds. Check that your source device is within 10 meters and that Bluetooth is enabled.

How do I clean the Edifier R1700BTs speakers?

Turn off the speaker and unplug it. Clean the surface with a soft, dry cloth. Never use chemicals, alcohol, or solvents. Avoid getting water into the openings.

What are the important safety precautions?

Do not open the enclosure, do not expose to water or humidity, do not place near a heat source, do not block ventilation, and use only indoors. In case of issues, contact an authorized service.

Where to find warranty and support?

For warranty information, visit www.edifier.com and select your country. For North America, contact [e-mail]. For South America, visit www.edifierla.com.

USER MANUAL R1700BTs EDIFIER

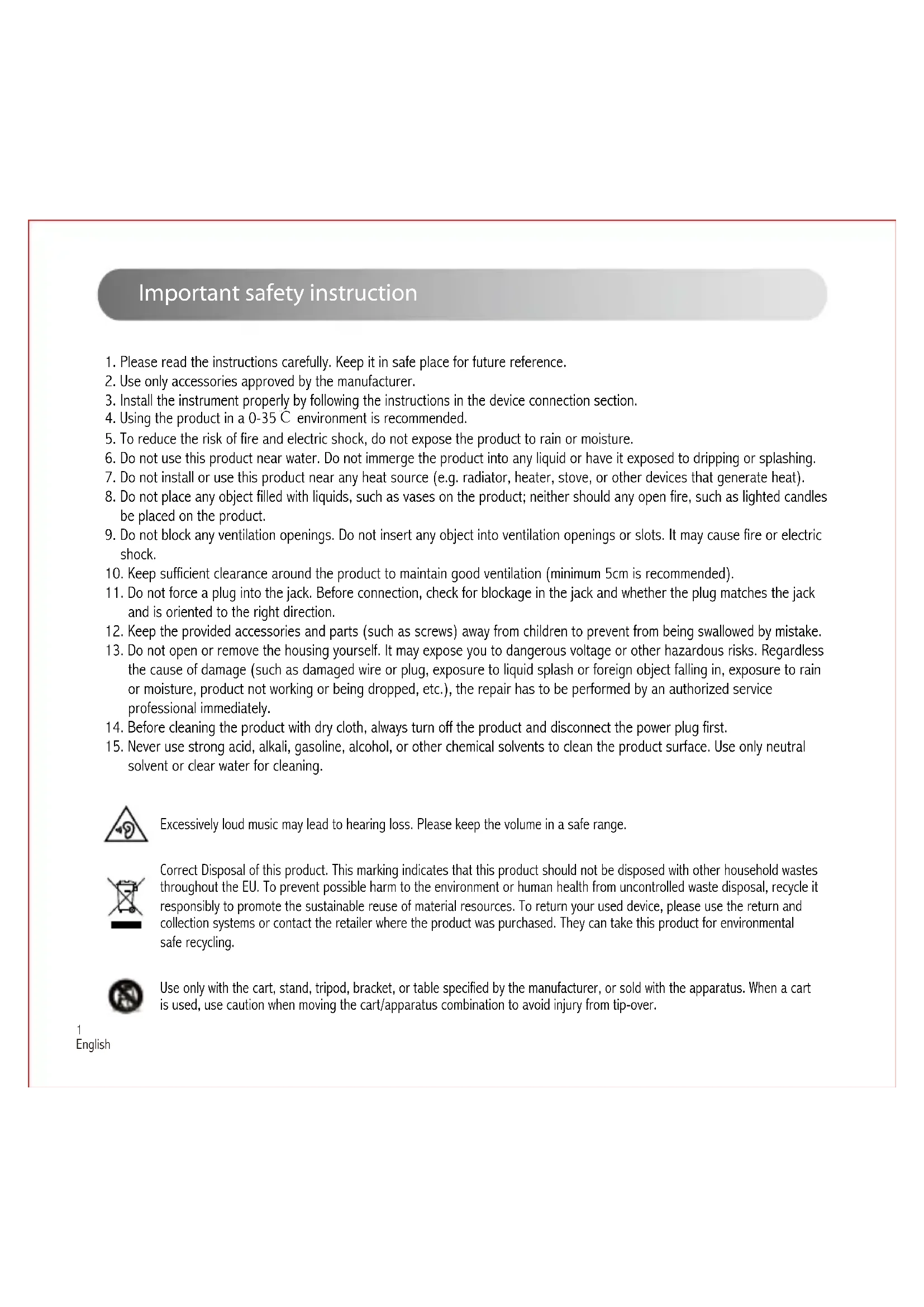

Important safety instruction

1. Please read the instructions carefully. Keep it in safe place for future reference.
2. Use only accessories approved by the manufacturer.
3. Install the instrument properly by following the instructions in the device connection section.
4. Using the product in a 0-35°C environment is recommended.
5. To reduce the risk of fire and electric shock, do not expose the product to rain or moisture.
6. Do not use this product near water. Do not immerge the product into any liquid or have it exposed to dripping or splashing.
7. Do not install or use this product near any heat source (e.g. radiator, heater, stove, or other devices that generate heat).
8. Do not place any object filled with liquids, such as vases on the product; neither should any open fire, such as lighted candles be placed on the product.
9. Do not block any ventilation openings. Do not insert any object into ventilation openings or slots. It may cause fire or electric shock.
10. Keep sufficient clearance around the product to maintain good ventilation (minimum 5cm is recommended).
11. Do not force a plug into the jack. Before connection, check for blockage in the jack and whether the plug matches the jack and is oriented to the right direction.
12. Keep the provided accessories and parts (such as screws) away from children to prevent from being swallowed by mistake.
13. Do not open or remove the housing yourself. It may expose you to dangerous voltage or other hazardous risks. Regardless the cause of damage (such as damaged wire or plug, exposure to liquid splash or foreign object falling in, exposure to rain or moisture, product not working or being dropped, etc.), the repair has to be performed by an authorized service professional immediately.
14. Before cleaning the product with dry cloth, always turn off the product and disconnect the power plug first.
15. Never use strong acid, alkali, gasoline, alcohol, or other chemical solvents to clean the product surface. Use only neutral solvent or clear water for cleaning.

Excessively loud music may lead to hearing loss. Please keep the volume in a safe range.

Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Important safety instruction

Power warning:

1. Place the product near the power outlet for easy use.
2. Before use, make sure that the operating voltage is the same as your local power supply. Correct operating voltage can be found on the product plate.
3. For safety purpose, unplug the product during lightning storms or when unused for extended periods of time.
4. Under normal conditions, the power supply may get hot. Please keep good ventilation in the area and exercise caution.
5. Safety warning labels on the housing or bottom of the product or power adaptor.

This symbol is to alert the user to the presence of un-insulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is to warn the user not to disassemble the enclosure of the product and there is no user-replaceable part inside. Take the product to an authorized service center for repair.

This symbol indicates that the product is for indoor use only.

This symbol indicates that the product is a CLASS II or double insulated electrical device with no earth requirement.

The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.

For wireless product:

1. Wireless product may generate shortwave radio frequencies and interfere with the normal use of other electronic devices or medical equipment.
2. Turn off the product when it's disallowed. Do not use the product in medical facilities, on airplane, at gas stations, near automatic gates, automatic fire alarm system or other automated devices.
3. Do not use the product in the vicinity of a pacemaker within a 20cm range. The radio waves may affect the normal operation of the pacemaker or other medical devices.

Box Contents

OK/OFF ON/OFF/ON/OFF

Remote control

EDIFIER

Line drawing of a speaker with two circular speakers and a label 'EDIFIER' at the base (no other text or symbols)

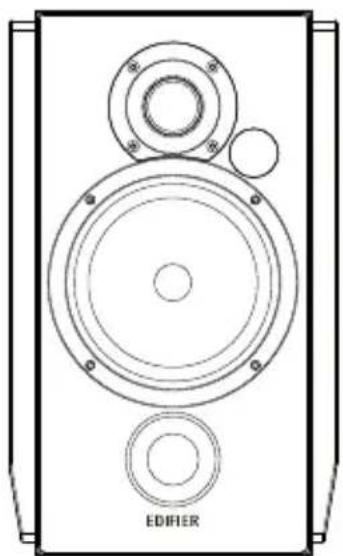

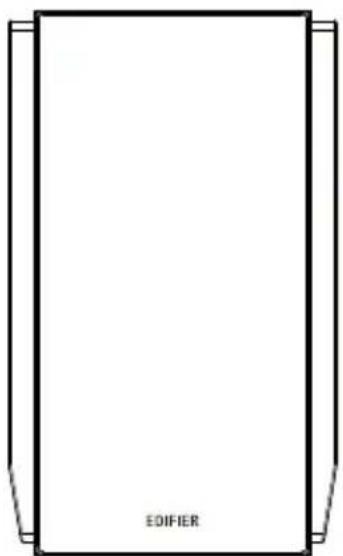

Active speaker Passive speaker

Pure electrical circuit lines without any symbols

RCA to RCA audio cable

Pure electrical circuit lines without any symbols

3.5 mm-RCA audio cable

Speaker connecting cable

Blank white rectangle with black border (no text or symbols)

User manual

Note: Images are for illustrative purposes only and may differ from the actual product.

Illustrations

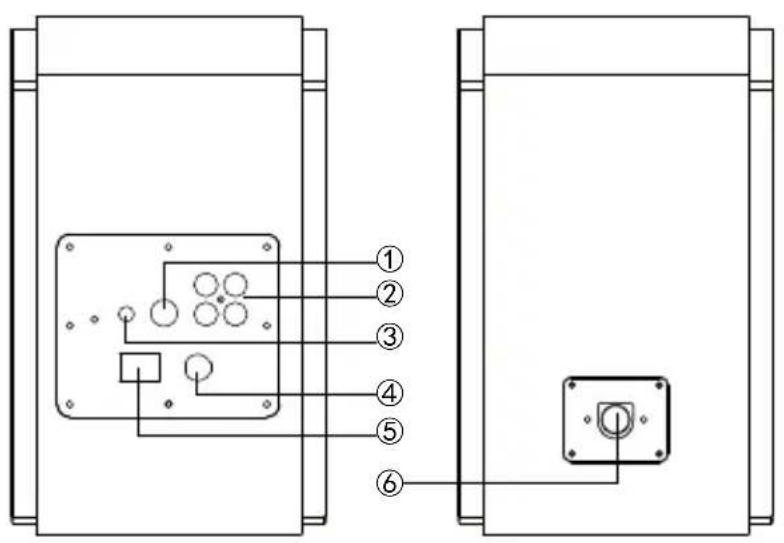

Technical diagram showing two rectangular panels with labeled components, including a central device and a terminal block.

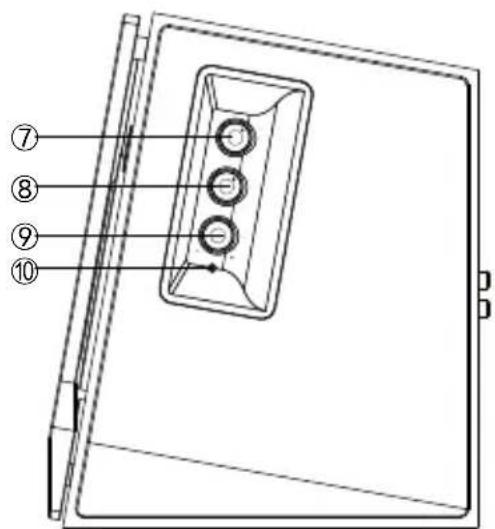

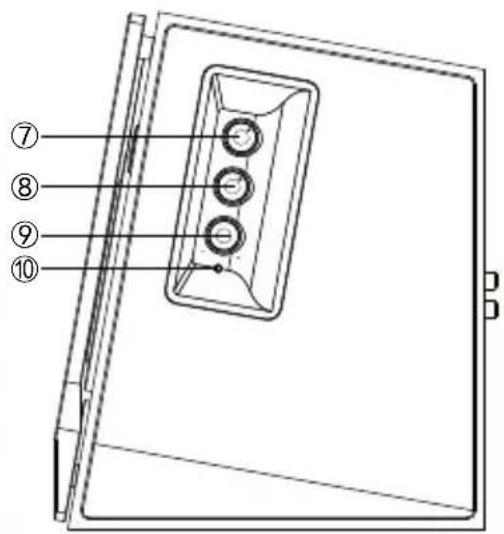

Diagram of a device panel with numbered components, showing internal compartments and labeled parts.

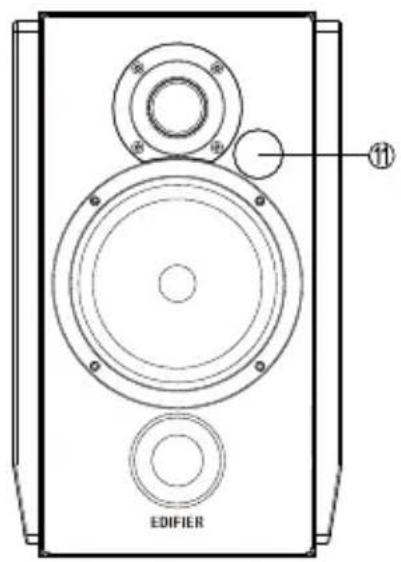

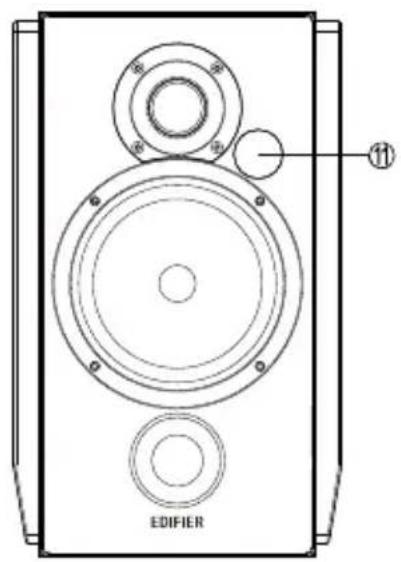

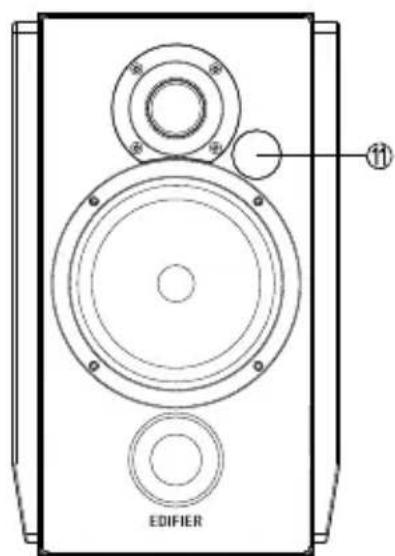

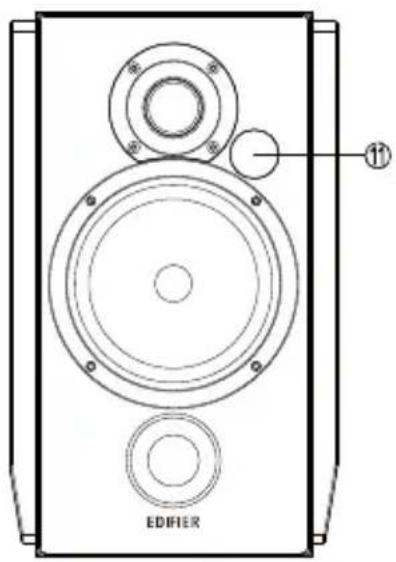

EDIFIER 11

1. Connect to passive speaker
2. Audio input connector
3. Connect to external subwoofer
4. Power cable
5. Power switch
6. Connect to active speaker

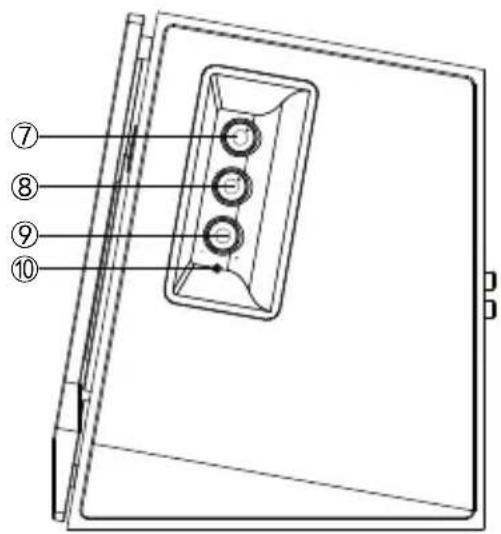

7. Treble dial

8. Bass dial

9. Master volume control dial

Press: input mode switch

Press and hold: power on/off

Press and hold: disconnect Bluetooth

in Bluetooth mode

1. Power indicator
2. Infrared receiver/input indicator

Green: Line in 1/Line in 2 mode

Blue: Bluetooth mode

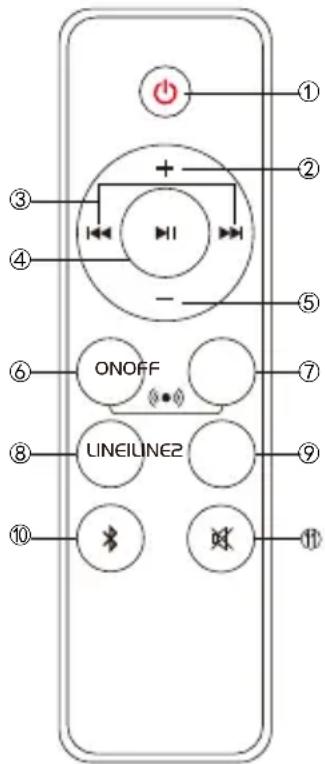

Remote Control

① ② ③ ④ + - ⑤ ⑥ ONOFF ⑦ ⑧ LINELINE2 ⑨ ⑩

1. Power on/off 7. Sound field extension disabled
2. Volume up 8. Line in 1 mode
3. Previous track/next track 9. Line in 2 mode
   (Bluetooth mode)
4. Pause/play (Bluetooth mode) Press and hold to disconnect Bluetooth
5. Volume down 11. Mute
6. Sound field extension enabled

Battery loading:

Please refer to the illustration to open the battery compartment, insert the CR2032 battery and close the compartment.

OPEN ↑ o

WARNING!

1. Don't swallow the battery; danger of chemical burn.
2. The product includes a wafer battery. Swallowing this battery may lead to injury or death. Do not place the new or old battery in where children can get to it.
3. Don't use the product if the battery cover is missing or not closed, and keep the remote inaccessible to children.
4. Please go to the hospital immediately if the battery is swallowed.

Note:

1. Do not place the remote control in places that are hot and humid.
2. Do not charge the batteries.
3. Remove the batteries when unused for a long period of time.
4. The battery should not be exposed to excessive heat such as direct sun, fire or similar.
5. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

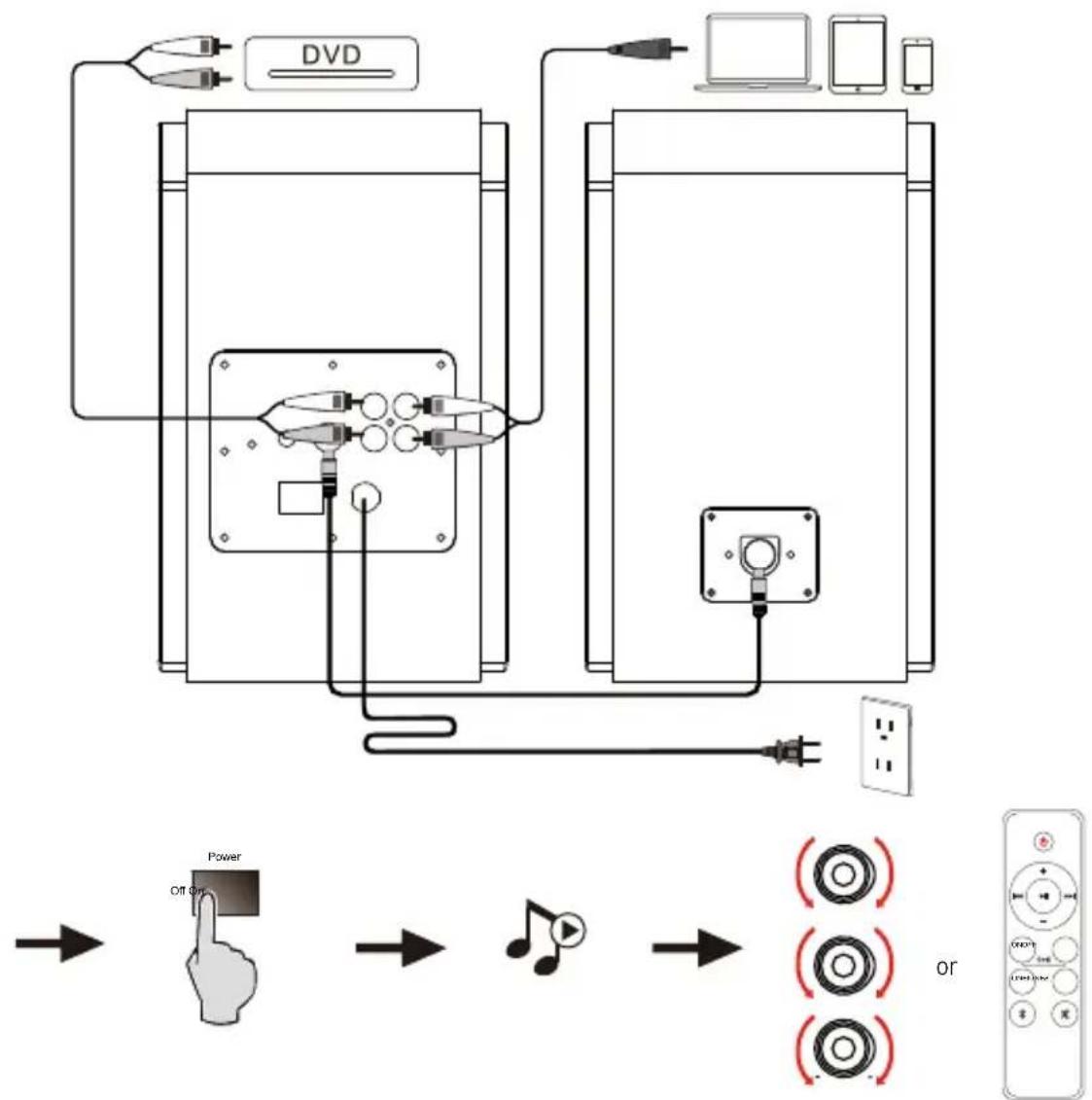

Connection

The "Sub Out" port on the rear panel of the active speaker has a detection function. When the port is connected with an external subwoofer, the speaker's own bass will be reduced, and the bass will be mainly output from the subwoofer connected.

6 English

Line In Mode

ON/OFF LINE1/LINE2 NO LINE1 LINE2 or

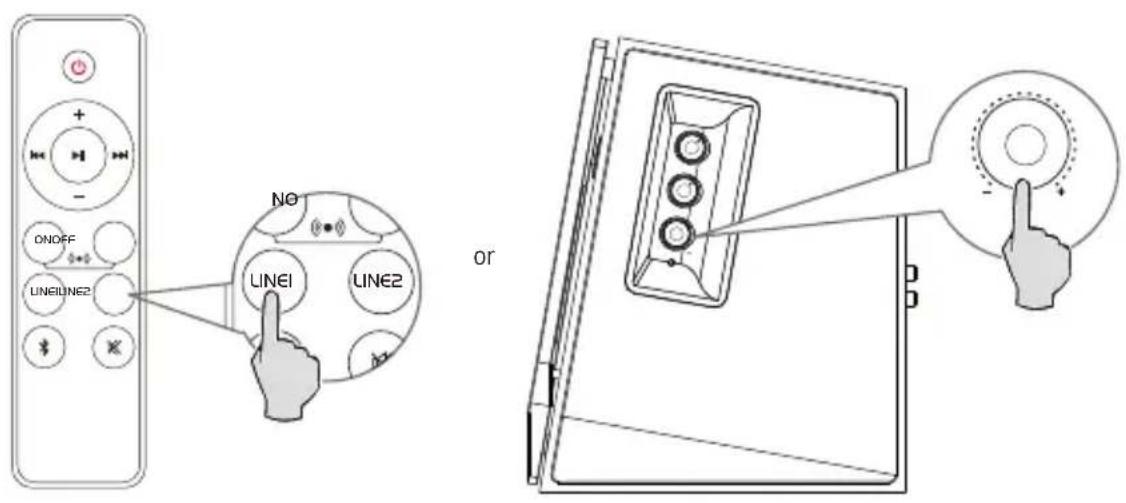

• Press the "volume/input" dial on the side panel of the active speaker to switch to line in 1 mode (green light flashing once) or line in 2 mode (green light flashing twice).
• Respectively press the "LINE1" / "LINE2" button on the remote control to switch to line in 1/line in 2 mode.

Bluetooth Mode

Bluetooth®

ON/OFF UNE/LINE2 EI UI OR

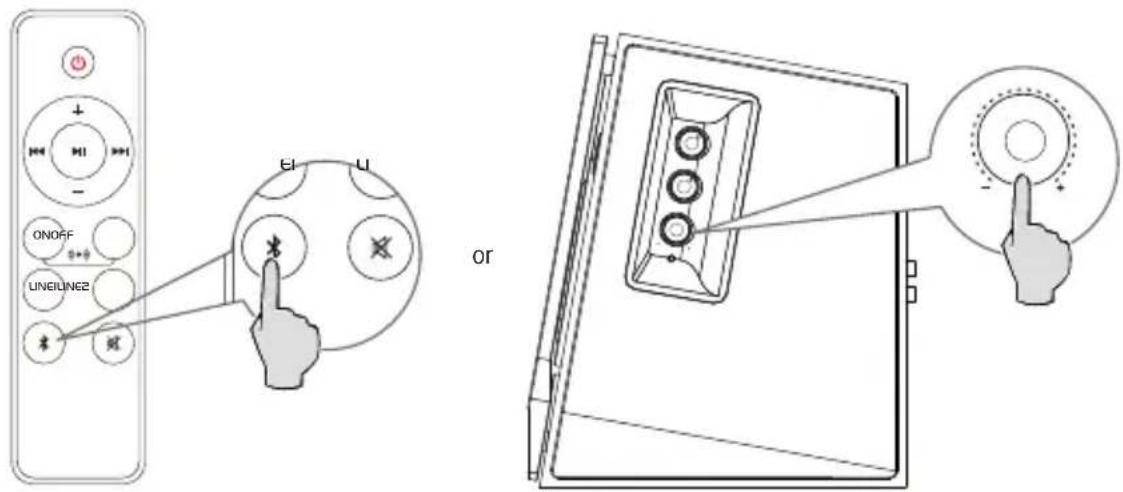

• Press the “volume/input” dial on the side panel of the active speaker, or press the “ ✕” button on the remote control to switch to Bluetooth mode, the blue light will flash.
• Set your Bluetooth device to search and connect to "EDIFIER R1700BTs", the blue light will be steady lit.
• To disconnect Bluetooth, press and hold the "volume/input" dial on the side panel of the active speaker or press and hold the " * " button on the remote control for 2 seconds.

Note:

• To enjoy all Bluetooth functions of this product, please ensure your audio source device has A2DP (Advanced Audio Distribution Profile) profile.
• Bluetooth connectivity and compatibility may differ amongst different source devices, depending on the software versions of source devices.

Specifications

Power output: R/L(treble): 15W+15W

R/L(mid-range and bass): 18W+18W

Frequency response: 52Hz-20KHz

Audio inputs: Line In 1, Line In 2, Bluetooth

Declaration for EU

Frequency Band: 2.402GHz \~ 2.480GHz

RF Power Output: ≤20 dBm (EIRP)

There is no restriction of use.

Bluetooth®,

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by EDIFIER is under license. Other trademarks and trade names are those of their respective owners.

Qualcomm®

aptX™ HD

Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.

aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.

Troubleshooting

No sound

• Check if the speaker is ON.
• Try to turn up the volume using either the master volume control or remote control.
• Ensure the audio cables are firmly connected and the input is set correctly on the speakers.
• Check if there is a signal output from the audio source.

Cannot connect via Bluetooth

• Make sure the speaker is switched to Bluetooth input. If it is in other audio input modes, Bluetooth will not connect.
  Disconnect from any Bluetooth device by pressing and holding the “ ✕” button in Bluetooth mode, then try again.
• Effective Bluetooth transmission range is 10 meters; please ensure that operation is within the range.
• Try another Bluetooth device for connection.

The R1700BTs does not turn on

- Check if main power is connected, or if the wall outlet is switched on.

Noise coming from speakers

- EDIFIER speakers generate little noise, while the background noise of some audio devices are too high. Please unplug audio cables and turn the volume up, if no sound can be heard at 1 meter away from the speaker, then there is no problem with this product.

To learn more about EDIFIER, please visit www.edifier.com

For EDIFIER warranty queries, please visit the relevant country page on www.edifier.com and review the section titled Warranty Terms.

USA and Canada: [e-mail]

South America: Please visit www.edifier.com (English) or www.edifierla.com (Spanish/Portuguese) for local contact information.

Consignes de securite importantes

Line drawing of a speaker with concentric circles and two speakers, labeled 'EDIFIER' at the base (no other text or symbols)

Pure electrical circuit lines without any symbols

Câble audio RCA-RCA

Pure electrical circuit lines without any symbols

Blank white rectangle with a thin black border (no text or symbols)

Technical diagram showing two electrical enclosure layouts with numbered components and wiring connections

Diagram of a device panel with numbered components, showing internal structure and labeled parts.

EDIFIER 11

Line drawing of a speaker with concentric circles and two speakers, labeled 'EDIFIER' at the base (no other text or symbols)

Pure electrical circuit lines without any symbols

Cable de audio RCA a RCA

Pure electrical circuit lines without any symbols

Cable de audio 3,5mm-RCA

Blank white square with a thin black border (no text or symbols)

Manual de usuario

Technical diagram showing two rectangular panels with labeled components, including a central device and a terminal block.

Diagram of a door panel with numbered parts labeled ⑦ to ⑩, showing internal components and mounting points.

EDIFIER 11

+ ② OPEN ↑ o

¡ADVERTENCIA!

Line drawing of a speaker with concentric circles and two speakers, labeled 'EDIFIER' at the base (no other text or symbols)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Technical diagram showing two rectangular panels with labeled components and internal wiring, including numbered annotations.

Diagram of a device panel with numbered components, showing internal compartments and labeled parts.

EDIFIER 11

Diagram of a mechanical or electrical component with labeled terminals and directional arrows indicating 'OPEN' and rotation direction.

WARNUNG!

Line drawing of a speaker with two circular speakers and a label 'EDIFIER' at the base (no other text or symbols)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Cavo audio RCA da 3,5mm

Technical diagram showing two electrical enclosure panels with labeled components and internal wiring connections

⑦ ⑧ ⑨ ⑩

EDIFIER 11

Diagram of a mechanical or electrical component with labeled terminals and directional arrows indicating 'OPEN' and 'θ'

AVVERTENZA!

Diagram illustrating remote control interface with labeled buttons and a close-up of the device's screen, showing finger placement and button positioning.

Line drawing of a speaker with concentric circles and two speakers, labeled 'EDIFIER' at the base (no other text or symbols)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Cabo de áudio RCA de 3,5mm

Blank white rectangle with black border (no text or symbols)

Manual do utilizador

Technical diagram showing two identical electrical or electronic components with numbered wiring and internal circuitry, likely for wiring or circuit design reference.

Technical diagram of a device with numbered components, showing internal structure and labeled parts.

EDIFIER 11

Diagram of a mechanical or electrical component with labeled terminals and directional arrows indicating 'OPEN' and rotation direction.

AVISO!

R/L(alcance médio e graves): 18W+18W

Line drawing of a speaker with two circular speakers and a speaker tower, labeled 'EDIFIER' at the base (no other text or symbols)

アクティブスピーカーパッシブスピーカ

Pure electrical circuit lines without any symbols

RCA-RCAオーディオケーブル

Pure electrical circuit lines without any symbols

3.5 mm-RCAオーディオケーブル

スピーカー接続用ケーブル

Blank white rectangle with a thin black border (no text or symbols)

ユーザーズガイド

Technical diagram showing two identical electrical or electronic components with numbered wiring and a central component labeled ①.

Technical diagram of a device with numbered components, likely part of a display or control panel.

EDIFIER 11

Diagram of an electrical switch with polarity indicators and open/closed states labeled

ご警告

Manual Edition 1.1, June 2020

IB-200-R1700B-08

@Edifier_Global @Edifier_Global@Edifierglobal

Edifier International Limited

P.O. Box 6264

General Post Office

Hong Kong

Tel: [phone]

Fax: [phone]

www.edifier.com

© 2020 Edifier International Limited. All rights reserved.

Printed in China

NOTICE:

For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.

Products of EDIFIER will be customized for different applications. Pictures and illustrations shown on this manual may be slightly different from actual product. If any difference is found, the actual product prevails.
