Brand	Thomson
Model	WKR50BT
Product type	Water-resistant FM construction site radio with Bluetooth
Protection rating	IP54 (dust and splash resistant)
Dimensions (L x W x H)	202 x 124 x 227 mm
Weight	1.2 kg
Mains power supply	9V / 2A adapter (included)
Battery power supply	6 LR14 batteries (not included)
Output power	8 W
Frequency response	40 Hz – 20 kHz
Signal-to-noise ratio	60 dB
FM radio	Range 87.5 – 108 MHz, auto scan, 50 presets
Bluetooth	Version 5.1, range approx. 10 m
Auxiliary input	3.5 mm jack socket
USB port	5V / 1A charging for mobile devices
Display	White LED, time and frequency display
Clock	Adjustable, retains time up to 24 h without power
Antenna	Telescopic FM
Package contents	1 radio, 1 mains adapter, 1 instruction manual
Care and cleaning	Disconnect before cleaning; use a soft dry cloth. Do not use abrasive products.
Safety	Do not expose to water (except IP54 splashes), do not open the casing, use only the supplied adapter.
Spare parts and repairability	LR14 batteries commercially available; specific mains adapter; repair by qualified professional.
General information	Made in China by Bigben Interactive; 2-year warranty; declaration of conformity available at bigben.fr/support

Frequently Asked Questions - WKR50BT THOMSON

How to turn on and off the Thomson WKR50BT radio?

To turn on, press and hold the MODE button. To turn off, press and hold the same button or the OFF button (depending on version).

How to set the time on the radio?

Put the radio in standby (press OFF for 2 sec). Press and hold the clock button, use the fast forward/backward buttons to set hours then minutes, and press clock again to confirm.

How to pair a phone via Bluetooth?

Turn on the radio, press MODE to select BLUE mode. On your phone, enable Bluetooth and look for WKR50BT in the list. Select it to pair. A sound confirms success.

How to search for FM stations?

In FM mode, press and hold the SCAN button for 2 seconds. The radio automatically searches for strong stations and stores them (up to 50). Use the previous/next buttons to navigate.

Can I charge my phone via the radio?

Yes, plug your phone into the USB port on the back of the radio. The output is 5V / 1A. Use the mains adapter for optimal charging.

What type of batteries to use?

Use 6 LR14 batteries (alkaline, Ni-MH, or lithium). Observe polarity (+/-) and do not mix old and new batteries.

What does IP54 rating mean?

IP54 means the radio is dust protected (not completely dust-tight) and splash-proof. Do not immerse.

How to reset the radio?

In case of malfunction (e.g., electrostatic discharge), disconnect the power, remove batteries if present, wait a few minutes, then reconnect. The device resets.

The radio does not turn on, what to do?

Check the mains power or battery condition. Ensure batteries are correctly installed (polarity) or that the adapter is plugged in properly. If the problem persists, contact support.

How to clean the radio?

Always disconnect the radio before cleaning. Use a soft dry cloth. Do not use abrasive products, solvents, or liquid cleaners that could penetrate the device.

USER MANUAL WKR50BT THOMSON

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

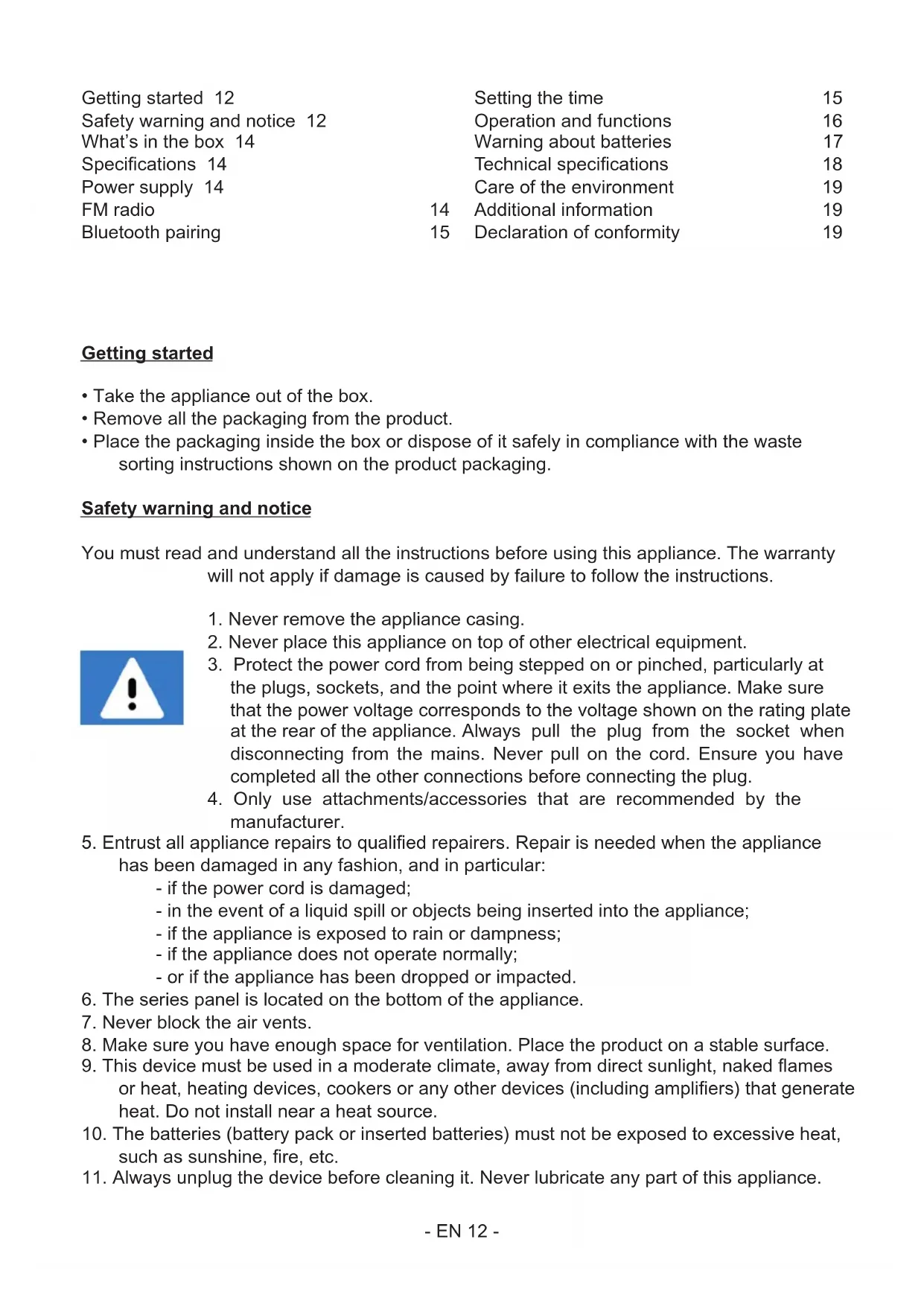

Getting started 12	Setting the time	15
Safety warning and notice 12	Operation and functions	16
What's in the box 14	Warning about batteries	17
Specifications 14	Technical specifications	18
Power supply 14	Care of the environment	19
FM radio	Additional information	19
Bluetooth pairing	Declaration of conformity	19

Getting started

• Take the appliance out of the box.
• Remove all the packaging from the product.
• Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the product packaging.

Safety warning and notice

You must read and understand all the instructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the appliance casing.
2. Never place this appliance on top of other electrical equipment.
3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all appliance repairs to qualified repairers. Repair is needed when the appliance has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the appliance;
8. if the appliance is exposed to rain or dampness;
9. if the appliance does not operate normally;

10. or if the appliance has been dropped or impacted.

11. The series panel is located on the bottom of the appliance.

12. Never block the air vents.
13. Make sure you have enough space for ventilation. Place the product on a stable surface.
14. This device must be used in a moderate climate, away from direct sunlight, naked flames or heat, heating devices, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.
15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.
16. Always unplug the device before cleaning it. Never lubricate any part of this appliance.

Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

1. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this appliance from the mains if necessary.
2. Do not use this appliance near water. It must not be dripped on or splashed. Do not use this appliance in a damp or wet environment.
3. Disconnect this appliance in the event of a storm or if you are not going to use it for a long period of time.
4. This appliance can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the appliance, and they understand the risks involved. Children must not play with the appliance or power cord (risk of strangulation). Children must not clean or maintain the appliance without supervision.
5. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
6. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
7. When using the product, it should be placed at least 20~cm away from the human body.

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated electrical voltages inside the device that are strong enough to present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the appliance.

Class II material

Direct current

Alternating current

For indoor use only

What's in the box

1 site radio
1 mains adapter
1 instruction booklet

Specifications

1. Water-resistant FM site radio with Bluetooth function
2. Analog tuning knob 87.5-108 MHz
3. FM - digital radio reception with automatic station search and storage of up to 50 stations.
4. 3.5mm AUX input for connecting multiple types of audio sources.
5. White LED display
6. Volume adjusting knob.
7. USB output for charging a phone (5V 1A output)
8. IP54 rating for water and dust resistance
9. Bluetooth version 5.1
10. Rear battery compartment (6 batteries type LR 14)
11. Mains adapter with European plug

Power supply

1. Connect the mains adapter to the input located at the back of the radio, under the waterproof cover, then plug into a mains socket. Always use the correct AC adapter. Otherwise, your radio may malfunction or be damaged.
2. For cordless operation, you can use batteries. Using a suitable screwdriver, unscrew the battery compartment door on the back of the radio and remove it.
3. Install 6 LR14 type batteries observing the correct polarity. Then replace the flap and reinsert the screw to keep the compartment watertight. If the radio does not turn on, check installation and polarity, or change the batteries.
4. Always remove the batteries if you won't be using the radio for a long time.

FM radio

1. Turn on the radio.
2. Select FM radio mode: Press MODE to enter FM RADIO mode: the FM indicator and frequency will appear on the screen.
3. Press the SCAN button for 2 sec to automatically search for radio stations with strong reception. All available stations will be stored in order of their registration number and the first pre-stored radio station will be broadcast automatically.
4. In FM radio mode, press button or No select the pre-stored radio station of your choice.

Note: You can try moving the FM antenna for better reception.

Bluetooth pairing

1. Turn on the radio.
2. Press the MODE button to enter Bluetooth mode. The display will show BLUE.
3. In your device settings, go to the Bluetooth function, search for WKR50BT in the list of your devices and select it. After pairing, your radio will emit a tone to confirm successful pairing.
4. Play music from your phone or favourite streaming service.

Setting the time

1. To set the time, put the product on standby (press the Off button for 2 sec) then longpress the clock button to enter time-setting mode.
2. Press the fast forward or fast reverse buttons to increase or decrease the hour digit.
3. Press the clock button again to set the minutes.
4. Press the fast forward or fast reverse buttons to increase or decrease the minute digit.
5. Press the clock button again to save the time and exit setting mode.

The clock will then function normally. Simply press the clock button to display the time.

Comment: The radio clock can operate for 24 hours without a power supply.

If you want to keep the time longer without connecting the radio to the mains, you must put batteries in the compartment provided for this purpose.

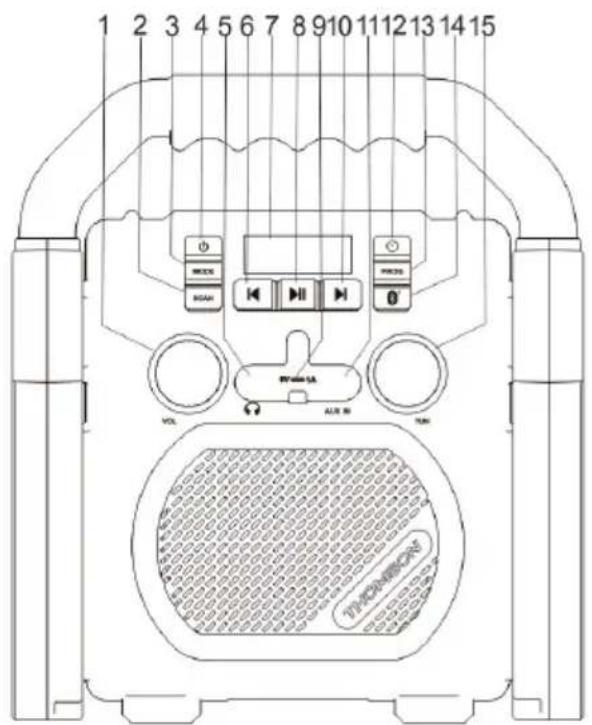

Operation and functions

1. Volume: In FM/AUX in/Bluetooth mode, rotate clockwise to increase the volume. Rotate anti-clockwise to reduce the volume. 360 degree continuous rotation.
2. SCAN: Press for 2 sec to quickly scan all available FM stations and pre-store them.
3. MODE: Short-press to switch between Bluetooth/AUX IN and FM modes.
4. Long-press to power off and on.
5. 3.5 mm earphone jack output
6. In Bluetooth play mode, short-press to select the previous track. In FM mode, short-press to select the previous station after all stations have been fully scanned.
7. LED screen.
8. In Bluetooth mode, short-press for play/pause. In AUX in/FM mode, short-press to switch between silent and normal volume.
9. USB charging port: Use your USB cable to connect your mobile device to charge. Charging from the USB port. Please note that the USB port works with any device that can be charged at 5V 1A. Always use the AC adapter if you want to charge from the USB port.

10. In Bluetooth play mode, short-press to select the next track. In FM mode, short-press to select the next station after full scan of all stations. Short-press to advance when setting the clock.

11. AUXILIARY INPUT: Port for external sound source input (plug-and-play)

12. Short-press to display time, long-press to set time.
13. PROG: Short-press to quickly skip through all available preset stations. Long-press to save the current station in the available space. In preset mode, press fast forward or fast reverse to switch between all preset stations. Save up to 50 stations. Pre-stored radios are displayed as a number and frequency. for example. P01 - 88.50MHz
14. After Bluetooth is paired, long-press this button to force Bluetooth disconnection and change the connection.
15. TUN: Continuous 360^ rotation to cycle through all available frequencies.

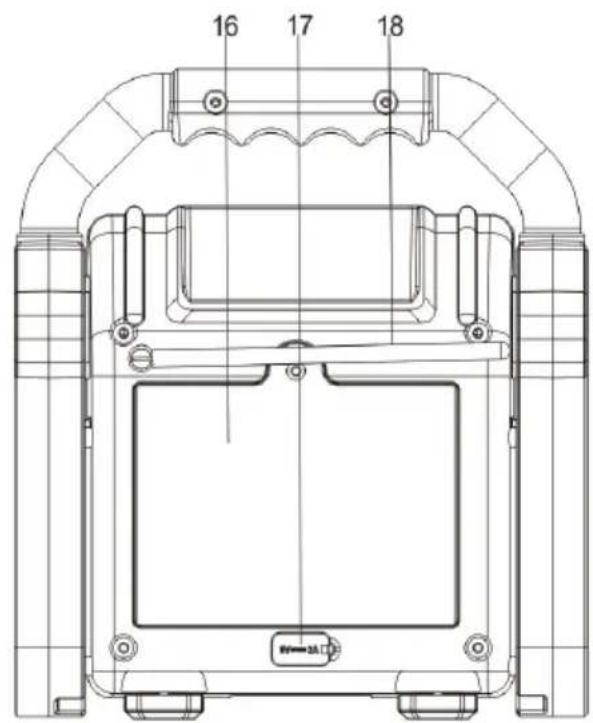

16. Battery compartment door.
17. 9V 2A power supply.
18. FM aerial.

Warning about batteries

This product contains one or more batteries.

• Use batteries correctly to prevent any injury or fire caused by a leak, overheating, explosion, erosion or other damage.
• Keep new and used batteries out of the reach of children or any vulnerable person. Stop using the product if the battery compartment does not close properly.
• If the liquid from an alkaline battery comes into contact with the skin and/or eyes, rinse immediately with fresh water and consult a physician.
• If an alkaline battery leaks, wipe up the liquid with a cloth and replace the battery with a new one.
• Do not swallow the battery/ies. If swallowed, a battery can cause severe internal burns in 2 hours and can cause death. If batteries are swallowed, contact a poison centre immediately and consult a physician.
• Use AA Ni-MH, alkaline or lithium batteries.
• Do not charge these batteries. Charging non-rechargeable batteries causes gas and/or heat emissions that can cause explosions and/or fires.
• Do not use different types of battery or a mixture of new and old batteries at the same time.
• Insert the batteries according to the correct polarity (+ and -).
• Do not put the same battery poles in contact with each other.
• Remove dead batteries quickly. There is a risk of the battery exploding if this is not replaced correctly or if the appliance is not used for a period of time.
• Replace the battery with an identical or equivalent model.
• The batteries (or battery pack) must not be exposed to excessive heat, such as sunlight, fire, etc.
• Do not heat batteries and do not dispose of them in fire or water.
• Do not use metal pliers or metal objects such as the point of a pen or tweezers to remove batteries. Avoid deforming, crushing or piercing batteries.
• Do not disassemble the batteries.

• Cover the ends of the batteries with tape to prevent explosions and combustion when these need to be scrapped.

• Be environmentally friendly when scrapping batteries

• Do not dispose of batteries in ordinary household waste.
• When scrapping batteries, be sure to comply with the local regulations in force in this matter.

BATTERY WARNING

KEEP OUT OF REACH OF CHILDREN

Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

Technical specifications

Power supply: 9V/2A

Output power: 8W

Charge output: 5V/1A

Power consumption: 15W

Battery type: 6 LR14 type batteries

Frequency response: 40Hz-20KHz

FM frequency range: 87.5 - 108MHz

Signal-to-noise ratio: 60 dB

Dimensions: 202(W) x 124(D) x 227(H) mm

Weight: 1.2kg

Note: the maximum connection distance is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid the connection being disrupted.

In an environment with electrostatic discharge, the device may turn off. The user must then recharge the battery and reset the device.

WARNING: risk of hearing impairment

Set a low volume on the playback device before connecting the headphones to the sound source.

To prevent hearing damage, avoid excessive volume, particularly over extended periods or frequent use. Excessive volume can result in permanent hearing impairment.

Care of the environment

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When this crossed-out wheelie bin symbol is applied to a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health.

Additional information

• The word Bluetooth ®, the mark and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for more information: www.thomson-brand.com.
• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners.

Declaration of conformity

• Bigben Interactive hereby declares that the WKR50BT type radio equipment complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www/bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Support

www/bigben-interactive.co.uk/support

[e-mail]

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2-FRETIN

CS 90414

59814 LESQUIN Cedex - France

www/bigben.eu

CE

Fabricant:BigbenInteractive FRANCE

396, Rue de la Voyette, C.R.T. 2, Fretin,

CS90414-59814 Lesquin Cedex, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

Do not disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;

Do not leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.

Do not expose the battery to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

WKR50BT

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]
