USER MANUAL Black Edition Exit Toys

Black Edition

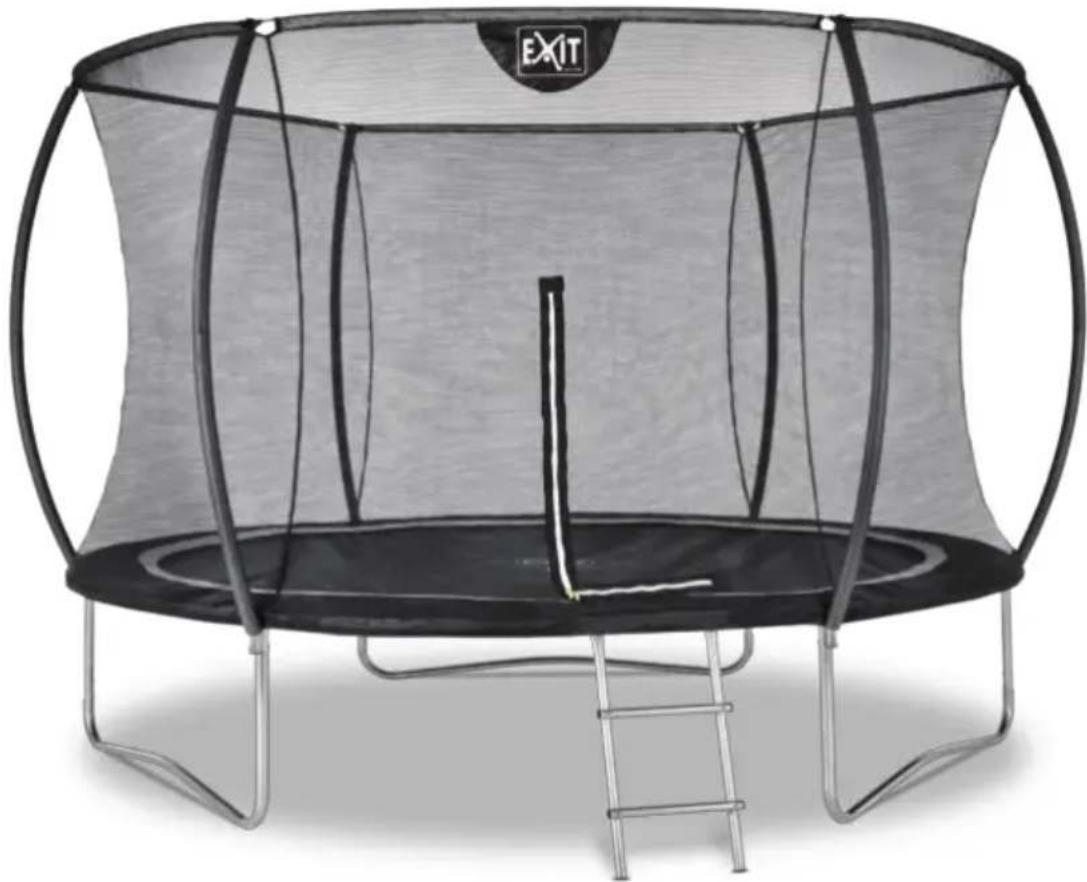

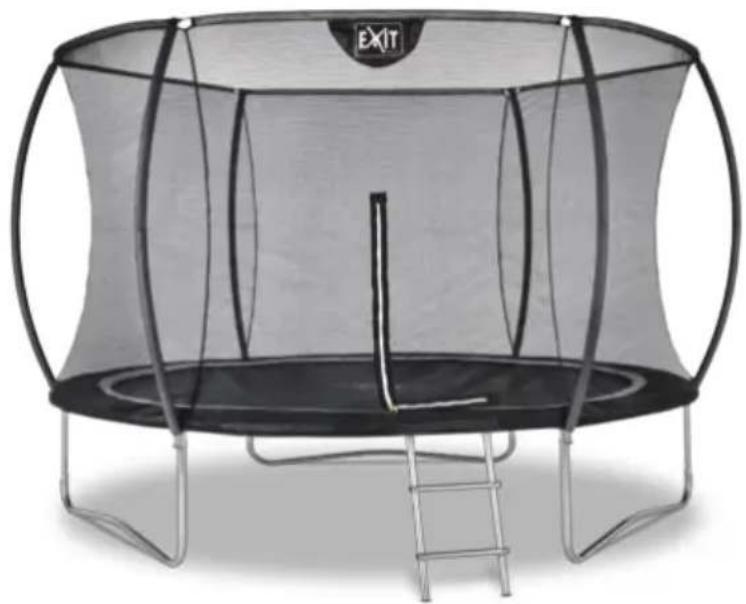

Extricate trampoline with a ladder and safety net, no visible text or symbols

model size h x b x w (cm) max user weight

12.93.06 ∅ 6ft - 183 cm 218 x 212 x 212 50 kg

12.93.08 8ft - 244 cm 228 x 273 x 273 50 kg

12.93.10 ∅ 10ft - 305 cm 256 x 342 x 342 100 kg

12.93.12 12ft - 366 cm 268 x 391 x 391 120 kg

12.93.14 ø 14ft - 427 cm 269 x 464 x 464 120 kg

1.0 Introduction

Congratulations on choosing a EXIT Black Edition Trampoline!

Have fun, be active and play outdoors.....

That's what keeps driving us to develop innovative, quality toys for cool kids.

We do everything possible to develop safe products for children. As our products are classed as toys, we comply with the toughest consumer safety regulations. Before launching our products onto the market, we have independent tests carried out for certification. We also continuously test our production runs and periodically have independent tests performed again as a further check. Only products which live up to the highest EXIT Toys standard are marked with and recognized by the EXIT-brand.

"We want to thank you for your custom and your confidence in this product. We're sure your kids will have as much fun as we did during development. Being open-minded, we really appreciate all comments and ideas which will help us improve our products or develop new ones. You are invited to send your ideas to us at [e-mail]"

Please visit www.exittoys.com and discover more cool new products.

The EXIT Toys team

2.0 Guidelines for safe use

Using your product as instructed in this manual will eliminate virtually all hazards. However, please bear in mind that children have a natural urge to play and that this may lead to unforeseen dangerous situations for which the manufacturer cannot be held responsible. Teach your children how to use the product and point out possible dangers to them.

Before assembling and using the product, please read and observe these main warnings:

WARNING

To avoid serious injury:

0-3

• Read and understand the manual before use.
  • WARNING: For domestic and outdoor use only.
  • WARNING: CHOKING HAZARD! - Small parts.

Not for Children under 3 years old.

- Protect children

• Prevent falls and strangulation - Exit through the door only, and use caution.
• Assist young children in and out of Safety net.

• WARNING: Only one user at a time; collision hazard!
• WARNING: Do not perform summersaults or other difficult jumps!
• WARNING: Empty your pockets before use of the trampoline!

Continuous adult supervision is required.

Don't use the trampoline when it's wet.

• WARNING. The trampoline shall be assembled by an adult in accordance with the assembly instructions and thereafter checked before the first use.
• In case of missing or broken parts, please contact place of purchase for assistance.
  • WARNING: Do not eat while jumping.
  • We are not liable for any injuries that may occur when using the trampoline.
• Modifications made by the consumer to the original trampoline (e.g. the adding of an accessory) shall be carried out according to the instructions of the manufacturer.
  • The trampoline is not intended to be buried into the ground.
  • Max. User weight: 12.93.06: 50 kg

12.93.08: 50 kg

12.93.10: 100 kg

12.93.12: 120 kg

12.93.14: 120 kg

2.1 Warnings for safe use:

- BEFORE YOU BEGIN USING YOUR TRAMPOLINE: Read and understand the information provided in this manual. As with all physical sports and activities there is the risk of participants receiving an injury. To ensure your future enjoyment and the prevention of injury, be sure to follow appropriate safety rules and tips.

- Retain this manual for future reference; contains important information

• Always close the enclosure opening before use.

- ALWAYS CONSULT A DOCTOR/PHYSICIAN BEFORE PERFORMING ANY KIND OF PHYSICAL ACTIVITY.

- ALWAYS CHECK YOUR TRAMPOLINE BEFORE USE, PAYING SPECIFIC ATTENTION TO ALL THE BOLTS, JUMP MAT AND PADS POSITION. DON'T USE IF ANY PARTS ARE MISSING OR LOOK LIKE THEY SHOW WEAR AND TEAR.

- ALWAYS ENSURE THAT THE TRAMPOLINE IS USED BY ONLY ONE PERSON AT A TIME. Collision hazard.

- ALWAYS ENSURE THAT WHENEVER THE TRAMPOLINE IS USED BY ANYONE AT ANY SKILL LEVEL THAT DO SO UNDER SUPERVISION.

- Stop exercising immediately should you feel unwell or if you feel pain in your joints and muscles. Dizziness is a sign of fatigue and you should stop bouncing and lay down on the ground should you feel dizzy.

- When using this trampoline ensure appropriate clothing is worn, preferably sports wear and socks. NEVER WEAR SHOES ON THE MAT.

- Please be warned that trampoline is spring based and will allow the user to jump to a greater height than that on the ground, so please bear this in mind and ensure that you are comfortable bouncing at low heights first.

- Proper assembly, care and maintenance of product, safety tips, warnings, and proper techniques for jumping on your trampoline are included in this manual for your safety and an extended product life span. All users and supervisors should therefore familiarize themselves with these instructions. Anybody who chooses to use the trampoline must be aware of their own limitations with regards to performing skills on this trampoline.

- Trampoline should be assembled on grass or BSI approved safety matting. Shall neither be installed over concrete, asphalt or any other hard surface nor at proximity of other conflicting installations (e.g. paddling pools, swings, slides, climbing frames)

• This product is intended for home use only.

- Moving the Trampoline. If the trampoline and enclosure needs to be moved, it should be moved by two persons, kept horizontal, and lifted slightly. If necessary, the trampoline and enclosure can be taken apart for moving. To take the trampoline apart, follow the assembly steps in reverse order.

2.2 Use of the trampoline

INITIALLY, you should get accustomed to your trampoline and understand how much spring is in each bounce. The focus at this point should be body position and technique until each skill can be completed with ease and control.

3D rendered human figure sitting on a curved surface (no text or symbols)

• BEFORE YOU TRY TO JUMP TOO HIGH the technique for stopping should be learnt as this will help prevent injury should you feel you are jumping out of control.
• As the user lands on the bed, the knees should be bent so that they stop and absorb the spring in the mat. The position is shown in the image to the left. Arms are held out for increased level of balance.
• This skill is used when the trampoline user wishes to stop bouncing on the trampoline due to fatigue, loss of control, etc.

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

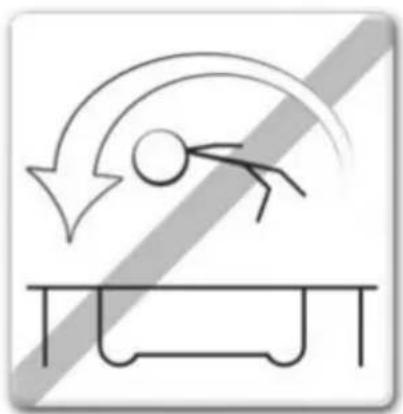

SOMERSAULTS (FLIPS): DO NOT PERFORM somersaults of any type (backwards or forwards) on this trampoline. If you make a mistake when trying to perform a somersault, you could land on your head or neck. This will increase your chances of your neck or back being broken, which could result in death or paralysis

Simple line drawing of two stick figures on a table, one standing and one lying down (no text or symbols)

FOREIGN OBJECTS : DO NOT use the trampoline if there are pets ,other people ,or any objects underneath the trampoline .This will increase the chances of an injury occurring ,DO NOT hold any foreign objects in your hand and DO NOT place any objects on the trampoline while in use. DO NOT place the trampoline under over-hanging objects like tree branches, wires, etc as these will increase your chances of being injured.

Icon of a wrench and screwdriver (no text or symbols)

POOR MAINTENANCE OF TRAMPOLINE: A trampoline in poor condition will increase your risk of being injured. Please inspect the trampoline before each use for bent steel tubes, torn mat, loose or broken springs and overall stability of the trampoline.

Simple line drawing of a person standing on a bench with a diagonal line extending from above (no text or symbols)

WEATHER CONDITIONS: Warning. Do not use in strong wind conditions and secure the trampoline. Please be aware of the weather conditions when using the trampoline. Don't use the trampoline when it's wet. If it is too windy, the user could lose control.

Simple black padlock icon on white background (no text or symbols)

RESTRICTING ACCESS: When the trampoline is not in use, always store the access ladder in a secure place so that unsupervised children can not play on the trampoline.

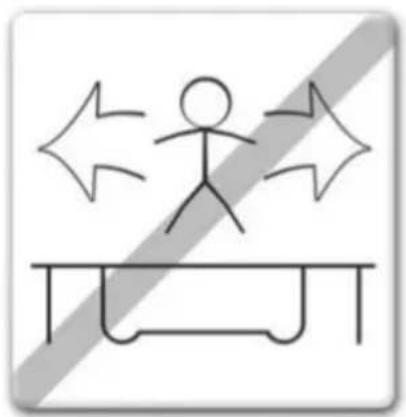

2.3 Tips to reduce the risk of accidents

Simple line drawing of a person standing on a table with arrows indicating direction (no text or symbols)

Simple line drawing of a stick figure standing on a table with height arrows indicating vertical distance (no text or symbols)

Simple line drawing of a person falling off a table with motion arrows, no text or symbols present

In order to reduce the risk of accident the "TRAMPOLINE USER" should:

• Always remain in control of their jumps and body position at all times.
- Not attempt to perform skills that are beyond their own level of competence.
- Read and understand the jump by taking off and landing in the middle of the trampoline.
- Always control their jump by taking off and landing in the middle of the trampoline.
- Warning. Always Jump in the middle of the mat. Always jump vertically and refrain from bouncing towards the springs in any direction.
- Always consult a professionally certified trampoline instructor before attempting anything beyond basic techniques.

In order to reduce the risk of accident the "SUPERVISOR" should:

• Fully understand and enforce all the safety rules and guidelines.
• Advise the trampoline user and provide knowledge in what they are doing right and wrong to ensure the safety of trampoline user.
• Be aware and advise the trampoline user of all the safety warnings.
• Warning. Do not exit the trampoline by a jump.

IMPORTANT: If the Trampoline can not be supervised there should be a method for securing it and preventing anyone from using the product until supervision is available.

2.4 Trampoline Safety Instructions

ADVISORY PRECAUTIONS WHILST USING THE TRAMPOLINE

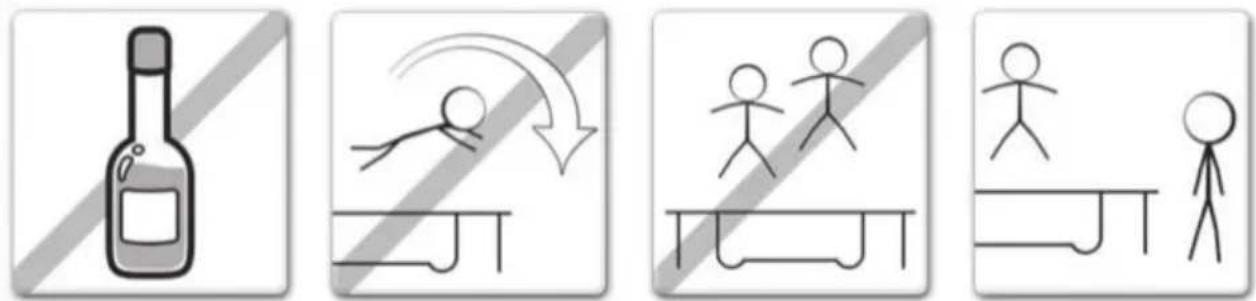

Four-step diagram illustrating a bottle, stick figure motion, and human figures interacting with a table.

• Do not use trampoline if you have consumed alcohol or narcotic substances
• You should climb on and off the trampoline in a controlled and careful manner. Never jump onto or off the trampoline and never use the trampoline as a means to bounce onto or into another object.
• Always learn the basic bounce and master each type of bounce before trying more difficult types of bounces. Review the basic skills section to learn how to do the basics.
  • To stop your bounce, flex your knees when you land on your feet.
• Always be in control when you are bouncing on the trampoline. A controlled jump is when you land at the same spot that you took off from. If at any time you feel out of control, stop bouncing immediately.
• Do not jump or bounce for prolonged periods of time of too high for a number of jumps. Keep your eyes on the mat to maintain control. If you do not, you could lose your balance.
• Never have more than 1 person on the trampoline at any time. Collision hazard.

ADVISORY PRECAUTIONS WHILST SUPERVISING TRAMPOLINE

IMPORTANT: Familiarise yourself with the basic jumps and safety rules. To prevent and reduce the risk of injuries, ensure that all safety rules are enforced and the new users learn the basic bounces before trying more advanced techniques.

• ALL USERS need to be supervised, regardless of skill level or age.
• Never use the trampoline when it is wet, damaged, dirty or wore out. The trampoline should be inspected before use.
• Keep all objects that could interfere during use away from the trampoline at all times. Be aware of what is overhead, underneath and around the trampoline.
• To prevent unsupervised and unauthorized use, the trampoline should be secured at all time.

2.5 Accident classification & identification

Simple line drawing of a person falling off a slope with an arrow indicating motion (no text or symbols)

MOUNTING AND DISMOUNTING:

Be very careful when getting on and off the trampoline. DO NOT mount the trampoline by grabbing the frame pad, stepping onto the springs or by jumping onto the mat of the trampoline from an object(eg. A deck, roof ,or ladder ).This is considered highly dangerous. DO NOT dismount by jumping off the trampoline and landing on the ground. If small children are playing on the trampoline, they may need help in mounting and dismounting

Simple line drawing of a bottle with a label, crossed by a diagonal stripe (no text or symbols)

USE OF ALCOHOL OR DRUGS:

DO NOT consume any alcohol or take any drugs (this includes medication that could affect the users co-ordination) when using this trampoline. This is considered highly dangerous since these foreign substances impair your judgements, reaction time and overall physical co-ordination.

Simple line drawing of two stick figures standing on a table with a diagonal line above (no text or symbols)

MULTIPLE USERS:

Only one user at a time; danger of collision!

Illustration of a coiled spring with a loop, crossed by diagonal lines (no text or symbols)

STRIKING THE SPRING FRAME:

When playing on the trampoline, STAY in the centre of the trampoline mat. This will reduce the risk of being injured by landing on the spring frame. Always keep the frame pads covering the frame of the trampoline. DO NOT jump or step onto the frame pad directly since it is not intended to support the weight of a person.

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

LOSS OF CONTROL:

DO NOT try difficult maneuvers until you have mastered the basics. If you do not follow these guidelines, you increase the risk of someone being injured.

WARNING: Take a break every 10 minutes.

3.0 Trampoline techniques

Basic Skills

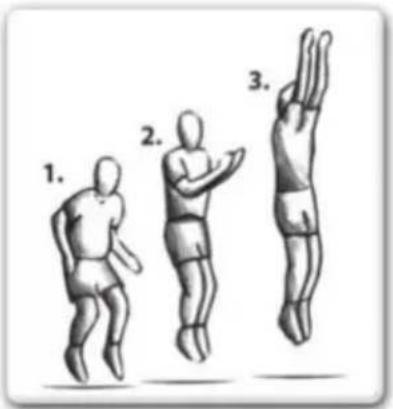

BASIC SKILL 1: The basic bounce

1. 2. 3.

• Start from a standing position, with feet shoulder width apart head up and eyes on the trampoline bed.
• Swing arms forward and up above head in a circular motion.
• Bring legs and feet together in mid-air position and point toes.
• Land back on the mat with feet shoulder width apart (same as start position).
• Why not try moving onto the next skill once comfortable and proficient.

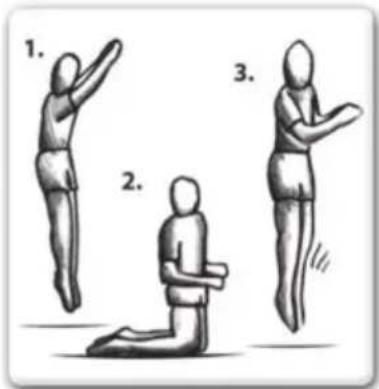

BASIC SKILL 2: The Knee Drop

• Start with a low basic bounce (as detailed in BASIC SKILL 1).
• Land on knees shoulder width apart, keeping back straight and a strong body position using arms out to the side or in front to maintain balance.
• Bounce back to basic bounce position by using bounce momentum and swinging arms above head.
• Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.

1. 2. 3.

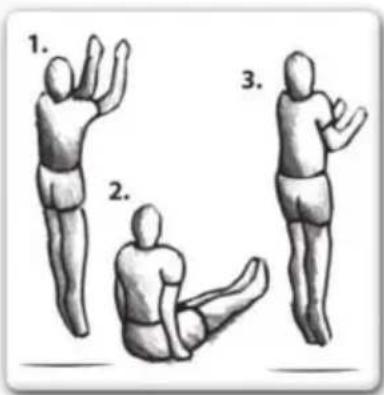

BASIC SKILL 3: The Seat Drop

Illustration of three human figures in various postures, showing different postures with no text or symbols

• Start with a low basic bounce (BASIC SKILL 1) in the normal position.
• Land with legs out straight in front of you, with hands either side of your hips and back straight in a strong body position.
• Use the bounce momentum aided with a push from hands to return to a standing position.
• Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.

IMPORTANT: Please consult a trained trampoline instructor before attempting any more advanced skills to ensure highest possible safety levels are maintained.

Advanced Skills

ADVANCED SKILL 1: The basic bounce

Illustration of three sequential human body postures in different poses (stretch, forward bend, forward bend), no text or symbols present.

• Start with a low basic bounce (BASIC SKILL1) in the normal position.
• Land on your hands and knees at the same time, ensure that back is horizontal to the bounce mat and hands & legs are shoulder width apart also.
• Use the momentum of bounce and push off hands to regain the standing position.
• Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.
• Try moving onto the next skill once comfortable and proficient.

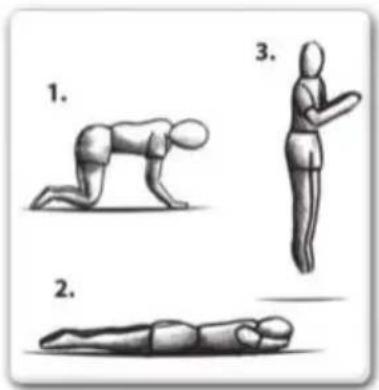

ADVANCED SKILL 2: Hands and Knees to Front Drop

• Land on your hands and knees at the same time, ensure the back is horizontal to the bounce mat and hands & legs are shoulder width apart also.
• Maintain strong body position with back horizontal to mat and straighten legs behind and fold arms in front of face in mid-air ready to land on the mat in a lying down position.
• Ensure the landing is done with all of body touching the mat at same time.
• Push off hands and recover the standing position.
• Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height. Trying moving onto the next skill once comfortable and proficient.

1. 2. 3.

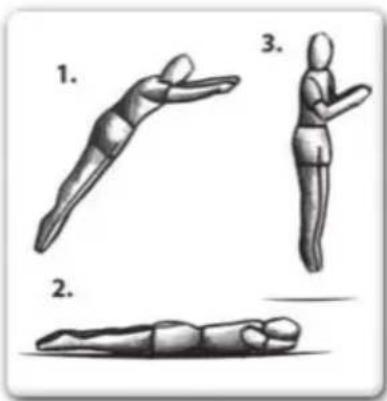

ADVANCED SKILL 3: The Front Drop

Illustration of three different human body poses: diving, standing, and lying (no text or symbols)

• Start with a low basic bounce (BASIC SKILL 1) in the normal position.
• Maintain strong body position with back horizontal to mat and straighten legs behind and fold arms in front of face in mid-air ready to land on the mat in a lying down position.
• Ensure the landing is done with all of body touching the mat at the same time.
• Push off hands and recover the standing position.
• Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.

IMPORTANT: Should you wish to progress any further and learn more advanced techniques for trampoline, please consult a qualified and registered instructor.

4.0 General Information

• Self-securing nuts and screws are suitable only for one time setting-up, and must be replaced after breakdown of the trampoline and/or safetynet.
• The safetynet has a limited durability, replace after 2 years of use.
• It is recommended to place the trampolines on a flat and level surface with at least 3 m distance to other superstructures, or barriers, e.g. fence, garage, house, tree branches, washing lines, or electrical cables.
• The trampoline shall not be placed over hard surfaces like asphalt, concrete etc.
  Exchange defective parts according to the supplier's recommendation.
• Changes to the trampoline (e.g. addition of an accessory) must be done according to the supplier's instruction.

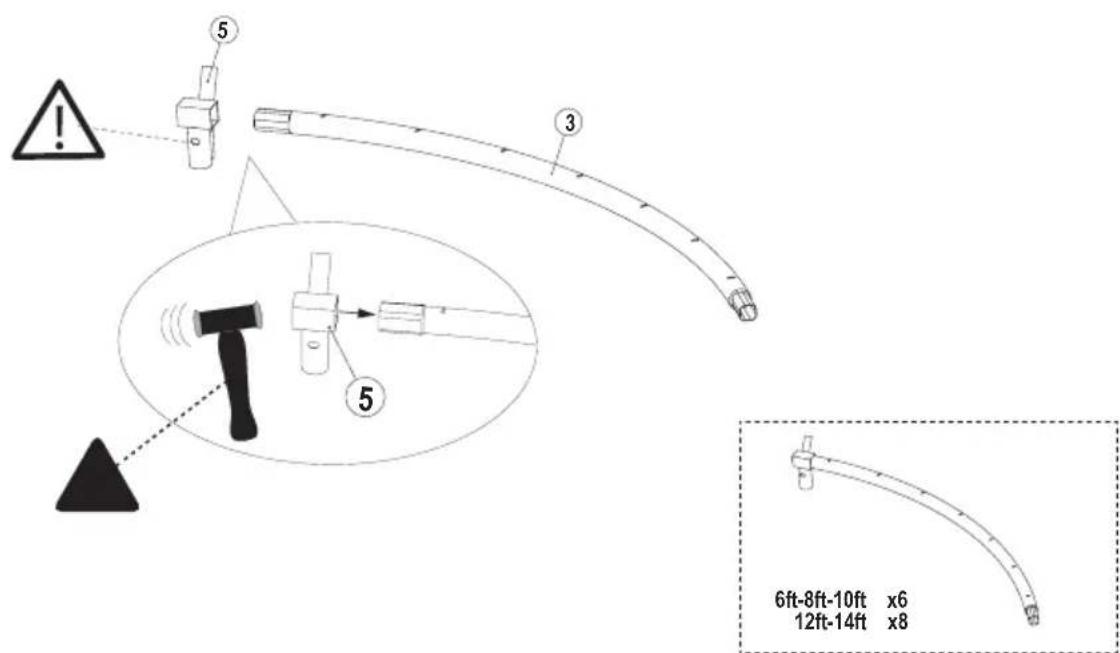

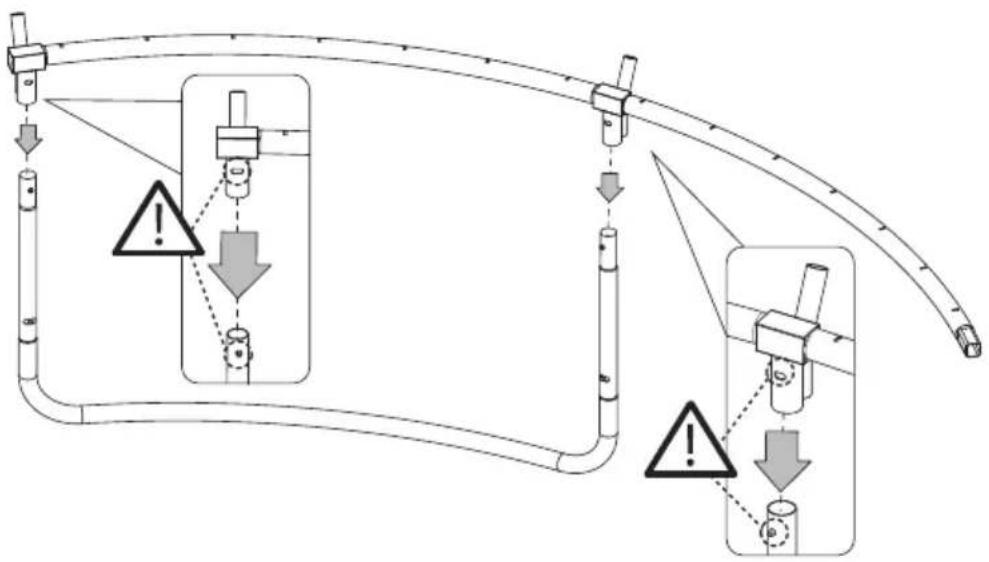

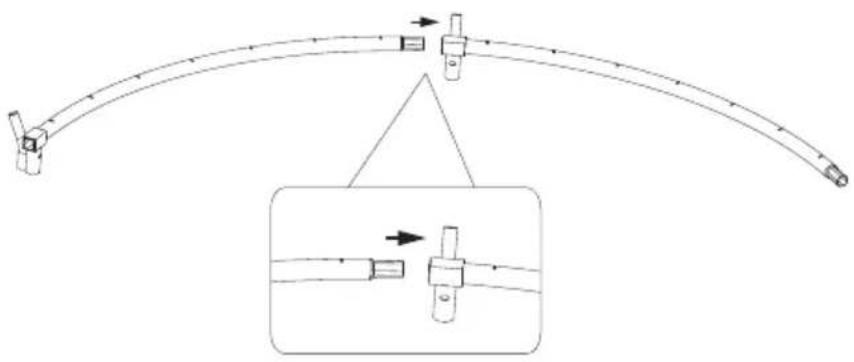

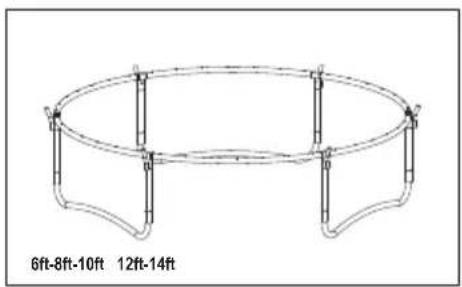

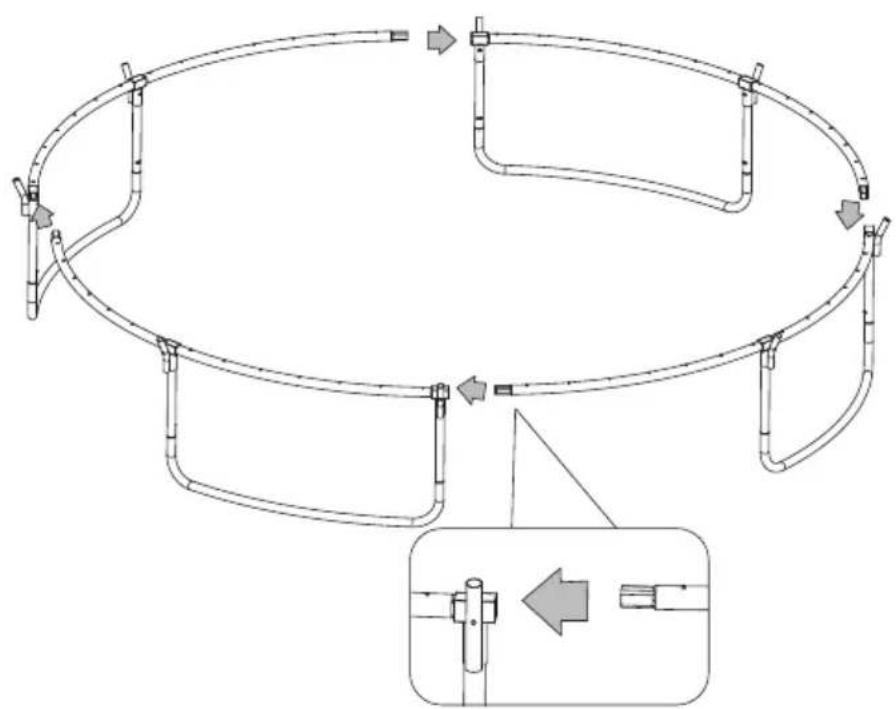

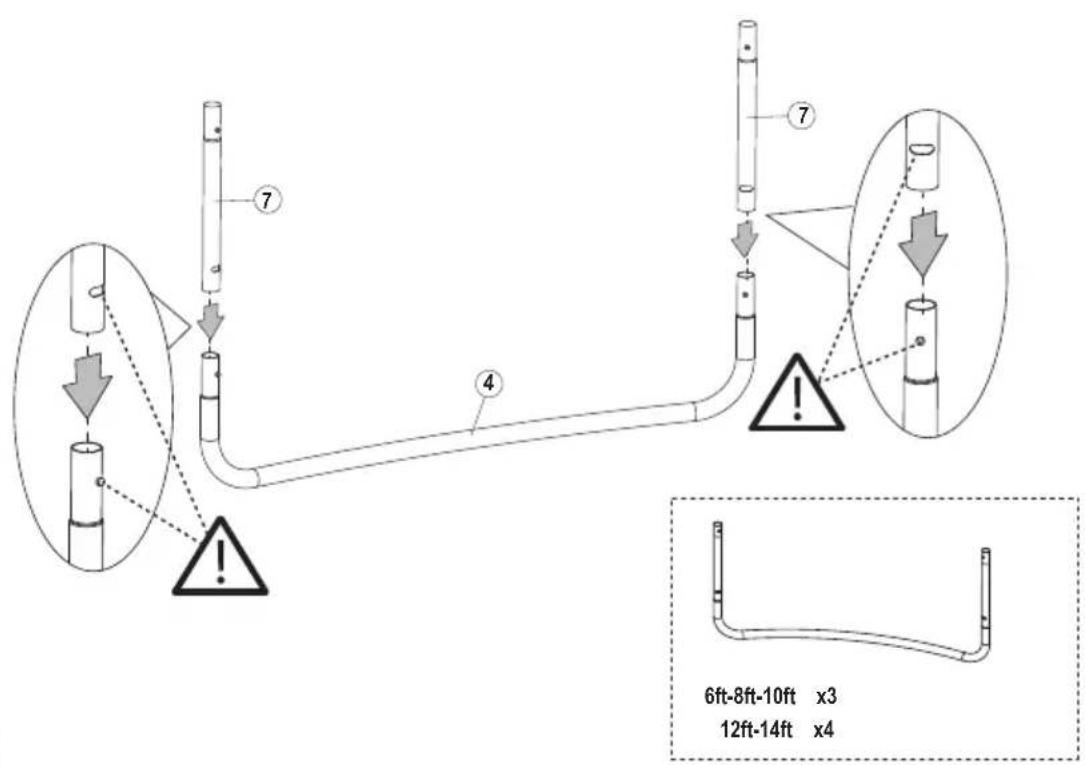

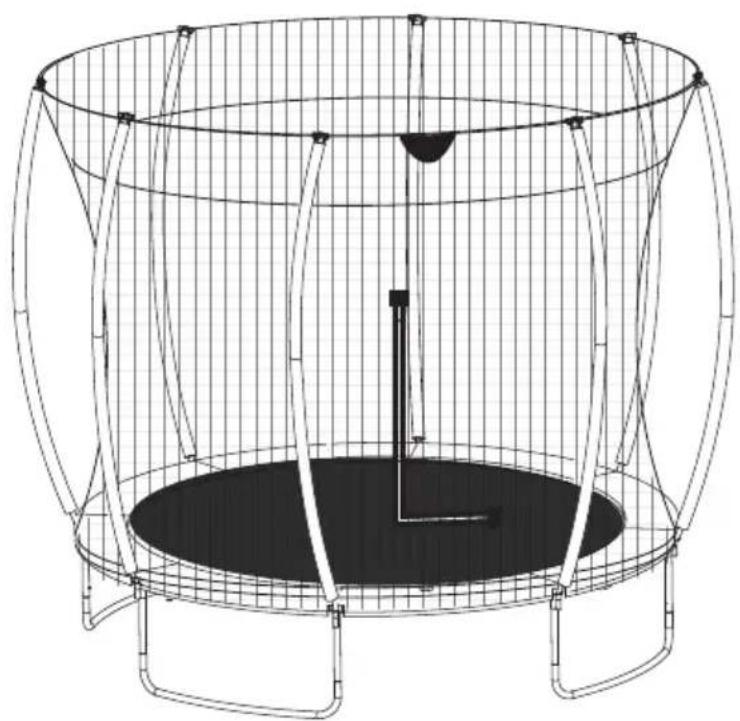

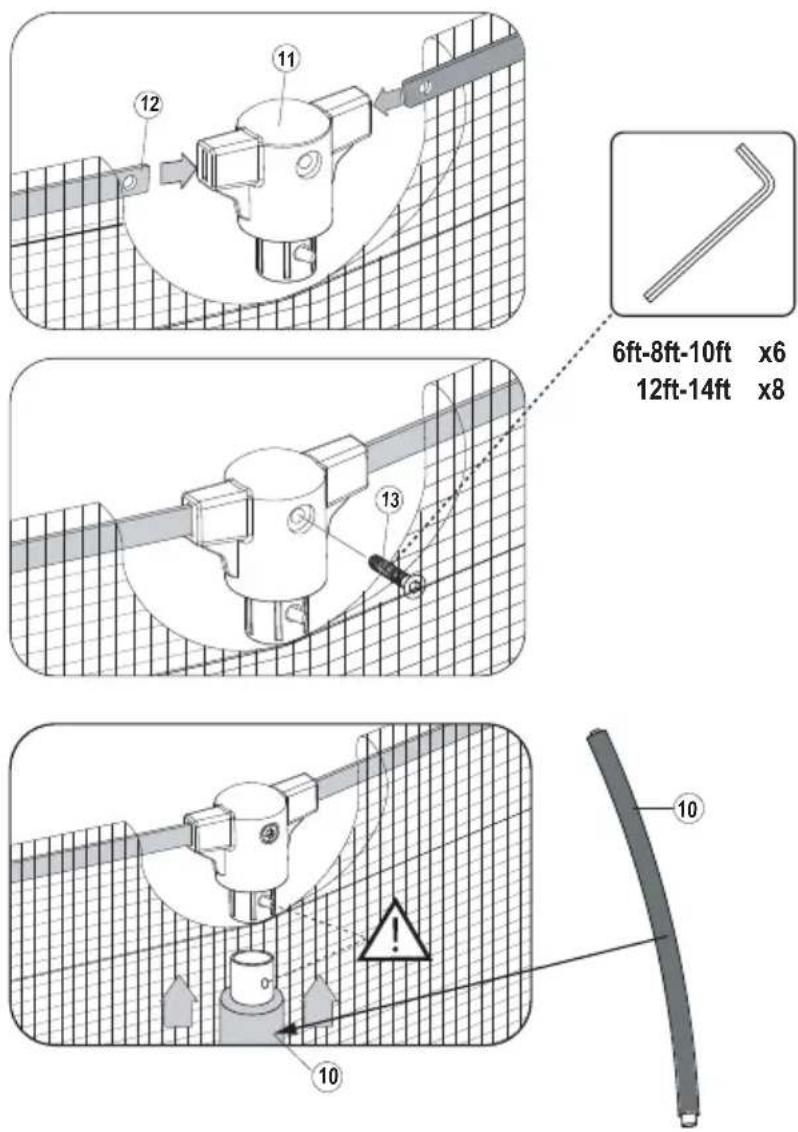

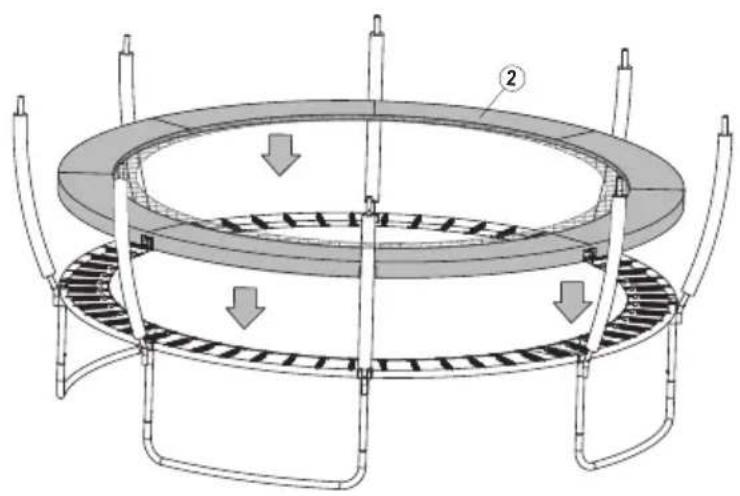

5.0 Trampoline Assembly

STEP BY STEP CONSTRUCTION

Only assemble by adult.

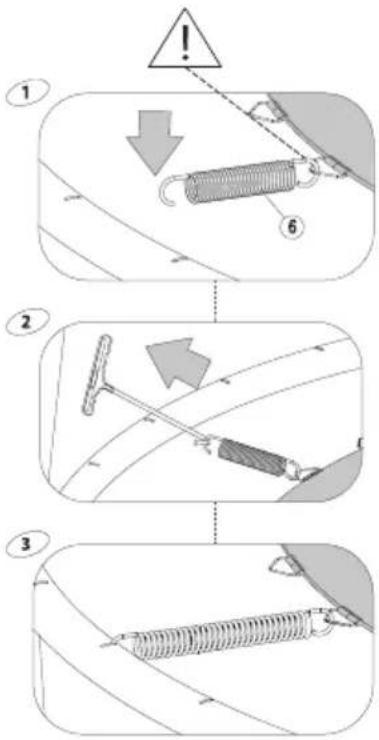

To assemble this trampoline all you need is our special spring loading tool provided with this product. During periods of non-use, this trampoline can be easily disassembled and stored. Please read the assembly instructions before beginning to assemble the product.

Please refer to the table for part descriptions and numbers. The assembly instruction use these descriptions and numbers as reference.

Make sure you have all parts listed. If you are missing any parts, please contact place of purchase.

Please use gloves to protect your hands from pinch points during assembly. When you are ready to start, make sure that you have plenty of space and a clean dry area for assembly.

You can find the assembly steps in chapter 5.0 (page 124-134)

6.0 CARE AND MAINTENANCE

This trampoline was designed and manufactured with quality materials and craftsmanship. If proper care and maintenance is provided, it will provide all jumpers with years of exercise, fun, and enjoyment as well as reduce the risk of injury. Please follow the guidelines listed below:

This trampoline is designed to withhold a certain amount of weight and use. Please make sure that only one person at any one time uses the trampoline. Jumpers should either wear socks, gymnastics shoes, or be barefoot when using the trampoline. Please be aware that street shoes or tennis shoes should NOT be worn while using the trampoline. In order to prevent the trampoline mat from getting cut or damaged please do not allow any pets onto the mat. Also, jumpers should remove all sharp objects from their person prior to using the trampoline. Any type of sharp or pointed objects should be kept off the trampoline mat at all times.

Maintenance instructions

Make sure to carry out checks and maintenance of the main parts (frame, suspension system, mat, padding, and enclosure) at the beginning of each season and also at regular intervals of every 2 weeks. If these checks are not carried out, the trampoline could become dangerous!

• Make sure that the hook-and-loop fasteners are closed correctly during use of trampoline!
- It is necessary to determine whether all nuts and bolts are tight, and if necessary they are tightened;
- It shall be verified that all spring-loaded connections (locking pin) are undamaged and not move while playing;
- Any cover screws and sharp edges must be checked and replaced if necessary;
• The maintenance manual shall be kept

Always inspect the trampoline before each use for worn, abused or missing parts. A number of conditions could arise that may increase your chances of getting injured. Please be aware of:

• Punctures, holes, or tears in the trampoline mat
• Sagging trampoline mat
• Loose stitching or any kind of deterioration of the mat
• Bent or broken frame parts, such as the legs
• Broken, missing, or damaged springs
• Damaged, missing, or insecurely attached frame pad
• Protrusions of any types (especially sharp types) on the frame, springs, or mat

IF YOU FIND ANY OF THE PREVIOUS CONDITIONS, OR ANYTHING ELSE THAT YOU FEEL COULD CAUSE HARM TO ANY USER, THE TRAMPOLINE SHOULD BE DISASSEMBLED OR SECURED FROM USE UNTIL THE CONDITION(S) HAS BEEN RESOLVED.

WINDY CONDITIONS

In severe wind situations, the trampoline can be blown about. If you expect windy weather conditions, the trampoline should be moved to a sheltered area or disassembled. Another option is to tie the ground, outside portion (top frame) of the trampoline to the ground using ropes and stakes. To ensure security, at least three (3) tie downs should be used.

MOVING THE TRAMPOLINE

If you need to move the trampoline, two people should be used. All connector points should be wrapped secured with weather resistant tape, such as duct tape. This will keep the frame intact during the move and prevent the connector points from dislocating and separating. When moving, lift the trampoline slightly of the ground and keep it horizontal to the ground. For any type of other move, you should disassemble the trampoline.

WINTER

In certain countries during winter period, the snow load and the very low temperature can damage the trampoline. It is recommended to remove the snow and store the mat and the enclosure indoors.

7.0 Warranty

1. After the date of the purchase invoice, the owner of the EXIT Black Edition trampoline has a:

2. 2-year warranty on the breaking of the frame

3. 1-year warranty on the springs
4. 1-year warranty on the protective surround pad and the jump mat.

5. 1 year warranty on the tearing of the net

6. The warranty applies only to the material and construction defects with respect to this product or its components.

7. The warranty becomes defunct if:

8. This product is used incorrectly and/or carelessly and is used in such a way that it does not comply with its purpose.

9. This product is not assembled and maintained according to the instruction booklet.
   • Technical repairs to this product are not carried out professionally.
10. Parts, which are mounted afterwards, do not comply with the technical specifications of the product concerned or are mounted incorrectly.
11. Defects are a result of climatic influences such as corrosion, UV rays or normal disintegration.
12. The product is rented out or was made available to various unspecified persons in any other manner.
13. EXIT Toys will repair or replace according to its choice all material and construction defects that have been ascertained by EXIT Toys during the warranty period.
14. The owner of the EXIT Toys Trampoline is only entitled to the warranty by presenting the product for inspection at a EXIT Toys dealer. It should be handed to the EXIT Toys dealer, accompanied by the original purchase invoice.
15. In case of material and construction defects that have been ascertained by EXIT Toys, the product or its components will be repaired or replaced – according to its choice – free of charge during the warranty period mentioned in Article 1.
16. If the claim for warranty is not justifiable, all the costs are at the expense of the owner.
17. This warranty cannot be transferred to third parties.
18. The trampoline is designed for personal use. It is not permitted to rent out or place the trampoline in public areas like schools or day-care centres. The guarantee and any other liabilities shall expire if the playhouse is rented out or used in public areas.

1.0 Einführung

3D rendered human figure in a seated posture, no text or symbols visible

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

Simple line drawing of two stick figures on a table, one standing and one lying down (no text or symbols)

Icon of a wrench and screwdriver (no text or symbols)

Simple line drawing of a stick figure standing on a bench with a diagonal line extending from above (no text or symbols)

Simple line drawing of a person standing on a table with arrows indicating direction (no text or symbols)

Simple line drawing of a stick figure standing on a table with height arrows indicating vertical distance (no text or symbols)

Simple line drawing of a person falling off a table with motion arrows, no text or symbols present

Four-step diagram illustrating a bottle, stick figure jumping, falling object, and human figures on a table.

Simple line drawing of a person falling with an arrow indicating motion, no text or symbols present

Simple line drawing of a bottle with a stopper, crossed out by a diagonal line (no text or symbols)

KONSUM VON ALKOHOL ODER DROGEN:

Simple line drawing of two stick figures standing above a table with a diagonal stripe (no text or symbols)

MEHRERE USER:

Illustration of a spring with a curved hook, crossed by a diagonal line (no text or symbols)

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

KONTROLLVERLUST:

Illustration of three human figures in various postures, showing different poses and motion (no text or symbols)

Illustration of three sequential human body postures in different poses: forward bend, forward forward bend, and forward forward bend (no text or symbols)

Illustration of three different human body poses: diving, standing, and lying (no text or symbols)

3D rendered human figure sitting on a curved surface (no text or symbols)

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

Simple line drawing of two stick figures on a table, one standing and one lying down (no text or symbols)

Icon of a wrench and screwdriver (no text or symbols)

Simple line drawing of a person standing on a bench with a diagonal line extending from above, no text or symbols present.

Simple line drawing of a person standing on a table with arrows indicating direction (no text or symbols)

Simple line drawing of a stick figure standing on a table with height arrows indicating measurement (no text or symbols)

Simple line drawing of a person falling off a table with motion arrows, no text or symbols present

Four-step diagram illustrating a bottle, stick figure motion, and human figures interacting with a table.

Simple line drawing of a person falling off a slope with an arrow indicating motion (no text or symbols)

OP- EN AFKLIMMEN:

Simple line drawing of a bottle with a label, crossed by a diagonal stripe (no text or symbols)

GEBRUIK VAN ALCOHOL OF DRUGS:

Simple line drawing of two stick figures standing on a table with a diagonal line above (no text or symbols)

MEERDERE GEBRUIKERS:

Illustration of a coiled spring with a loop, crossed by diagonal lines (no text or symbols)

IN AANRAKING KOMEN MET FRAME EN VEREN:

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

CONTROLEVERLIES:

WAARSCHUWING: neem elke 10 minuten even pauze.

3.0 TRAMPOLINETECHNIEKEN

BASISVAARDIGHEDEN

BASISVAARDIGHEID 1: de basissprong

1. 2. 3.

Illustration of three human figures in various postures, showing different poses and movements (no text or symbols)

Illustration of three human postures in different poses: forward bend, forward bend, and forward bend (no text or symbols)

Illustration of three different human body poses: diving, standing, and lying (no text or symbols)

STAP VOOR STAP OPBOUW

3D rendered human figure in a seated pose, no text or symbols visible

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

Simple line drawing of two stick figures on a table, one standing and one lying down (no text or symbols)

Two crossed wrench and screwdriver icons (no text or symbols)

Simple line drawing of a person standing on a bench with a diagonal line extending from above (no text or symbols)

Three-step diagram showing stick figure movement on a bed, with arrows indicating direction and height changes.

Four-step diagram illustrating a bottle, stick figure jumping, group interaction, and stick figure standing on a table.

Simple line drawing of a person falling with motion arrows and a table, no text or symbols present

MONTAGE ET DÉMONTAGE :

Simple line drawing of a bottle with a label, crossed out by a diagonal stripe (no text or symbols)

CONSOMMATION D'ALCOOL ET DE DROGUE :

Simple line drawing of two stick figures standing on a table with a diagonal line above (no text or symbols)

Illustration of a spring-loaded spring with a curved hook, crossed by diagonal lines (no text or symbols)

HEURT CONTRE L'ARMATURE DES RESSORTS:

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

PERTE DE CONTRÔLE :

Illustration of three human figures in various postures, showing different poses and motion (no text or symbols)

Illustration of three sequential human body postures: forward bend, forward forward bend, and forward forward bend (no text or symbols)

Illustration of three sequential human body poses: diving, standing, and lying (no text or symbols)

Yellow triangular warning sign with black exclamation mark symbol

ADVARSEL

3D rendered human figure sitting on a curved surface (no text or symbols)

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

Simple line drawing of two stick figures on a table, one standing and one sitting (no text or symbols)

Icon of a wrench and screwdriver (no text or symbols)

Simple line drawing of a person standing on a bed with a diagonal line extending from above (no text or symbols)

Simple line drawing of a person standing on a table with directional arrows indicating movement (no text or symbols)

Simple line drawing of a person standing on a table with height arrows indicating measurement or position (no text or symbols)

Simple line drawing of a person falling from above a table with motion arrows, no text or symbols present.

For at mindske risikoen for "TRAMPOLINBRUGEREN" skal man:

Simple line drawing of a person falling off a slope with an arrow indicating motion (no text or symbols)

MONTERING OG AFMONTERING:

Simple line drawing of a bottle with a label, crossed by a diagonal stripe (no text or symbols)

BRUG AF ALKOHOL ELLER STOFFER:

Simple line drawing of two stick figures standing on a table with a diagonal line above (no text or symbols)

FLERE BRUGRE:

Kun én bruger ad gangen; fare for kollision!

Illustration of a coiled spring with a loop, crossed by diagonal lines (no text or symbols)

AT RAMME FJEDERRAMMEN:

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

KONTROLTAB:

Illustration of three human figures in various postures, showing different poses and movements (no text or symbols)

Illustration of three human postures in different poses: forward bend, forward bend, and forward bend (no text or symbols)

Illustration showing three different postures of a human figure: kneeling, lying flat, and standing (no text or symbols present)

AVANCEREDE FÆRDIGHEDER 3: Liggende landing

Illustration of three different human body poses: diving, standing, and lying (no text or symbols)

3D rendered human figure in a seated pose, no text or symbols visible

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

Simple line drawing of two stick figures standing above a table, one holding an object (no text or symbols)

Two crossed wrench and screwdriver icons (no text or symbols)

Simple line drawing of a person standing on a bench with a diagonal line extending upward, no text or symbols present.

Simple line drawing of a person standing on a table with directional arrows indicating movement (no text or symbols)

Simple line drawing of a person standing on a table with height arrows indicating measurement or position (no text or symbols)

Simple line drawing of a person falling from above a table with motion arrows, no text or symbols present.

Four-step diagram illustrating a bottle, stick figure jumping, person jumping, and stick figure standing on a table.

Simple line drawing of a person walking with motion arrows and a table, no text or symbols present

PŘÍCHOD A ODCHOD:

Simple line drawing of a bottle with a label, crossed by a diagonal stripe (no text or symbols)

UŽITÍ ALKOHOLU NEBO DROG:

Simple line drawing of two stick figures standing on a table with a diagonal line above (no text or symbols)

VÍCE UŽIVATELŮ:

Illustration of a coiled spring with a loop, crossed by diagonal lines (no text or symbols)

POHYB NA OKRAJI TRAMPOLÍNY:

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

ZTRÁTA KONTROLY:

Illustration of three human figures in various postures, showing different poses and movements (no text or symbols)

Illustration of three different human postures in different poses: forward bend, forward bend, and forward bend (no text or symbols)

Illustration of three different human body poses: diving, standing, and lying (no text or symbols)

3D rendered model of a seated human figure in motion, no text or symbols visible

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

Simple line drawing of two stick figures standing on a table, one above the other (no text or symbols)

Icon of a wrench and screwdriver (no text or symbols)

ÎNTRETINEREA NECORESPUNZĂTOARE A TRAMBULINEI: O

Simple line drawing of a person standing on a bed with a diagonal line extending from above (no text or symbols)

Simple line drawing of a person standing on a table with arrows indicating direction (no text or symbols)

Simple line drawing of a stick figure standing on a table with height arrows indicating measurement or position (no text or symbols)

Simple line drawing of a person jumping over a table with motion arrows and a diagonal stripe (no text or symbols)

MĂSURI DE SIGURANTĂ PREVENTIVE PENTRU UTILIZATORII TRAMBULINEI

Simple line drawing of a person walking with motion arrows and a table, no text or symbols present

URCAREA ŞI COBORÂREA:

Simple line drawing of a bottle with a label, crossed by a diagonal stripe (no text or symbols)

INFLUENTA ALCOOLULUI, A MEDICAMENTELOR ŞI A DROGURILOR:

Simple line drawing of two stick figures standing on a table with a diagonal line above (no text or symbols)

UTILIZARE SIMULTANĂ DE MAI MULTE PERSOANE:

Accesul simultan al mai multor persoane este interzis; pericol de ciocnire!

Illustration of a coiled spring with a loop, crossed by diagonal lines (no text or symbols)

LOVIREA ARCURILOR DE SUSTINERE:

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

PIERDEREA CONTROLULUI:

Illustration of three human figures in various postures, showing different poses and movements (no text or symbols)

Illustration of three human postures in different poses: forward bend, forward bend forward, and forward bend forward (no text or symbols)

Illustration of three different human body poses: diving, standing, and lying (no text or symbols)

3D rendered human figure sitting on a curved surface (no text or symbols)

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

Simple line drawing of two stick figures standing on a table, one above the other (no text or symbols)

Icon of a wrench and screwdriver (no text or symbols)

Simple line drawing of a person standing on a bed with a diagonal line extending from above, no text or symbols present.

Simple line drawing of a person standing on a table with directional arrows indicating movement (no text or symbols)

Simple line drawing of a stick figure standing on a table with height arrows indicating measurement or position (no text or symbols)

Simple line drawing of a person falling from above a table with motion arrows, no text or symbols present.

RÅDGIVNINGSFÖRESKRIFTER FÖR ATT ÖVERVAKA TRAMPOLINEN

Simple line drawing of a person falling off a slope with an arrow indicating motion (no text or symbols)

GÅ UPP PÅ OCH NER FRÅN MATTAN:

Simple line drawing of a bottle with a label, crossed by a diagonal stripe (no text or symbols)

ALKOHOL- ELLER DROGANVÄNDNING:

Simple line drawing of two stick figures standing on a table with a diagonal line above (no text or symbols)

FLERA ANVÄNDARE:

Illustration of a coiled spring with a loop, crossed by diagonal lines (no text or symbols)

TRÄFFA FJÄDERRAMEN:

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

KONTROLLFÖRLUST:

Illustration of three human figures in various postures, showing different poses and movements (no text or symbols)

Illustration of three sequential human body postures in different poses (stretch, forward bend, forward bend), no text or symbols present.

Illustration showing three different postures of a person: kneeling forward, lying flat, and standing with a stick (no text or symbols)

AVANCERAD FÄRDIGHET 3: falla framåt

Illustration of three different human body poses: diving, standing, and lying (no text or symbols)

3D rendered human figure in a seated posture (no text or symbols)

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

Simple line drawing of two stick figures standing above a table, one holding an object (no text or symbols)

Two crossed wrench and screwdriver icons (no text or symbols)

Simple line drawing of a person standing on a bench with a diagonal line extending from above, no text or symbols present.

Simple line drawing of a person standing on a table with directional arrows indicating movement (no text or symbols)

Simple line drawing of a person standing on a table with height arrows indicating measurement or position (no text or symbols)

Simple line drawing of a person falling from above a table with motion arrows, no text or symbols present.

Simple line drawing of a person walking with motion arrows and a table, no text or symbols present

MONTÁŽ A DEMONTÁŽ:

Simple line drawing of a bottle with a label, crossed by a diagonal line (no text or symbols)

POUŽÍVANIE ALKOHOLU ALEBO LIEKOV

Simple line drawing of two stick figures standing on a table with a diagonal line above (no text or symbols)

VIACERÍ POUŽÍVATELIA:

Illustration of a coiled spring with a loop, crossed by diagonal lines (no text or symbols)

NARAZENIE DO RÁMU S PRUŽINAMI:

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

STRATA KONTROLY:

Illustration of three human figures in various postures, showing different poses and movements (no text or symbols)

Illustration of three sequential human body postures in different poses (stretch, forward bend, forward bend), no text or symbols present.

Illustration of three different human body poses: diving, standing, and lying (no text or symbols)

3D rendered human figure in a seated pose, no text or symbols visible

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

Simple line drawing of two stick figures on a table, one standing and one lying down (no text or symbols)

Two crossed wrench and screwdriver icons (no text or symbols)

Simple line drawing of a person standing on a bench with a diagonal line extending from above (no text or symbols)

Simple line drawing of a person standing on a table with directional arrows indicating movement (no text or symbols)

Simple line drawing of a person standing on a table with height arrows indicating measurement or position (no text or symbols)

Simple line drawing of a person falling from above a table with motion arrows, no text or symbols present.

Simple line drawing of a person falling off a slope with an arrow indicating motion (no text or symbols)

SALIRE E SCENDERE:

Simple line drawing of a bottle with a label, crossed by a diagonal stripe (no text or symbols)

USO DI ALCOL O DROGHE:

Simple line drawing of two stick figures standing on a table with a diagonal line above (no text or symbols)

PIÙ UTILIZZATORI:

Illustration of a coiled spring with a loop, crossed by diagonal lines (no text or symbols)

URTO DEL TELAIO DELLE MOLLE:

Simple line drawing of a person jumping over a table with motion arrows (no text or symbols)

PERDITA DI CONTROLLO:

Illustration of three human figures in various postures, showing different poses and movements (no text or symbols)

Illustration of three sequential human body postures in different poses (stretch, forward bend, forward bend), no text or symbols present.

Illustration of three different human body poses: diving, standing, and lying (no text or symbols)

Simple line drawing of a cylindrical container with a curved handle and a central hole, placed on grid paper (no text or symbols)

6ft x24

8ft -10ft x30

12ft -14ft x40

9

1 1

10

12 16

Curved gray cable or tube with a flat end (no text or symbols)

11

6 8

12

6 8

13

6 8

14

1 1

15 1 1

1

6ft-8ft-10ft x3 12ft-14ft x4

2

6ft-8ft-10ft x6 12ft-14ft x8

3

Diagram showing a curved mechanical or fluidic component with directional arrows, including an inset magnified view of a pipe fitting (no text or symbols present)

4

6ft-8ft-10ft x3 12ft-14ft x4

5

Technical line drawing of a circular mechanical component with four vertical supports (no text or symbols)

Technical line drawing of a circular mechanical component with multiple supports (no text or symbols)

6

Diagram of a round tray with a central oval body and four side supports, showing directional arrows (no text or symbols)

Diagram of a circular mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Simple diagram of a circular object with a central dark area and two horizontal lines, no text or symbols present.

Simple circular diagram with a central shaded area and a small protrusion, no text or symbols present.

Simple circular diagram with a central shaded region and four radial lines, no text or symbols present.

Circular diagram with a dark center and six surrounding segments, no text or symbols present.

Circular diagram with segmented outer ring and central gray area, no text or symbols present

Circular diagram with a dark center and evenly spaced small squares, no text or symbols present.

For 6-10ft For 12-14ft

Two hand tools: a covered glove and an safety goggles, with a checkmark icon in the bottom-right corner (no text or symbols on the devices themselves)


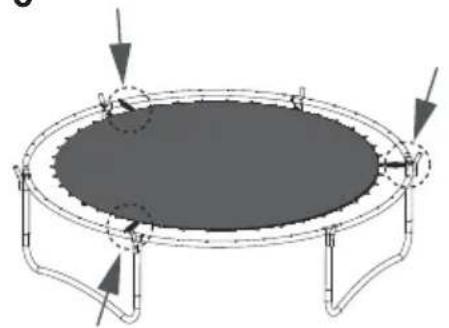

7

Technical diagram showing a trampoline setup with labeled components and an instructional illustration of the process.

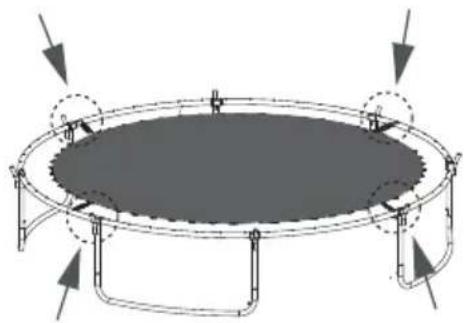

8

Technical diagram of a circular trampoline with four legs and a central base, showing directional arrows indicating movement (no text or symbols present)

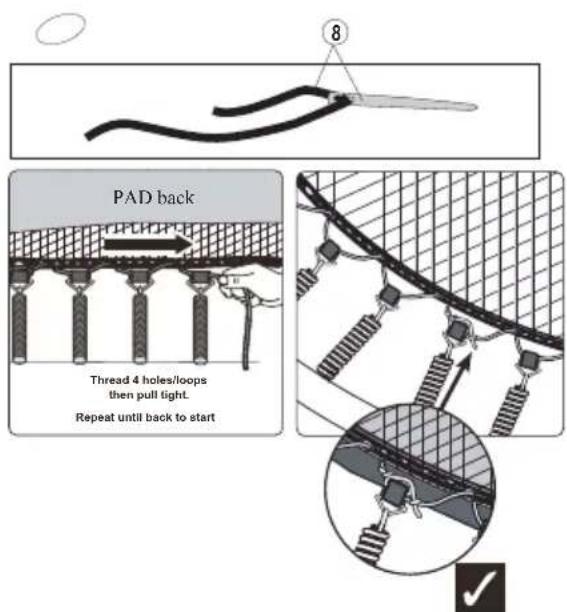

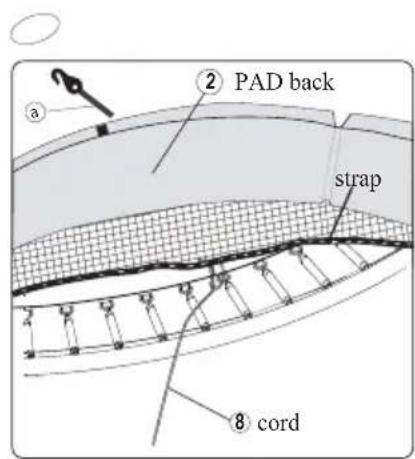

② PAD back strap ⑧ cord

PAD back Thread 4 holes/loops then pull tight. Repeat until back to start

a ②

Diagram of a hook being lifted by a spring, labeled 'a' (no text or symbols on diagram itself)

Diagram of a mechanical clamp or bracket with labeled component 'a' and handle (no text or symbols beyond label)

Diagram of two coiled spring components with labeled parts 'a' (no text or symbols beyond label)

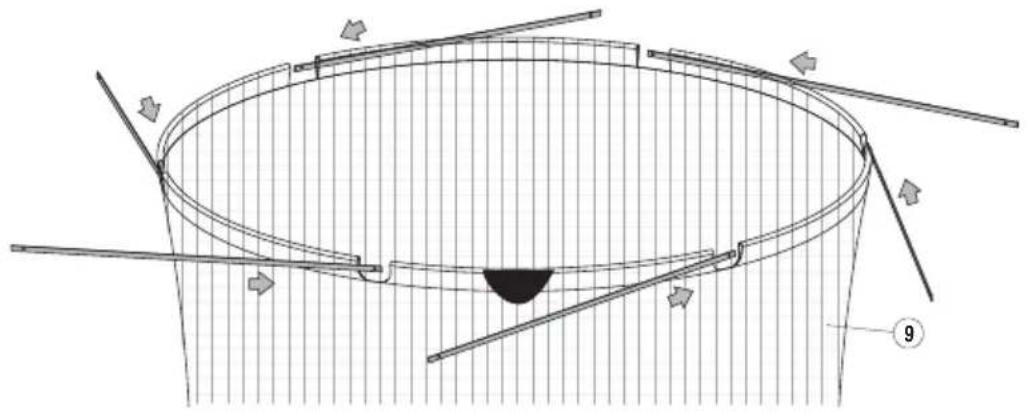

9

Technical diagram of a circular structure with directional arrows and a numbered label (9), no readable text or symbols present.

6ft-8ft-10ft x6 12ft-14ft x8

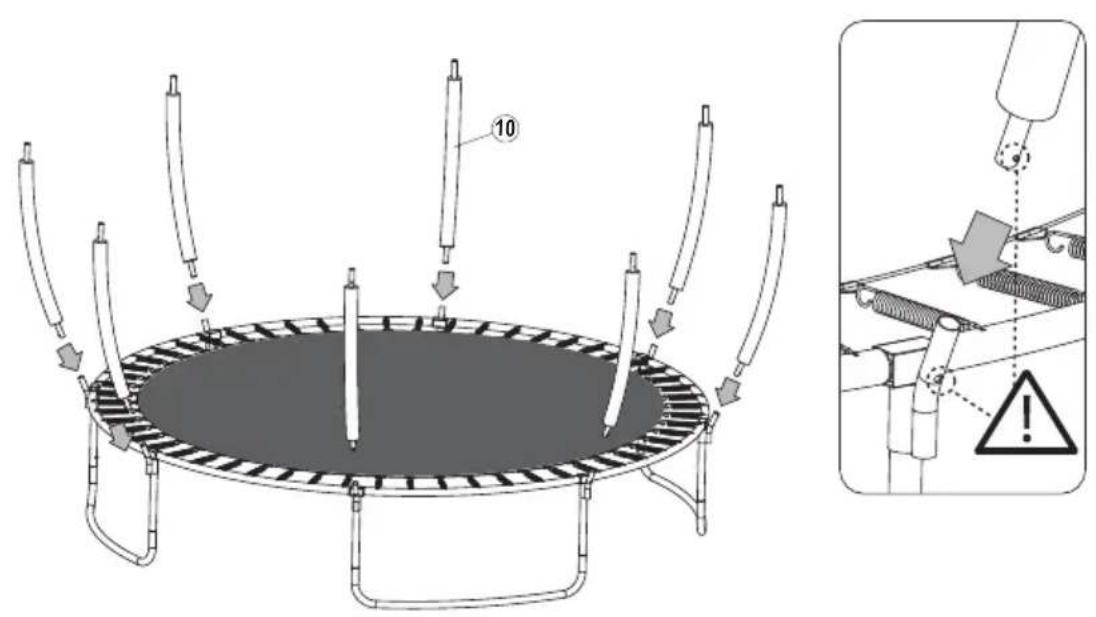

10

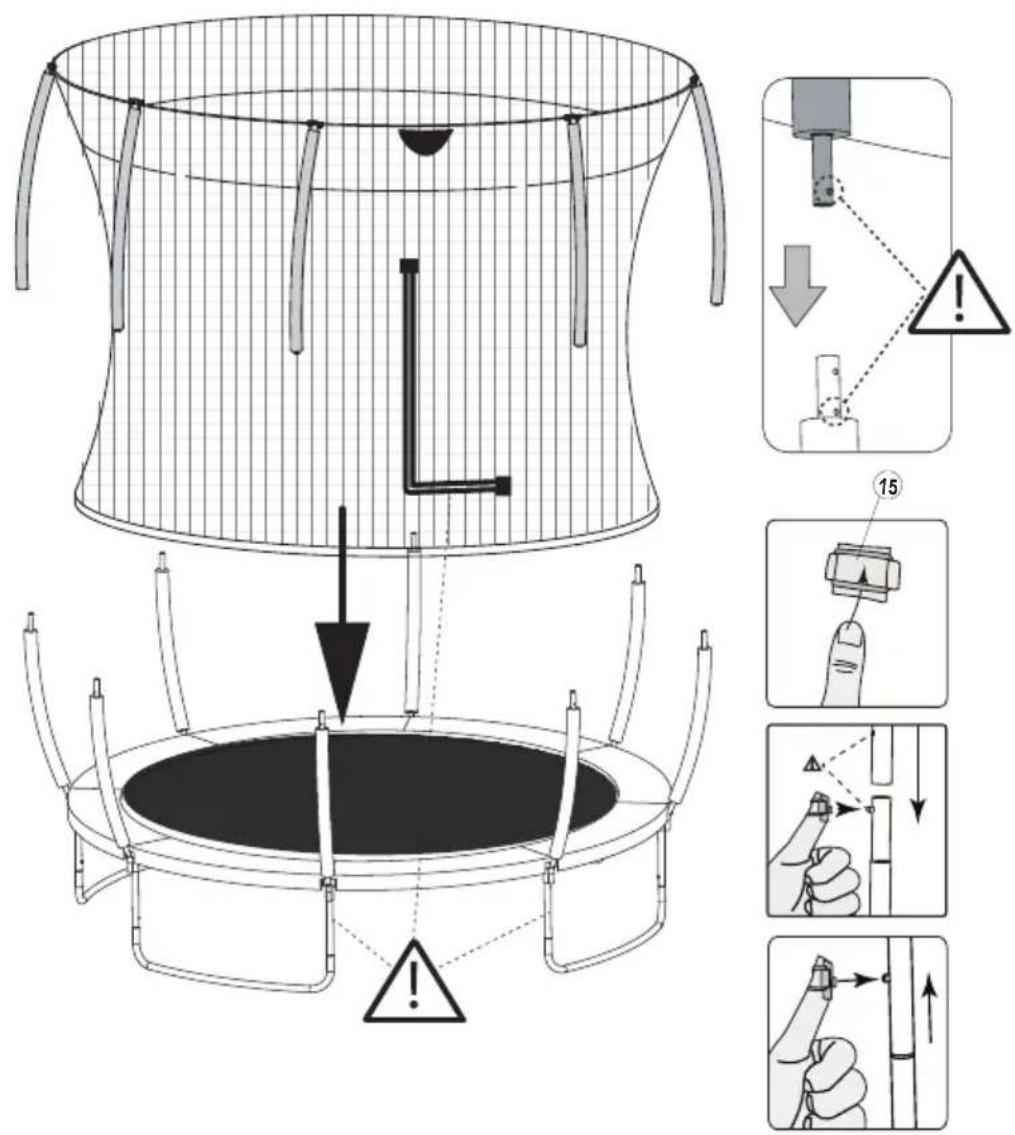

Technical diagram illustrating a mechanical assembly with labeled components and warning indicators for installation or inspection.

11

3D wireframe model of a circular tray or container with internal structure and support brackets (no text or symbols)

net

Simple line drawing of a hook attached to a surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a person climbing a slope with a grid-patterned background (no text or symbols)

Diagram showing a coiled spring attached to a wall with a handle, no text or symbols present

mat net

12

Extricate trampoline with a ladder and ladders, no visible text or symbols

Congratulations! Your trampoline is now fully assembled (put together).

Extricate trampoline with a ladders and a 'EXIT' logo on top (no text or symbols on the equipment itself)

Black Edition

Contact Information:

Dutch Toys Group B.V.

P.O. Box 369, 7000AJ, Doetinchem, The Netherlands Edisonstraat 83, 7006RB Doetinchem, The Netherlands

[phone]

[e-mail]

www.exittoys.com

EXIT Toys is a registered trade mark of Dutch Toys Group
