USER MANUAL Leather Premium spa Exit Toys

Congratulations on choosing an EXIT Toys spa! Have fun, be active and play outdoors...... That’s what keeps driving us to develop innovative, quality toys for cool kids and parents. We do everything possible to develop safe products for children. As our products are classed as toys, we comply with the toughest consumer safety regulations. Before launching our products onto the market, we have independent tests carried out for certication. We also continuously test our production runs and periodically have independent tests performed again as a further check. Only products which live up to the highest EXIT Toys standard are marked with and recognized by the EXIT-brand. “We want to thank you for your custom and your condence in this product. We’re sure your kids will have as much fun as we did during development. Being open- minded, we really appreciate all comments and ideas which will help us improve our products or develop new ones. You are invited to send your ideas to us at info@ exittoys.com” Please visit www.exittoys.com and discover more cool new products. The EXIT Toys team6 MSP-35101-V04

3.0 Guidelines for safe use

Carefully read, understand, and follow all information in this user manual before installing and using the spa.These warnings, instructions, and safety guidelines address some common risks of water recreation, but they cannot cover all risks and dangers in all cases. Always use caution, common sense, and good judgment when enjoying any water activity. Please read carefully and keep for future reference. Non Swimmers safety

1. Continuous, active, and vigilant supervision of weak swimmers and

non-swimmers by a competent adult is required at all times (remember that children under ve are at the highest risk of drowning)

2. Designate a competent adult to supervise the spa each time it is

3. Weak swimmers or non-swimmers should wear personal protection

equipment when using the spa;

4. When the spa is not in use, or unsupervised, remove all toys from

the SPA-pool and its surrounding to avoid attracting children to the spa. Safety devices

1. It is recommended to install a barrier (and secure all doors and

windows, where applicable) to prevent unauthorized access to the spa;

2. Barriers, spa covers, pool alarms, or similar safety devices are

helpful aids, but they are not substitutes for continuous and competent adult supervision. Safety equipment

1. It is recommended to keep rescue equipment (e.g. a ring buoy) by

2. Keep a working phone and a list of emergency phone numbers near

the spa. Safe use of the spa

1. Encourage all users especially children to learn how to swim;

2. Learn Basic Life Support (Cardiopulmonary Resuscitation - CPR) and

refresh this knowledge regularly. This can make a life-saving dierence in the event of an emergency;

3. Instruct all spa users, including children, what to do in case of an

4. Never dive into any shallow body of water. This can lead to serious

5. Do not use the swimming spa when using alcohol or medication that

may impair your ability to safely use the spa;

6. When spa covers are used, remove them completely from the water7

MSP-35101-V04 surface before entering the spa;

7. Protect spa occupants from water related illnesses by keeping the spa water

treated and practicing good hygiene.Consult the water treatment guidelines in the user’s manual;

8. Store chemicals (e.g. water treatment, cleaning or disinfection products) out of the

9. Use the signage as outlined below;

10. Removable ladders shall be placed on horizontal surface.

WARNING: a drained spa outdoors may cause unknown hazards.

WARNING: Installation and assembly shall be done by adults.

WARNING: Read and follow the the instruction for use and maintenance

to ensure a safe use of the swimming spa kit. Not following the instructions for use and maintenance can cause serious health hazards, in particular for children.

WARNING: Only for domestic outdoor use.

WARNING: Drowning hazard. Children can drown in very small amounts of water.

WARNING: Empty the spa when not in use. Do not leave a small spa empty outdoor.

WARNING: Keep children under supervision in the aquatic environment.

READ ALL INSTRUCTIONS AND SAFETY WARNINGS IN THIS MANUAL Failure to follow the warnings and instructions in this manual may result in serious injury, drowning or electric shock.The safety of your children is left on your hand! The risk is the highest for children aged below 5. Be high alert all the time. Always comply with the following instructions: - The children should be under close and constant supervision; - Designate one security responsible; - Always designate a responsible person to mange spa and spa area; - Adult supervision should always be relevant to the number of people using the spa; - Wet the nape, chest and legs before entering the water; - Learn the safety gestures and especially the specics to children; - Prohibit diving and jumping; - Prohibit running, splashing games around the spa; - Do not let an unattended child who does not swim use the spa with no life-jackets on; - Do not leave any players around and in the basin unattended; - Always keep the water treatment products out of reach of all children. If incident occurs remove the injured person or child from the spa and spa area Contact emergency services for advice and guidance on how to treat injured person or childThe hot tub’s electrical connections must be installed in the electrical safety zones labelled 1, 2 or outside all safety zones. The measured zones are limited by walls and xed partitions. DANGER Risk of accidental drowning: - Extreme caution must be exercised to prevent unauthorized access by children.8 MSP-35101-V04 - Inspect the spa cover regularly for leak, premature wear and tear, damage or signs of deterioration. Never use a worn or damaged cover: it will not provide the level of protection required to prevent unsupervised access to the spa by a child. - Always lock the spa cover after each use. Risk of injury: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. Risk of Electric Shock: - Do not permit any electrical appliances, such as a light, telephone, radio or television within 1.5m (5 feet) of a spa tub. - Do not use the spa when it is raining, thundering or lightning.. WARNING - To reduce the risk of electric shock, do not use an extension cord, timers, plug adapters or converter plugs to connect the unit to electric supply; provide a properly located outlet. - The spa electrical appliance should be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 10mA. - Parts containing live parts, except parts supplied with safety extra-low voltage not exceeding 12V, must be inaccessible to occupants in the spa. - Parts incorporating electrical components, except remote control devices, must be located or xed so that they cannot fall into the spa. - Residential electrical connection box must be located safely with a distance of at least 2m away from the spa. - Electric installation should fulll the local requirement or standards. - This appliance can be used by children aged from 8 years and above and persons with reduced physical,sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.9 MSP-35101-V04 - To reduce the risk or injury, do not permit children use this product unless they are closely supervised all times. - To reduce the risk of child drowning, supervise children all times. Attach and lock spa cover after each use. - Make sure the oor is capable of supporting the expected load (≥ 500kg/m²). - Adequate draining system must be provided around the spa to deal with overow water. - To avoid damage do not leave the appliance empty for an extended period. - To avoid damage to the pump, the spa must never be operated unless the spa is lled with water. - Immediately leave spa if uncomfortable or sleepy. To reduce the risk of injury : - Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes. - In order to avoid the possibility of hyperthermia (heat stress) occurring it is recommended that the average temperature of spa-pool water should not exceed 40°C (104°F). - Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy, pregnant or possibly pregnant women should limit spa water temperatures to 38°C (100°F). - Before entering a spa or hot tub the user should measure the water temperature with an accurate thermometer since the tolerance of water temperature regulating devices varies. - The use of alcohol, drugs or medication before or during spa use may lead to unconsciousness with the possibility or drowning. - The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia in spas. - The causes and symptoms of hyperthermia may be described as follows: - Hyperthermia occurs when the internal temperature of body reaches a level several degrees above the normal body temperature 37°C (98.6°F). The symptoms of hyperthermia include an increase in the internal temperature of body, dizziness, lethargy, drowsiness, and fainting. The eect of hyperemia include failure to perceive heat; failure to recognize the need to exit spa; unawareness of impending hazard; fatal damage in pregnant women; physical inability to exit the spa; and unconsciousness resulting in the danger of drowning. - Obese persons or persons with a history of heart disease, low or high blood pressure, circulatory system problem, or diabetes should consult a physician before using a spa. - Persons using medication should consult a physician before using a spa since some medication may induce drowsiness while other medication may aect heart rate, blood pressure and circulation. - Check with doctor before use if pregnant, diabetic, in poor health, or under medical care. - People with infectious disease should not use a spa or hot tub. - To avoid injury exercise care when entering or existing the spa or hot tub. - Water temperature in excess of 40°C (104°F) may be injurious to your health.10 MSP-35101-V04 - Never use a spa or hot tub alone or allow others to use the spa alone. - Do not use a spa or hot tub immediately following strenuous exercise. - Do not put the spa under 0°C (32°F) environment in order to avoid freezing if there is still water in the spa. - Do not turn on the spa when the water is frozen. - Never pour water with a temperature higher than 40°C(104°F) into the spa directly. - Always unplug this product from the electrical outlet before removing, cleaning, servicing or making any adjustment to the product. - Never jump or dive into a spa or any shallow body of water. - Do not bury the electrical cord. Locate the cord where it will not be damaged by lawn mowers, hedge trimmers and other equipment. - Do not attempt to plug in or unplug this product while standing in water or when your hands are wet. - Do not use the spa if damaged in delivery and/or malfunctioning in any way. - Do not add bath oil or bath salt to the spa water. - Do not leave an empty spa outside. - To prevent resetting of the thermal cut out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and o by the utility.

WARNING : Before proceed to installation your spa, please make sure that the

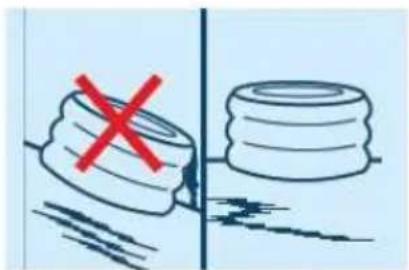

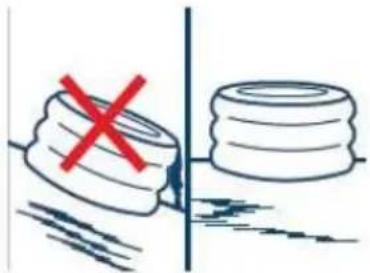

WARNING: Spa installed on inadequately level surfaces

are subject to leaking. forming irregularities or collapses. which can result in properly damage or serious injury for those in or around the spa area! CAUTION: Please choose your set-up area carefully as lawn and other desirable vegetation undereath the ground cloth (if applicable) wil die. furthermore, try to avoid setting the ground cloth. future location meets the following conditions: - A level place in order to avoid any defect, hernia or leakage. - Wide enough to support the spa and its pump unit. - Able to support more than 500 kg/m². - Sheltered from the sun and bad weather. - Clean and free from sharp objects. - Devoid of aggressive vegetation on the ground. Failure to comply with these rules may result in property damage or personal injury. regularly switched on

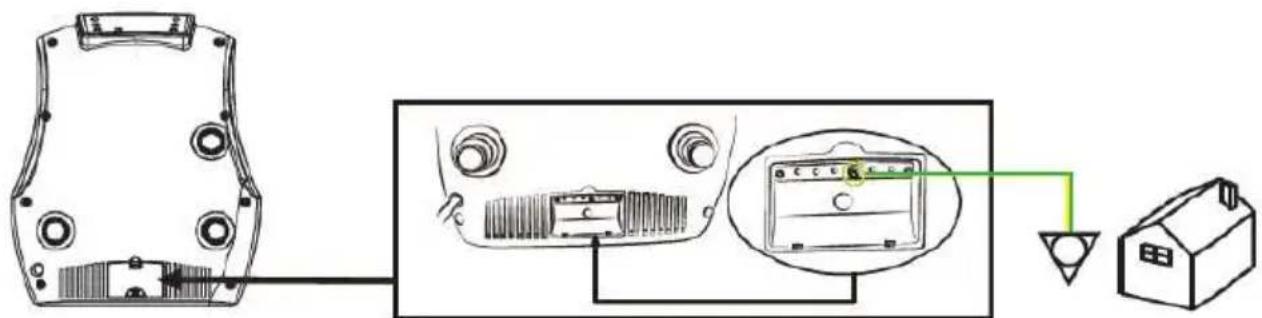

fails Grounding You are recommended to use the services of a qualied electrician to ensure that the spa is electrically grounded by using a copper conductor of at least 2.5 mm² crosssection

5.1 Spa cover and security

After each use, the control panel must be locked and the spa must be coated with its

Warning : Do not leave spa unattended while lling with water. Make sure

the drain tting is plugged securely and the cap is in place. Start lling the spa with water. After about 1-inch of water is on the bottom, stop lling and smooth wrinkles out of the bottom of the spa. Pull the outer wall out from the top edge, all around the bottom of the spa, so that it lls evently. Continue lling the spa until waterevel.12 MSP-35101-V0413 MSP-35101-V04 top cover and it must be attached to the base protector with the safety buckles. Each safety buckles has a lock system; closed buckle, the latch in up position locks the buckle, the latch in down position unlocks the buckle. The top cover keeps the heat from the water and secures the spa.

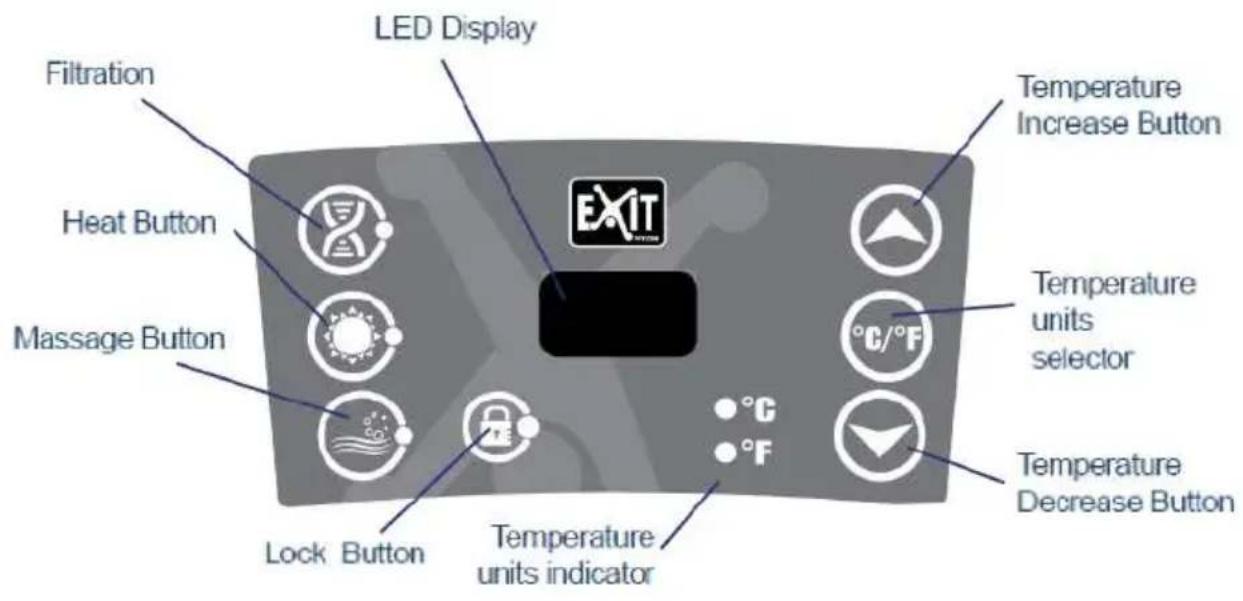

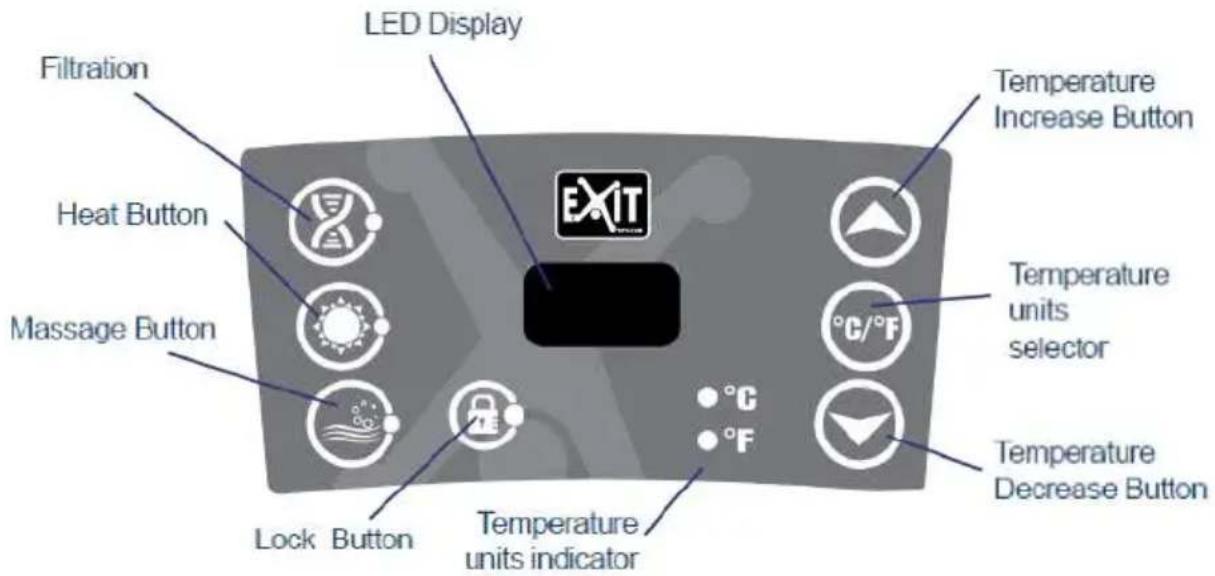

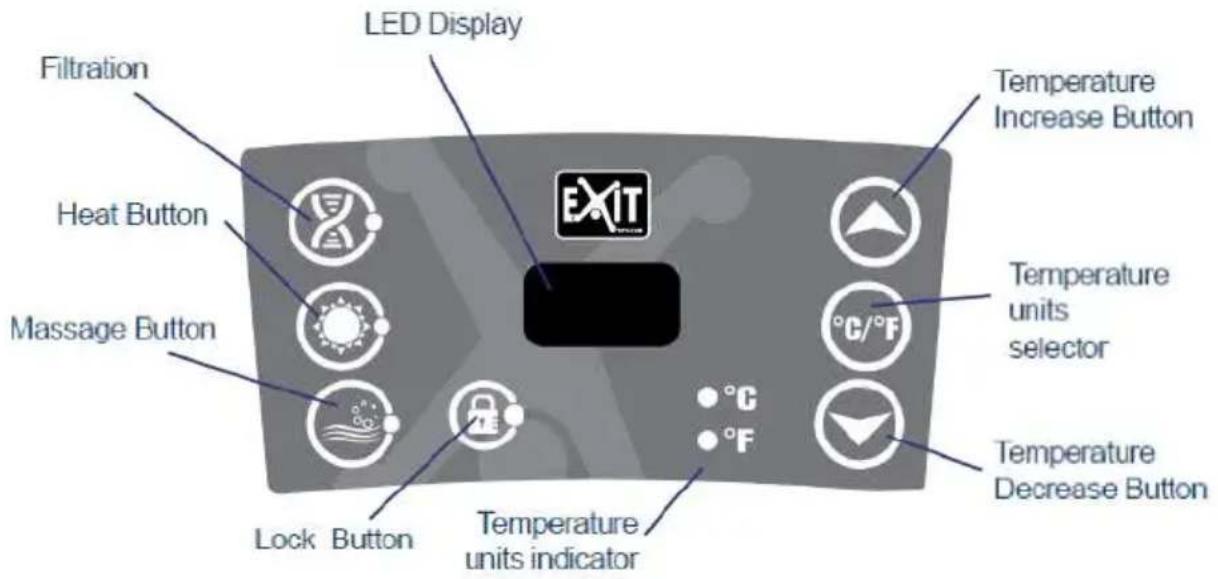

MSP-35101-V04 Once powered-up, the LED displays the current water temperature automatically. The temperature units selector changes the temperature units from Celsius degrees to Fahrenheit degrees. Press the temperature adjustment buttons, then the screen will ash. When it is ashing, you can set the desired temperature. The value will increase or decrease 1 degree at once. The temperature could be set between 30°C to 40°C (86°F to 104°F). To lock or unlock the control panel, press the Lock button and hold 3 seconds. Lock the control panel when you are away to prevent other people come to change your settings. Press the massage button to activate the bubble massage system, the green indicator light turns on. It can be turned o by pressing it again. Note: - The massage system will stop automatically after 30 minutes of operation. Re- activate the massage function by pressing the massage button again. - When lter button is on, pressing bubble button will exchange lter mode into massage mode: lter indicator light will turn o and massage indicator light turn on. If press the bubble button again, the massage mode will be changed back to lter mode. Press the lter button to activate the water ltration. The green indicator light will turn on when the ltration system is activated. Note: - If massage function is on, the ltration can’t be activated. Press the heating button to activate water heating and ltering system at the same time. The green indicator light of lter and red indicator light of heating will15 MSP-35101-V04 turn on at same time. The pump does not stop heating until the current water temperature reaches the set temperature; and the heating system will restart after the current water temperature drops 2°C below the set temperature automatically. Maximum heating temperature: 40°C (104°F) Important: After 150 cumulative hours of ltration operations, an audible alarm will sound and the LCD display will show the characters CHG, followed by FIL, to remind you to change or clean the lter. You can hold the ltering button 5 seconds to turn o the buzzing. The ltering system will turn o, you can press the button to active the ltering system again. Note : - With the heating system staring, the ltration system will start working together. - After turning o the heating system, the ltration system will still work. - If the massage function is active, the ltration and heating functions can not be activated.

6.2 Spa cover and security (optional)

After each use, the control panel must be locked and the spa must be coated with its top cover and it must be attached to the base protector with the safety buckles. Each safety buckles has a lock system ; closed buckle, the latch in up position locks the buckle, the latch in down position unlocks the buckle. The top cover keeps the heat from the water and secures the spa. 6.3. Water maintenance

WARNING: A bad spa water quality can harm your health.

Depending on the frequency and conditions of use: - The lter cartridge should be regularly cleaned (150 hours max.). - The lter cartridge should be replaced every 1 to 2 month. - The spa water should be changed every 15 to 30 days. Use a water test kit to control the parameters of the water before using the spa, or at least once a week. Use disinfection products for the spa. The treatment products should be used with caution and it is imperative to refer to their instructions. Damage resulting from improper use of treatment products is not covered by warranty (overdose, shock treatment, ...).

The water balance (pH) must be maintain between 7 and 7.4.

To sanitize the spa water, we suggest using an active oxygen-based treatment or bromine placed in a oating dispenser. (Dispenser sold separately).

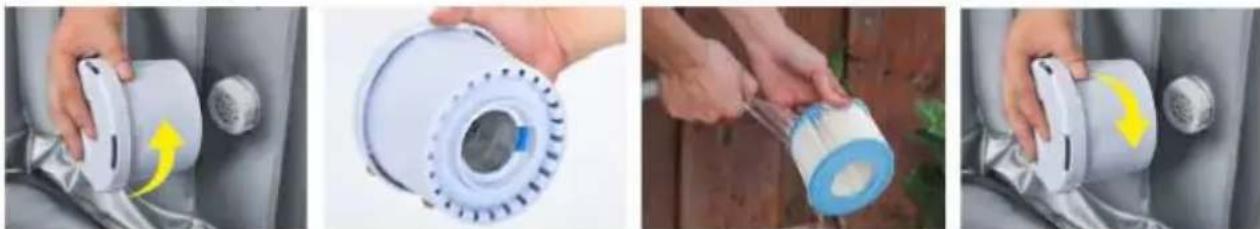

7.1 Cleaning and replacing lter cartridge

Dirty lter cartridge may contaminate the spa water and cause damage to the16 MSP-35101-V04 heatingfunction. 1. Unscrew the lter case by turning it counter-clockwise. Take out the lter cartridge from the case. 2. Rinse o the lter cartridge with a garden hose. If the lter cartridge remains dirty and discoloured, the lter cartridge should be replaced. 3. Put back the cleaned lter cartridge into his case and screw it to the spa.

Water Sanitation: To sanitize the spa water, we suggest using an active oxygen-based treatment or bromine placed in a oating dispenser. (Dispenser sold separately) If water is heavily polluted you should not use spa. Clean spa with with specialist UV lighting equipment. Seek professional advice and guidance before doing this. Attention: Detergent residues and dissolved solids from bathing suits and chemicals may build up on the spa walls, Use soap and water to clean the walls and rinse thoroughly with a garden hose using a direct powerful waterspray

7.3 Drainage and storage

1). Check the stopper on the bottom of the spa and the drain cap. 2). Unscrew the drain cap. 3). Remove the stopper on the bottom of the spa. Completely drain all water from the spa spa. 4). Once empty, the spa can be cleaned with soap and water. Storage 5). Press the bubbling button to blow out the water inside the jet holes. Unplug the pump, remove the lter cartridge from the inner wall of the spa. 6). Use a towel to wipe o the spa, dry 24 hours. 7). Unscrew the valves to deate the spa. 8). Fold the spa. It is recommended that store the SPA in its original package in a warm dry place. 7.4. Repair kit Little holes or puncture can be repaired with the repair kit included and glue reserved to spa liner. 1). Find the leak. 2). Thoroughly clean the area surrounding the leak. 3). Cut a piece of repair material in round shape, which should be larger than the damaged area.17 MSP-35101-V04 4). Apply adhesive to the underneath side of the patch and around the area to be repaired. 5). Put the patch on the damaged area and press down rmly. Allow 12 hours for repair to dry. After patch has dried, apply glue around the edges for a complete seal (dry 4 hours).

Here are some useful tips to help you to diagnose and rectify common sources of trouble. 8.2. Error code18 MSP-35101-V04 If the screen displays an error code “Ex”, please refer to the table below. E3, E4, E5, E6 error code Cut of electricity for 5 minutes and reconnect.19 MSP-35101-V04 If error code is still displayed on the control Box, please do the following instrutions: 1). Check that the water line is between the high and low limits. 2). Clean or replace the lter cartridge. 3). Unscrew and clean the 2 nozzles (Entry and exit of water) i nside the spa and remove wastes if necessary (Neaf, hairs, fur, skin...) 4). Check that the propeller of the lter pump does not contain foreign matter. Cut the spa again electrically for 5 minutes and re-connect it, if the error code is still displayed on the control box please contact the Service Center. 9.Warranty EXIT Toys products have been inspected and found free of defects prior to leaving the factory. EXIT Toys warrants this product against defects in material and workmanship for a period of time, 1 year for the pump and 6 months for the liner,unless local law has special requirement. EXIT Toys warrants this product begins on the date of20 MSP-35101-V04 purchase and EXIT Toys requires presentation of the original proof to purchase to ascertain the date. During the warranty period, EXIT Toys will either repair or replace, at its discretion, any defective produces. Replacement products or repaired parts will be warranted for only the unexpired portion of the original warranty. Shipping cost policy The return of defect parts to the authorized service center is at the charge of the owner. On warranty period, the return is at the charge of service center. Warranty policy This limited warranty does not apply to any defect resulting from negligence, accident, misuse, or other reason beyond EXIT Toys’s reasonable control, included but not limited to: normal wear and tear, negligence or failure to follow the product instructions, improper or inadequate maintenance; connection to improper power supply; chemical water damage, loss of spa water, unauthorized product modication or repair; use for commercial purpose; re, lightening, ood or other external causes. This warranty is valid only in the country of purchase in such countries where EXIT Toys sells and services the same model with identical technical specications. Warranty service outside the country of purchase is limited to the terms and conditions of the corresponding warranty in the country of service. Where the cost of repairs or replacement is not covered by this warranty, EXIT Toys will advise the owners and the cost shall be charged to the owner. This warranty only applies to the original purchaser and terminates upon any transfer of ownership. All repairs of which warranty claims are made must be pre-authorized by a EXIT Toys service center. All the authorized selling dealer is responsible for all in-eld service work carried out on your EXIT Toys product. EXIT Toys will not be liable for results of cost of workmanship from unauthorized service person. Warranty registration To validate your warranty, please register your product on our website EXIT Toys:www.EXIT Toys.com. It is essential that all informations including customer name, date of purchase, serial number, spa model are indicated. Without these information the warrantywill be invalid.21 MSP-35101-V04
