USER MANUAL Classic spa Exit Toys

Black and white photo of a hot water jet (no text or symbols visible)

Important safety rules: Before installing and using this product read, understand, follow all instructions carefully and keep it for future reference!

Icon of a crossed hammer and wrench (no text or symbols)

Instructions 4

English 5

Deutsch 20

Nederlands 35

Français 50

Slovenský 65

1.0 Part reference

Close-up of a dark, textured fabric or cushion with no visible text or symbols

1. 2.

3.
4.

Close-up of dark fabric or material with visible folds and fragments (no text or symbols)

[Non-Text]

[Non-Text]

5.

Close-up of a black mechanical component with a circular handle and threaded end (no text or symbols visible)

6.

Black rubber hose with a small hook attached, no visible text or symbols

8.

Three black threaded fasteners or bolts arranged diagonally (no text or symbols visible)

Close-up of a cylindrical mechanical component with a central hole and flange (no visible text or symbols)

9.
10.

Abstract geometric shape with overlapping gray planes (no text or symbols)

1. 12.

NOTE: Drawing for illustration purpose only. Actual product may vary. Not to scale. Before assembling your SPA-pool, layout and review the contents to become familiar with all the parts you will be using during the assembly:

Congratulations on choosing an EXIT Toys inflatable spa!

Have fun, be active and play outdoors.....

That's what keeps driving us to develop innovative, quality toys for cool kids and parents.

We do everything possible to develop safe products for children. As our products are classed as toys, we comply with the toughest consumer safety regulations. Before launching our products onto the market, we have independent tests carried out for certification. We also continuously test our production runs and periodically have independent tests performed again as a further check. Only products which live up to the highest EXIT Toys standard are marked with and recognized by the EXIT-brand.

"We want to thank you for your custom and your confidence in this product. We're sure your kids will have as much fun as we did during development. Being open-minded, we really appreciate all comments and ideas which will help us improve our products or develop new ones. You are invited to send your ideas to us at [e-mail]"

Please visit www.exittoys.com and discover more cool new products.

The EXIT Toys team

3.0 Guidelines for safe use

Warning symbol image with exclamation mark inside a triangle

Carefully read, understand, and follow all information in this user manual before installing and using the swimming SPA-pool. These warnings, instructions, and safety guidelines address some common risks of water recreation, but they cannot cover all risks and dangers in all cases. Always use caution, common sense, and good judgment when enjoying any water activity. Please read carefully and keep for future reference.

Non Swimmers safety

1. Continuous, active, and vigilant supervision of weak swimmers and non-swimmers by a competent adult is required at all times (remember that children under five are at the highest risk of drowning)
2. Designate a competent adult to supervise the SPA-pool each time it is being used;
3. Weak swimmers or non-swimmers should wear personal protection equipment when using the SPA-pool;
4. When the SPA-pool is not in use, or unsupervised, remove all toys from the SPA-pool and its surrounding to avoid attracting children to the SPA-pool.

Safety devices

1. It is recommended to install a barrier (and secure all doors and windows, where applicable) to prevent unauthorized access to the SPA-pool;
2. Barriers, SPA-pool covers, pool alarms, or similar safety devices are helpful aids, but they are not substitutes for continuous and competent adult supervision.

Safety equipment

1. It is recommended to keep rescue equipment (e.g. a ring buoy) by the SPA-pool;
2. Keep a working phone and a list of emergency phone numbers near the SPA-pool.

Safe use of the SPA-pool

1. Encourage all users especially children to learn how to swim;
2. Learn Basic Life Support (Cardiopulmonary Resuscitation - CPR) and refresh this knowledge regularly. This can make a life-saving difference in the event of an emergency;
3. Instruct all SPA-pool users, including children, what to do in case of an emergency;
4. Never dive into any shallow body of water. This can lead to serious injury or death;
5. Do not use the swimming SPA-pool when using alcohol or medication

that may impair your ability to safely use the SPA-pool;

1. When SPA-pool covers are used, remove them completely from the water surface before entering the SPA-pool;
2. Protect SPA-pool occupants from water related illnesses by keeping the SPA-pool water treated and practicing good hygiene. Consult the water treatment guidelines in the user's manual;
3. Store chemicals (e.g. water treatment, cleaning or disinfection products) out of the reach of children.
4. Use the signage as outlined below;
5. Removable ladders shall be placed on horizontal surface.

WARNING: drained SPA-pool outdoors may cause unknown hazards.

WARNING: Installation and assembly shall be done by adults.

WARNING: Read and follow the instruction for use and maintenance to ensure a safe use of the SPA-pool kit. Not following the instructions for use and maintenance can cause serious health hazards, in particular for children.

WARNING: Only for domestic outdoor use.

WARNING: Drowning hazard. Children can drown in very small amounts of water.

WARNING: Empty the SPA-pool when not in use. Do not leave a small SPA-pool empty outdoor.

WARNING: Keep children under supervision in the aquatic environment.

WARNING: No diving.

READ ALL INSTRUCTIONS AND SAFETY WARNINGS IN THIS MANUAL

Failure to follow the warnings and instructions in this manual may result in serious injury, drowning or electric shock. The safety of your children is left on your hand! The risk is the highest for children aged below 5. Be high alert all the time.

Always comply with the following instructions:

• The children should be under close and constant supervision;
• Designate one security responsible;
• Always designate a responsible person to manage SPA-pool and SPA-pool area;
• Adult supervision should always be relevant to the number of people using the SPA-pool;
• Wet the nape, chest and legs before entering the water;
• Learn the safety gestures and especially the specifics to children;
• Prohibit diving and jumping;
• Prohibit running, splashing games around the SPA-pool;
• Do not let an unattended child who does not swim use the SPA-pool with no life-jackets

on;

• Do not leave any players around and in the basin unattended;
• Always keep the water treatment products out of reach of all children.

If incident occurs remove the injured person or child from the SPA-pool and SPA-pool area

Contact emergency services for advice and guidance on how to treat injured person or childThe hot tub's electrical connections must be installed in the electrical safety zones labelled 1, 2 or outside all safety zones. The measured zones are limited by walls and fixed partitions.

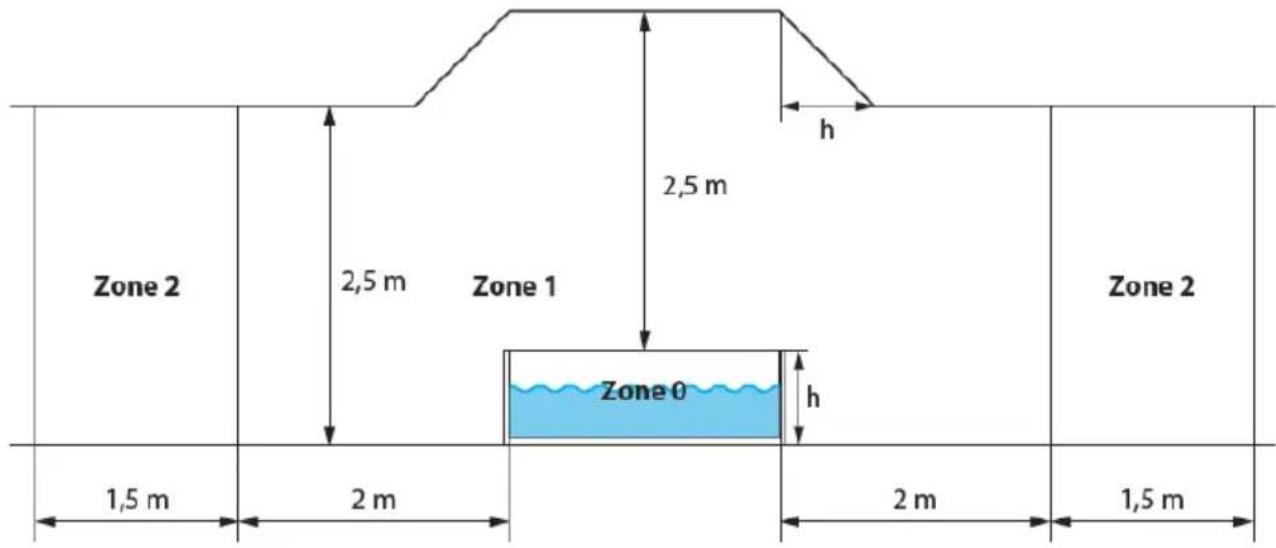

Zone 2 2,5 m Zone 1 2,5 m Zone 0 h Zone 2 1,5 m 2 m 2 m 1,5 m

DANGER

Risk of accidental drowning:

- Extreme caution must be exercised to prevent unauthorized access by children. - Inspect the spa cover regularly for leak, premature wear and tear, damage or signs of deterioration. Never use a worn or damaged cover: it will not provide the level of protection required to prevent unsupervised access to the spa by a child.

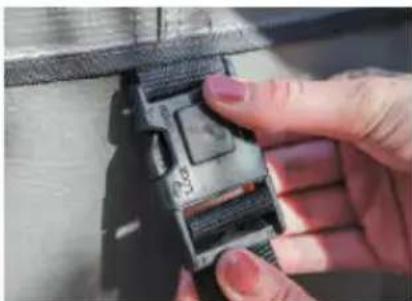

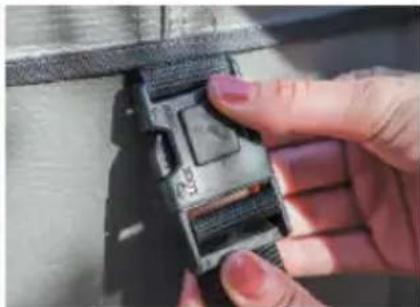

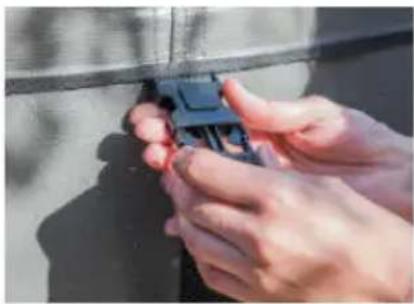

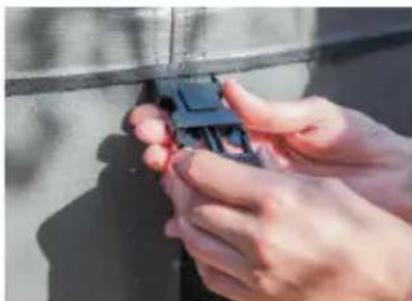

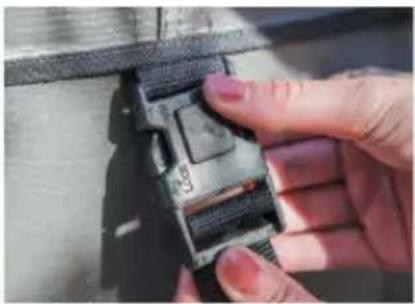

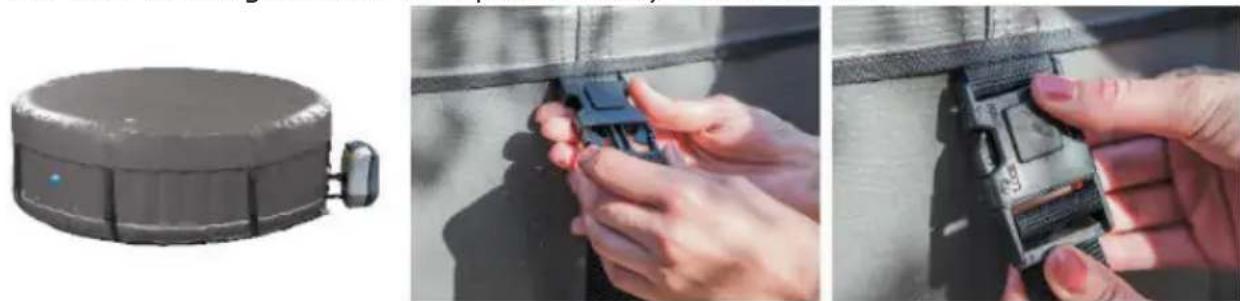

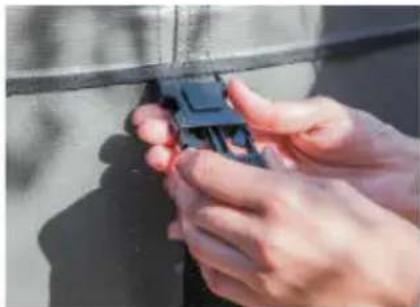

- Always lock the spa cover after each use.

Risk of injury:

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Risk of Electric Shock:

- Do not permit any electrical appliances, such as a light, telephone, radio or television within 1.5m (5 feet) of a spa tub.

- Do not use the spa when it is raining, thundering or lightning..

WARNING

- To reduce the risk of electric shock, do not use an extension cord, timers, plug adapters or converter plugs to connect the unit to electric supply; provide a properly located outlet.

- The spa electrical appliance should be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 10mA.

- Parts containing live parts, except parts supplied with safety extra-low voltage not exceeding 12V, must be inaccessible to occupants in the spa.

- Parts incorporating electrical components, except remote control devices, must be located or fixed so that they cannot fall into the spa.

- Residential electrical connection box must be located safely with a distance of at least 2m away from the spa.

- Electric installation should fulfill the local requirement or standards.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- To reduce the risk or injury, do not permit children use this product unless they are closely supervised all times.

- To reduce the risk of child drowning, supervise children all times. Attach and lock spa cover after each use.

- Make sure the floor is capable of supporting the expected load (≥ 500kg/m²).

- Adequate draining system must be provided around the spa to deal with overflow water.

- To avoid damage do not leave the appliance empty for an extended period.

- To avoid damage to the pump, the spa must never be operated unless the spa is filled with water.

- Immediately leave spa if uncomfortable or sleepy.

To reduce the risk of injury :

- Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.

- In order to avoid the possibility of hyperthermia (heat stress) occurring it is recommended that the average temperature of spa-pool water should not exceed 40^ C ( 104^ F).

- Since excessive water temperatures have a high potential for causing fetal damage during the early

months of pregnancy, pregnant or possibly pregnant women should limit spa water temperatures to 38°C

(100°F).

- Before entering a spa or hot tub the user should measure the water temperature with an accurate thermometer

since the tolerance of water temperature regulating devices varies.

- The use of alcohol, drugs or medication before or during spa use may lead to unconsciousness with the possibility or drowning.

- The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia in spas.

- The causes and symptoms of hyperthermia may be described as follows:

- Hyperthermia occurs when the internal temperature of body reaches a level several degrees above the normal body temperature 37^ C ( 98.6^ F). The symptoms of hyperthermia include an increase in the internal temperature of body, dizziness, lethargy, drowsiness, and fainting. The effect of hyperemia include failure to perceive heat; failure to recognize the need to exit spa; unawareness of impending hazard; fatal damage in pregnant women; physical inability to exit the spa; and unconsciousness resulting in the danger

of drowning.

- Obese persons or persons with a history of heart disease, low or high blood pressure, circulatory system

problem, or diabetes should consult a physician before using a spa.

- Persons using medication should consult a physician before using a spa since some medication may

induce drowsiness while other medication may affect heart rate, blood pressure and circulation.

- Check with doctor before use if pregnant, diabetic, in poor health, or under medical care.

- People with infectious disease should not use a spa or hot tub.

- To avoid injury exercise care when entering or existing the spa or hot tub.

- Water temperature in excess of 40^ C ( 104^ F) may be injurious to your health.

- Never use a spa or hot tub alone or allow others to use the spa alone.

- Do not use a spa or hot tub immediately following strenuous exercise.

- Do not put the spa under 0^ C ( 32^ F) environment in order to avoid freezing if there is still water in the SPA-pool.

- Do not turn on the spa when the water is frozen.

- Never pour water with a temperature higher than 40°C(104°F) into the spa directly.

- Always unplug this product from the electrical outlet before removing, cleaning, servicing or making any adjustment to the product.

- Never jump or dive into a spa or any shallow body of water.

- Do not bury the electrical cord. Locate the cord where it will not be damaged by lawn mowers, hedge trimmers and other equipment.

- Do not attempt to plug in or unplug this product while standing in water or when your hands are wet.

- Do not use the spa if damaged in delivery and/or malfunctioning in any way.

- Do not add bath oil or bath salt to the spa water.

- Do not leave an empty SPA-pool outside.

- To prevent resetting of the thermal cut out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

WARNING: Spa installed on inadequately level surfaces are subject to leaking. forming irregularities or collapses. which can result in properly damage or serious injury for those in or around the spa area! CAUTION: Please choose your set-up area carefully as lawn and other desirable vegetation undereath the ground cloth (if applicable) wil die. furthermore, try to avoid setting the ground cloth. areas prone to aggressive plant and weed species, as they may grow trough the ground cloth.

4. Installation

4.1. Site selection

WARNING: Before proceed to installation your spa, please make sure that the future location meets the following conditions:

- A level place in order to avoid any defect, hernia or leakage.

- Wide enough to support the SPA-pool and its pump unit.

- Able to support more than 500 kg/m ^2 .

- Sheltered from the sun and bad weather.

- Clean and free from sharp objects.

- Devoid of aggressive vegetation on the ground.

Failure to comply with these rules may result in property damage or personal injury.

regularly switched on

4.2 RCD test

Illustration showing a red 'X' symbol crossed over a water container with an umbrella, set against raindrops and branches.

A place with an awning

Safety warning sign showing red X mark and blue broom against water, indicating incorrect repair or anti-corruption.

Clean the place

Two-panel illustration showing a red 'X' symbol crossed over a cylindrical object, separated by a blue line (no text or symbols)

A level place

WARNING: The RCD plug must be tested before each use. Do not use if RCD test

Close-up of hands holding a small cylindrical object outdoors (no visible text or symbols)

1. Insert the plug into the power outlet.

Close-up of a hand holding a black electrical plug with a yellow arrow pointing to the plug (no text or symbols visible)

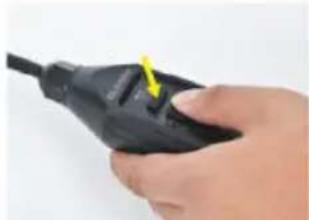

1. Press the «RESET» button, the indicator light turns red.

Close-up of a hand holding a black electrical plug with a yellow tip, against a plain white background (no text or symbols visible)

1. Press the «TEST» button, the indicator light turns off.

Close-up of a hand holding a black electrical plug with a yellow arrow pointing to the plug (no text or symbols visible)

1. Press the «RESET» button, the indicator light turns red. The RCD works properly.

fails

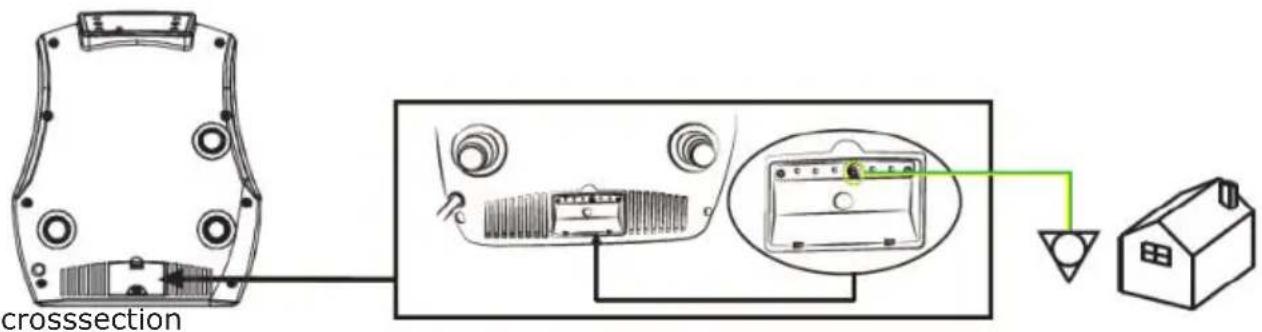

Grounding

You are recommended to use the services of a qualified electrician to ensure that the spa is electrically grounded by using a copper conductor of at least 2.5 mm ^4

crosssection

5. Assembling

Warning symbol image with exclamation mark inside a triangle

Warning : Do not leave spa unattended while filling with water. Make sure the drain fitting is plugged securely and the cap is in place. Start filling the spa with water. After about 1-inch of water is on the bottom, stop filling and smooth wrinkles out of the bottom of the spa. Pull the outer wall out from the top edge, all around the bottom of the spa, so that it fills evenly. Continue filling the spa until waterf level.

Person performing a physical therapy or massage on a mat, lying on the floor with a cloth (no text or symbols visible)

1) Unfold the inflatable spa over the base protector.(Optional)

Person using a vacuum cleaner to clean or fabric the floor (no text or symbols visible)

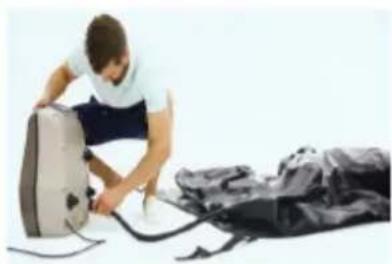

2) Bring the pump unit to the inflatable spa.

Close-up of hands using a handheld device to adjust a black cable (no visible text or symbols)

3) Connect the inflation hose to the pump on the socket.

Close-up of a black plastic connector with threaded shaft, attached to a white surface (no visible text or symbols)

4) Insert the inflation hose into the inflatable spa

EXIT 888

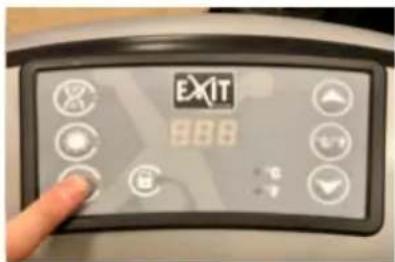

5) Connect the pump unit then press the button to inflate the spa. The air flow valve prevents your spa from over-inflating.

Man sitting on a computer monitor with a vintage CRT monitor nearby (no visible text or symbols)

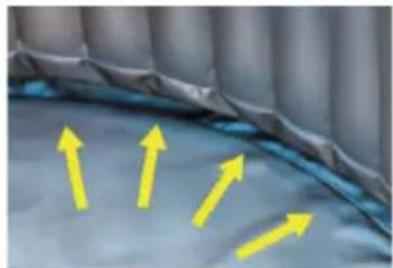

6) Inflate the inflatable spa for about 10 minutes. Ensure that the spa is firmly inflated.

Close-up of hands adjusting a mechanical component with a yellow arrow indicating direction (no text or symbols visible)

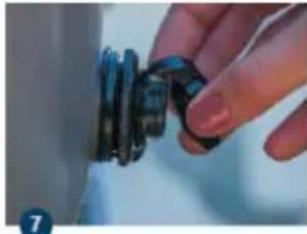

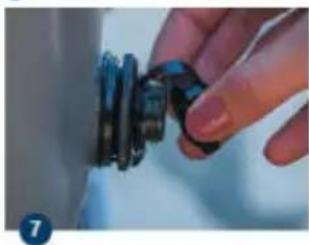

7) Remove the inflation hose and screw the cap firmly in place.

Close-up of a hand operating a white sewing machine with black connectors (no visible text or symbols)

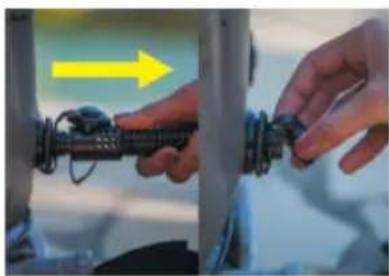

8) Connect the unit pump to the pool using the 3 connectors to screw. Ensure the icons on the pump and the pool match up

Close-up of a medical scanner with blue tape and white film, no visible text or symbols

9) Cartridge location as shown.

Close-up of a hand pressing down on a white wall-mounted device with a black strap (no visible text or symbols)

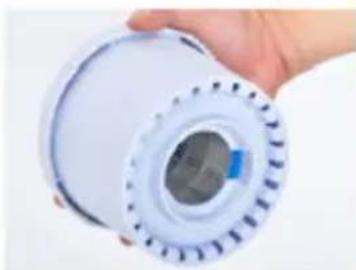

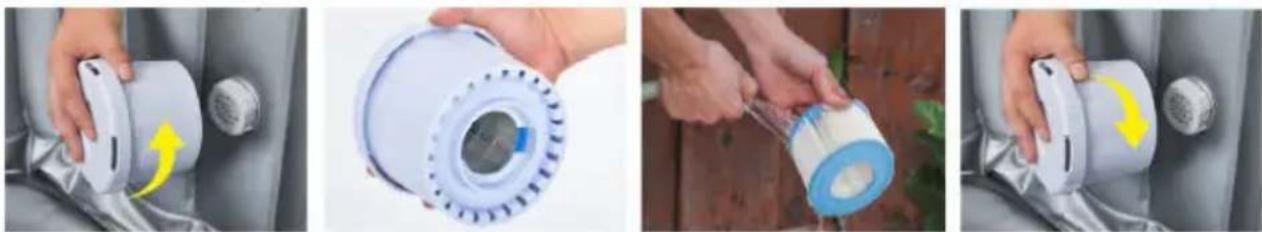

10) Put the filter cartridge in the support then screw it onto the lower suction inside the basin.

Close-up of hands adjusting a small mechanical component (no visible text or symbols)

11) Ensure that the drain caps are properly closed before before filling the spa

Close-up of a textured surface with yellow directional arrows indicating flow or movement (no text or symbols)

12) Smooth wrinkles out of the bottom of the spa, then fill the spa to the level indicated. Your spa is ready.

6. Usage

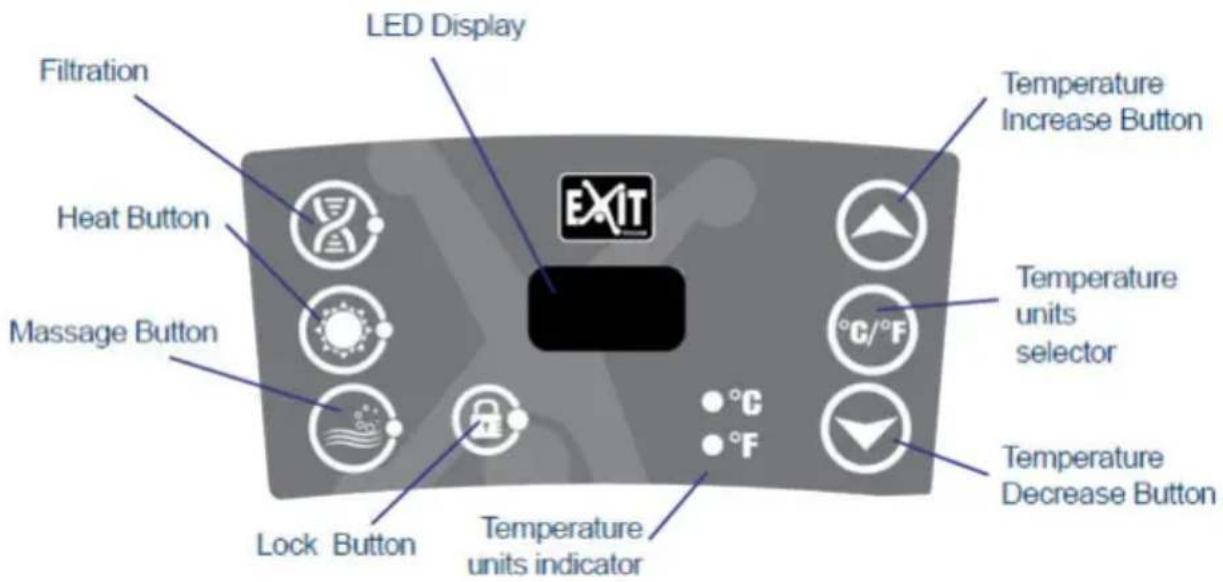

6.1 Control panel

LED Display Filtration Heat Button Massage Button Lock Button Temperature Increase Button EXIT Temperature units selector °C/°F °C °F Temperature Decrease Button Temperature units indicator

Once powered-up, the LED displays the current water temperature automatically.

The temperature units selector changes the temperature units from Celsius degrees to Fahrenheit degrees.

Press the temperature adjustment buttons, then the screen will flash. When it is flashing, you can set the desired temperature. The value will increase or decrease 1 degree at once. The temperature could be set between 30°C to 40°C (86°F to 104°F).

To lock or unlock the control panel, press the Lock button and hold 3 seconds. Lock the control panel when you are away to prevent other people come to change your settings.

Press the massage button to activate the bubble massage system, the green indicator light turns on. It can be turned off by pressing it again.

Note:

- The massage system will stop automatically after 30 minutes of operation. Reactivate the massage

function by pressing the massage button again.

- When filter button is on, pressing bubble button will exchange filter mode into massage mode: filter indicator light will turn off and massage indicator light turn on. If press the bubble button again, the massage mode will be changed back to filter mode.

Press the filter button to activate the water filtration. The green indicator light will turn on when the filtration system is activated.

Note: - If massage function is on, the filtration can't be activated.

Press the heating button to activate water heating and filtering system at the same time. The green indicator light of filter and red indicator light of heating will turn on at same time. The pump does not stop heating until the current water temperature reaches the set temperature; and the heating system will restart after the current water temperature drops 2°C below the set temperature automatically. Maximum heating temperature: 40°C (104°F)

Important:

After 150 cumulative hours of filtration operations, an audible alarm will sound and the LCD display will show the characters CHG, followed by FIL, to remind you to change or clean the filter. You can hold the filtering button 5 seconds to turn off the buzzing. The filtering system will turn off, you can press the button to active the filtering system again.

Note :

• With the heating system staring, the filtration system will start working together.
• After turning off the heating system, the filtration system will still work.
• If the massage function is active, the filtration and heating functions can not be activated.

6.2 SPA-pool cover and security (optional)

After each use, the control panel must be locked and the SPA-pool must be coated with its top cover and it must be attached to the base protector with the safety buckles.

Each safety buckles has a lock system; closed buckle, the latch in up position locks the buckle, the latch in down position unlocks the buckle.

The top cover keeps the heat from the water and secures the SPA-pool.

6.3. Water maintenance

WARNING: A bad SPA-pool water quality can harm your health.

Depending on the frequency and conditions of use:

• The filter cartridge should be regularly cleaned (150 hours max.).
• The filter cartridge should be replaced every 1 to 2 month.

- The SPA-pool water should be changed every 15 to 30 days.

Use a water test kit to control the parameters of the water before using the spa, or at least once a week. Use disinfection products for the spa. The treatment products should be used with caution and it is imperative to refer to their instructions.

Damage resulting from improper use of treatment products is not covered by warranty (overdose, shock treatment, ...).

1. Water balance

The water balance (pH) must be maintain between 7 and 7.4.

1. Water Sanitation

To sanitize the SPA-pool water, we suggest using an active oxygen-based treatment or bromine placed in a floating dispenser. (Dispenser sold separately).

7. Maintenance

7.1 Cleaning and replacing filter cartridge

Dirty filter cartridge may contaminate the SPA-pool water and cause damage to the heatingfunction. 1. Unscrew the filter case by turning it counter-clockwise. Take out the filter cartridge from the case. 2. Rinse off the filter cartridge with a garden hose. If the filter cartridge remains dirty and discoloured, the filter cartridge should be replaced. 3. Put back the cleaned filter cartridge into his case and screw it to the SPA-pool.

7.2 Disinfection

Water Sanitation: To sanitize the SPA-pool water, we suggest using an active oxygen-based treatment or bromine placed in a floating dispenser. (Dispenser sold

separately) If water is heavily polluted you should not use SPA-pool. Clean SPA-pool with with specialist UV lighting equipment. Seek professional advice and guidance before doing this.

Attention:

Detergent residues and dissolved solids from bathing suits and chemicals may build up on the spa walls, Use soap and water to clean the walls and rinse thoroughly with a garden hose using a direct powerful waterspray

7.3 Drainage and storage

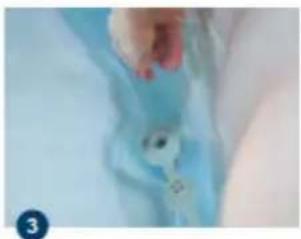

1). Check the stopper on the bottom of the SPA-pool and the drain cap.
2). Unscrew the drain cap.
3). Remove the stopper on the bottom of the SPA-pool. Completely drain all water from the spa pool.
4). Once empty, the SPA-pool can be cleaned with soap and water. Storage

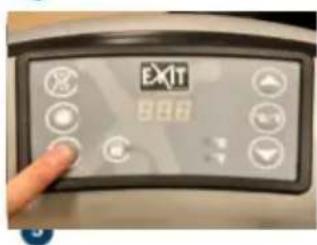

5). Press the bubbling button to blow out the water inside the jet holes. Unplug the pump, remove the filter cartridge from the inner wall of the SPA-pool.
6). Use a towel to wipe off the SPA-pool, dry 24 hours.
7). Unscrew the valves to deflate the SPA-pool.
8). Fold the SPA-pool.

It is recommended that store the SPA in its original package in a warm dry place.

7.4. Repair kit

Little holes or puncture can be repaired with the repair kit included and glue reserved to SPA-pool liner.

1). Find the leak.
2). Thoroughly clean the area surrounding the leak.
3). Cut a piece of repair material in round shape, which should be larger than the damaged area.
4). Apply adhesive to the underneath side of the patch and around the area to be repaired.
5). Put the patch on the damaged area and press down firmly. Allow 12 hours for repair to dry. After patch has dried, apply glue around the edges for a complete

Close-up of a hand holding a small object against a light blue background (no visible text or symbols)

Close-up of hands applying a small circular object to a surface, no visible text or symbols

Close-up of a hand holding a small object, possibly a medical or laboratory device (no visible text or symbols)

EXIT 800

Hand using a white plastic pad to clean or store food on a metal surface (no text or symbols visible)

Close-up of a hand adjusting a black mechanical component (no visible text or symbols)

Person kneeling on a blue surface, handling a large black object (no visible text or symbols)

seal (dry 4 hours).

8. Trouble shooting

8.1 Common problems

Here are some useful tips to help you to diagnose and rectify common sources of

Problem	Cause	Solution
Control panel screen does not operate	Check power source	Power failure
		Reset the RCD plug / Check if the wiring system is adapted to the power of the pump unit.
		Call for service if it does not reset
SPA pump does not heat properly	Temperature set is too low	Set to a higher temperature
	Filter Cartridge is dirty	Clean or Replace the cartridge (see chapter 5.2)
	Too low water level	Fill water to minimum water level
	Heating element defective	Call for service
Bubble massage system does not work	Pump is overheating	Cut off the power and wait until the pump has cooled.
	Auto shut-down feature (30min) is activated	Press the bubble button to reactivate
	Malfunction of the pump unit	Call for service if it does not reset
Water filtration does not work	Filter Cartridge is dirty	Clean or Replace the cartridge (see chapter 5.2)
	Inlet and outlet blocked	Clean the inlet and outlet
	Air inside the pump	Fill water to minimum water level
	Malfunction of the pump unit	Call for service if it does not reset
Pump leakage	Adaptor seal improperly	Replace the seal in the right position
	Water leakage from pump body	Check the pump body, call for service
Spa pool leakage	Spa pool is tom or punctured	Use provided repair kit (see chapter 5.4)
Water is not clean	Insufficient filtering time	Increase the filtering time
	Filter Cartridge is dirty	Clean or Replace the cartridge (see chapter 5.2)
	Pool filled water quality	Change the pool water completely
	Improper water treatment	Refer to the chemical manufacturer's instructions
CHG FIL	After 150 cumulative hours of filtration operations, an audible alarm will sound and the LCD display will show the characters CHG, followed by FIL, to remind you to change or clean the filter. You can hold the filtering button 5 seconds to turn off the buzzing. The filtering system will turn off, you can press the button to active the filtering system again.

trouble.

8.2. Error code

Code	Situation	Problem	Causes	Solutions
E1	Not heating Not heating properly.	Wrong temperature control sensor.	Temperature control sensor short circuit or open circuit.	Contact service center.
E3	Not heating properly.	High water temperature indicator.	1. The filled water is over 45°C (113°F)2. The filter cartridge was put on the wrong suction fitting (higher suction fitting).	1. Cut off the power, make sure the pool water is between 2°C~44°C (36°F~111°F). If this does not solve the problem, refer to the box below.2. Put the filter cartridge on the lower suction fitting.
E4	All functions do not work, buzzing warn.	Low water temperature indicator.	The pool water is lower than 2°C (36°F).	·Cut off the power, make sure the pool water is between 2°C~44°C (36°F~111°F)·If this does not solve the problem, refer to the box below
E5	All functions do not work, buzzing warn.	High water temperature indicator.	The filled water is over 50°C (122°F).	·Cut off the power, turn to qualified electrician to reset the thermal cutout described in next paragraph.·If this does not solve the problem, refer to the box below
E6	Not heating and filtering properly.Buzzing warns.	Water pressure is not big enough to activate heating.	·Inlet or outlet on inner wall are blocked.·Filter cartridge is too dirty.·Pool water does not reach minimum water level.·Do not release air from pump Pump is wrong*	·Clean inlet and outlet·Clean or replace filter cartridge·Add water to reach water level·Do air release as outlined again·If this does not solve the problem, refer to the box below

If the screen displays an error code "Ex", please refer to the table below. E3, E4, E5, E6 error code

Cut of electricity for 5 minutes and reconnect.

If error code is still displayed on the control Box, please do the following instructions:

1). Check that the water line is between the high and low limits.
2). Clean or replace the filter cartridge.
3). Unscrew and clean the 2 nozzles (Entry and exit of water) i nside the spa and remove wastes if necessary (Neaf, hairs, fur, skin...)
4). Check that the propeller of the filter pump does not contain foreign matter.

Cut the spa again electrically for 5 minutes and re-connect it, if the error code is still displayed on the control box please contact the Service Center.

9.Warranty

EXIT Toys products have been inspected and found free of defects prior to leaving the factory. EXIT Toys warrants this product against defects in material and workmanship for a period of time, 1 year for the pump and 6 months for the liner, unless local law has special requirement. EXIT Toys warrants this product begins on the date of purchase and EXIT Toys requires presentation of the original proof to purchase to ascertain the date. During the warranty period, EXIT Toys will either repair or replace, at its discretion, any defective produces. Replacement products or repaired parts will be warranted for only the unexpired portion of the original warranty.

Shipping cost policy

The return of defect parts to the authorized service center is at the charge of the owner. On warranty period, the return is at the charge of service center.

Warranty policy

This limited warranty does not apply to any defect resulting from negligence, accident, misuse, or other reason beyond EXIT Toys's reasonable control, included but not limited to: normal wear and tear, negligence or failure to follow the product instructions, improper or inadequate maintenance; connection to improper power supply; chemical water damage, loss of SPA-pool water, unauthorized product modification or repair; use for commercial purpose; fire, lightening, flood or other external causes.

This warranty is valid only in the country of purchase in such countries where EXIT Toys sells and services the same model with identical technical specifications. Warranty service outside the country of purchase is limited to the terms and conditions of the corresponding warranty in the country of service. Where the cost of repairs or replacement is not covered by this warranty, EXIT Toys will advise the owners and the cost shall be charged to the owner. This warranty only applies to the original purchaser and terminates upon any transfer of ownership. All repairs of which warranty claims are made must be pre-authorized by a EXIT Toys service center. All the authorized selling dealer is responsible for all in-field service work carried out on your EXIT Toys product. EXIT Toys will not be liable for results of cost of workmanship from unauthorized service person.

Warranty registration

To validate your warranty, please register your product on our website EXIT Toys:www.EXIT Toys.com. It is essential that all informations including customer name, date of purchase, serial number, spa model are indicated. Without these information the warranty will be invalid.

2.0 Einführung

Glückwunsch zur Wahl des EXIT Toys inflatable spa!

Warning symbol image with exclamation mark inside triangle

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Illustration of a water well with a red 'X' symbol and an umbrella, no text or symbols present

Diagram showing a red 'X' symbol crossed out by a blue brush, indicating a pollution or damage scenario.

Eine saubere Fläche

Two-panel illustration showing a cracked surface with a red X mark and a compressed container (no text or symbols)

Ein ebener Boden

Close-up of hands holding a small white and black object with red markings (no visible text or symbols)

Close-up of a hand holding a black electrical plug with a yellow arrow pointing to the plug (no text or symbols visible)

Close-up of a hand holding a black electrical plug with a yellow arrow pointing to the plug (no text or symbols visible)

Hand holding a black electrical plug with a yellow mark on the handle (no visible text or symbols)

Person performing a physical therapy or massage technique on a mat, lying on the floor (no text or symbols visible)

Person using a steam iron to clean or fabric (no text or symbols visible)

Close-up of hands using a cable to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand holding a black mechanical component, partially covered by a white plastic bag (no visible text or symbols)

Man sitting on a bench next to a large electronic device (no visible text or symbols)

Close-up of hands adjusting a mechanical component with a yellow arrow indicating direction (no text or symbols visible)

Close-up of a hand operating a white electronic device with black connectors (no visible text or symbols)

Close-up of a medical imaging device with blue lens and metallic components (no visible text or symbols)

Close-up of a hand holding a white circular object next to a black horizontal bar, with a circular dial indicator on the wall (no text or symbols visible)

Close-up of hands installing a component on a surface, showing mechanical parts and wiring (no visible text or symbols)

Close-up of a textured surface with yellow arrows pointing upward, no text or symbols visible

Warning symbol with exclamation mark inside a triangle (no text or numbers)

3D rendering of a gray cylindrical object with a small protrusion and blue indicator light (no text or symbols visible)

Close-up of hands installing or adjusting a blue plastic component on a wall (no visible text or symbols)

Close-up of a hand adjusting a black plastic buckle with a handle (no visible text or symbols)

7. Pflege

7.1. Wasserpflege

Hand holding a white cylindrical device with a yellow arrow pointing to it, next to a gray wall (no text or symbols visible)

Close-up of a hand holding a white cylindrical object with a blue square and dotted pattern (no visible text or symbols)

Close-up of hands holding a blue-tinted roller against a wooden background (no text or symbols visible)

Hand holding a white cylindrical device with yellow arrow indicating direction, placed inside a gray seat (no text or symbols visible)

Close-up of a hand holding a small object, possibly a foot or object, against a light blue background (no visible text or symbols)

Close-up of hands holding a small circular object on a textured surface (no visible text or symbols)

Close-up of a hand holding a blue medical device with a circular button (no visible text or symbols)

EXIT 888

Hand using a white foam roller on a metal surface (no text or symbols visible)

Close-up of a hand adjusting a mechanical component (no visible text or symbols)

Person kneeling on blue water next to a large dark fabric or plastic bag (no visible text or symbols)

7.4. Reparaturen

Warning symbol image with exclamation mark inside triangle

Veiligheidsuitrusting

Warning symbol image with exclamation mark inside triangle

Diagram showing a red 'X' symbol above a water tank and an umbrella, likely indicating a warning or failure in a water safety context.

Safety warning sign showing a person crossed out with a red X symbol and a blue broom, indicating incorrect cleaning or anti-smoking.

Two-panel illustration showing a red X mark on a cylindrical object, one lying on the ground and the other on a surface (no text or symbols)

Een effen oppervlak

4.2 RCD test

Close-up of hands holding a small cylindrical object with red connectors, resting on sandy ground (no visible text or symbols)

Close-up of a hand holding a black electrical plug with a yellow arrow pointing to the plug (no text or symbols visible)

Close-up of a hand holding a black electrical plug with a yellow arrow pointing to the plug (no text or symbols visible)

Close-up of a hand holding a black electrical plug with a yellow arrow pointing to the plug (no text or symbols visible)

Person performing CPR on a mat, no visible text or symbols

1) Vouw de opblaasbare spa over de bodembeschemer.(Optioneel)

Person using a vacuum cleaner to clean or fabric the floor (no text or symbols visible)

Close-up of hands using a black cable to connect a small mechanical component (no visible text or symbols)

Close-up of a hand holding a black mechanical component, possibly a valve or connector, against a white background (no visible text or symbols)

4) Stop de opblaasslang in de opb- laasbare spa.

EXIT 888

Man sitting on a bench next to a computer monitor (no visible text or symbols)

Close-up of hands adjusting a mechanical component with a yellow arrow indicating direction (no text or symbols visible)

Close-up of a hand operating a white electronic device with black connectors (no visible text or symbols)

Close-up of a medical device with blue contact lens and metallic casing (no visible text or symbols)

Close-up of a hand pressing down on a white wall-mounted device (no visible text or symbols)

Close-up of hands using a tool to adjust or install a component, no visible text or symbols

Close-up of a curved surface with yellow directional arrows indicating flow or movement (no text or symbols)

Two-panel image showing a camera module and hands adjusting a device, both without visible text or symbols.

7. Onderhoud

Hand holding a white cylindrical device with a yellow arrow pointing to it, next to a gray wall (no text or symbols visible)

Hand holding a white cylindrical device with a blue indicator light, no visible text or symbols.

Close-up of hands holding a blue and white tape against a wooden surface (no text or symbols visible)

Hand holding a white cylindrical device with yellow arrow, partially covered by metallic foil (no visible text or symbols)

Desinfectie

Close-up of a hand holding a small object, possibly a foot or object, against a light blue background (no visible text or symbols)

Close-up of hands rolling dough on a wooden surface with a small white object nearby (no visible text or symbols)

Close-up of a hand holding a small white object against a light blue background (no visible text or symbols)

EXIT 8:26

Hand using a white adhesive pad on a metal surface (no text or symbols visible)

Close-up of a hand adjusting a mechanical component (no visible text or symbols)

Person kneeling on a blue surface next to a dark gray inflatable raft (no visible text or symbols)

Warning symbol image with exclamation mark inside a triangle

Warning symbol image with exclamation mark inside triangle

Illustration of a water feature with a red 'X' symbol and an umbrella, no text or symbols present

Safety warning sign showing red 'X' symbol and blue 'mush' icon over water, indicating incorrect maintenance or damage.

Two identical diagrams showing a red 'X' symbol crossed over a cylindrical object, separated by a horizontal line (no text or symbols present)

Close-up of hands holding a small cylindrical device with red connectors (no visible text or symbols)

Close-up of a hand holding a black electrical plug with a yellow arrow pointing to the plug (no text or symbols visible)

Close-up of a hand holding a black electrical plug with a yellow screw, against a plain background (no text or symbols visible)

Close-up of a hand holding a black electrical plug with a yellow arrow pointing to the plug (no text or symbols visible)

Diagram showing connection between a device casing, internal components, and a house via a green line to a device with a warning symbol.

5. Montage du spa

Person performing a back massage on a mat, no text or symbols visible

Person using a power shaver to clean or fabric the floor (no text or symbols visible)

Close-up of a hand using a handheld device to adjust a black cable (no visible text or symbols)

Close-up of a hand holding a black mechanical component, partially covered by a plastic bag (no visible text or symbols)

Man sitting on a computer monitor with a vintage CRT monitor nearby (no visible text or symbols)

Close-up of hands adjusting a mechanical component with a yellow arrow indicating direction (no text or symbols visible)

Close-up of a hand operating a white electronic device with black connectors (no visible text or symbols)

Close-up of a medical device with blue and white adhesive tape (no visible text or symbols)

Close-up of a hand pressing down on a black surface near a white wall with a circular vent (no text or symbols visible)

Close-up of hands adjusting a mechanical component with a cylindrical part (no visible text or symbols)

Close-up of a textured surface with yellow directional arrows indicating flow or movement (no text or symbols)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Exterior view of a cylindrical outdoor hot water heater with a small attached outlet (no text or symbols visible)

Close-up of hands installing or adjusting a black plastic clip on a metal surface (no text or symbols visible)

Close-up of a hand adjusting a black plastic buckle with a handle (no visible text or symbols)

7. Entretien

Close-up of a hand holding a white remote control device with a yellow arrow indicating motion (no text or symbols visible)

Close-up of a hand holding a white cylindrical device with blue and gray components (no visible text or symbols)

Person pouring a blue-and-white tape onto a wooden surface (no text or symbols visible)

Close-up of a hand holding a white plastic device, partially covered by metallic fabric (no visible text or symbols)

Close-up of a human foot resting on a blue surface, no visible text or symbols

Close-up of hands applying a white substance to a surface, with a kitchen appliance visible in the background (no text or symbols)

Close-up of a hand holding a blue medical device with a circular button (no visible text or symbols)

EXIT 888

Hand using a white foam roller on a metallic surface (no text or symbols visible)

Close-up of a hand adjusting a black mechanical component (no visible text or symbols)

Person kneeling on water next to a dark plastic bag, no visible text or symbols

3.0 Guidelines for safe use

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Illustration showing a red 'X' symbol on a water bottle next to an umbrella, likely indicating a warning or rejection scenario.

A place with an awning

Safety warning sign showing red 'X' symbol and blue paint brush, indicating incorrect repair or damage

Clean the place

Two-panel illustration showing a red X mark on a cylindrical object and a larger cylindrical object with a lightning bolt, both without any text or symbols.

A level place

Close-up of a hand holding a small cylindrical object with red and black markings, against a sandy background (no visible text or symbols)

Close-up of a hand holding a black electrical plug with a yellow arrow pointing to the plug (no text or symbols visible)

Close-up of a hand holding a black electrical plug with a yellow arrow pointing to the plug (no text or symbols visible)

Close-up of a hand holding a black electrical plug with a yellow arrow pointing to the plug (no text or symbols visible)

Diagram showing wiring connections between a device casing, internal components, and a house, with labels and connection points.

Warning symbol image with exclamation mark inside triangle

Person performing a physical therapy or massage technique on a mat (no text or symbols visible)

Person using a hairdryer to clean or fabric the floor (no text or symbols visible)

Close-up of hands using a handheld optical device to adjust a cable (no visible text or symbols)

Close-up of a black plastic mechanical component being adjusted, with no visible text or symbols.

Man sitting on a computer monitor with cables, no visible text or symbols

Nafukovaciu vírivku nafukujte asi 10 minút. Uistite sa, že je vírivka pevne nafúknutá.

Close-up of hands adjusting a mechanical component with a yellow arrow indicating direction (no text or symbols visible)

Close-up of a hand operating a white sewing machine with black connectors (no visible text or symbols)

Close-up of a medical device with blue adhesive tape and white casing (no visible text or symbols)

Close-up of a hand holding a white circular object against a white wall, with a black horizontal band at the bottom (no visible text or symbols)

Close-up of hands using a tool to adjust or install a component, with no visible text or symbols.

Close-up of a curved surface with yellow directional arrows indicating flow or movement (no text or symbols)

LED Display Filtration Heat Button Massage Button Lock Button Temperature Increase Button EXIT Temperature units selector °C/°F °C °F Temperature Decrease Button Temperature units indicator

3D rendering of a cylindrical mechanical component with a small attached part (no text or symbols visible)

Close-up of hands installing or adjusting a metal component with a black clip (no visible text or symbols)

Close-up of a hand adjusting a black plastic buckle with a handle (no visible text or symbols)

7. Údržba

Four-panel photo sequence showing hands holding a white spray canister, a circular filter, and a blue tape being inserted (no text or symbols visible)

7.3. Vypustenie vody a uskladnenieDrainage

Close-up of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Close-up of hands applying a small white object to a surface, no visible text or symbols

Close-up of a hand holding a small circular object against a light blue background (no text or symbols visible)

EXIT 888

Hand using a white rectangular tool on a metallic surface (no text or symbols visible)

Close-up of a hand adjusting a mechanical component (no visible text or symbols)

Person kneeling on blue water next to a large dark inflatable raft (no visible text or symbols)

EXIT is a registered trade mark of Dutch Toys Group
