Product Type	Cordless Screwdriver
Brand	Kress
Model	KUB50.2
Weight	0.88 kg
Power Supply	Lithium-ion battery 12 V Max (10.8 V nominal), 2.0 Ah
Rated Voltage	12 V Max
No-Load Speed	0 - 3300 rpm
Impact Rate	0-1600/0-3500/0-4000 bpm
Max Torque	140 Nm
Chuck Capacity	6.35 mm
Main Functions	Screwing and unscrewing, reversible rotation, variable speed control, LED lighting, safety lock
Maintenance and Cleaning	Clean with a dry cloth, do not use water or solvents. Keep ventilation slots clean. Store in a dry place.
Safety	Switch lock (center position cuts power), protection against deep discharge of battery, do not expose to rain, wear PPE.
Spare Parts and Repairability	No user-serviceable parts. Have any repair carried out by a qualified repair person using identical parts.
General Information	Brand: Kress, Model: KUB50.2, Type: Cordless Screwdriver, Li-Ion battery, Charger included (KCH1202, 2.0 Ah).

Frequently Asked Questions - KUB50.2 KRESS

How to install or remove a screwdriver bit?

To install a bit, pull the sleeve in the direction of the arrow, insert the bit until it stops, then release to lock. To remove, pull the sleeve again and remove the bit. Make sure to use the appropriate bits (length A=17mm, B=14mm or A=12mm, B=9mm with bit holder).

What accessories are included with the KUB50.2 screwdriver?

The kit includes: one 2.0 Ah lithium battery (KPB1202 - two units), one charger (KCH1202), screwdriver bits and a bit holder. Refer to packaging for details.

How to charge the battery?

Use only the provided charger suitable for Li-ion batteries. In a hot environment or after heavy use, let the battery cool down before charging. The recommended charging temperature range is 0°C to 40°C.

What is the maximum rotation speed?

The maximum no-load speed is 0 to 3300 rpm, with an impact rate up to 4000 bpm.

How to reverse the rotation direction?

Use the transmission lever (1): push it to the left for forward rotation (screwing), to the right for reverse rotation (unscrewing). Never change direction while the chuck is rotating.

What safety precautions should I take?

Read all instructions, wear eye and ear protection, do not wear loose clothing, keep children away, use a RCD outdoors, and do not modify the plug. Keep warnings for future reference.

How to maintain the screwdriver?

Clean it with a dry cloth, do not use water or chemical cleaners. Keep the ventilation slots clean. Store in a dry place between 0°C and 45°C. No lubrication required.

What to do if the battery is hot?

If the battery is too hot after use, let it cool down before recharging. Charging is not recommended above 40°C.

What is the max torque of the screwdriver?

The maximum torque is 140 Nm, sufficient for tightening and loosening bolts and nuts.

What does the LED lamp blinking mean?

The LED lamp blinks to indicate low battery power. Recharge the battery as soon as possible.

USER MANUAL KUB50.2 KRESS

Diagram of a device with directional arrows indicating movement or force (no text or symbols)

B ① ② Kressin

C ① ② ③ Kress

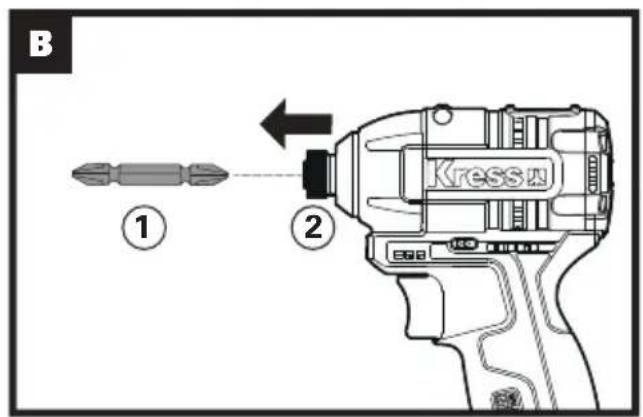

▶ 1. Driver bits 2. Socket

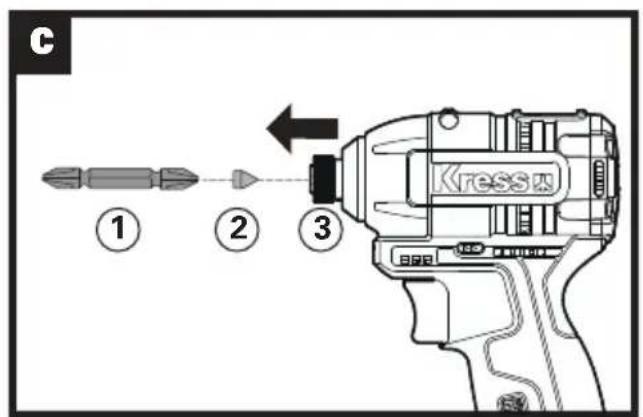

▶ 1. Driver bits 2. Driver bit element 3. Socket

ORIGINAL INSTRUCTIONS

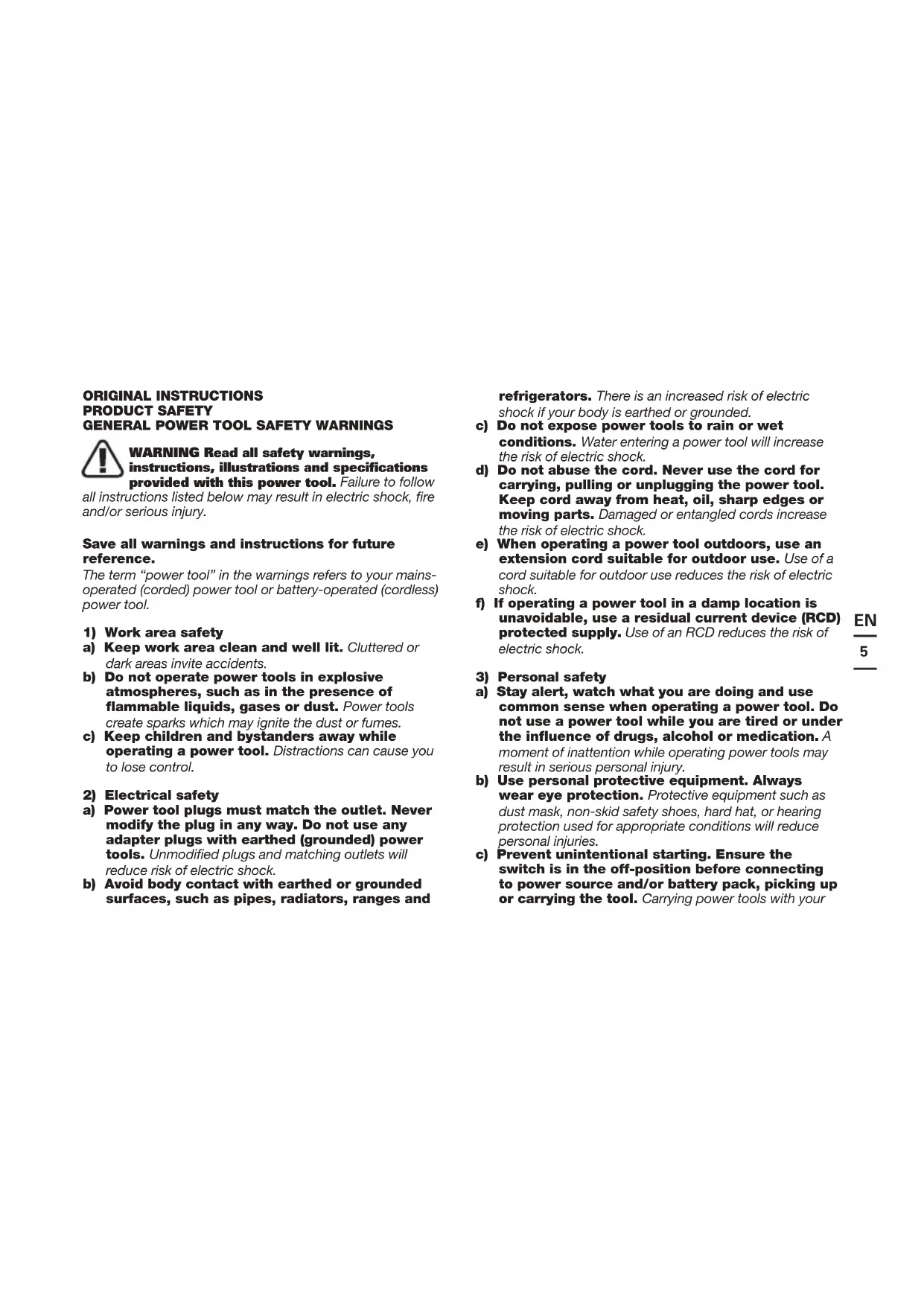

PRODUCT SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow

all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your

finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.
Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SCREWDRIVER SAFETY WARNING

1. Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Keep battery pack clean and dry.
g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
i) Do not maintain battery pack on charge when not in use.
j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
k) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment.
I) Do not use any battery pack which is not designed for use with the equipment.
m) Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Do not mix cells of different manufacture, capacity, size or type within a device.
r) Keep the battery away from microwaves and high pressure.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Warning
	Wear ear protection
	Wear eye protection
	Wear dust mask
	Do not burn
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	Li-Ion battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities

COMPONENT LIST

1.	FORWARD, REVERSE ROTATION AND LOCK CONTROL
2.	SOFT GRIP HANDLE
3.	BATTERY PACK LATCH
4.	BATTERY PACK *
5.	ON/OFF SWITCH WITH VARIABLE SPEED CONTROL
6.	LED LIGHT
7.	COLLET LOCKING SLEEVE
8.	ELECTRONIC SPEED CONTROL KNOB
9.	POWER INDICATOR

* Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

	KUB50.2
Rated voltage 12V Max**	==
Rated no load speed 0-3300/min
Impact rate	0-1600/0-3500/0-4000bpm
Max torque 140Nm
Chuck capability 6.35mm
Machine Weight 0.88kg

NOISE INFORMATION

A weighted sound pressure L	_pA = 78,0 dB(A)
A weighted sound power L	_wA = 89,0 dB(A)
K_pA \& K_wA	3dB(A)

Wear ear protection.

WEAR EAR PROTECTION

Vibration total values (triax vector sum) determined according to EN 62841:
Vibration emission value	a_h = 4,728m/s^2
	Uncertainty K = 1,5m/s^2

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.

The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment of exposure.

WARNING: The vibration and noise emissions during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used especially what kind of workpiece is processed dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained. The use of the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration and noise accessories are used. And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period. Helping to minimise your vibration and noise exposure risk. Always use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration and noise accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

	KUB50.2
2.0Ah lithium battery pack(KPB1202)	2
Charger (KCH1202)	1
Driver bits	1
Driver bit element	1

We recommend that you purchase your accessories from the same store that sold you the tool. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

Intended use:

This tool is intended for the fastening and loosening of bolts, nuts and various threaded fasteners.

The battery charger supplied is matched to the Li-ion battery installed in the machine. Do not use another battery charger. The Li-ion battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit: The chuck no longer rotates. In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow time for the battery to cool down before recharging.

When the battery is charged for the first time and after prolonged storage, the battery will only accept approximately 60% charge. However, after several charge and discharge cycles the battery will accept a 100% charge.

B) TO REMOVE OR INSTALL BATTERY PACK (SEE A)

Depress the battery pack release button to release and slide the Battery Pack (4) out from your tool. After recharge, slide it back into your tool. A simple push and slight pressure will be sufficient.

OPERATION

1. HOW TO INSTALL AND REMOVE A SCREWDRIVER BIT AND SOCKET TO INSTALL BITS:

A). When installing the screwdriver bit, pull the socket in the direction of the arrow and insert the screwdriver bit all the way to the bottom of the socket. Then, release the socket to lock the screwdriver bit. (See Fig. B)

B). When installing the screwdriver bit, pull the socket in the direction of the arrow and insert the screwdriver bit element and the screwdriver bit all the way to the bottom of the socket. Then, release the socket to lock the screwdriver bit.(See Fig. C)

Note: Use only the screwdriver bits with the illustrated inserts

For tools with a deep hole for screwdriver bits

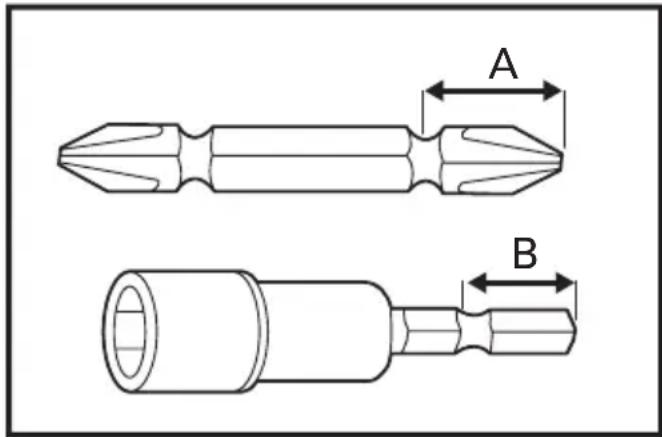

A=17mmB=14mm	When using this type of screwdriver bits, follow the installation steps shown in Fig. B.
A=12mmB=9mm	When using this type of screwdriver bits, follow the installation steps shown in Fig. C. Note: Screwdriver bit element is required.

A B

To remove bits:

When removing the screwdriver bit, pull the socket in the direction of the arrow shown in Fig. B/C and pull the screwdriver bit out.

2. SWITCH LOCK

A completely new electromagnetic directional technique is used for the switch lock, which is more reliable than the mechanical directional structure; the power supply of machine will be completely cut off when the shift lever is in the middle position, and the machine will not start when forcibly pressing the button; This function is helpful to prevent the machine from accidental startup when it is not in use.

3. REVERSIBLE

For drilling and screw driving use forward rotation marked “◀◀” (lever is moved to the left). Only use reverse rotation marked “◀◀” (lever is moved to the right) to remove screws or release a jammed drill bit.

Warning: Never change the direction of rotation when the chuck is rotating, wait until it has stopped!

4. LED LIGHT (6)

To turn on the light simply press the On/Off Switch (5). When you release the On/Off Switch, the light will be off. LED lighting increases visibility-great for dark or enclosed area. It will flash when power gets low.

5. ELECTRONIC SPEED CONTROL KNOB (8)

The speed can not be adjusted during the running of machine if the electronic speed control knob is locked.

MAINTENANCE

Your power tool requires no additional lubrication or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool.

Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

FOR BATTERY TOOLS

The ambient temperature range for the use and storage of tool and battery is 0^ C- 45^ C.

The recommended ambient temperature range for the charging system during charging is 0^ C- 40^ C.

ENVIRONMENTAL PROTECTION

Disposal

The machine, its accessories and packaging materials should be sorted for environmentally friendly recycling.

The plastic components are labeled for categorized recycling.

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

Declare that the product

Description Lithium-Ion brushless impact driver

Type KUB50.2 (B50-designation of machinery, representative of screwdriver)

Function Tightening and loosening screws, nuts

Complies with the following Directives:

2006/42/EC

2011/65/EU&(EU)2015/863

2014/30/EU

Standards conform to

EN 55014-1

EN 55014-2

EN 62841-1

EN 62841-2-2

The person authorized to compile the technical file, Name Marcel Filz

Address Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

A# C E

2022/03/11

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

NOTICE ORIGINALE

SÉCURITÉ DU PRODUIT

AVERTISSEMENTS DE SÉCURITÉ GÉNÉRAUX POUR L'OUTIL

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

DÉCLARATION DE CONFORMITÉ

Nous,

POSITEC Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ISTRUZIONI ORIGINALI SICUREZZA DEL PRODOTTO AVVISI GENERALI PER LA SICUREZZA DEGLI UTENSILI A MOTORE

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

MANUAL ORIGINAL SEGURANÇA DO PRODUTO AVISOS GÉRAIS DE SEGURANÇA DE FERRAMENTAS ELÉCTRICAS

Nós, POSITEC Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany

2022/03/11 Allen Ding Engenheiro-chefe adjunto, Teste e Certificação Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

OORSPRONKELIJKE GEBRUIKSAANWIJZING PRODUCTVEILIGHEID ALGEMENE VEILIGHEIDSWAARSCHUWINGEN VOOR VERMOGENSMACHINE

VEILIGHEIDSWAARSCHUWING VOOR SCHROEVENDRAAIERS

5. ELEKTRONISCHE SNELHEIDSREGELKNOP (8)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INSTRUKCJA ORYGINALNA BEZPIECZEŃSTWO PRODUKTU OGÓLNE OSTRZEŻENIA DOTYCZĄCE BEZPIECZEŃSTWA PODCZAS PRACY Z ELEKTRONARZĘDZIAMI

PÕSITEC Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Kress

Copyright © 2022, Positec. All Rights Reserved. AR01615902
