Product Type	Cordless Screwdriver
Model	KUB35.91
Brand	Kress
Voltage	18 V
Battery Type	Lithium-Ion
Chuck Type	Keyless
Chuck Size	1/4 inch (6.35 mm) hex
Max Torque	35 Nm
No-Load Speed	0-1300 RPM (variable speed)
Dimensions (L x W x H)	210 x 60 x 200 mm
Weight (with battery)	1.2 kg
Power Source	Battery (18V Li-Ion)
Battery Capacity	2.0 Ah (typical)
Charging Time	Approx. 60 min
Protection Class	IP20
Vibration Level	2.5 m/s²
Sound Pressure Level	74 dB(A)
Main Features	Ergonomic handle, LED light, belt clip
Maintenance	Clean housing with dry cloth; keep vents clear
Safety Features	Lock-off trigger, overload protection
Spare Parts Availability	Battery, charger, chuck, brushes
Reparability	Serviceable by authorized centers; replaceable carbon brushes
Warranty	2 years (subject to terms)
Included Accessories	Screwdriver bits, charger, battery pack, carry case

Frequently Asked Questions - KUB35.91 KRESS

How do I change the bit on the Kress KUB35.91?

Pull the chuck sleeve forward, insert the bit, then release the sleeve. Ensure the bit is securely locked before use.

What battery does the KUB35.91 use?

It uses an 18V Lithium-Ion battery from Kress. Compatible batteries include Kress 18V series with standard slide-on mount.

How to charge the battery?

Plug the charger into a mains socket and insert the battery. The LED indicates charging status (red charging, green fully charged). Charge time approx. 60 min.

The screwdriver stops suddenly while in use. What should I do?

This may be due to overload protection. Release the trigger, remove the load, and reapply. If it persists, check the battery charge or clean air vents.

How to clean the KUB35.91?

Use a dry cloth to wipe the housing. Do not use solvents. Keep the air vents free from dust to prevent overheating.

Is the Kress KUB35.91 brushless?

No, the KUB35.91 features a brushed motor. Carbon brushes are replaceable for extended tool life.

What is the maximum screw size?

The tool can drive screws up to 6 mm diameter in softwood and up to 5 mm in hardwood. Torque settings should be adjusted accordingly.

Can I use the screwdriver as a drill?

The KUB35.91 is designed for screwdriving only. For drilling, use a Kress drill/driver model.

How to replace carbon brushes?

Remove the battery, unscrew the brush caps on the motor housing, slide out the old brushes, and insert new ones. Ensure correct orientation and reassemble.

Where to purchase spare parts?

Contact an authorized Kress service center or visit the official Kress website for genuine spare parts like battery, charger, chuck, and brushes.

USER MANUAL KUB35.91 KRESS

SAFETY AND OPERATING MANUAL

Lithium-Ion Brushless Impact Wrench KUB35.91

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SCREWDRIVER AND IMPACT WRENCH SAFETY WARNING

1. Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Keep battery pack clean and dry.
g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
i) Do not maintain battery pack on charge when not in use.
j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
k) Recharge only with the charger specified by Kress.Do not use any charger other than that specifically provided for use with the equipment.
I) Do not use any battery pack which is not designed for use with the equipment.
m) Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Do not mix cells of different manufacture, capacity, size or type within a device.
r) Keep the battery away from microwaves and high pressure.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Wear ear protection
	Wear eye protection
	Wear dust mask
	Warning
	Wear protective gloves.
, Li-Ion Li-Ion	Li-Ion battery This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
	Do not burn
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	The box is recyclable at the kerbside.
	RCM marking

ABN: Australian Business Number. By this number, business information such as entity type, status, business location etc. can be found at website http://abr.business.gov.au. ABN of Positec Australia Pty Limited is 14 101 682 357

COMPONENT LIST

1.	FORWARD AND REVERSE ROTATION CONTROL
2.	BATTERY PACK*
3.	BATTERY PACK RELEASE BUTTON*
4.	SPEED ADJUSTMENT BUTTON
5.	ON/OFF SWITCH
6.	LED LIGHT
7.	SQUARE DRIVE ROD
8.	BATTERY CAPACITY INDICATOR

*Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

	KUB35.91
Rated voltage 20V Max**	---
No load speed 0-900/11	00/1800/min
Impact rate 0-1000/160	0/2400bpm
Max torque 1700Nm
Drive rod size	3/4" (19mm)
Anvil Type Friction ring
Weight (bare)	3.4kg

** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

ASSEMBLY AND OPERATION

ACTION FIGURE
ASSEMBLY
Inserting and Removing Socket	See Fig.A1,A2

OPERATON

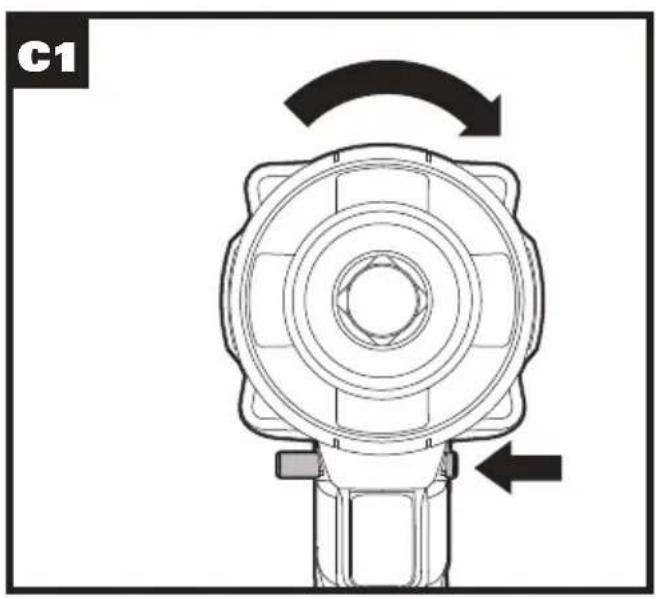

Forward And Reverse Rotation ControlWARNING: Never ChangeThe Direction Of RotationWhen The Chuck Is Rotating,Wait Until It Has Stopped!	See Fig.B,C1,C2
Variable Speed Control See Fig. D
Operating the On/Off SwitchWARNING: Do not operatefor long periods at low speed because excess heat will be produced internally.	See Fig. E
Using The LED LightBefore operation, the LED lightwill be activated when the On/Off switch is slightly depressed, and will automatically turn off 20 seconds after the On/Off switch is released.The tool and battery are equipped with a protection system. When the LED Light is quickly flashing 3 seconds and turn off, the system will automatically cut off power to the tool to extend battery life.The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:Overloaded:The tool is operated in a manner that causes it to draw an abnormally high current. In this situation, release the Trigger Switch on the tool and stop the application that caused the tool to become overloaded. Then pull the Trigger Switch again to restart.Overheated: Under the condition above, if the tool does not start, the Tool and Battery are overheated. In this situation, let the Tool and Battery cool before pulling the Trigger Switch again.Low battery voltage:The remaining Battery capacity is too low and the tool will not operate. In this situation, remove and recharge the Battery.WARNING:To turn on the light, press the On/Off switch and make sure the Forward/Reverse Rotation Control is on right/left position.	See Fig. E

WARNING:

MEGA FORCE

High-power motor + High inertia hammer head, High torque output

MEGA power control system, continuous High torque

TROUBLE SHOOTING

1.I CAN NOT FIT THE BATTERY INTO THE BATTERY CHARGER. WHY?

The battery can be inserted into the charger only in one direction. Turn the battery around until it can be inserted into the slot, the red LED Light should turn on when the battery is charging.

2.REASONS FOR DIFFERENT BATTERY PACK WORKING TIMES

Charging time problems, as above, and having not used a Battery Pack for a prolonged time will reduce the Battery Pack working time. This can be corrected after several charge and discharge operations by charging & working with your drill. Heavy working conditions such as large screws into hard wood will use up the Battery Pack energy faster than lighter working conditions. Do not re-charge your Battery Pack below 0°C and above 30°C as this will affect performance.

MAINTENANCE

Remove the battery pack from the machine before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust.

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

FOR BATTERY TOOLS

The ambient temperature range for the use and storage of tool and battery is 0° C- 45° C.

The recommended ambient temperature range for the charging system during charging is 0° C- 40° C.

Positec Australia Pty Limited

10 Corporate Blvd Bayswater, VIC 3153, Australia

Kress
