Product Type Lithium-Ion Battery
Brand Kress
Model KAC804
Rated Voltage 54 V (max 60 V)
Capacity 4.0 Ah
Weight 3 kg
Protection Rating IPX5
Battery Technology Lithium-Ion
Connectivity Bluetooth (2400–2483.5 MHz band)
Recommended Charging Temperature -5 °C to 45 °C
Optimal Storage Temperature 5 °C to 25 °C
Recommended Operating Temperature -20 °C to 45 °C
Compatible Charger KAC840 (and additional chargers listed in the manual)
Compatible Power Stations KAC875E, KAC877E (and additional stations listed in the manual)
Intended Use Powering Kress Commercial cordless tools
Maintenance Clean ventilation slots with a soft brush; removable dust filter (rinse with water and dry)
Recycling Separate collection, do not dispose of with household waste
Important Safety Instructions Do not open, short-circuit, expose to heat or moisture; use only with specified charger
Number of Cells Not specified

Frequently Asked Questions - KAC804 KRESS

How to charge the KAC804 battery?
Use exclusively the charger KAC840 (or additional chargers listed in the manual). Plug the charger into a power outlet, insert the battery, and wait for the charge to complete. The battery is partially charged at purchase; charge it fully before first use.
What is the recommended charging temperature?
The ambient temperature range for charging is -5 °C to 45 °C. Do not charge outside this range to avoid damaging the battery.
What to do in case of battery leakage?
Avoid any contact of the liquid with skin and eyes. In case of contact, rinse thoroughly with water and call emergency services. Use an inert absorbent material (e.g., sand) for spilled liquid.
How to check the battery charge level?
Press the test button located on the battery. The green LED indicators show the level: 5 lights = 80-100%, 4 lights = 60-80%, etc. A flashing light means less than 10%.
What does the Bluetooth indicator on the battery mean?
If the Bluetooth light is on, the battery is connected via Bluetooth. If it is off, it is not connected. Bluetooth allows monitoring of the battery status via an app.
How to maintain the KAC804 battery?
Regularly clean the ventilation slots with a soft, clean, dry brush. If the dust filter is clogged, remove it, rinse it with water, dry it, and put it back. Replace the filter if it is damaged.
Can I use a non-Kress charger for this battery?
No, use exclusively the KAC840 charger specified by Kress. Using another charger may damage the battery or pose a fire risk.
How to store the battery long-term?
Store the battery in a dry place at a temperature between 5 °C and 25 °C. Maintain a charge of 40 to 60% (approximately 3 green lights). Do not store it in a power tool.
How to transport the battery safely?
Follow the regulations for the transport of dangerous goods. Only ship if the casing is not damaged. Pack the battery to prevent movement. The charge must not exceed 30% for separate air transport.
How to recycle the KAC804 battery?
Do not dispose of the battery with household waste. Take it to a recycling center or battery collection point. Recycling allows recovery of raw materials and treatment of toxic substances.

User questions about KAC804 KRESS

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Battery in PDF format for free! Find your manual KAC804 - KRESS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KAC804 by KRESS.

USER MANUAL KAC804 KRESS

text_image MINUTE CyberSystem Kress Commercial 60v max 240Wh
60V 4.0Ah CyberPackENP03
60V 4,0Ah CyberPackDP10
CyberPack 60 V 4.0 AhFP17
CyberPack 60V 4.0AhIP24
CyberPack 60V 4,0AhESP30
60 V 4.0 Ah CyberPackPTP36
60V 4.0Ah CyberPackNLP42
60 V/4,0 Ah-s CyberPackHUP48
CyberPack 60 V 4.0 AhROP54
CyberPack 60 V 4,0 AhPLP60
Baterie 60 V 4.0 Ah CyberPackCZP67
60V 4.0Ah CyberPackSKP73
60 V 4,0 Ah CyberPackSLP79
60V 4.0Ah CyberPackHRP85
60 V 4,0 Ah CyberPackDKP91
60 V 4,0 Ah CyberPackFINP97
60 V 4,0 Ah CyberPackNORP103
60V 4,0Ah CyberPackSVP109

KAC804

TABLE OF CONTENTS

Introduction....3

Component List....4

Product Safety....5

OperationInstructions....6

How to charge the battery....7

Storage....7

Transport....7

Maintenance and Service....7

Technical Data....8

Environmental Protection....8

Declaration of Conformity....8

INTRODUCTION

Dear Customer,

Thank you for buying this Kress Commercial product. We are dedicated to developing high quality products to meet your commercial landscaping requirements.

The Kress brand is synonymous with premium quality service. Over the years of your product's life, if you have any questions or concerns about your product, please contact your dealer or our Customer Service Team for assistance.

We are confident you will enjoy working with your Kress product for years to come.

KRESS KAC804 - INTRODUCTION - 1

text_image Diagram of a device front panel with labeled buttons and ports, showing numbered labels 1 to 4.

KRESS KAC804 - INTRODUCTION - 2

natural_image Technical line drawing of a mechanical or electronic component with four symmetrical slots and mounting holes (no text or symbols)

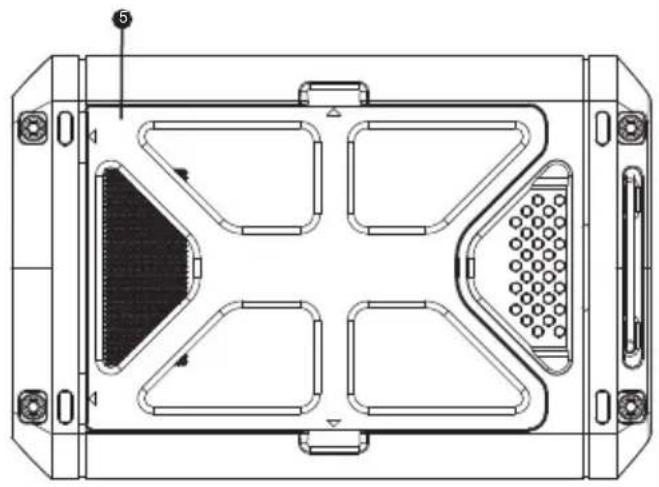

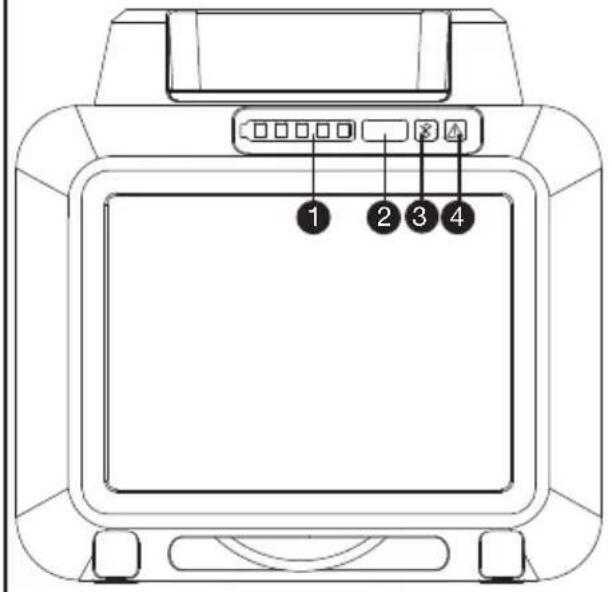

COMPONENT LIST

  1. BATTERY INDICATOR LIGHT
  2. POWER TEST BUTTON
  3. BLUETOOTH INDICATOR LIGHT
  4. FAULT INDICATOR LIGHT
  5. DUST FILTER

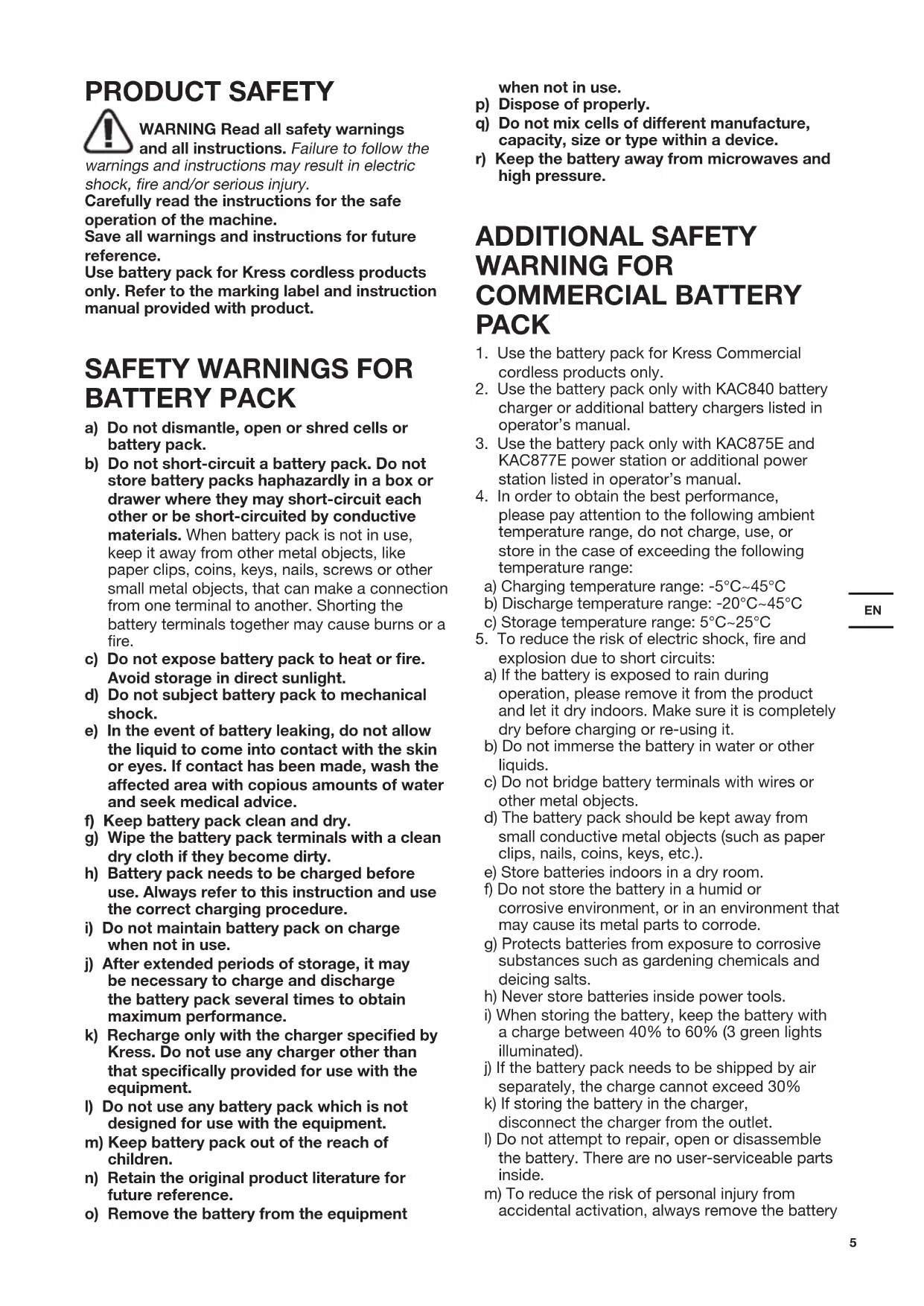

PRODUCT SAFETY

KRESS KAC804 - PRODUCT SAFETY - 1

WARNING Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Carefully read the instructions for the safe operation of the machine.

Save all warnings and instructions for future reference.

Use battery pack for Kress cordless products only. Refer to the marking label and instruction manual provided with product.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Keep battery pack clean and dry.
g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
i) Do not maintain battery pack on charge when not in use.
j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
k) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment.
I) Do not use any battery pack which is not designed for use with the equipment.
m) Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment

when not in use.

p) Dispose of properly.
q) Do not mix cells of different manufacture, capacity, size or type within a device.
r) Keep the battery away from microwaves and high pressure.

ADDITIONAL SAFETY WARNING FOR COMMERCIAL BATTERY PACK

  1. Use the battery pack for Kress Commercial cordless products only.
  2. Use the battery pack only with KAC840 battery charger or additional battery chargers listed in operator's manual.
  3. Use the battery pack only with KAC875E and KAC877E power station or additional power station listed in operator's manual.
  4. In order to obtain the best performance, please pay attention to the following ambient temperature range, do not charge, use, or store in the case of exceeding the following temperature range:
    a) Charging temperature range: -5^ 45^
    b) Discharge temperature range: -20°C\~45°C
    c) Storage temperature range: 5°C\~25°C
  5. To reduce the risk of electric shock, fire and explosion due to short circuits:
    a) If the battery is exposed to rain during operation, please remove it from the product and let it dry indoors. Make sure it is completely dry before charging or re-using it.
    b) Do not immerse the battery in water or other liquids.
    c) Do not bridge battery terminals with wires or other metal objects.
    d) The battery pack should be kept away from small conductive metal objects (such as paper clips, nails, coins, keys, etc.).
    e) Store batteries indoors in a dry room.
    f) Do not store the battery in a humid or corrosive environment, or in an environment that may cause its metal parts to corrode.
    g) Protects batteries from exposure to corrosive substances such as gardening chemicals and deicing salts.
    h) Never store batteries inside power tools.
    i) When storing the battery, keep the battery with a charge between 40% to 60% (3 green lights illuminated).
    j) If the battery pack needs to be shipped by air separately, the charge cannot exceed 30%
    k) If storing the battery in the charger, disconnect the charger from the outlet.
    I) Do not attempt to repair, open or disassemble the battery. There are no user-serviceable parts inside.
    m) To reduce the risk of personal injury from accidental activation, always remove the battery

before assembling, transporting, adjusting, cleaning, servicing, or storing the power tool.

  1. A battery fire is dangerous. To reduce the risk of serious personal injury and property damage in the event of a fire:

a) Evacuate the area. Fires can spread quickly. Keep away from any generated gas and fumes and keep a safe distance.
b) Contact the fire department.
c) While water can be used to extinguish battery fires, it is best to use a multi-purpose dry chemical fire extinguisher.
d) Please consult the fire department for proper disposal of burned batteries.

  1. Leaking battery fluid can cause skin and eye irritation or chemical burns.

a) Avoid contact with skin and eyes.
b) If liquid gets in eyes: Do not rub. Flush open eyes with water for at least 15 minutes, and seek medical advice.
c) In case of accidental contact, wash the contact area immediately and thoroughly with mild soap and water.
d) Use an inert absorbent such as sand on spilled liquid.

USER MANUAL REQUIREMENTS FOR WIRELESS PRODUCT

a) Operation of this device is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
b) Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
c) NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

SYMBOLS

KRESS KAC804 - USER MANUAL REQUIREMENTS FOR WIRELESS PRODUCT - 1Read the operator's manual
KRESS KAC804 - USER MANUAL REQUIREMENTS FOR WIRELESS PRODUCT - 2Li-IonKRESS KAC804 - USER MANUAL REQUIREMENTS FOR WIRELESS PRODUCT - 3Li-Ion battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
KRESS KAC804 - USER MANUAL REQUIREMENTS FOR WIRELESS PRODUCT - 4Environmentally friendly disposal Old electrical appliances must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the communal collecting point via private persons is for free. The owner of old appliances is responsible to bring the appliances to these collecting points or to similar collection points. With this little personal effort, you contribute to recycle valuable raw materials and the treatment of toxic substances.
KRESS KAC804 - USER MANUAL REQUIREMENTS FOR WIRELESS PRODUCT - 5Do not burn
KRESS KAC804 - USER MANUAL REQUIREMENTS FOR WIRELESS PRODUCT - 6Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

OPERATION INSTRUCTIONS

Recommendations for optimal handling of the battery

Note:

  1. Your battery pack is partly charged and needs to be fully charged before first use. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your battery in the power tool for the first time.
  2. A battery pack will slowly lose its charge when kept out of the charger or left in an unplugged charger for a long time. It may need to be recharged before use.

The CyberPack can be used with a backpack, please refer to the backpack manual for details.

When over-discharge, over-charge, over-temperature and low-temperature faults occur while the battery pack is being charged on the charger or used on the machine, the user will receive a fault prompt, and the charger or the machine will stop charging or working.

The Li-Ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

The battery level can be determined from the battery indicator light by pressing the power test button. Before starting or after use, press the power test button on the battery pack to check the battery capacity.

Remarks LED light Battery condition
Five green lights are illuminated.[B6X2]80% ≤ Power level ≤ 100%
Four green lights are illuminated.KRESS KAC804 - Note: - 160% ≤ Power level < 80%
Three green lights are illuminated.KRESS KAC804 - Note: - 240% ≤ Power level < 60%
Two green lights are illuminated.[AT03]20% ≤ Power level < 40%
One green light is illuminated.KRESS KAC804 - Note: - 310% ≤ Power level < 20%
One green light is flashing.KRESS KAC804 - Note: - 40% ≤ Power level < 10%

You can see the relevant status of the battery through the status of the Bluetooth indicator light and the fault indicator light.

Remarks Batterycondition
Bluetooth indicator light is illuminated.Bluetooth is connected.
Bluetooth indicator light is not illuminated.Bluetooth is not connected.
Fault indicator light is illuminated.Battery failure, prohibit charging and discharging.
Fault indicator light is not illuminated.It is normal.

When the battery pack fails, the fault indicator will light up, and you can view the specific fault cause and solution through the APP.

HOW TO CHARGE THE BATTERY

Refer to the instruction manual for charger.

STORAGE

Store the battery only within a ambient temperature range between 5\~25°C.

When kept out of the charger or left in an unplugged charger for a long time, the battery still reaches a relatively high level.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

TRANSPORT

The contained Li-Ion batteries are subject to the dangerous goods legislation requirements. The user can transport the batteries by road without additional requirements.

Dispatch batteries only when the battery housing is undamaged. Pack up the batteries in such a manner that cannot move around in the packaging.

MAINTENANCE AND SERVICE

Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

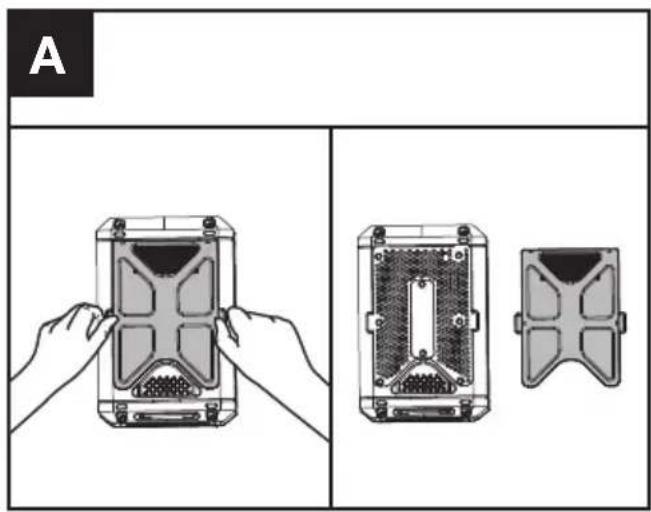

When the dust filter on the battery is blocked, it needs to be removed and rinsed with water. After drying, put the dust filter back into the battery. To protect the battery, if the dust filter is damaged, please replace it in time. (See Fig. A)

KRESS KAC804 - MAINTENANCE AND SERVICE - 1

text_image A

When the battery is no longer operative, please refer to an authorized after-sales service agent for Kress power tools.

TECHNICAL DATA

KAC804
Rated voltage60 V — MAX*
Battery capacity4.0 Ah
Recommended Ambient Temperature for Charging-5~45 °C
Optimum Storage Temperature in Use5~25 °C
Battery Weight3 kg
Degree of protectionIPX5
Frequency bands for Bluetooth2400-2483.5 MHz
Maximum Transmitted Power for Bluetooth8 dBm

* Voltage measured without workload. Initial battery voltage reaches maximum of 60 volts. Nominal voltage is 54 volts.

ENVIRONMENTAL PROTECTION

KRESS KAC804 - ENVIRONMENTAL PROTECTION - 1

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We, Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany

Declare that the product, Description Battery pack Type KAC804 Function Provide energy for power tools, garden tools and similar products

Complies with the following Directives: 2006/66/EC & 2013/56/EU, 2014/53/EU, 2011/65/EU & (EU) 2015/863

Standards conform to, EN 62133-2, EN 300328, EN 301489-1/-17, EN 50663

The person authorized to compile the technical file, Name Marcel Filz Address Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany

KRESS KAC804 - DECLARATION OF CONFORMITY - 1

text_image A C

2022/12/06 Allen Ding Deputy Chief Engineer Testing & Certification Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

DECLARATION OF CONFORMITY

We,

Positec (UK & Ireland) Ltd

PO Box 6242, Newbury, RG14 9LT, UK

Declare that the product,

Description Battery pack

Type KAC804

Function Provide energy for power tools, garden tools and similar products

Complies with the following Regulations:

The Batteries and Accumulators (Placing on the Market) Regulations 2008 (as amended) and the Waste Batteries and Accumulators Regulations 2009 (as amended)

Radio Equipment Regulations 2017

The Restriction of the Use of Certain Hazardous

Substances in Electrical and Electronic

Equipment Regulations 2012

Standards conform to,

BS EN 62133-2,

BS EN 300328,

BS EN 301489-1/-17,

BS EN 50663

The person authorized to compile the technical file,

Name Jim Kirkwood

Address Positec (UK & Ireland) Ltd,

PO Box 6242, Newbury, RG14 9LT, UK

KRESS KAC804 - DECLARATION OF CONFORMITY - 1

text_image A#20

UK CA

2022/12/06

Allen Ding

Deputy Chief Engineer Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHALTSVERZEICHNIS

Einführung....10

Komponenten....11

text_image Technical diagram of an electronic device front and back with labeled components

KOMPONENTEN

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SOMMAIRE

Introduction....17

text_image Technical diagram of an electronic device front and back with labeled components

LISTE DES COMPOSANTS

  1. VOYANT DE BATTERIE
  2. BOUTON DE TEST D'ALIMENTATION
  3. VOYANT BLUETOOTH
  4. VOYANT DE PANNE
  5. FILTRE À POUSSIÈRE

SÉCURITÉ DU PRODUIT

KRESS KAC804 - SÉCURITÉ DU PRODUIT - 1

DÉCLARATION DE CONFORMITÉ

Nous,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDICE

Introduzione....24

Elencocomponenti....25

text_image Diagram of a device front panel with labeled buttons and ports, showing numbered labels 1 to 4.

KRESS KAC804 - INDICE - 1

natural_image Technical line drawing of a rectangular electronic device with internal compartments and mounting points (no text or symbols)

ELENCO COMPONENTI

2022/12/06 Allen Ding Vice capo ingegnere, testing e certificazione Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

ÍNDICE

Introducción....30

Lista de componentes....31

text_image Diagram of a computer monitor with labeled ports and buttons, showing numbered labels 1 to 4 for identification.

KRESS KAC804 - ÍNDICE - 1

natural_image Technical line drawing of a rectangular electronic device with internal compartments and mounting points (no text or symbols)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ÍNDICE

Introdução....36

Lista de componentes....37

text_image Diagram of a device front panel with labeled buttons and ports, showing numbered labels 1 to 4.

KRESS KAC804 - ÍNDICE - 1

natural_image Technical line drawing of a mechanical or electronic component with four symmetrical slots and mounting holes (no text or symbols)

MANUTENCAO E SERVICO

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHOUDSOPGAVE

Inleiding....42

text_image Diagram of a device front panel with labeled buttons and ports, showing numbered labels 1 to 4.

KRESS KAC804 - INHOUDSOPGAVE - 1

natural_image Technical line drawing of a rectangular electronic device with internal compartments and mounting points (no text or symbols)

ONDERDELENLIJST

  1. BATTERIJ-INDICATIELAMPJES
  2. POWER TEST BUTTON
  3. BLUETOOTH-INDICATIELAMPJE
  4. STORINGSINDICATIELAMPJE
  5. STOFFILTER

PRODUCTVEILIGHEID

KRESS KAC804 - PRODUCTVEILIGHEID - 1

VEILIGHEIDSWAARSCHUWING VOOR COMMERCIËLE ACCU'S

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

TARTALOMJEGYZÉK

Bevezető....48

text_image Technical diagram of an electronic device front and back with labeled components
text_image Diagram of a device front panel with labeled buttons and ports, showing numbered labels 1 to 4.

KRESS KAC804 - TARTALOMJEGYZÉK - 1

natural_image Technical line drawing of a rectangular electronic device with internal compartments and mounting points (no text or symbols)

LISTĂ DE COMPONENTE

  1. BUTON INDICATOR BATERIE
  2. BUTON DE PORNIRE
  3. INDICATOR LUMINOS BLUETOOTH
  4. INDICATOR LUMINOS DEFECTIUNE
  5. FILTRU DE PRAF

SECURITATEA PRODUSULUI

KRESS KAC804 - SECURITATEA PRODUSULUI - 1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SPIS TREŚCI

Wprowadzenie....60

text_image Technical diagram of an electronic device front and back with labeled components

LISTA KOMPONENTÓW

  1. LAMPKA WSKAŻNIKA AKUMULATORA
  2. PRZYCISK TESTU ZASILANIA
  3. LAMPKA WSKAŻNIKA BLUETOOTH
  4. LAMPKA WSKAŻNIKA USTERKI
  5. FILTR PRZECIWPYŁOWY

BEZPIECZEŃSTWO PRODUKTU

KRESS KAC804 - BEZPIECZEŃSTWO PRODUKTU - 1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

OBSAH

Úvod....67

text_image Diagram of a device front panel with labeled buttons and ports, showing numbered labels 1 to 4.

KRESS KAC804 - OBSAH - 1

natural_image Technical line drawing of a rectangular electronic device with internal compartments and mounting points (no text or symbols)

SEZNAM KOMPONENTŮ

  1. INDIKÁTOR BATERIE

  2. TLAČÍTKO PROZKOUŠENÍ NABITÍ

  3. INDIKÁTOR BLUETOOTH
  4. INDIKÁTOR BLUETOOTH
  5. PRACHOVÝ FILTR

BEZPEČNOST VÝROBKU

KRESS KAC804 - BEZPEČNOST VÝROBKU - 1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

OBSAH

Úvod....73

text_image Diagram of a device front panel with labeled buttons and ports, showing numbered labels 1 to 4.

KRESS KAC804 - OBSAH - 1

natural_image Technical line drawing of a rectangular electronic device with internal compartments and mounting points (no text or symbols)

ZOZNAM SÚČASTÍ

  1. KONTROLKA NABITIA BATÉRIE
  2. TLAČIDLO TESTU NAPÁJANIA
  3. KONTROLKA BLUETOOTH
  4. KONTROLKA PORUCHY
  5. PRACHOVÝ FILTER

BEZPEČNOST VÝROBKU

KRESS KAC804 - BEZPEČNOST VÝROBKU - 1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

KAZALO VSEBINE

Uvod....79

Sestavni deli....80

Varnost izdelka....81

Navodila za uporabo....82

Polnjenje akumulatorja....83

Shranjevanje....83

Transport....83

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SADRŽAJ

Uvod....85

Popis komponenti....86

Sigurnostproizvoda....87

Upute za upotrebu....88

Punjenje baterije....89

Skladištenje....89

Transport....89

Održavanje i servisiranje....89

Tehnički podaci....90

Zaštita okoliša....90

Deklaracija usklađenosti....90

UVOD

Poštovani,

text_image Diagram of a device front panel with labeled buttons and ports, showing numbered labels 1 to 4.

KRESS KAC804 - UVOD - 1

natural_image Technical line drawing of a device casing with internal compartments and mounting points (no text or symbols)

POPIS KOMPONENTI

  1. SVJETLO INDIKATORA BATERIJE
  2. GUMB ZA TEST NAPAJANJA
  3. SVJETLO INDIKATORA BLUETOOTHA
  4. SVJETLO INDIKATORA GREŠKE
  5. FILTAR ZA PRAŠINU

SIGURNOST PROIZVODA

KRESS KAC804 - SIGURNOST PROIZVODA - 1

UPOZORENJE: Treba pročitati sve napomene o sigurnosti i upute. Ako se

ne bi poštivale napomene o sigurnosti i upute to bi moglo uzrokovati strujni udar, požar i/ili teške ozljede.

Pažljivo pročitajte upute za siguran rad stroja.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDHOLDSFORTEGNELSE

Introduktion....91

Lista de componentes....92

text_image Diagram of a device front panel with labeled buttons and ports, showing numbered labels 1 to 4.

KRESS KAC804 - INDHOLDSFORTEGNELSE - 1

natural_image Technical line drawing of a device casing with internal compartments and mounting points (no text or symbols)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SISÄLLYSLUETTELO

Johdanto....97

Komponenttiluettelo....98

text_image Technical diagram of an electronic device front and back with labeled components

KOMPONENTTILUETTELO

  1. AKUN MERKKIVALO
  2. VIRRAN TESTAUSPAINIKE
  3. BLUETOOTHIN MERKKIVALO
  4. VIAN MERKKIVALO
  5. PÖLYSUODATIN

TUOTETURVALLISUUS

KRESS KAC804 - TUOTETURVALLISUUS - 1

Standards conform to,

EN 62133-2,

EN 300328,

EN 301489-1/-17,

EN 50663

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INNHOLDFORTEGNELSE

Introduksjon....103

Komponentliste....104

Produktsikkerhet....105

Driftsinstrukser....106

text_image Diagram of a device front panel with labeled buttons and ports, showing numbered labels 1 to 4.

KRESS KAC804 - INNHOLDFORTEGNELSE - 1

natural_image Technical line drawing of a rectangular electronic device with internal compartments and mounting points (no text or symbols)

KOMPONENTLISTE

  1. BATTERIINDIKATORLYS
  2. STR∅MTESTKNAPP
  3. BLUETOOTH-INDIKATORLYS
  4. FEILINDIKATORLYS
  5. ST∅VFILTER

PRODUKTSIKKERHET

KRESS KAC804 - PRODUKTSIKKERHET - 1

SERVICE OG VEDLIKEHOLD

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INNEHÅLLSFÖRTECKNING

Introduktion....109

Komponenter....110

Produktsäkerhet....111

Bruksanvisning....112

Så laddar du batteriet....113

Förvaring....113

Transport....113

text_image Diagram of a device front panel with labeled buttons and ports, showing numbered labels 1 to 4.

KRESS KAC804 - INNEHÅLLSFÖRTECKNING - 1

natural_image Technical line drawing of a rectangular electronic device with internal compartments and mounting points (no text or symbols)

KOMPONENTER

  1. BATTERIETS INDIKATORLAMPA
  2. KNAPPEN FÖR STRÖMTEST
  3. INDIKATORLAMPA TILL BLUETOOTH
  4. INDIKATORLAMPA VID FUNKTIONSSTÖRNING
  5. DAMMFILTER

PRODUKTSÄKERHET

KRESS KAC804 - PRODUKTSÄKERHET - 1

WARNING! LÄS ALLA INSTRUKTIONER.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

KRESS KAC804 - WARNING! LÄS ALLA INSTRUKTIONER. - 1

text_image Kress Commercial

Copyright © 2023, Positec. All Rights Reserved.

AR01686601

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : KRESS

Model : KAC804

Category : Battery
