KAB04 - Battery KRESS - Free user manual and instructions

Product type	Rechargeable battery pack
Brand	Kress
Model	KAB04
Technology	Lithium-ion (Li-ion)
Nominal voltage	18 V
Capacity	2.0 Ah
Weight	Approximately 0.5 kg
Dimensions (L x W x H)	120 x 80 x 70 mm
Storage temperature	0 °C to 45 °C
Charging temperature	0 °C to 45 °C
Integrated protection	Protection against deep discharge, short circuits and overheating
Charging time (approx.)	1 hour with compatible charger
Intended use	Power Kress cordless tools
Maintenance	Clean ventilation openings with a soft, dry brush
Safety	Do not open, short-circuit, expose to fire or high temperatures
Recycling	Do not dispose of with household waste; follow separate collection instructions

Frequently Asked Questions - KAB04 KRESS

How to charge the KAB04 battery?

Use only the charger specified by Kress. Plug the charger into a mains outlet and insert the battery. The charging process stops automatically. Refer to the charger user manual for more details.

Can I use a charger from another brand?

No, use only the charger supplied or recommended by Kress. An unsuitable charger may damage the battery or cause a fire.

What is the recommended storage temperature?

Store the battery between 0 °C and 45 °C. Avoid leaving it in a car in summer or exposed to direct sunlight.

How to know if the battery is worn out?

If the runtime decreases significantly after normal charging, the battery is likely near the end of its life and should be replaced.

What to do if the battery gets hot during use?

Let the battery cool down before recharging. An integrated thermal protection interrupts charging if the temperature is too high.

How to clean the battery?

Clean the ventilation openings with a soft, clean, dry brush. Do not use water or chemicals.

Can I leave the battery on the charger permanently?

It is not recommended to leave the battery permanently connected. Remove it from the charger once charging is complete to extend its lifespan.

What does protection against deep discharge mean?

When the battery is too deeply discharged, a protection circuit stops the tool to prevent damage to the cells. Recharge the battery immediately.

How to safely transport the battery?

Make sure the housing is not damaged. Pack the battery to avoid any movement and short circuit during transport.

How to dispose of the battery at end of life?

Do not throw it away with household waste. Dispose of it at a battery collection point or follow local recycling instructions.

USER MANUAL KAB04 KRESS

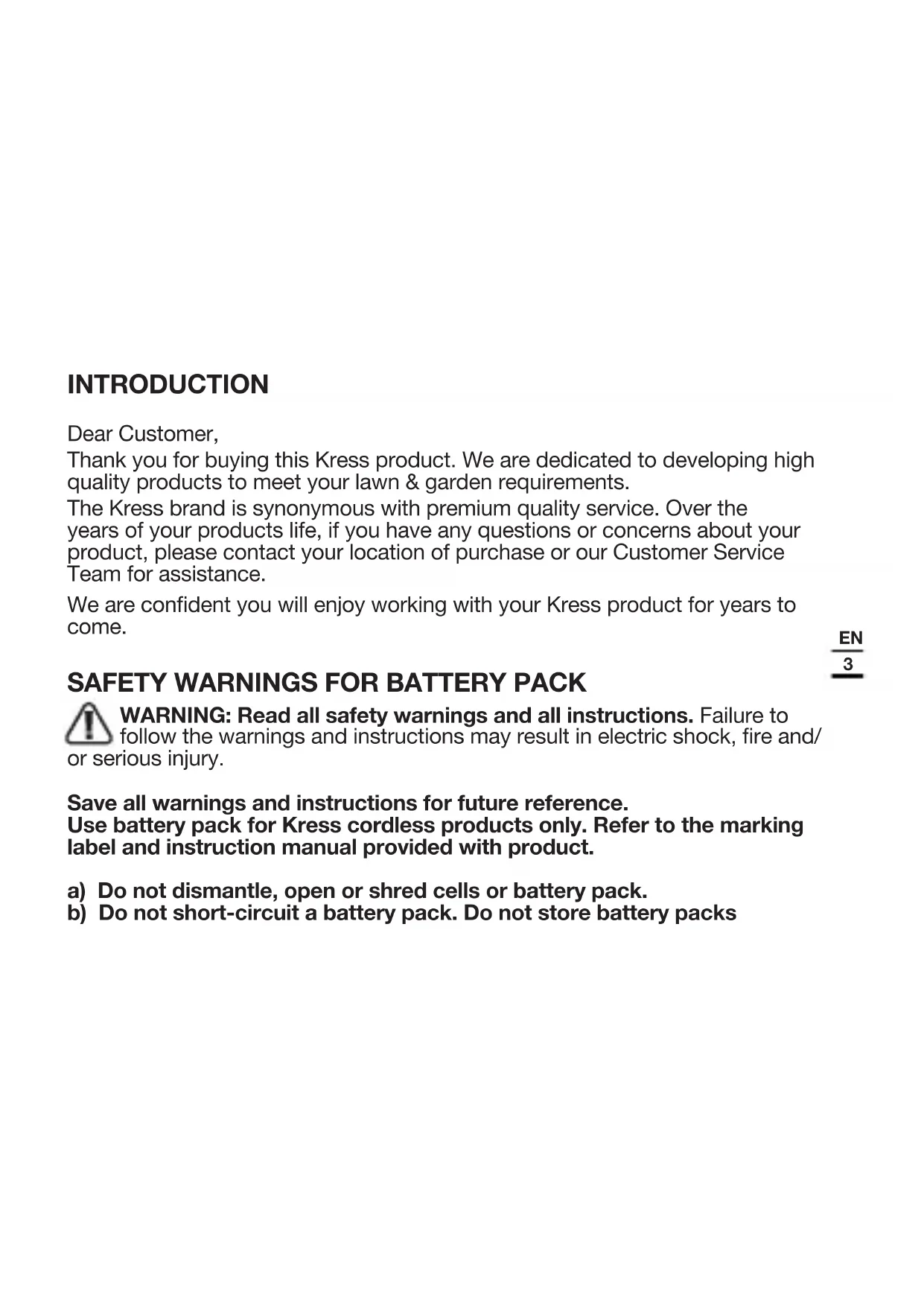

Thank you for buying this Kress product. We are dedicated to developing high quality products to meet your lawn & garden requirements.

The Kress brand is synonymous with premium quality service. Over the years of your products life, if you have any questions or concerns about your product, please contact your location of purchase or our Customer Service Team for assistance.

We are confident you will enjoy working with your Kress product for years to come.

SAFETY WARNINGS FOR BATTERY PACK

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/rious injury.

Save all warnings and instructions for future reference.

Use battery pack for Kress cordless products only. Refer to the marking label and instruction manual provided with product.

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs

haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Keep battery pack clean and dry.

g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
i) Do not maintain battery pack on charge when not in use.
j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
k) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment.
I) Do not use any battery pack which is not designed for use with the

equipment.

m) Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Keep the battery away from microwaves and high pressure.

SYMBOL

	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	Do not burn
	Li-Ion battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.

OPERATION INSTRUCTIONS

Recommendations for optimal handling of the battery NOTE:

1. Your battery pack is UNCHARGED. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.
2. A battery pack will slowly lose its charge when kept out of the charger or left in an unplugged charger for a long time. It may need to be recharged before use.

The Li-Ion battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit: The tool no longer rotates. In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow time for the battery to cool down before recharging. The Li-Ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

How to charge the battery

Refer to the instruction manual provided with product or charger.

Store the battery only within a temperature range between 0^ C and 45^ C. As an example, do not leave the battery in the car in summer time.

A significantly reduced working period after charging indicates that the battery

is used and must be replaced.

TRANSPORT

The contained Li-Ion batteries are subject to the dangerous goods legislation requirements.

Dispatch batteries only when the battery housing is undamaged. Pack up the batteries in such a manner that cannot move around in the packaging.

MAINTENANCE AND SERVICE

Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

When the battery is no longer operative, please refer to an authorized after-sales service agent for Kress power tools.

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 680194, 50704 Cologne, Germany

On behalf of Positec declare that the product

Description Battery pack

Function For powering the tools

Complies with the following Directives: (EU)2023/1542, 2011/65/EU & (EU)2015/863

Standards conform to EN 62133-2, EN IEC 63000

The person authorized to compile the technical file, Name Marcel Filz Address Positec Germany GmbH Postfach 680194, 50704 Cologne, Germany

EN 8

M A

2024/3/18

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

DECLARATION OF CONFORMITY

We,

Positec (UK & Ireland) Ltd

PO BOX 6242, Newbury, RG14 9LT, UK

On behalf of Positec declare that the product,

Description Battery pack

Function For powering the tools

Complies with the following Regulations:

The Batteries and Accumulators (Placing on the Market) Regulations 2008 (as amended) and the Waste Batteries and Accumulators Regulations 2009 (as amended)

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Standards conform to

BS EN 62133-2, BS EN IEC 63000

The person authorized to compile the technical file,

Name Jim Kirkwood

Address Positec (UK & Ireland) Ltd

PO BOX 6242, Newbury, RG14 9LT, UK

A#

2024/3/18

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

EN

10
