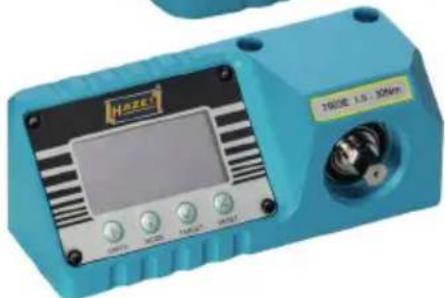

USER MANUAL 7901E Hazet

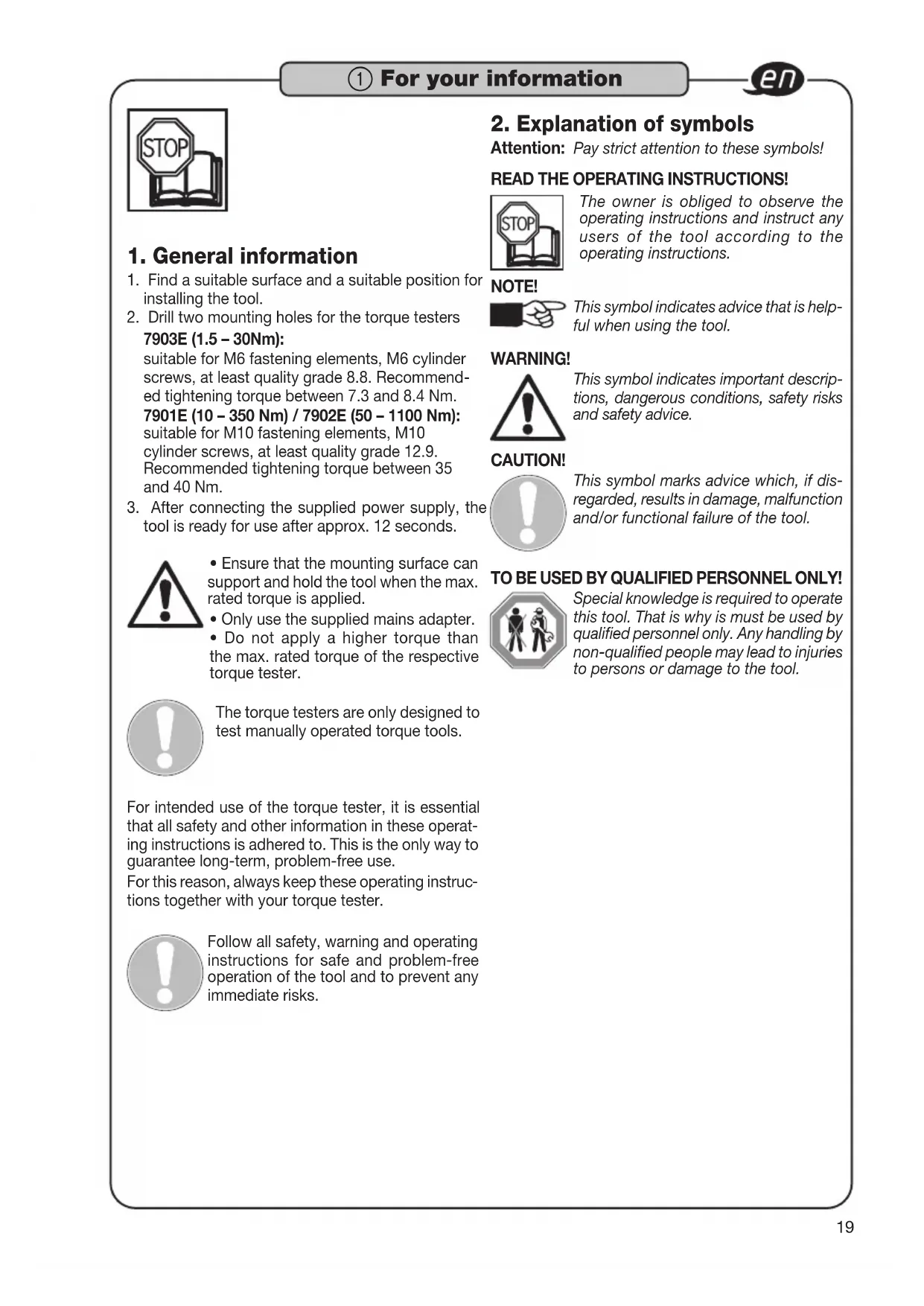

General information / safety instructions

1. Find a suitable surface and a suitable position for

installing the tool.

2. Drill two mounting holes for the torque testers

7903E (1.5 – 30Nm): suitable for M6 fastening elements, M6 cylinder screws, at least quality grade 8.8. Recommend

ed tightening torque between 7.3 and 8.4 Nm. 7901E (10 – 350 Nm) / 7902E (50 – 1100 Nm): suitable for M10 fastening elements, M10 cylinder screws, at least quality grade 12.9. Recommended tightening torque between 35 and 40 Nm.

3. After connecting the supplied power supply, the

tool is ready for use after approx. 12 seconds.

• Ensure that the mounting surface can support and hold the tool when the max. rated torque is applied.

• Only use the supplied mains adapter.

• Do not apply a higher torque than the max. rated torque of the respective torque tester. The torque testers are only designed to test manually operated torque tools. For intended use of the torque tester, it is essential that all safety and other information in these operat

ing instructions is adhered to. This is the only way to guarantee long-term, problem-free use. For this reason, always keep these operating instruc

tions together with your torque tester. Follow all safety, warning and operating instructions for safe and problem-free operation of the tool and to prevent any immediate risks.

2. Explanation of symbols

Attention: Pay strict attention to these symbols! READ THE OPERATING INSTRUCTIONS! The owner is obliged to observe the operating instructions and instruct any users of the tool according to the operating instructions. NOTE! This symbol indicates advice that is help- ful when using the tool. WARNING! This symbol indicates important descrip- tions, dangerous conditions, safety risks and safety advice. CAUTION! This symbol marks advice which, if dis- regarded, results in damage, malfunction and/or functional failure of the tool. TO BE USED BY QUALIFIED PERSONNEL ONLY! Special knowledge is required to operate this tool. That is why is must be used by qualified personnel only. Any handling by non-qualified people may lead to injuries to persons or damage to the tool.

• Specialist technical knowledge and/ or suitable training is required for the use and repair of this tool.

• The tool was developed and manufactured accord

ing to the technical norms and standards valid at the time and is considered to be operationally reli

able. Nevertheless, the tool can present a danger when it is not used as intended or in an inappropri

ate way by non-qualified personnel. Please make sure that any person using this tool or carrying out any maintenance work carefully reads these operating instructions and fully understands all the provided information before using the tool.

• Keep the operating instructions together with the tool at all times. If the operating instructions have been mislaid or made unusable, please contact your specialist dealer or HAZET-WERK.

• Only operate the tool if it is in good working condi

tion. If the tool does not work properly, it must be removed from service and inspected.

• All safety, warning and operation instructions on the tool must remain legible. Any damaged labels or stickers, as well as the display cover, must be replaced immediately.

• In addition to the safety advice given in these operating instructions, the general safety regulations, accident prevention regulations and environmental protection regulations relevant to the application of this tool are to be observed and adhered to.

• All safety equipment must always be within reach and should be checked regularly.

Operational reliability can only be ensured, if the tool is used as intended and in compliance with the indications given in the operating instructions. Any deviation from the intended use and/or any misapplication of the tool is not allowed and will be considered as improper use. Use and maintenance of the tool must always comply with relevant national or federal regulations. Incorrect use, use whilst failing to comply with the safety instructions and overloading of the HAZET torque tester can result in incorrect readings and/ or failure of the system (and therefore death, serious injury, health problems and material damage). Never modify the tool. For safety reasons, any modifi

cation of the HAZET torque tester is strictly forbidden. Do not remove safety devices and/or housing parts. Never operate the tool if a protective cover is miss

ing or if not all of the safety devices are fitted and in perfect working order. The maximum permissible torque must not be ex

ceeded. All indications concerning threshold values, setting values and setting ranges must be observed. Any claims against the manufacturer and/or its authorised agents because of damage caused by improper use of the tool are void. Any modification of the tool and/or improper use will result in immediate exclusion from warranty and liability. Any personal injury or material losses caused by improper use of the tool are the sole responsibility of the owner.

3. Dangers that may arise from

using the tool Before each use, check the torque tester for full functionality. Do not use the tool if its functional efficiency (according to the test results) cannot be ensured or if damage is detected. If it is determined that the tool is not in good working order but the tool is used despite this, there is a danger of serious damage to body, health and property.

• Electronic torque testers are calibrated measuring instruments and must be handled with care. Avoid any mechanical, chemical and thermal exposure that goes beyond the stresses of normal use.

• The electronic torque tester must not be exposed to rain, moisture or liquids. Do not allow any foreign bodies to penetrate it and always ensure that unused connectors are covered. Extreme climatic conditions such as cold, heat and humidity can have an effect on measurement values/results. Failure to comply with these instructions can result in damage to or destruction of the torque tester.

• Only transport the torque tester in its case and ensure that it does not fall during transportation. Avoid any mechanical shock effects such as hard impacts or falls. Failure to comply can damage electronic components of the tool.

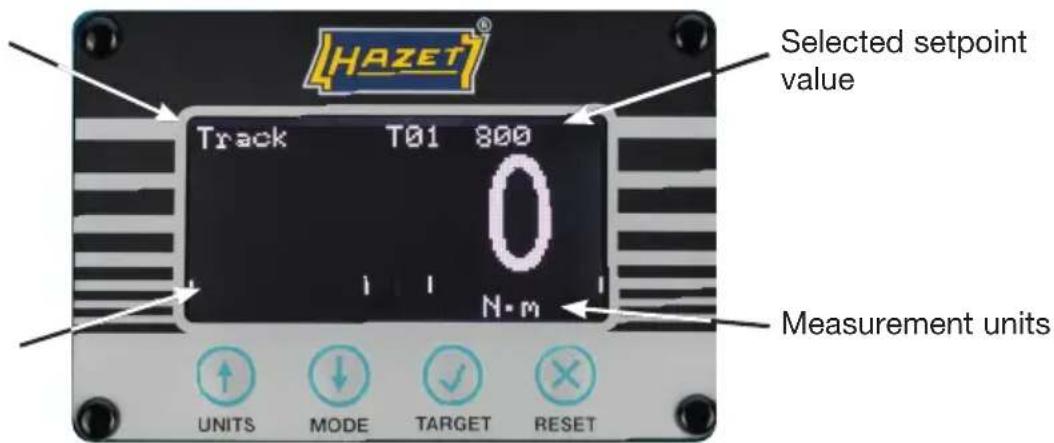

Operating instructions Measurement screen Operating mode Setpoint value display line Selected setpoint value Measurement units Short press changes the units of measurement (Nm, lbf.ft and lbf.in, etc.) Long press Use the UNITS MENU to activate or deactivate units (Press and hold) Short press changes the operating mode (Track, click and dial)* Long press Use the CLICK MENU to change the click mode set- tings (Press and hold) Short press changes the selected setpoint value (T01 XXX.X, T02 XXX.X, etc.) The units are automatically changed to the setpoint units. NOTE: T-- ---- means that no setpoint value is set Long press Use the TARGET MENU to edit setpoint values (Press and hold) Short press resets a detected peak value In track mode (and click mode if set to manual reset) Zeroes the measured value In track mode with a meas- ured value < 4% of the max. value. In click and dial mode with a measured value < 1%.

• Track = Tracking measurement / display value (no value saving) Klick = Automatic click point detection (first peak) Dial = Peak value measurement (final peak)23

• When changing the setpoint, you can hold the buttons down to speed up the change

• If you change the unit, the setpoint value changes accordingly

• If you set the setpoint value to "0" it is deactivated, i.e. it cannot be selected in the measurement screen Press and hold on the measurement screen to display the version screen The version screen contains: Design P/N (part number) S/N (serial number) S/W (software version number) Press to return to the measurement screen Version screen Design P/N 43525 S/N 123456 S/W 1.1.025

Operating instructions Configuration menu Config. menu Language en LCD contrast 160 Invert LCD ü Zero Signal ü Active from 02.0% Select menu item (e.g. language) Confirm menu item Modify setting (e.g. en to fr) Confirm setting Select and press to save and quit Cancel (exit without sav- ing changes) Setting options Language: en / fr / de / it / da / es / fi / sv / no / pt LCD contrast: 1 - 255 (standard 160) Invert LCD: Invert (ü) or do not invert (û) Zero: Reset the stored zero value, see below. Signal: Activate (ü) or deactivate (û) Active from: 2.0 to 40.0 % (standard 2.0%) Press and hold on the measurement screen to display the version screen. Press to enter the configuration menu Zero setting Zeroing should only be performed if zeroing is not enabled for the torque tester in track mode. In this event, it is possible that the torque sensor will be overloaded. If the measured value is unstable the torque tester must be repaired. It is recommended that the torque tester is re-calibrated as soon as possible after zeroing. Ensure that no torque is applied to the device and remove all tools from the input drive when zeroing.26

Operating instructions Active from setting This is a percentage of the max. nominal value of the device at which the click or dial mode starts to record peak values. Setpoint value display When a target value is selected, the torque tester indicates in three different ways whether the reading is too low, within tolerance or too high.

1. Text colour: low = yellow; within tolerance = green; high = red

2. Setpoint value symbols: low = ; within tolerance = ü; high =

3. Setpoint value display line

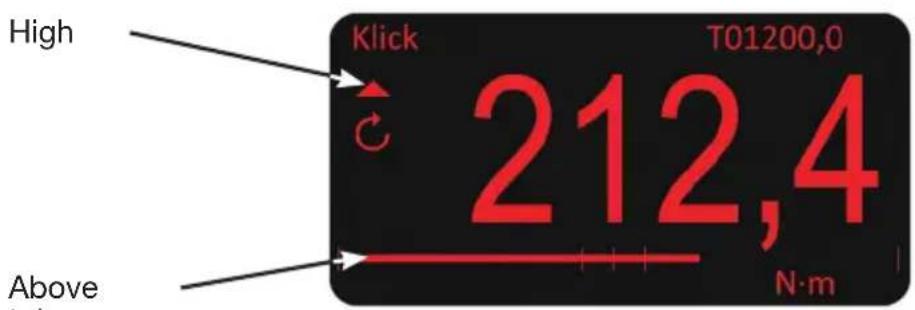

Example Setpoint value 1 (T01) set to 200.0 Nm ± 3 % (194.0 - 206.0 Nm); mode set to click First measurement: 190.7 Nm (value too low) Below tolerance The setpoint value display line is scaled to show ± 20 % in relation to the setpoint value (200 Nm) The two lines directly next to the centre line show the tolerance range for the setpoint values (± 3%) Low Clockwise Second measurement: 202.1 Nm (value within tolerance) Within tolerance Within tolerance Above tolerance High Third measurement: 212.4 Nm (value too high)27

Operating instructions Use of the device

1. Select operating mode

4. Place a torque screwdriver / torque wrench in or on the input drive and work in the

5. Remove the torque screwdriver / torque wrench and set the display to zero

(if necessary) by pressing the RESET button

6. Place a torque screwdriver / torque wrench in or on the input drive and work in the

desired direction USB port The USB port provides the power supply for the torque tester. The supplied USB cable can also be used to connect the unit to a PC / laptop for transferring measured torque values. Connect the torque tester to the PC / laptop and a virtual com port appears in the device manager. This com port should be selected and configured to match the program used to display the measured torque values. Measured torque values are sent to the PC / laptop when the RESET button is pressed in any mode and a peak value is reset (either manually via the RESET button in dial or click mode or when the automatic reset is triggered in click mode). NOTE: system requirement: Windows 10 (ff.) operating system is required to connect the torque tester to a PC / laptop and the HAZET torque testing software.28

ü ü ü ü ü ü Hold time auto-reset: 1, 2 or 3 seconds (adjustable) AC power adapter: 90 to 264 volts AC at 47 - 63 Hz input (world) Includes replaceable mains plug Energy efficiency level VI 5V, 1,000 mA DC USB A output plug Power consumption: 0.5 W – maximum Operating temperature range: 0°C to +50°C Storage temperature range: -20°C to +70°C Max. operating humidity: 85% relative air humidity at 30°C Environment: IP 40, for enclosed spaces in a lightly polluted industrial environment Max. rotational load in operation: 120% of the nominal rotational load Materials / design of housing: Powder-coated aluminium housing Measuring shaft made of stainless steel Electromagnetic compatibility: Developed in accordance with EN 61326-1. Low Voltage Directive: Developed according to EN 61010-1.TRANSIENT OVERVOLTAGE up to

OVERVOLTAGE CATEGORY II

NOTE: Subject to technical changes29

Maintenance and care Maintenance / calibration An electronic torque tester should be checked and calibrated regularly. After a long peri- od of use, new calibration or re-calibration by the factory is advisable. Electronic torque testers are measuring instruments. Measuring instruments must be tested and, if neces- sary, adjusted at the intervals specified by quality management using suitable measuring equipment. The time gap between test dates is dependent on the frequency of use. We recommend this after approx. 5000 operations or after one year at the latest. HAZET has appropriate test equipment. After testing and any necessary adjustment, the HAZET torque testers will be returned to you with a calibration certificate. The torque test equipment used by HAZET is continually monitored by the German Calibration Service (DKD) and is calibrated and adjusted whenever required. This ensures that the necessary expertise is available and that the quality of HAZET tools is maintained. We can also receive the electronic torque tester via your specialist dealer for inspection and calibration at the HAZET factory. To this end, we can provide you with a test equip- ment monitoring service for your torque tester. Please refer to the HAZET tool catalogue or visit www.hazet.de Repairs: Any service or repair work must be carried out by qualified personnel only. To arrange this, please get in touch with HAZET Service. Only genuine spare parts may be used. Unsuitable or defective spare parts may cause damage, malfunction or total failure of the device. The use of unapproved spare parts will void all warranty, service and liability claims as well as all claims for compensation against the manufacturer or its agents, distributors and sales representatives. The internal mechanical and electronic functional elements do not require any mainte- nance. Do not remove the front cover. No internal repairs or adjustments will be required. Cleaning / storage: The torque tester must be cleaned and stored according to the following conditions:

• Only clean the torque tester with a dry cloth.

• Do not expose tool to liquids and/or aggressive substances.

• Prevent tool from falling.

• Keep tool in a dry and dust-free place.

• Do not store the tool outdoors.

• Protect the tool from unauthorised access.

• Storage temperature -20°C to +70°C.

• Relative air humidity max. 85% at 30°C30 Disposal: For disposal, clean the electronic torque tester in accordance with locally applicable work safety and environmental protection regulations. Components can be recycled. Dispose of electronic components and batteries in accordance with legal regulations and environmental directives and the applicable waste regulations, e.g. at waste material collection points or recycling centres. Scrap any residual metal. Environmental protection is of fundamental importance to us here at HAZET. Reducing environmental pollution and preserving the environment are at the heart of our activities! Hotline / contact: This product has been developed and tested in accordance with high quality standards. If you have any questions, comments, suggestions for improvement or change requests, we would like to express our thanks to all HAZET customers for your feedback and will be glad to address your issues. National contact (Germany): Telephone: [phone] / 792 - 355 Fax: [phone] / 792 - 523 Email: [e-mail] International contact: Telephone: [phone] / 792 - 0 Email: [e-mail] HAZET-WERK Hermann Zerver GmbH & Co. KG ; Güldenwerther Bahnhofstraße 25 - 29 · 42857 Remscheid · GERMANY } 10 04 61 · 42804 Remscheid · GERMANY · [ +49 (0) 21 91 / 7 92-0 \ +49 (0) 21 91 / 7 92-375 · ^ hazet.de · ] [e-mail]

Maintenance and care31
